stock no. :
22066
Machine's group :
Type :

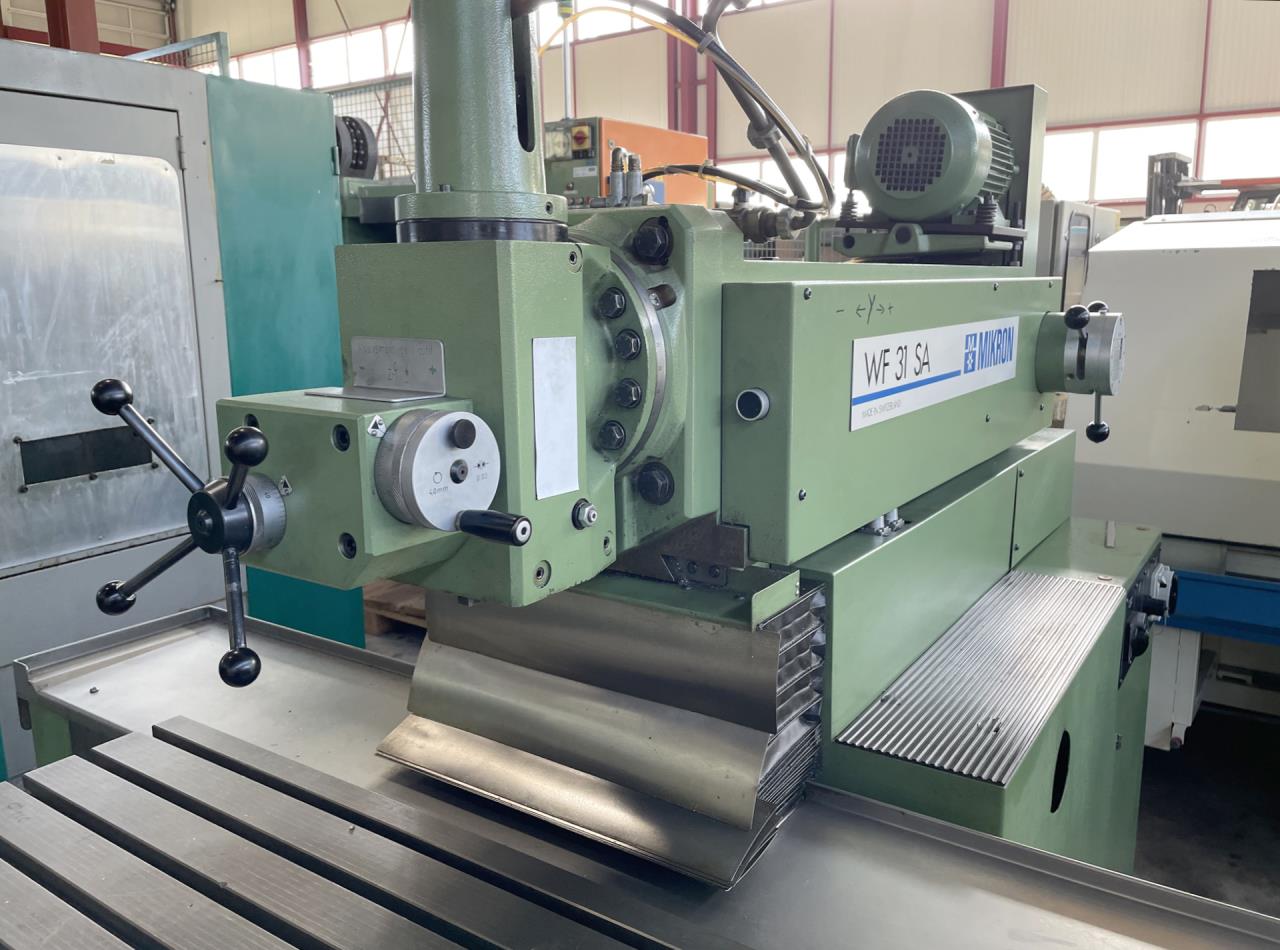

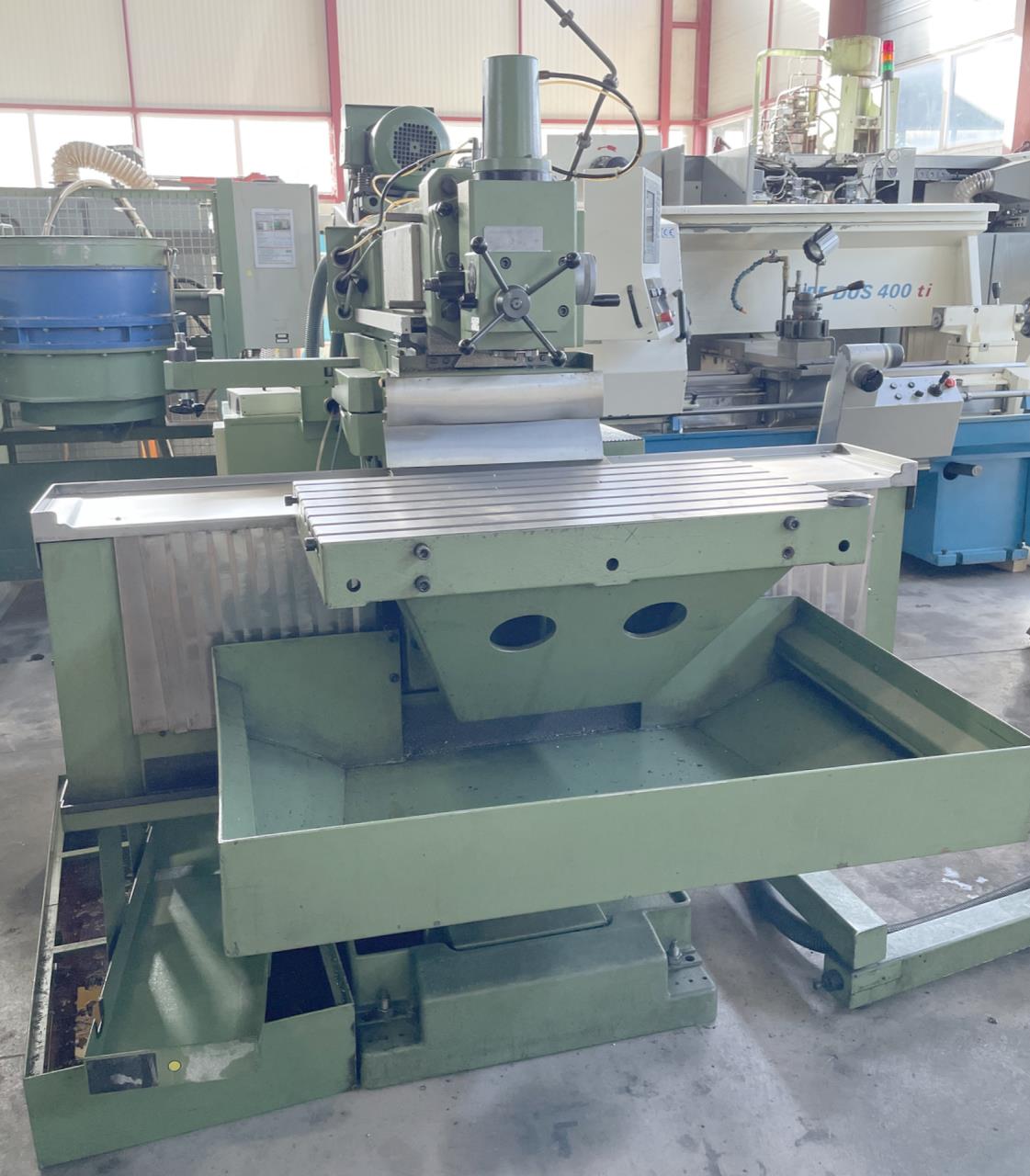

MIKRON WF 31 SA
Price :
5,000.00 EUR Special offer*
* Machines in special offers are sold in AS-IS condition,
without any functional guarantee or mechanical/technical inspection from our side.
Information request
MIKRON WF 31 SA 6 Image(s)
Back
Technical data
Number of axis total
3

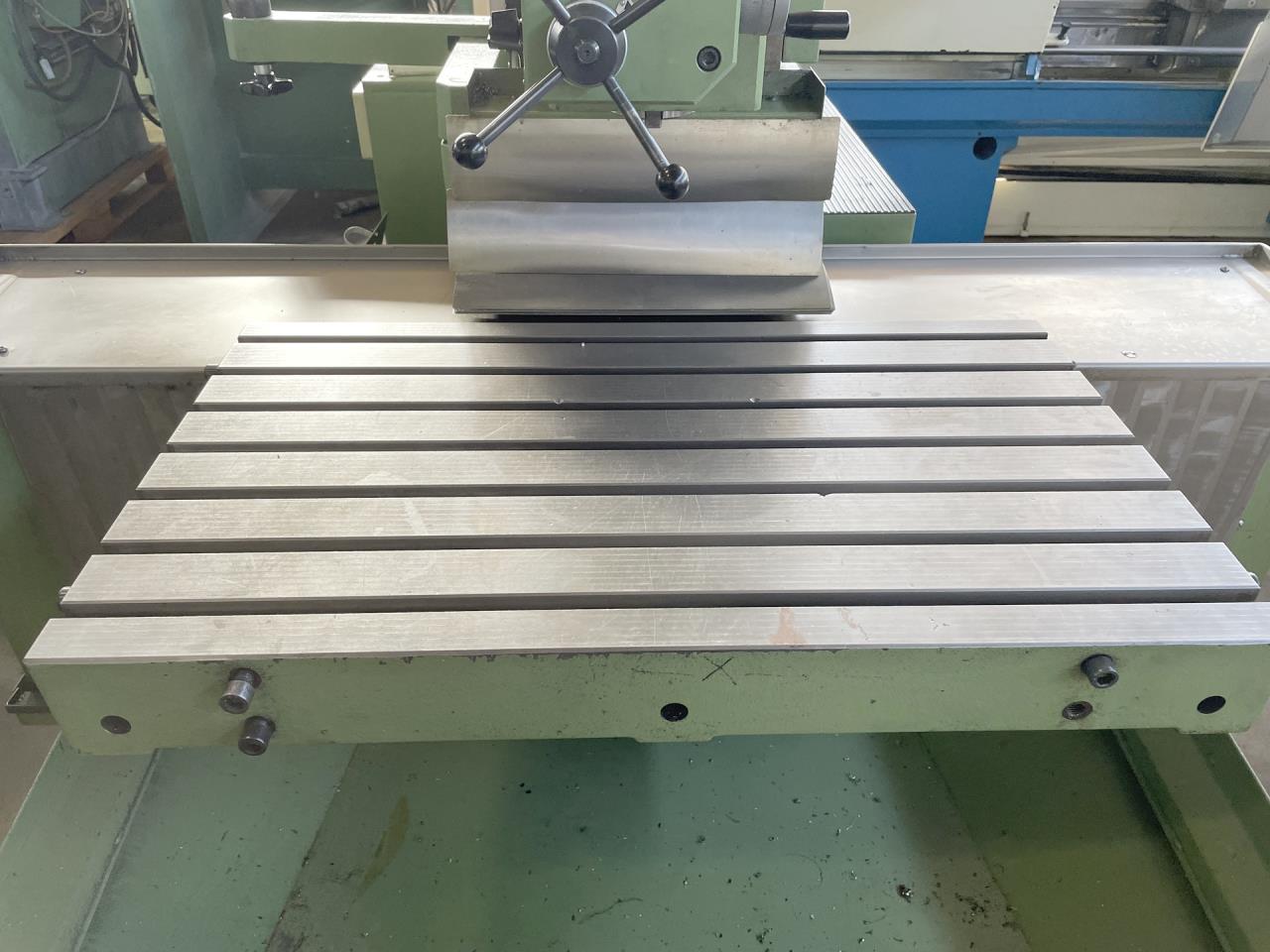

Table length
800 mm
Table width
460 mm
Number of T-channels
7
T-channel width
14H7 mm
Distance of the T-slots
65 mm
Longitudinal travel (X-axis)
560 mm
Transversal travel (y axis)
500 mm
Vertical travel (z axis)
400 mm
Spindle speeds:
    stepless
       from
4 rpm
       up to
4000 rpm
Taper in spindle
40 ISO
Feeds
2 - 2000 mm/min
Stroke of horizontal spindle
90 mm
Rapid traverse:
    longitudinal
4 m/min
    transversal
4 m/min
    vertical
3.5 m/min
Voltage 50 Hz 3x
380 Volt
Machine's weight about
2300 kg
Overall dimensions machine:
    Length
2430 mm
    Width
2100 mm
    Height
1855 mm
Various accessories:

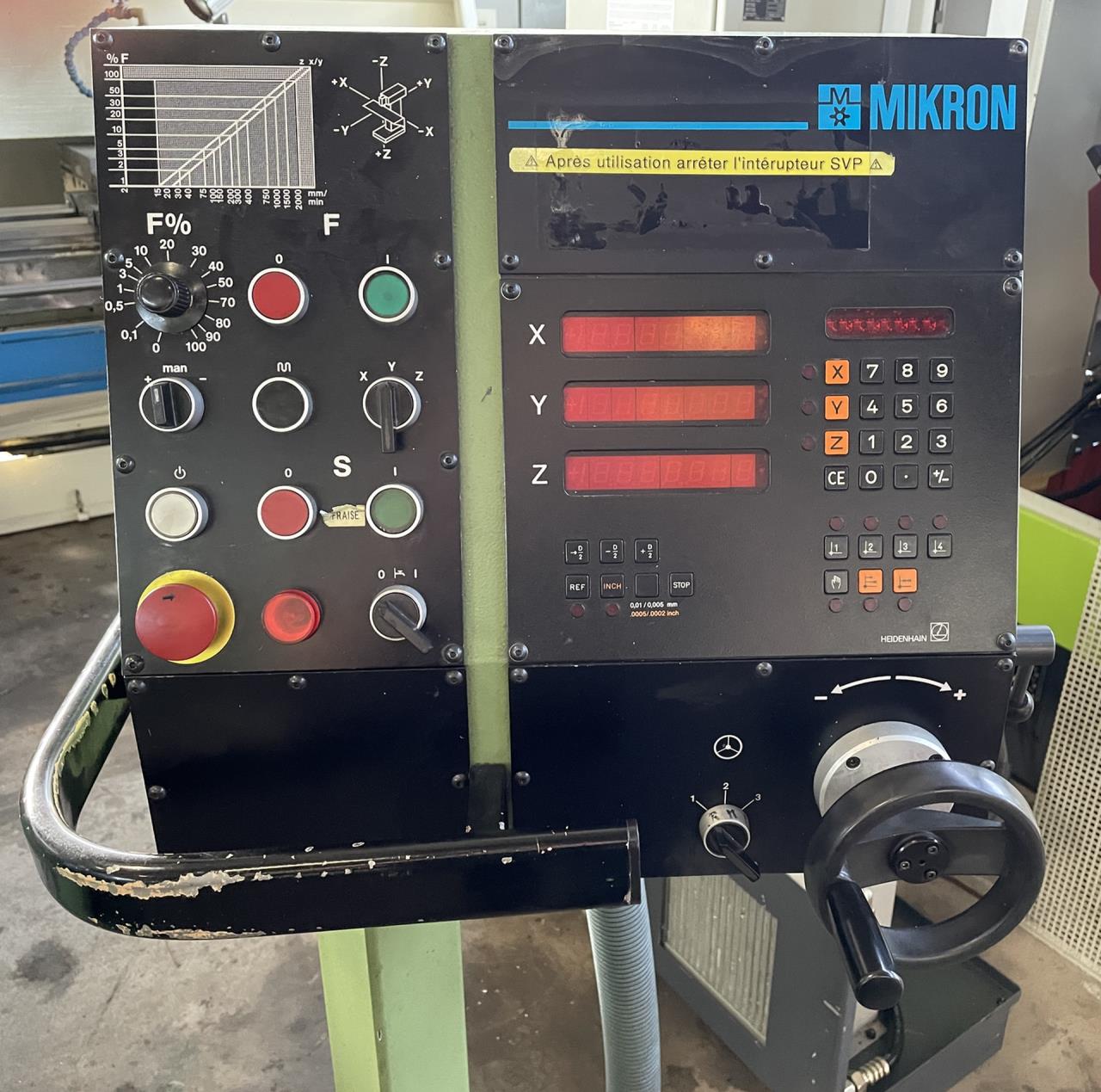

Digital readout number of axis:
3
    Manufacturer
HEIDENHAIN

Technical specifications and pictures without guarantee.
