stock no. :
9532
Machine's group :
Surface grinder
Type :
BLOHM PLANOMAT 408

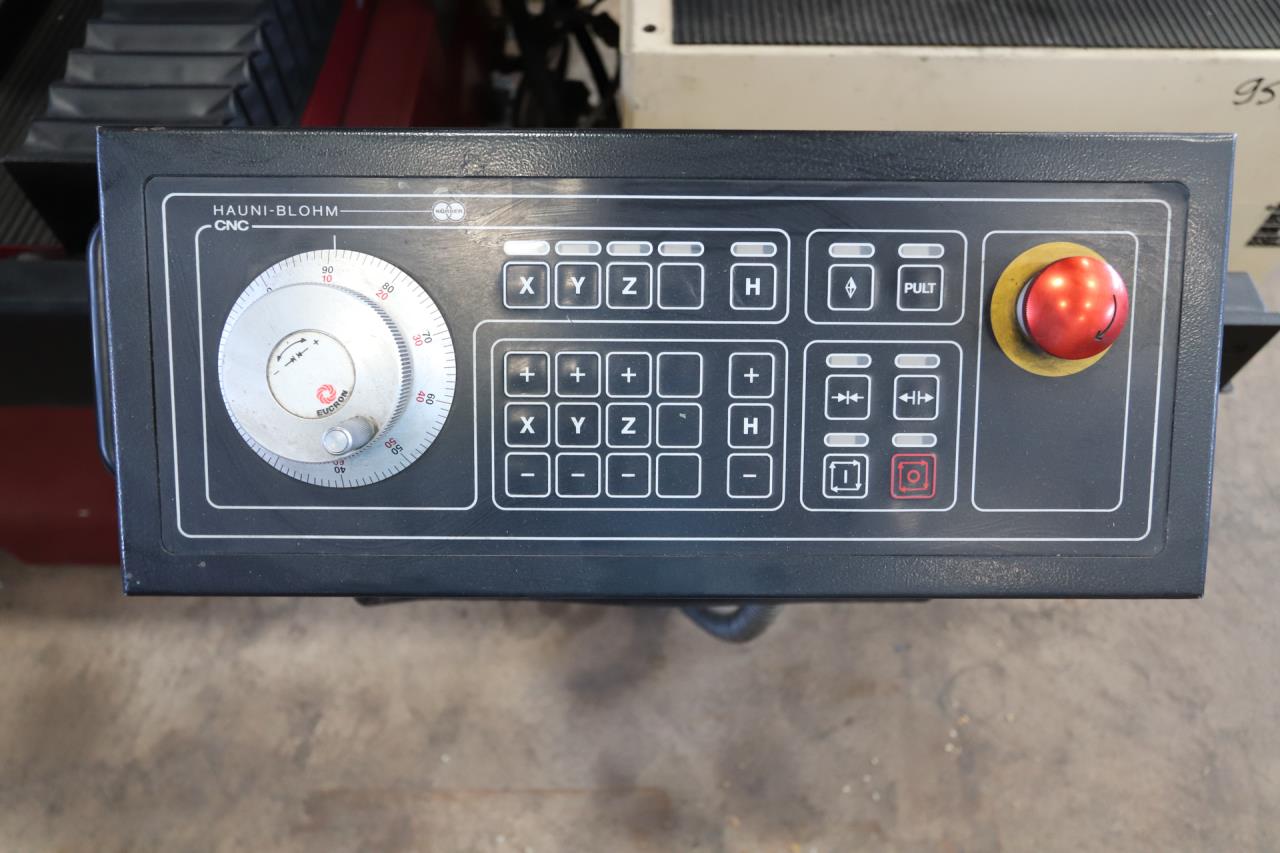

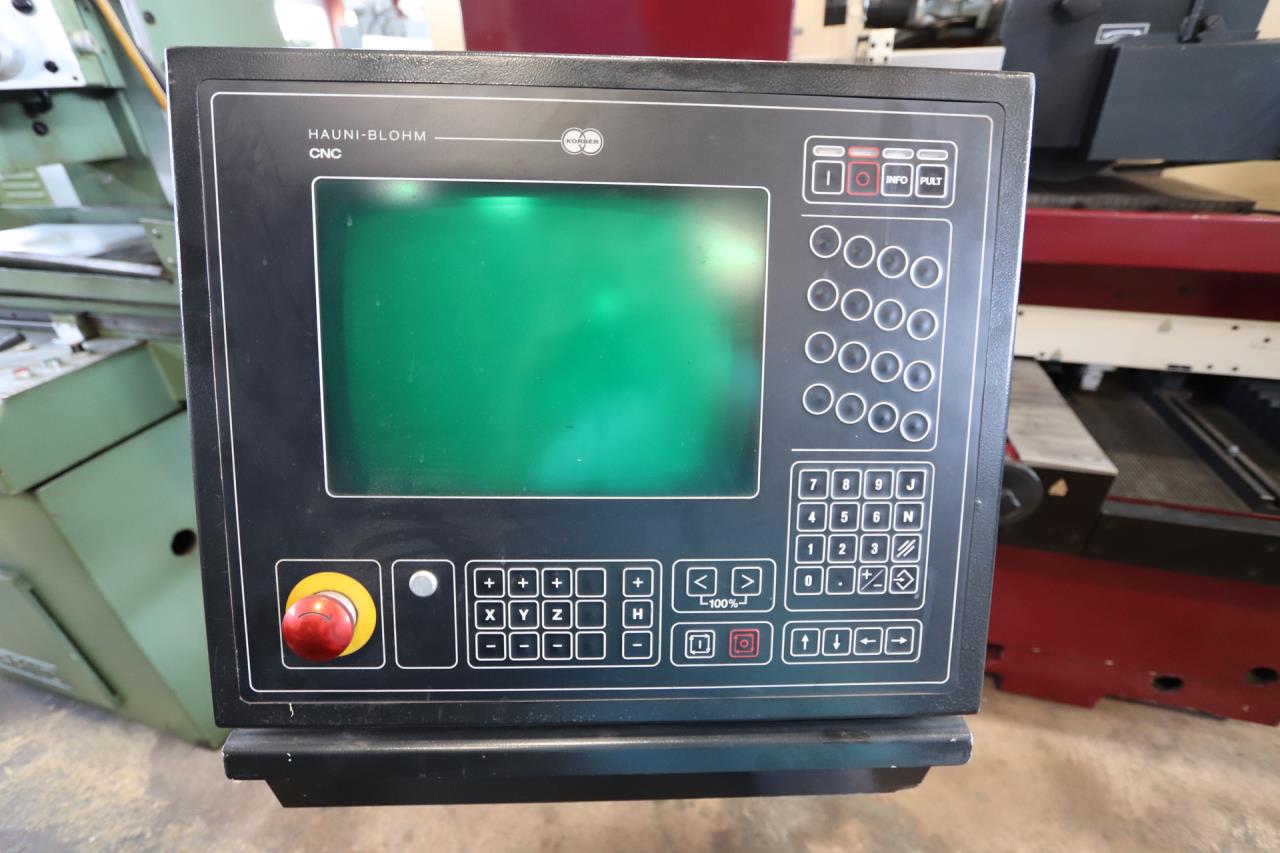

Controller :
HB CNC 100
Information request

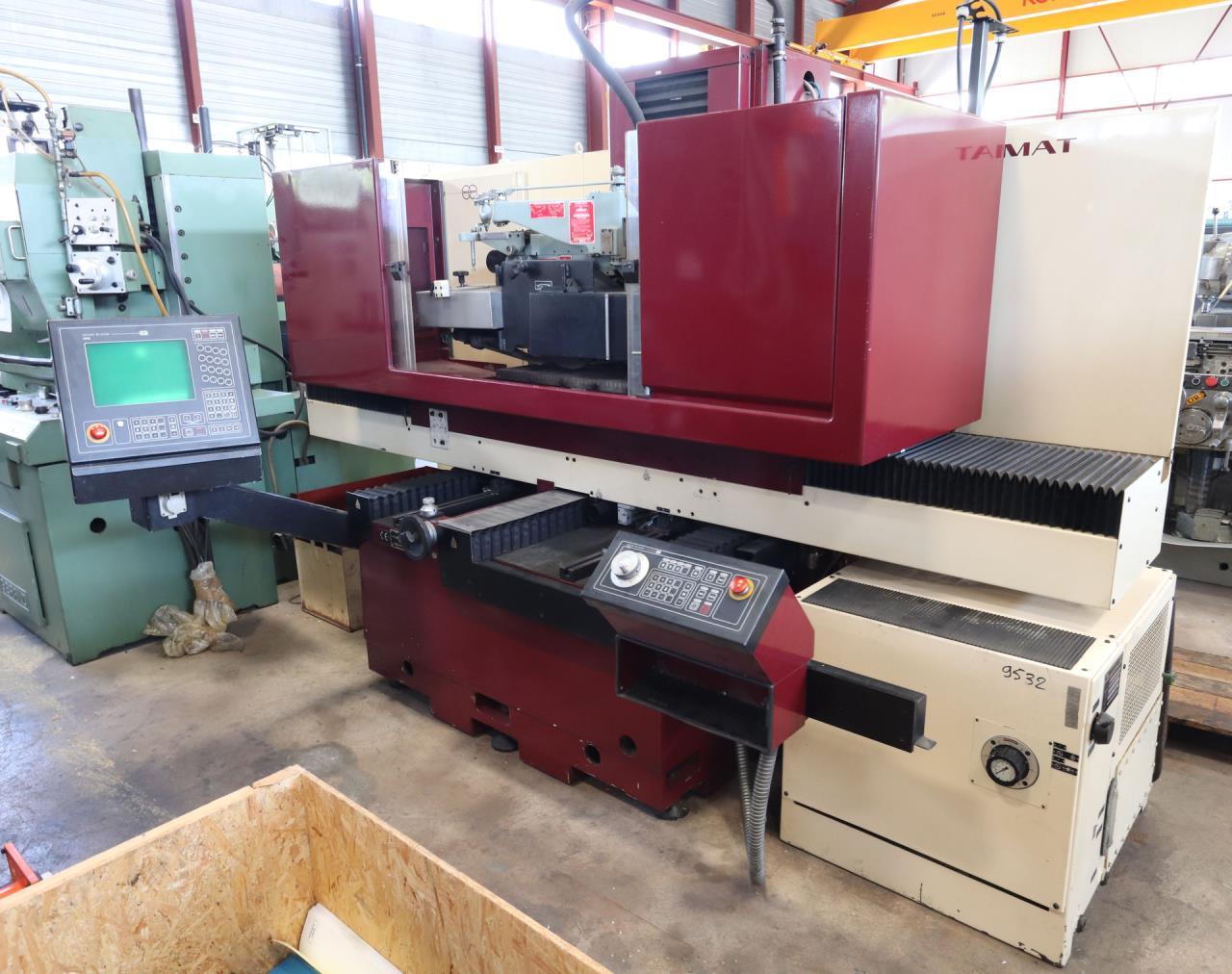

BLOHM PLANOMAT 408 7 Image(s)
Back
Technical data
Table length
800 mm
Table width
450 mm
Grinding length
800 mm
Grinding width
400 mm
Grinding height
500 mm
Max. distance from table
    to spindle-centreline
150 / 700 mm
Longitudinal travel (X-axis)
900 mm
Transversal travel (y axis)
400 mm
Vertical travel (z axis)
550 mm
Automatic cross-feed:
    stepless
    from
0.01 m/min
    up to
4 m/min
Table speeds:
    stepless
       from
0.02 m/min
       up to
25 m/min
Automatic vertical feed:
    from
1 mm/min
    up to
2000 mm/min
Diameter of grinding wheel
400 mm
Width of the grinding wheel
80 mm
Wheel int. diameter
127 mm
Grinding wheel speeds:
       from
1650 rpm
Voltage 50 Hz 3x
380 Volt
Grinding spindle motor
23 kW
Total power required
45 kVA
Machine's weight about
4800 kg
Overall dimensions machine:
    Length
4310 mm
    Width
3130 mm
    Height
2800 mm
Various accessories:

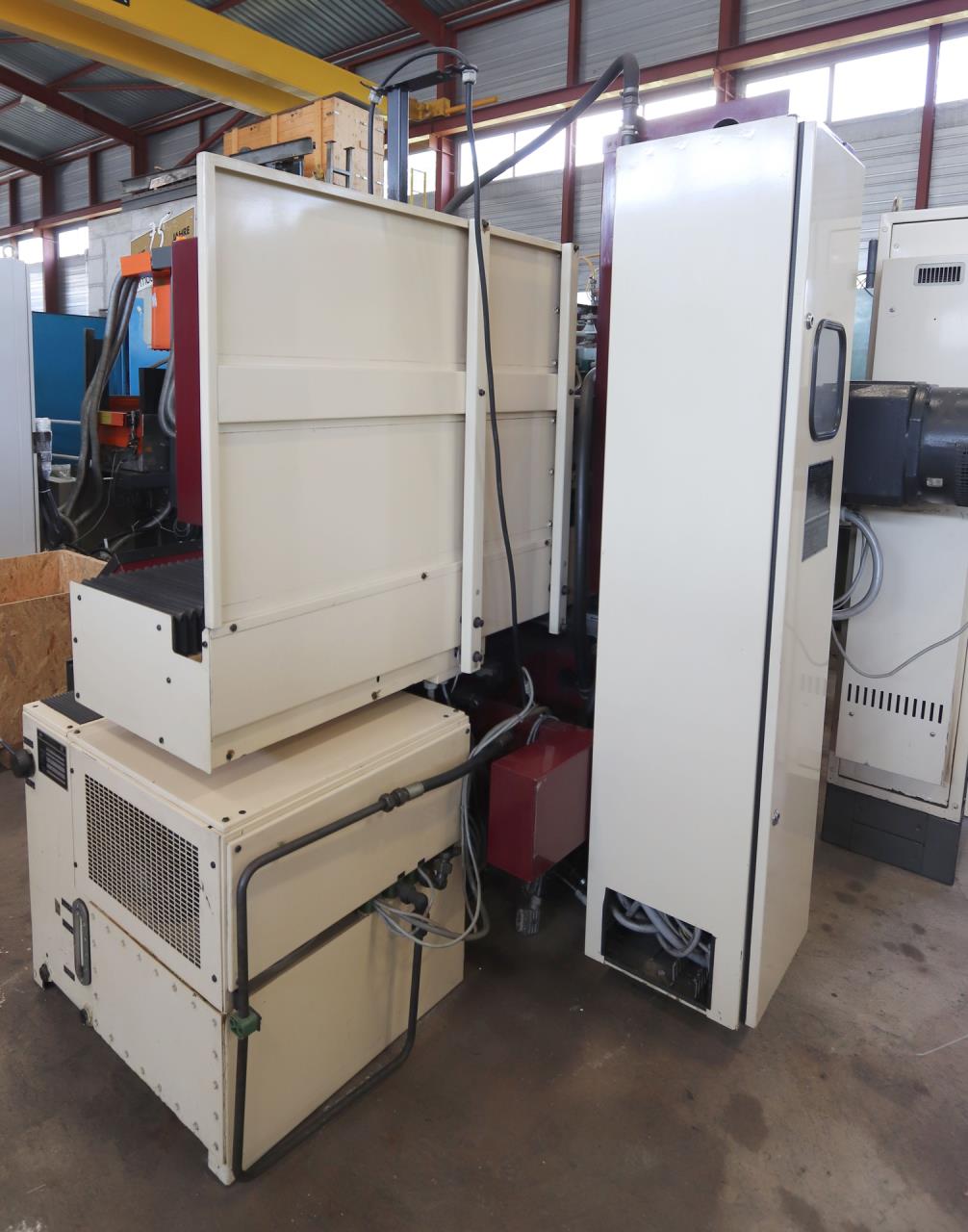

Coolant system
Paper filter facility

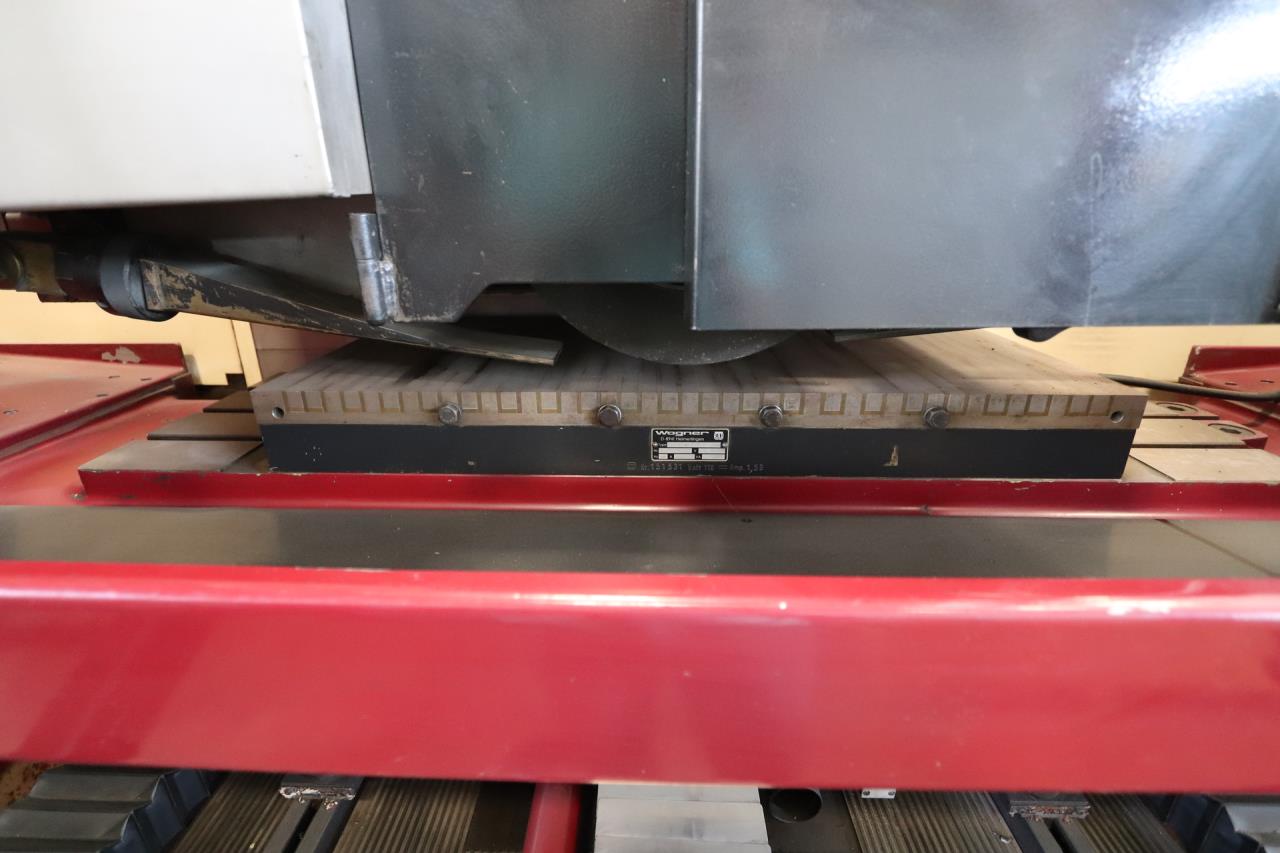

Electrical magnetic chuck
    Length
800 mm
    Width
350 mm
Set of flanges
Balancing arbor
DIAFORM profiling device
manual

Technical specifications and pictures without guarantee.
