stock no. :
8534
Machine's group :
Type :
SCHAUBLIN 213-P
SCHAUBLIN 213-P 4 Image(s)
Back
Technical data

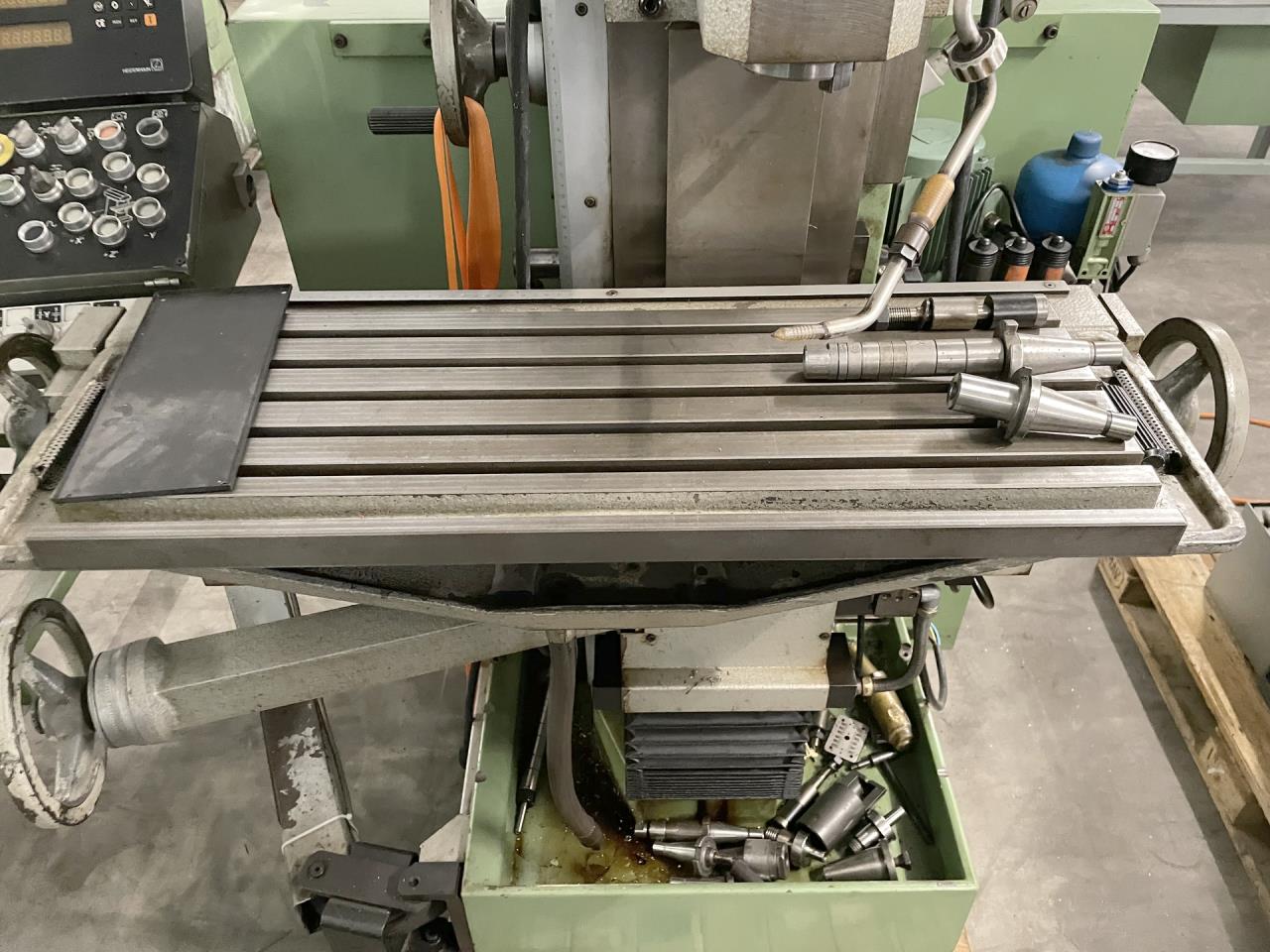

Table length
700 mm
Table width
250 mm
Longitudinal travel (X-axis)
320 mm
Transversal travel (y axis)
220 mm
Vertical travel (z axis)
410 mm
Spindle speeds:
    stepless
       from
56 rpm
       up to
3150 rpm
Taper in spindle
30 ISO
Feeds stepless:
    longitudinal from
8 mm/min
       up to
1000 mm/min
    transversal from
8 mm/min
       up to
1000 mm/min
    vertical from
8 mm/min
       up to
1000 mm/min
Vertical quill travel
60 mm
Rapid traverse:
    longitudinal
2 m/min
    transversal
2 m/min
    vertical
2 m/min
Voltage 50 Hz 3x
380 Volt
Motor power
1.8 kW
Total power required
2.6 kW
Machine's weight about
1000 kg
Overall dimensions machine:
    Length
1800 mm
    Width
1200 mm
    Height
1500 mm
Various accessories:

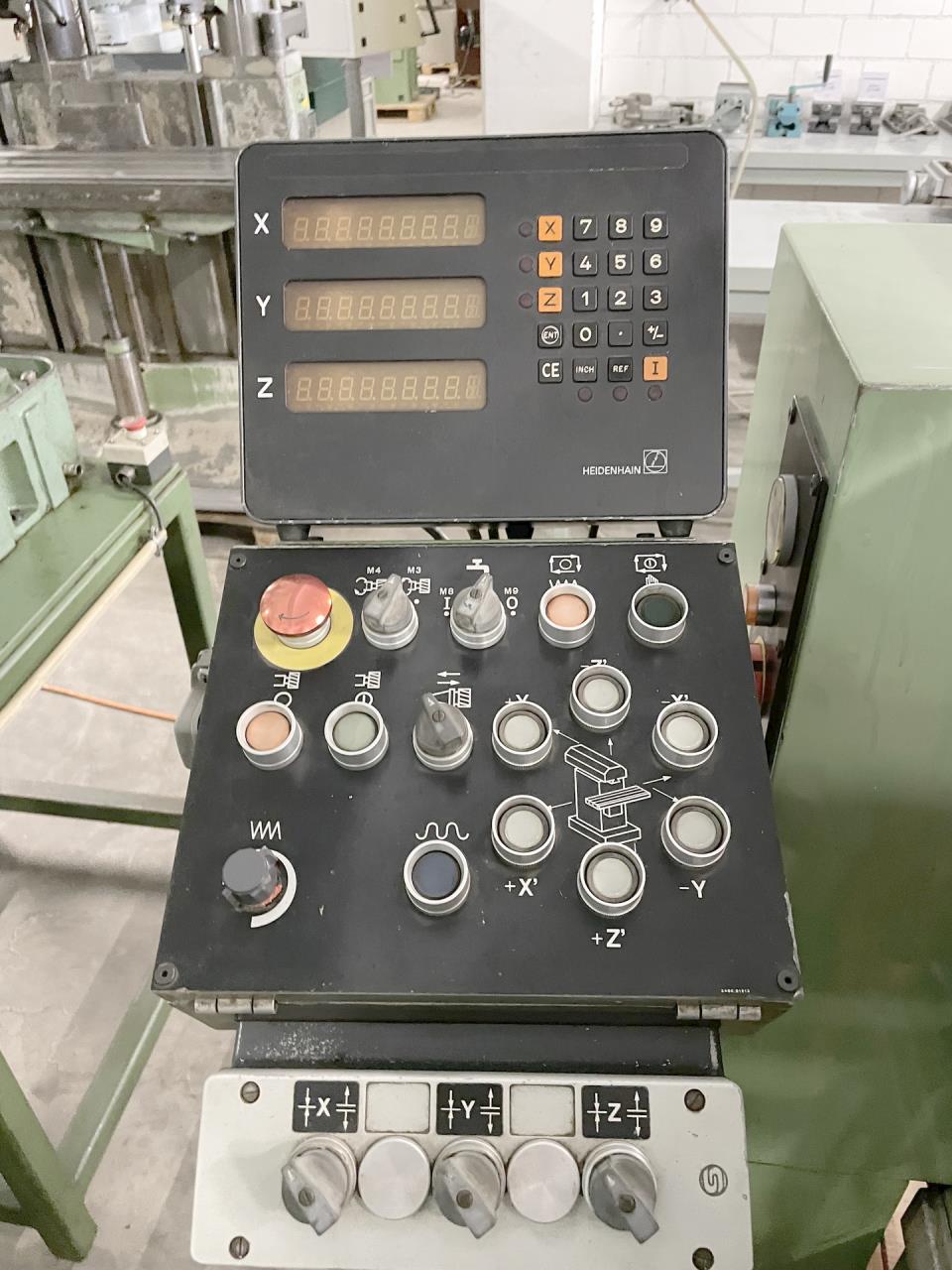

Digital readout number of axis:
3
    Manufacturer
HEIDENHAIN
Coolant system
Hydraulical tool tension
Lamp

Technical specifications and pictures without guarantee.
