stock no. :
7505
Machine's group :
Surface grinder
Type :
ELB SWH 5 NC-K
Information request

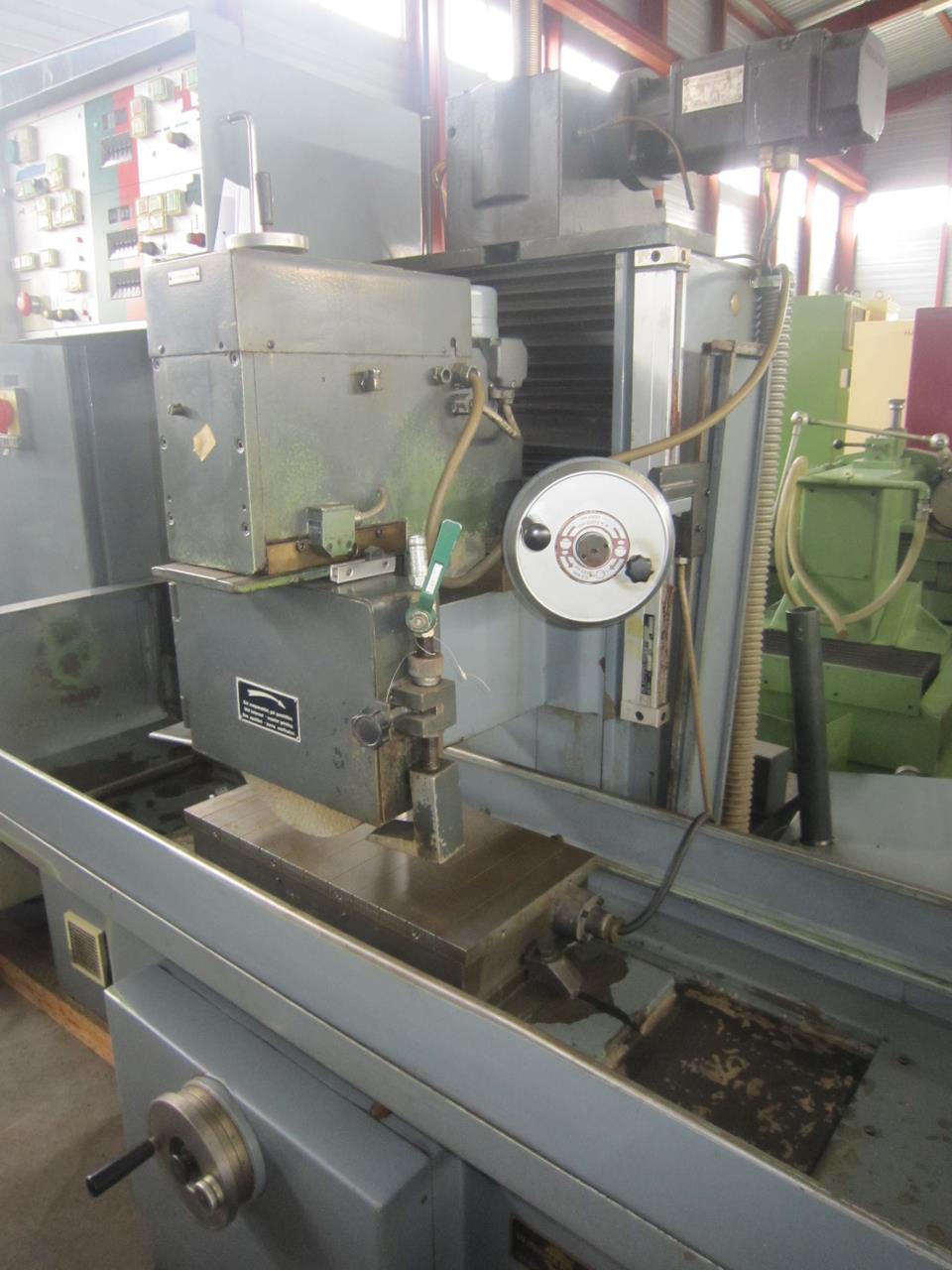

ELB SWH 5 NC-K 3 Image(s)
Back
Technical data
Table length
750 mm
Table width
200 mm
Grinding length
500 mm
Grinding width
250 mm
Grinding height
375 mm
Max. distance from table
    to spindle-centreline
525 mm
Table speeds:
    stepless
       up to
30.0 m/min
Diameter of grinding wheel
300 mm
Width of the grinding wheel
25 mm
Grinding wheel speeds:
    number (steps)
2
       from
1400 rpm
       up to
2800 rpm
Voltage 50 Hz 3x
380 Volt
Grinding spindle motor
1.50 HP
Machine's weight about
2250 kg
Various accessories:
Coolant system
Magnetic plate:
    Length
500 mm
    Width
250 mm
Redressing device
Creep feed

Technical specifications and pictures without guarantee.
