stock no. :
6983
Machine's group :
Tool and cutter grinder
Type :

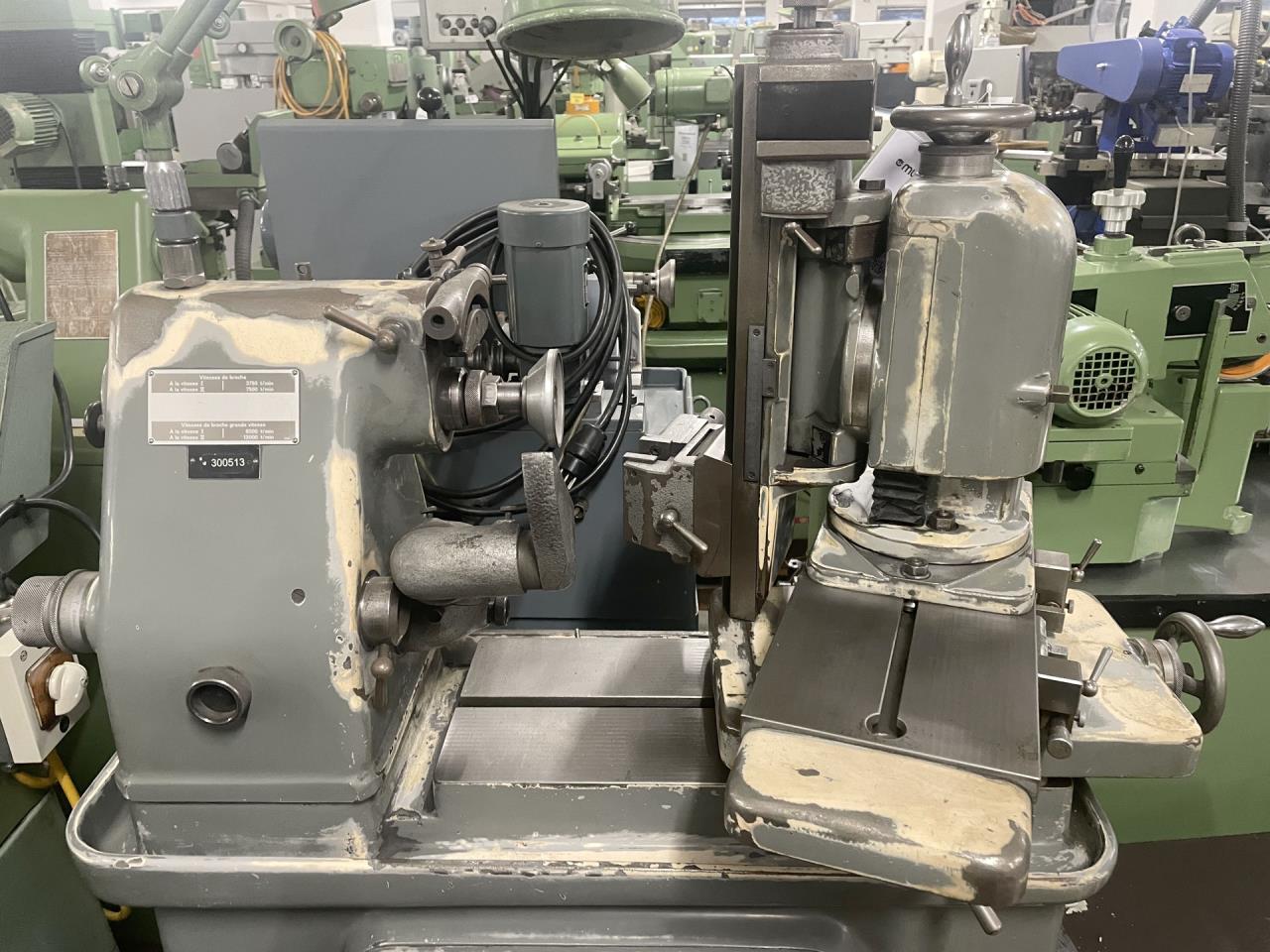

DECKEL SVK (S1)
Technical data
Centre height
95 mm
Distance between centres
250 mm
Table length
450 mm
Table width
175 mm
Max. grinding diameter
130 mm
Transversal way of the table
260 mm
Vertical adjustment of the table
50 mm
Vertical adjustment of grinding head
50 mm
Table swivels
360 °
Slewing range of grinding head:
horizontal
360 °
vertical
220 °
Grinding spindle speeds:
number (steps)
2
from
3750 rpm
up to
7500 rpm
Voltage 50 Hz 3x
380 Volt
Total power required
0.7 HP
Machine's weight about
450 kg
Overall dimensions machine:
Length
1000 mm
Height
1500 mm
Various accessories:
Set of collets
Dividing attachment
3-jaw chuck diameter
85 mm
Spiral flute grinding attachment
Technical specifications and pictures without guarantee.
