stock no. :
23224
Machine's group :
Type :

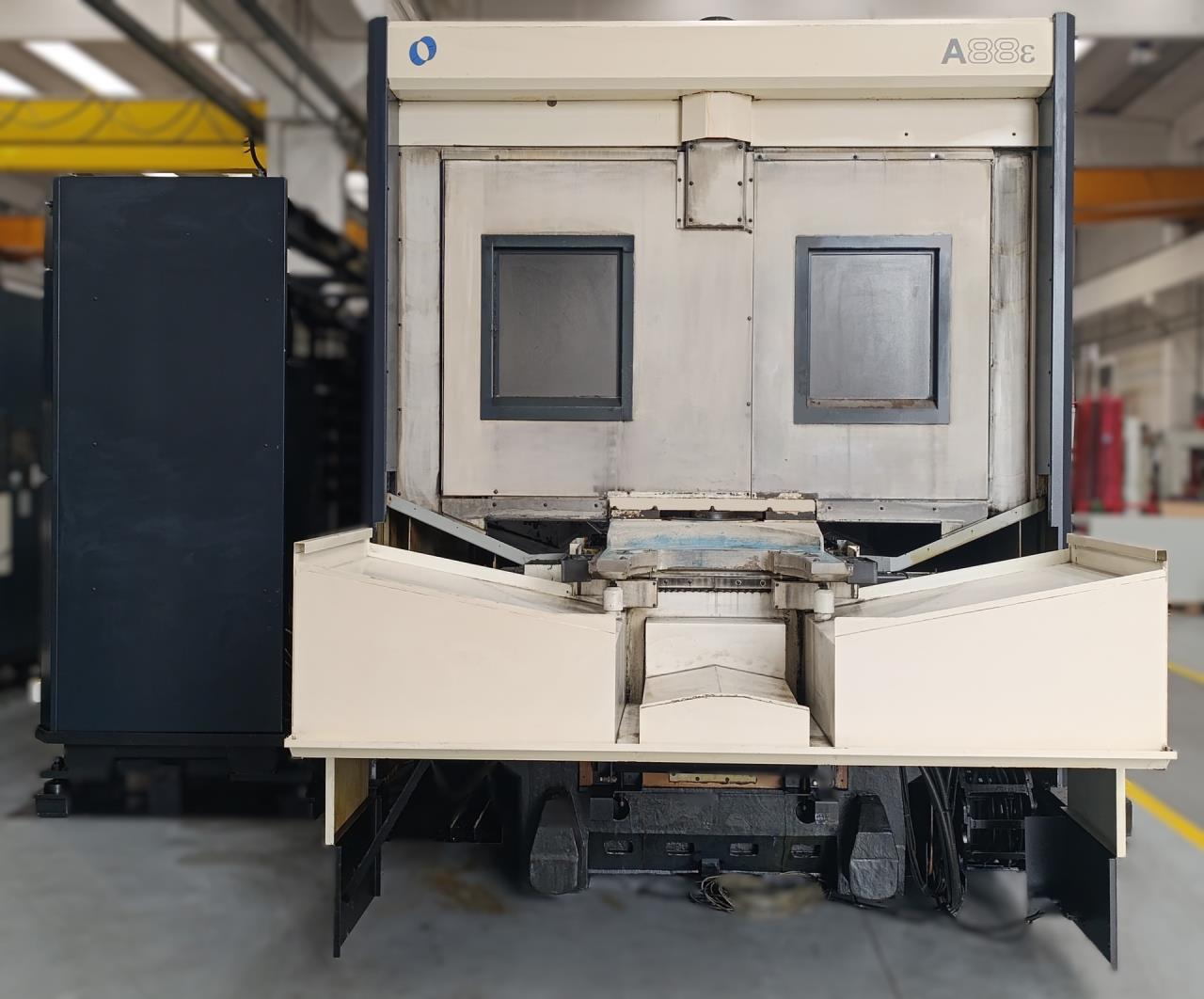

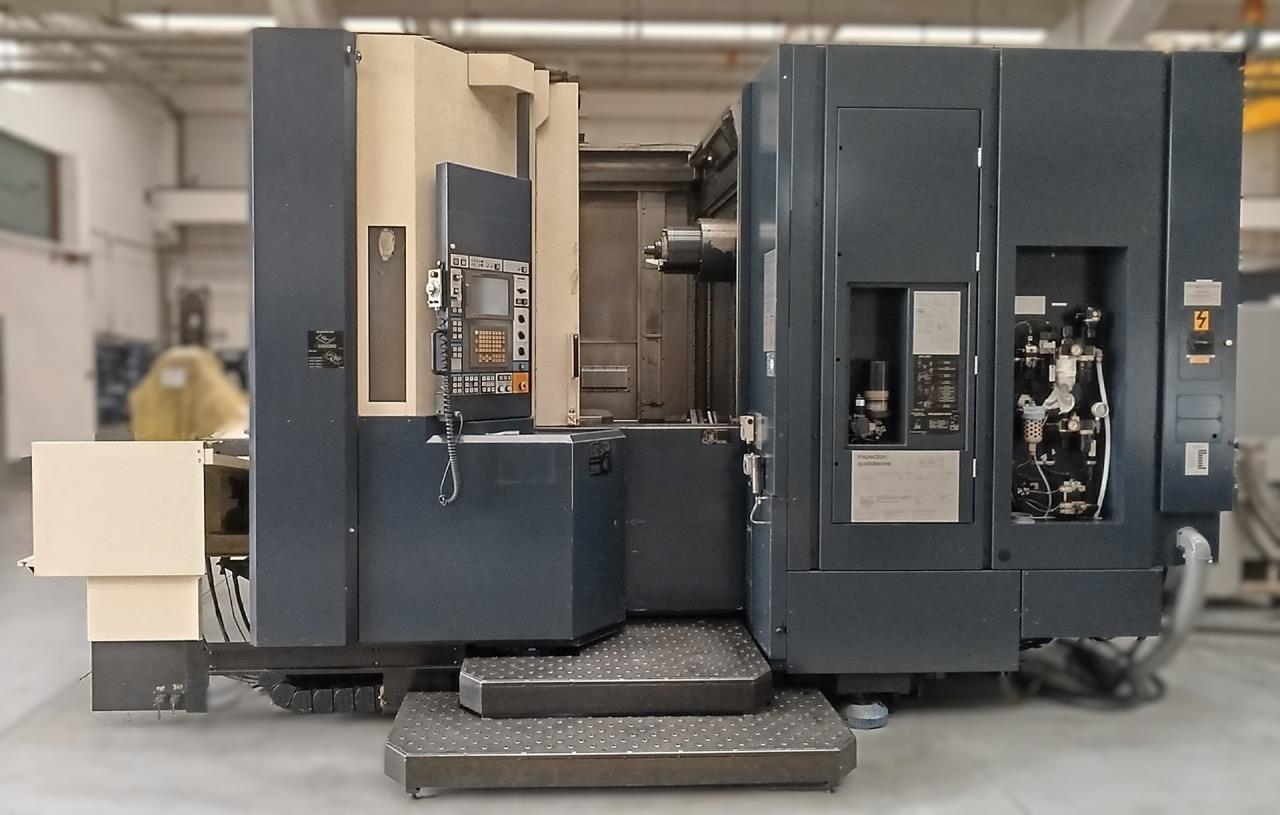

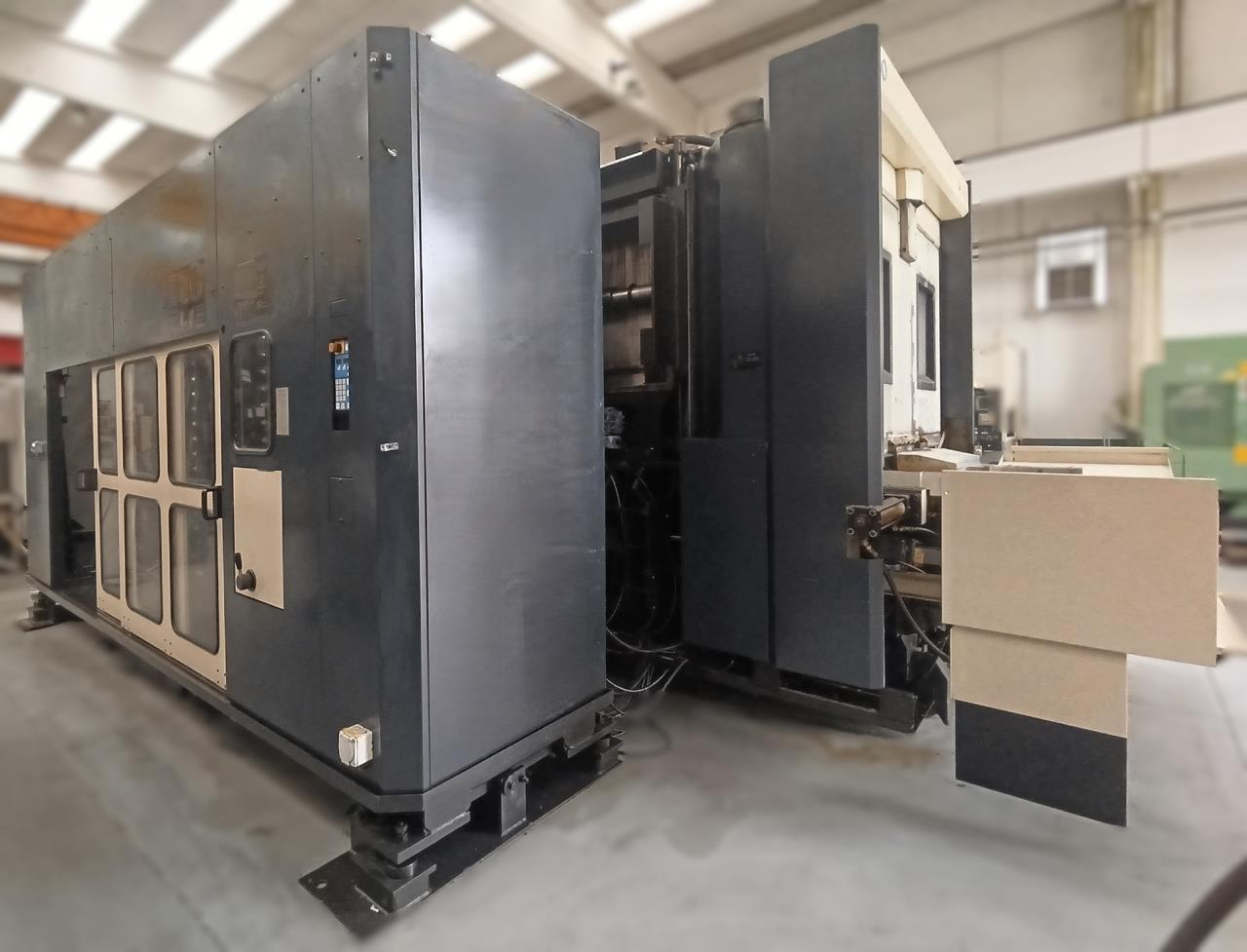

MAKINO A 88e-A 188

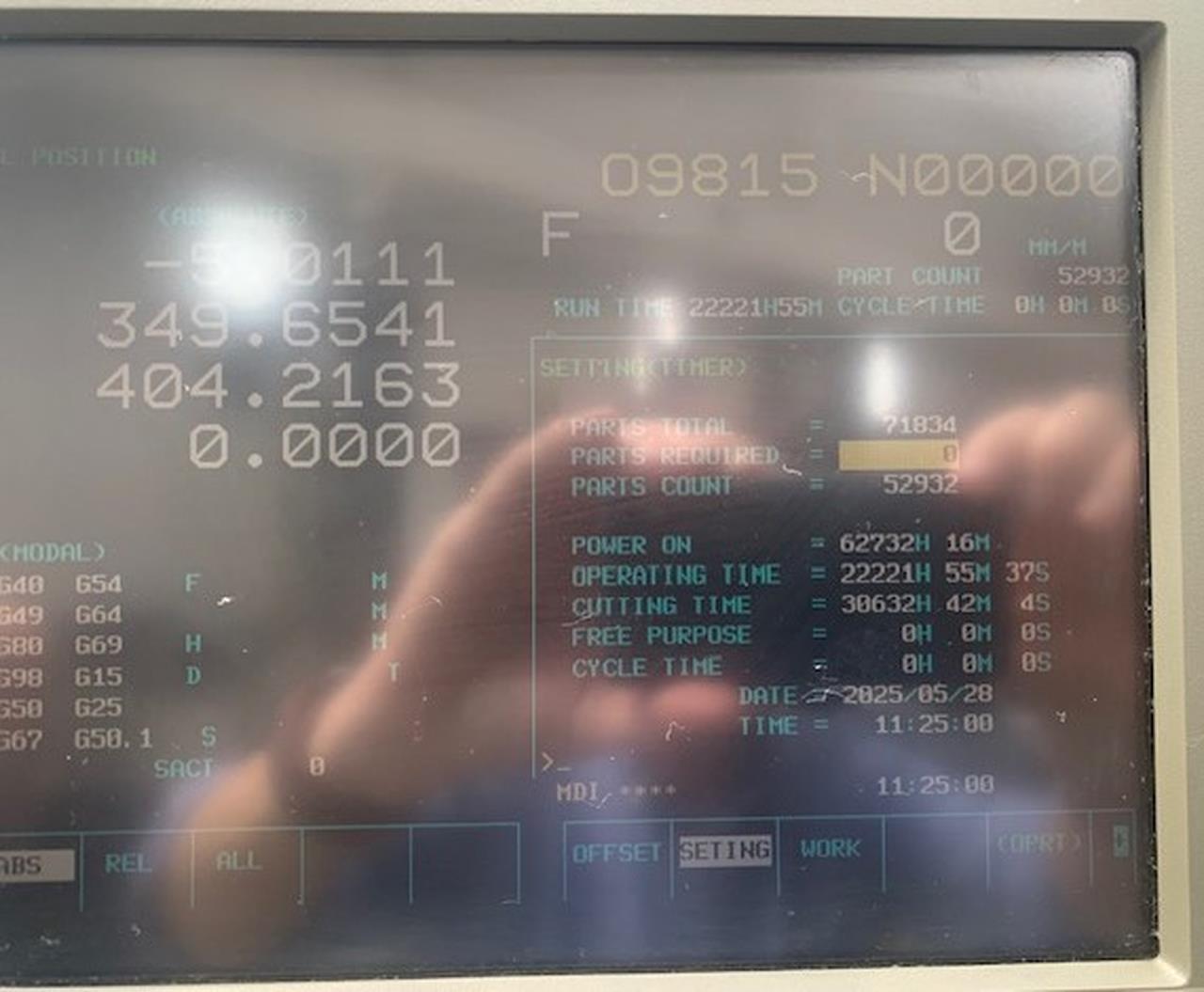

Controller :
FANUC 16 Professional 3
Jahrgang :
2003
Technical data
Number of axis total
4
Number of tables
2
Table length
630 mm
Table width
630 mm
Table load max.
1200 kg
Longitudinal travel (X-axis)
900 mm
Transversal travel (y-axis)
800 mm
Vertical travel (z axis)
970 mm

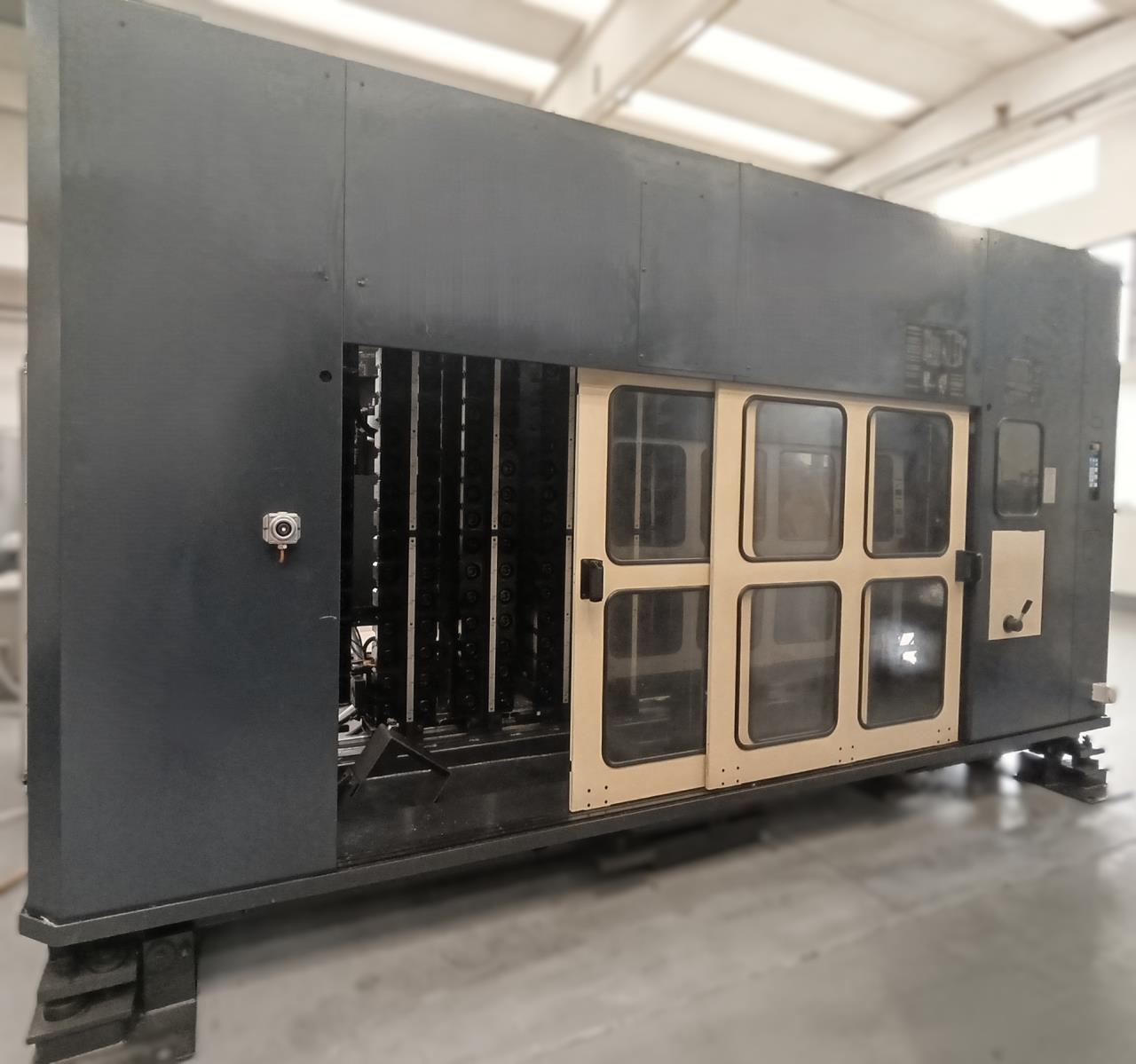

Tool changer:
Number of tools
188
Spindle nose: HSK-A
100
Spindle speeds:
stepless
from
20 rpm
up to
12000 rpm
Voltage 50 Hz 3x
400 Volt
Spindle motor
25 / 30 kW
Machine's weight about
18000 kg
Overall dimensions machine:
Length
7562 mm
Width
4329 mm
Height
3151 mm

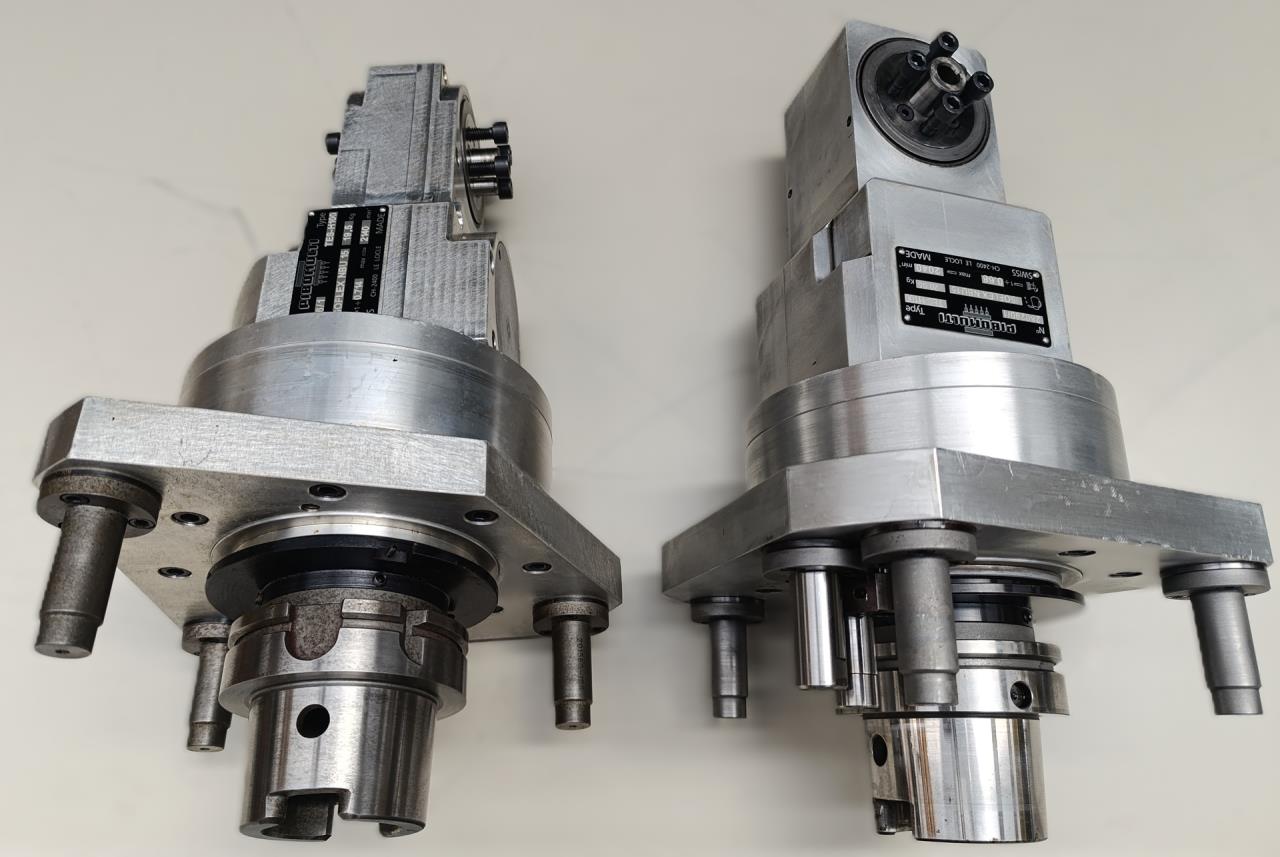

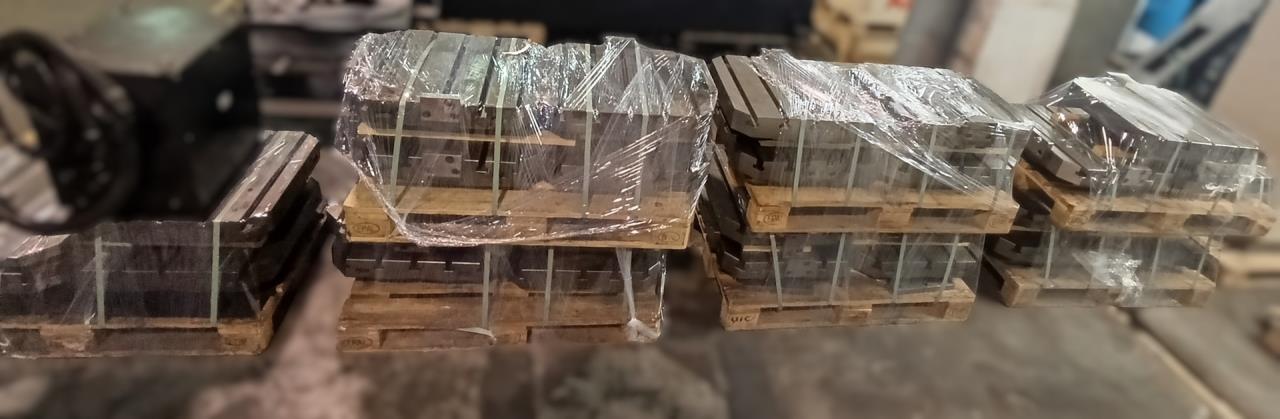

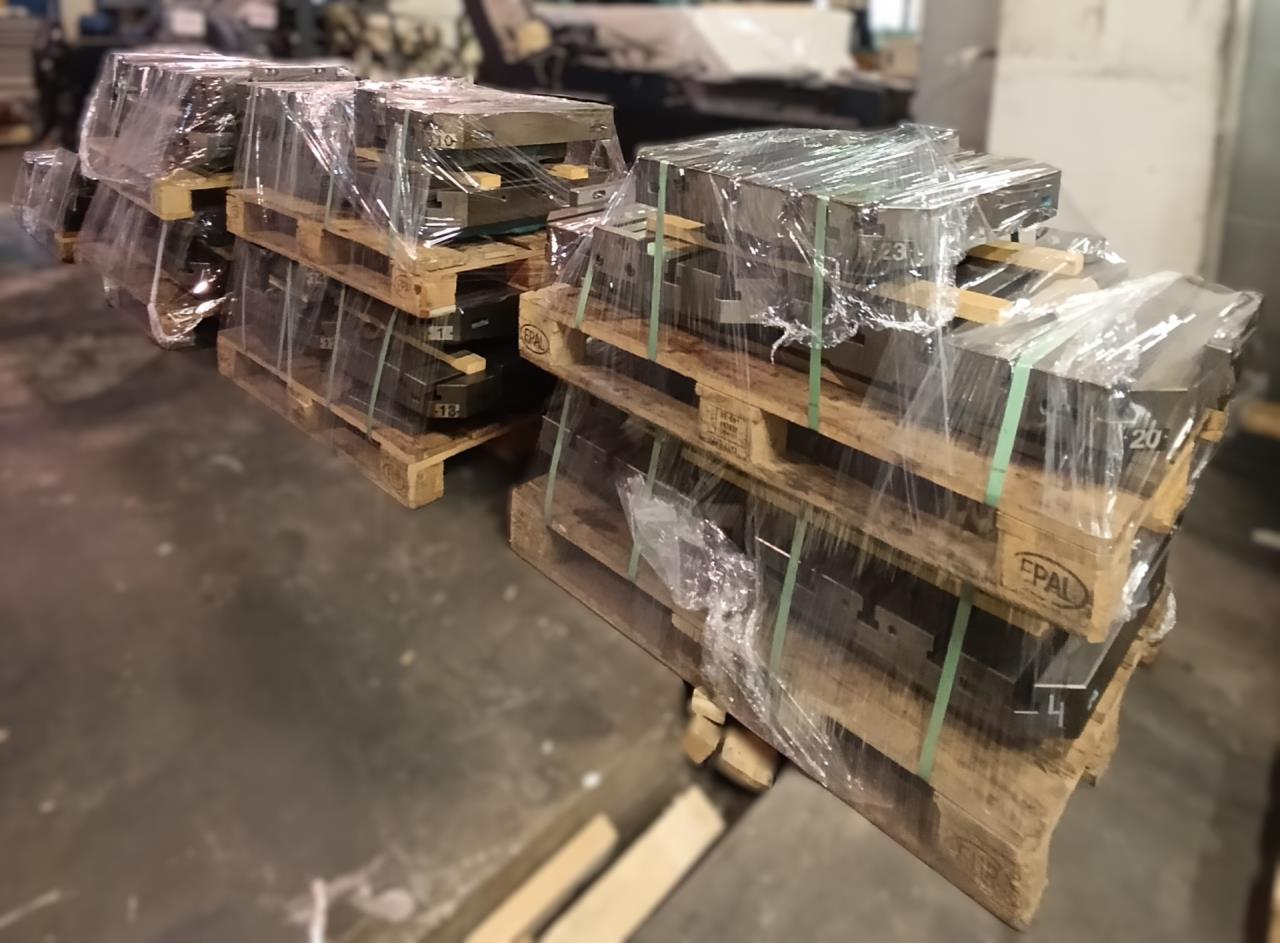

Various accessories:

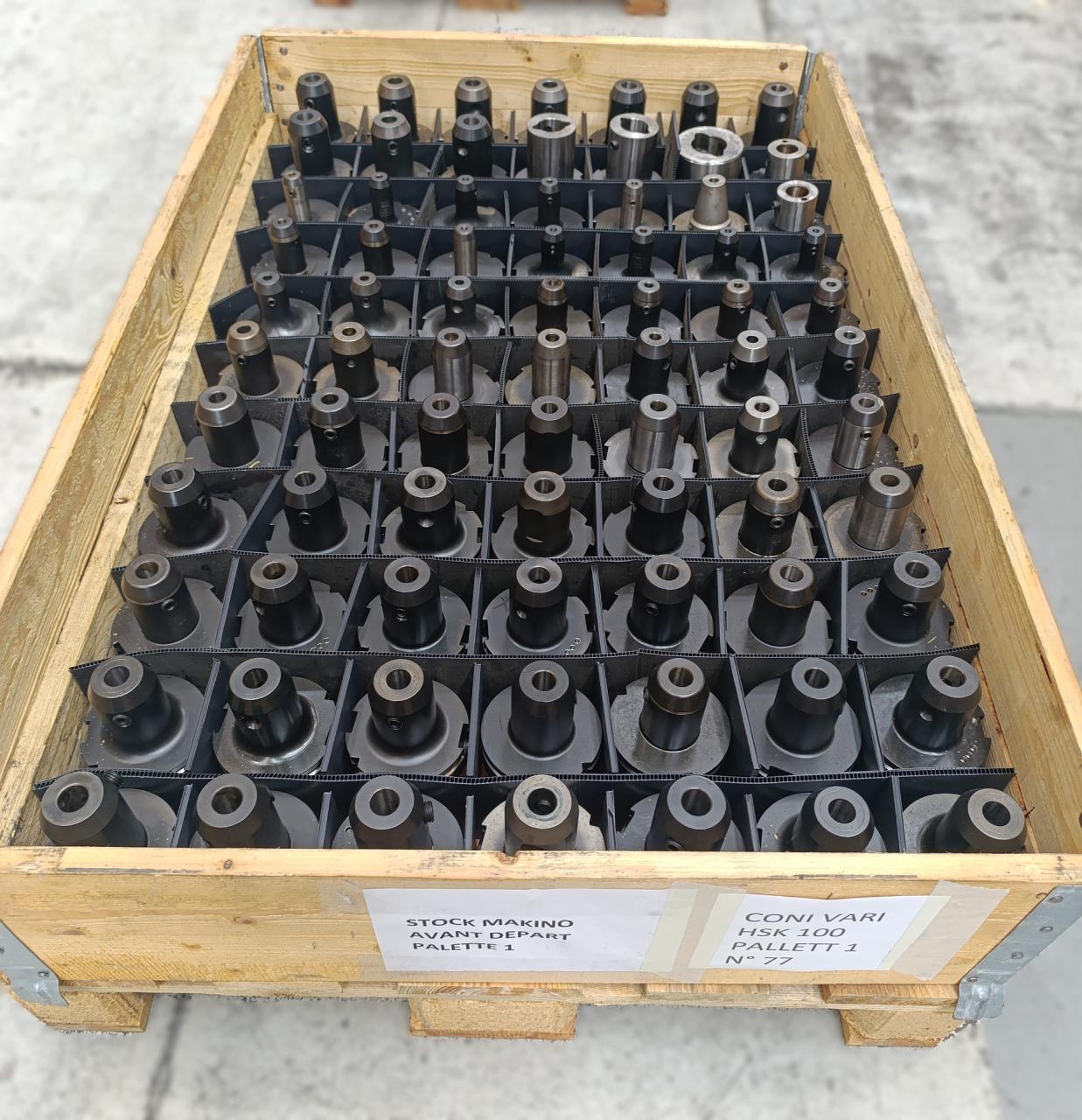

Set of toolholders
Years of construction 1998 / 2001 / 2003
Machine ex. location
Machine ex. location
Technical specifications and pictures without guarantee.
