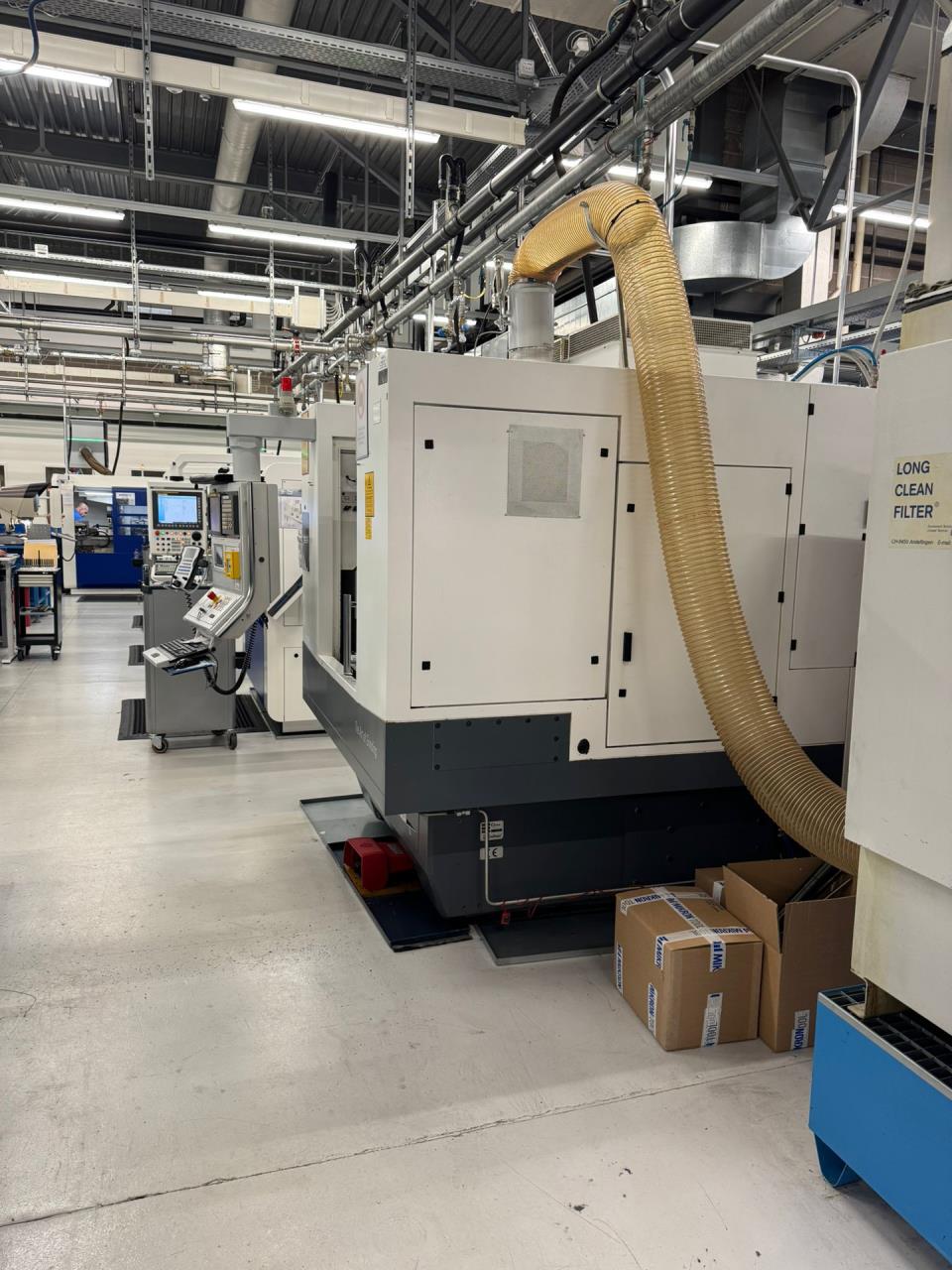

Technical data
Centre height
175 mm
Distance between centres
200 mm
Workpiece dimensions:
Weight
50 kg

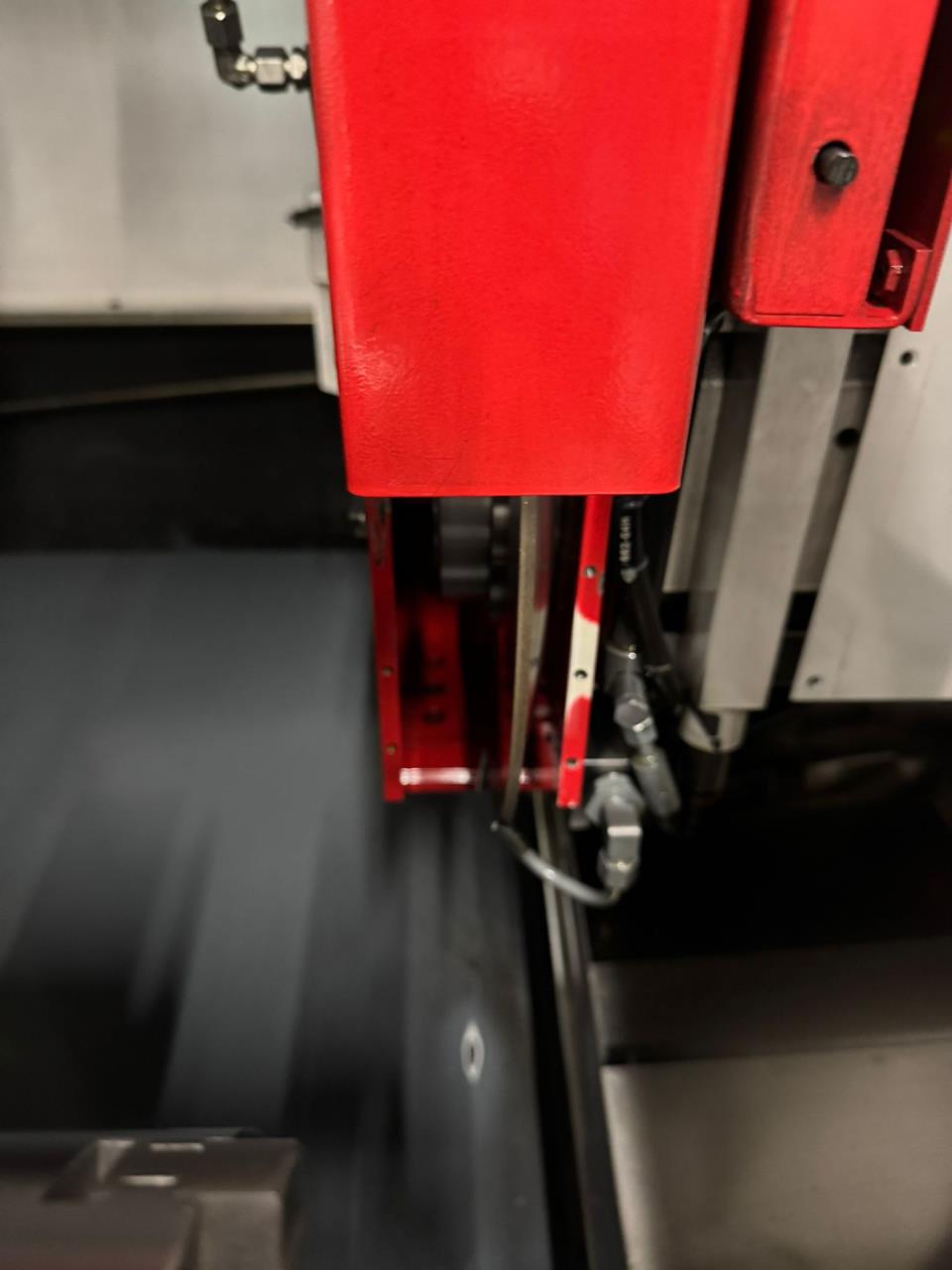

Grinding wheel right and left hand
Diameter
500 mm
Width
63 mm
Bore
203 mm
Grinding wheel right side:
Diameter
400 mm
Width
40 mm
Bore
127 mm
B axis resolution max.
1 °
B axis swivelling range
-15 / 150 °

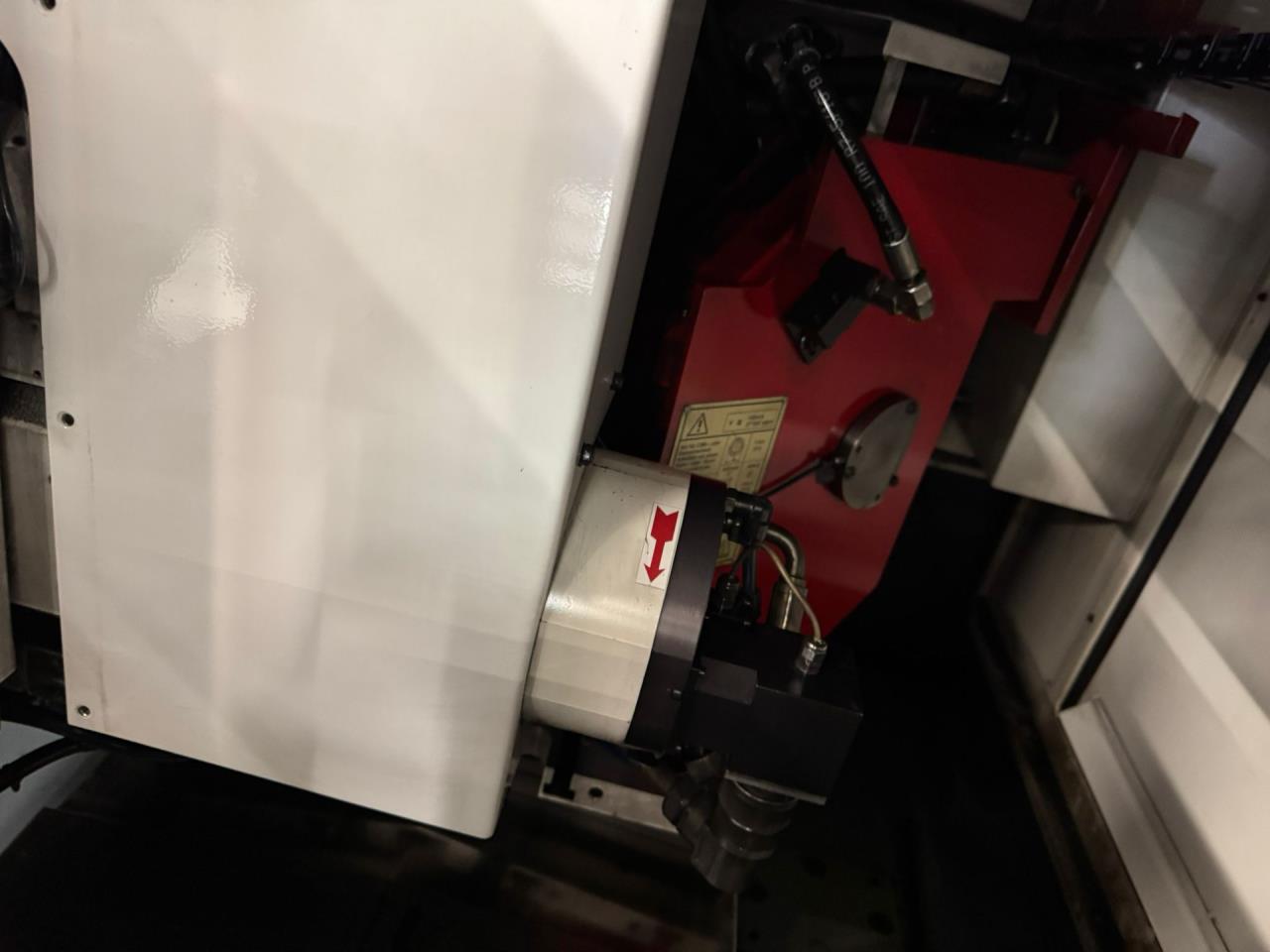

Grinding spindle head:
Peripheral speed
140 m/s
Longitudinal slide:
Max. travel
485 mm
Resolution
0.0001 mm
Feed range
0.001 - 15000 mm/min
Transversal slide:
Max. grinding length
300 mm
Resolution
0.0001 mm
Feed speed up
0.001 - 15000 mm/min
Swivelling range
0 - 30 °
Work piece spindle head:
speeds:
stepless
from
1 rpm
up to
1500 rpm
Holding taper:
4 MT
Taper in tailstock:
4 MT
Spindle stroke
90 mm
Machine's weight about
6500 kg
Overall dimensions machine:
Length
4150 mm
Width
3550 mm
Height
2100 mm
Various accessories:

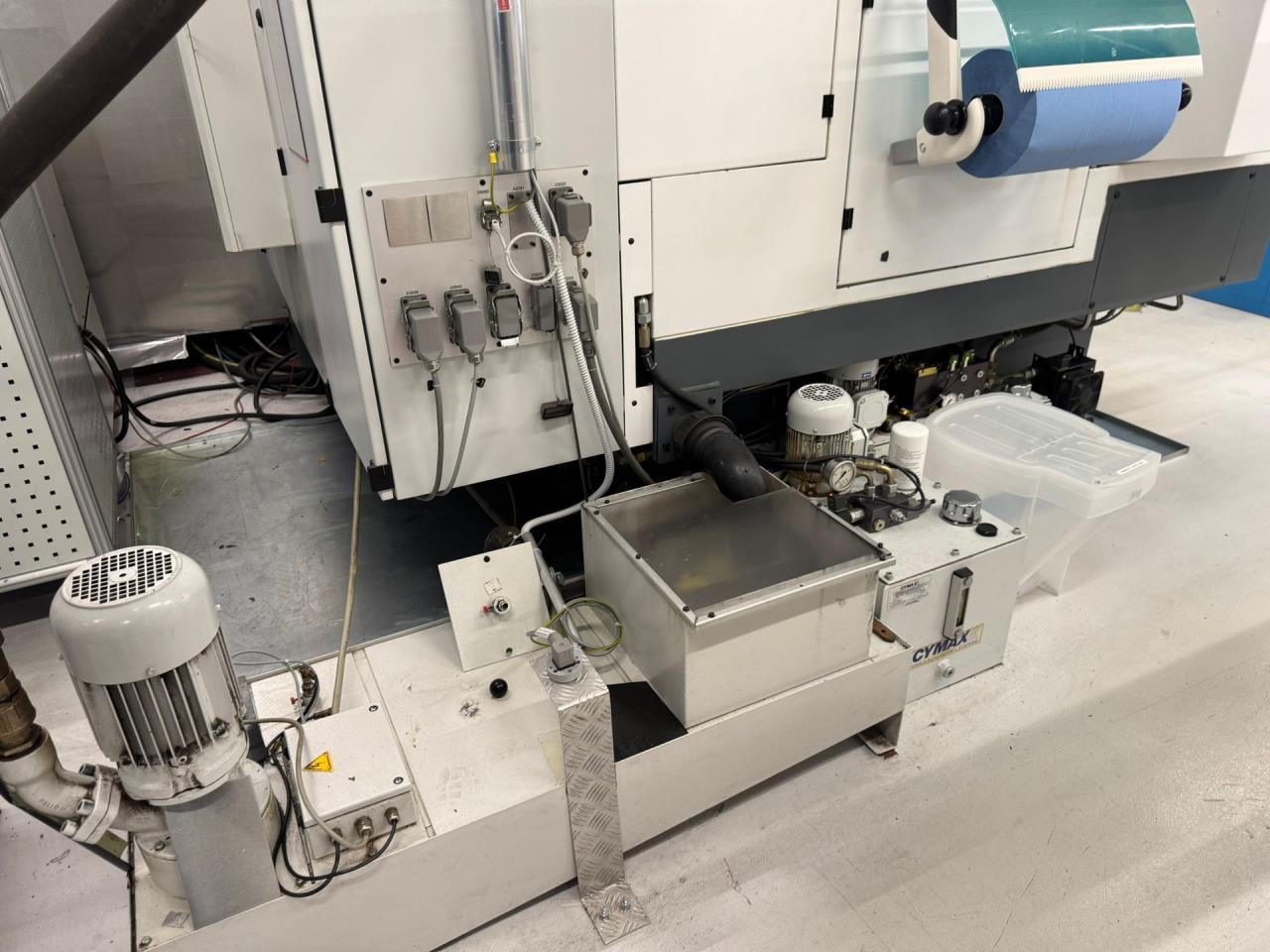

Coolant system

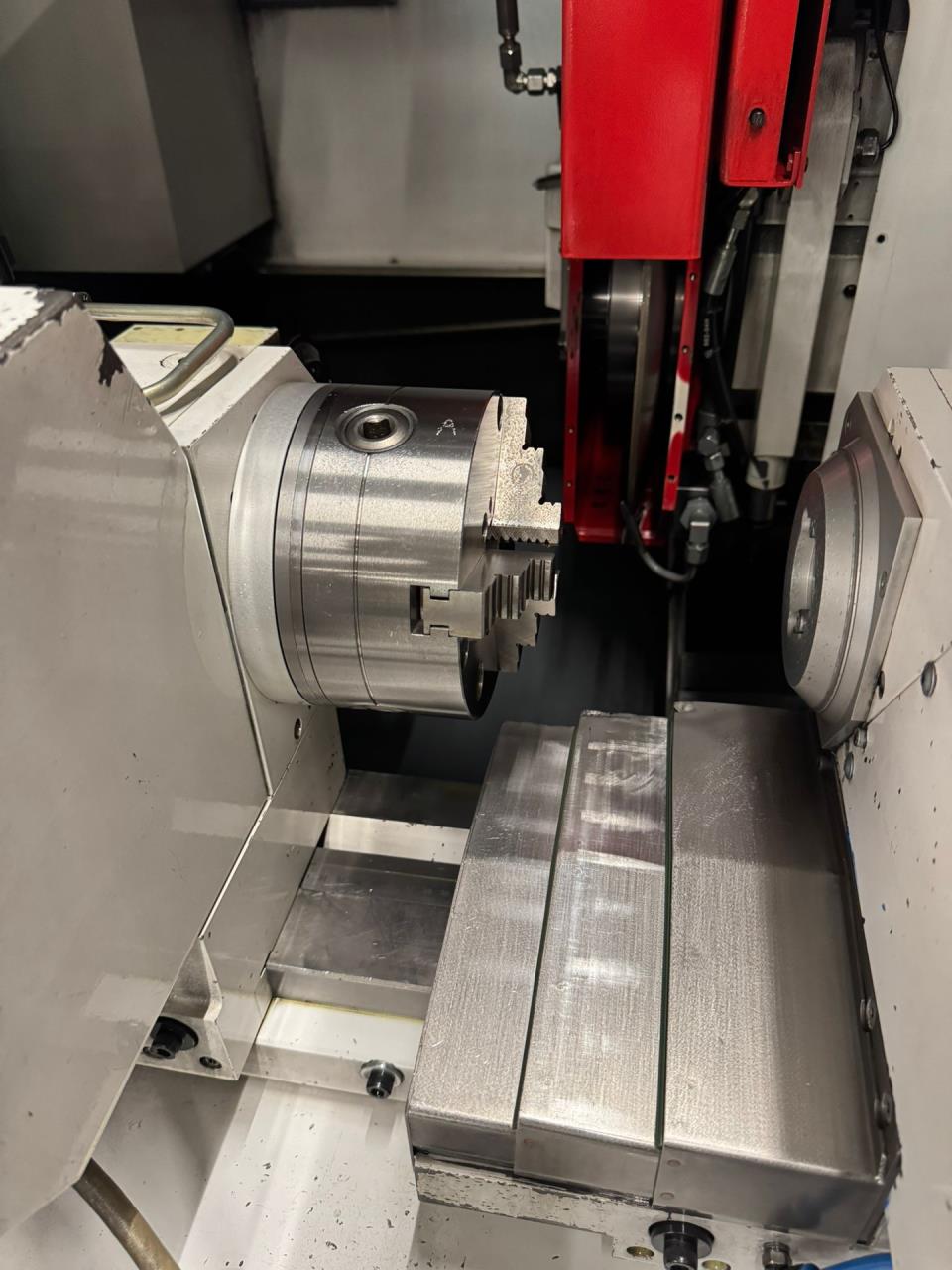

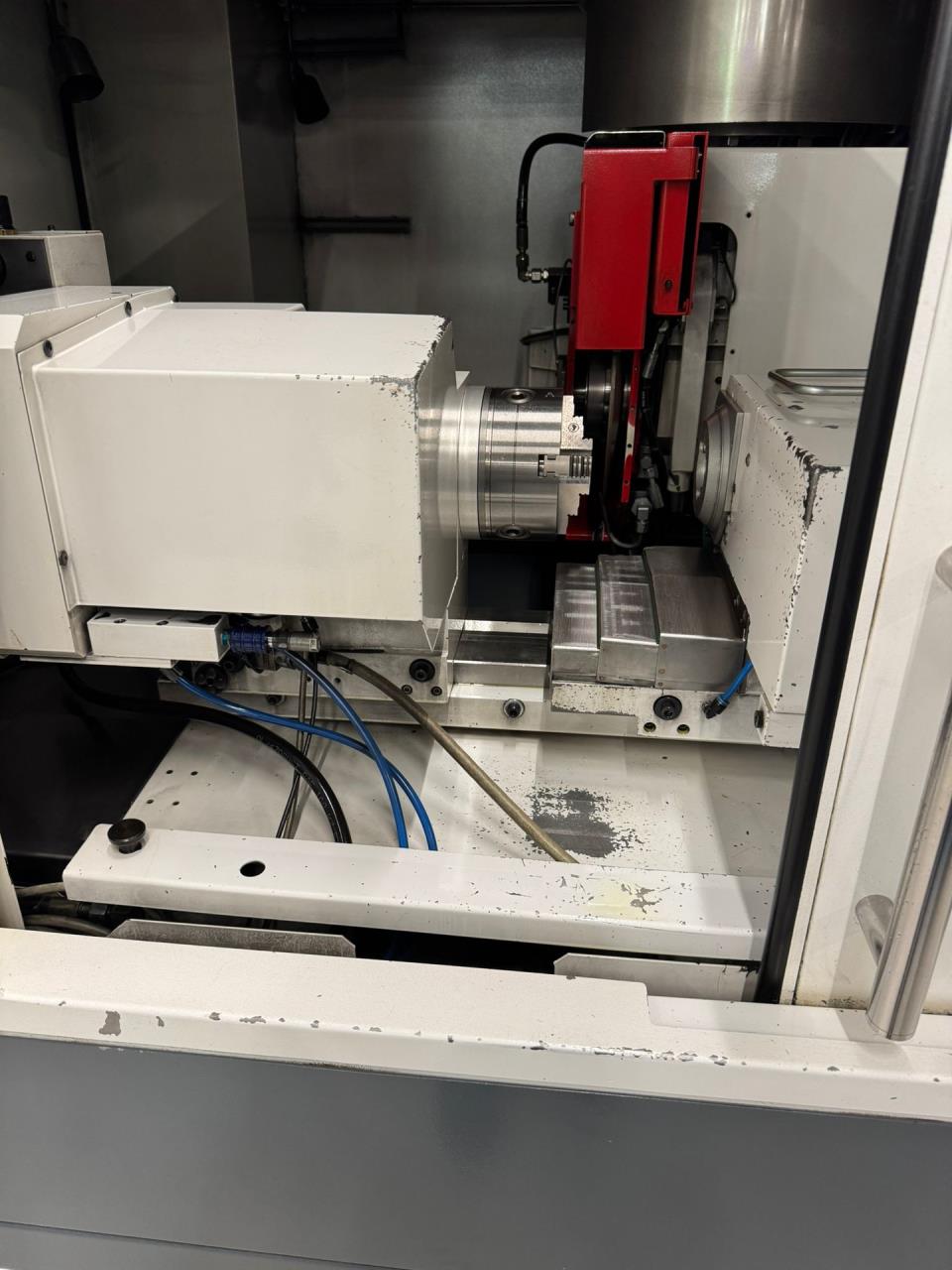

3-jaw chuck
Synchronised tailstock

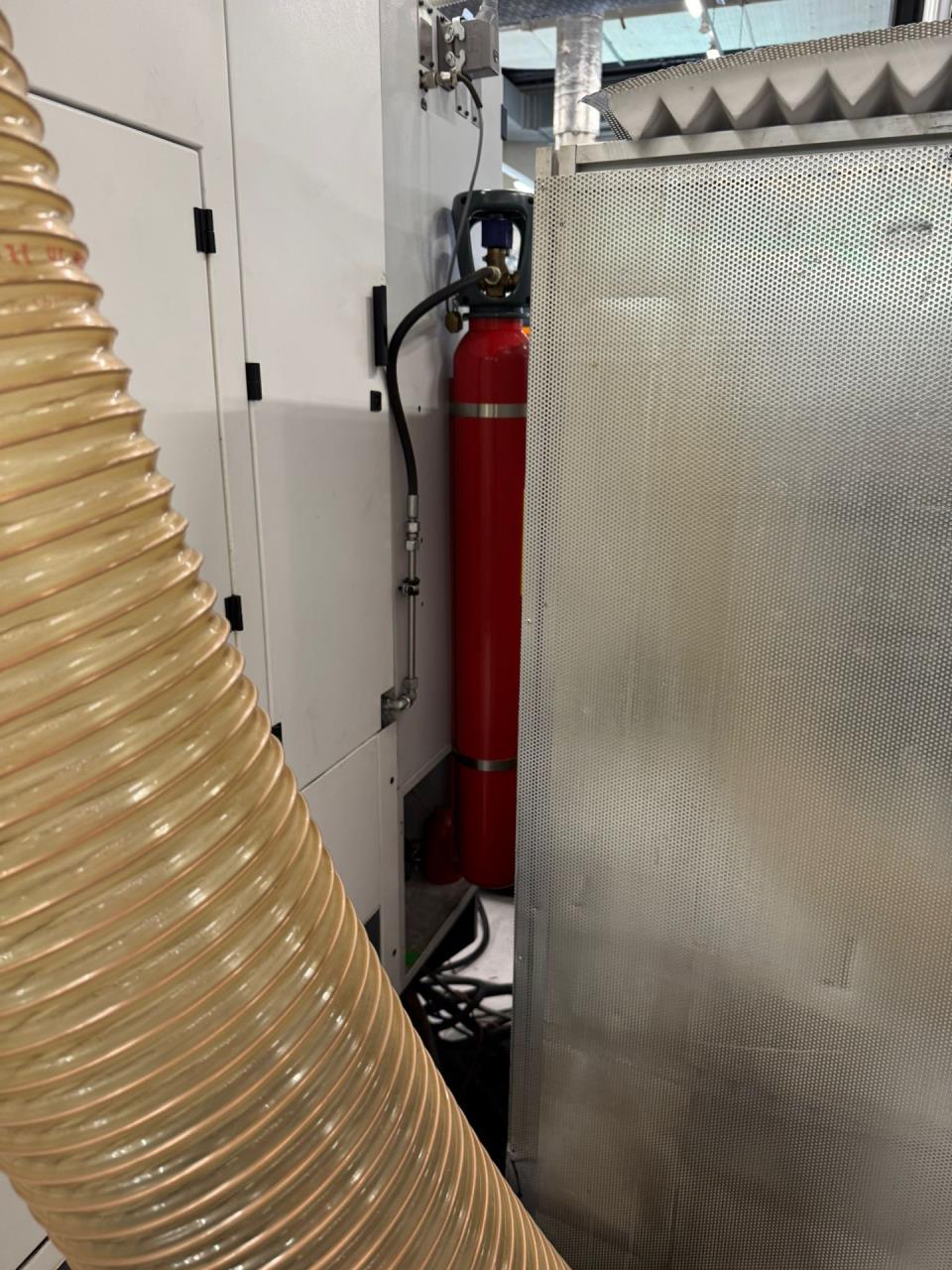

Fire extinguishing system

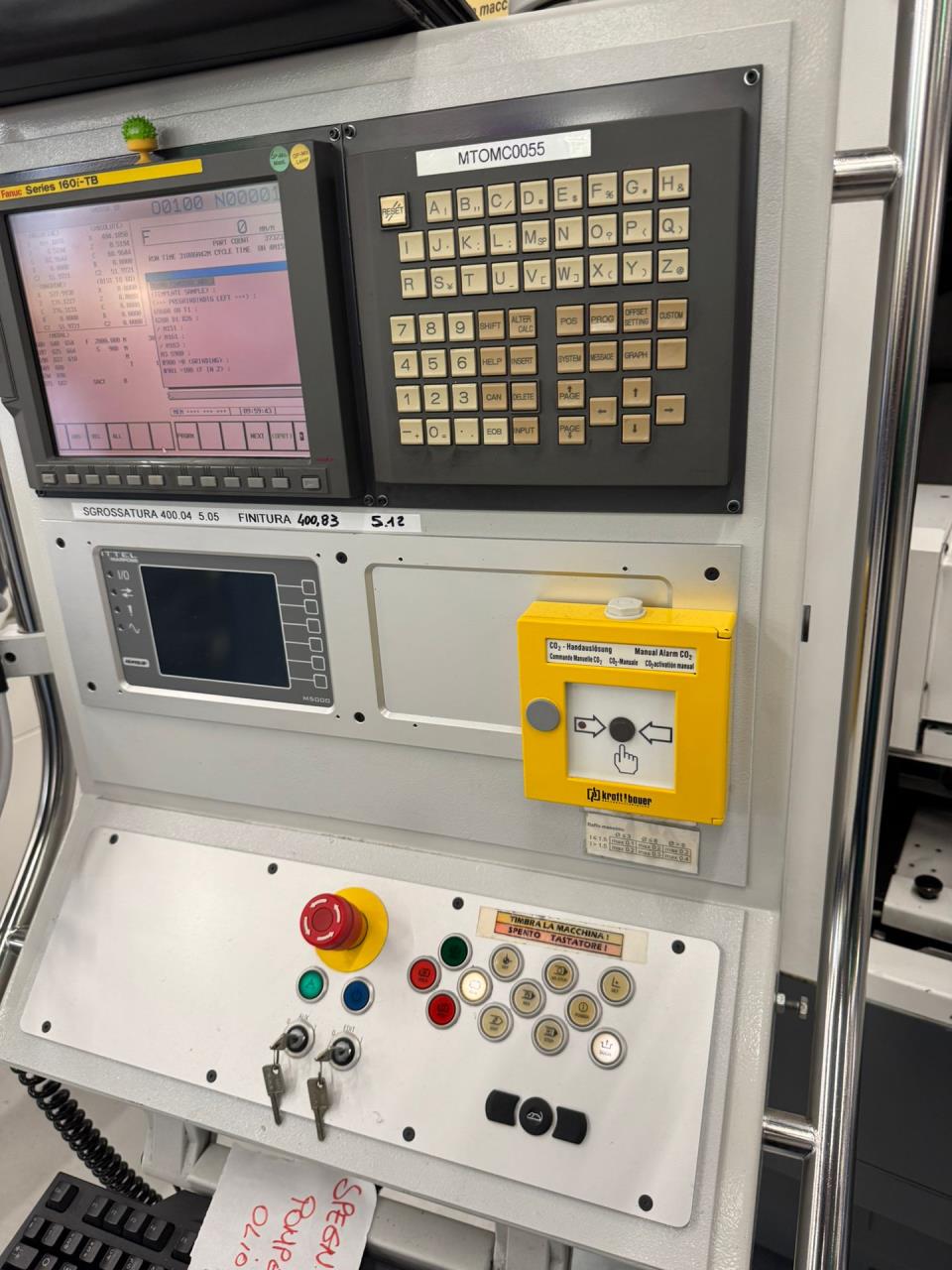

Electronic hand held control
DITTEL Sensitron Proximity System
Separate spindle oil cooling
Foot pedal
Technical specifications and pictures without guarantee.
