Technical data
Number of axis total
6
Axial motion:
Crosswise
360 mm
Longitudinal
240 mm
Vertical
240 mm

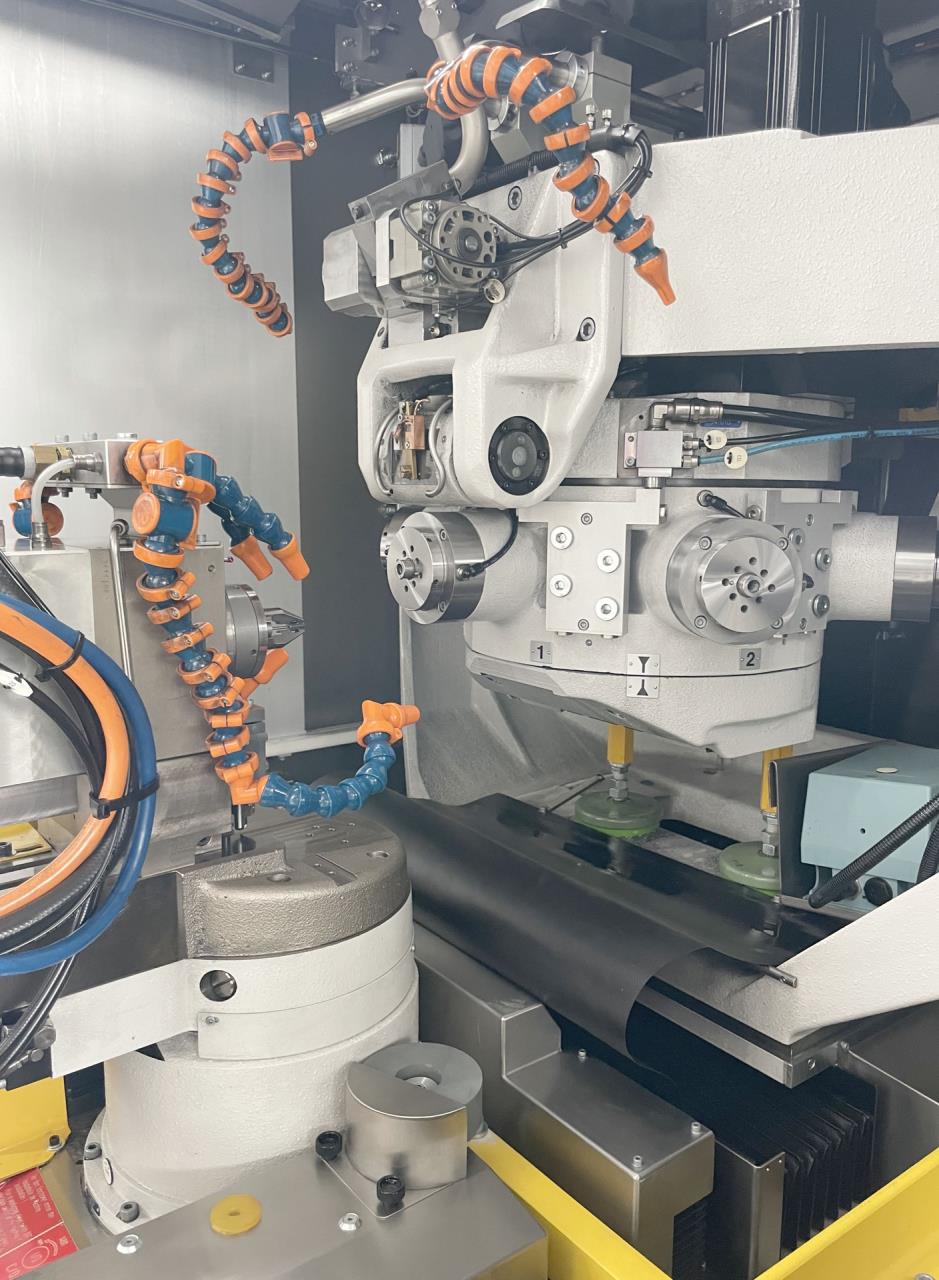

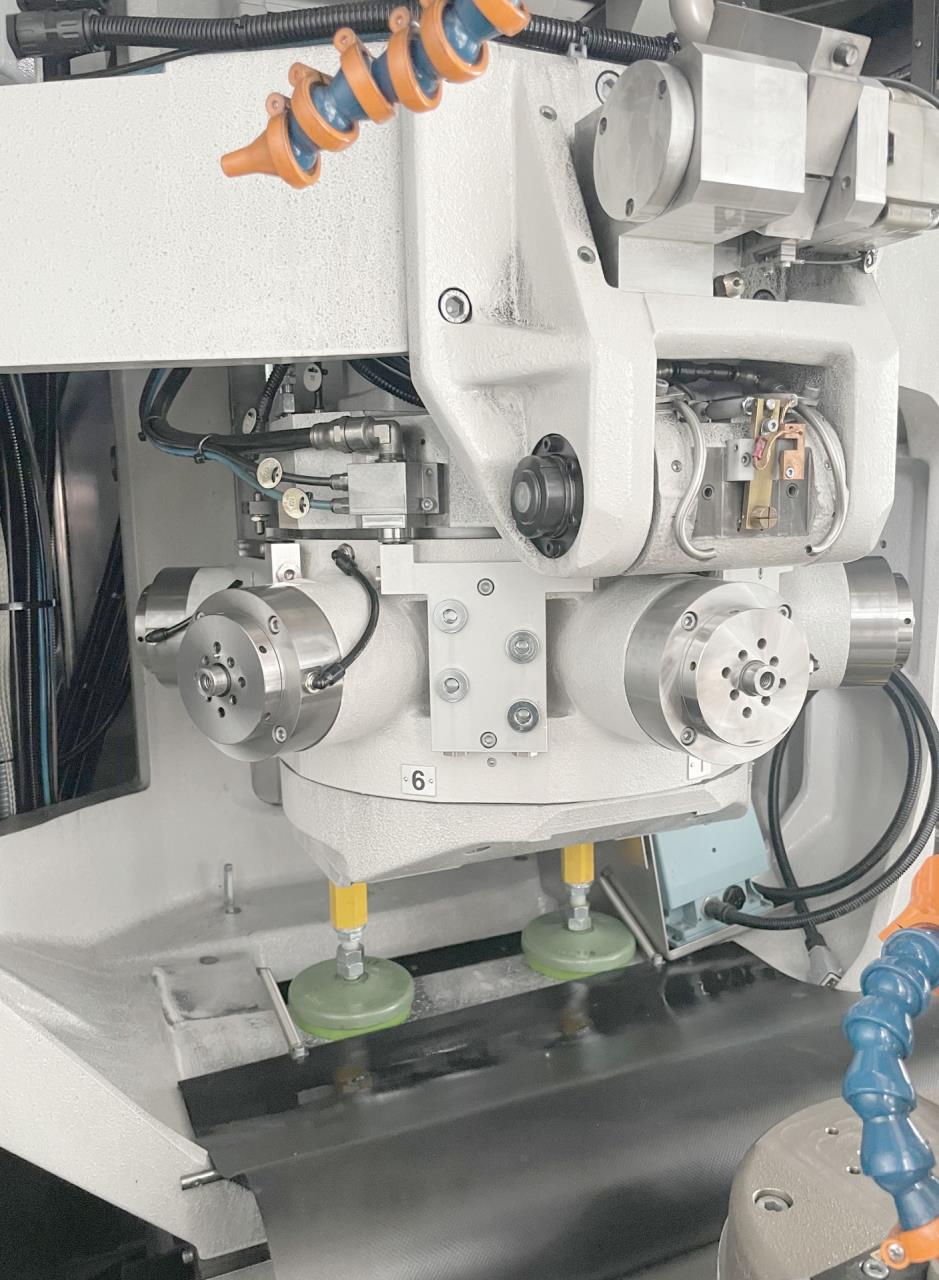

A axis (grinding head rotaion)
-15 / +25 °
B axis swivelling range
+ / -120 °
B axis resolution max.
0.0001 °
C axis (spindle,resolution)
0.0001 °
Grinding spindle speeds:
stepless
from
200 rpm
up to
6000 rpm
Max forwarding speed
10 m/min
Max. forwarding speed cross
10 m/min
Max forwarding speed vertical
10 m/min

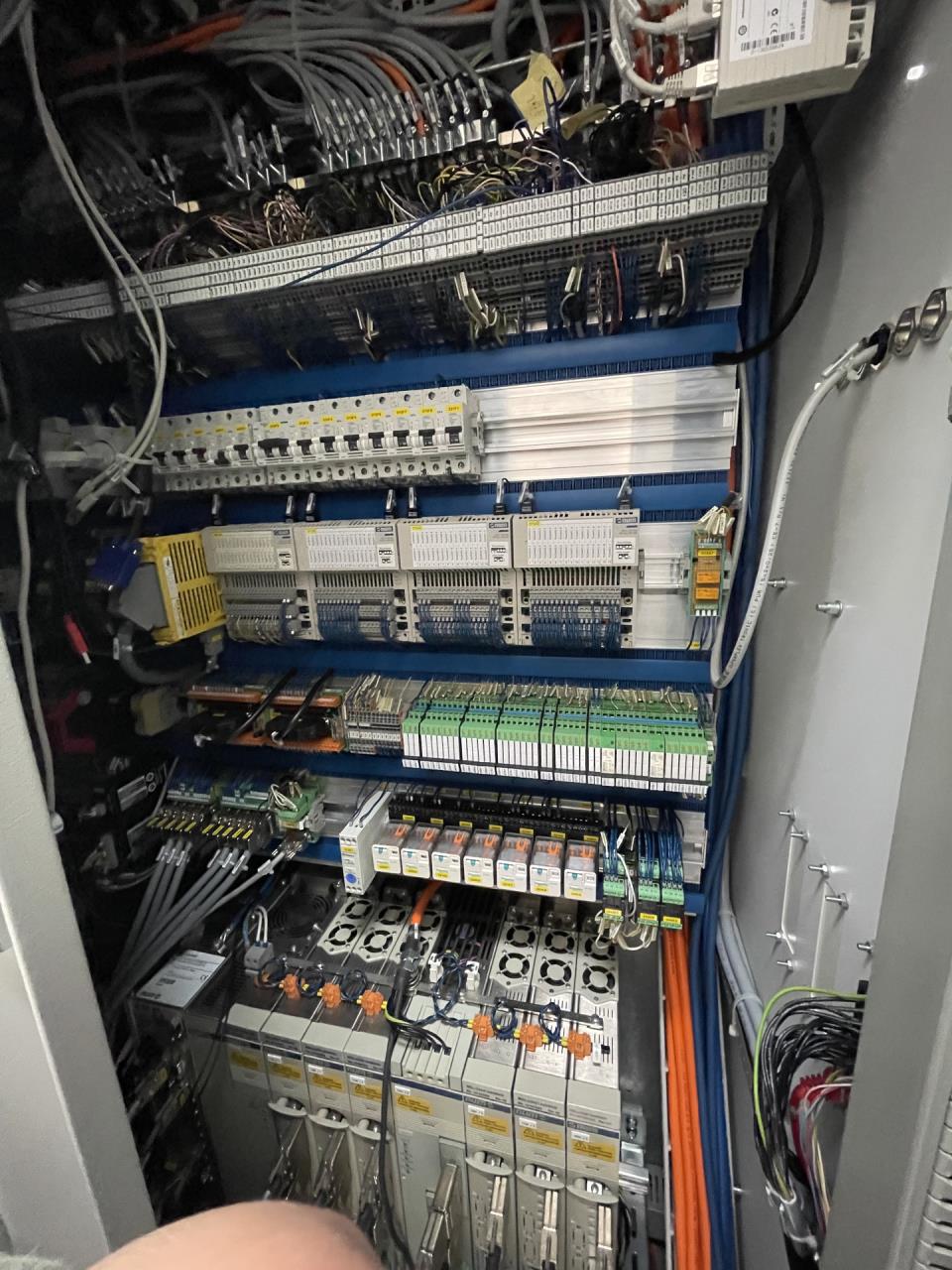

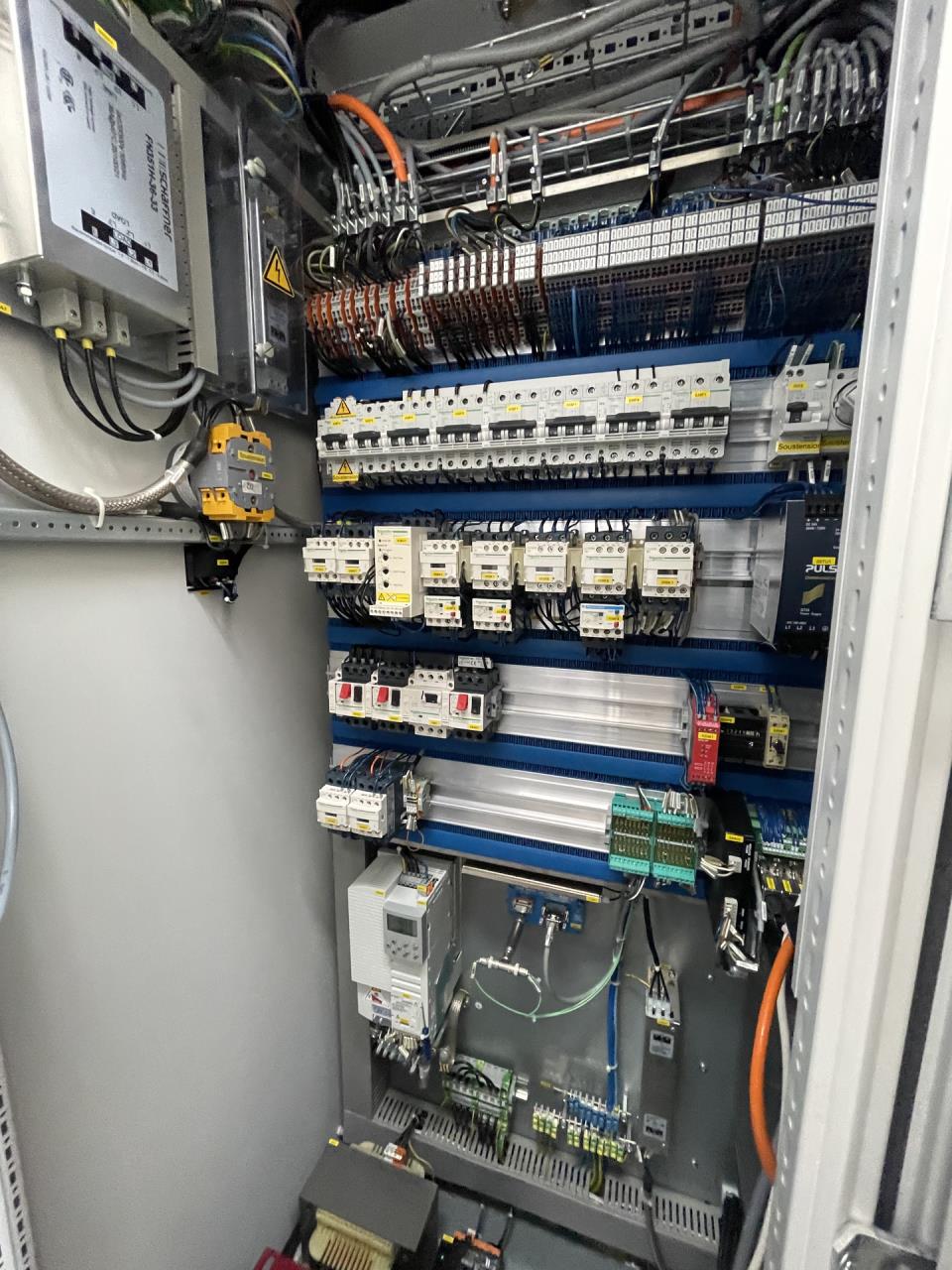

Hydraulic system
6 bar
Voltage 50 Hz 3x
400 Volt
Grinding spindle motor
7.5 kW
Total power required
16 kVA
Machine's weight about
4000 kg
Overall dimensions machine:
Length
3400 mm
Width
2200 mm
Height
2500 mm
Various accessories:

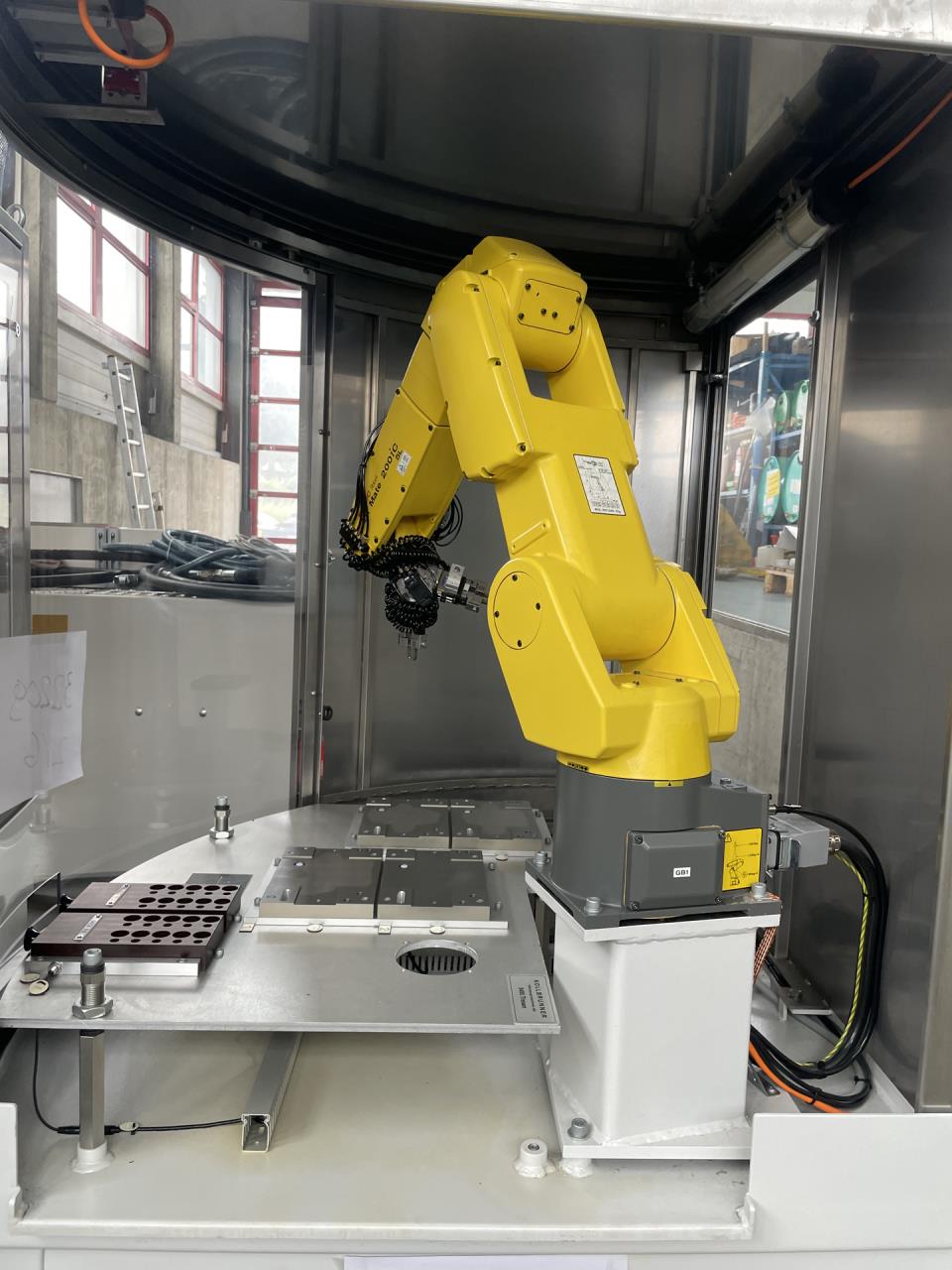

Loading roboter
FANUC Mate 200ic
Fire extinguishing system

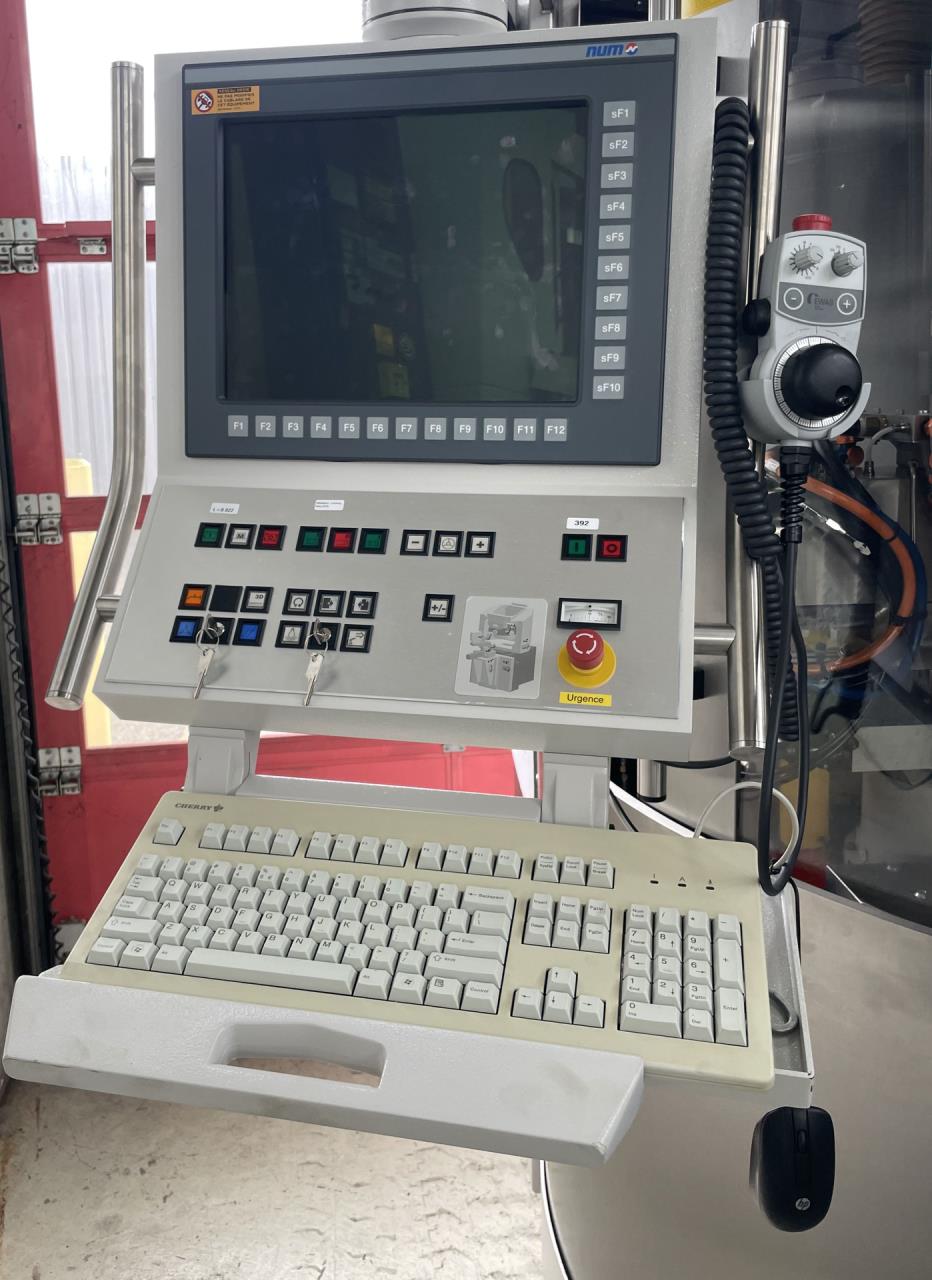

Interface serial port RS 232
Technical specifications and pictures without guarantee.
