stock no. :
22807
Machine's group :
Type :
CITIZEN CINCOM M 20 10 Image(s)
Back
Technical data
Max. turning diameter
20 mm
Turning length
320 mm
Max. drilling diameter
10 mm
Max. threading diameter
8 M (Metric)
Internal spindle diameter
24 mm
Spindle speeds:
    stepless
       from
200 rpm
       up to
10000 rpm

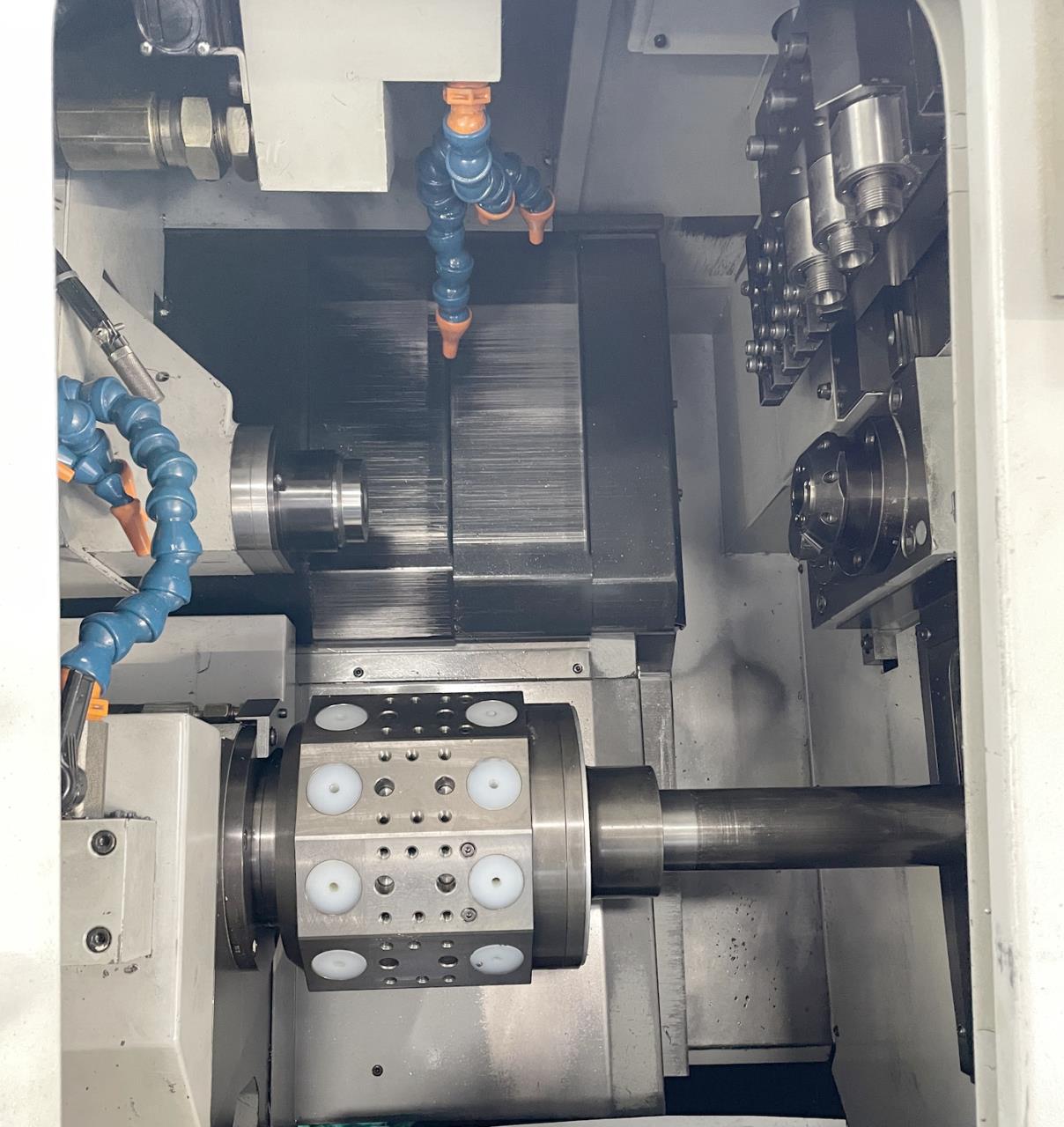

Turret slide:
    Number of positions
10
Back spindle:
    speeds:
       from
200 rpm
       up to
5000 rpm

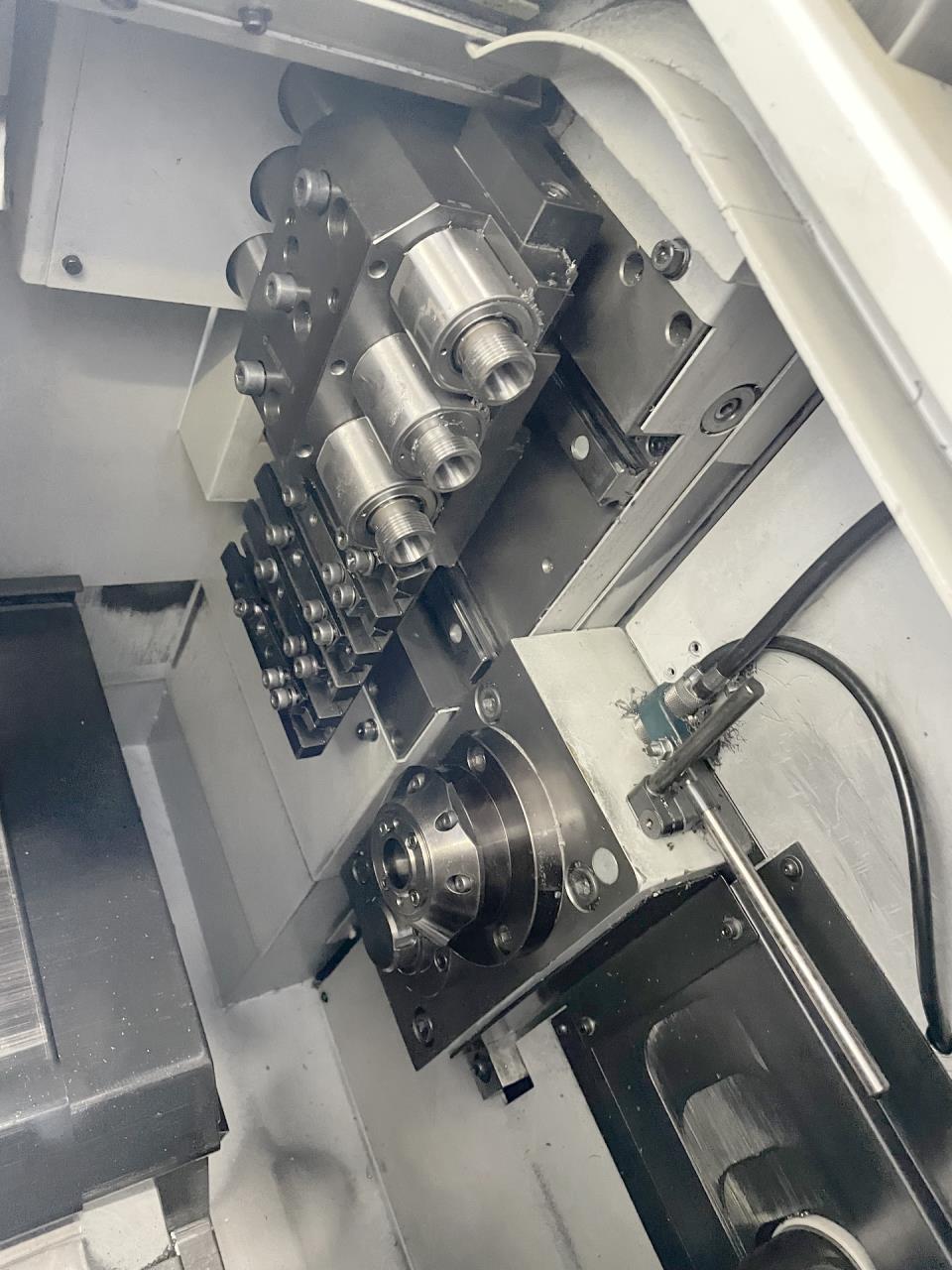

Tool-holder:
    numbers
2
    number of driven tools
3
    Turning tools
5 pce
Rapid traverse X
20 m/min
Rapid traverse Y
20 m/min
Voltage 50 Hz 3x
400 Volt
Spindle motor
3.7 / 7.5 kW
Power of back spindle
1.5 / 3.7 kW
Power of driven tools
1.5 / 2.2 kW
Total power required
8 kVA
Machine's weight about
2500 kg
Overall dimensions machine:
    Length
2800 mm
    Width
1370 mm
    Height
1800 mm
Various accessories:

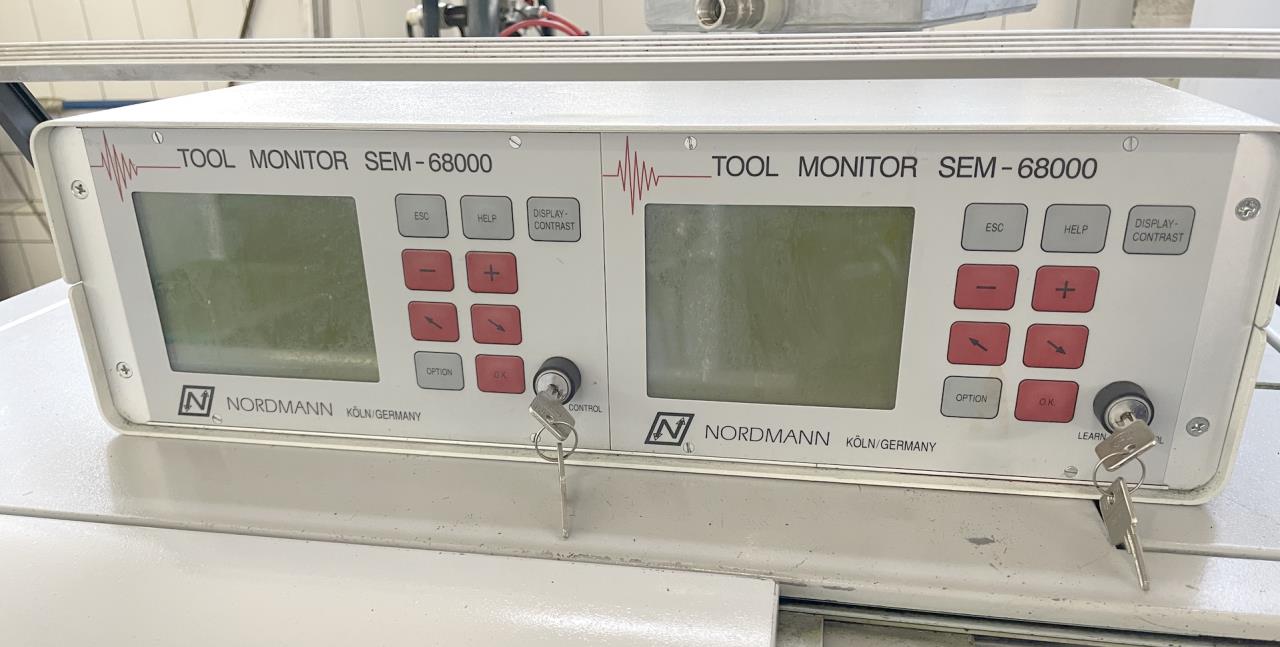

Process controling device
NORDMANN
Driven tool holder radial (nbr.)
3
Bar feeder
    Manufacturer
LNS
    Type
HYDROBAR EXPRESS 226
    year of manufacture
1999
    Length of bars max.
3200 mm
    Bar diameter
2 - 26 mm
Lamp
Chip conveyor
Fire extinguishing system
Status light

Technical specifications and pictures without guarantee.
