Technical data
Min. diameter
1.5 mm
Max. diameter
165 mm
Max. honing length
406 mm
Spindle speeds:
number (steps)
12
from
200 rpm
up to
2500 rpm
Stroke speed:
number (steps)
5
from
80 s/min
up to
310 s/min
Voltage 50 Hz 3x
380 Volt
Spindle motor
0.73 kW
Machine's weight about
450 kg
Overall dimensions machine:
Length
1500 mm
Width
1300 mm
Height
1600 mm
Various accessories:
Coolant system
Measuring device

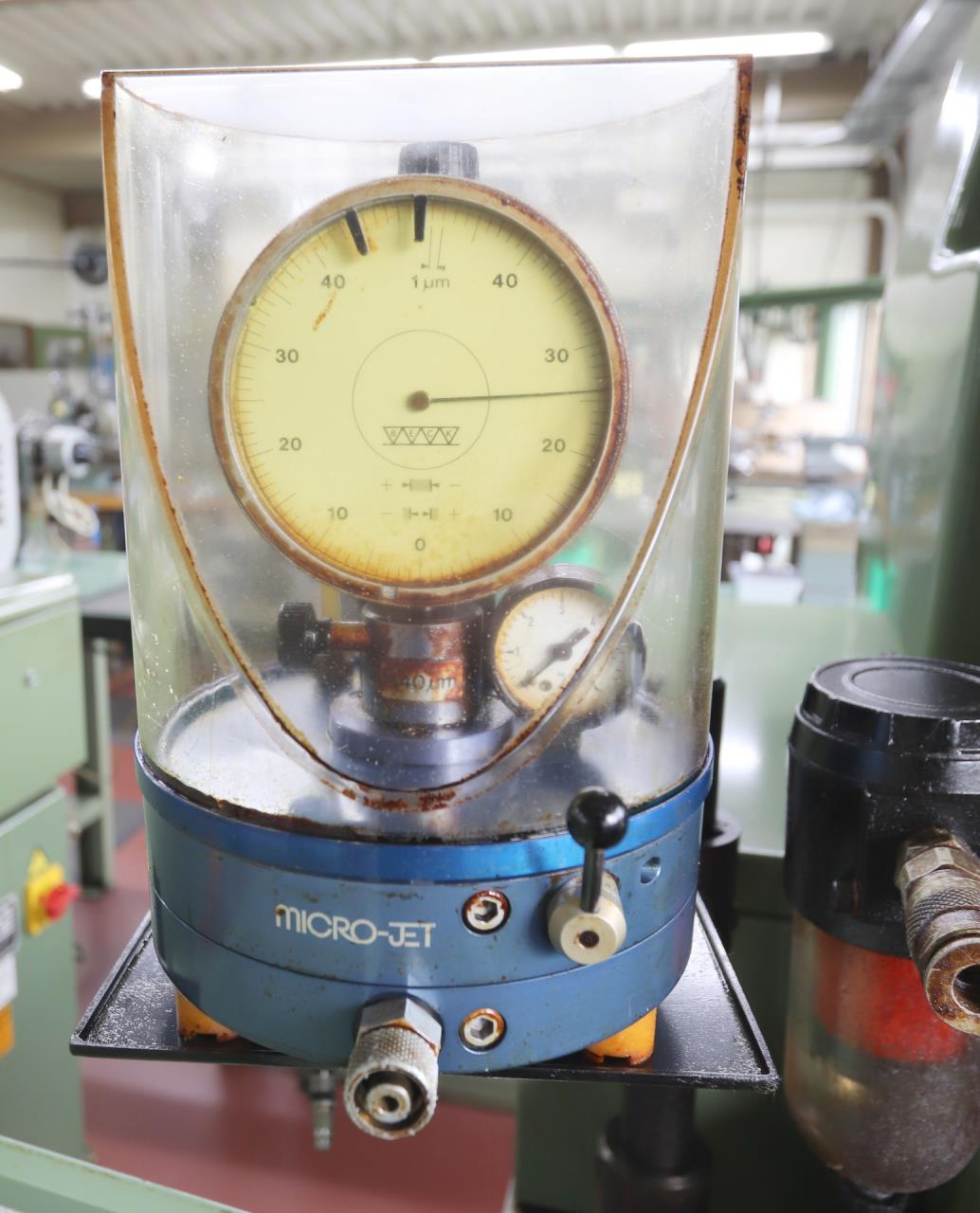

MICRO-JET
Automatic workpiece honing unit
Active control
Technical specifications and pictures without guarantee.
