stock no. :
22701
Machine's group :
Type :
STAR SA-16 RC

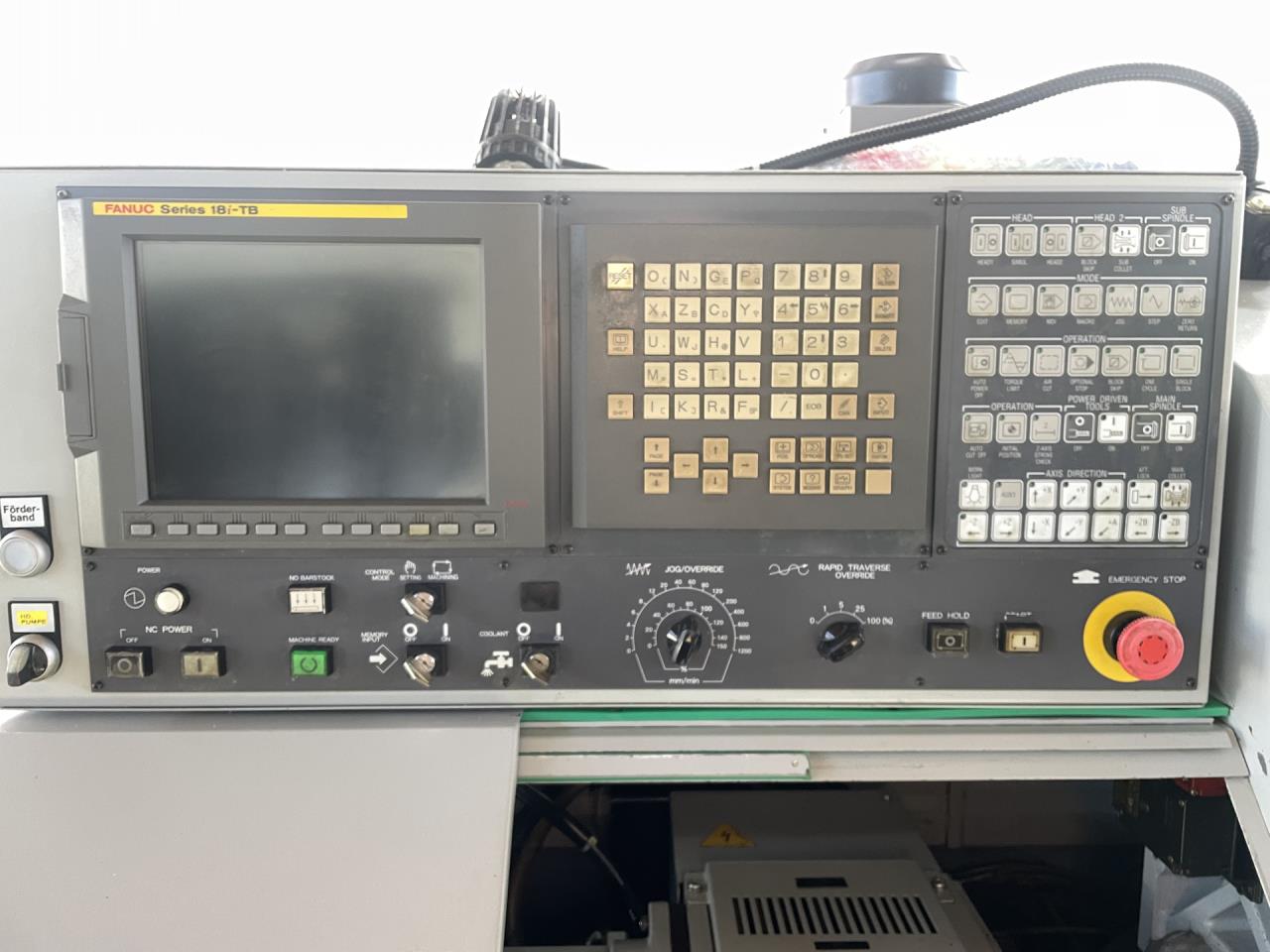

Controller :
FANUC Serie 18i-T
Jahrgang :
2007
Technical data
Number of spindles
2
Max. turning diameter
16 mm
Max. drilling diameter
7 mm
Max. threading diameter
6 M (Metric)
Spindle speeds:
stepless
from
500 rpm
up to
12000 rpm
Spindle power
2.2 kW

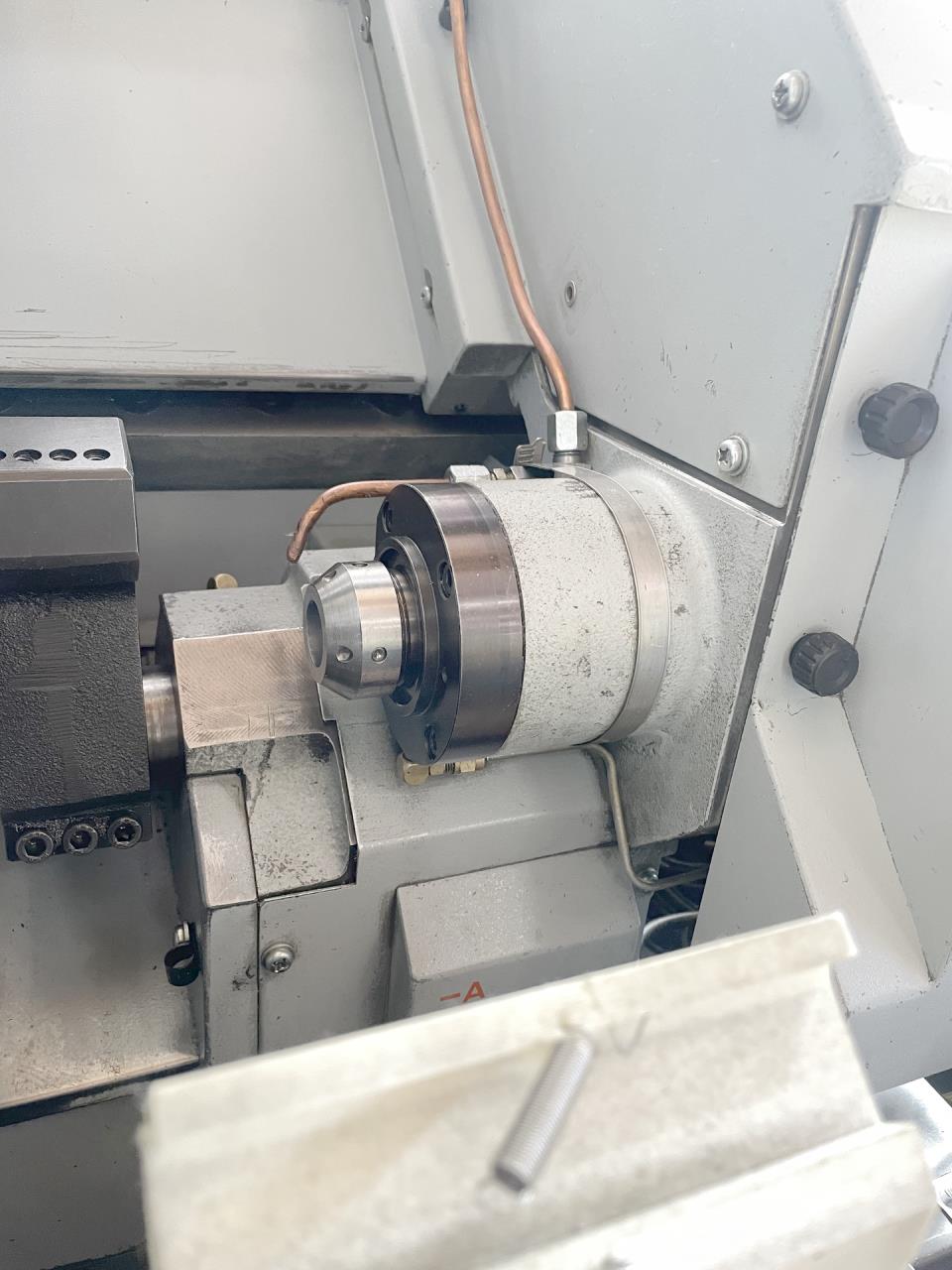

Back spindle:
speeds:
from
500 rpm
up to
9000 rpm
Thread drill diameter
6 M (Metric)
Back machining workpiece length max.
85 mm

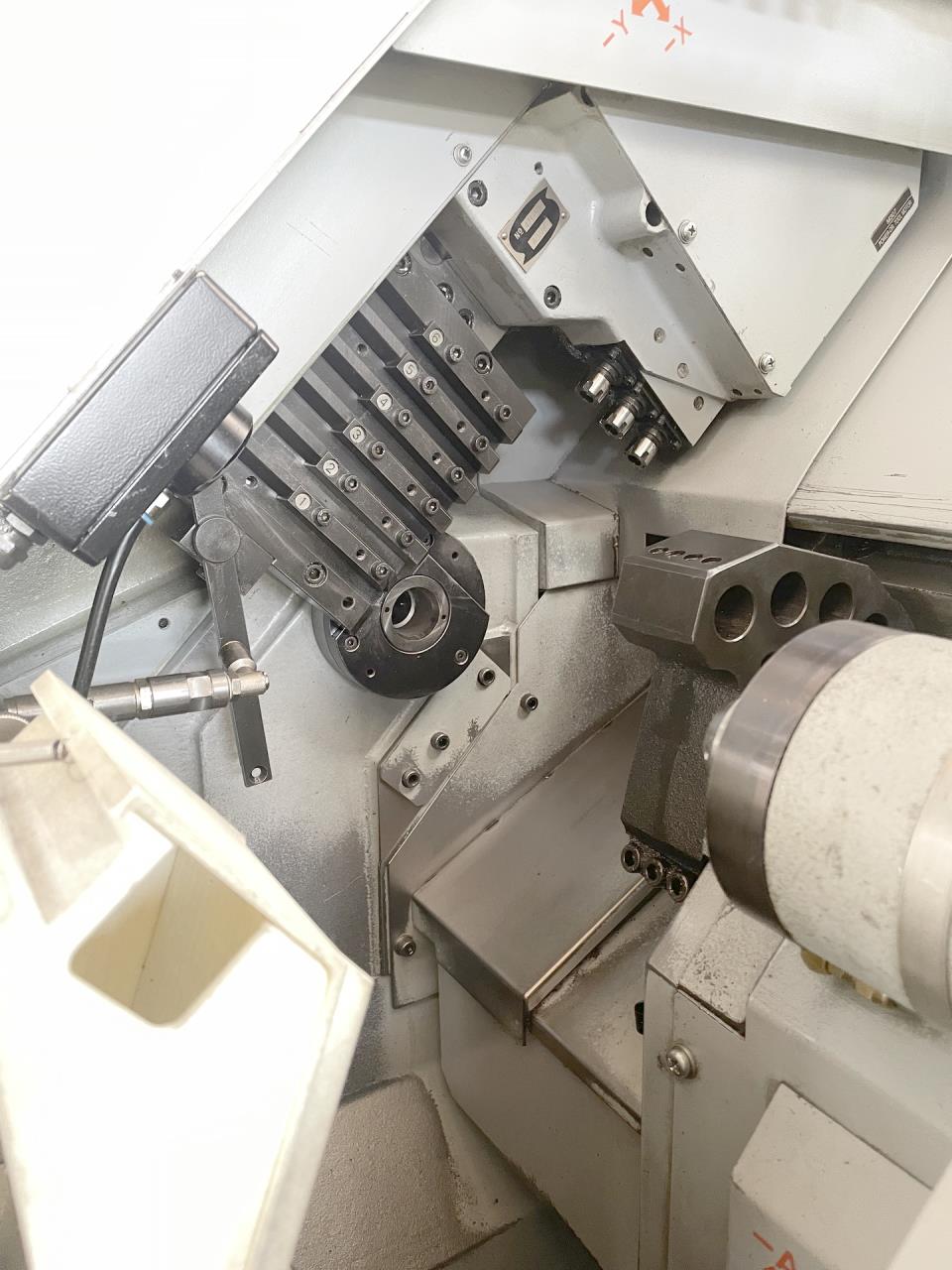

Tool-holder:
Turning tools
6 pce
Drilling tools
4 pce
Transverse processing tools
3 pce
Spindle speeds (turning tools)
7500 rpm
Power of driven tools
0.4 kW
Max. drilling diameter
4 mm
Thread drill diameter
3 M (Metric)
Tool shank cross section
10 mm
Inner taper type
ER 11
Counter-operation:
number of tools
4
Rapid traverse:
20 m/min
Cutting speed
10000 mm/min
Voltage 50 Hz 3x
400 Volt
Spindle motor
2.2 / 3.7 kW
Power of back spindle
1.1 / 0.5 kW
Air connect
5 bar
Total power required
6 kVA
Machine's weight about
1700 kg
Overall dimensions machine:
Length
2090 mm
Width
770 mm
Height
1660 mm
Various accessories:

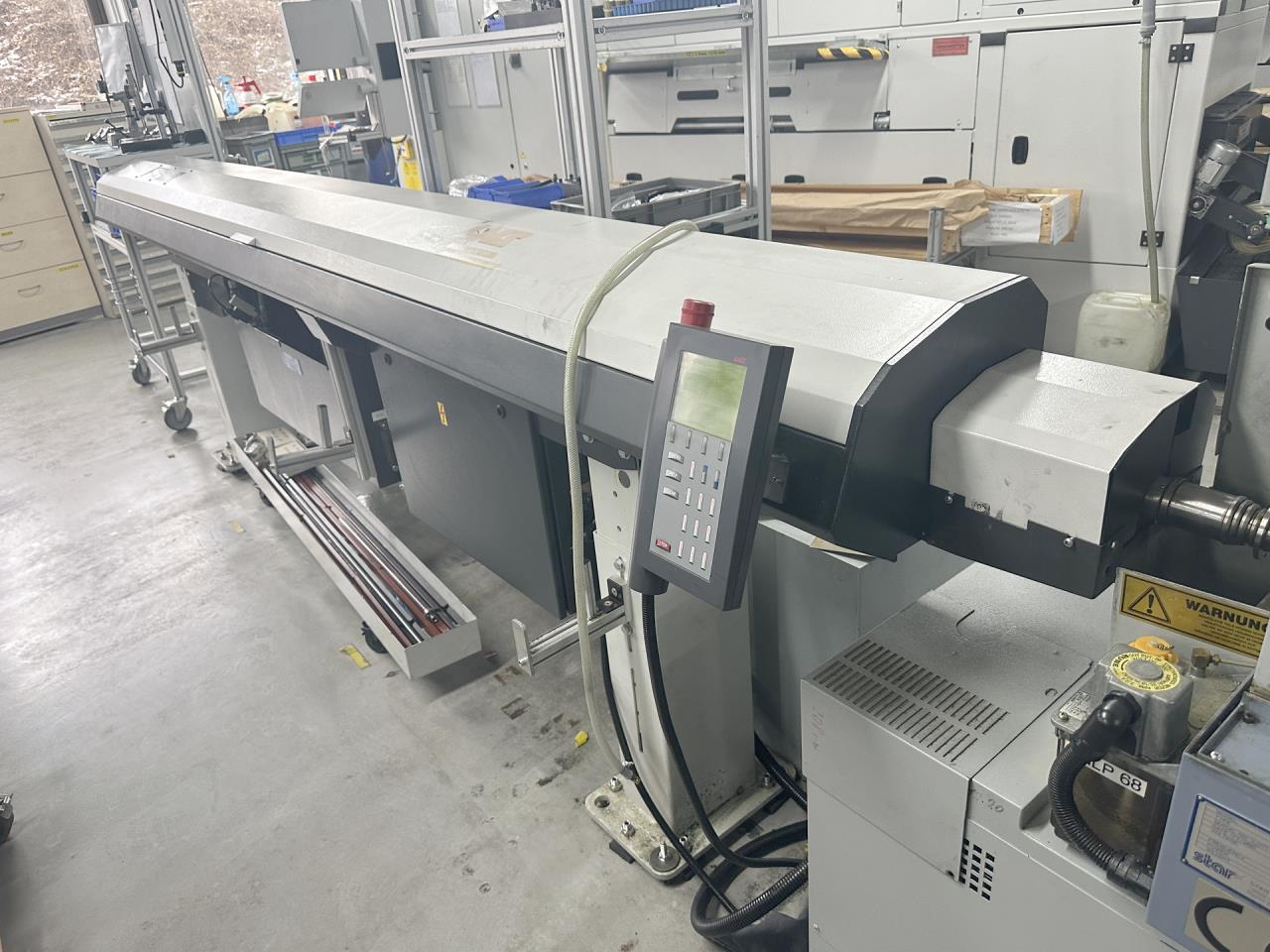

Bar feeder
Manufacturer
LNS
Type
Express 220
year of manufacture
2007
Length of bars max.
3200 mm
Bar diameter
2 - 20 mm
Parts catcher
Workpiece conveyor
Lamp

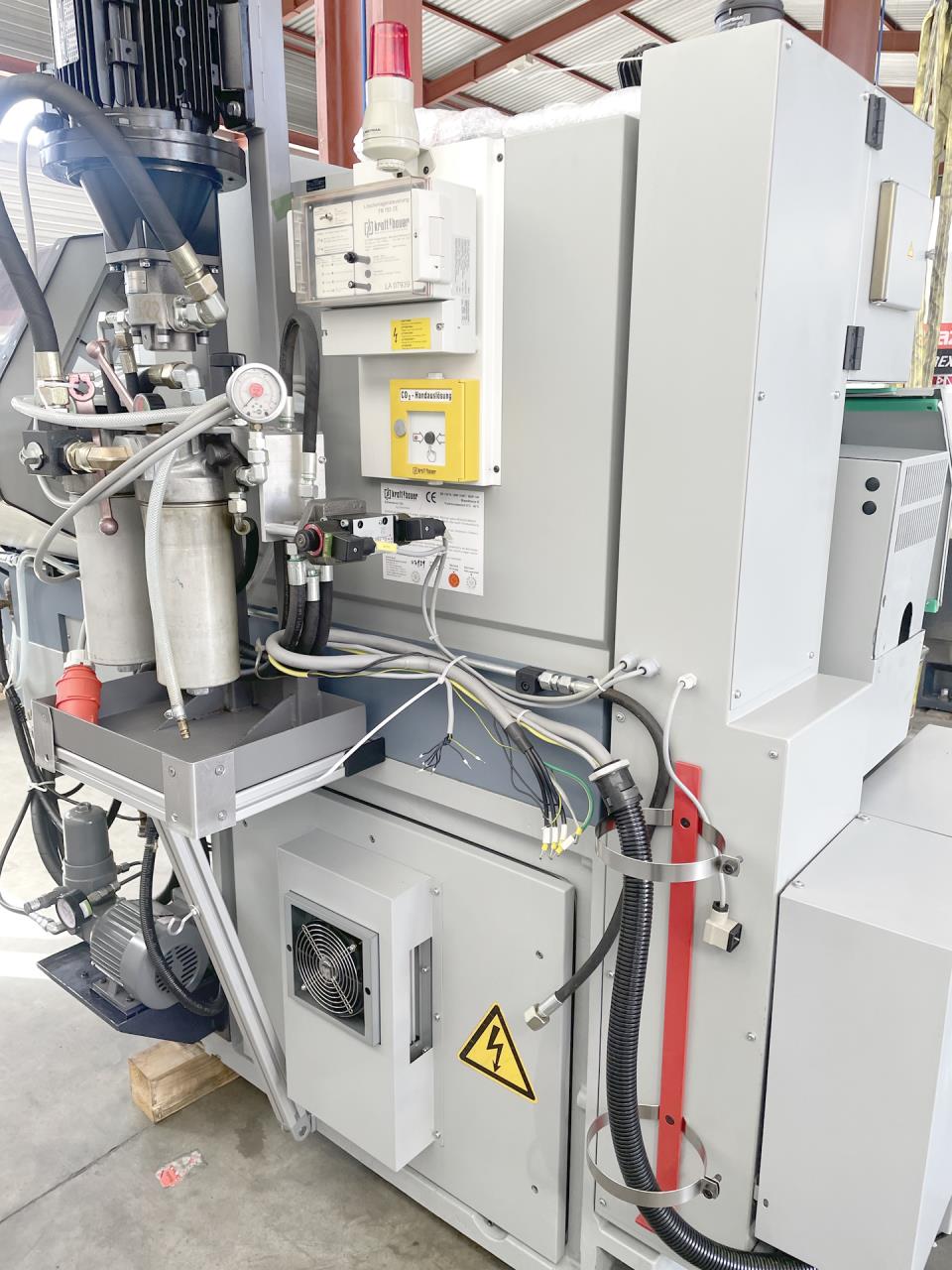

High pression colant device
Coolant system
80 l

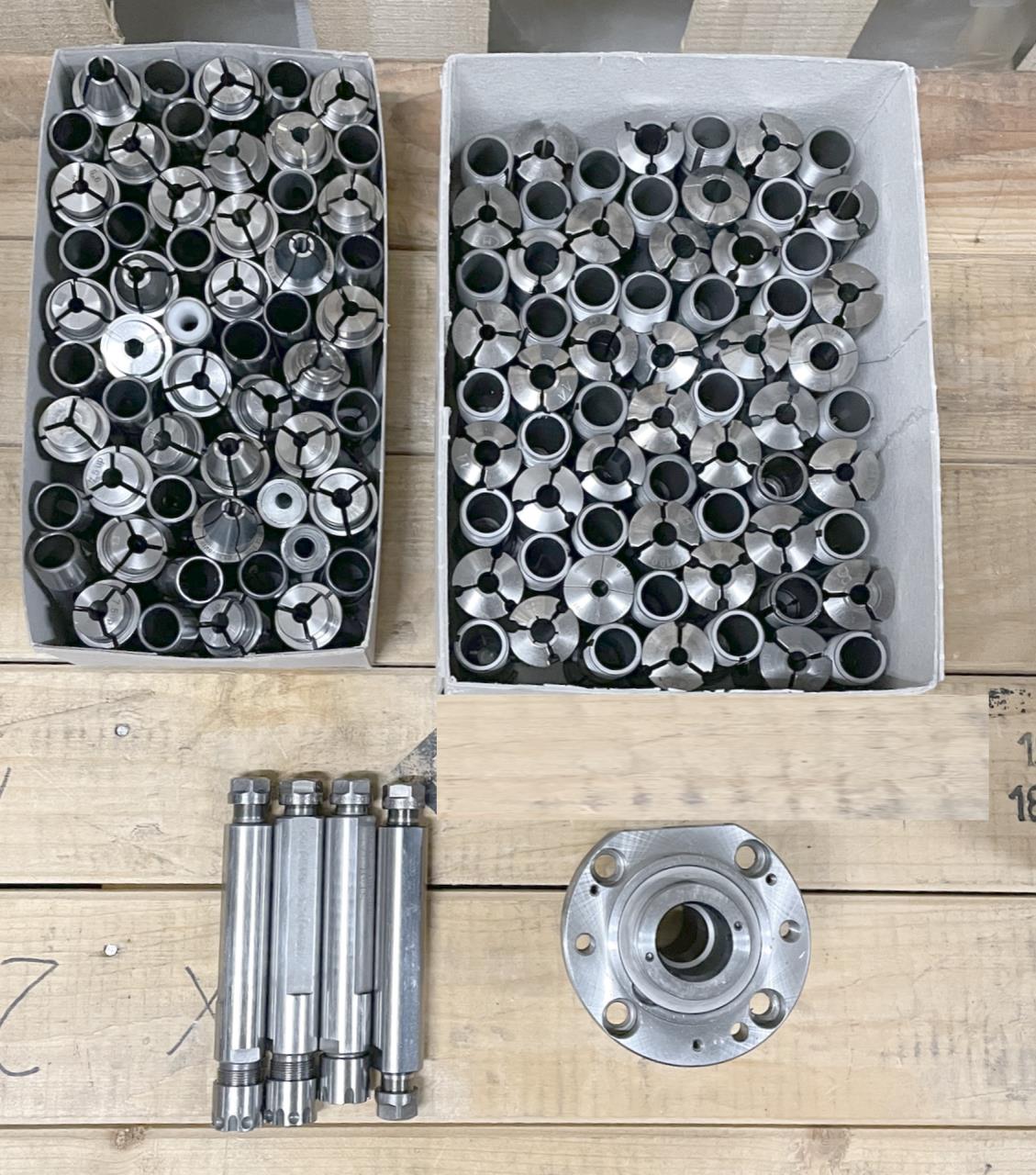

Set of collets
Set of toolholders
Fire extinguishing system (without bottle)
Technical specifications and pictures without guarantee.
