stock no. :
22588
Machine's group :
Type :

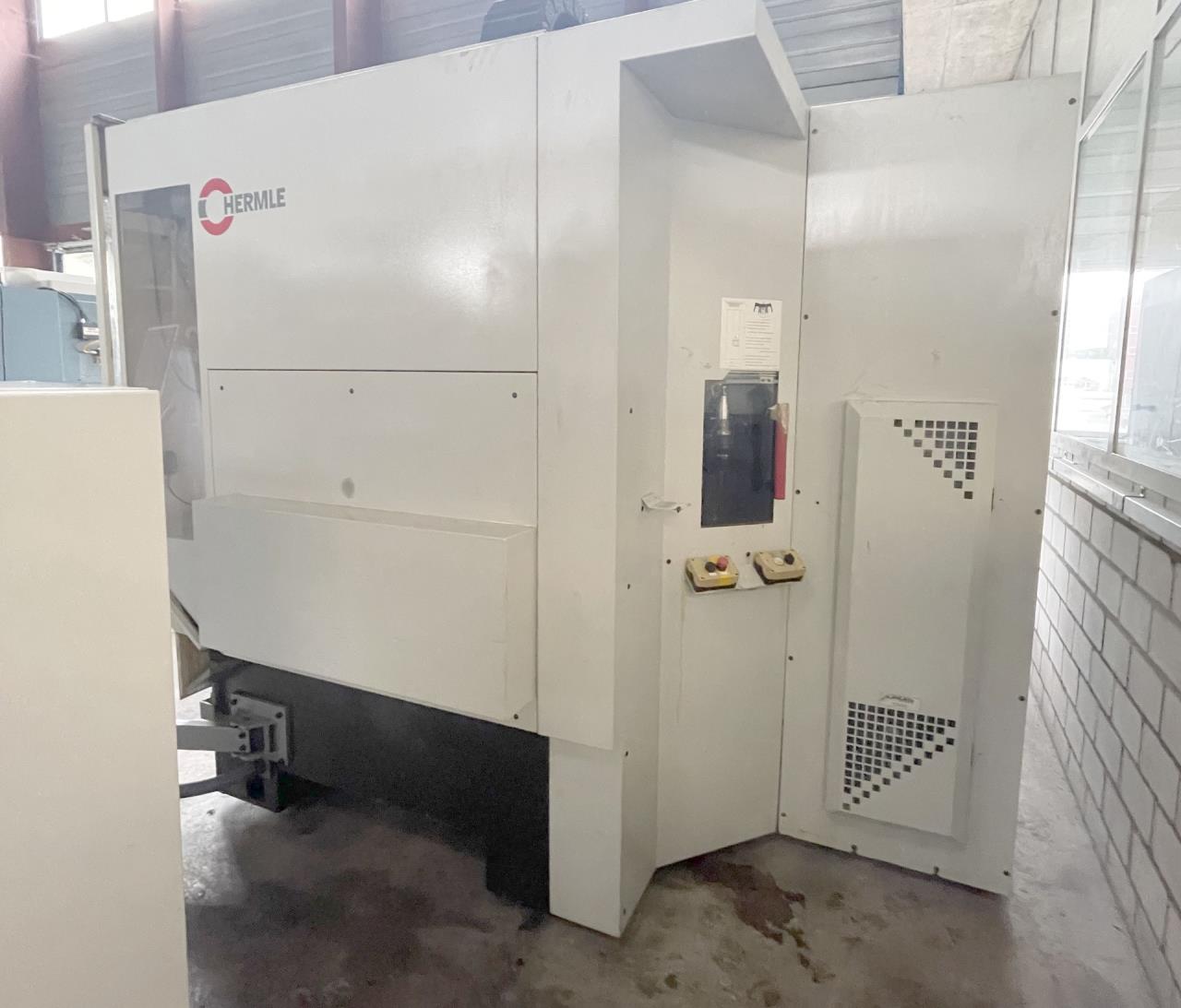

HERMLE C 800 U
Controller :

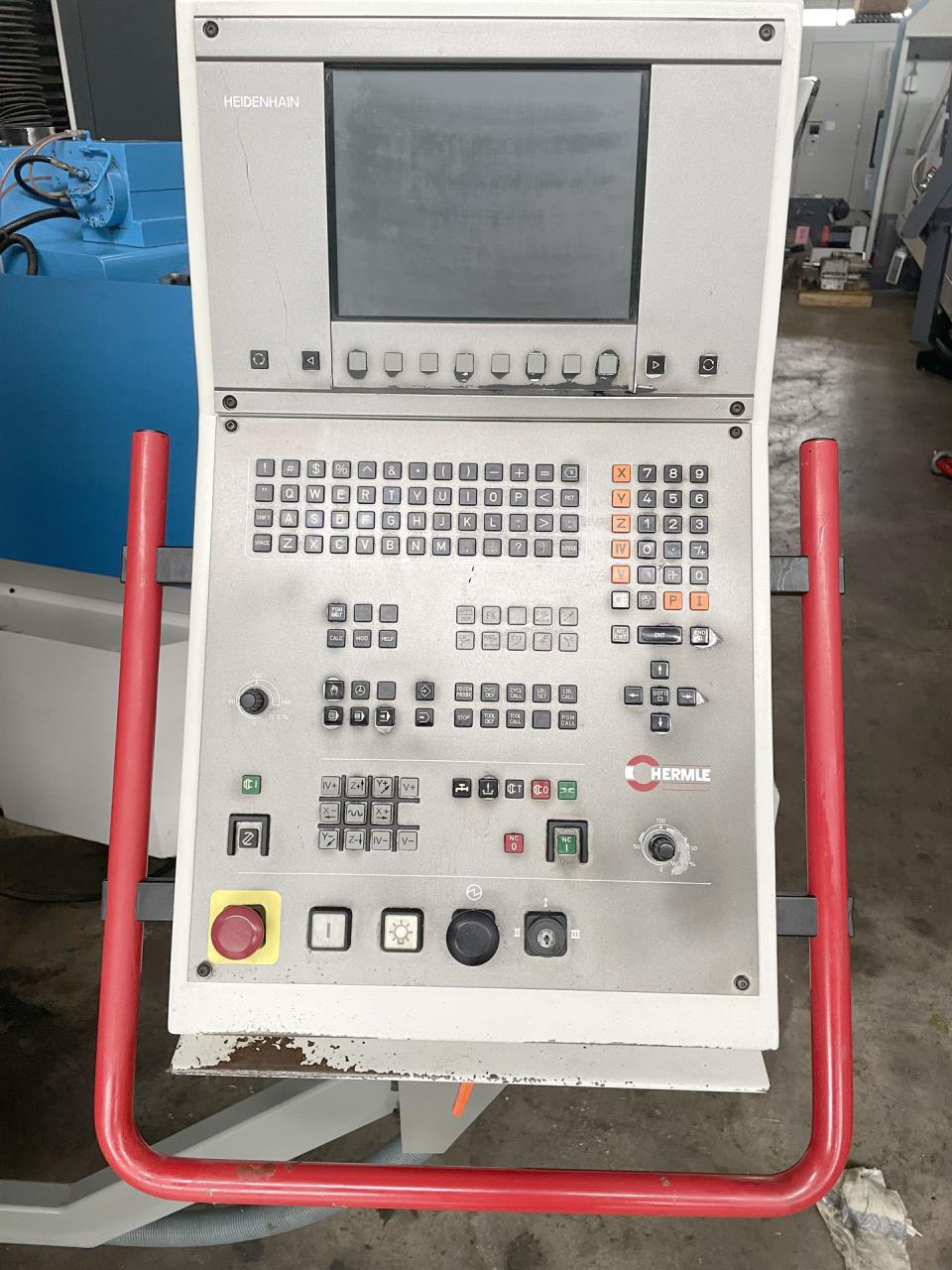

HEIDENHAIN TNC 430
Jahrgang :
2000
Technical data
Number of axis total
5

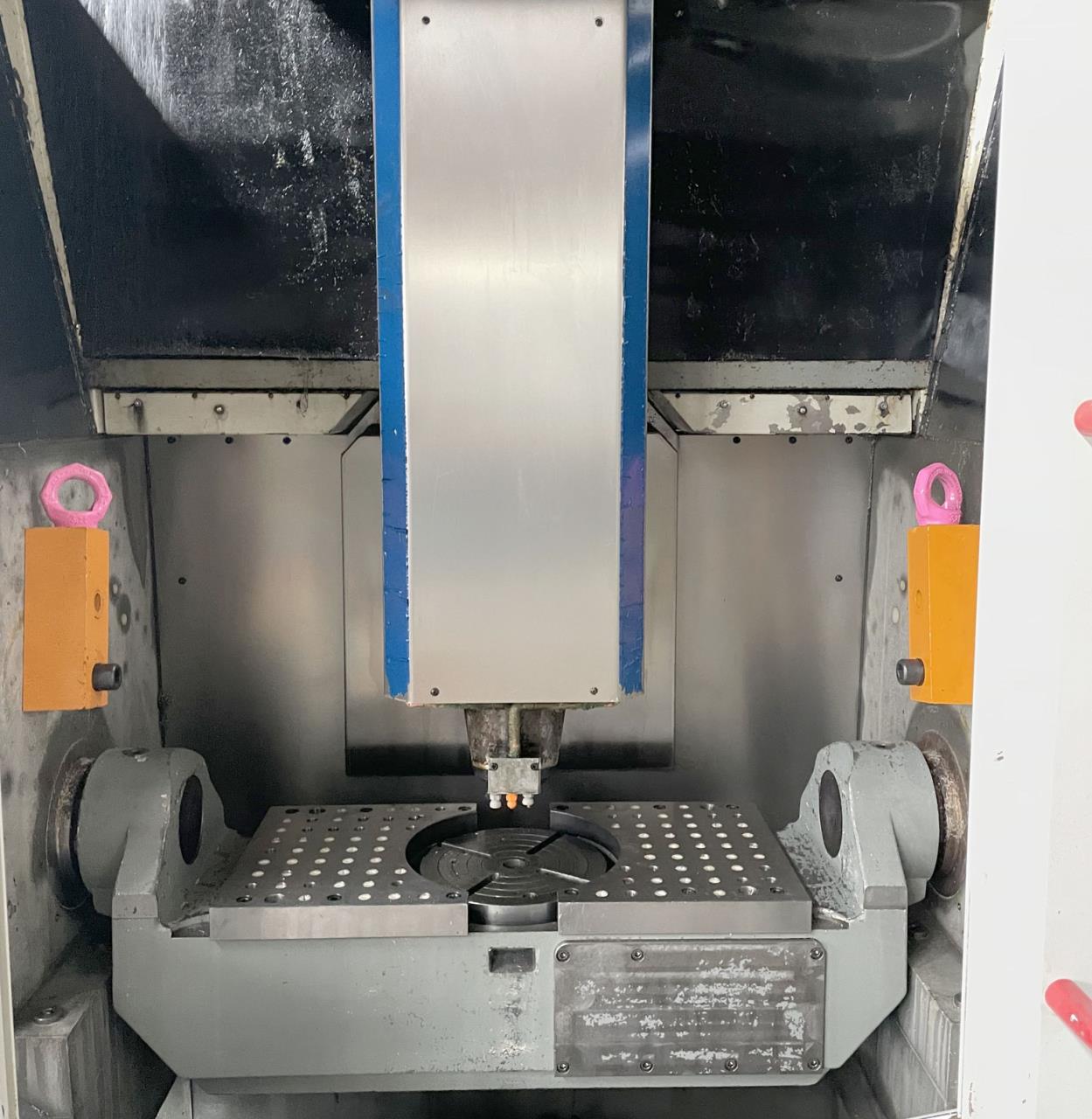

Table length
800 mm
Table width
370 mm

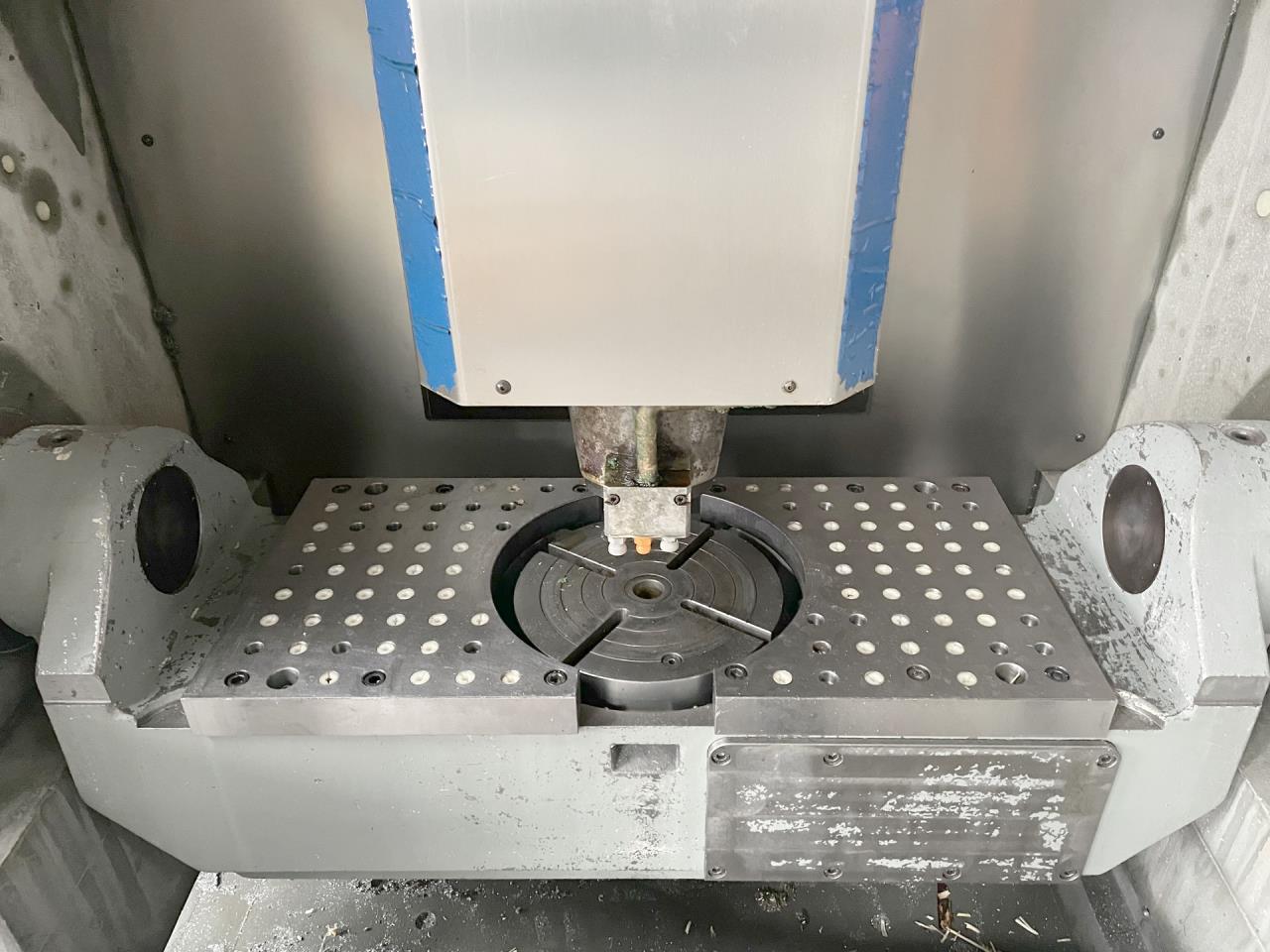

Circulary table diameter
280 mm
Number of T-channels
4
T-channel width
14 mm
Table load max.
100 kg
Longitudinal travel (X-axis)
800 mm
Transversal travel (y-axis)
600 mm
Vertical travel (z axis)
500 mm
Dimension of the workpice:
Height
215 mm
Diameter
280 mm
Table load max.
200 kg
Table divisions (B)
360 °
Swivel angle (a-axis)
+/-90 °
Table divisions (C)
360 °
Table speeds:
up to
15 rpm
Pallets:
numbers
5
Length
350 mm
Width
350 mm
Tool changer:
Number of tools
30
Tool diameter
80 mm
Diameter with free adjacent pockets
125 mm
Tool lenght
300 mm
Max. tool-weight
8 kg
Spindle nose: ISO
40
Spindle speeds:
stepless
from
20 rpm
up to
8000 rpm
Feed range
1 - 30000 mm/min
Feeds:
Rapid traverse:
35 m/min
Air connect
6 bar
Voltage 50 Hz 3x
400 Volt
Spindle motor
15 / 10 kW
Total power required
31 kVA
Noise level
78 dB (A)
Machine's weight about
8500 kg
Overall dimensions machine:
Length
2700 mm
Width
2210 mm
Height
2930 mm
Space requirement env.
5 m2
Various accessories:
Coolant system
300 l

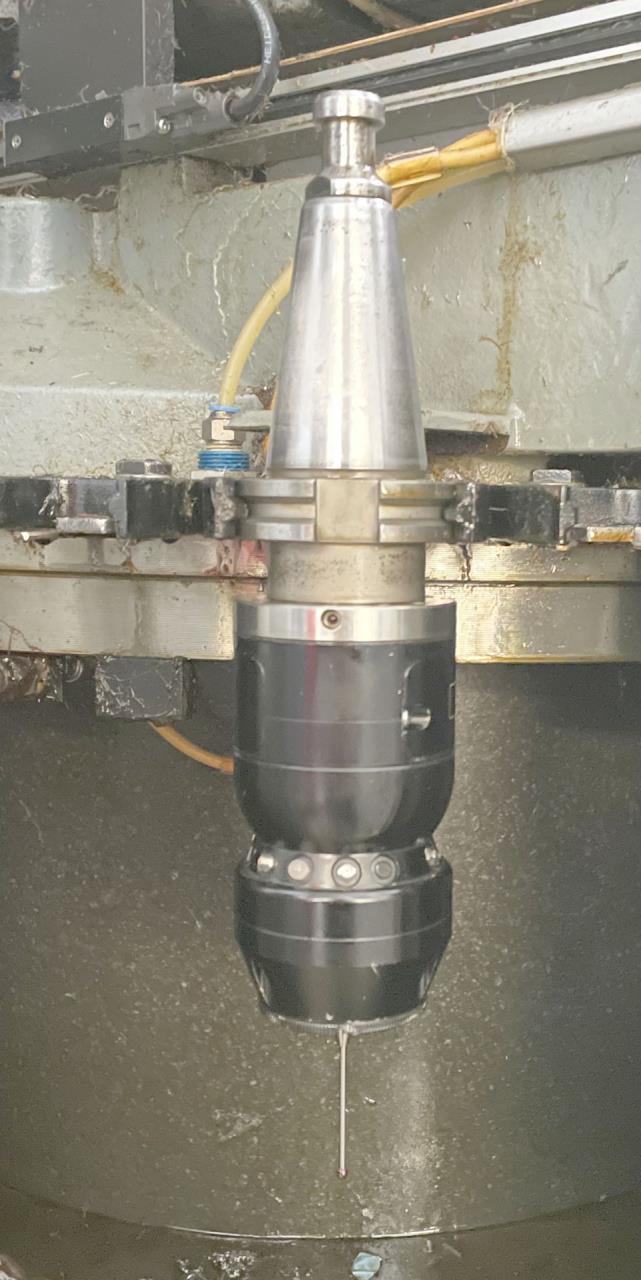

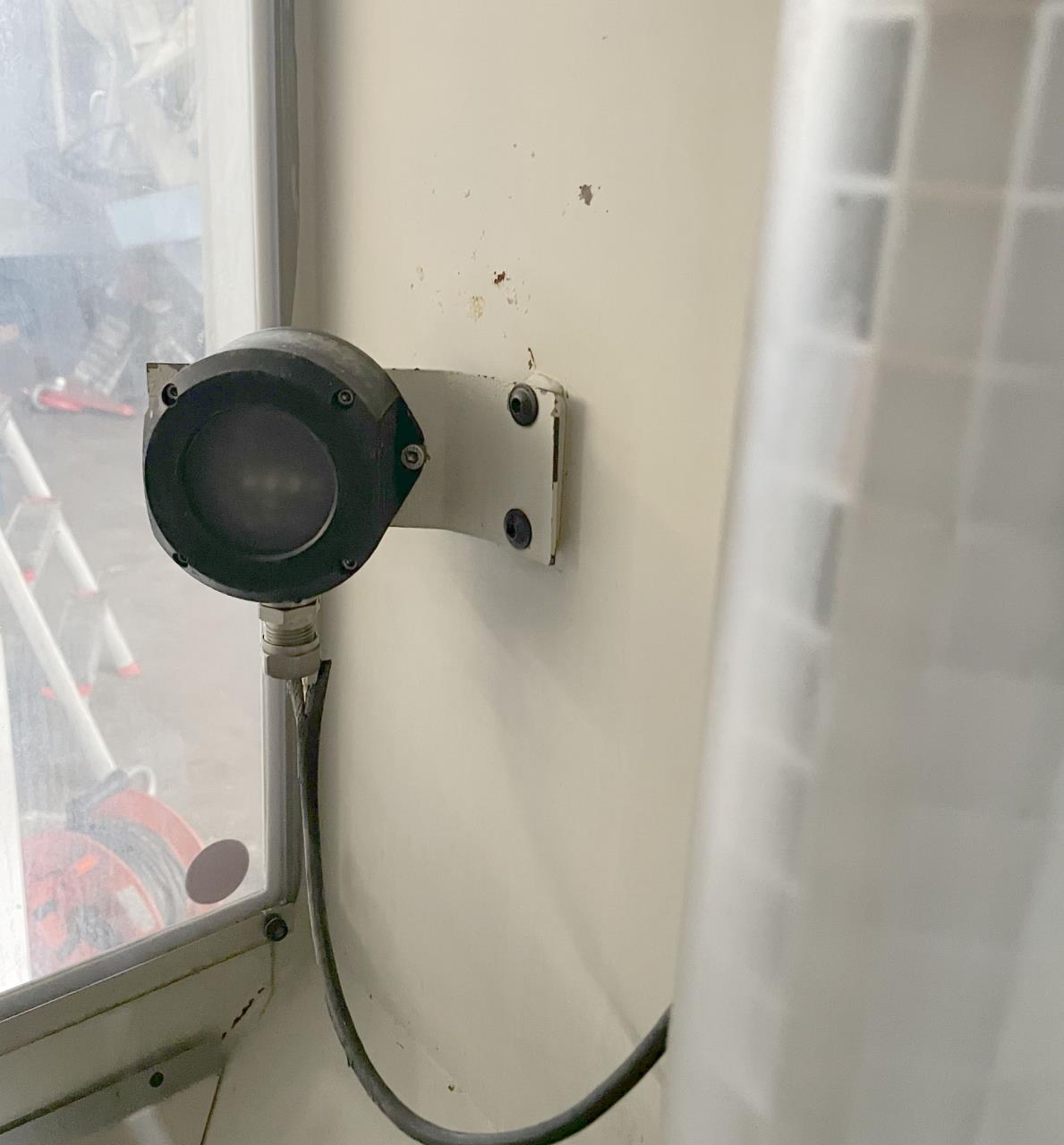

Touch Probe Renishaw
Interface serial port RS 232
Interface Ethernet
Switch cabinet Air conditioner
Technical specifications and pictures without guarantee.
