stock no. :
22554
Machine's group :
Type :
OKUMA LB3000EXII

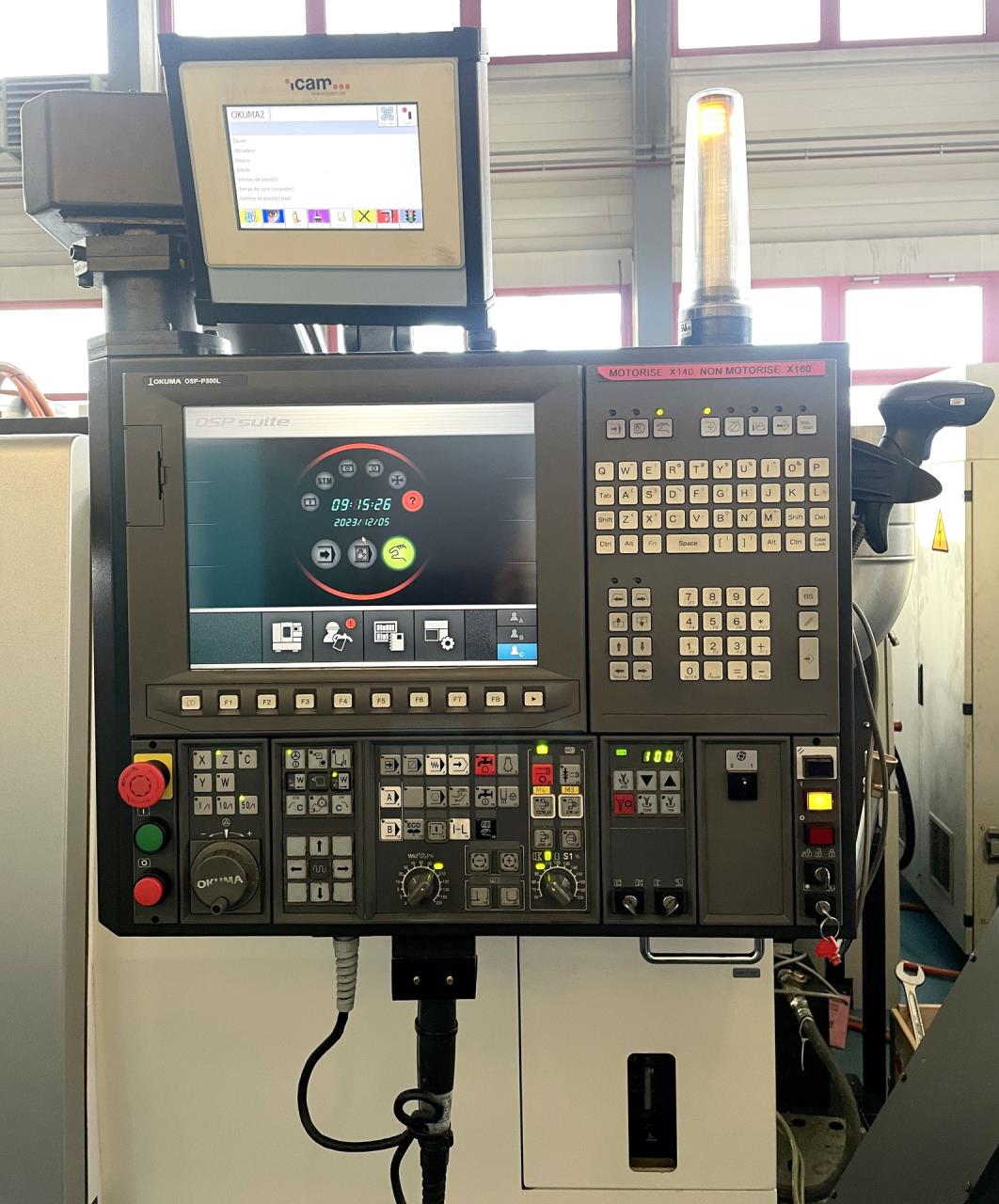

Controller :
OKUMA OSP-P300L
Jahrgang :
2015
Technical data
Number of axis total
2
Distance between centres
1020 mm
180 kg
Workpiece weight on centres max.
250 kg
Swing over bed
580 mm
Swing diameter over carriage
470 mm
Maximum turning length
1000 mm
Max. turning diameter
340 mm
Turret carriage:
Travels:
Longitudinal travel (Z-axis)
565 mm
Transversal strocke (X axis)
260 mm

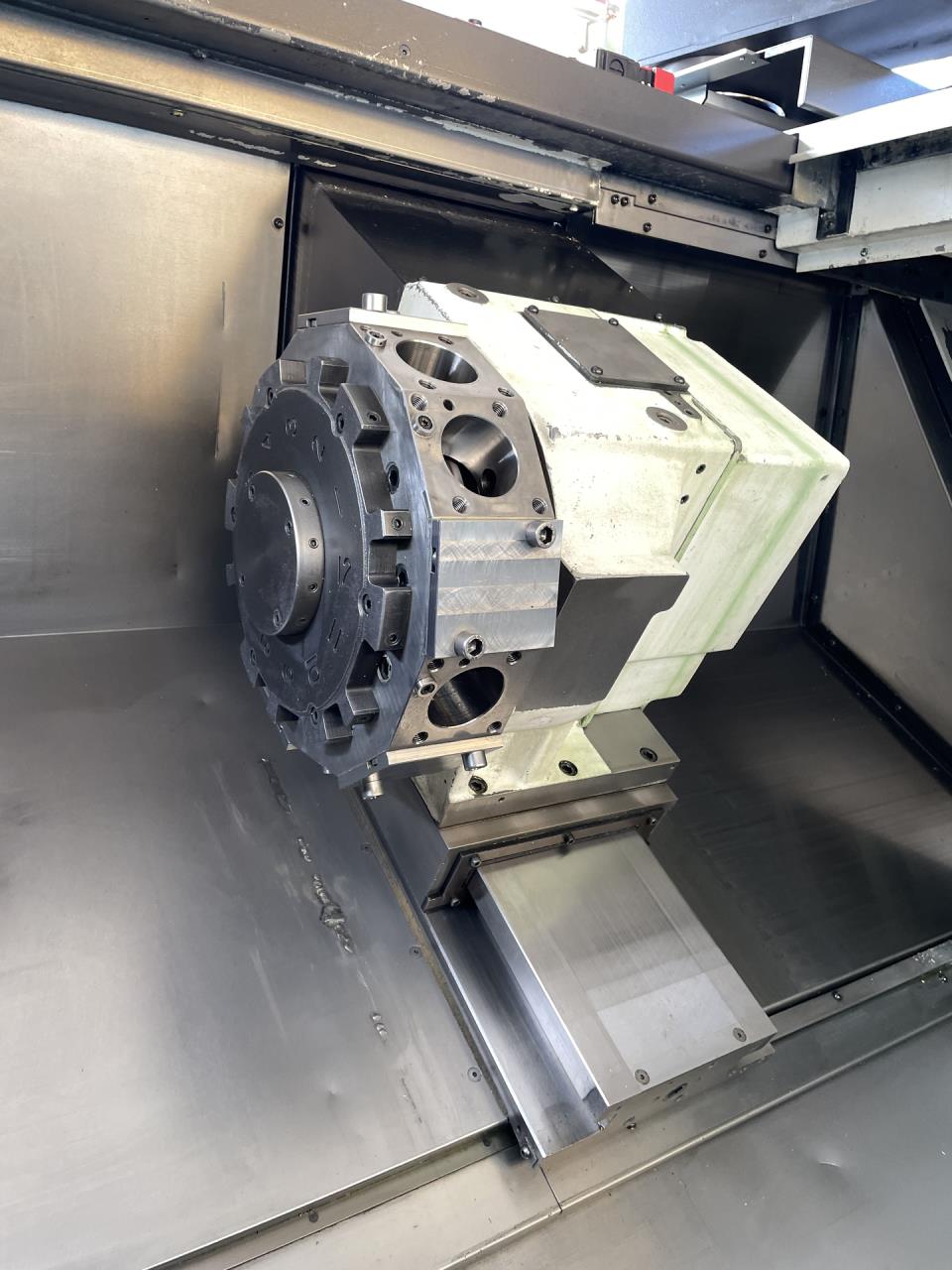

Turret slide:
Number of positions
12
Driven tools turret
12
Driven tools turret
45 - 6000
Tool shank cross section
25 mm
Inner cone diameter
40 mm
Main spindle:
Internal spindle diameter
82 mm
C axis (spindle,resolution)
0.001 °
Spindle speeds:
stepless
from
45 rpm
up to
5000 rpm
Tail stock travel
1015 mm

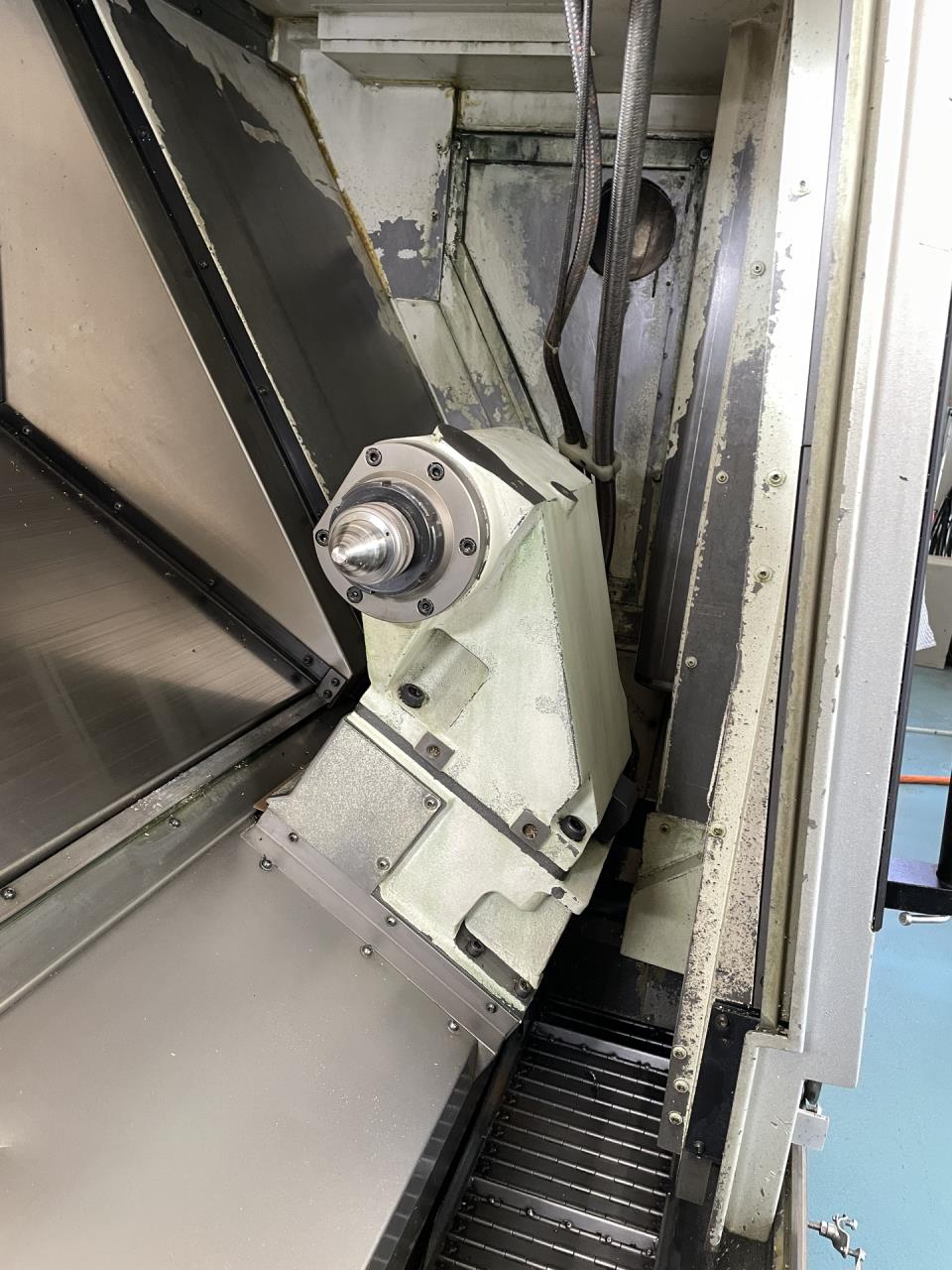

Tailstock:
Morse taper
5 MT
Spindle motor
22 / 15 kW
Voltage 50 Hz 3x
400 Volt
Total power required
27.4 kVA
Machine's weight about
6150 kg
Overall dimensions machine:
Length
3310 mm
Width
1895 mm
Height
1925 mm
Various accessories:

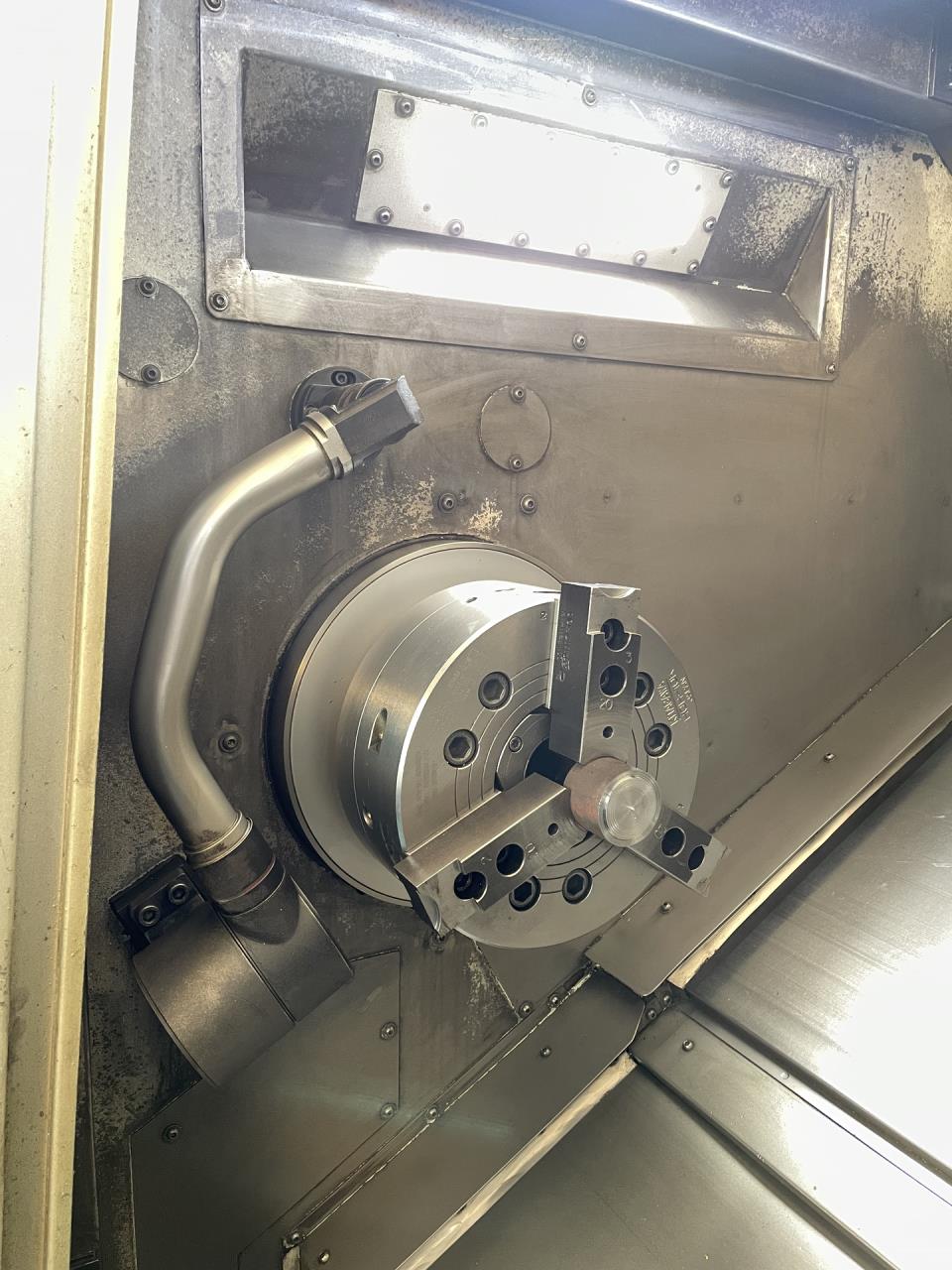

3-jaw chuck diameter
250 mm
Set of soft jaws
Set of hard jaws
Lamp
Hydraulic tailstock
Coolant system
Oil mist extractor
Rotary centre
Interface serial port RS 232
Chip conveyor

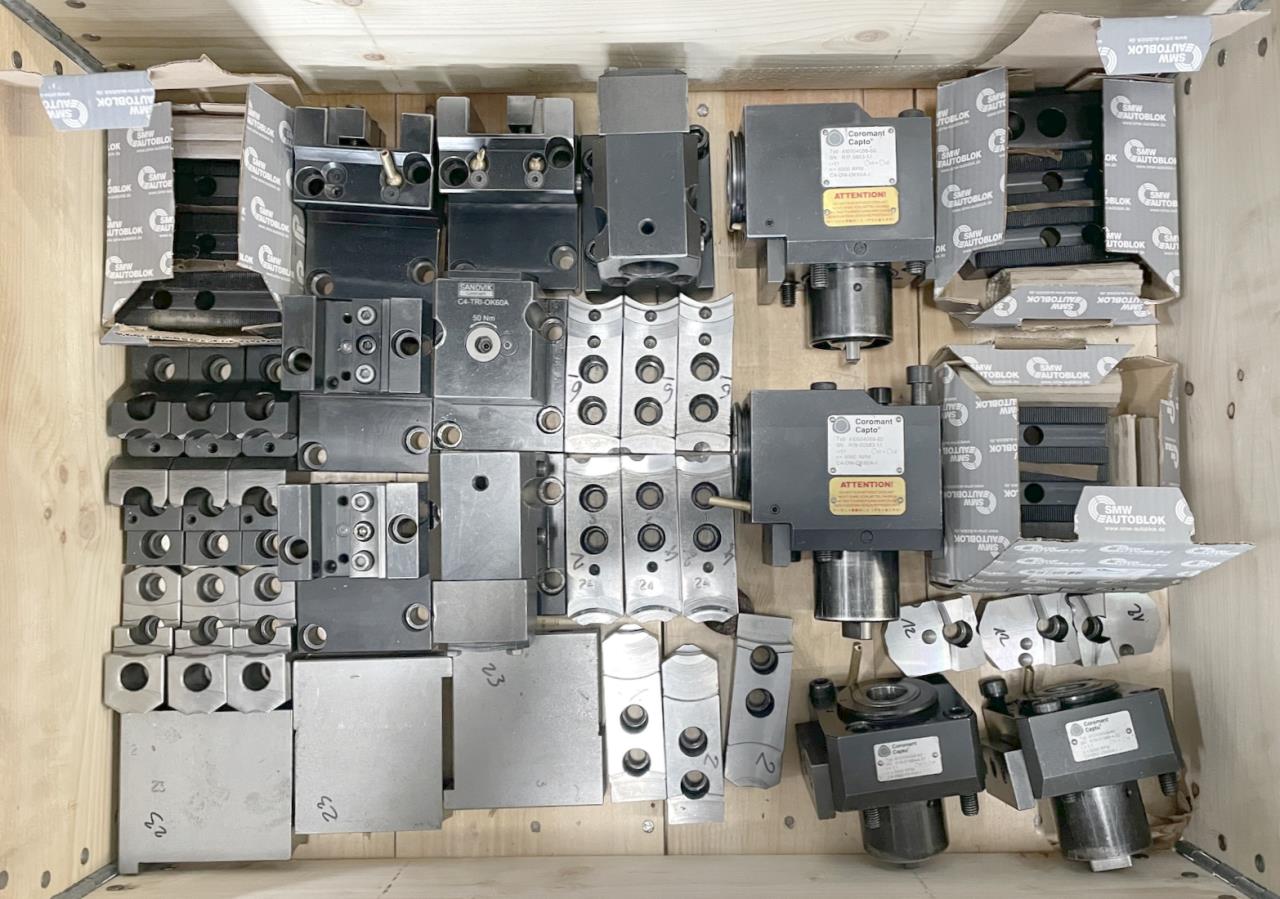

Set of steel holders
Set of toolholders
Measuring arm Renishaw
Status light
Technical specifications and pictures without guarantee.
