stock no. :
22502
Machine's group :
Type :

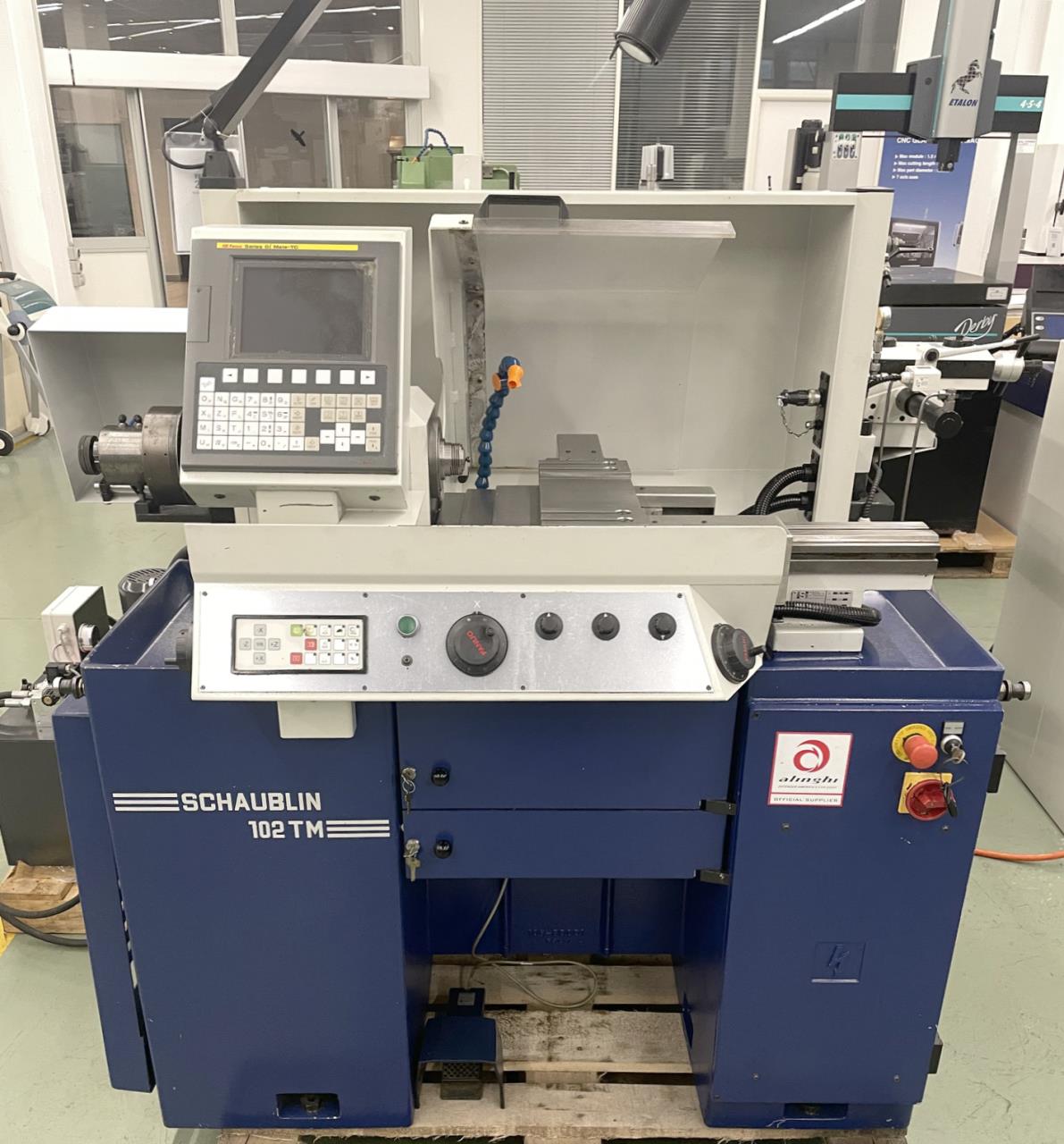

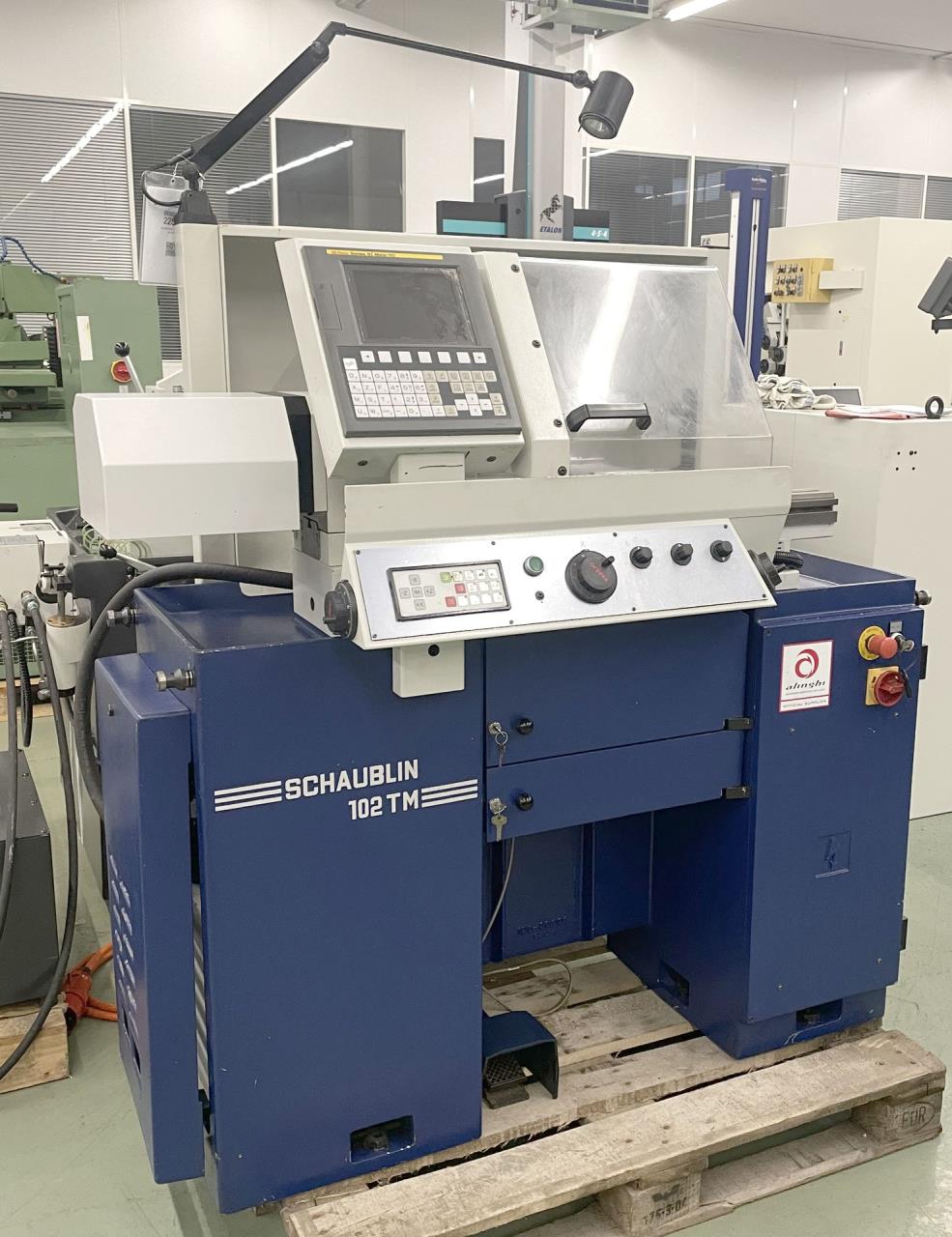

SCHAUBLIN 102 TM CNC

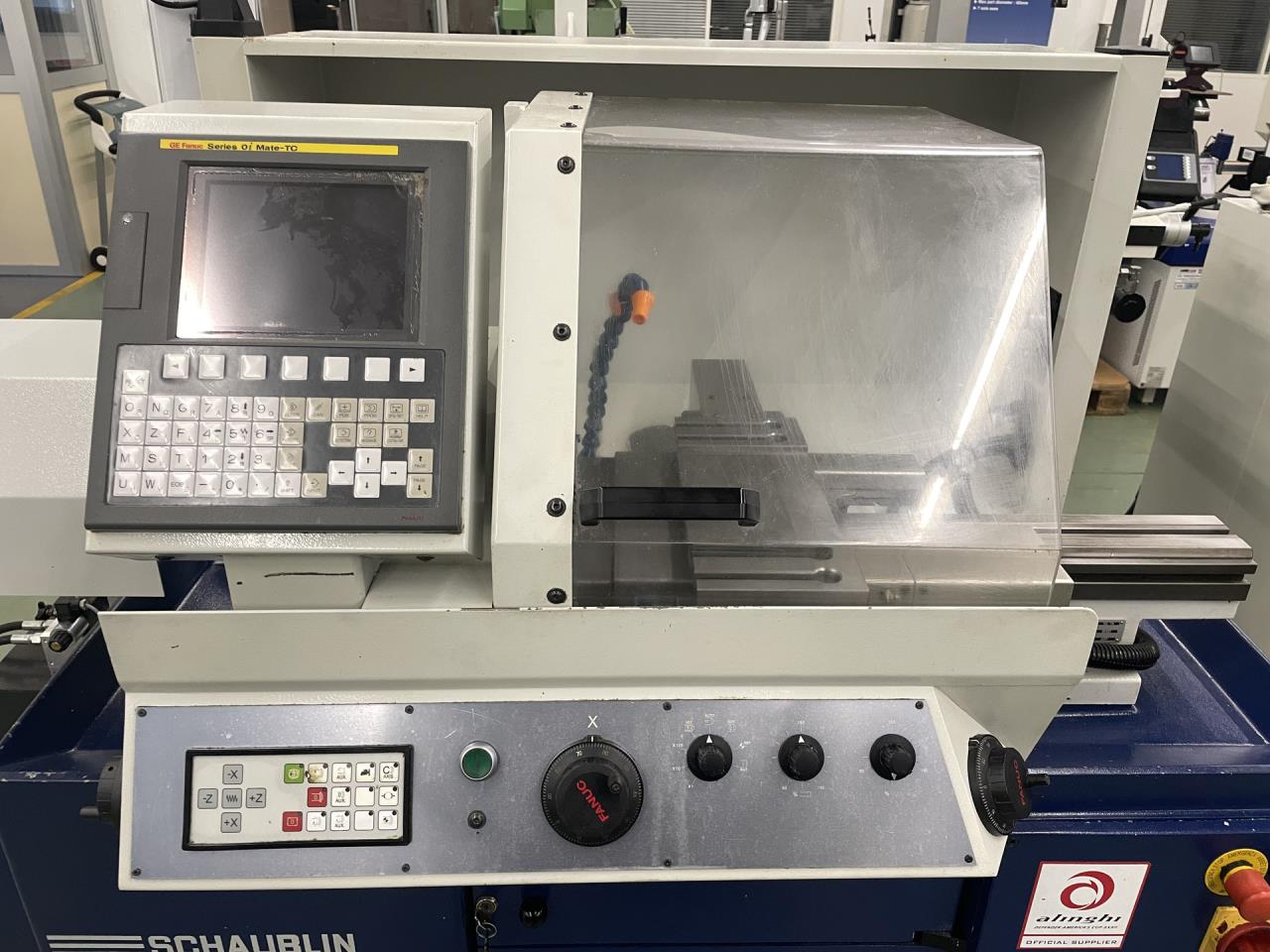

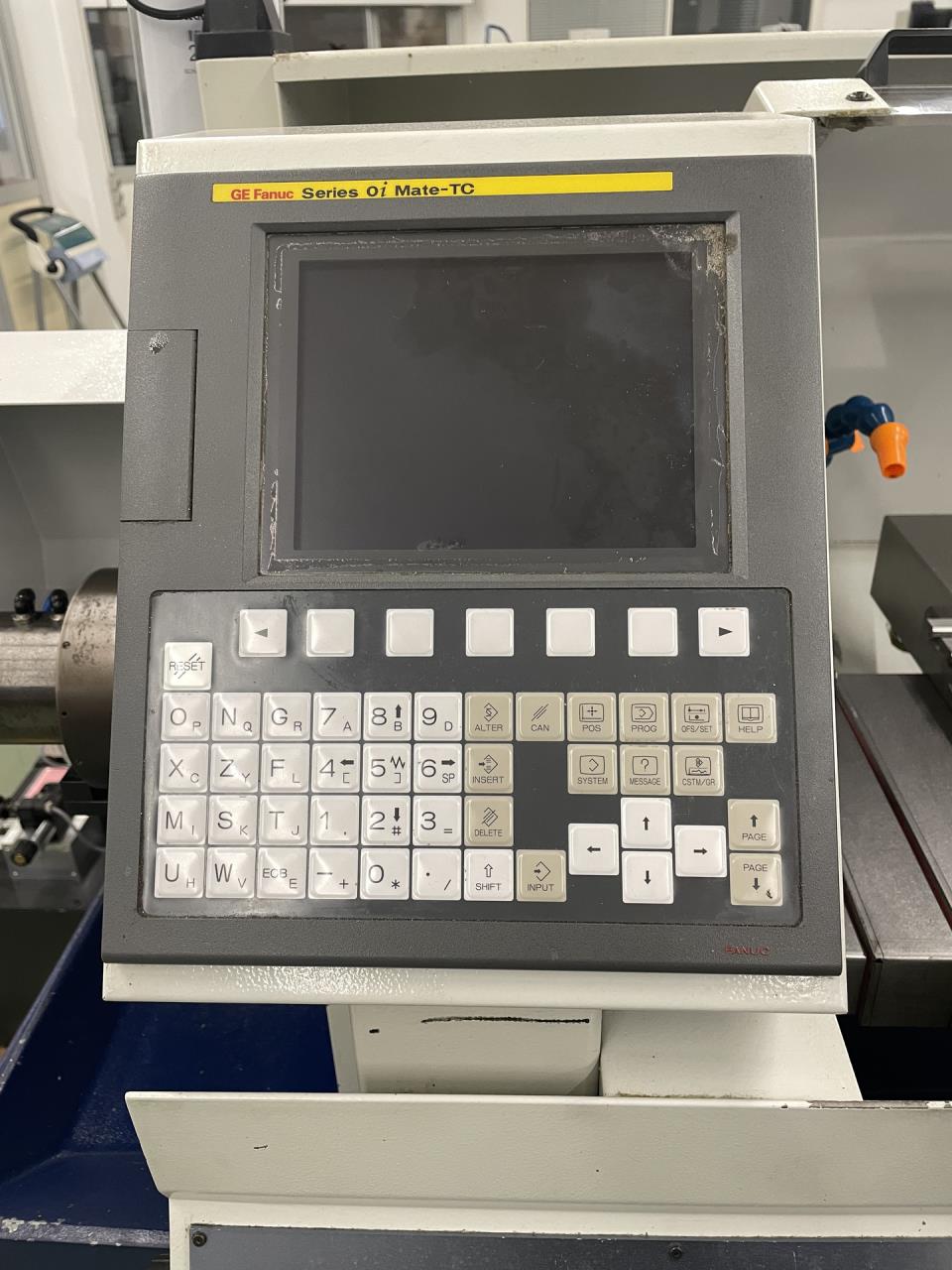

Controller :
GE FANUC Series Oi Mate-TO
Jahrgang :
2007
Video
SCHAUBLIN 102 TM CNC 11 Image(s)
Back
Technical data
Number of axis total
3
Swing over cross-slide
75 mm
Swing over bed
125 mm
Turning length
150 mm

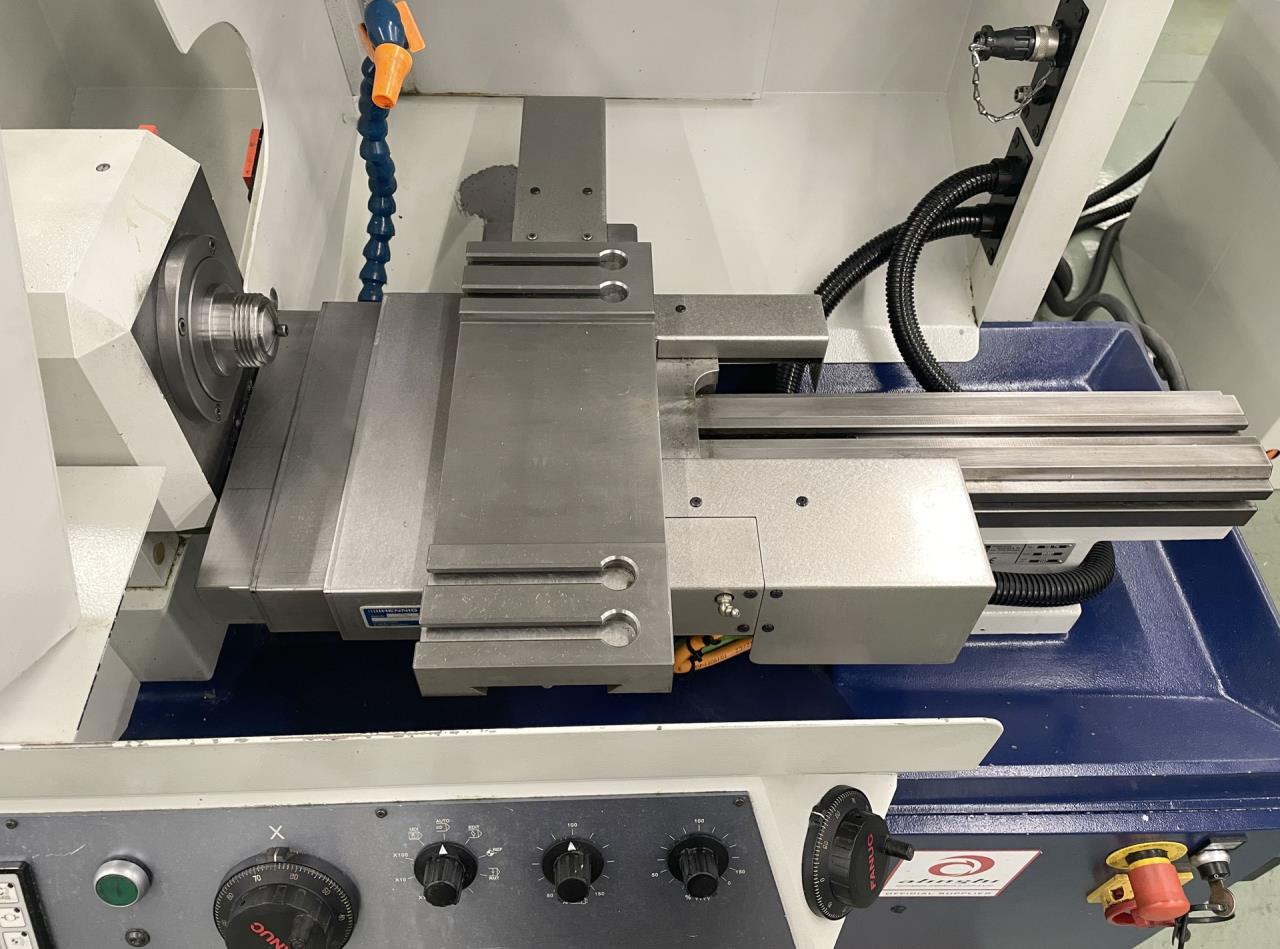

Carriage:
    Longitudinal travel (Z-axis)
100 mm
    Cross travel (x-axis)
120 mm

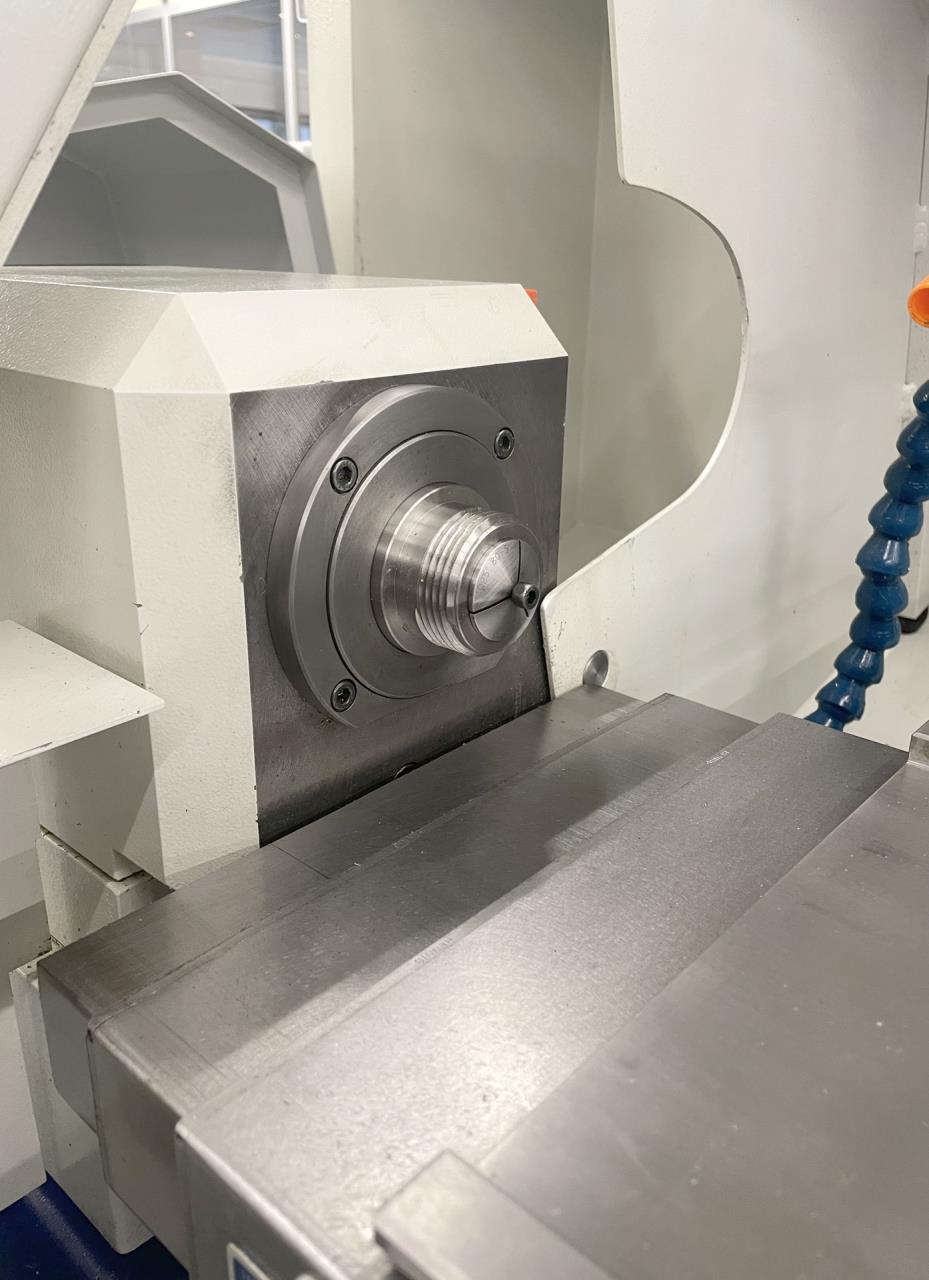

Main spindle:
    Inner taper type
W 25
    C axis (spindle,resolution)
0.001 °
    Spindle speeds:
       stepless
       from
50 rpm
       up to
8000 rpm
Feeds:
    longitudinal from
0 mm/min
       up to
5000 mm/min
    transversal from
0 mm/min
       up to
5000 mm/min
Rapid traverse:
7000 m/min
Spindle motor
1.5 / 2.2 kW
Voltage 50 Hz 3x
380 Volt
Machine's weight about
650 kg
Overall dimensions machine:
    Length
1400 mm
    Width
800 mm
    Height
1470 mm

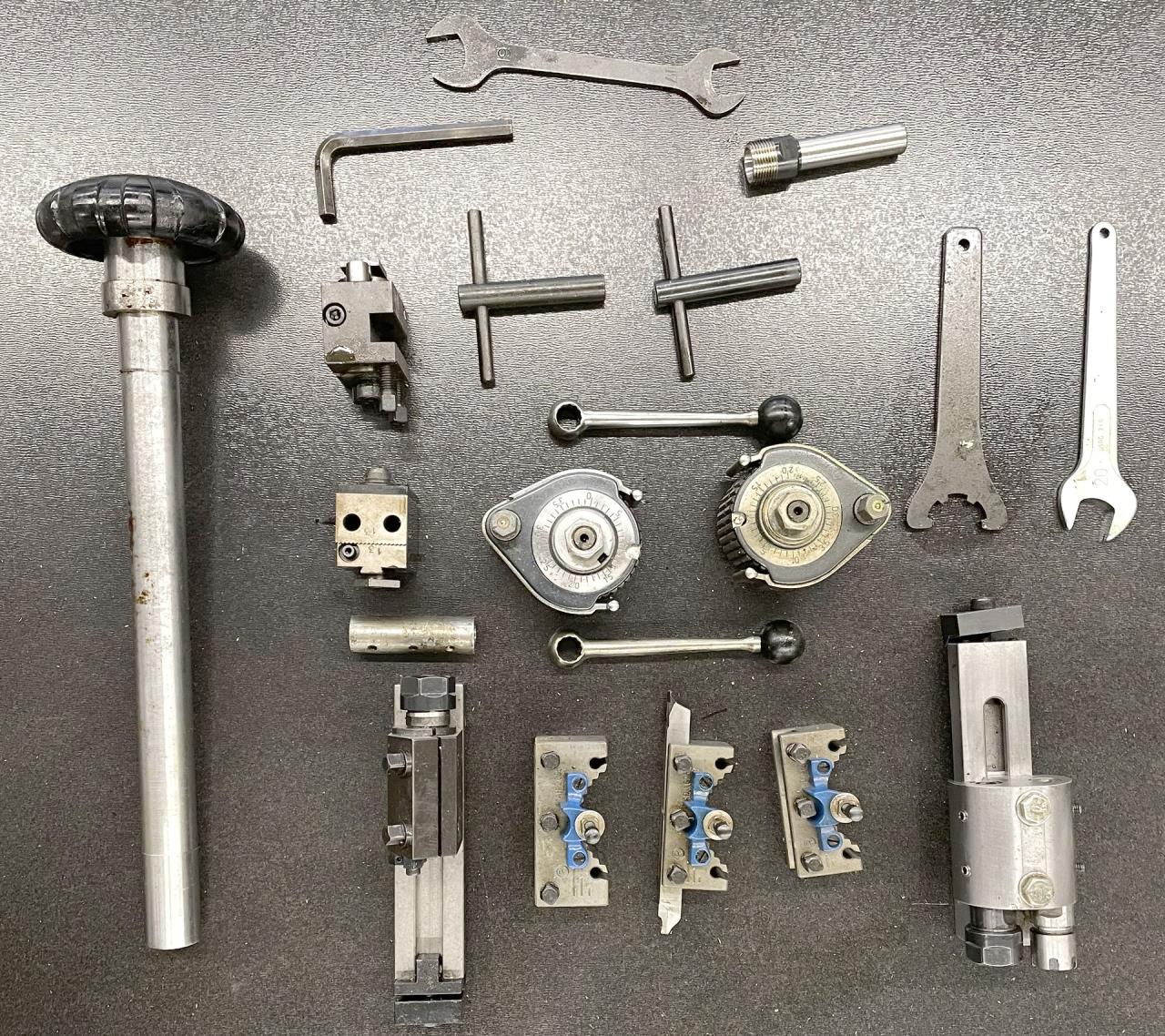

Various accessories:

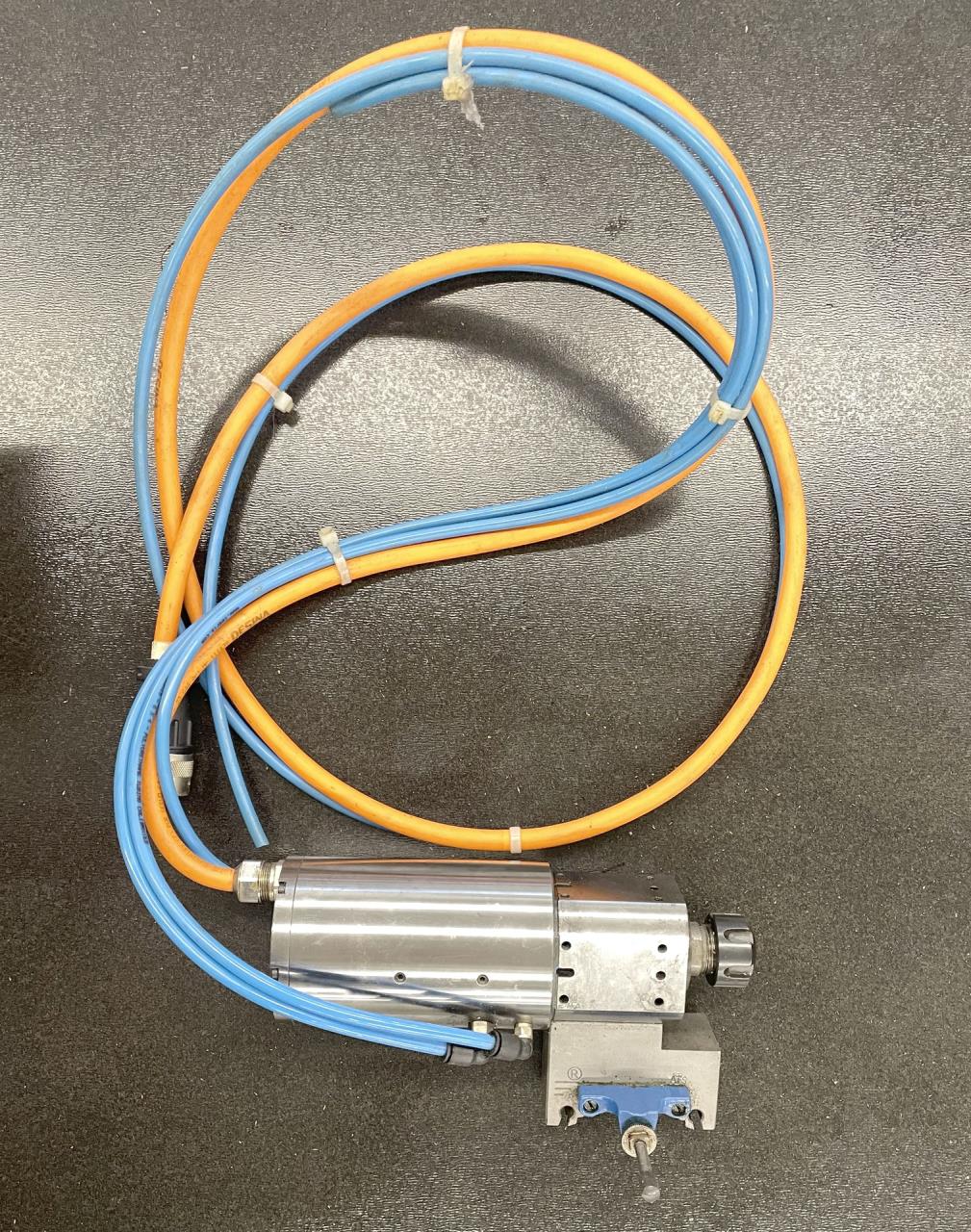

Quill porte-meule (n/tours)
3000 - 24000 rpm
Collet device

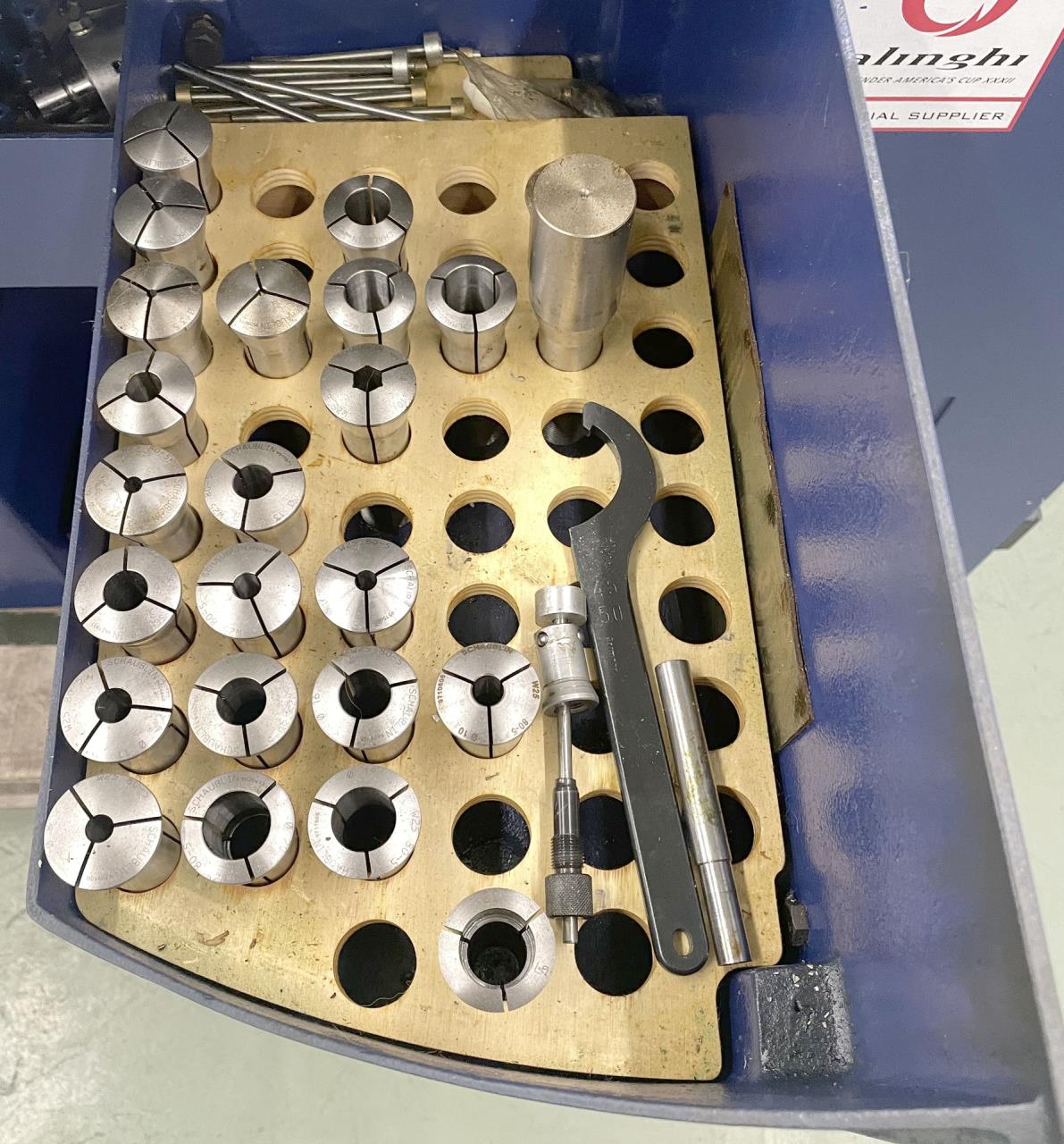

Set of collets
Lamp
Pneum. quick closing attach.
Foot pedal
Quick change tool
MULTIFIX
Set of steel holders

Technical specifications and pictures without guarantee.
