Technical data
Table length
1200 mm
Table width
500 mm
Grinding length
1000 mm
Grinding width
700 mm
Grinding height
650 mm
Table load max.
1000 kg
Longitudinal travel (X-axis)
1120 mm
Cross travel (z-axis)
635 mm
Vertical travel (Y-axis)
690 mm
Automatic longitudinal feeds:
stepless
from
1 m/min
up to
40 m/min
Automatic cross-feed:
stepless
from
0 m/min
up to
5 m/min
Automatic Vertical feed:
stepless
from
0 m/min
up to
1.5 m/min
Automatic vertical feed:
Vertical rapid traverse
1.5 m/min
Diameter of grinding wheel
406 mm
Width of the grinding wheel
100 mm
Wheel int. diameter
152.4 mm
Grinding wheel speeds fix
1400 rpm
Voltage 50 Hz 3x
380 Volt
Grinding spindle motor
11 kW
Total power required
31 kW
Machine's weight about
7800 kg
Overall dimensions machine:
Length
4750 mm
Width
3485 mm
Height
2680 mm
Various accessories:
Coolant system
Paper filter facility
Electrical magnetic chuck
Length
1000 mm
Width
500 mm
Lamp

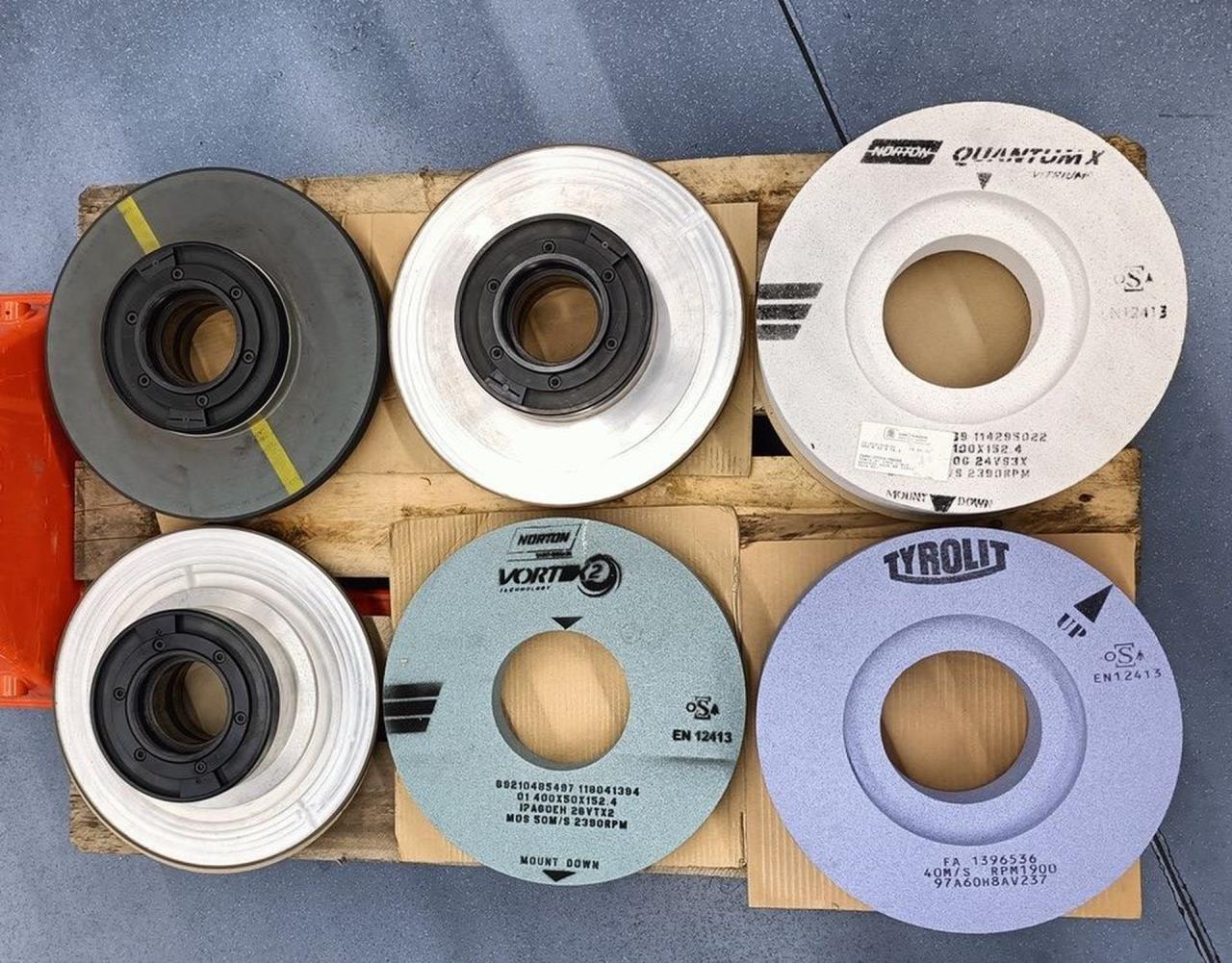

Set of grinding wheels
Technical specifications and pictures without guarantee.
