Technical data
Number of axis total
2
Swing over bed
270 mm
Maximum turning length
175 mm
Max. turning diameter
220 mm
Turret carriage:
Travels:
Longitudinal travel (Z-axis)
300 mm
Transversal strocke (X axis)
660 mm

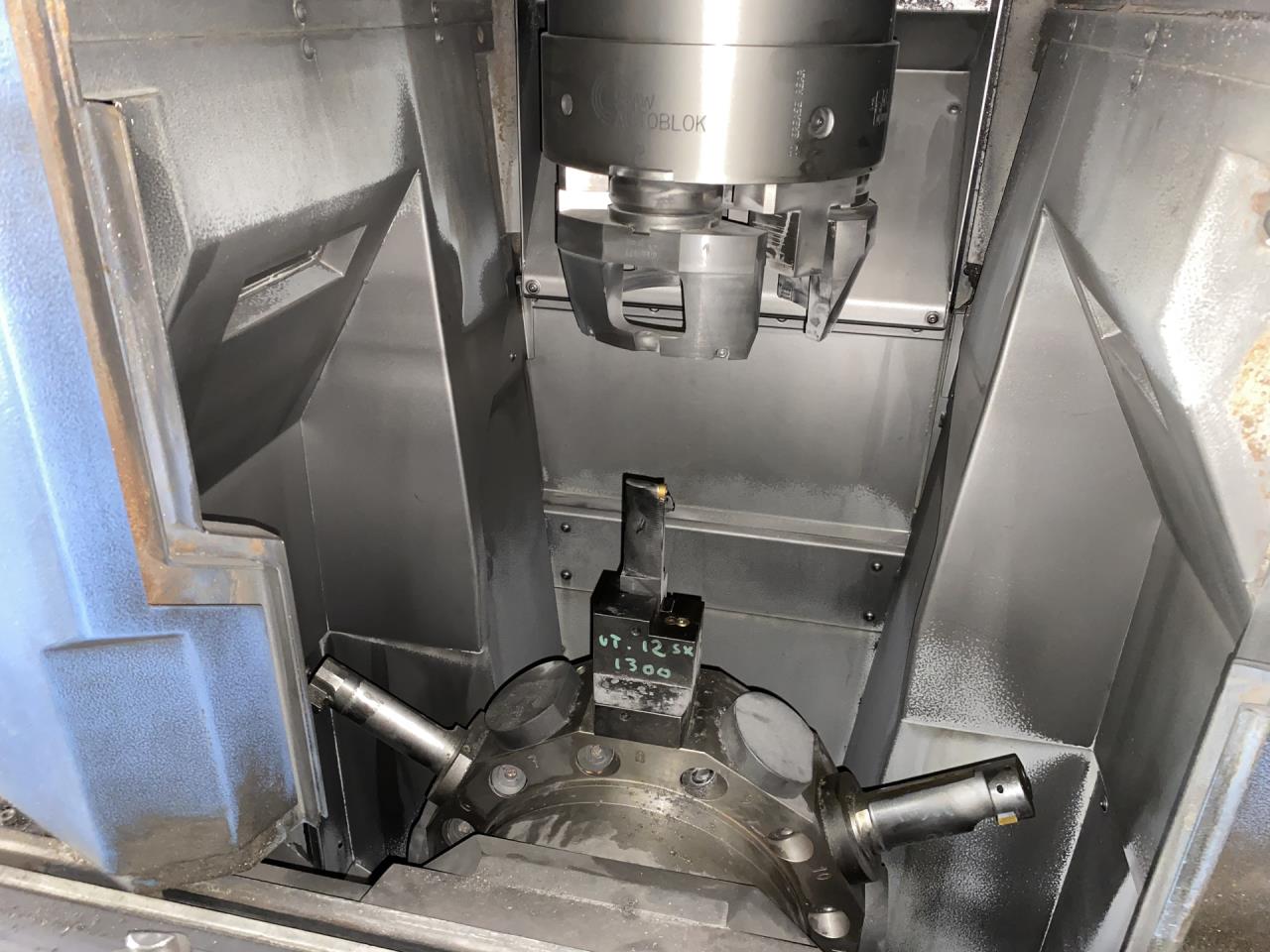

Turret slide:
Number of positions
12
Spindle speeds
6000 rpm
Power of driven tools
8.5 kW
Spindle speeds:
stepless
from
0 rpm
up to
4500 rpm
Spindle power
18 / 27 kW
Torque max.
200 - 300 Nm
Rapid traverse X
60 m/min
Rapid traverse Z
30 m/min
Air connect
5.5 bar
Voltage 50 Hz 3x
400 Volt
Total power required
36 kW
Machine's weight about
7500 kg
Overall dimensions machine:
Length
4185 mm
Width
2266 mm
Height
3200 mm
Various accessories:
Coolant system
315 l

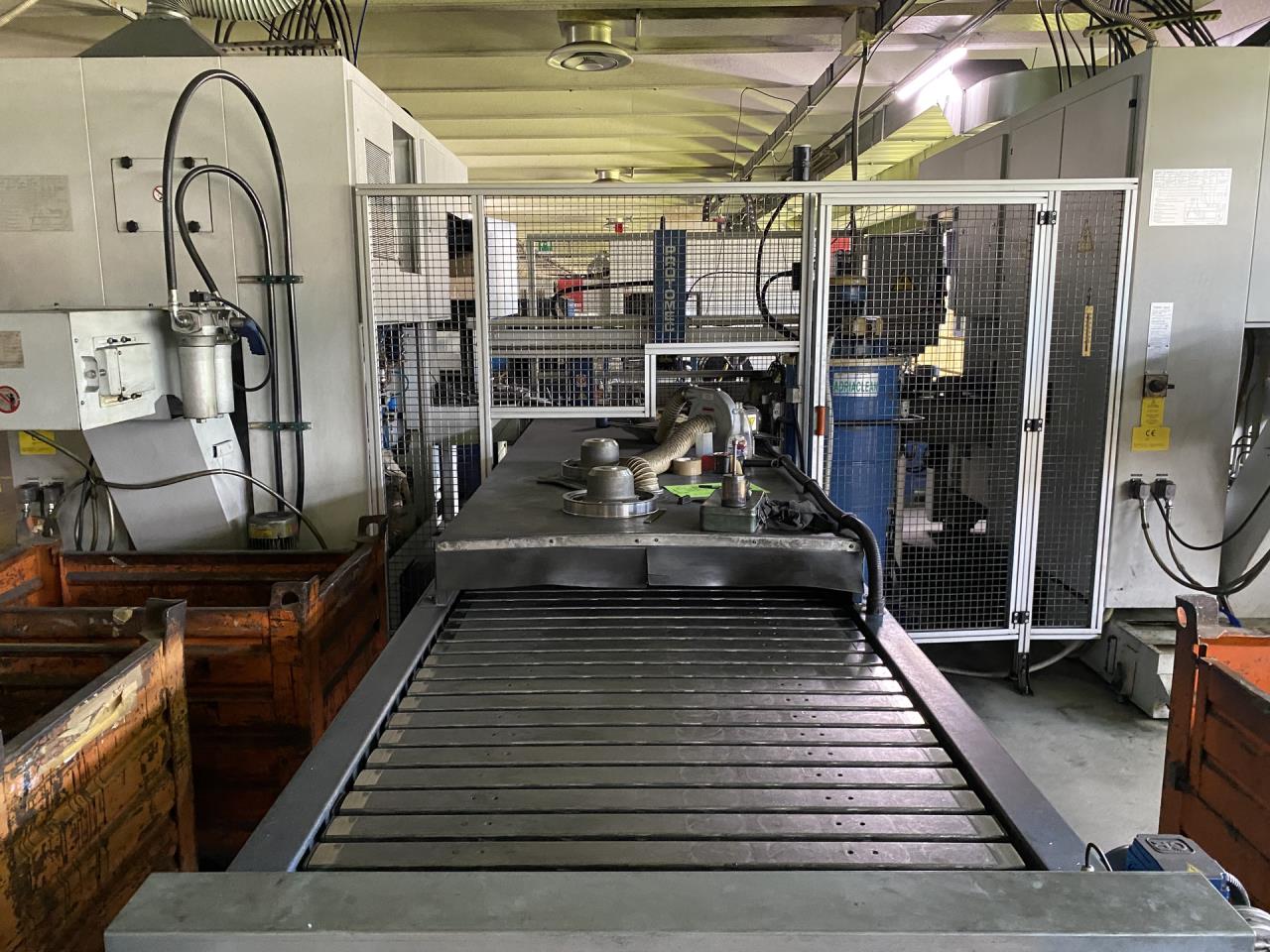

Chip conveyor
Technical specifications and pictures without guarantee.
