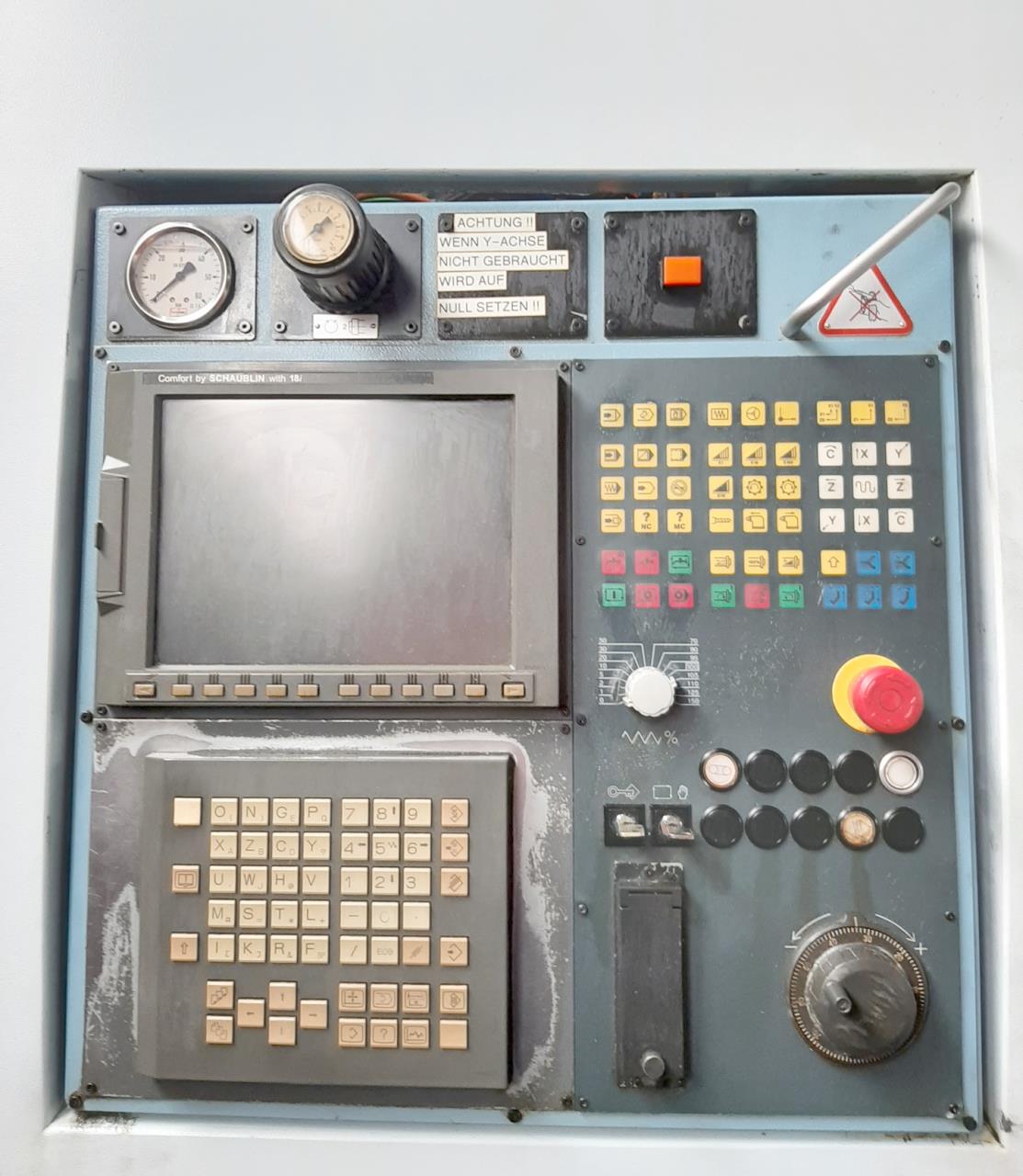

Technical data
Number of spindles
2
Number of revolvers
2
Spindle hole
65 mm
Maximum turning length
500 mm
Max. turning diameter
250 mm
Turning length
460 mm
Travels:
Longitudinal travel (Z-axis)
500 mm
Transversal strocke (X axis)
200 mm
Transversal travel (y-axis)
+ / - 55 mm
Y axis
+/- 55 mm

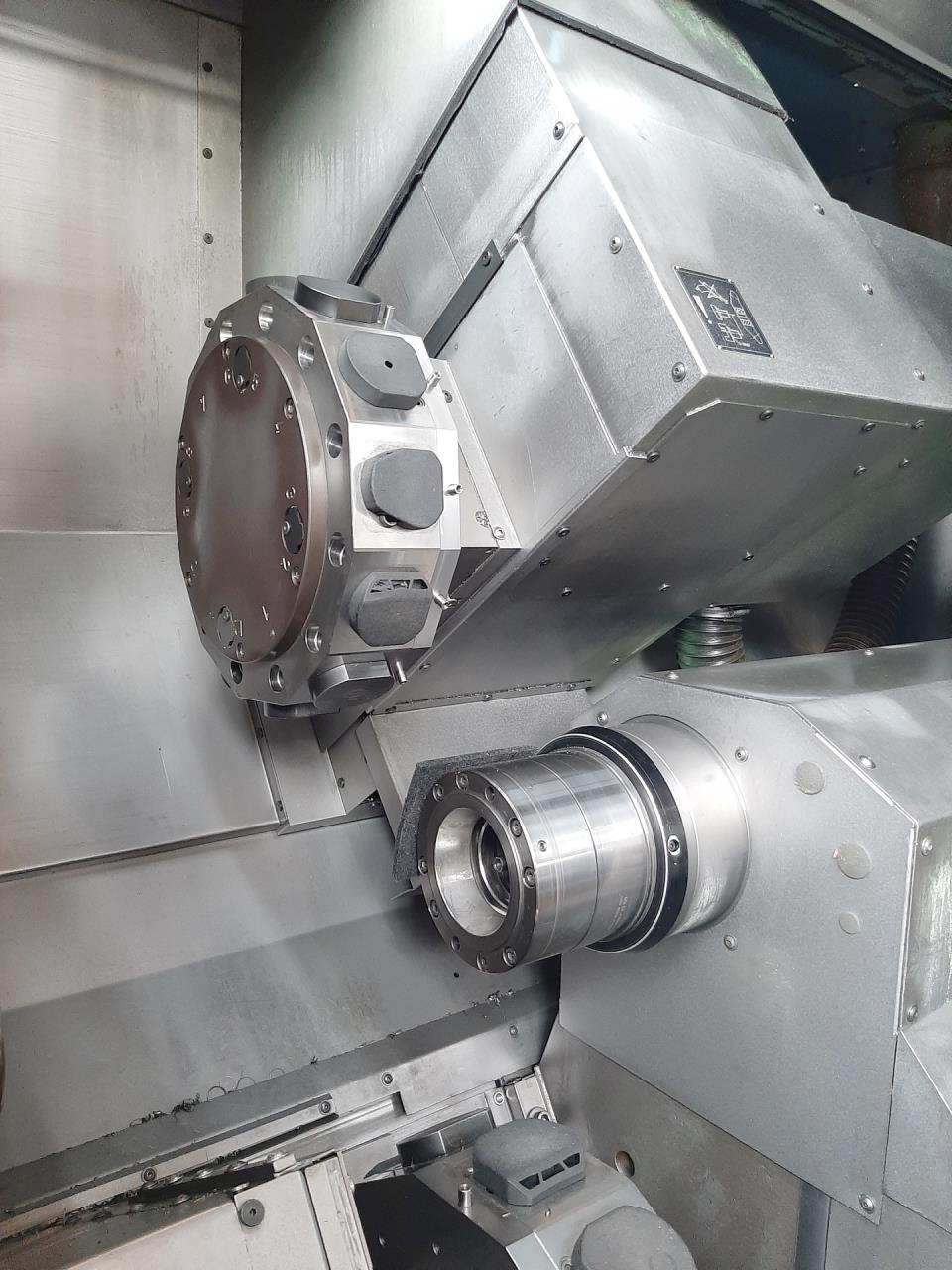

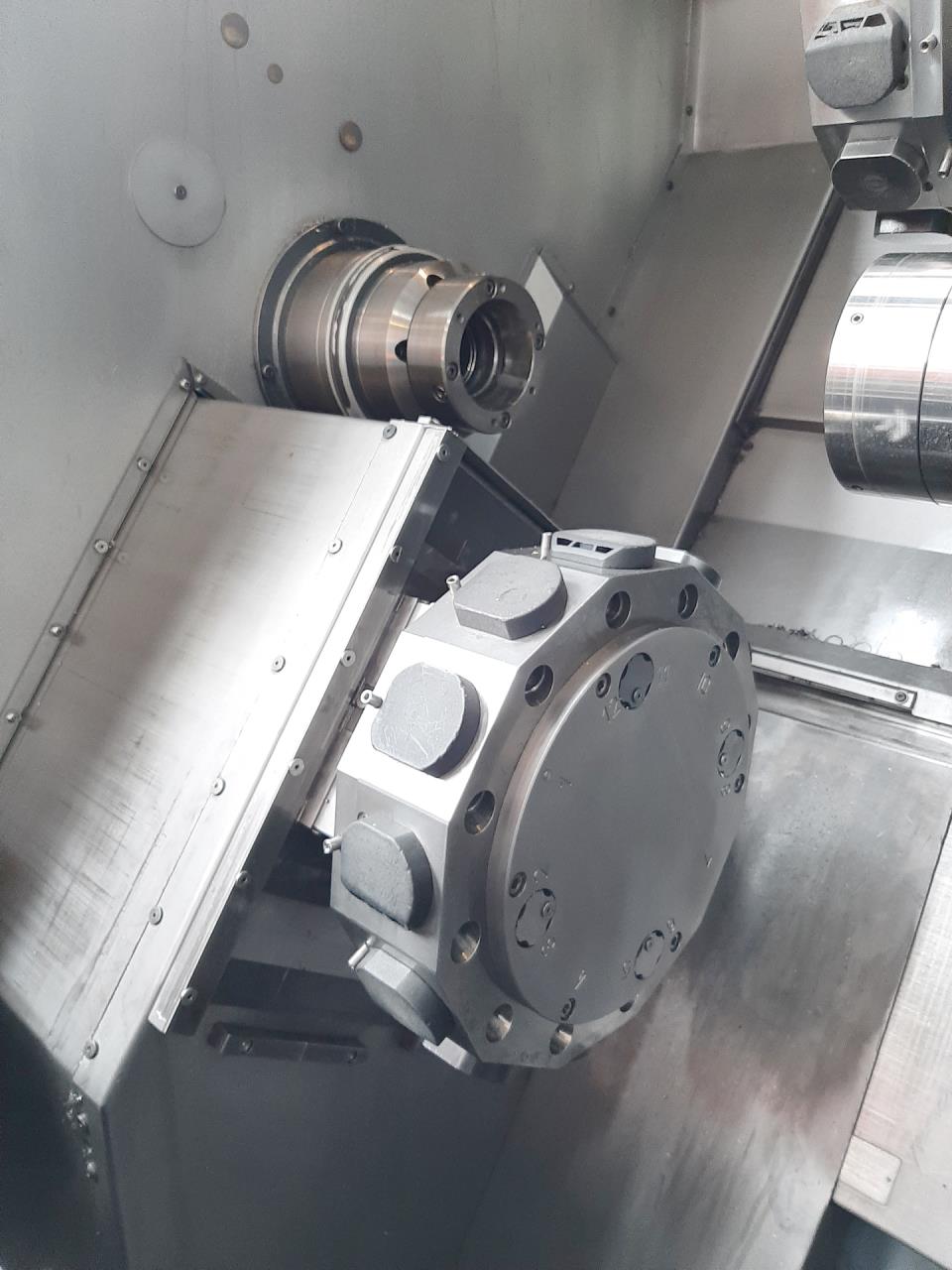

Turret slide:
Turret slide: number
2
Number of positions turret 1
12
Number of positions turret 2
12
Driven tools turret 1
12
Driven tools turret 2
12
Spindle speeds
4000 rpm
Spindle nose: VDI
30
Indexing time
0.14 sec
Main spindle:
Camlock
C axis (spindle,resolution)
0.001 °
Spindle speeds:
stepless
from
0 rpm
up to
4000 rpm
Spindle power
15 / 18.5 kW
Torque max.
164 Nm
Back spindle:
max. speed
4000 rpm
C axis (spindle,resolution)
0.001 °
Power of back spindle
7.5 / 11 kW
Torque max.
98 Nm
Rapid traverse X
20 m/min
Rapid traverse Z
30 m/min
Rapid traverse Y
7.5 m/min
Time under power
95034 Hour
Operating time
41408 Hour
Working time
13523 Hour
Voltage 50 Hz 3x
400 Volt
Total power required
38 kW
Machine's weight about
7100 kg
Overall dimensions machine:
Length
2800 mm
Width
2120 mm
Height
2100 mm
Various accessories:

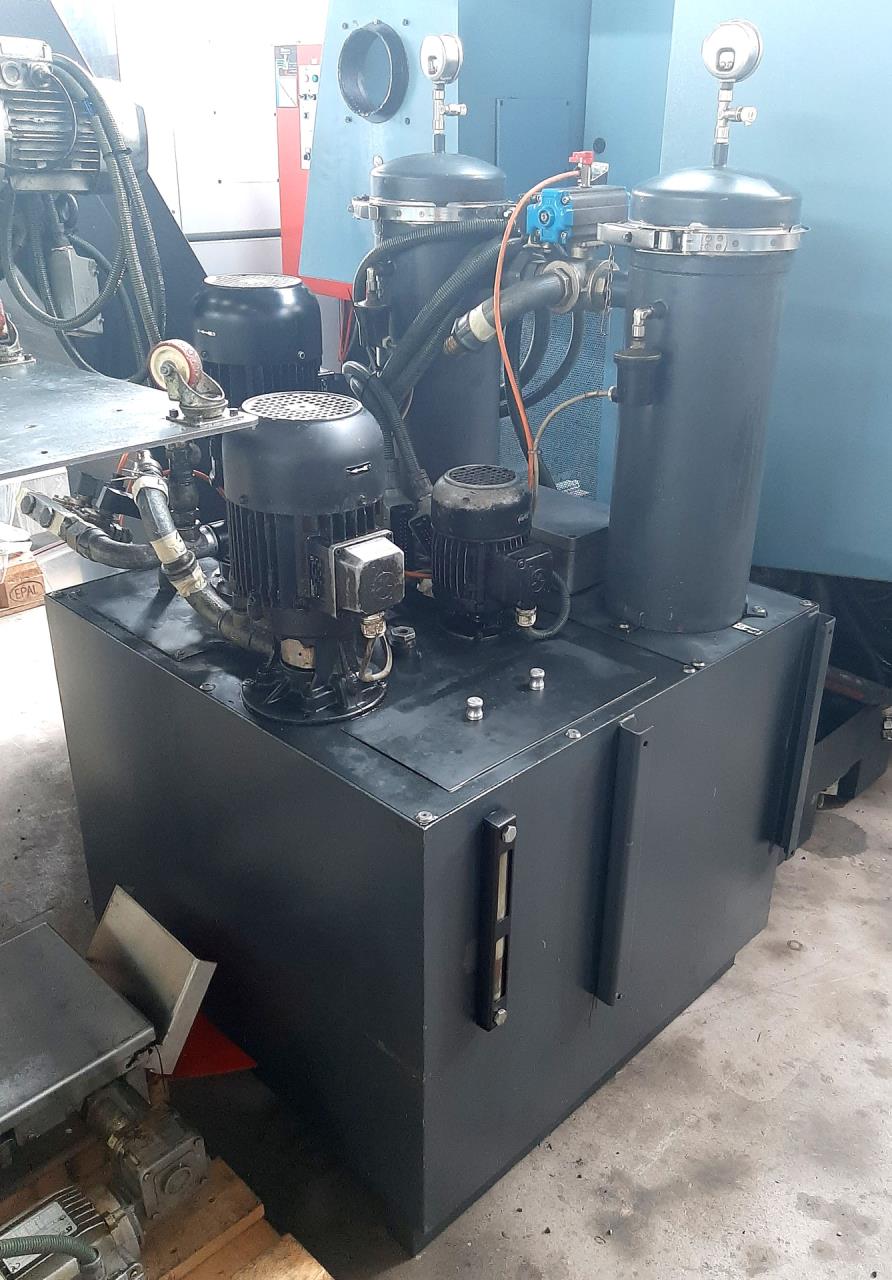

High pression colant device
15 bar

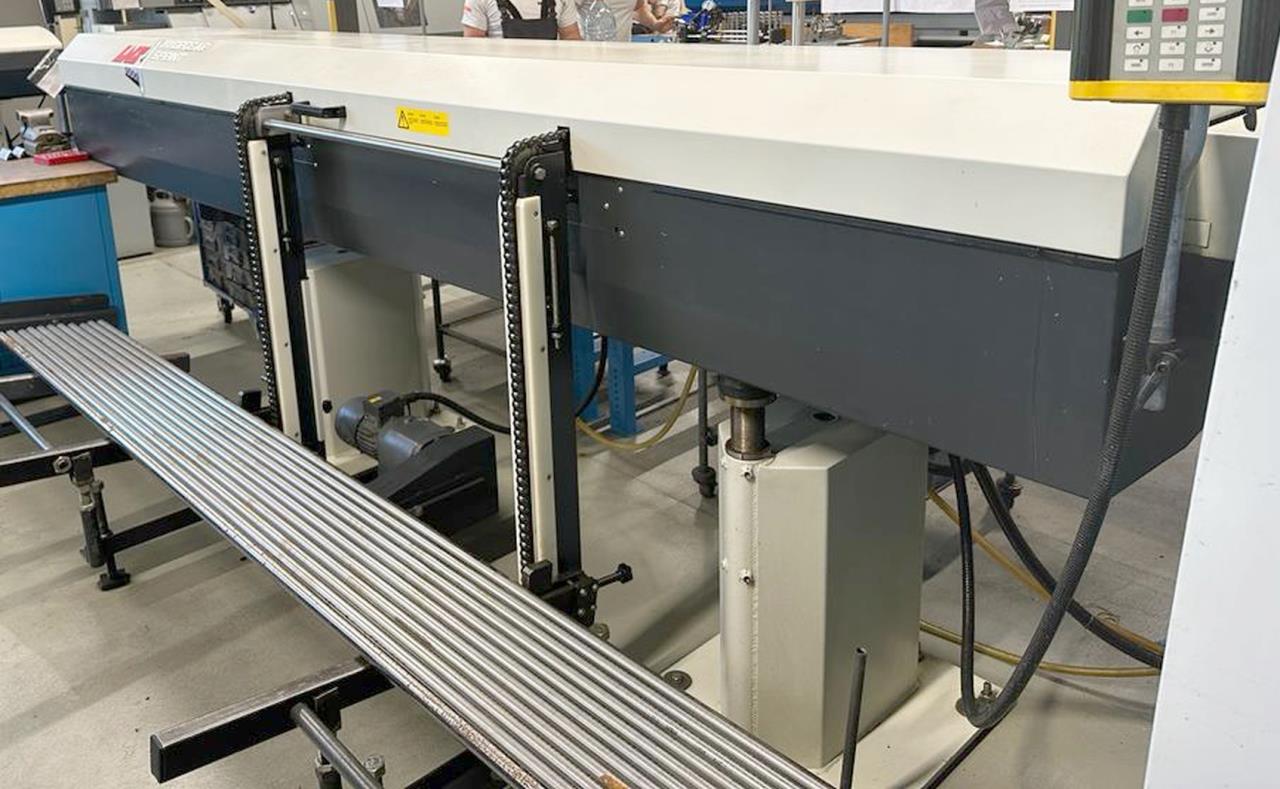

Bar feeder
LNS
Type
HYDROBAR SPRINT
Interface serial port RS 232
c axis resolution max.
0.001 °
C axis
2x
Part separating device
Workpiece conveyor

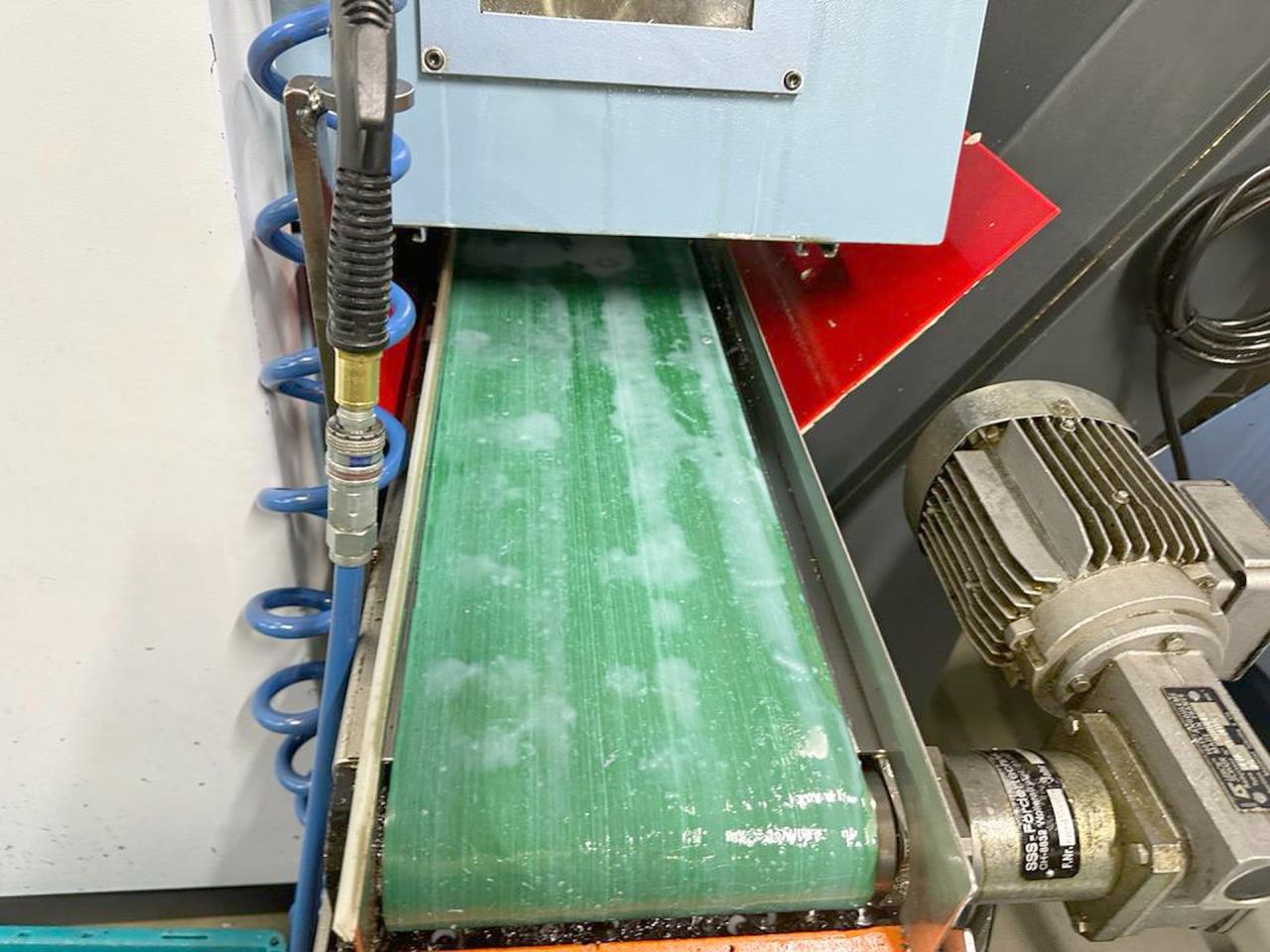

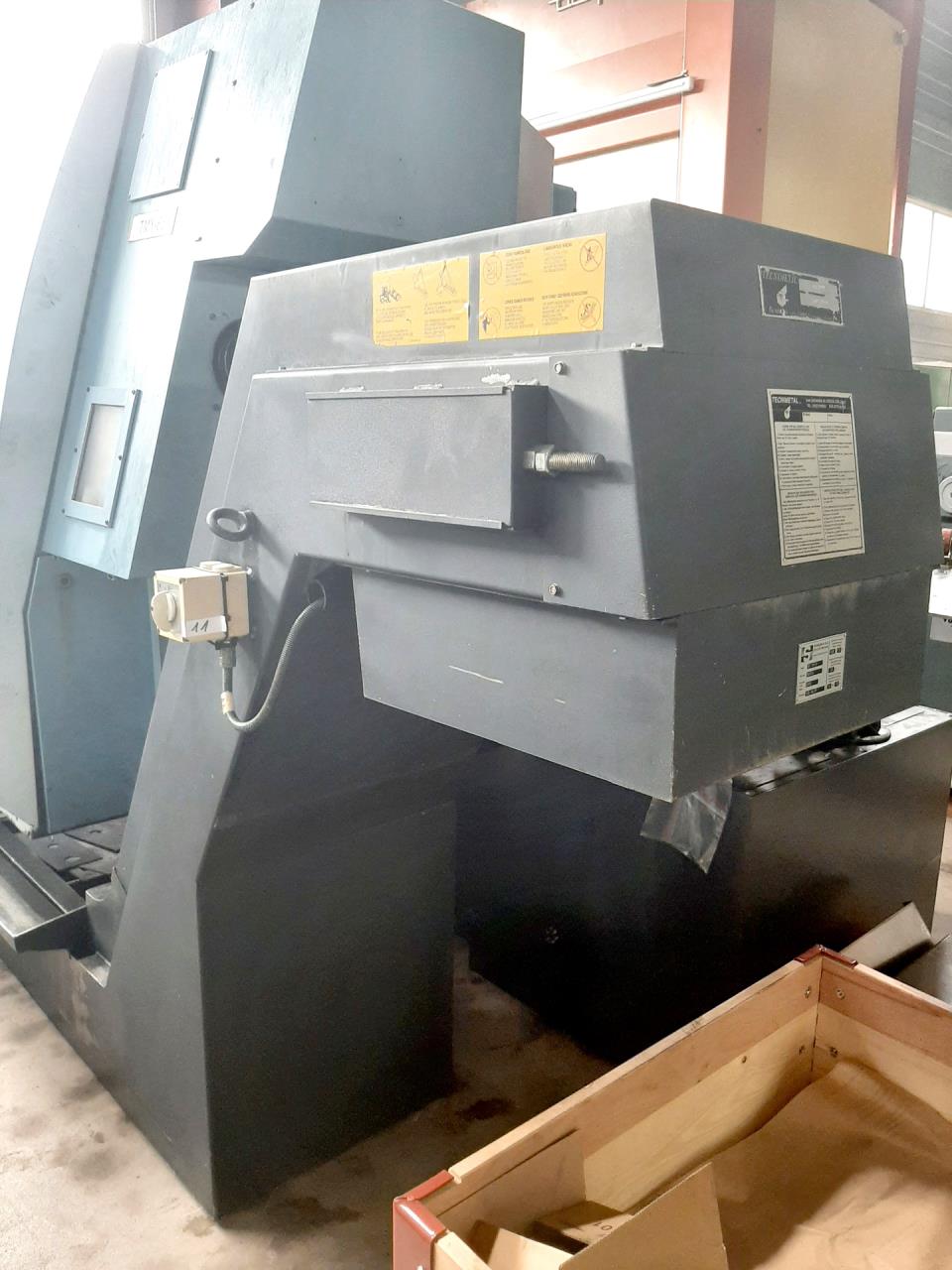

Chip conveyor

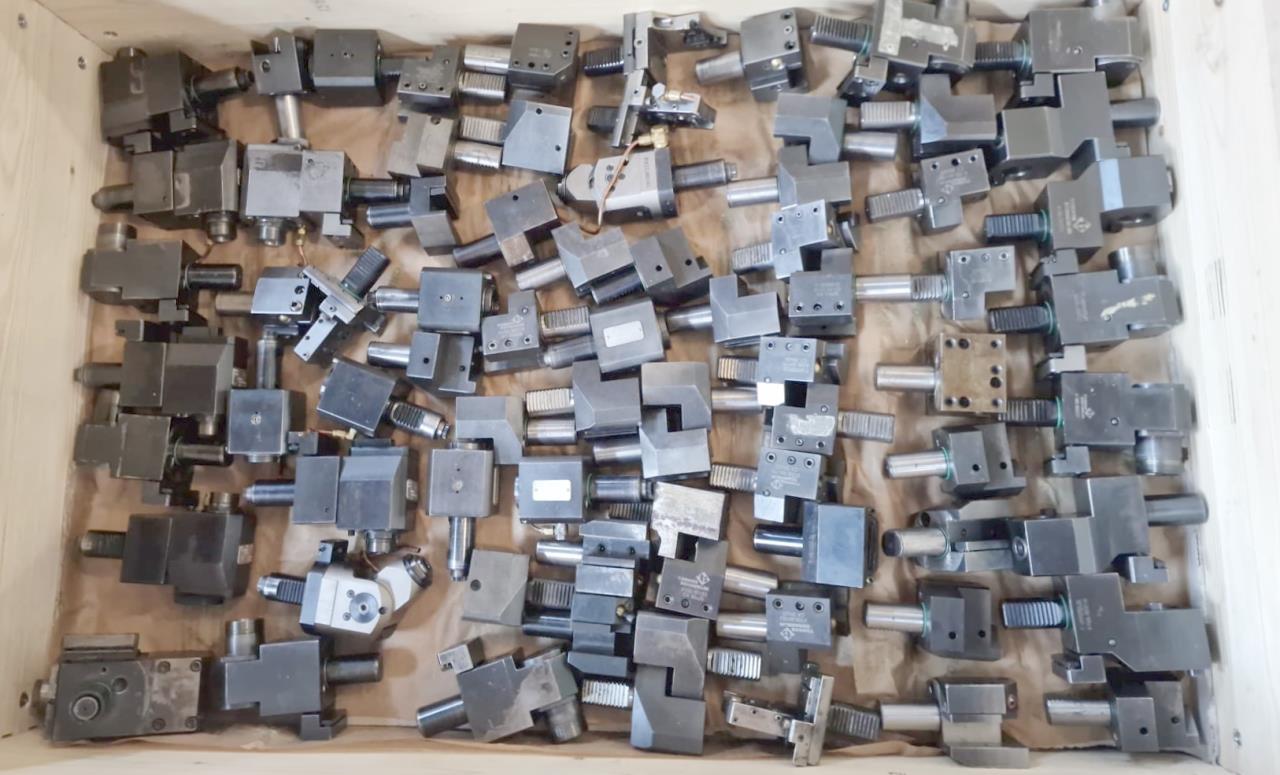

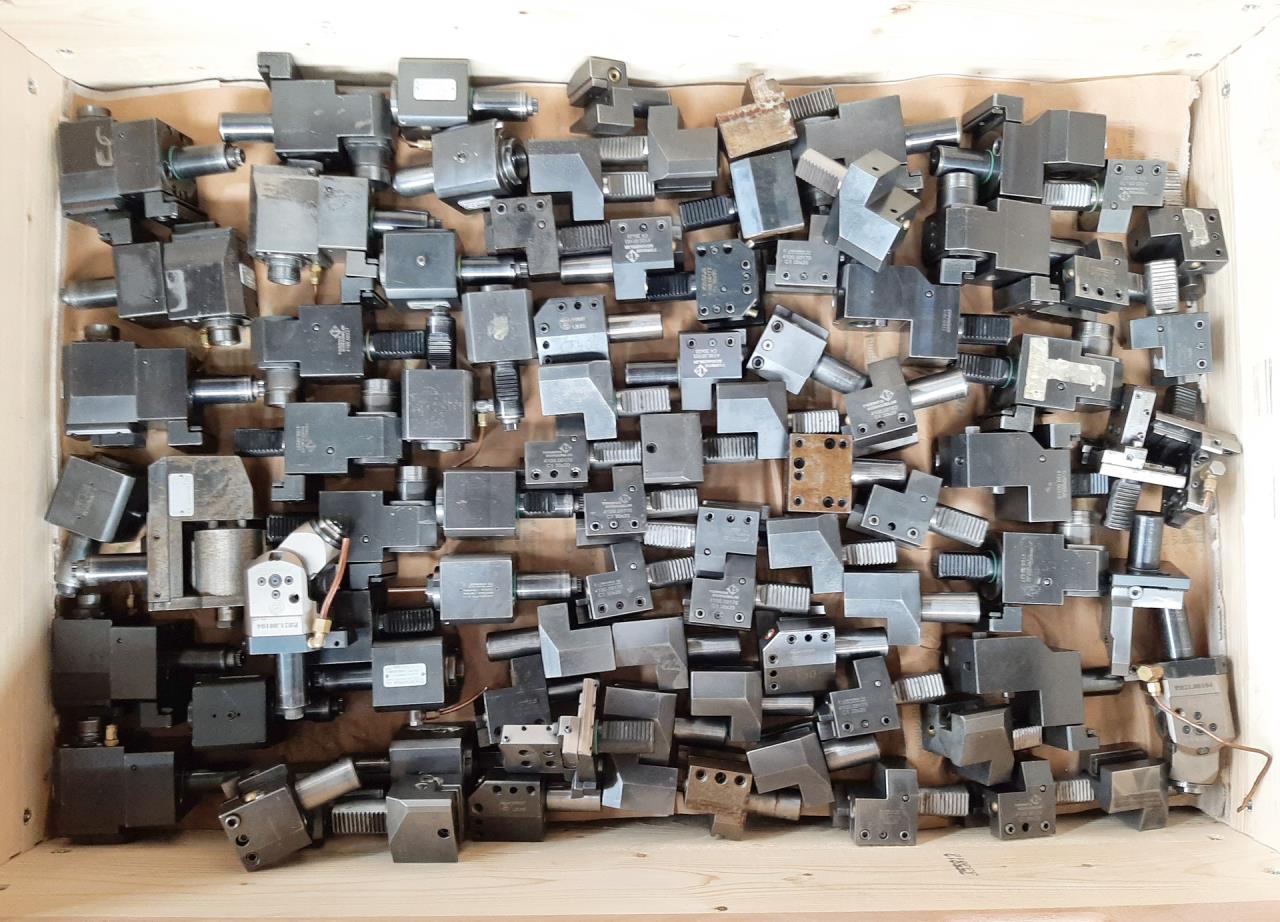

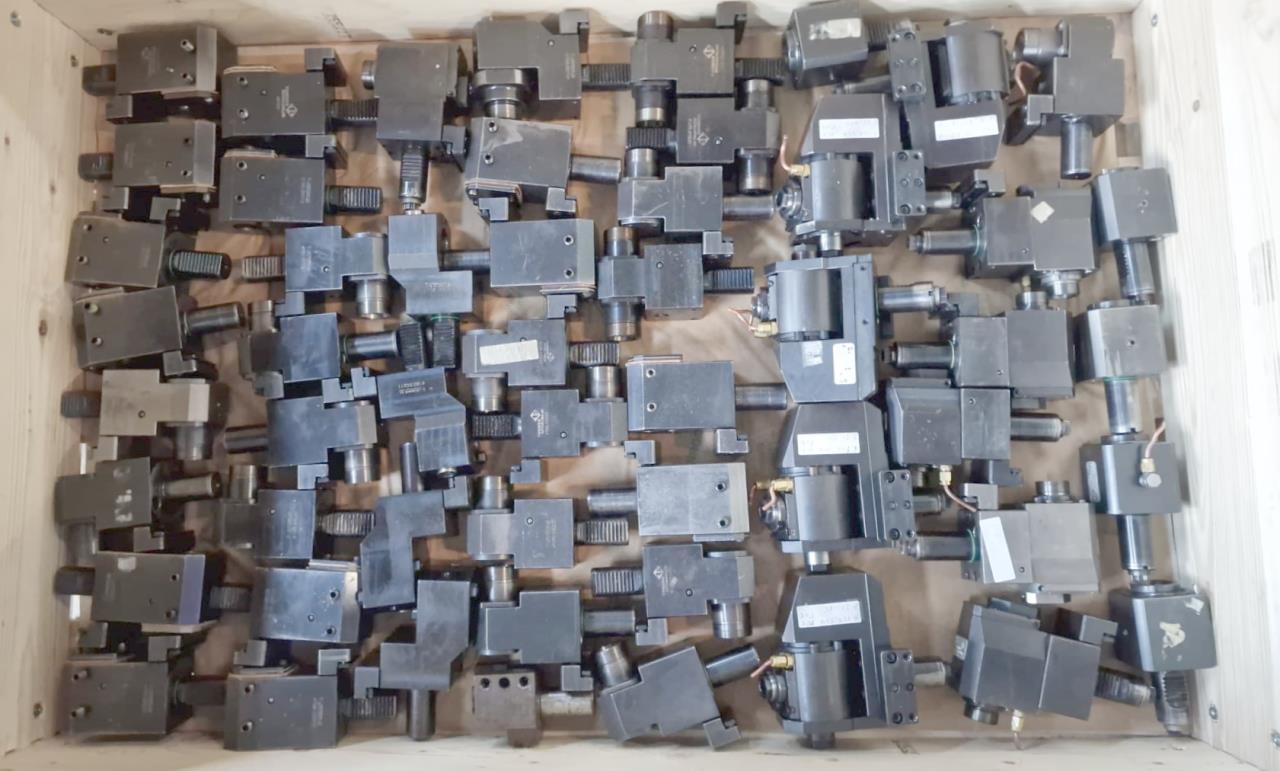

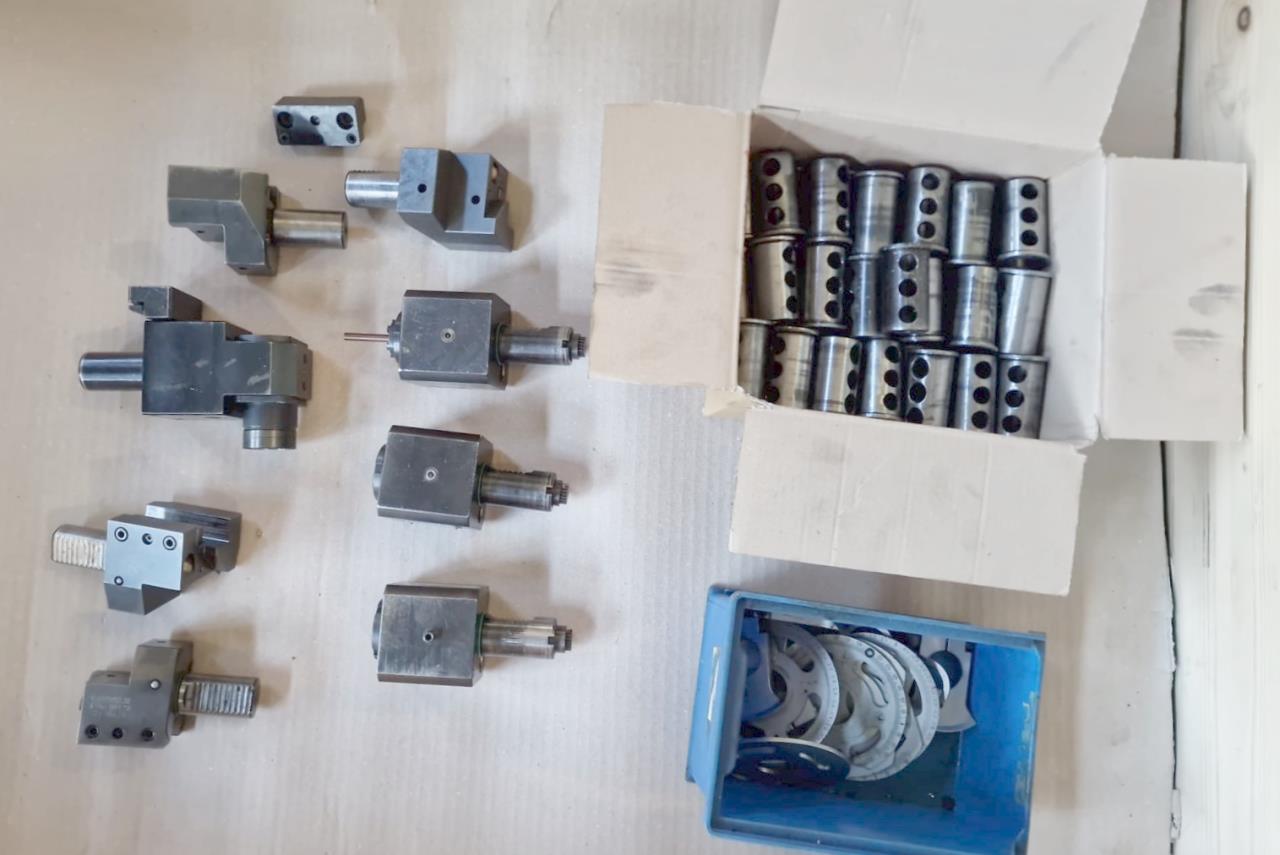

Set of toolholders
Driven tools (number)
Technical specifications and pictures without guarantee.
