stock no. :
22384
Machine's group :
Type :

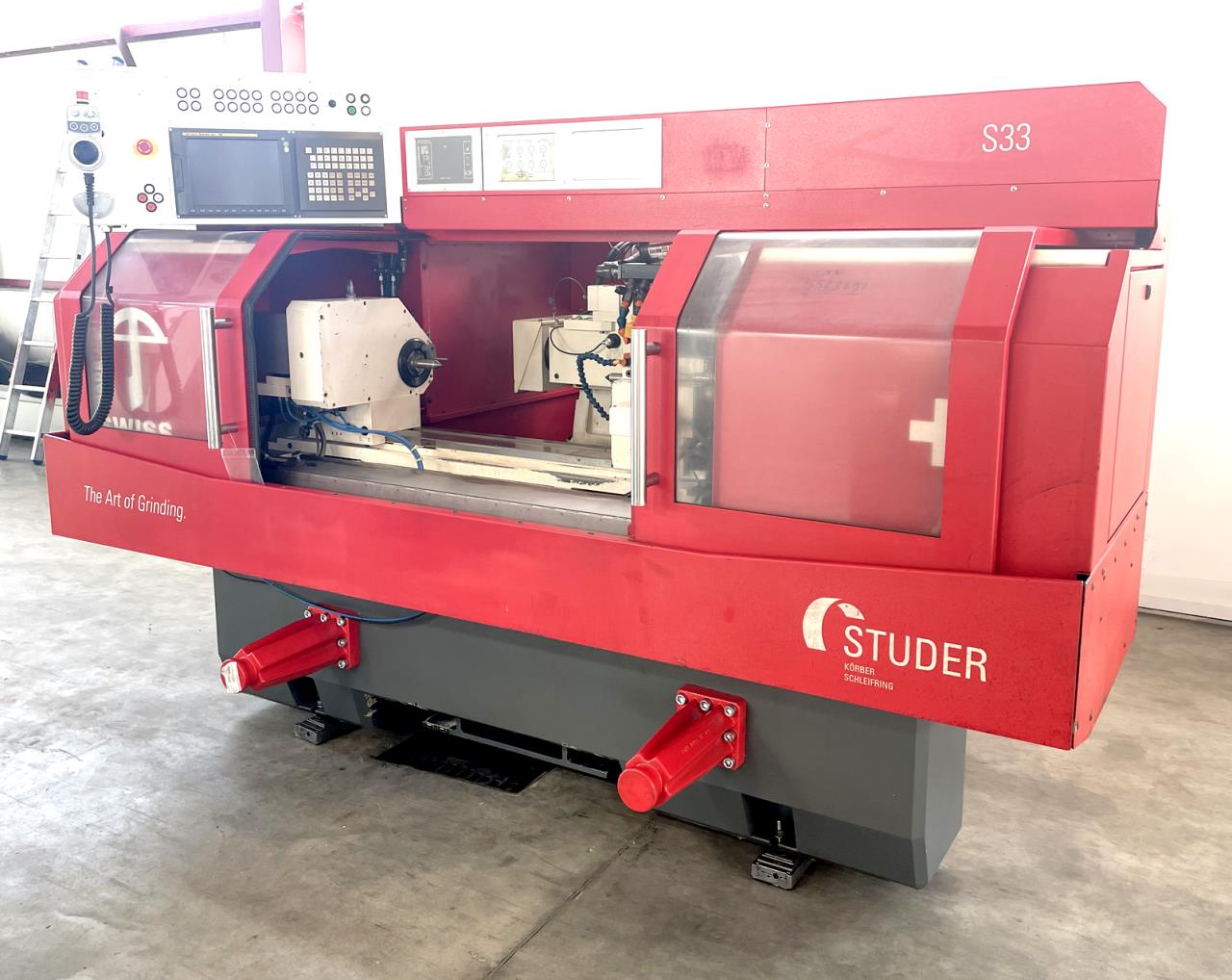

STUDER S 33 CNC

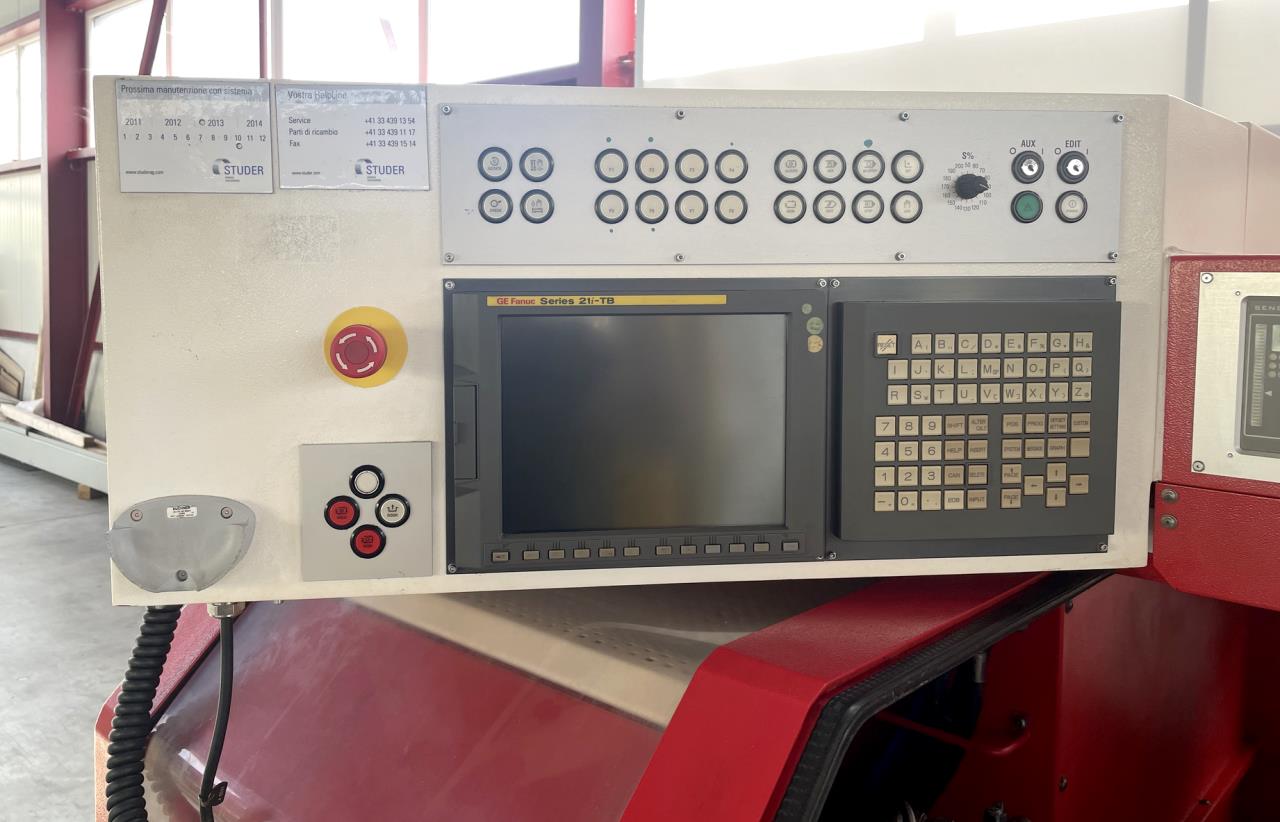

Controller :
GE FANUC Series 21i-TB
Jahrgang :
2008
Technical data
Centre height
175 mm
Distance between centres
650 mm
Workpiece weight on centres max.
80 kg

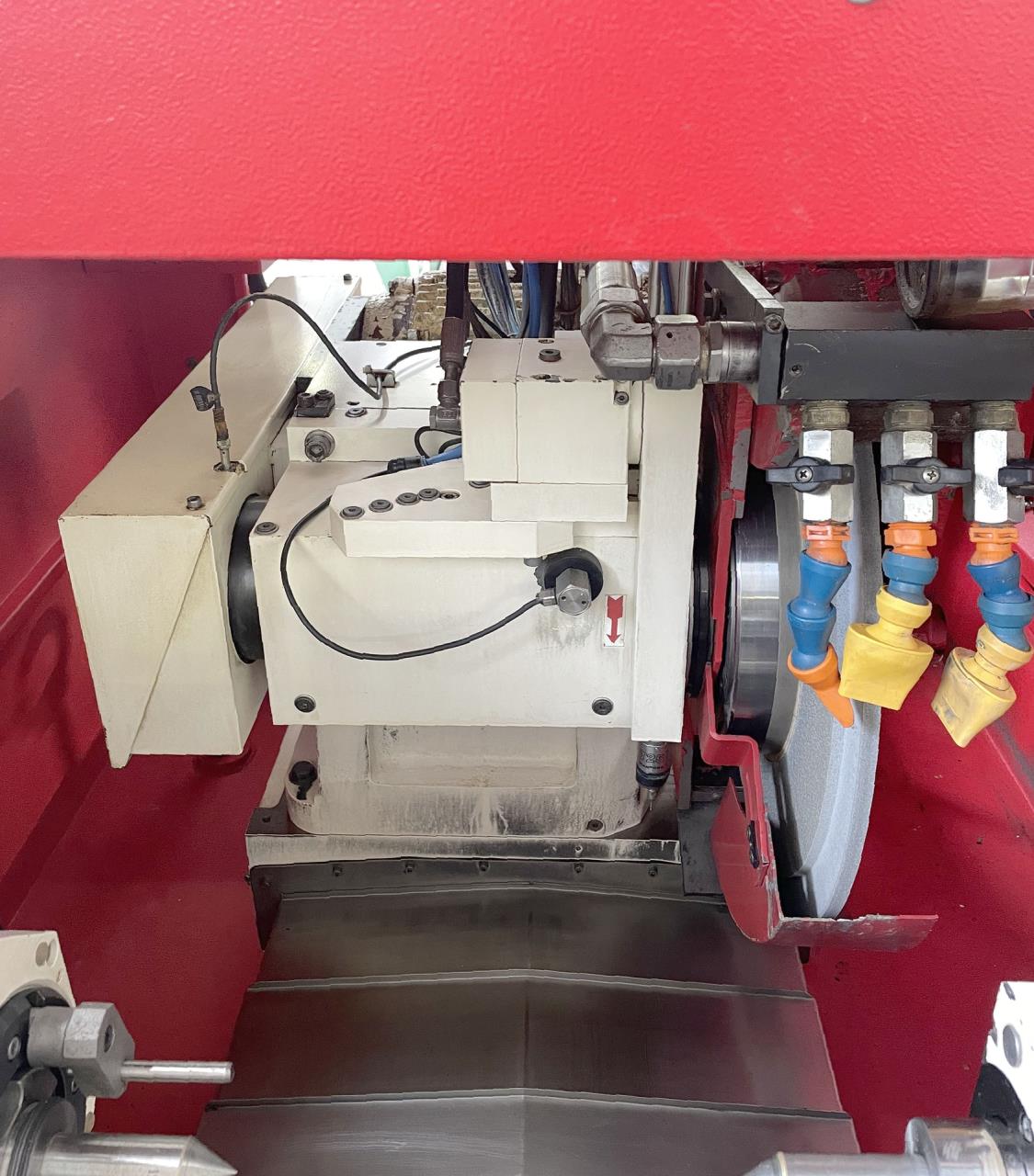

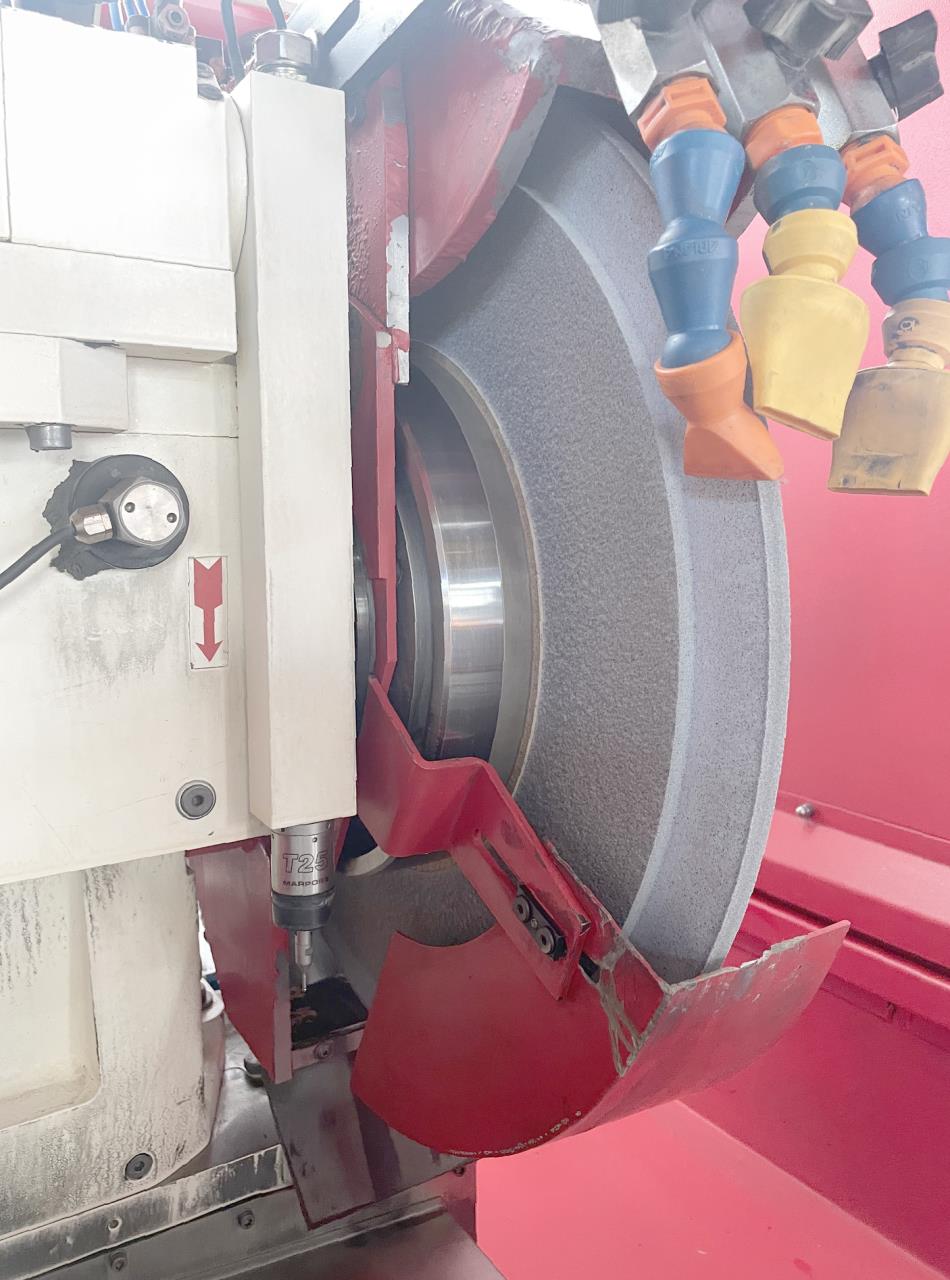

Grinding wheel:
Diameter
500 mm
Width
63 mm
Bore
203 mm
max. width
80 mm
with positiv index every
30 °
Indexing manually
Peripheral speed
50 m/s
Longitudinal slide:
Max. travel
285 mm
Transversal slide:
Max. travel
800 mm

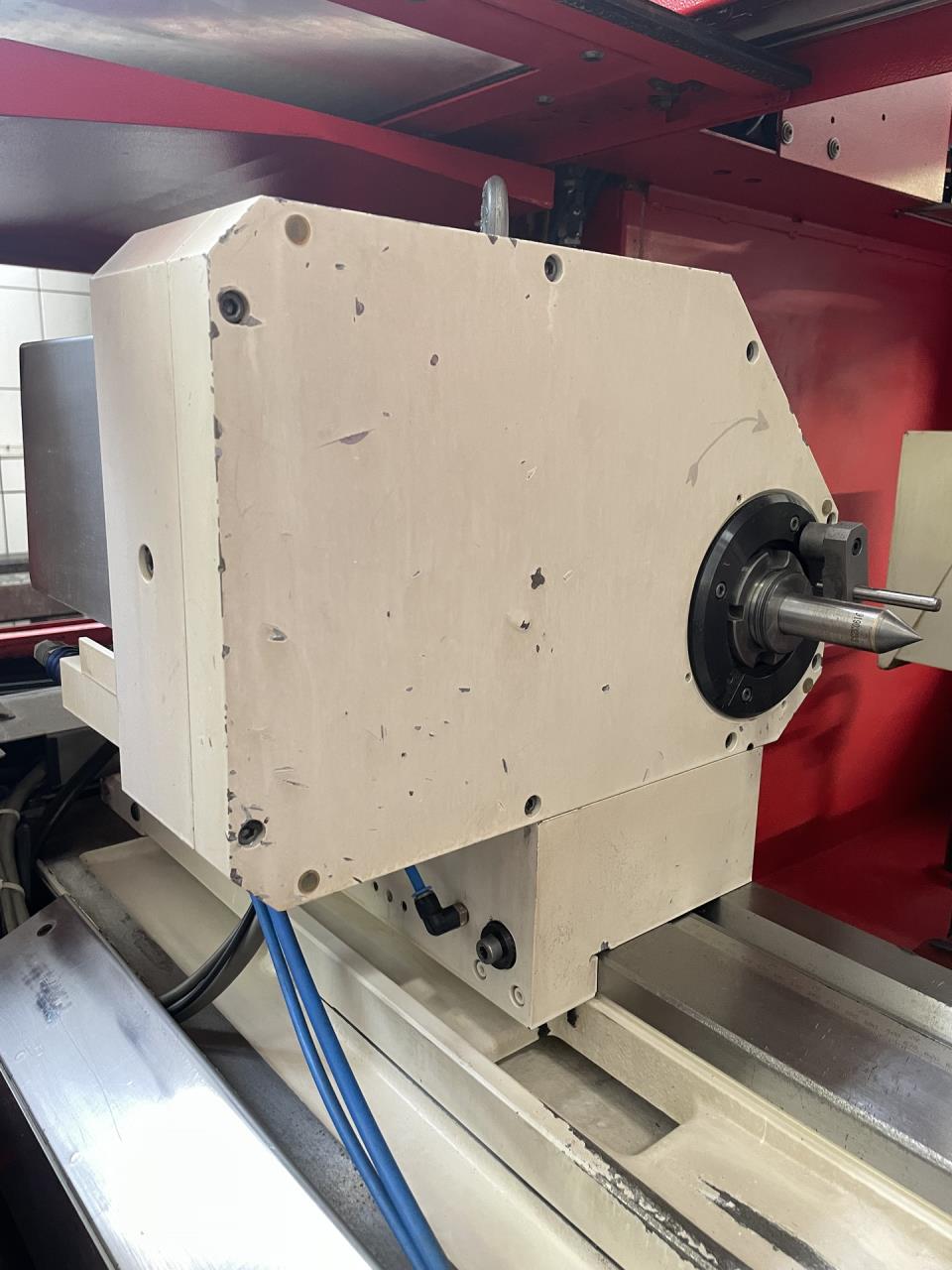

Work piece spindle head:
speeds:
from
1 rpm
up to
1500 rpm
Holding taper:
5 MT
Typing speed
1 - 50 rpm

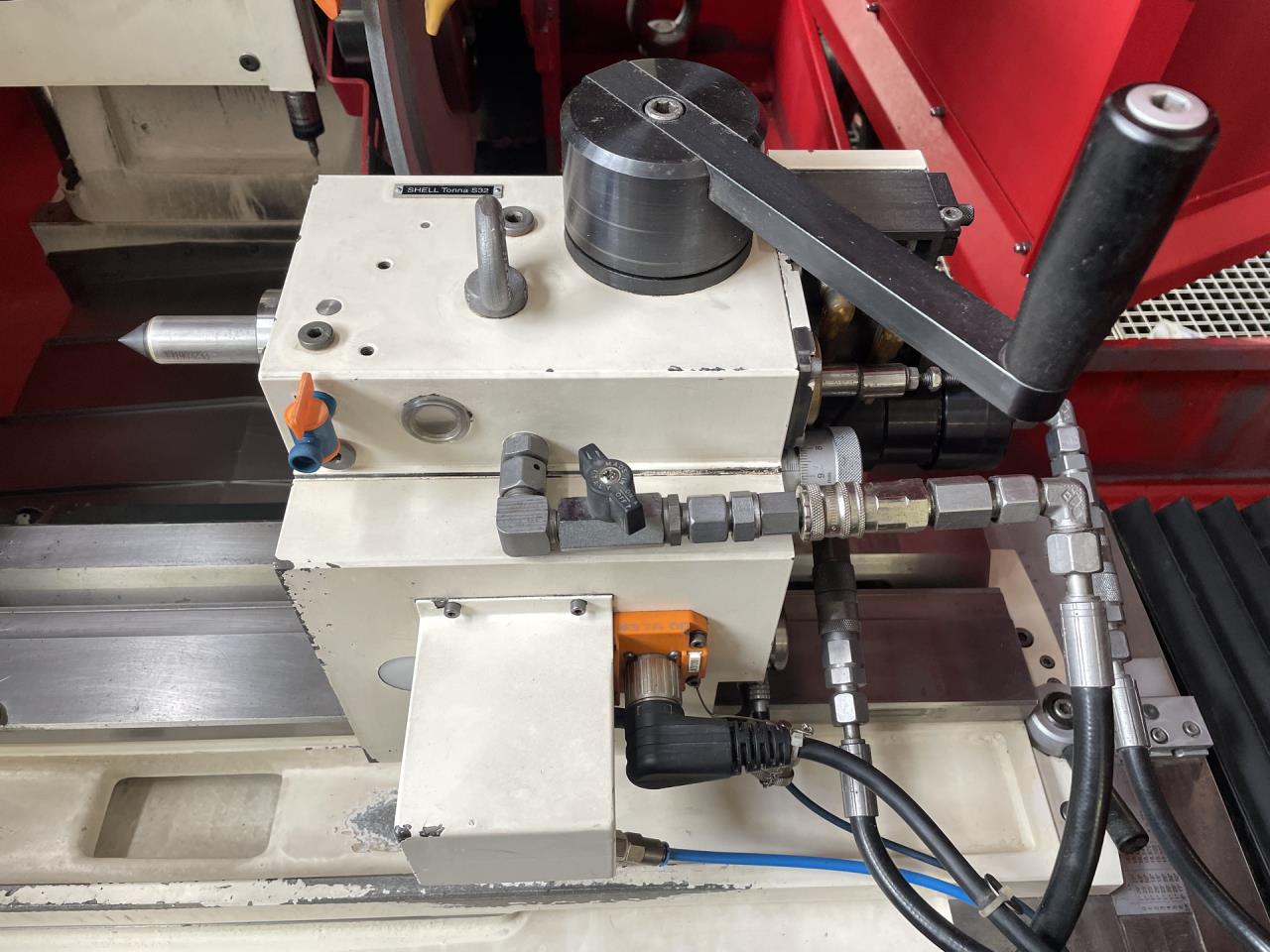

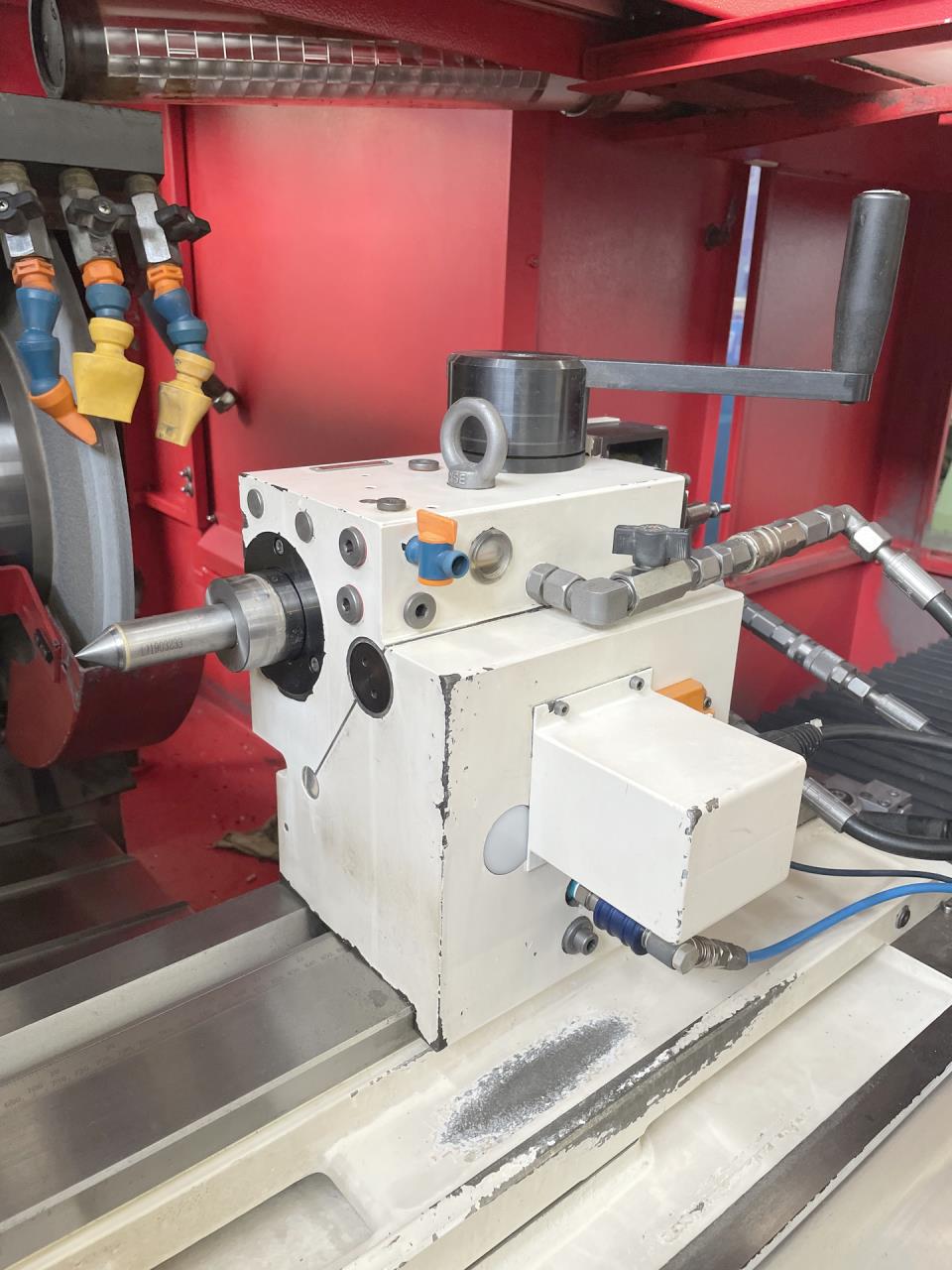

Tailstock:
Taper in tailstock:
3 MT
Tailstock travel of barrel
35 mm
Spindle stroke
35 mm
Spindle diameter
50 mm
Max. table angular displacement
8.5 °
Air connect
5.5 bar
Voltage 50 Hz 3x
400 Volt
Grinding spindle motor
7.5 kW
Workpiece spindle motor
3 kW
Total power required
20 kVA
Machine's weight about
5000 kg
Overall dimensions machine:
Length
2620 mm
Width
2090 mm
Height
2000 mm
Various accessories:
Pneumatic lifting
Electrical measuring instrum.
SENSITRON 6
Touch probe MARPOSS
Lamp
Tailstock with fine adjustement
Switch cabinet Air conditioner
Handwheel electroinic
Technical specifications and pictures without guarantee.
