stock no. :
22383
Machine's group :
Type :

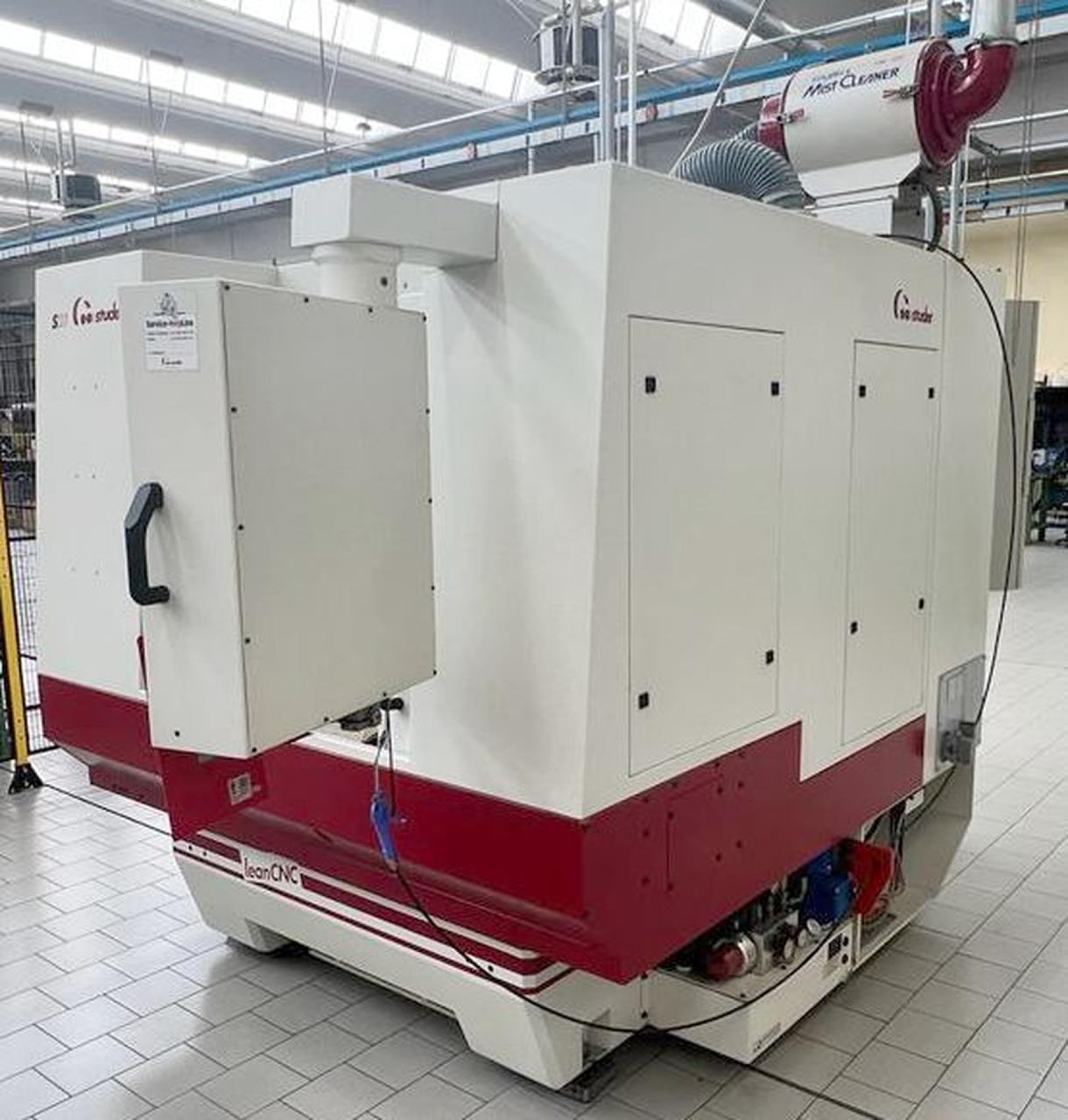

STUDER S 21 lean CNC
Controller :

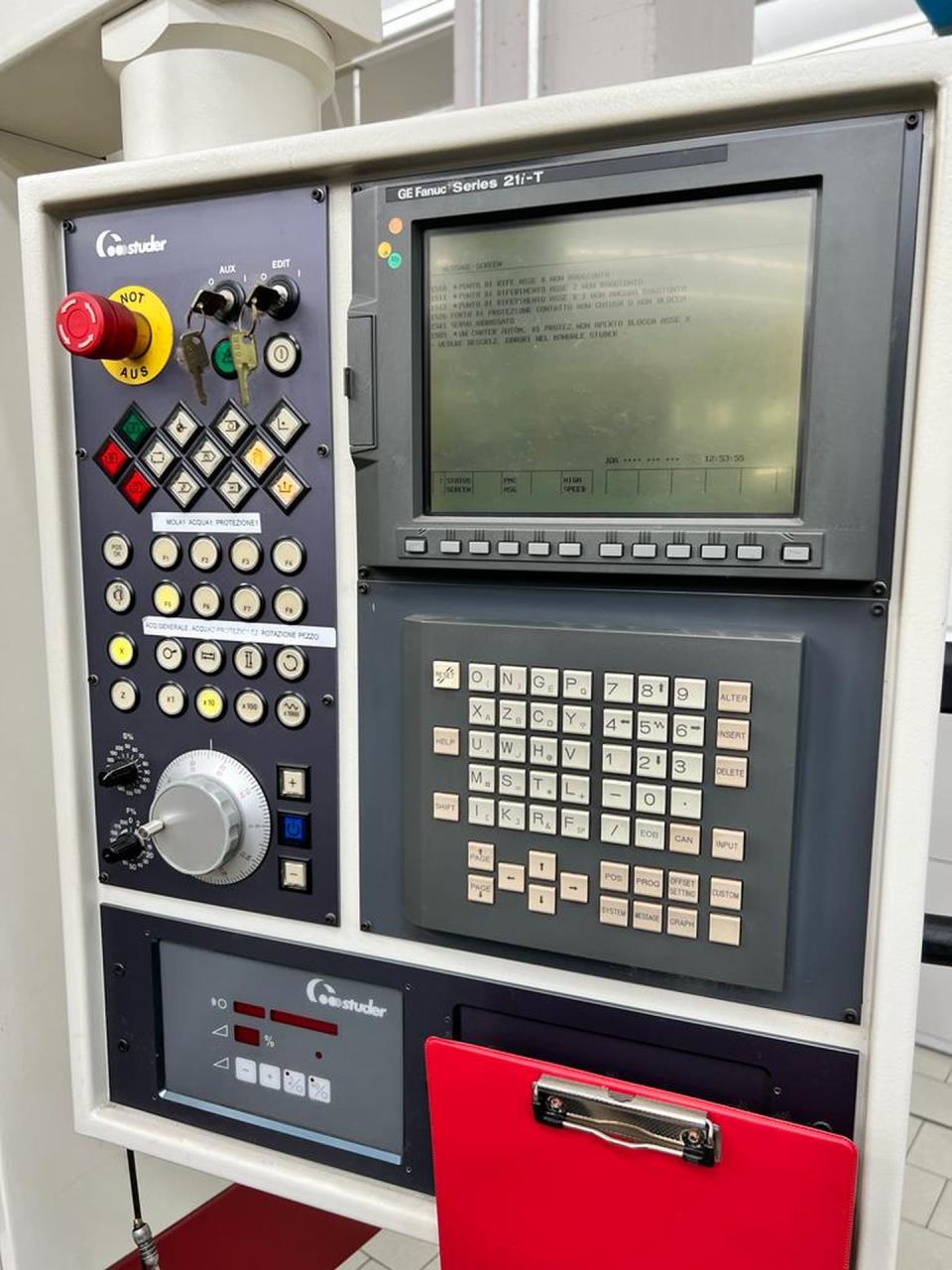

GE FANUC Series 21i-T
Jahrgang :
2001
Technical data
Centre height
125 mm
Distance between centres
400 mm
Workpiece weight on centres max.
30 kg

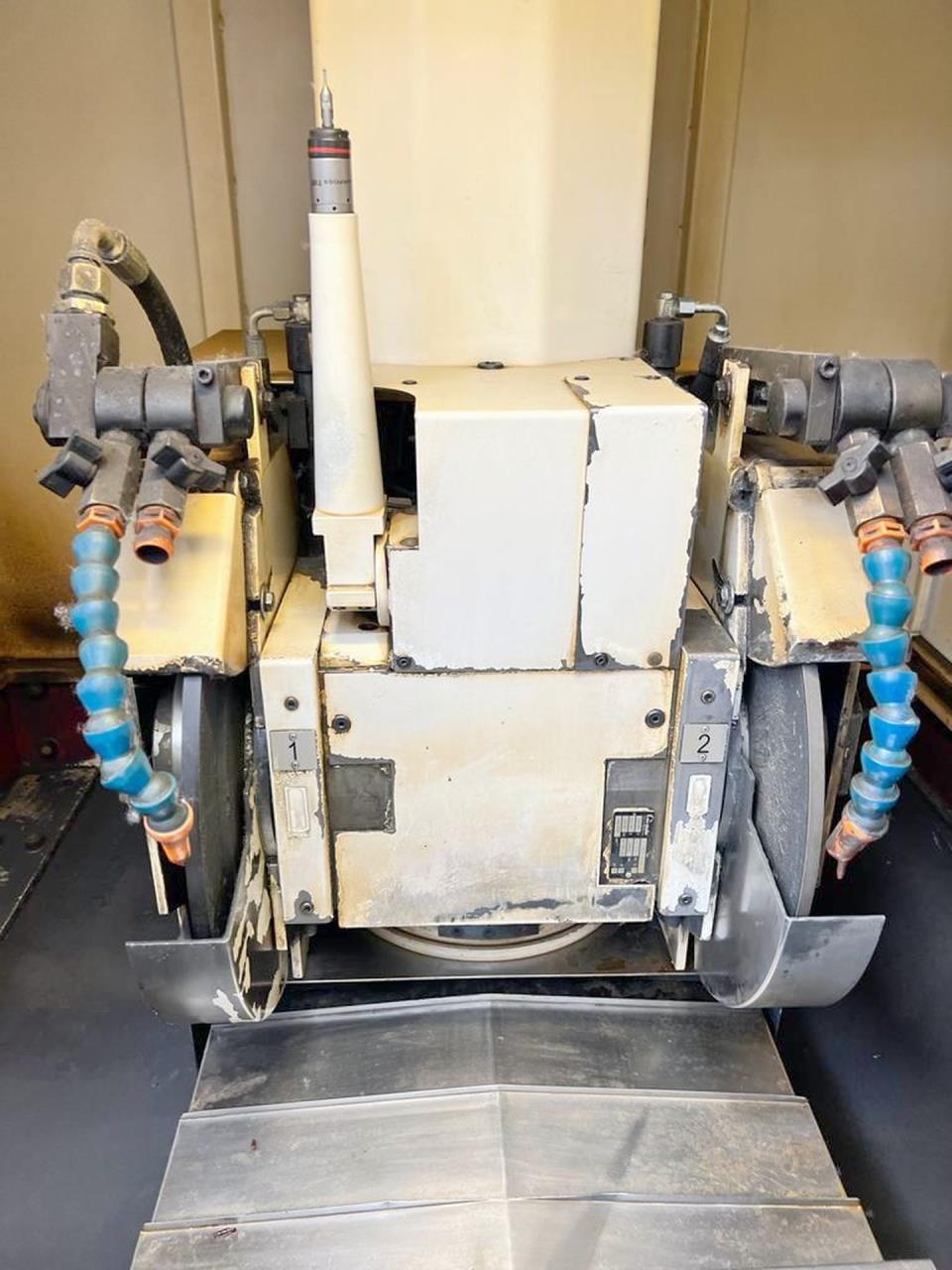

Grinding wheel right and left hand
Grinding weehl left side:
Diameter
400 mm
Width
40 mm
Grinding wheel right side:
Diameter
400 mm
Width
40 mm
Grinding wheel speeds:
Peripheral speed
35 m/s
Cross travel CNC
254 mm
Feed speed up
0.001-5000 mm/min
Longitudinal slide:
Max. travel
483 mm
Work piece spindle head:
stepless
from
1 rpm
up to
1500 rpm
Spindle hole
26 mm
taper in spindle: MT
4
Tailstock:
Taper in tailstock:
3 MT
Table speed:
from
0.001-10000 mm/min
Voltage 50 Hz 3x
400 Volt
Grinding spindle motor
3 kW
Total power required
20 kVA
Machine's weight about
4300 kg
Overall dimensions machine:
Length
2300 mm
Width
2000 mm
Height
2600 mm
Various accessories:
Coolant system

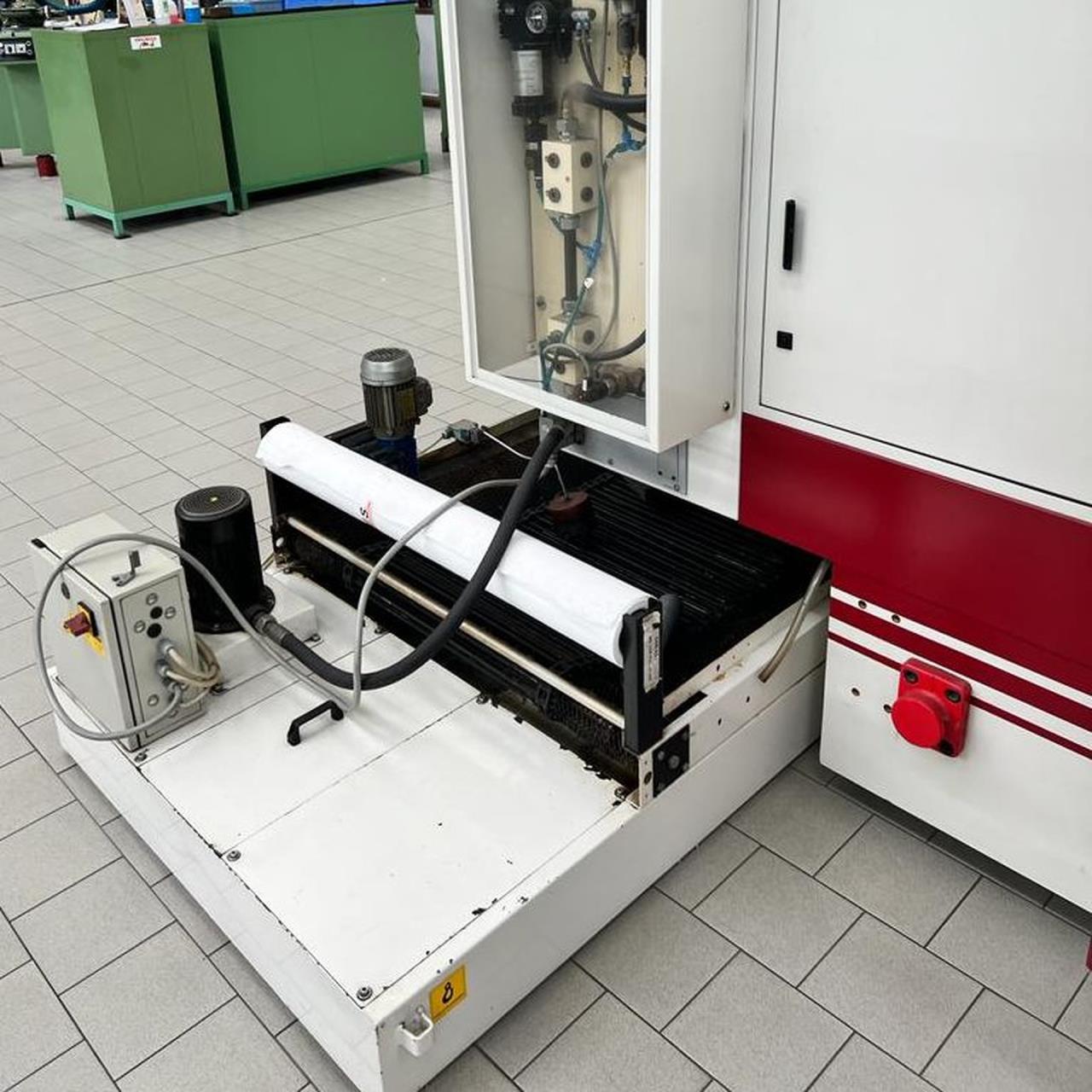

Paper filter facility
Touch probe MARPOSS

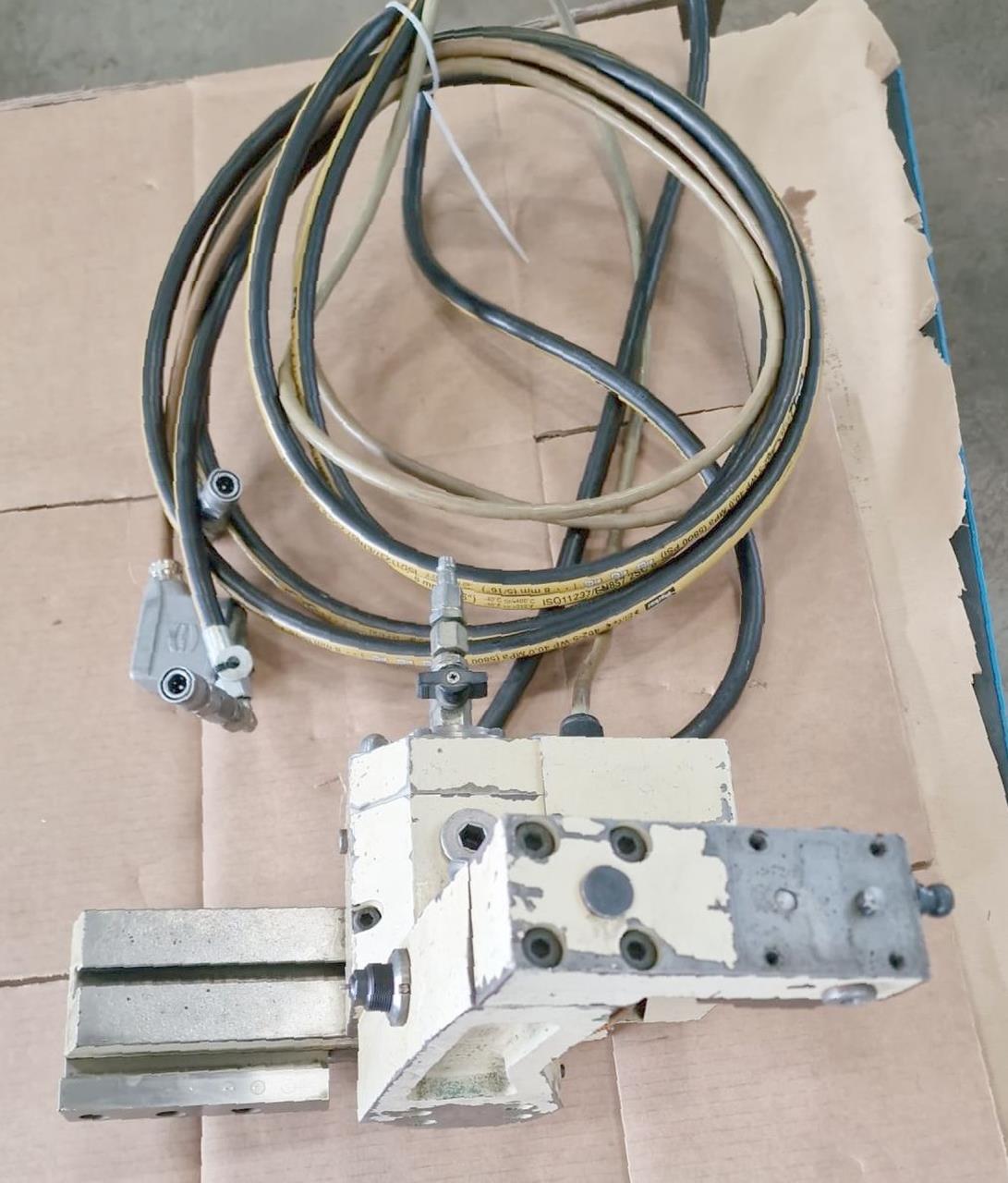

Swivellable redressing device

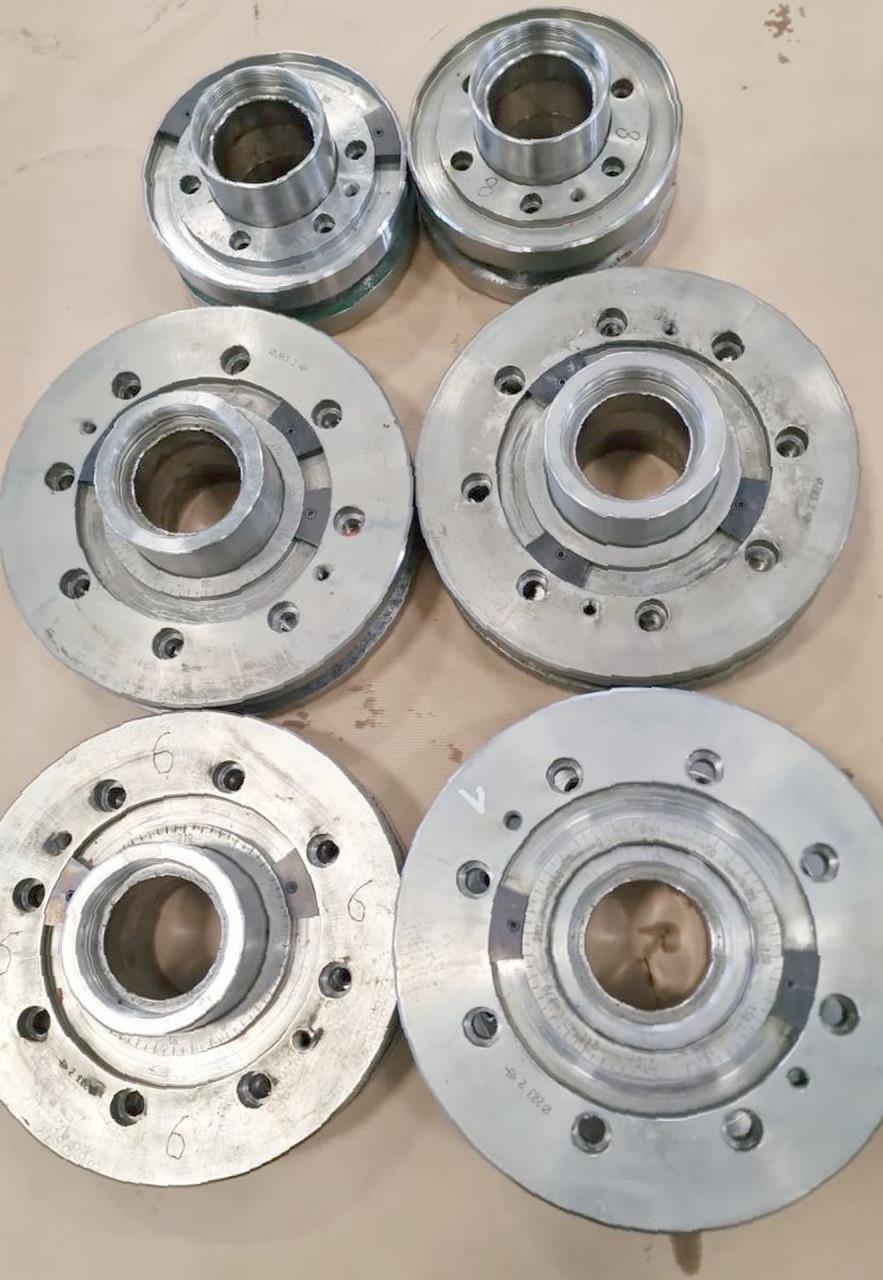

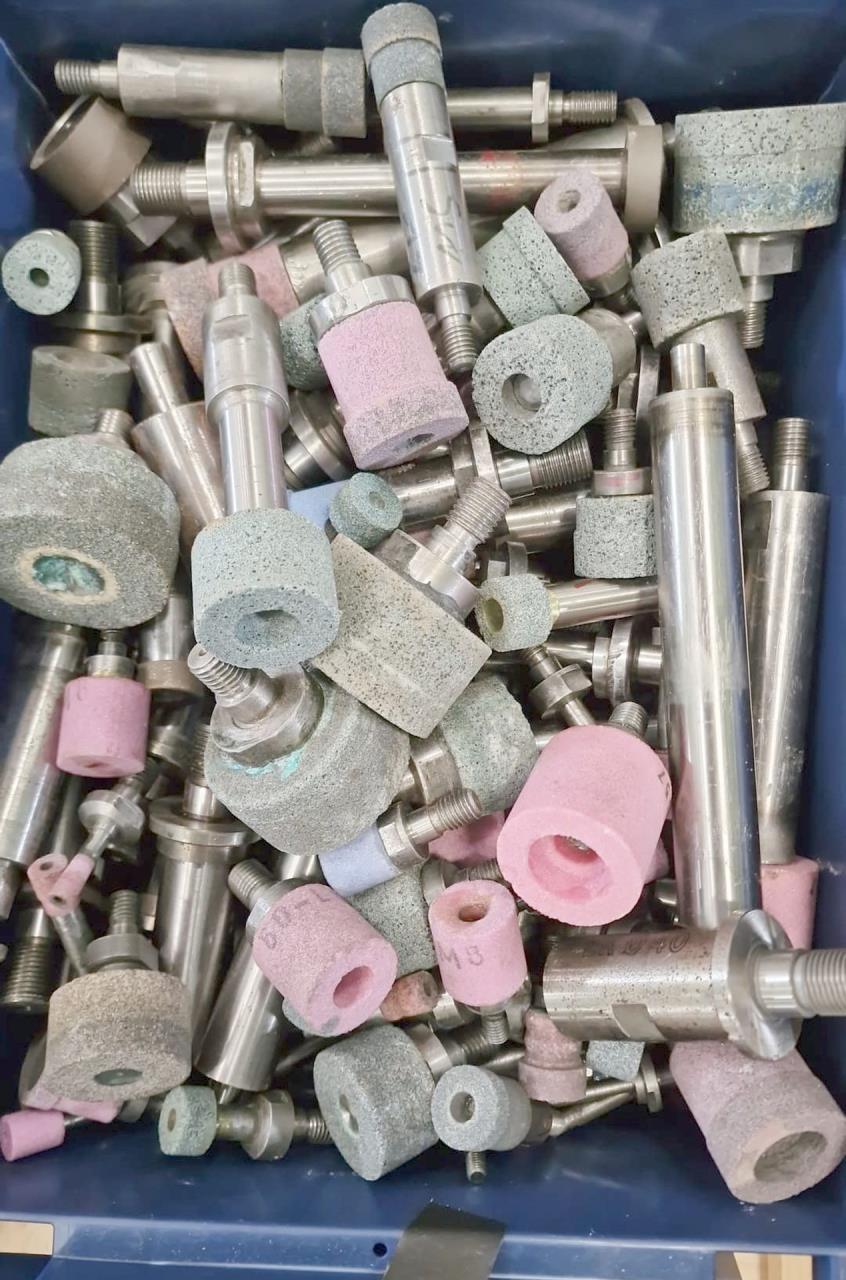

Set of flanges for internal grinding
Set of flanges
Tailstock with fine adjustement
Oil mist extractor

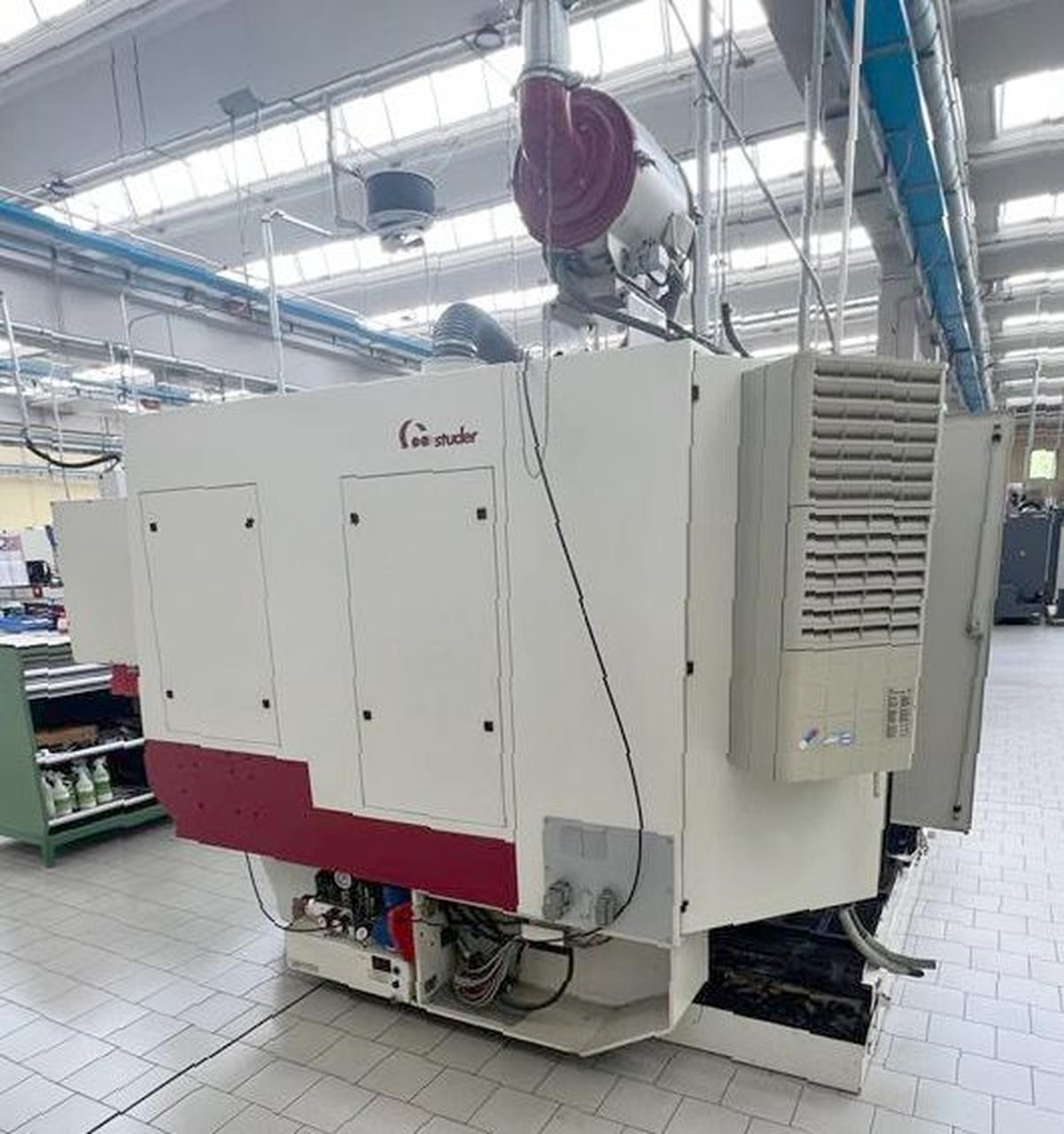

Switch cabinet Air conditioner
Technical specifications and pictures without guarantee.
