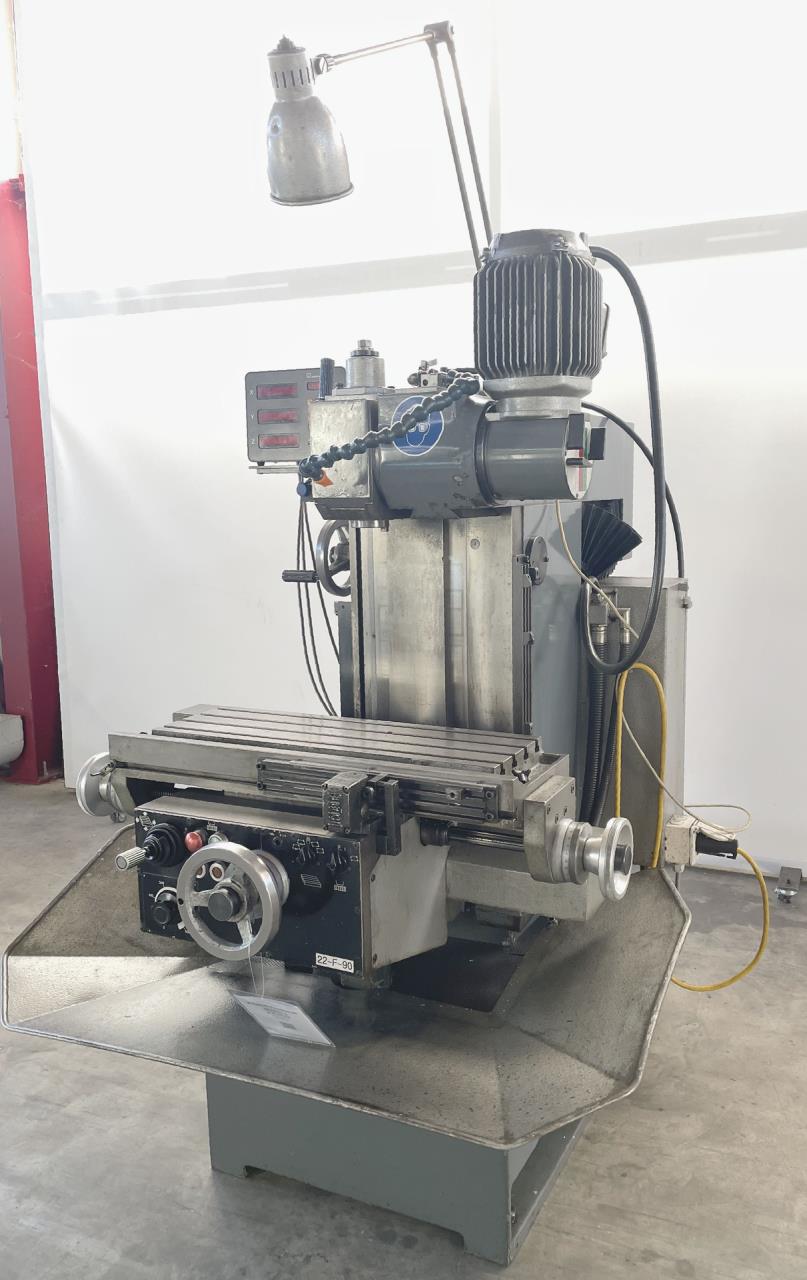

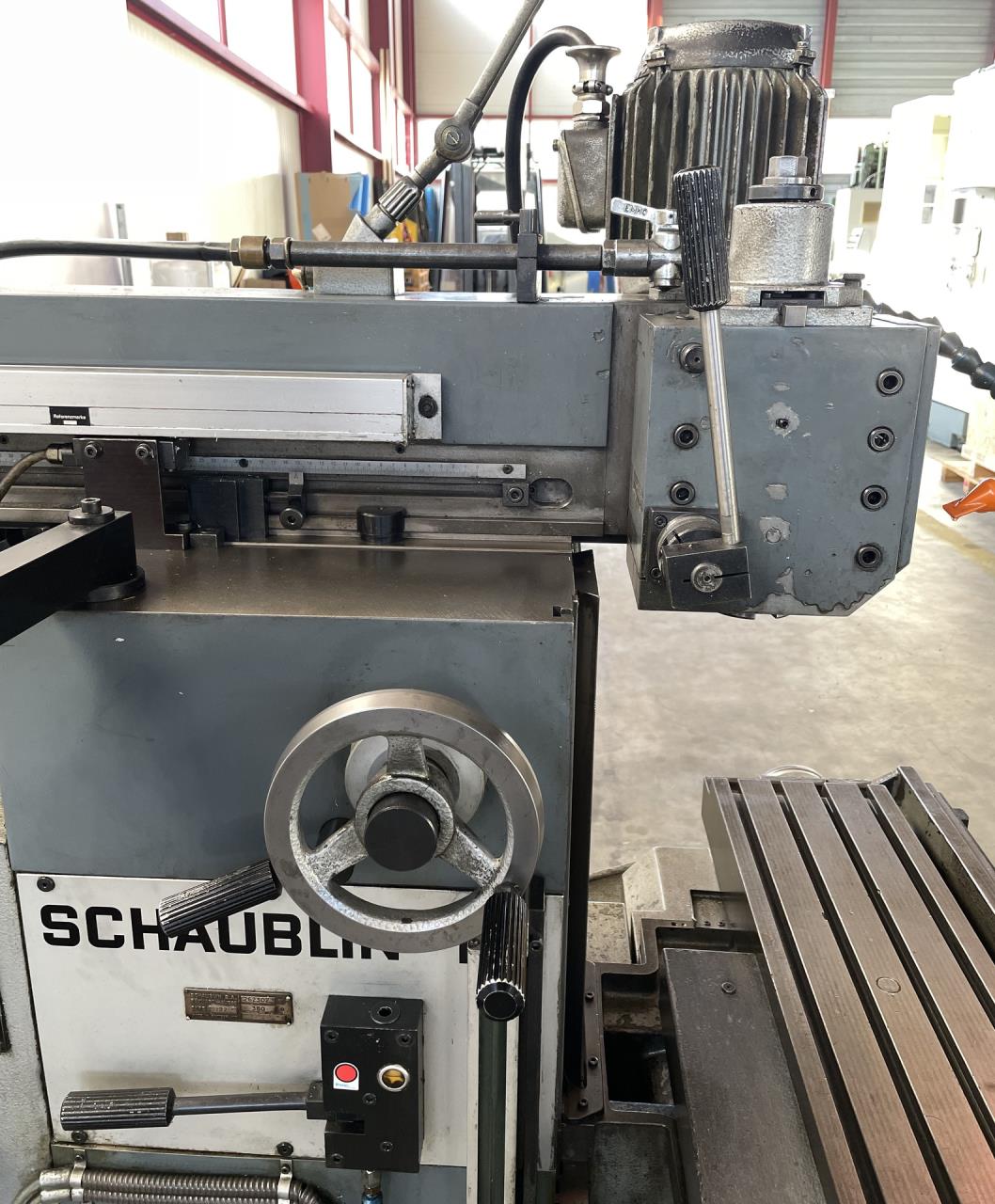

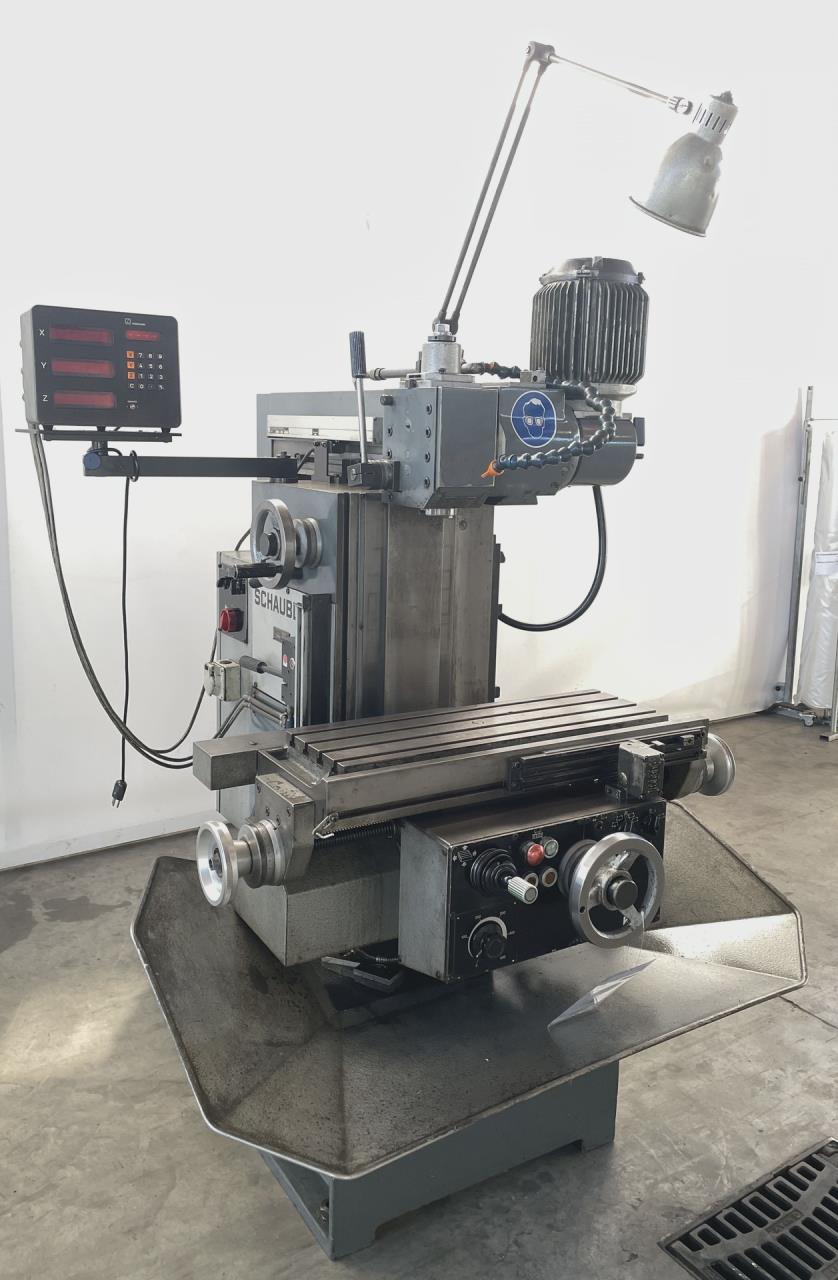

SCHAUBLIN 22 8 Image(s)
Back
Technical data

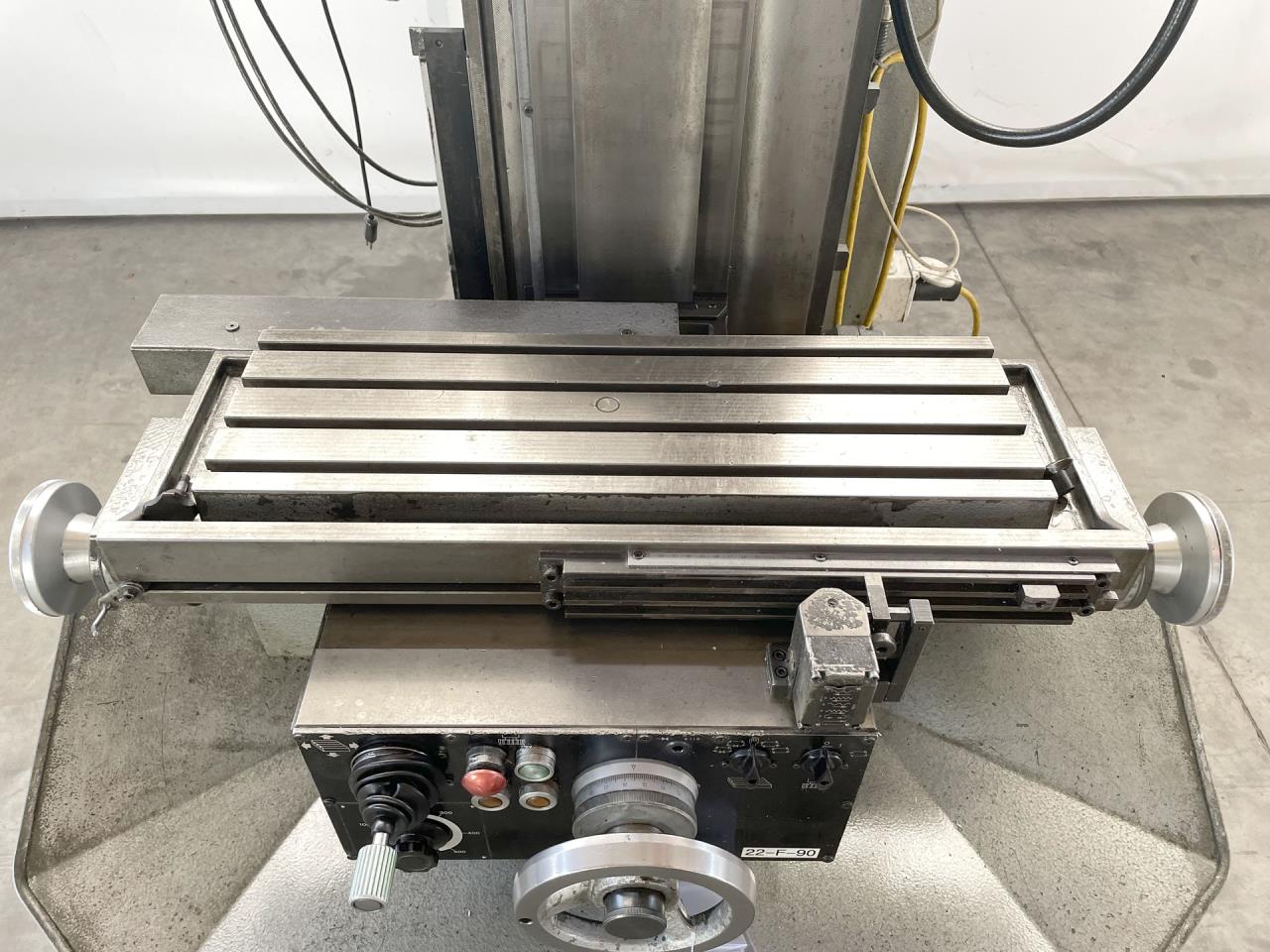

Table length
650 mm
Table width
250 mm
Longitudinal travel (X-axis)
330 mm
Transversal travel (y axis)
400 mm
Vertical travel (z axis)
475 mm
Spindle speeds:
    number (steps)
12
       from
63 rpm
       up to
2800 rpm
Taper in spindle
30 ISO
Feeds stepless:
    longitudinal from
4 mm/min
       up to
500 mm/min
    vertical from
2 mm/min
       up to
200 mm/min
Vertical quill travel
60 mm
Rapid traverse:
    longitudinal
2.5 m/min
    vertical
1.0 m/min
Voltage 50 Hz 3x
380 Volt
Motor output
2.2 HP
Machine's weight about
950 kg
Overall dimensions machine:
    Length
1600 mm
    Width
1100 mm
    Height
1650 mm
Various accessories:

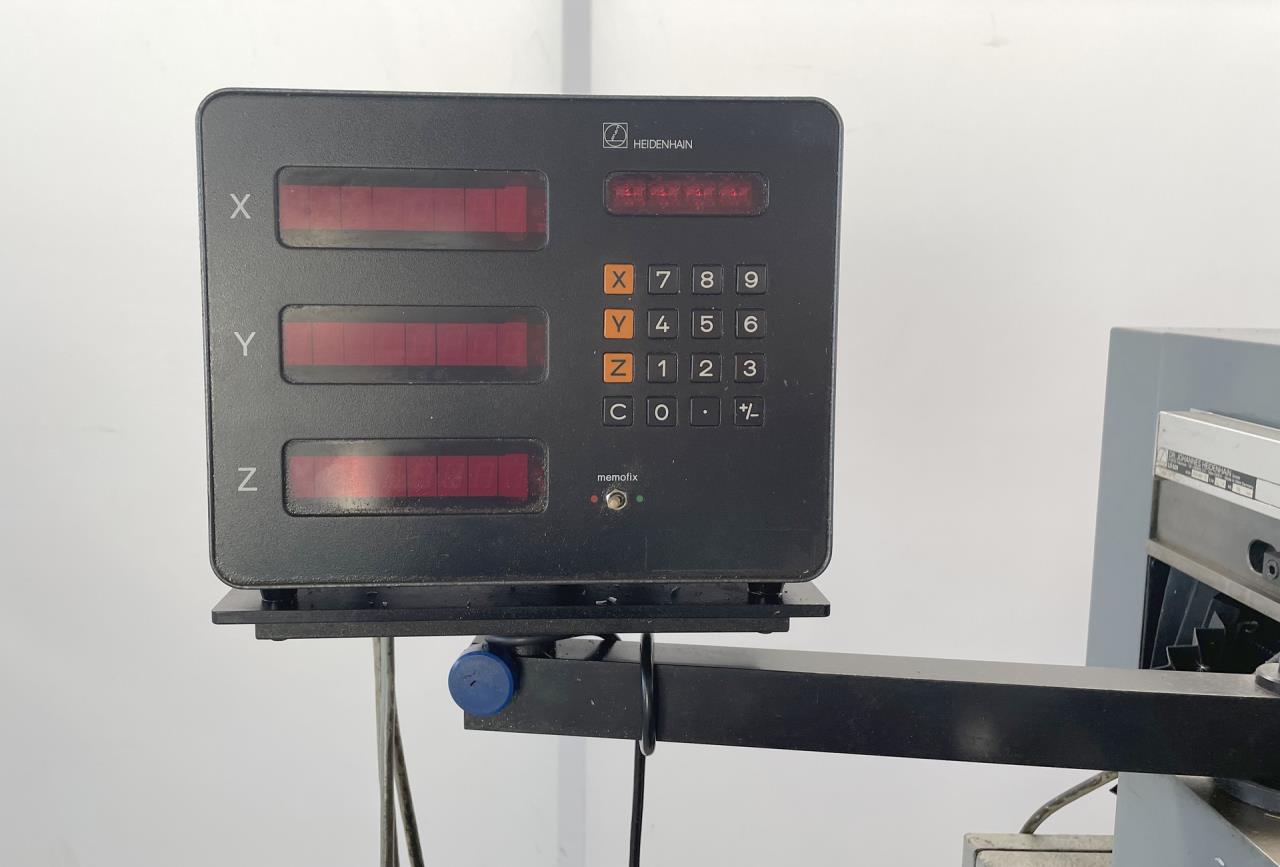

Digital readout number of axis:
3
Lamp
Chip tray

Technical specifications and pictures without guarantee.
