Technical data
Number of axis simultaneous
3

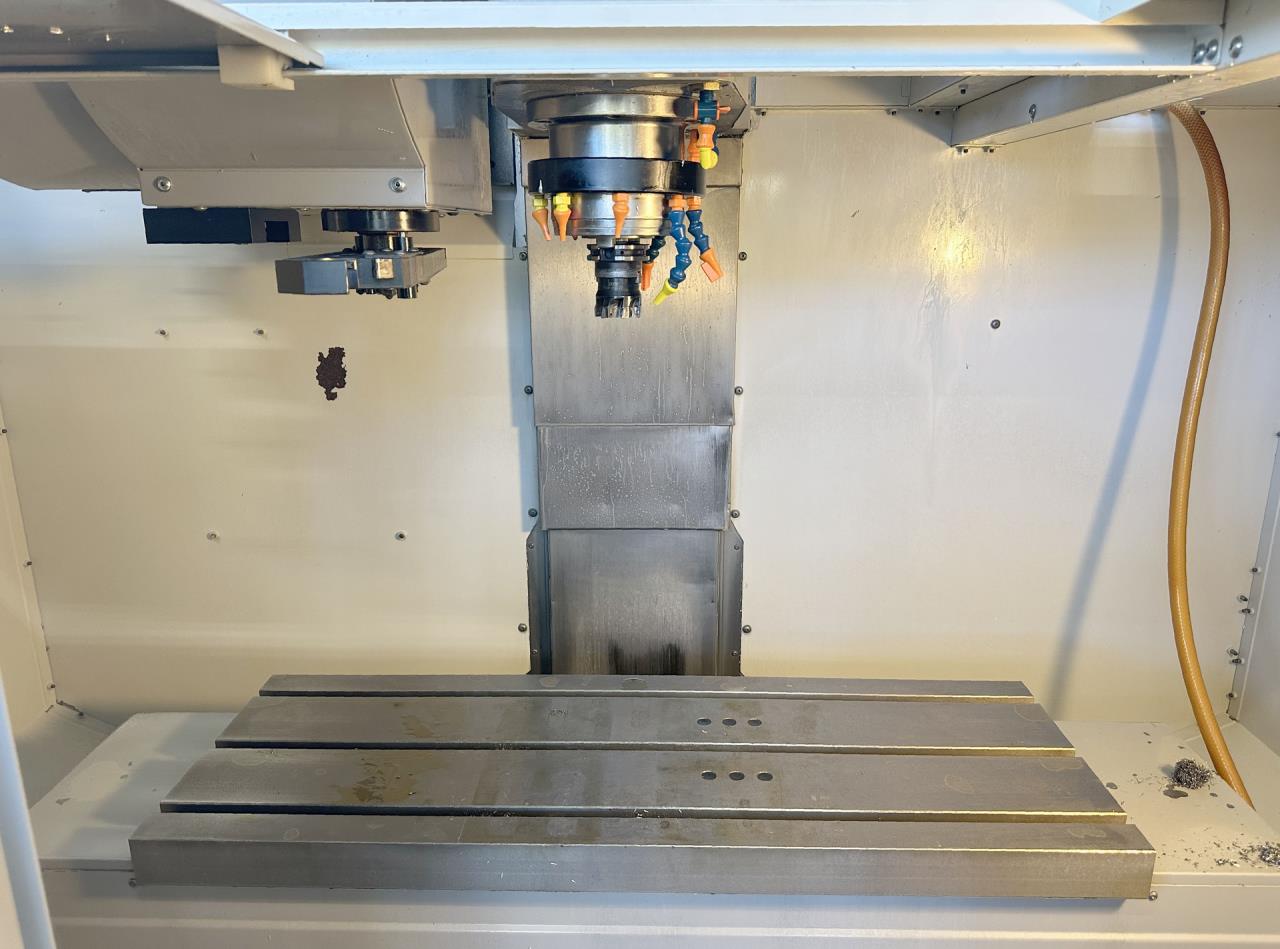

Table length
1016 mm
Table width
356 mm
Number of T-channels
3
Distance of the T-slots
125 mm
T-channel width
18 mm
Table load max.
220 kg
Longitudinal travel (X-axis)
508 mm
Transversal travel (y-axis)
406 mm
Vertical travel (z axis)
356 mm

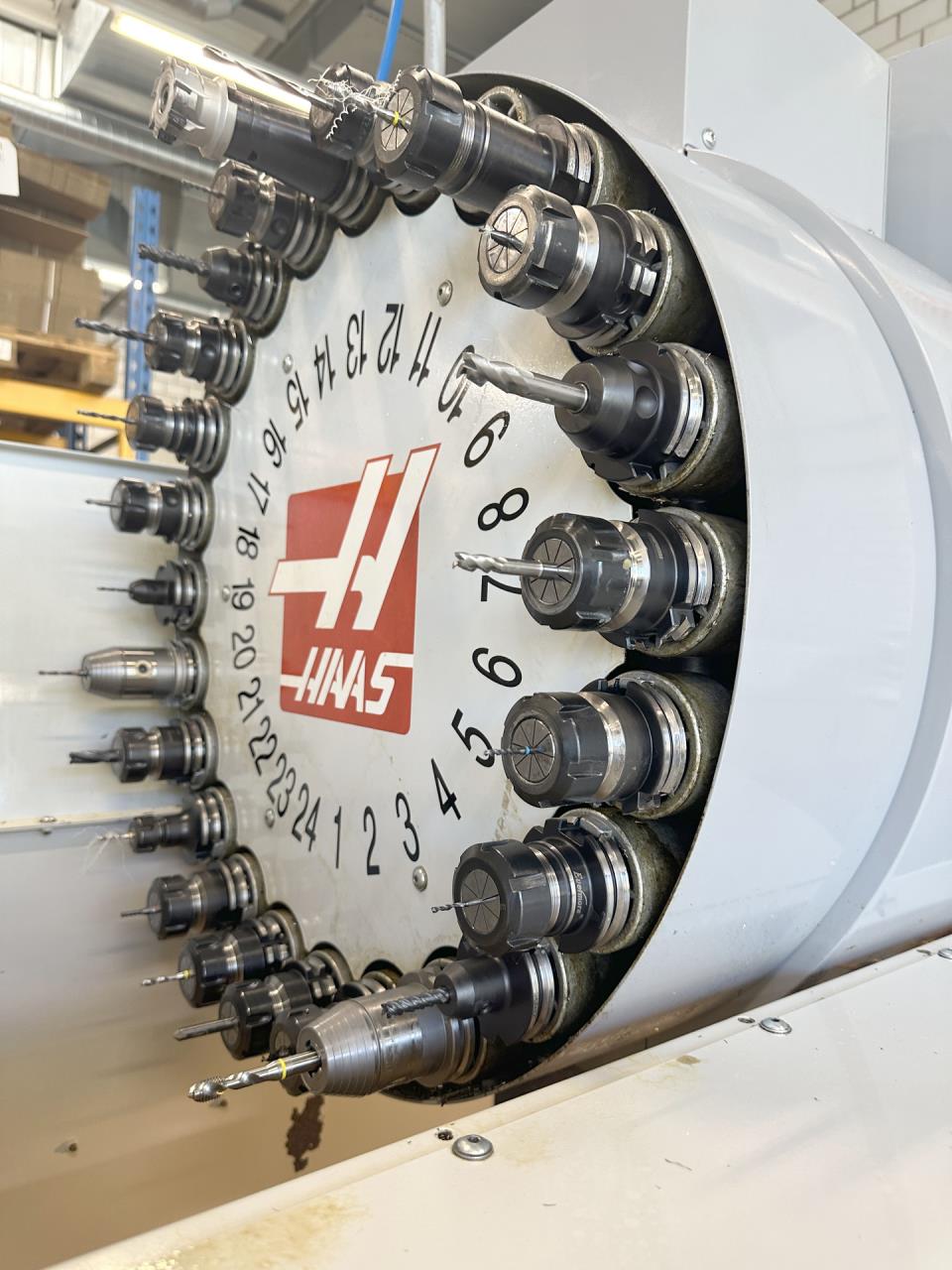

Tool changer:
with double gripper
Number of tools
24
Tool diameter max.
89 mm
Max. tool-weight
5.4 kg
Time of tool changing
4.7 sec

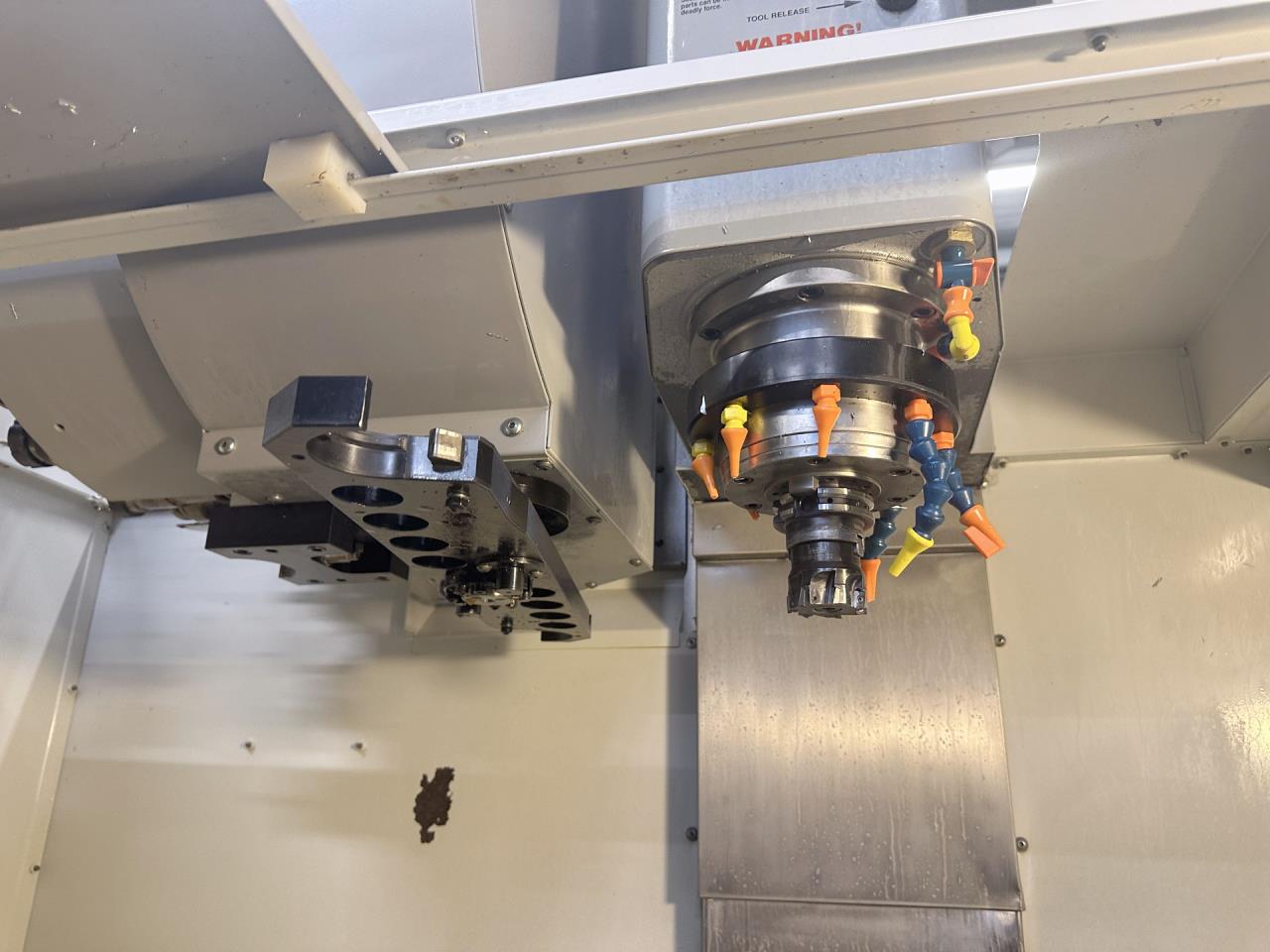

Spindle nose SK
40
Distance spindle nose to table
102 - 457 mm
Spindle speeds:
stepless
from
0 rpm
up to
10000 rpm
Feed range
12000 mm/min
Rapid traverse:
15 m/min
Voltage 50 Hz 3x
400 Volt
Spindle motor
7.5 kW
Machine's weight about
2300 kg
Overall dimensions machine:
Length
2000 mm
Width
2000 mm
Height
2500 mm
Various accessories:
Set of toolholders
Coolant system

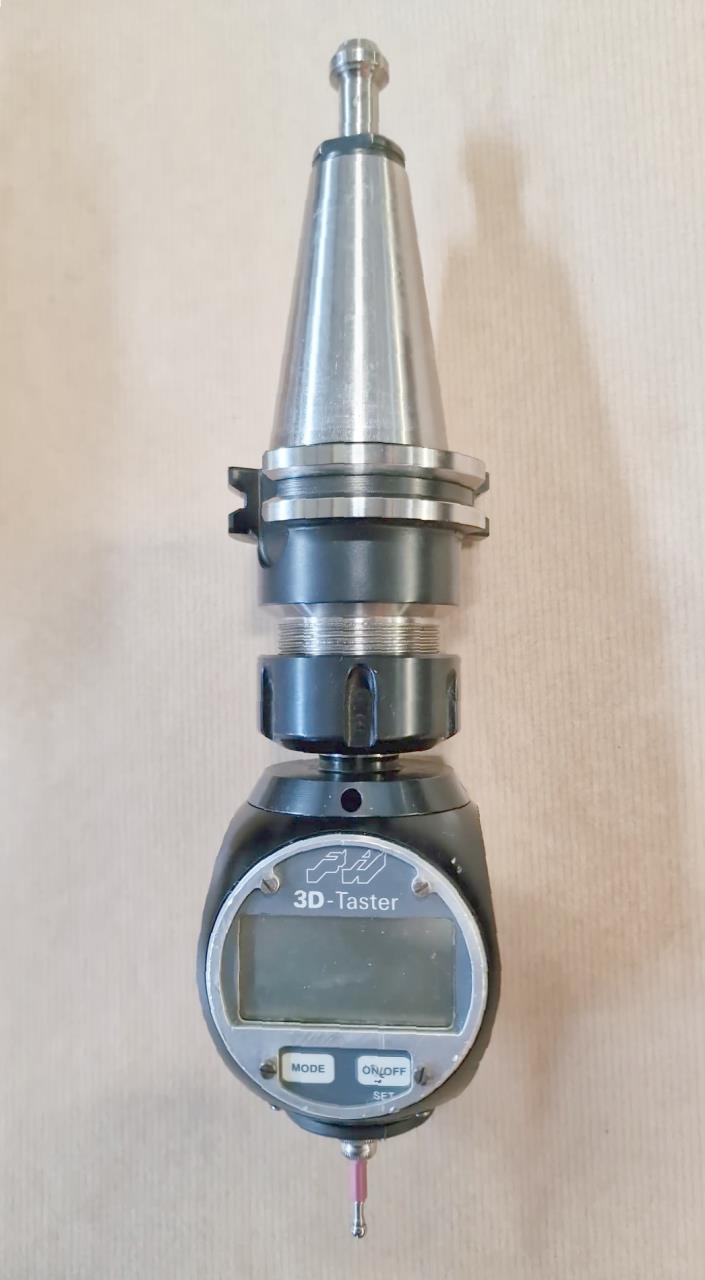

3D measuring feeler gauge
Lamp
Central lubrification
Technical specifications and pictures without guarantee.
