stock no. :
22334
Machine's group :
Type :

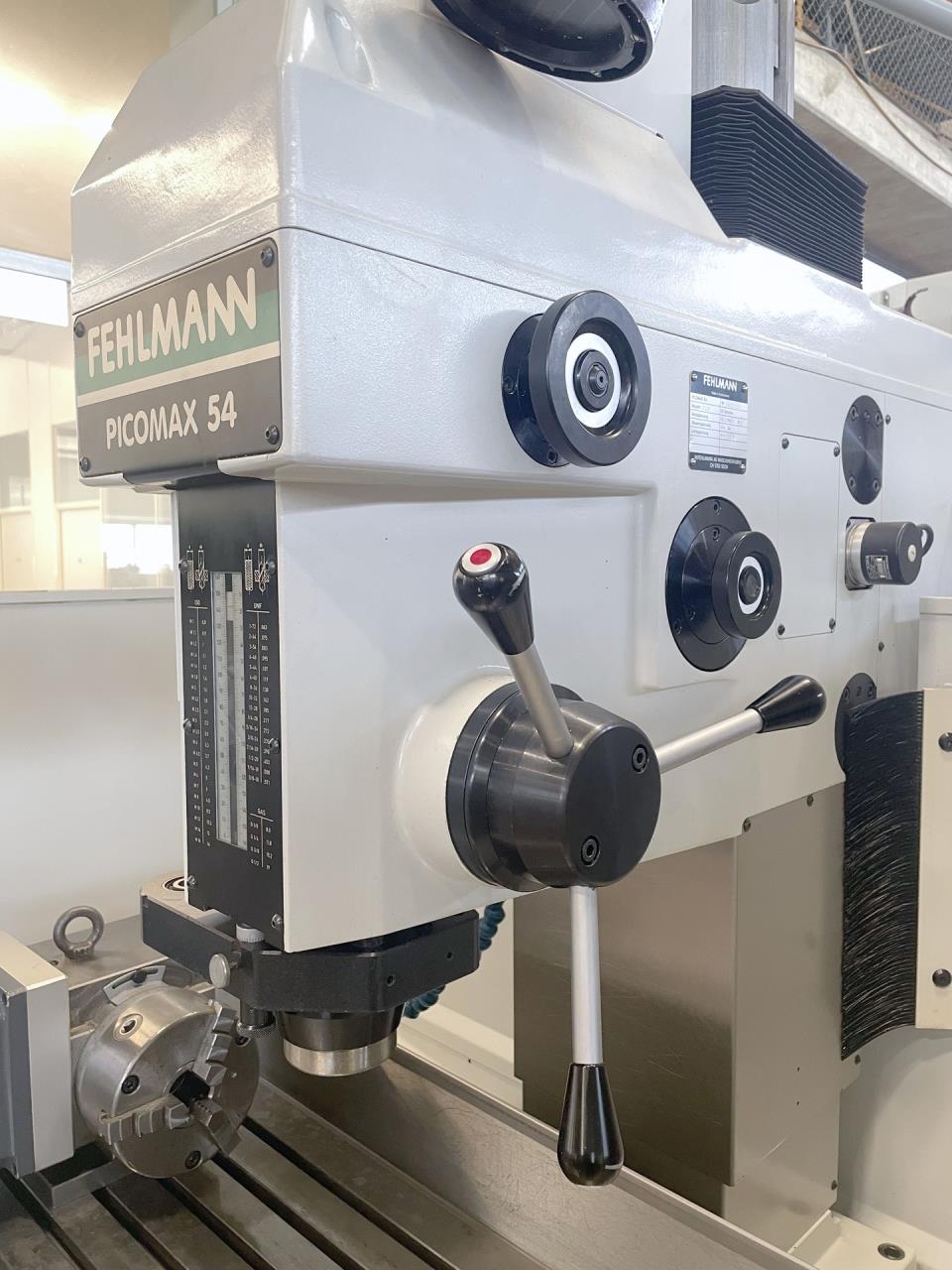

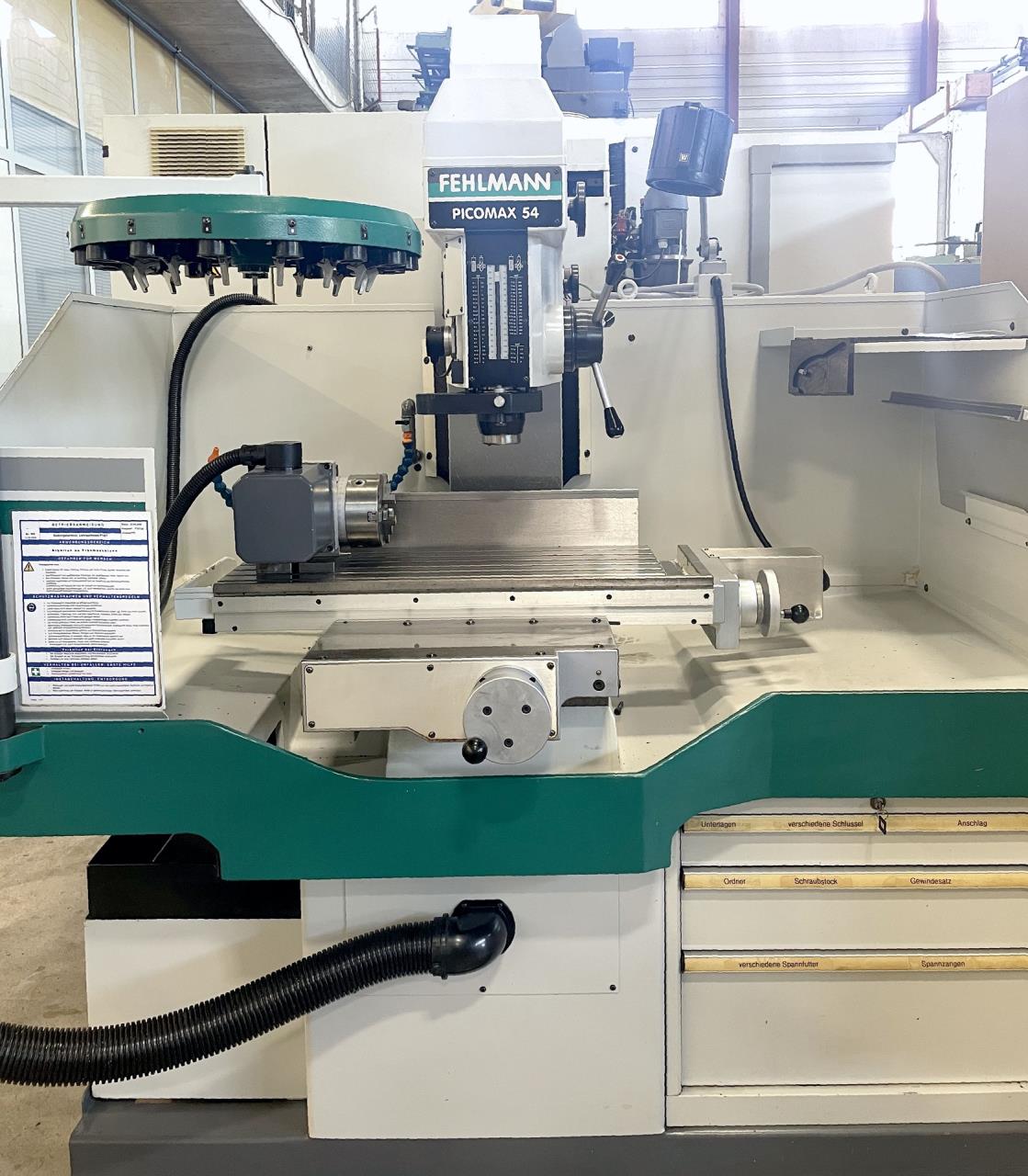

FEHLMANN PICOMAX 54
Controller :

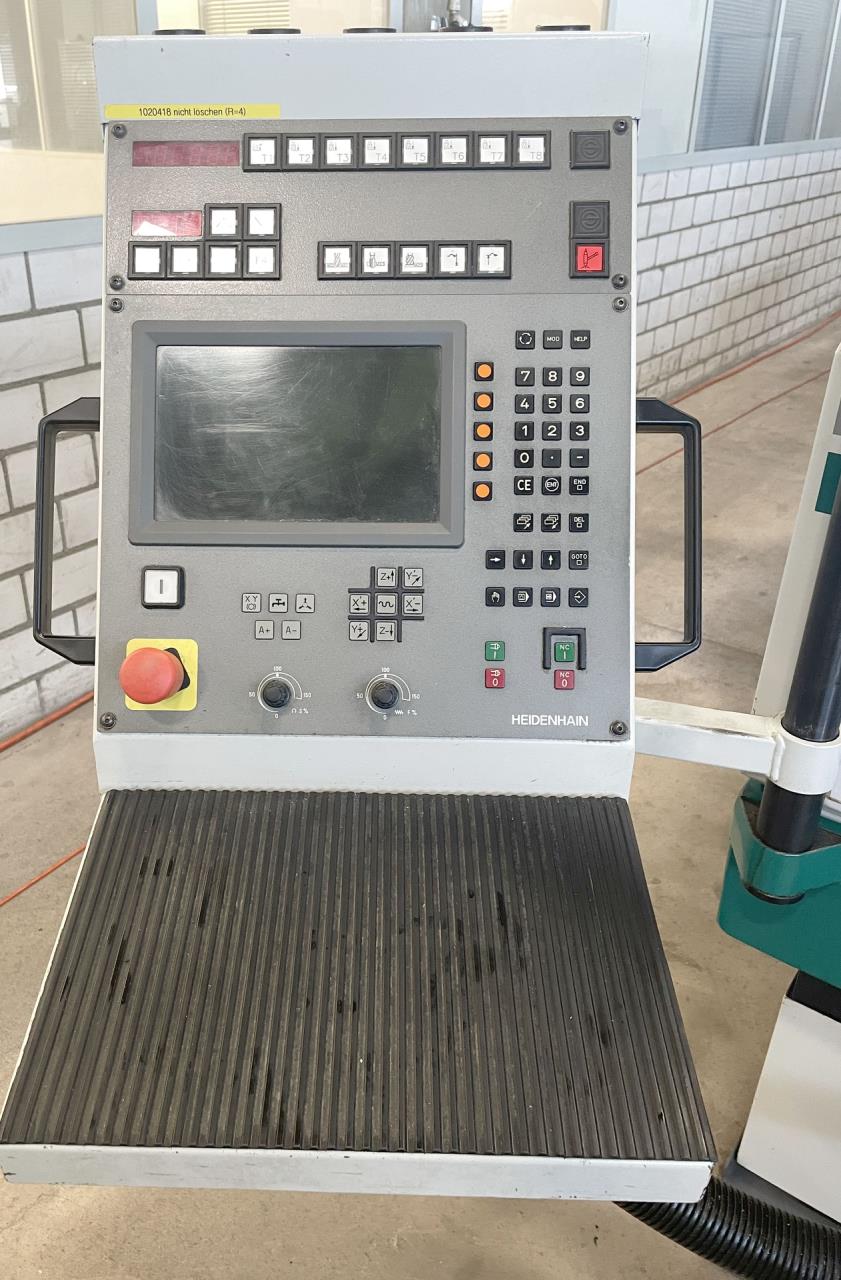

HEIDENHAIN TNC 310
FEHLMANN PICOMAX 54 11 Image(s)
Back
Technical data
Number of axis total
4
Drill capacity in steel
28 mm
Threat cutting in steel M
24
Milling capacity
100 cm3/min
Spindle stroke
160 mm
Spindle speeds :stepless
    from
50 rpm
    up to
7100 rpm
Table length
880 mm
Table width
320 mm
Min. distance from table to spindle
0 mm
Max. distance from table to spindle
610 mm
Longitudinal travel
500 mm
Transversal travel
260 mm
Vertical travel
480 mm
Feeds:
    X axis
1 - 2000 mm/min
    Y axis
1 - 2000 mm/min
    Z axis
10 - 1200 mm/min
    W axis
500 - 2000 mm/min
Table load max.
300 kg
Voltage 50 Hz 3x
400 Volt
Spindle power
7.5 kW
Total power required
10 kW
Machine's weight about
2150 kg
Overall dimensions machine:
    Length
2200 mm
    Width
1800 mm
    Height
2400 mm
Various accessories:
Direct measuring system X and Y axis

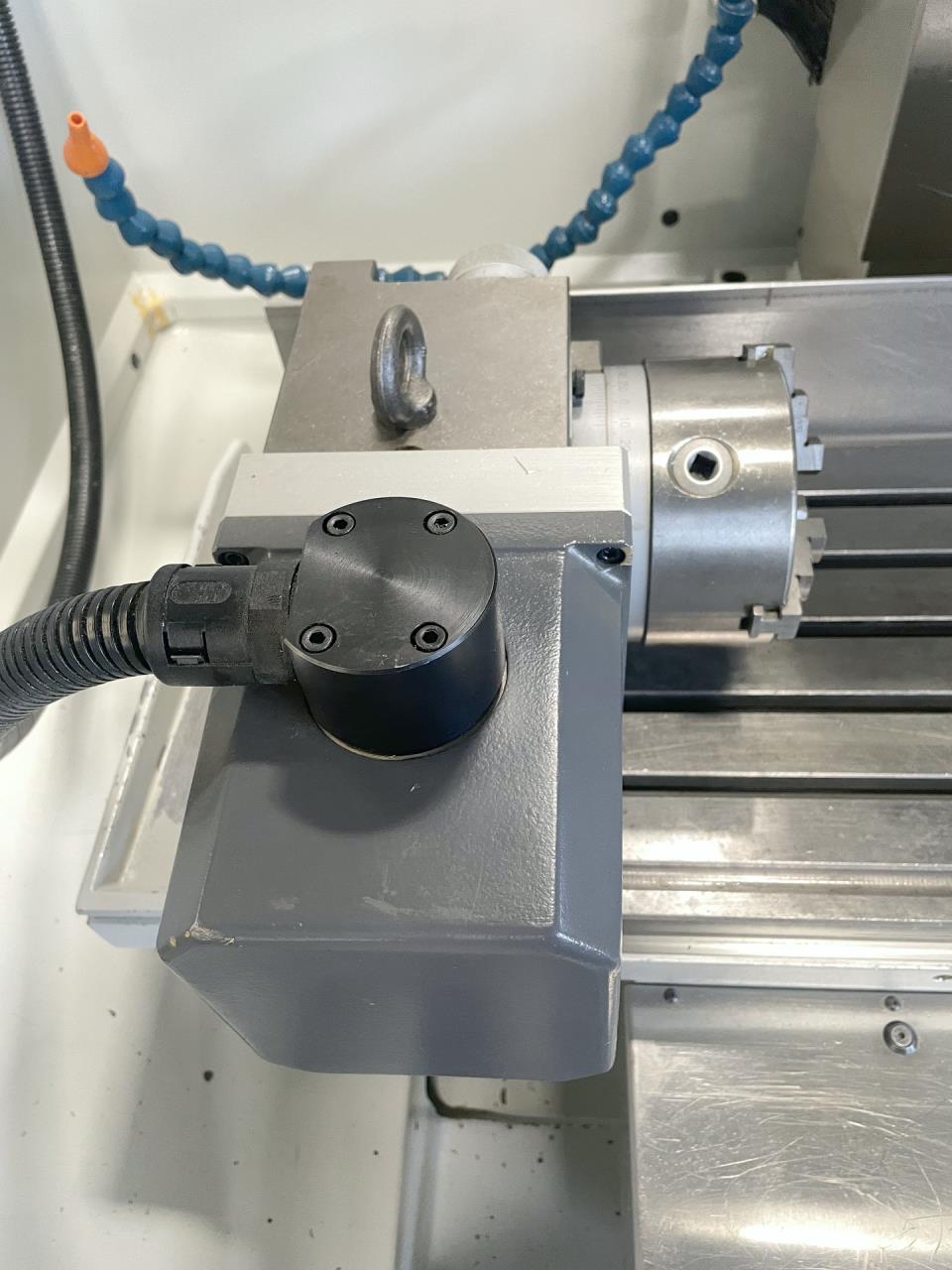

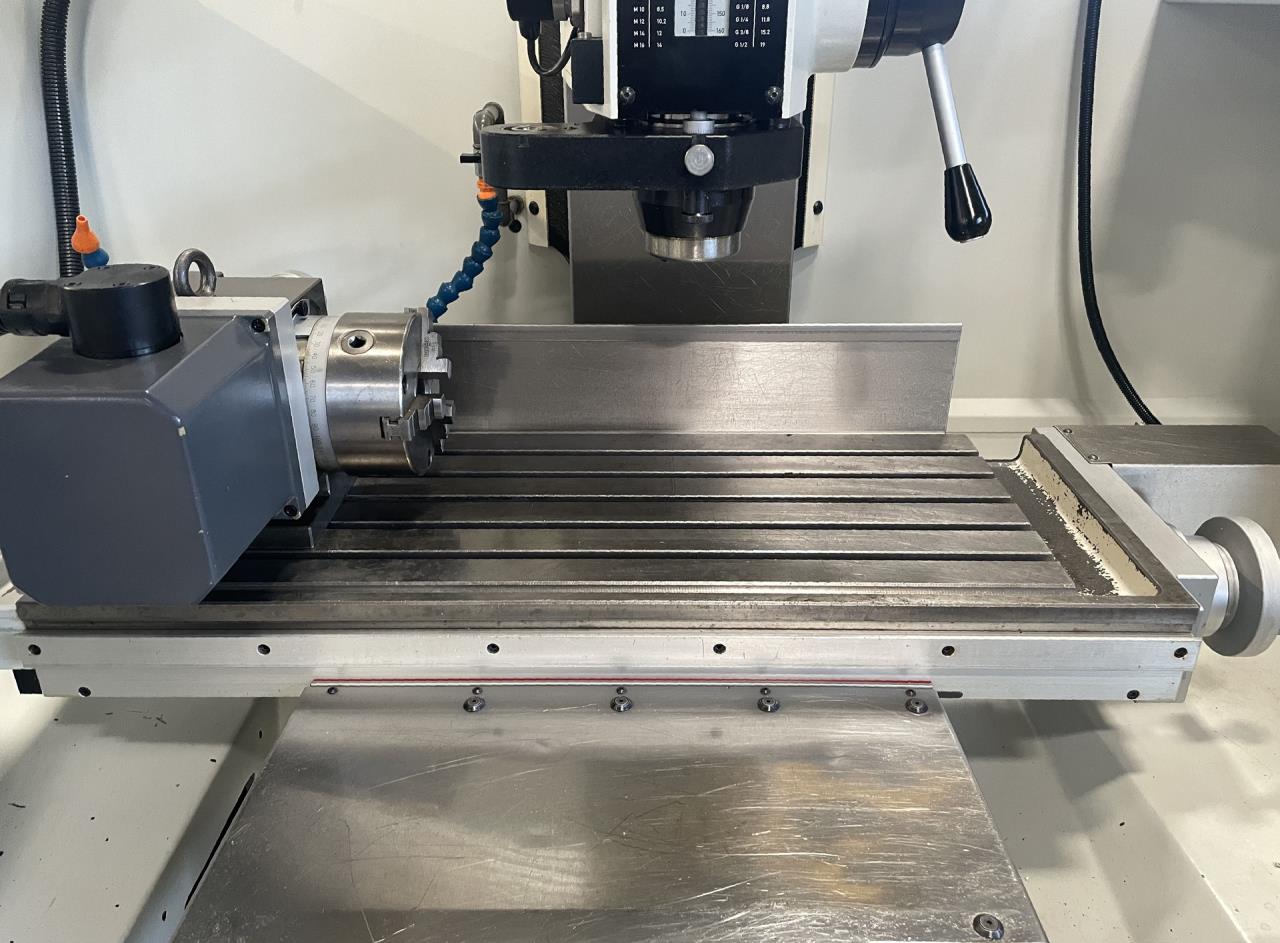

Dividing attachment 4th axis
Set of drill chucks
Vice: width
mm

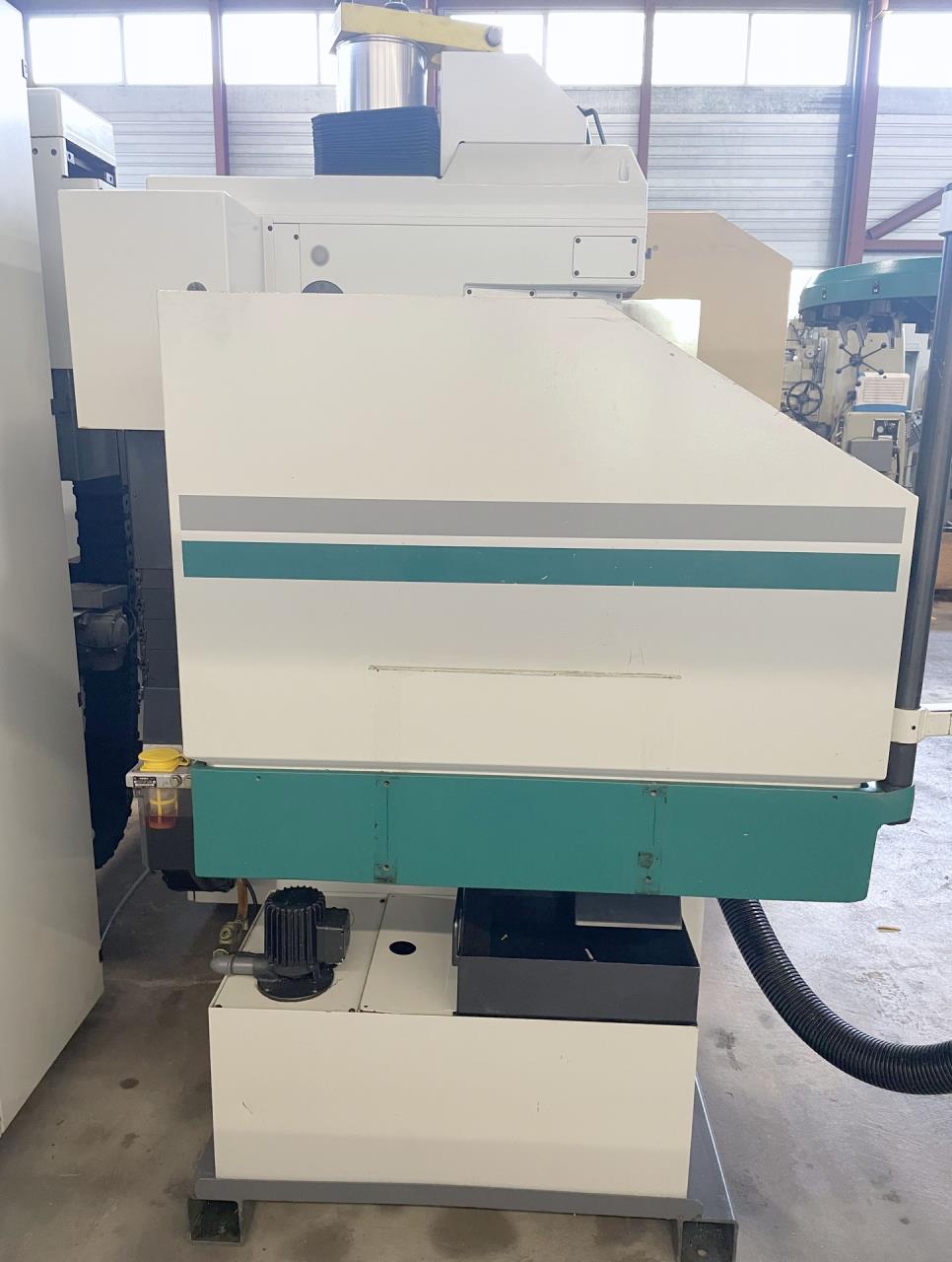

Coolant system
Quick change device
SF 32
Tool storage

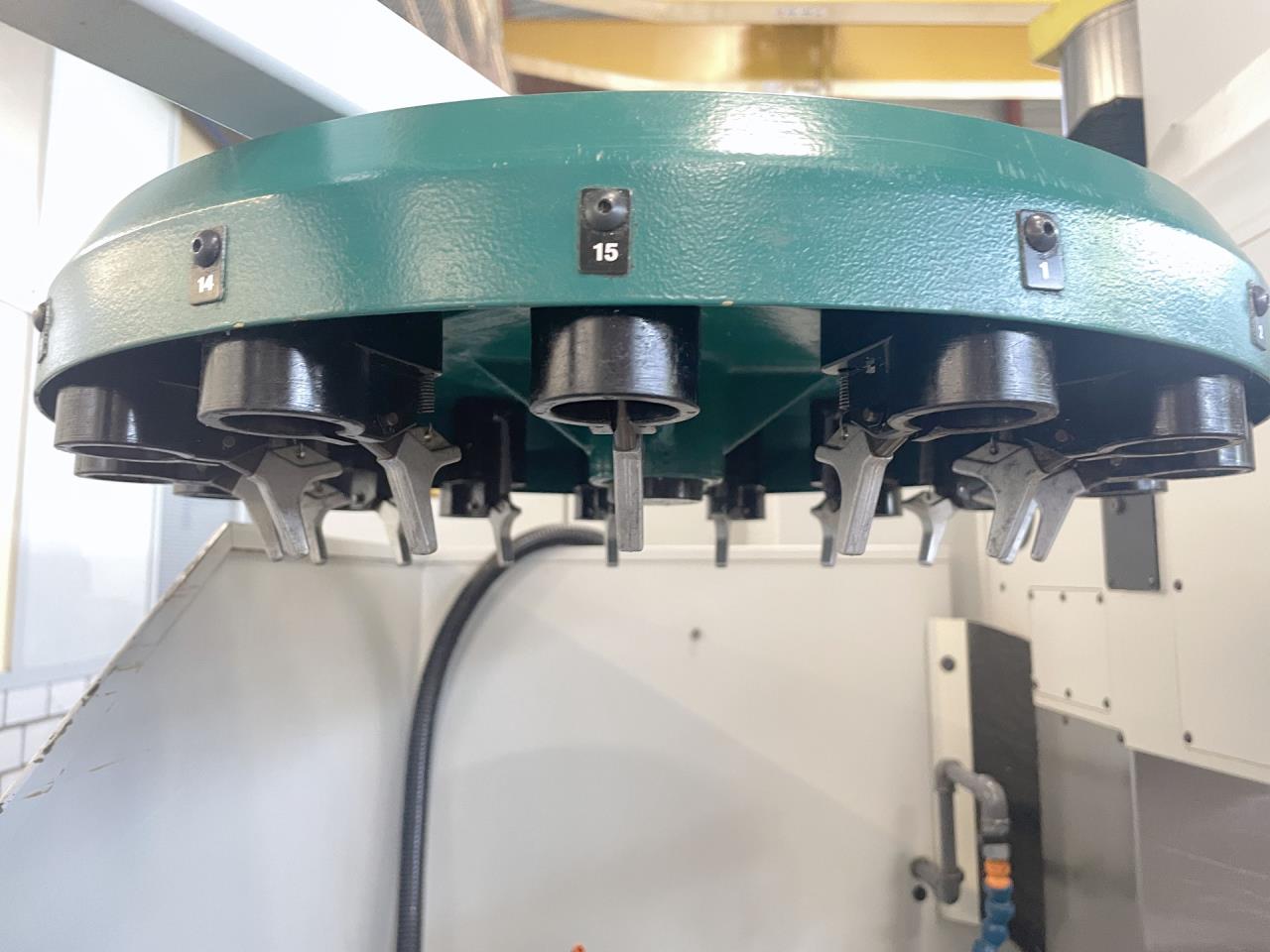

Revolver tool storage
    Number of positions
15
Adjustable depth stop
8x
Lamp

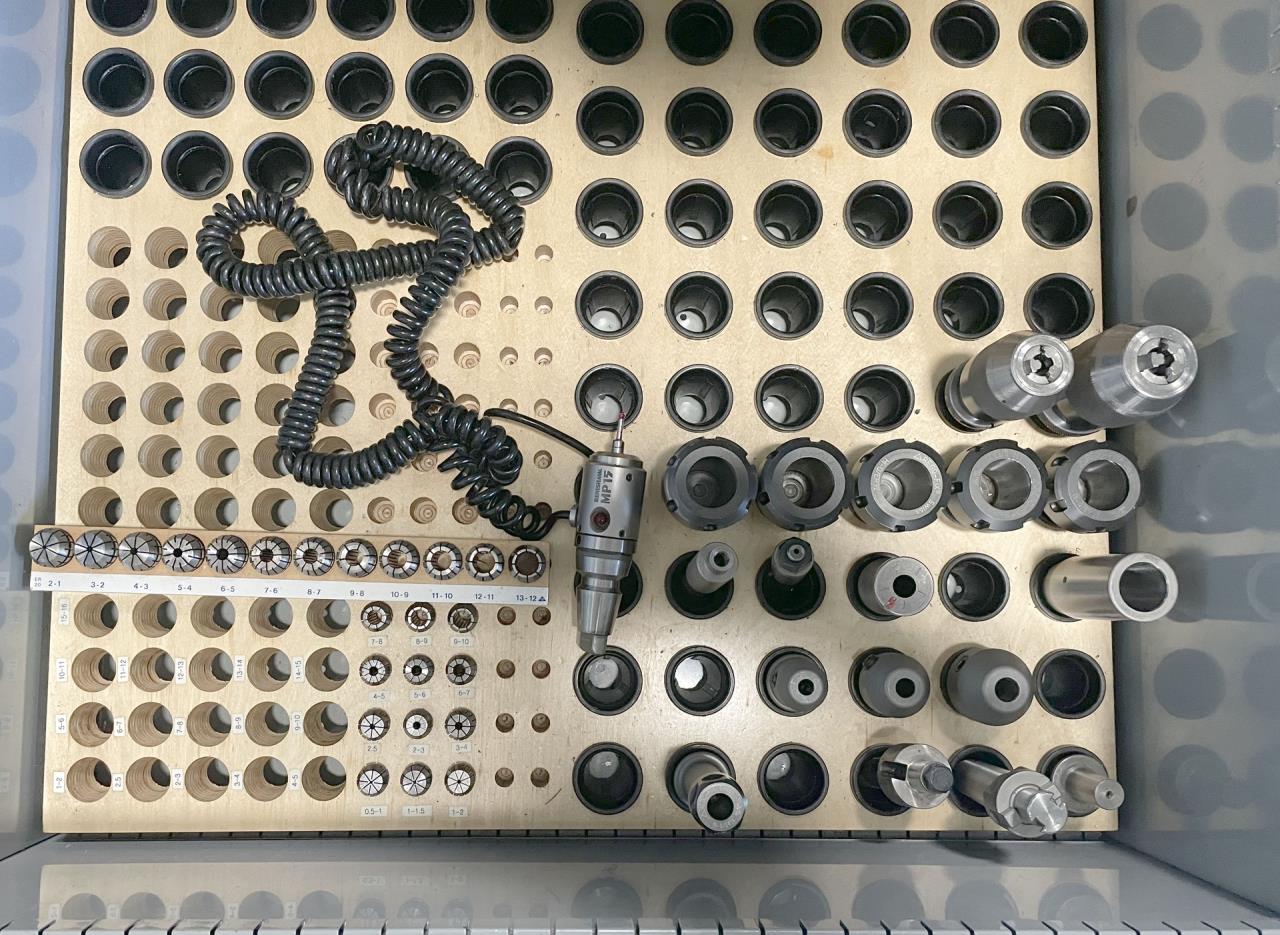

Set of collets
ESX
Collet device
Set of toolholders

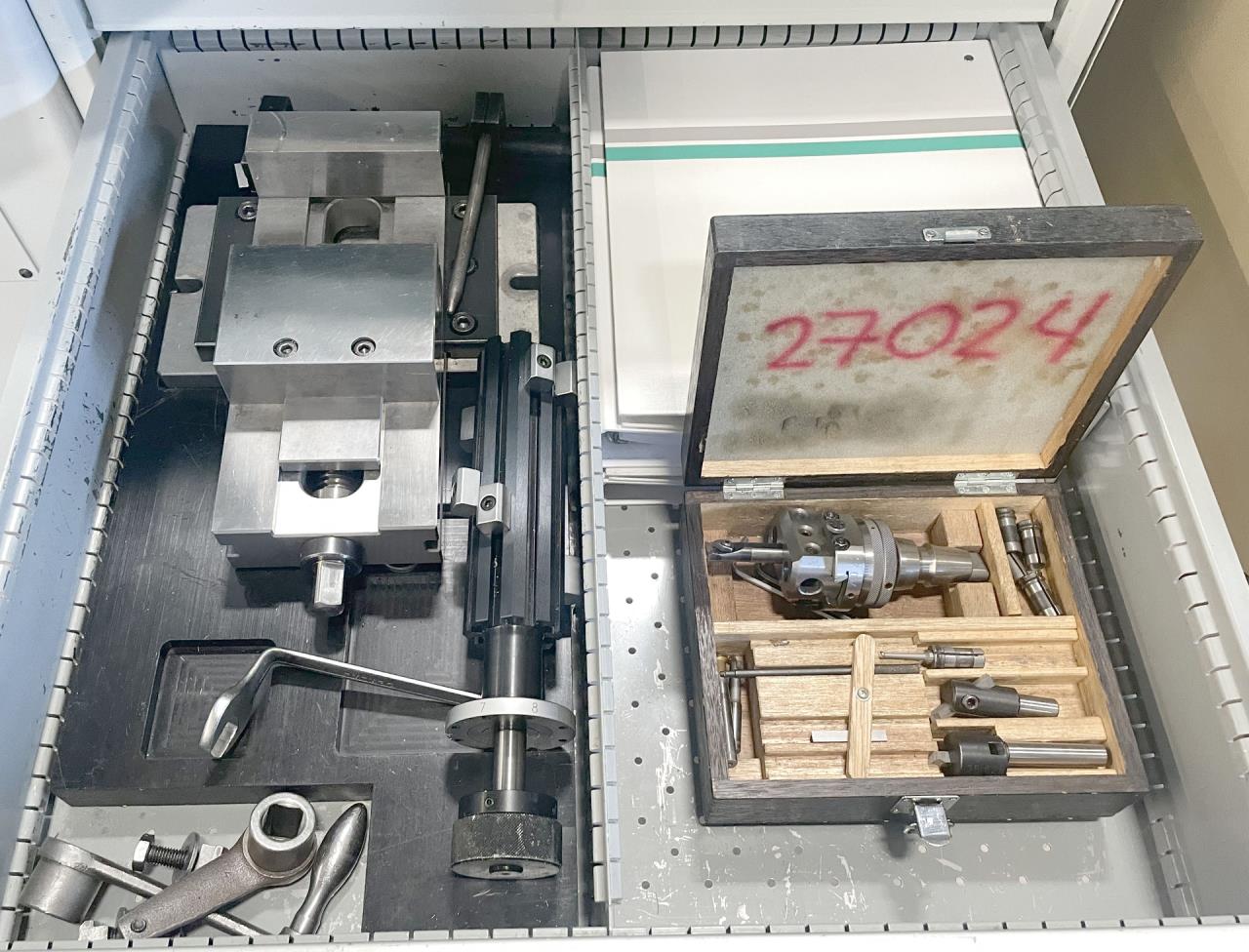

Boring head
Measuring feeler gauge
RENISHAW
3D measuring feeler gauge

Technical specifications and pictures without guarantee.
