stock no. :
22332
Machine's group :
Type :
MIKRON HSM 400 U
Controller :

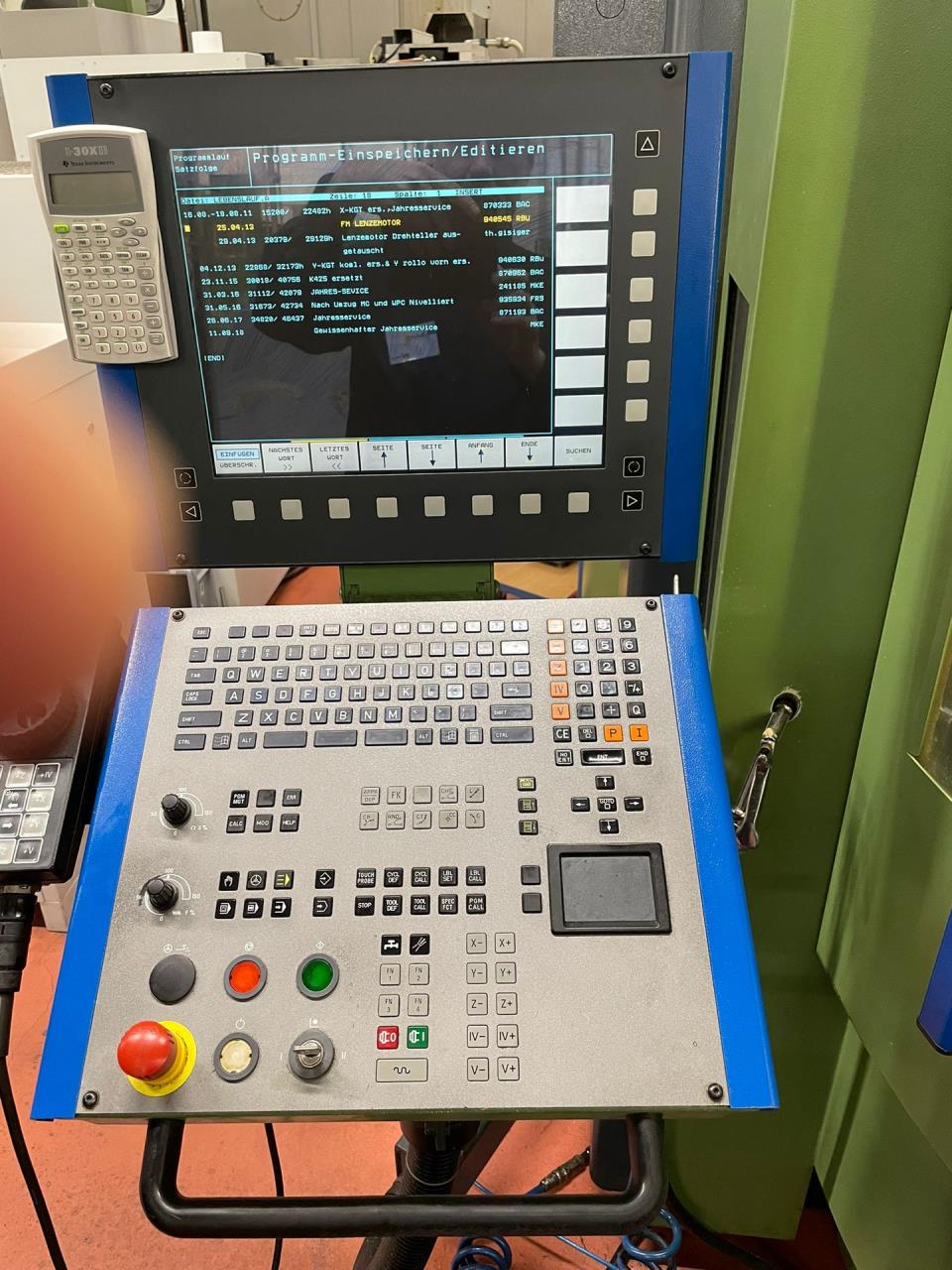

HEIDENHAIN iTNC 530
Jahrgang :
2004
Video
MIKRON HSM 400 U 10 Image(s)
Back
Technical data
Number of axis total
5

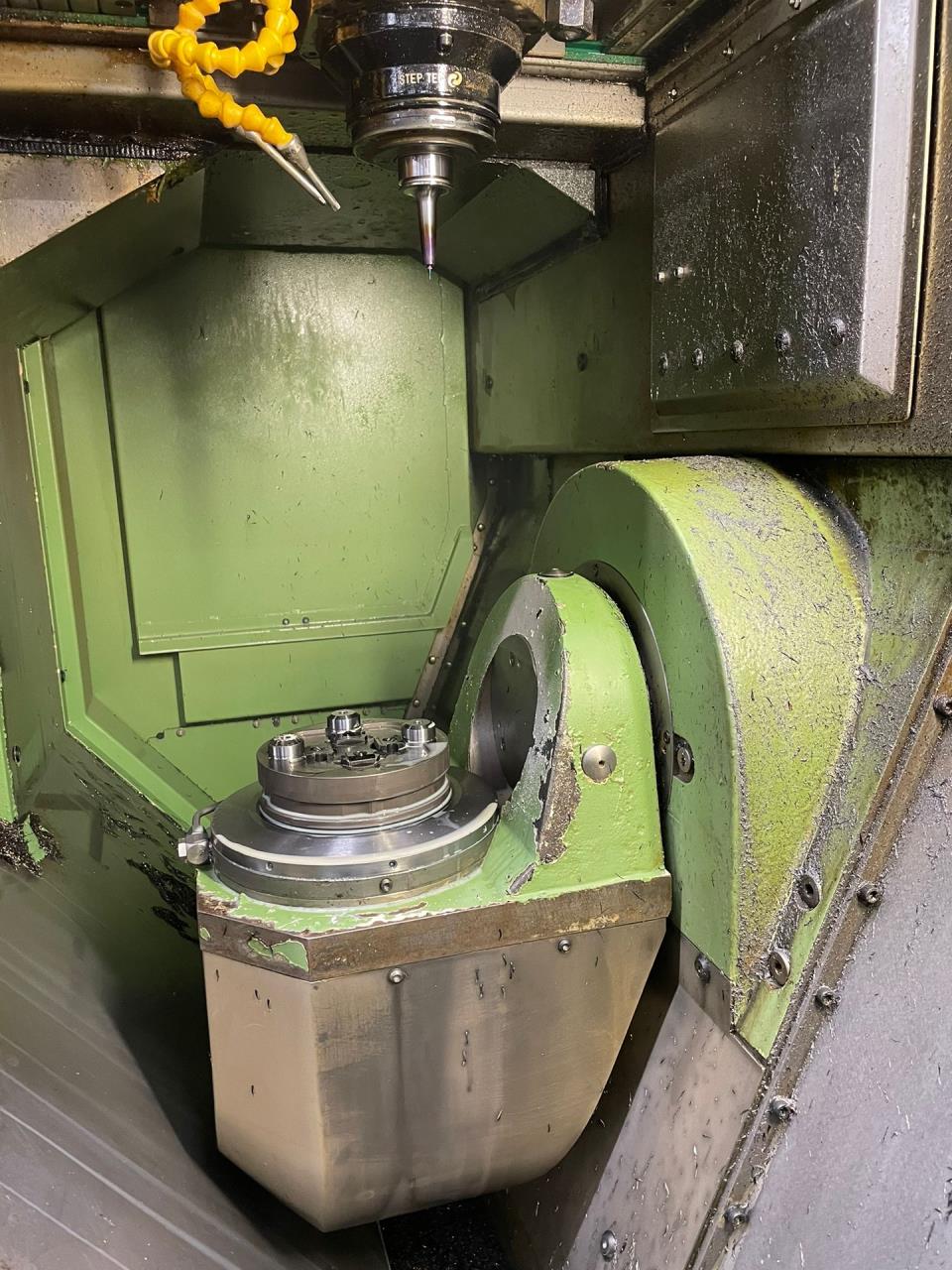

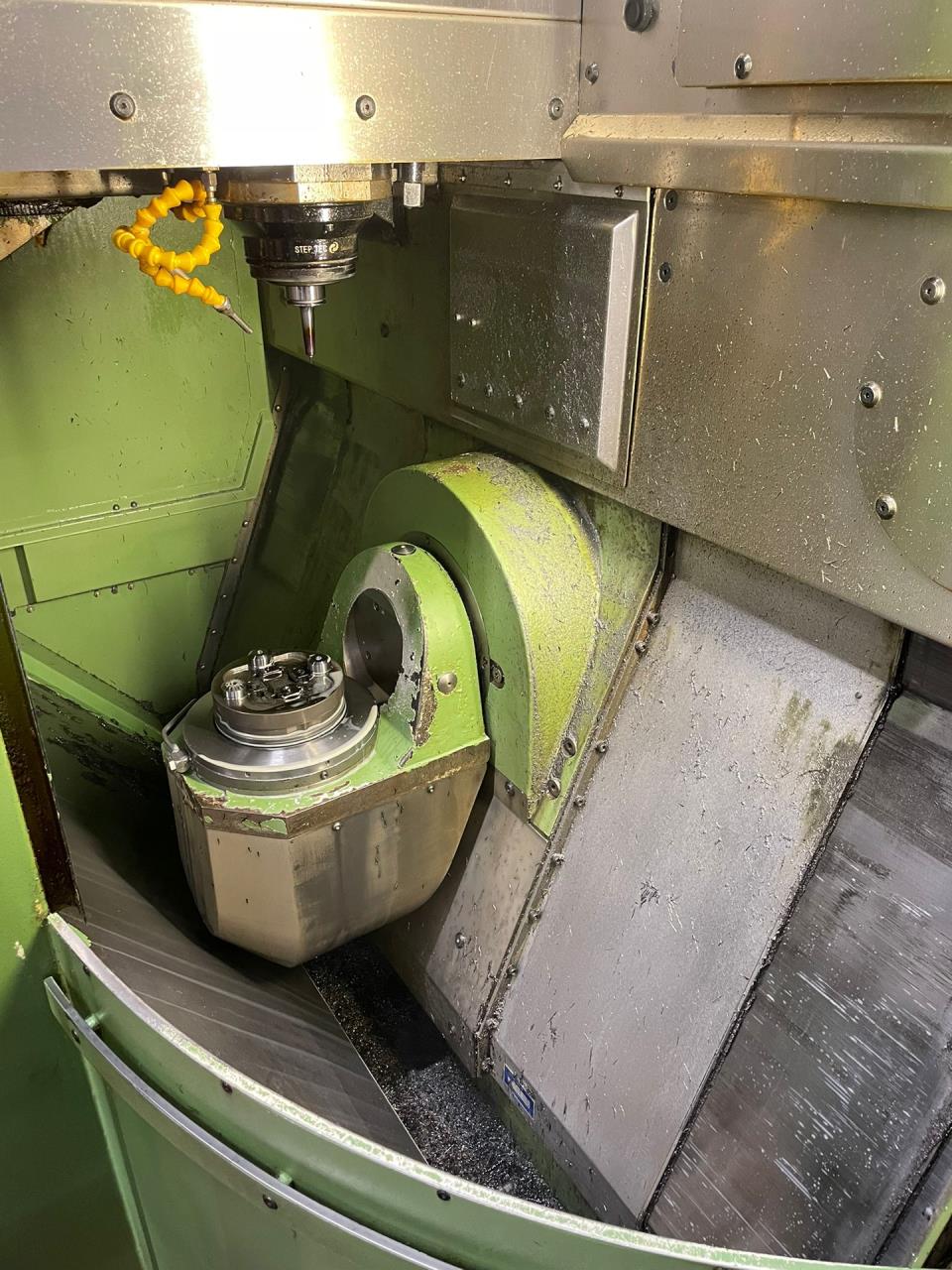

Rotary table:diameter
250 mm
Longitudinal travel (X-axis)
400 mm
Transversal travel (y-axis)
240 mm
Vertical travel (z axis)
350 mm
B axis swivelling range
+/-110 °
C axis
360 °

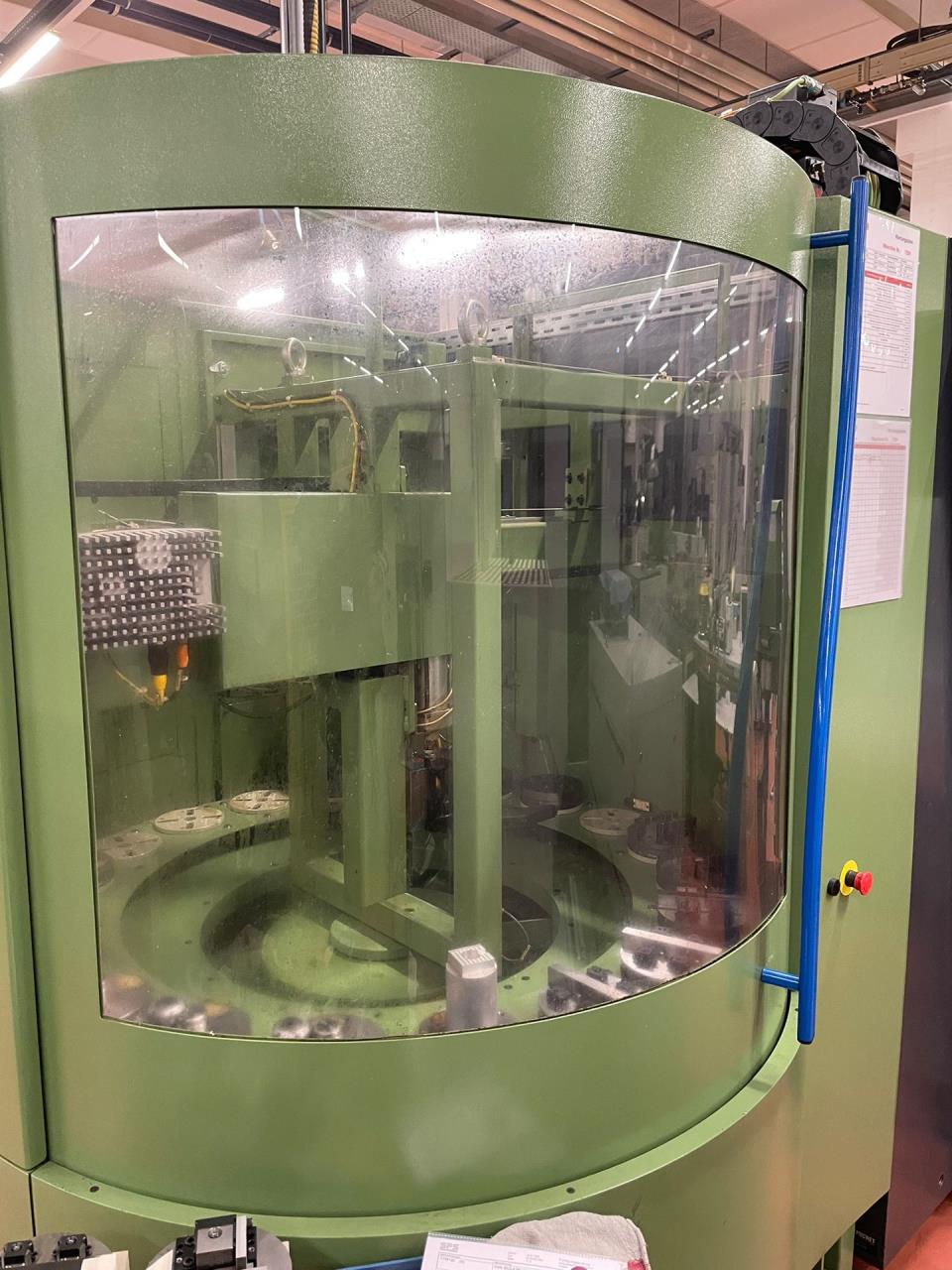

Pallets:
EROWA ITS 148mm
    number
20

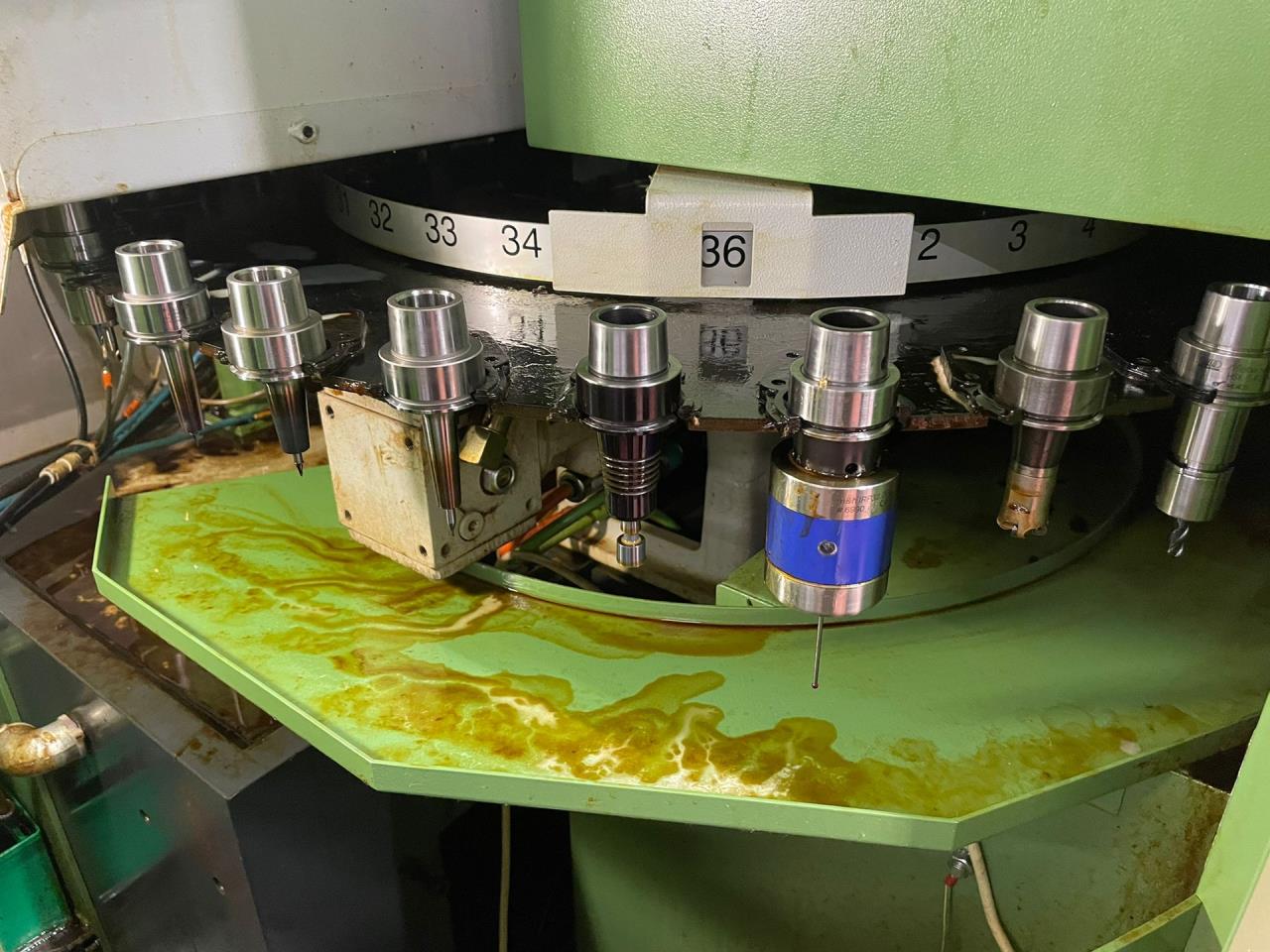

Tool changer:
TCD
    Number of tools
36
Spindle nose: HSK
40E OptiCool
Spindle speeds:

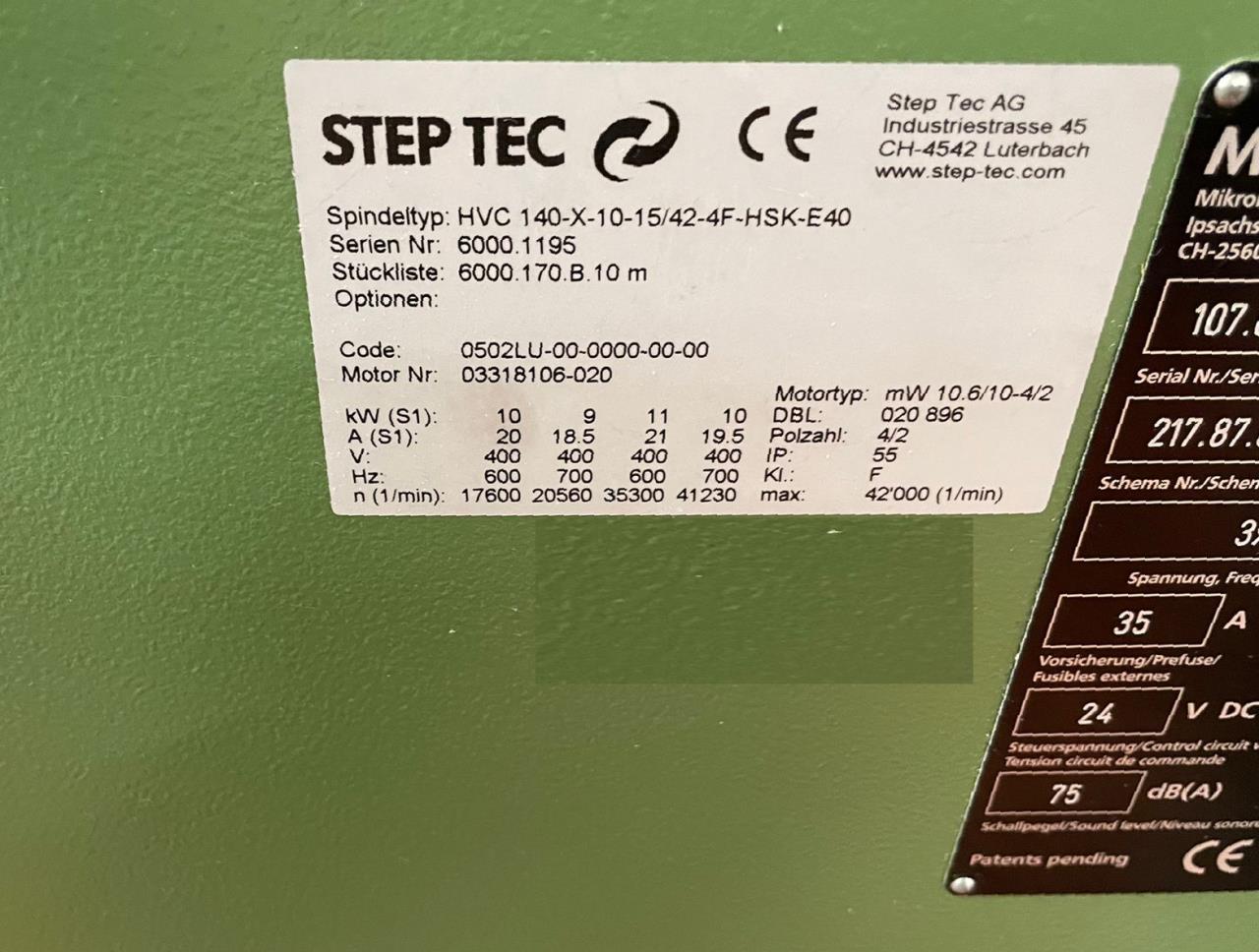

StepTec
    stepless
       from
100 rpm
       up to
42000 rpm
Feed range
1 - 40000 mm/min
Rapid traverse:
42 m/min
Voltage 50 Hz 3x
400 Volt
Spindle motor
13 kW
Time under power
67896 Hour
Working time
43715 Hour
Spindle run time
49125 Hour
Noise level
75 dB (A)
Machine's weight about
5500 kg
Overall dimensions machine:
    Length
3800 mm
    Width
2900 mm
    Height
2500 mm
Various accessories:
Touch Probe

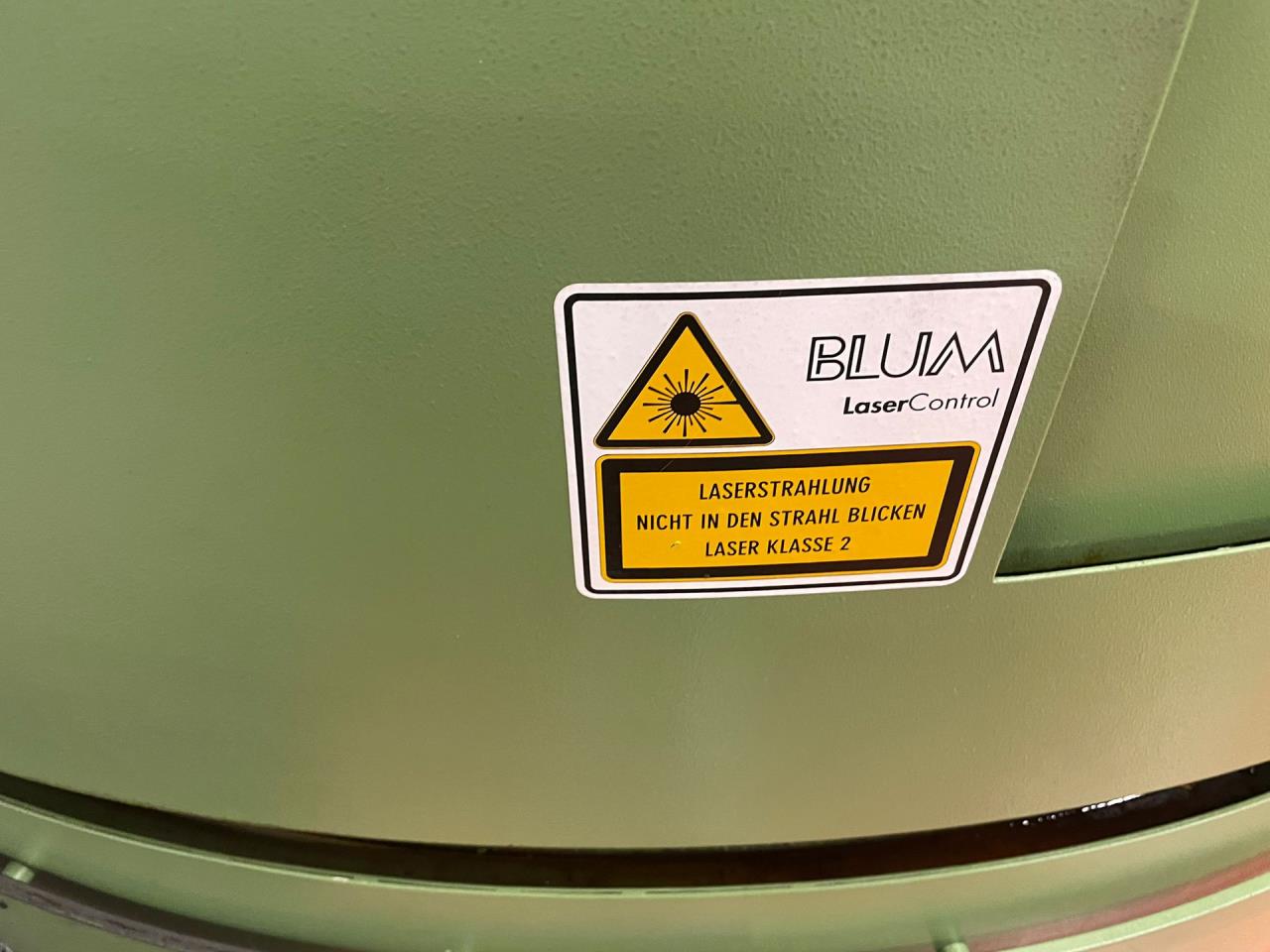

Laser tool setting system
BLUM
Handwheel electroinic
Lamp

Technical specifications and pictures without guarantee.
