stock no. :
22330
Machine's group :
Type :

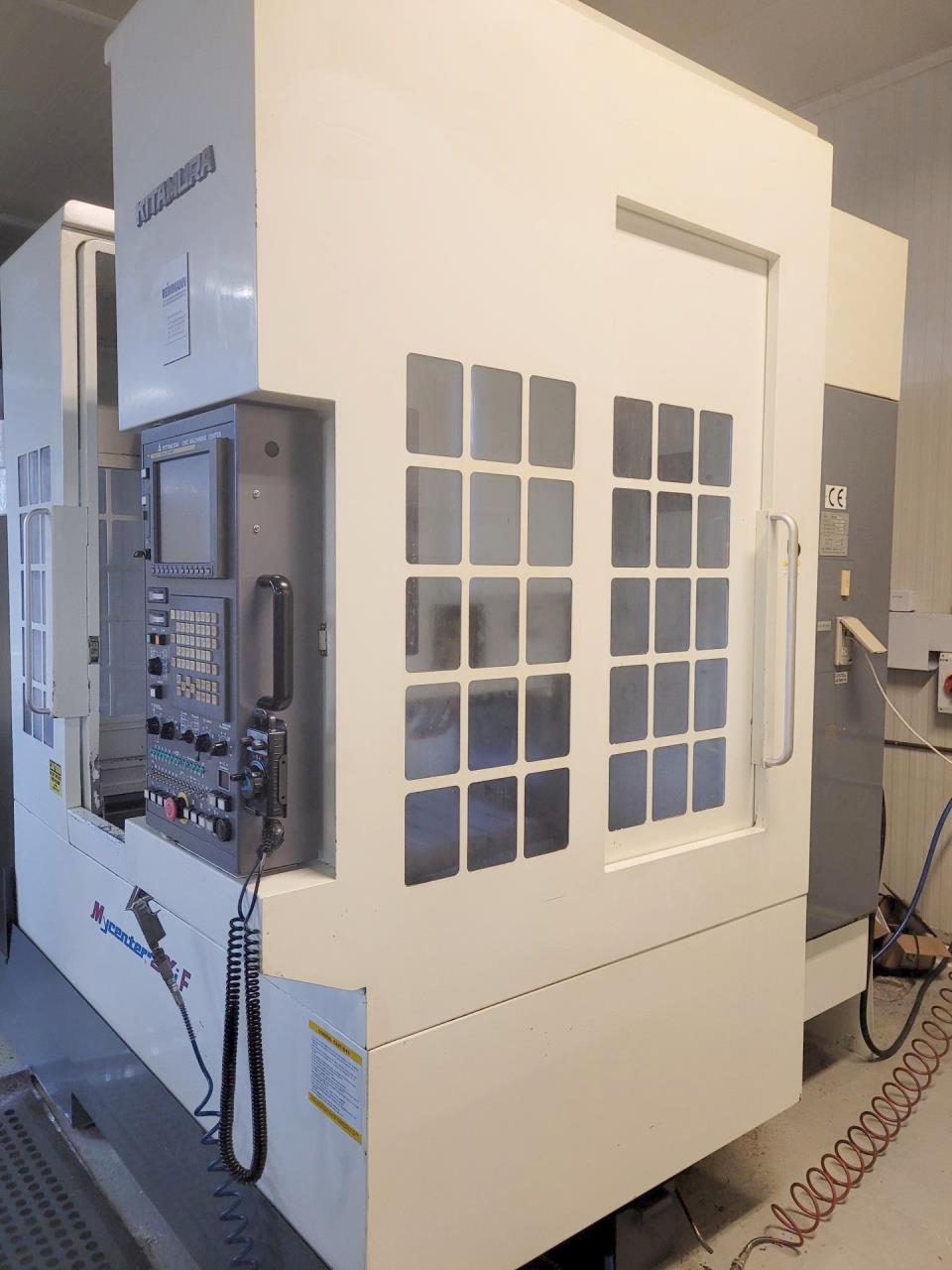

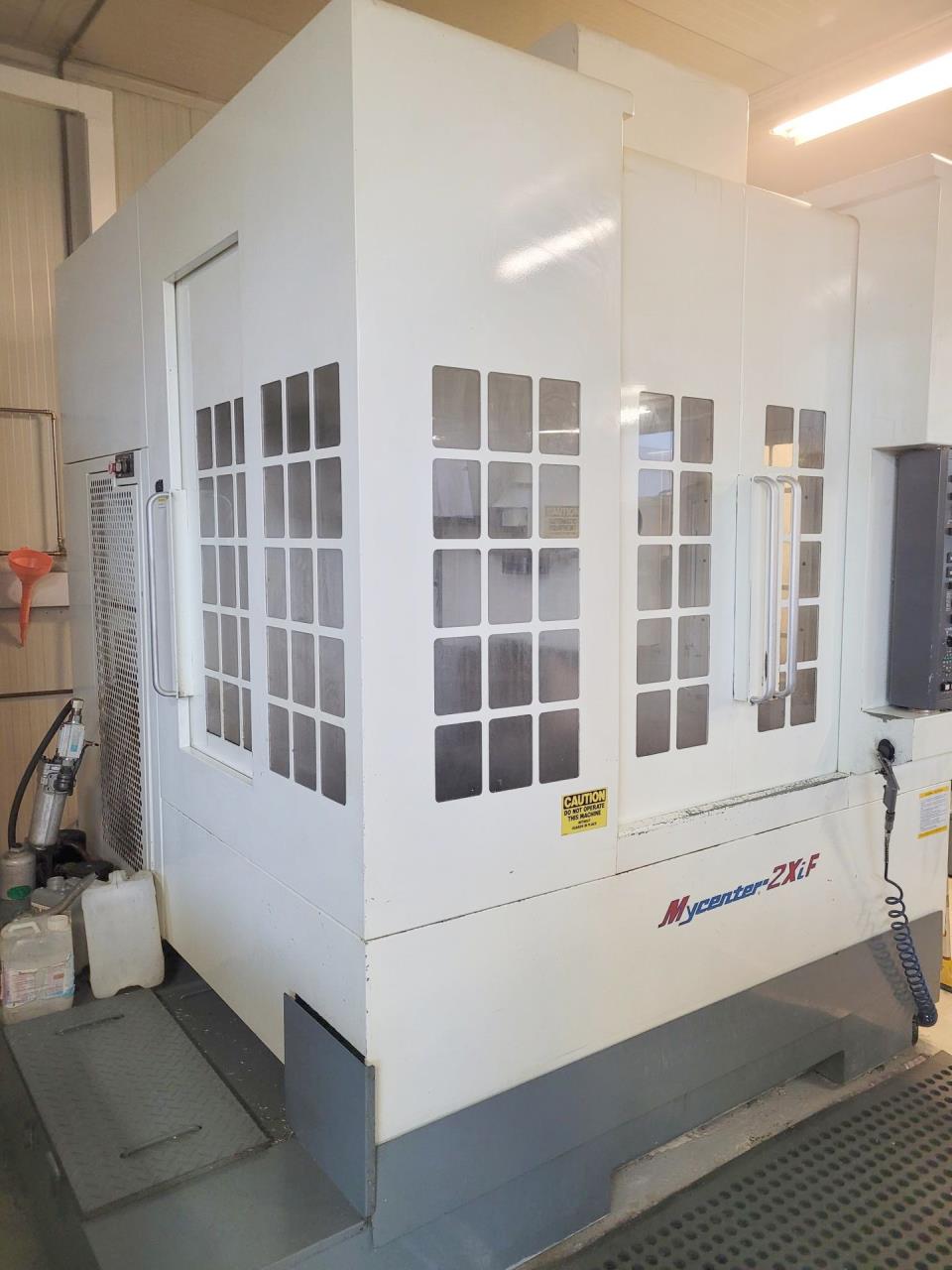

KITAMURA MyCenter-2XiF
Controller :

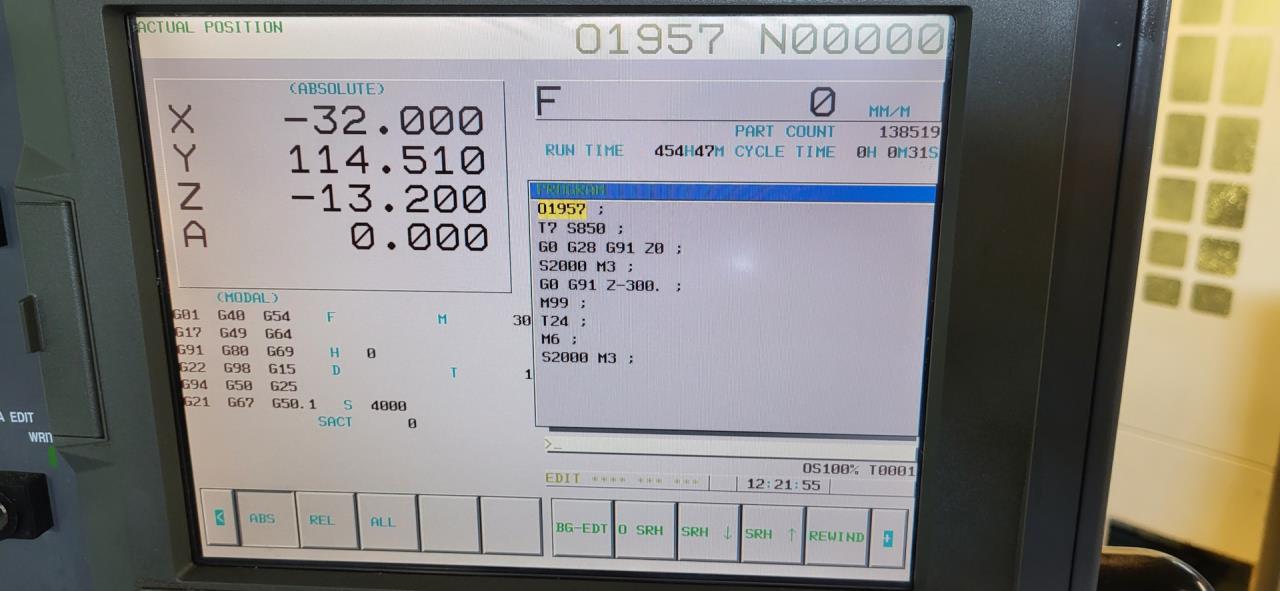

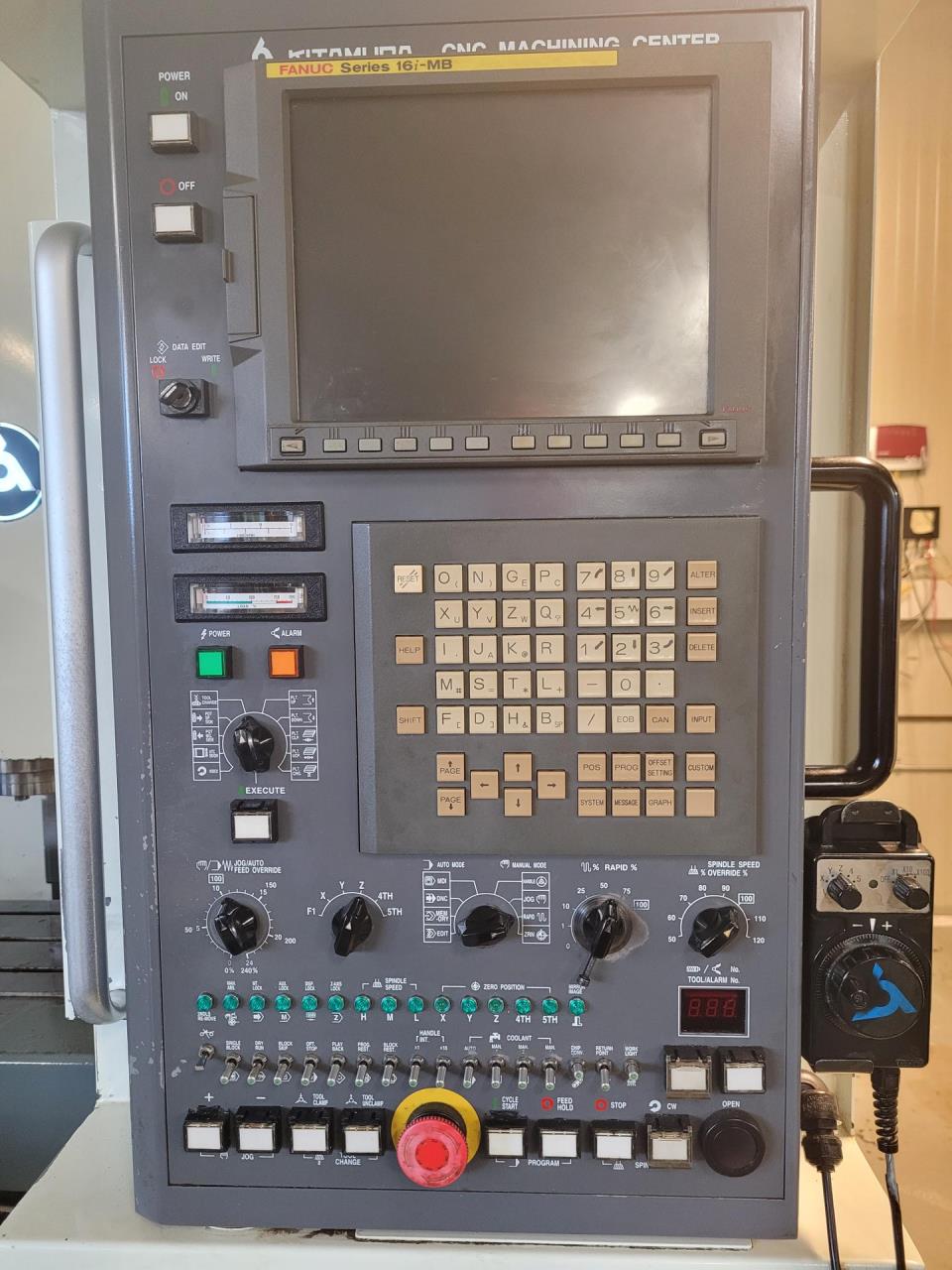

FANUC Series 16i-MB
Jahrgang :
2004
KITAMURA MyCenter-2XiF 9 Image(s)
Back
Technical data
Number of axis total
4
Longitudinal travel (X-axis)
508 mm
Transversal travel (y-axis)
356 mm
Vertical travel (z axis)
460 mm
    up to
°
Tool changer:
    Number of tools
24
    Tool diameter max.
80 mm
    Max. tool-weight
8 kg
Spindle speeds:
    number (steps)
    stepless
       from
0 rpm
       up to
10000 rpm
Total power required
25 kVA
Machine's weight about
2900 kg
Overall dimensions machine:
    Length
1750 mm
    Width
1250 mm
    Height
2400 mm
Various accessories:
Coolant system

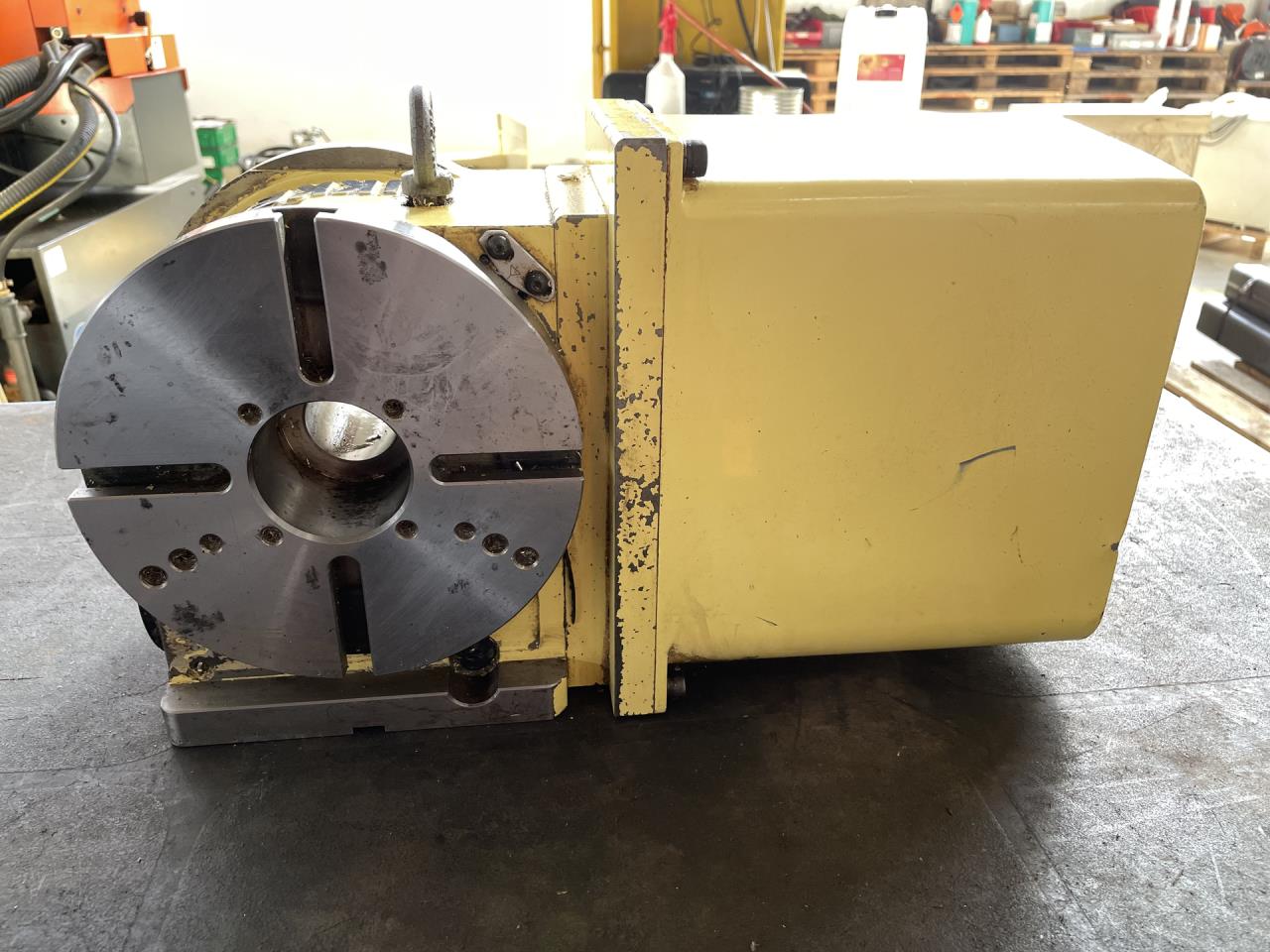

Dividing attachment 4th axis

Technical specifications and pictures without guarantee.
