stock no. :
22317
Machine's group :

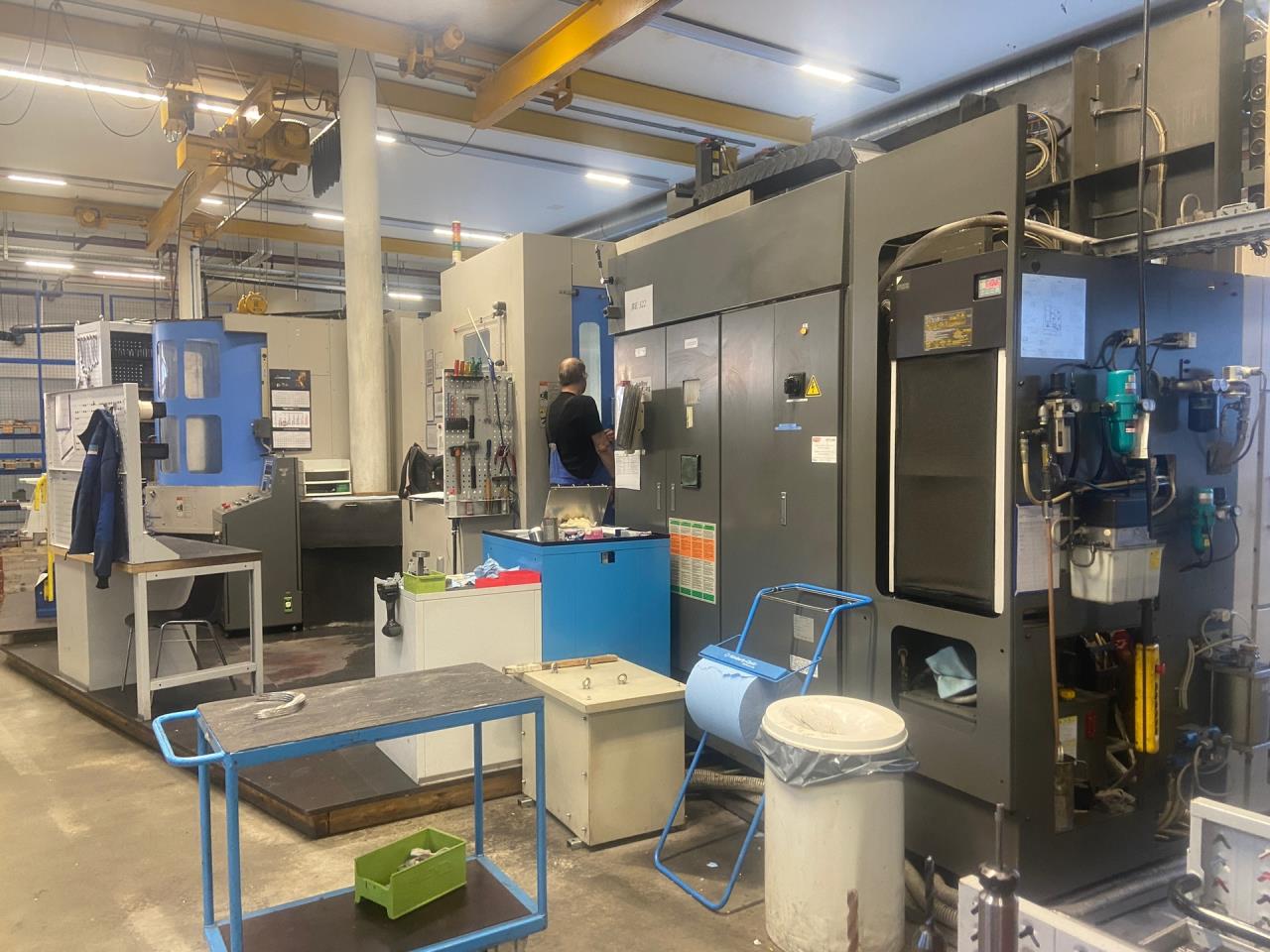

Type :
TOYODA FH 80S
Controller :
FANUC Series 16i-MB
Jahrgang :
2003
Technical data
Number of axis total
4
Table length
800 mm
Table width
800 mm
Table load max.
2500 kg
Longitudinal travel (X-axis)
1350 mm
Transversal travel (y-axis)
1150 mm
Vertical travel (z axis)
1150 mm

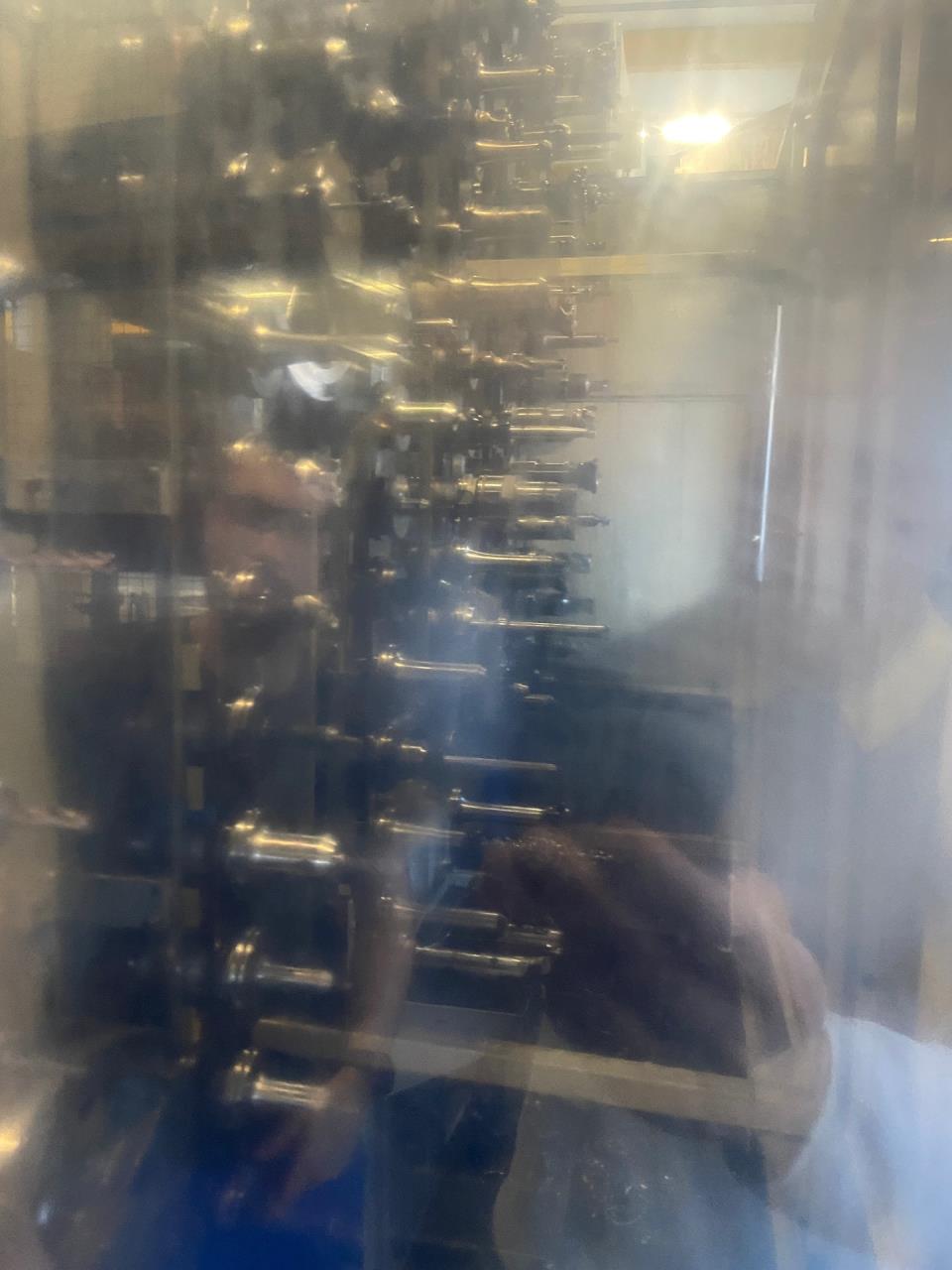

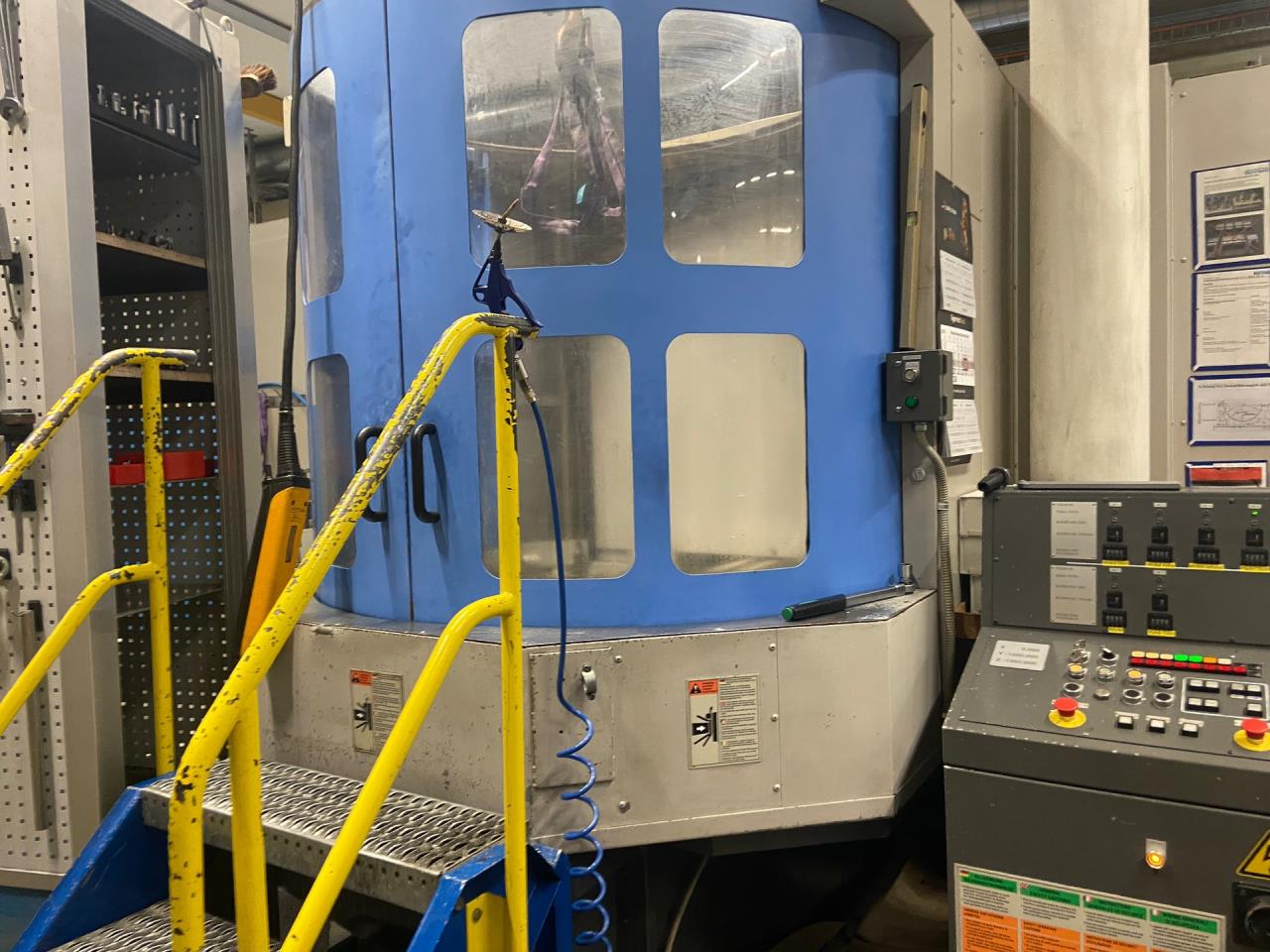

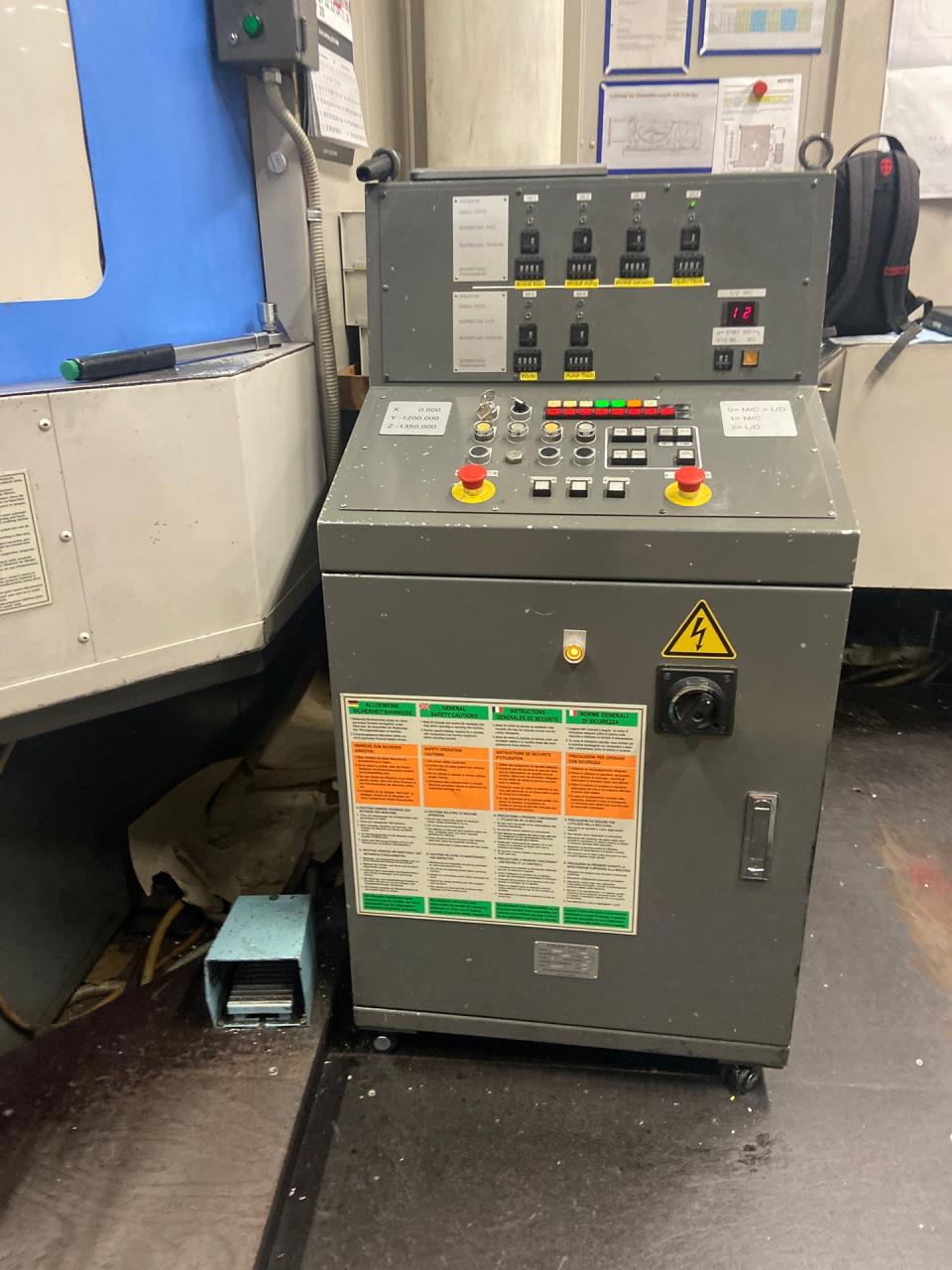

Tool magazine number of tools
120
Tool diameter
120 mm
Diameter with free adjacent pockets
270 mm
Tool lenght
550 mm
Max. tool-weight
35 kg
Average chip-to-chip time
7 sec

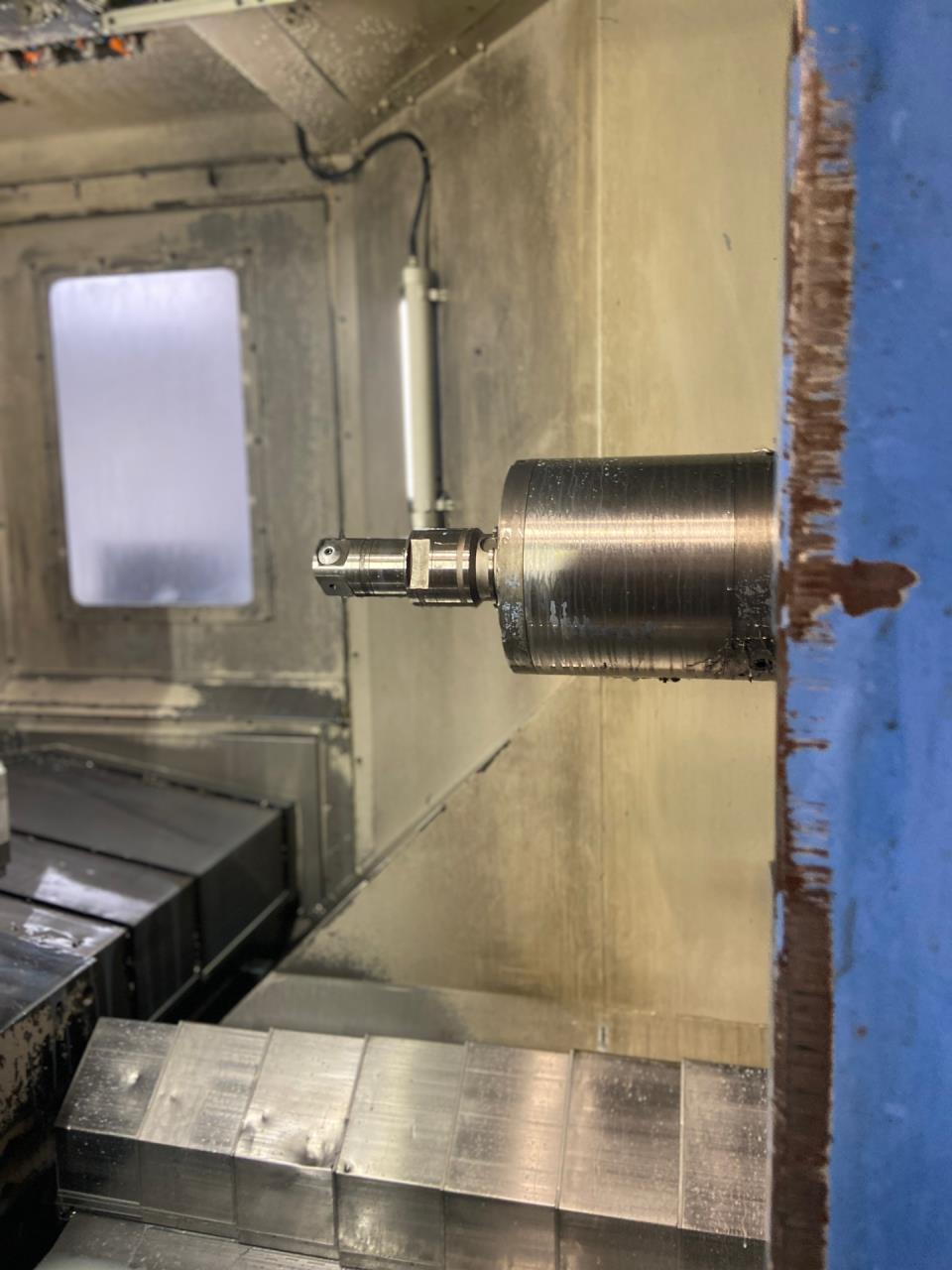

Spindle nose SK
50
Distance spindle nose to table
200 - 1350 mm
Spindle speeds:
stepless
from
10 rpm
up to
6000 rpm
Feed range
1 - 24000 mm/min
Rapid traverse:
24 m/min
Air connect
5 bar
Voltage 50 Hz 3x
380 Volt
Spindle motor
45 / 37 kW
Machine's weight about
30000 kg
Overall dimensions machine:
Length
7775 mm
Width
4965 mm
Height
3500 mm
Various accessories:

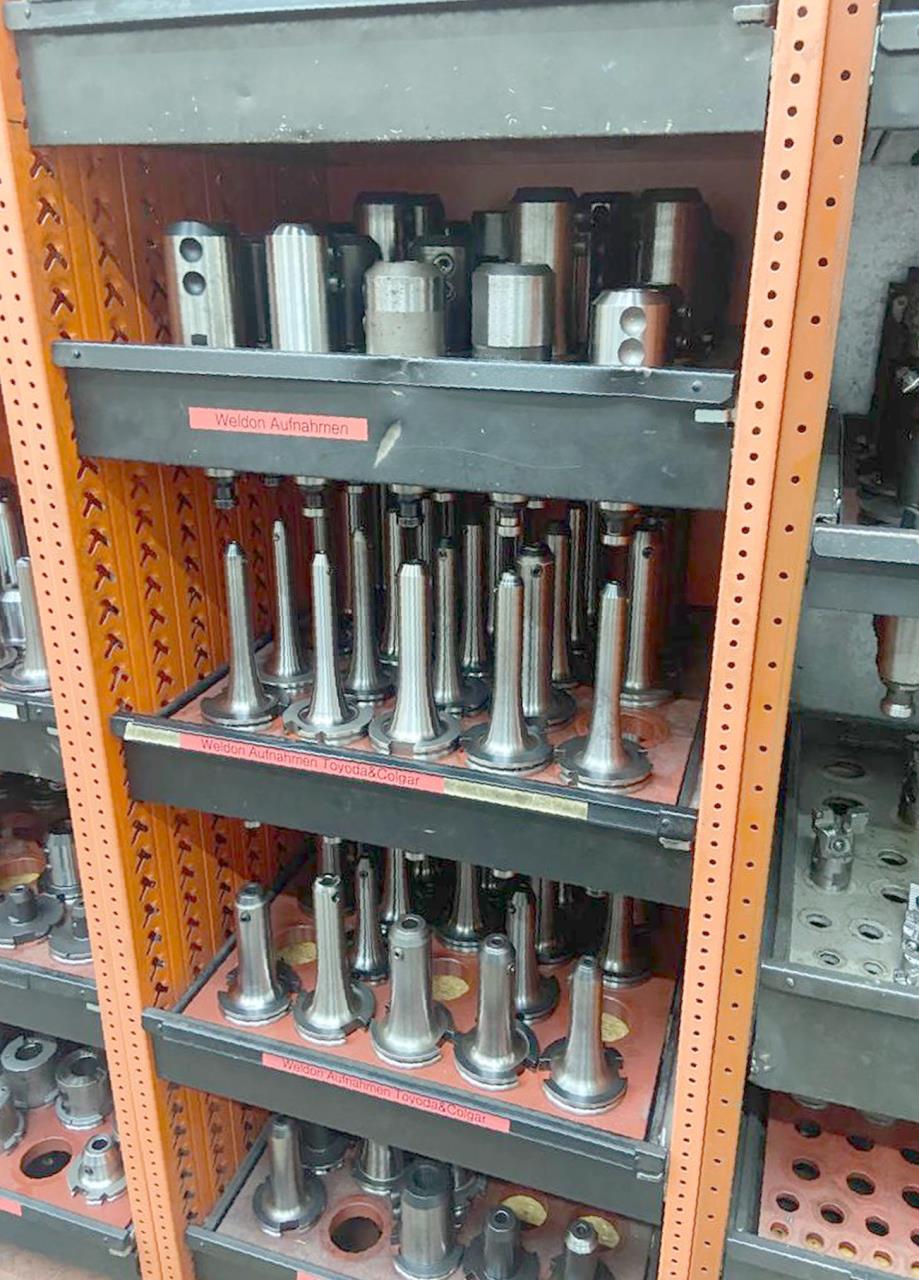

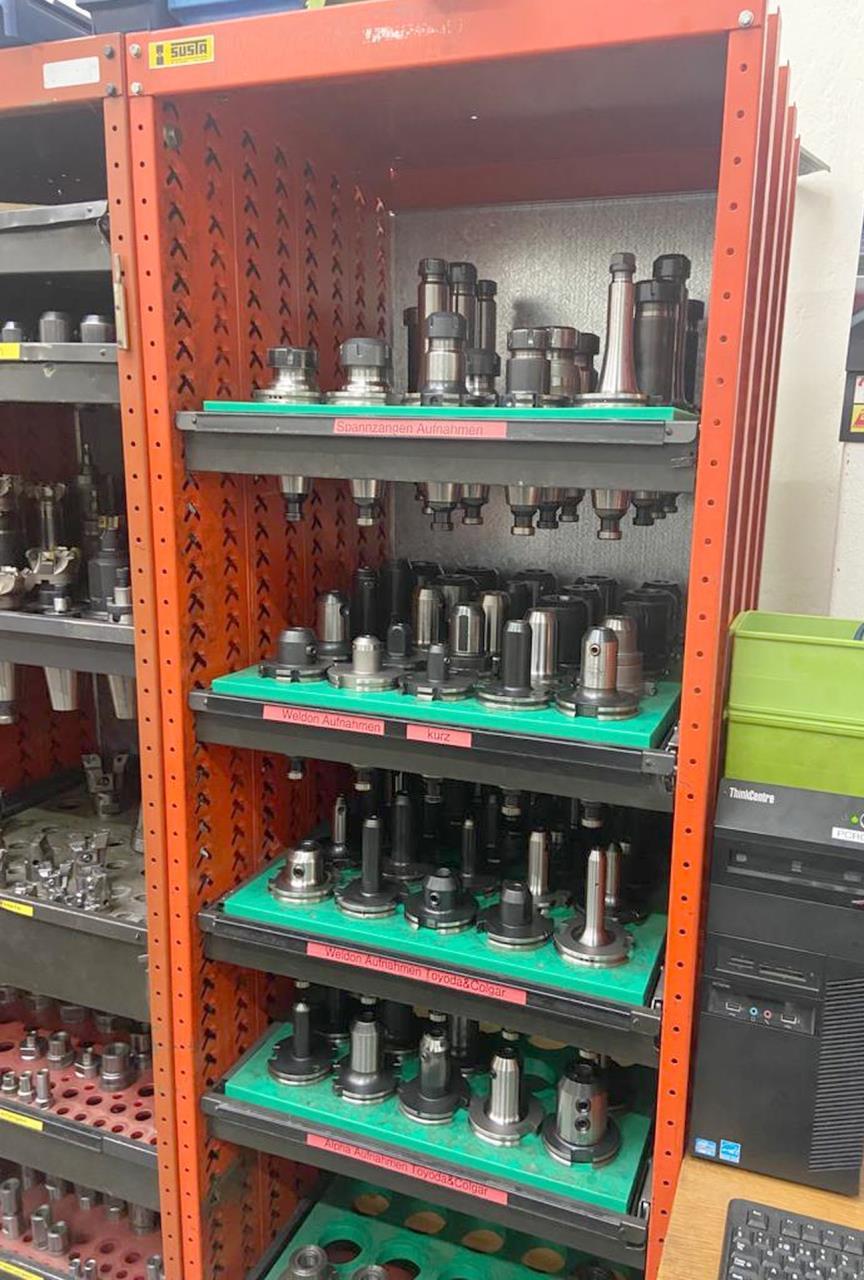

Set of toolholders
Coolant system
Coolant through spindle (cts)
Chip conveyor

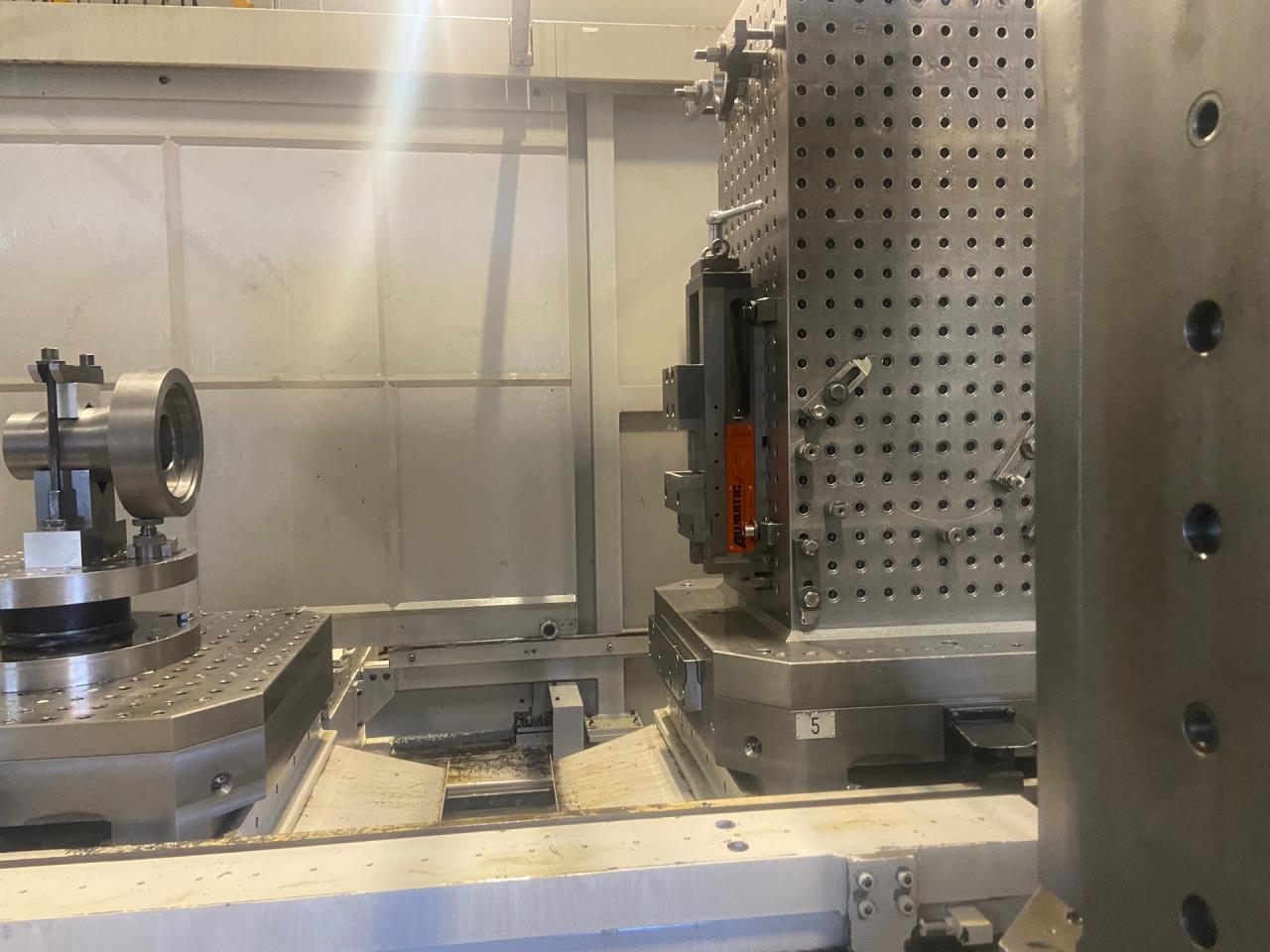

Pallets chanching device:
Pallets: number
6
Lamp
Technical specifications and pictures without guarantee.
