stock no. :
22308
Machine's group :
Type :

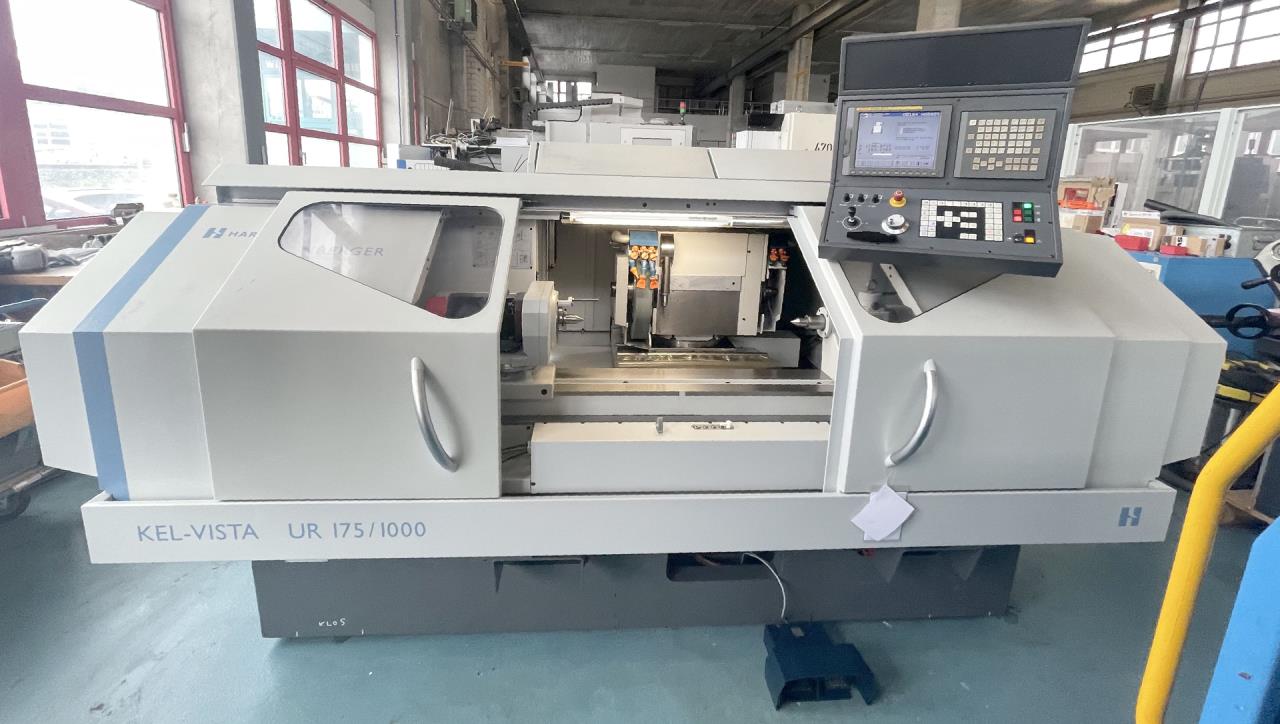

KELLENBERGER KEL-VISTA UR 175X1000
Controller :

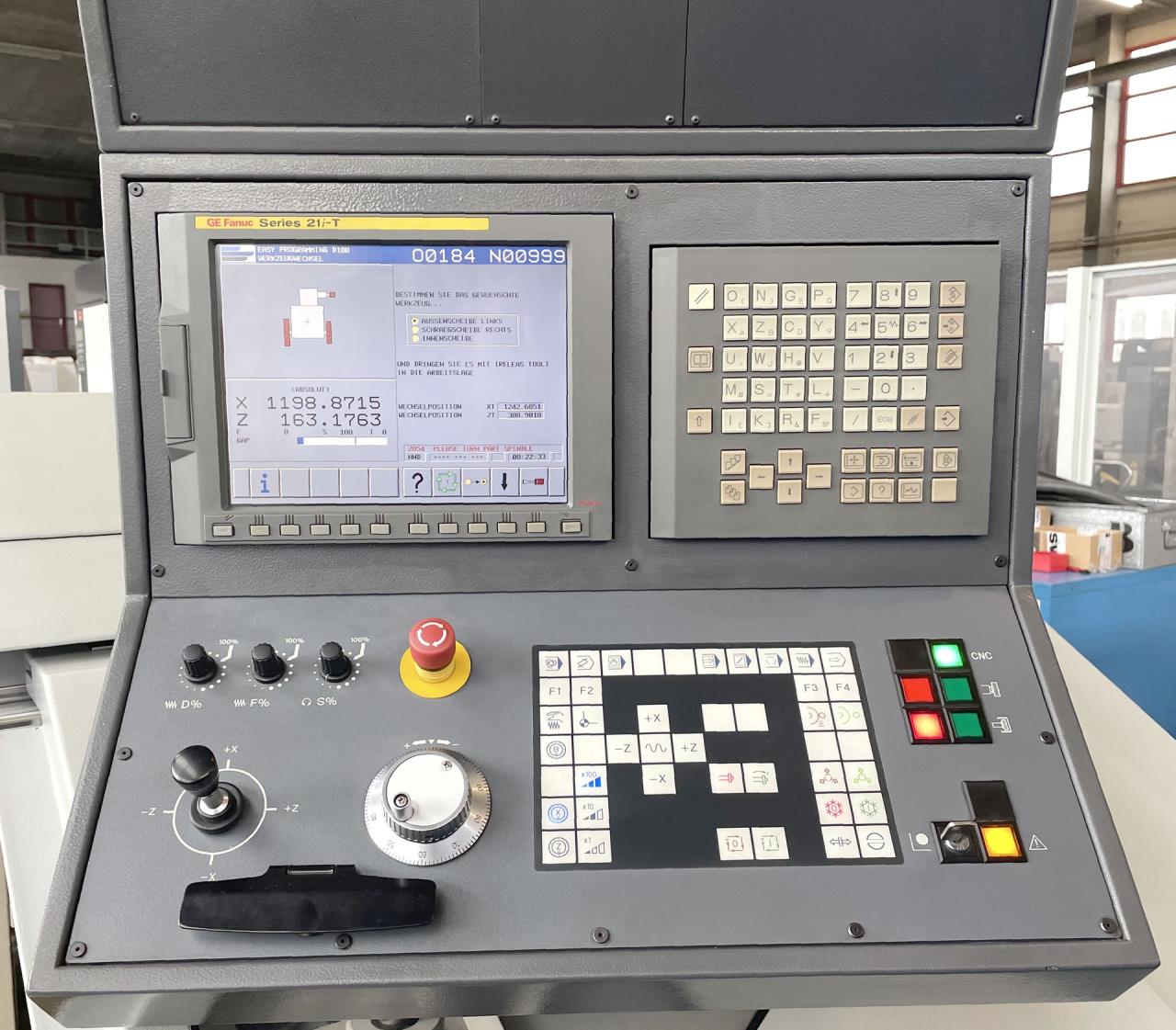

GE FANUC Series 21i-T
Jahrgang :
2006
KELLENBERGER KEL-VISTA UR 175X1000 11 Image(s)
Back
Technical data
Centre height
175 mm
Distance between centres
1000 mm
Travels:
    Z axis
1150 mm
    X axis
320 mm
Workpiece weight on centres max.
100 kg
Grinding weehl left side:
    Diameter
450 mm
    Width
63 mm
    Bore
203.2 mm
Grinding wheel right side:
    Diameter
300 mm
    Width
40 mm
    Bore
127 mm
Grinding wheel speeds:
    stepless
       from
250 rpm
       up to
2650 rpm
Peripheral speed
35 m/s

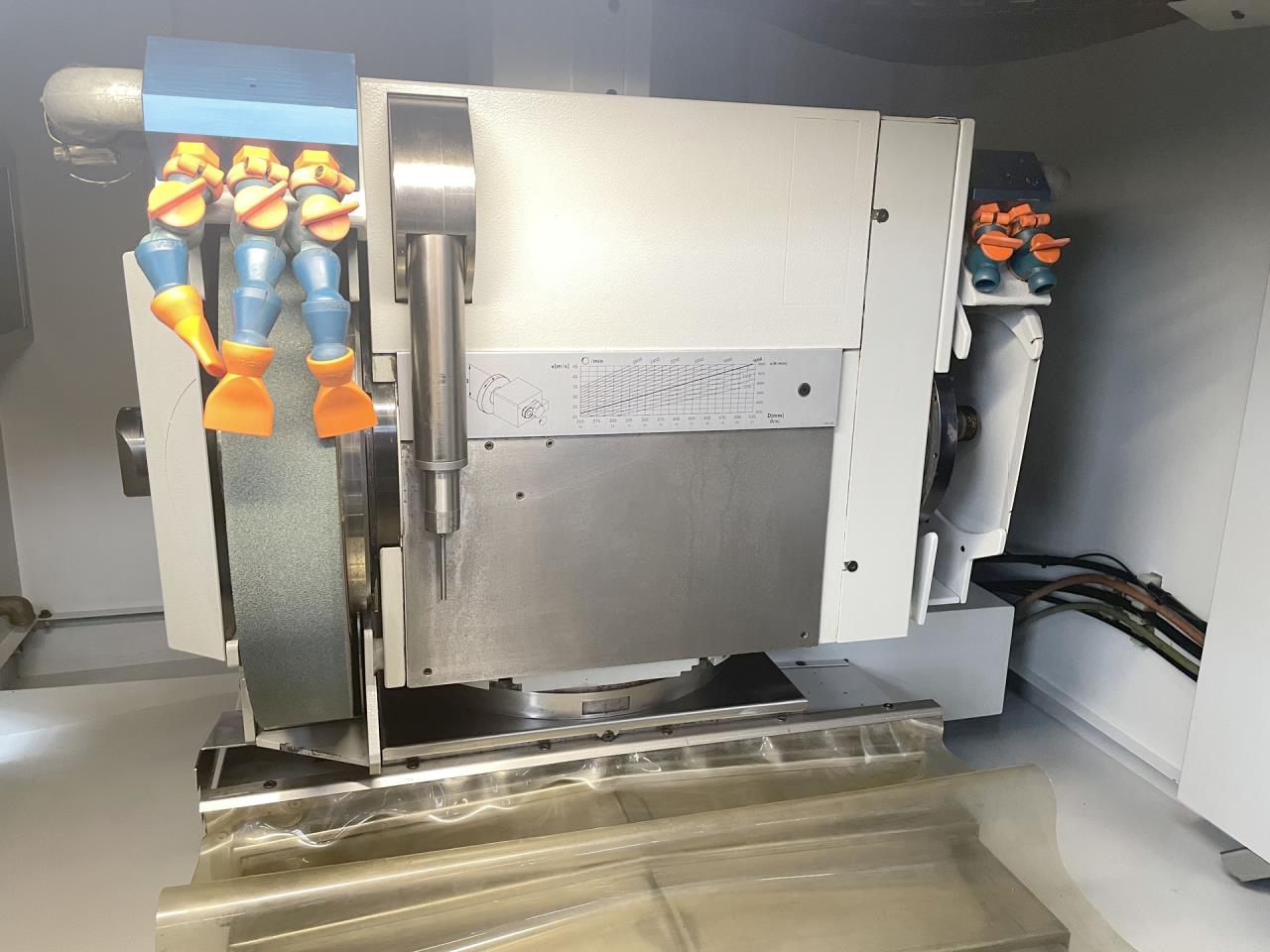

Rotatable grinding spindle head (b-axis)
+10 / -210 °
       Indexing automatic
1 °

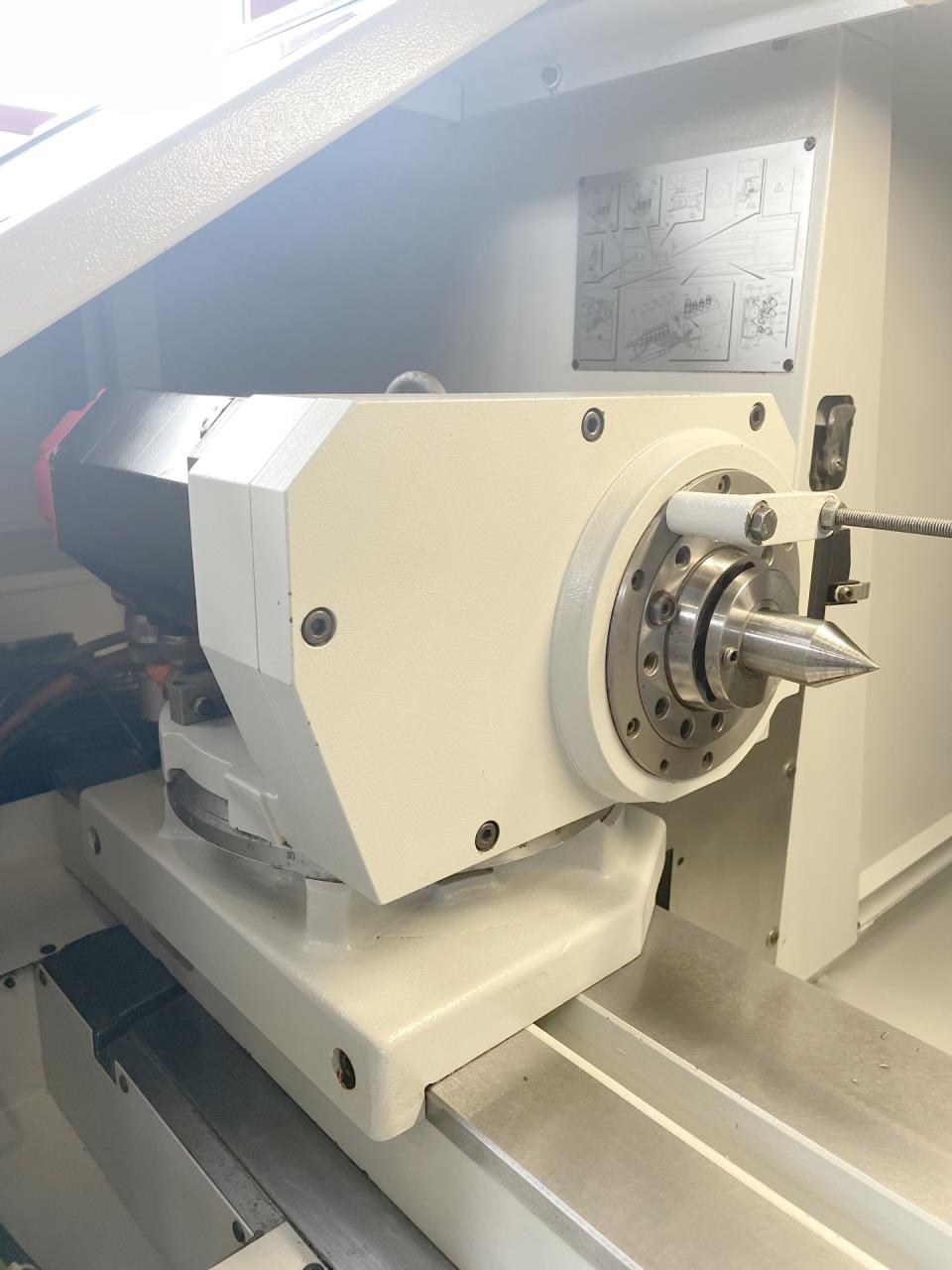

Work piece spindle head:
    speeds:
       stepless
       from
8 rpm
       up to
800 rpm
    rotatable
+100 / -10 °

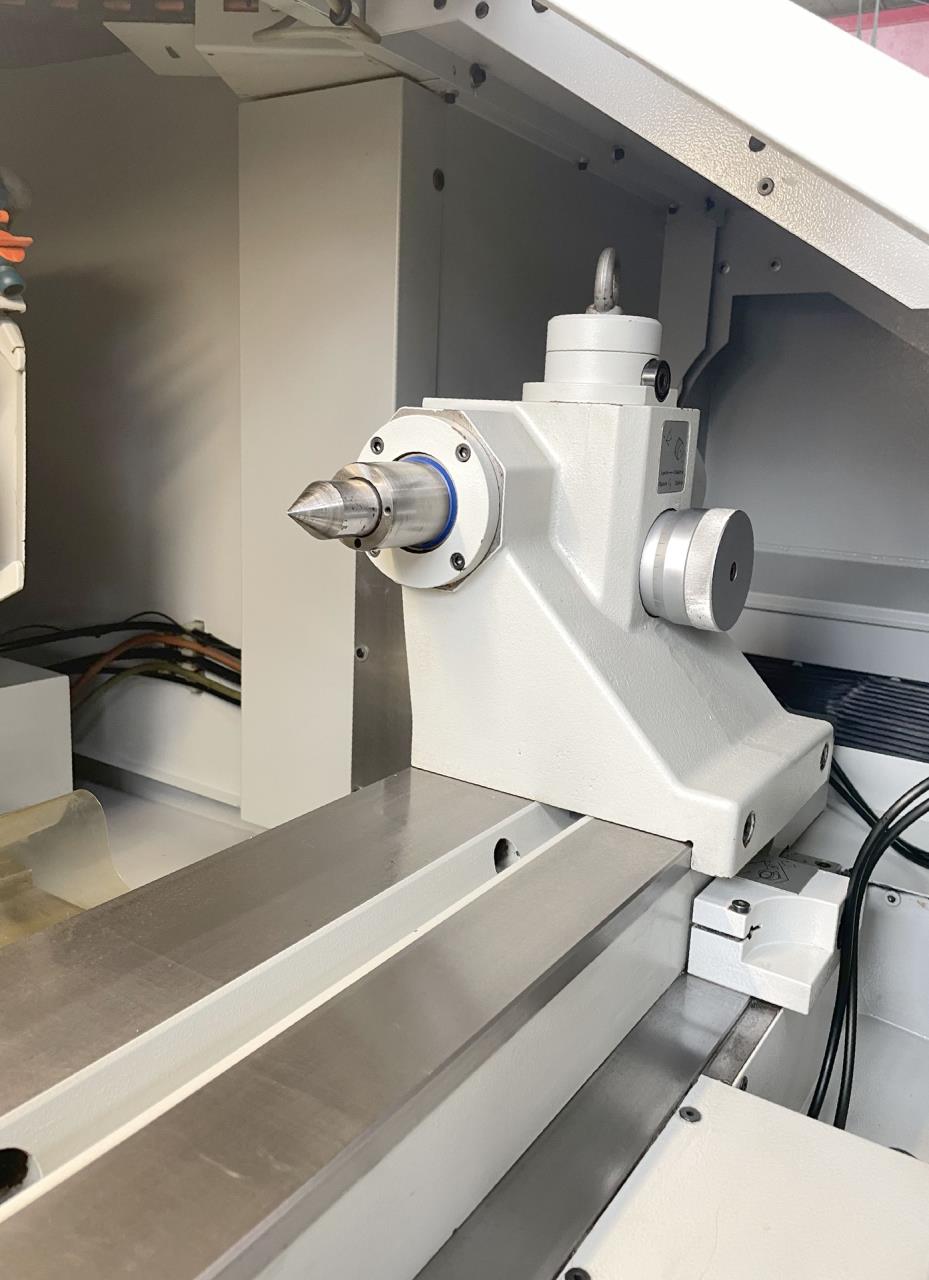

Tailstock:
    con regolazione micrometrica
    Taper in tailstock:
4 MT
    Tailstock travel of barrel
50 mm
Table speed:
    stepless
       Rapid motion
12 m/min
Voltage 50 Hz 3x
400 Volt
Grinding spindle motor
5 kW
Machine's weight about
3500 kg
Overall dimensions machine:
    Length
3200 mm
    Width
1700 mm
    Height
2000 mm

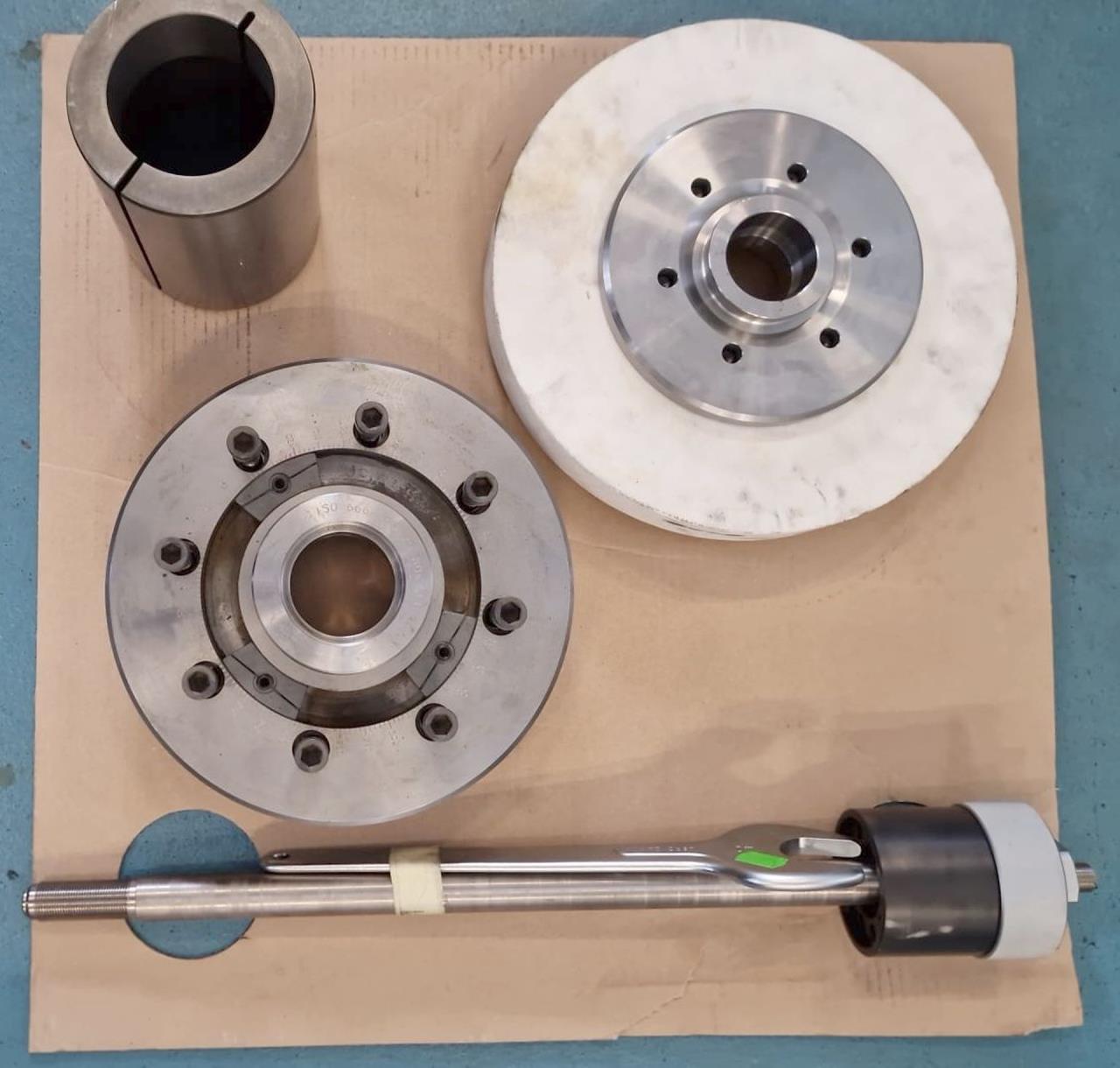

Various accessories:

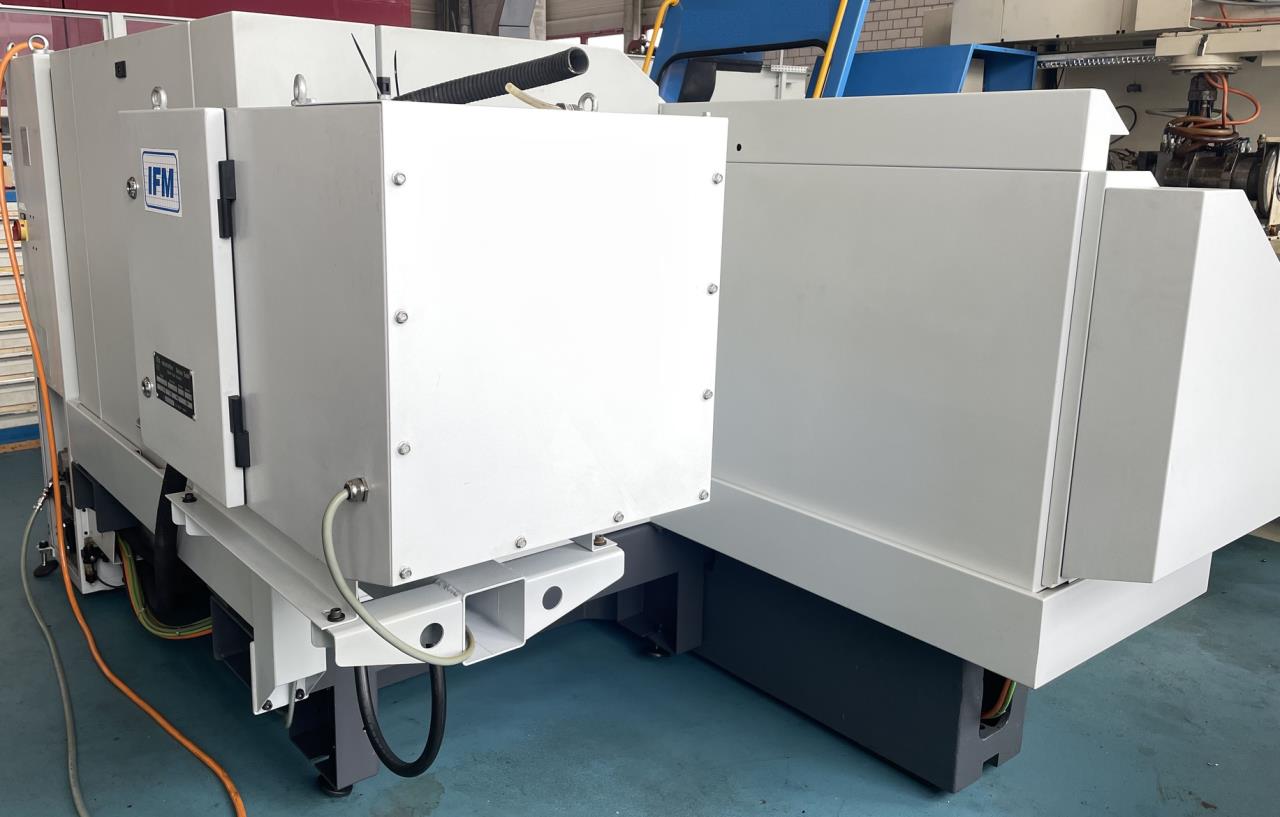

Paper filter facility
C axis
Touch probe MARPOSS

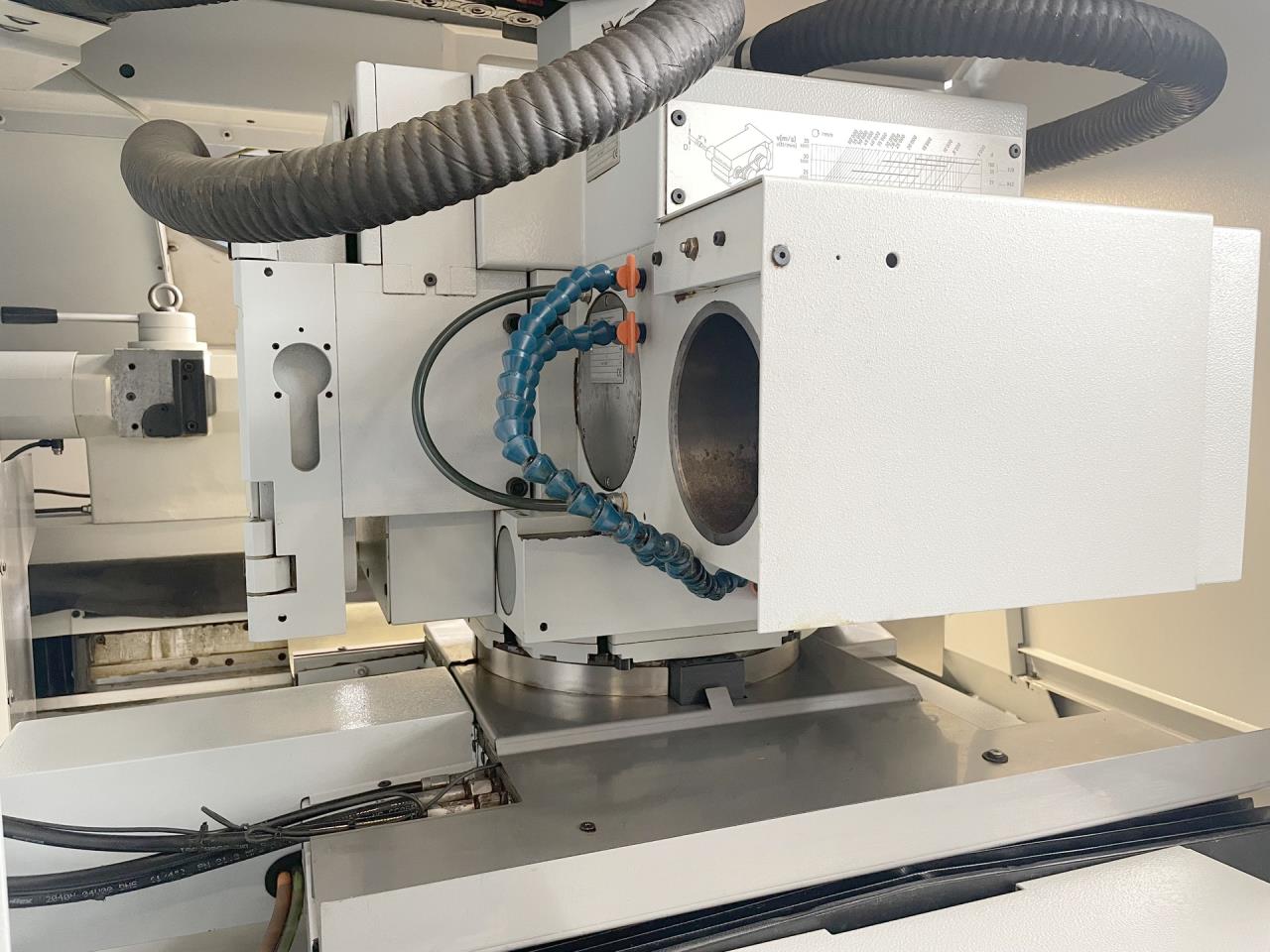

Internal grinding attachment without spindle
Grinding wheel with flange

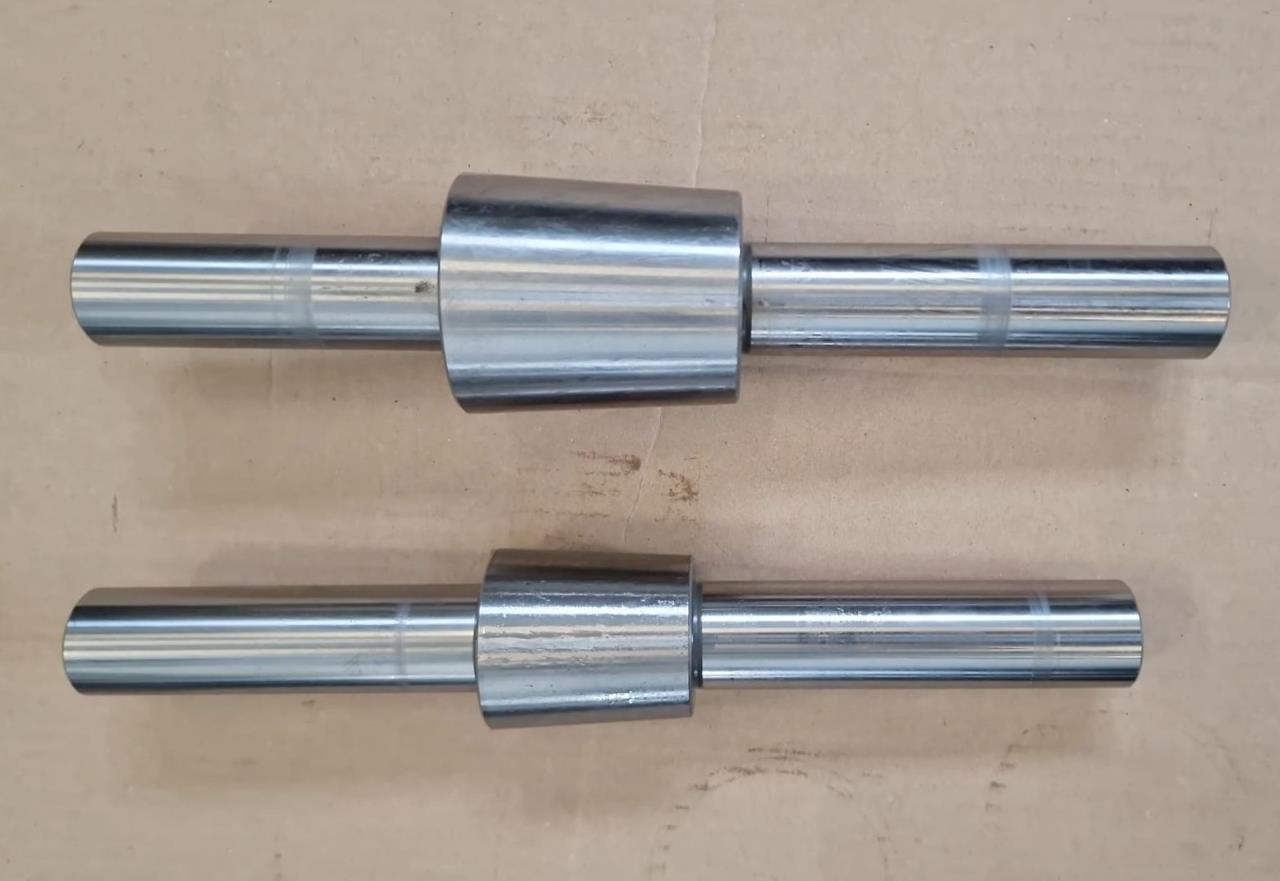

Balancing arbor
Lamp
Tailstock with fine adjustement
Foot pedal

Technical specifications and pictures without guarantee.
