stock no. :
22300
Machine's group :
Type :

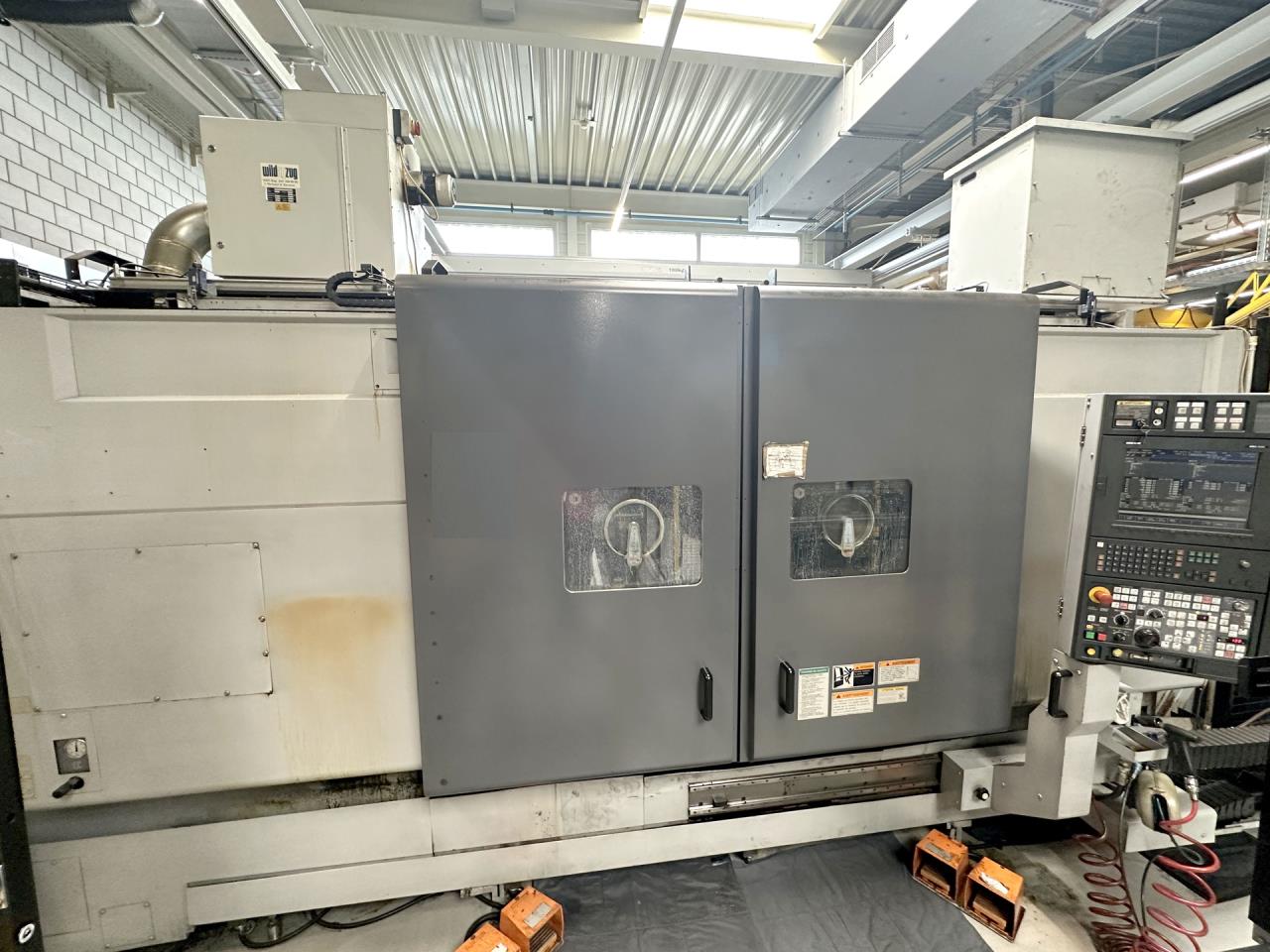

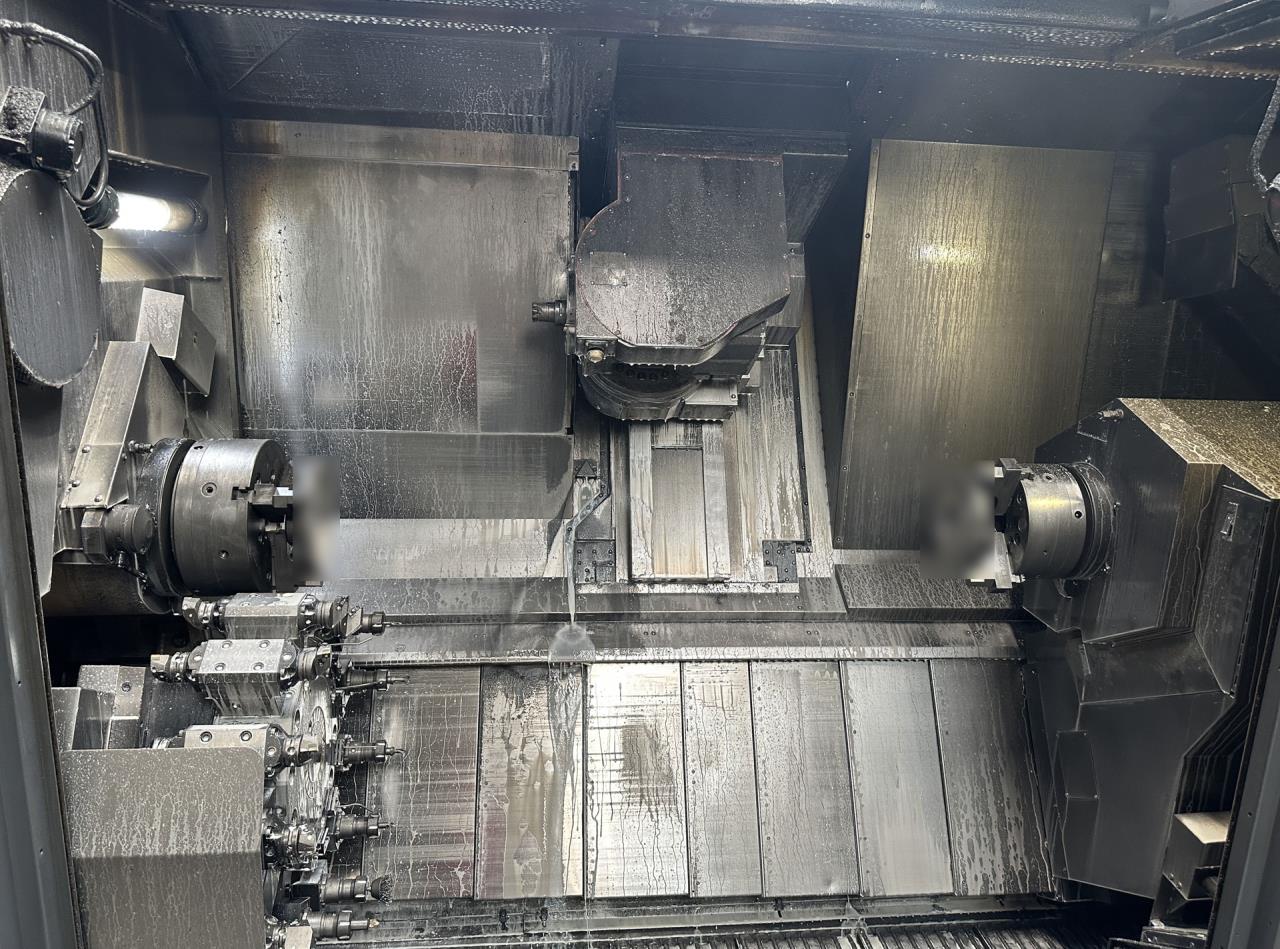

MORI SEIKI MT 2500 SZ 1500

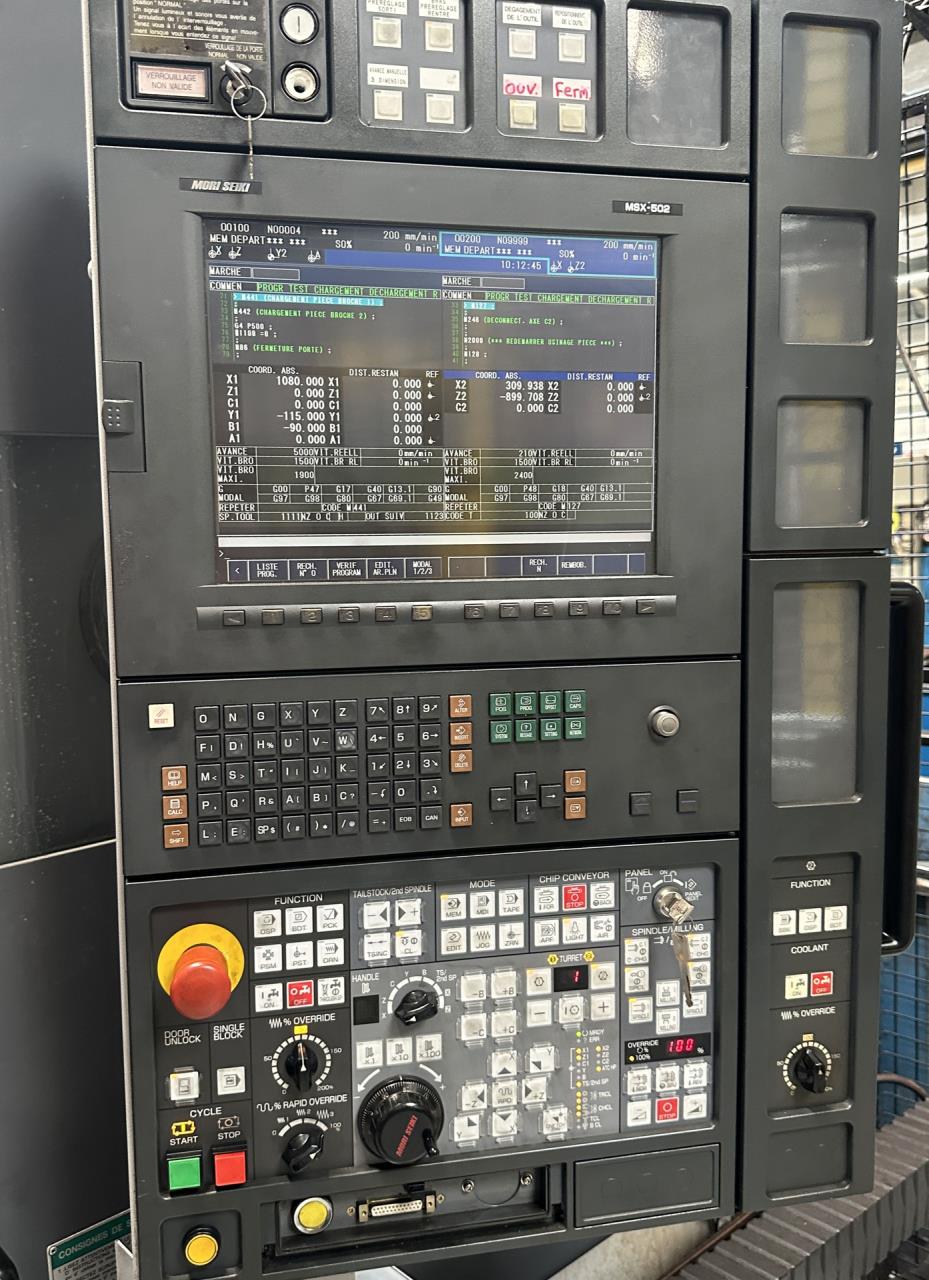

Controller :
MORI SEIKI MSX-502
Jahrgang :
2005
Technical data
Number of axis total
9
Number of spindles
2
Number of milling heads
1
Number of revolvers
1
Workpiece weight on centres max.
1828 kg
Swing diameter
910 mm
Max. turning diameter
540 mm
Spindle hole
73 mm
Maximum turning length
1530 mm
Turning diameter
550 mm
Spindle positioning increment
0.001 °
Turret carriage:
Travels:
Longitudinal travel (Z-axis)
1479 mm
Transversal strocke (X axis)
155 mm
Turret carriage:
Number of positions turret 1
12
Driven tools turret 1
12
Spindle speeds
4000 rpm
Tool shank cross section
25 mm
Main spindle:
Spindle nose
JIS A2-8
C axis (spindle,resolution)
0.001 °
Spindle speeds:
stepless
up to
4500 rpm
Back spindle:
Spindle nose
JIS A2-6
Spindle positioning increment
0.001 °
Milling spindle:
Milling cutter speeds
8000 rpm
Drive milling spindle
18.5 kW
B axis swivelling range
+ / - 120 °
Travels:
X axis
565 mm
Y axis
230 (+/-115) mm
Z axis
1599 mm
Rapid traverse X
24 m/min
Rapid traverse Z
24 m/min
Rapid traverse Y
16 m/min
Total power required
78 kVA
Machine's weight about
11500 kg
Overall dimensions machine:
Length
3830 mm
Width
2881 mm
Height
2650 mm
Various accessories:
3-jaw chuck
Lamp
Hydraulic tailstock
Coolant system
Coolant through spindle (cts)
60 bar
Oil mist extractor
Tool break control

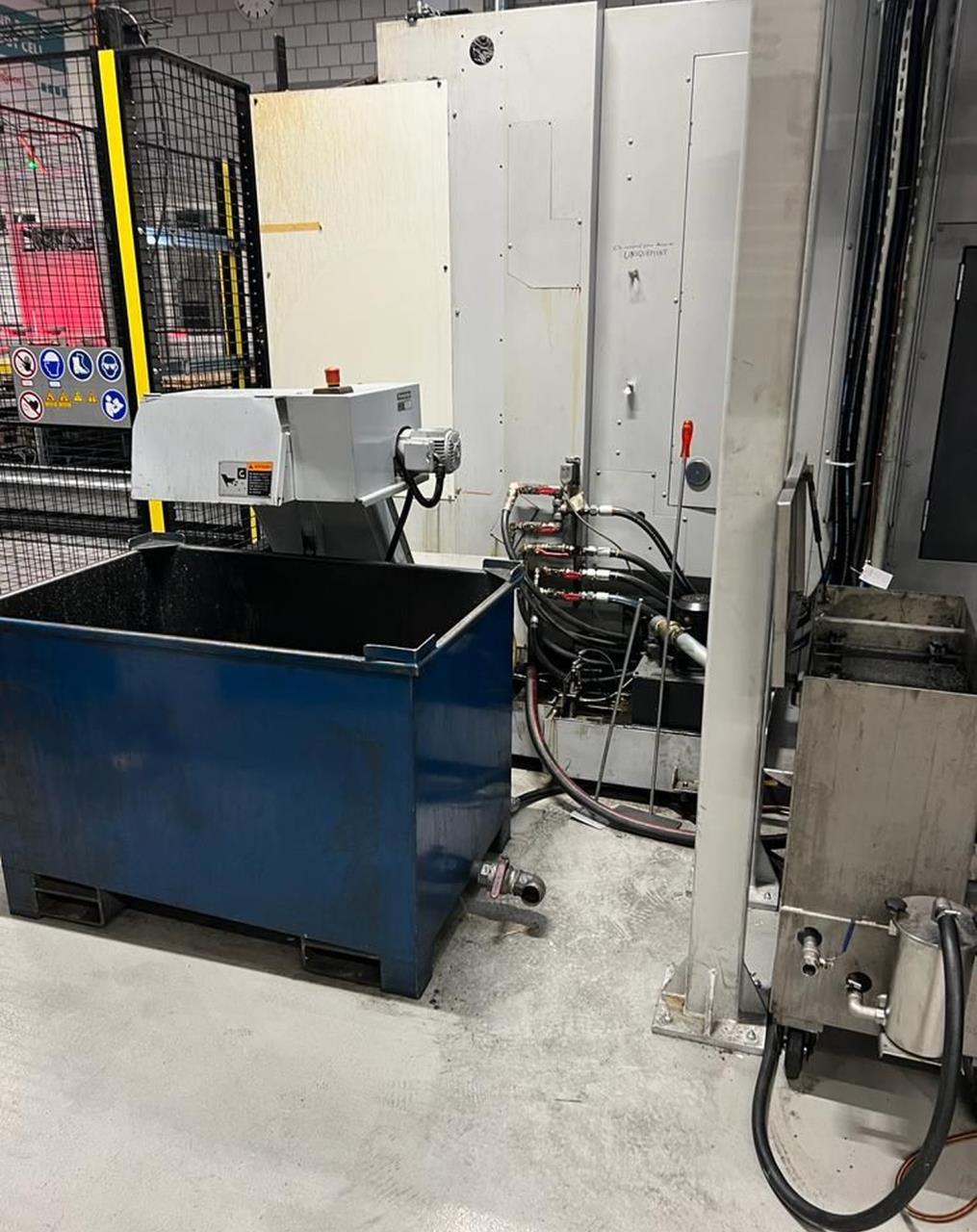

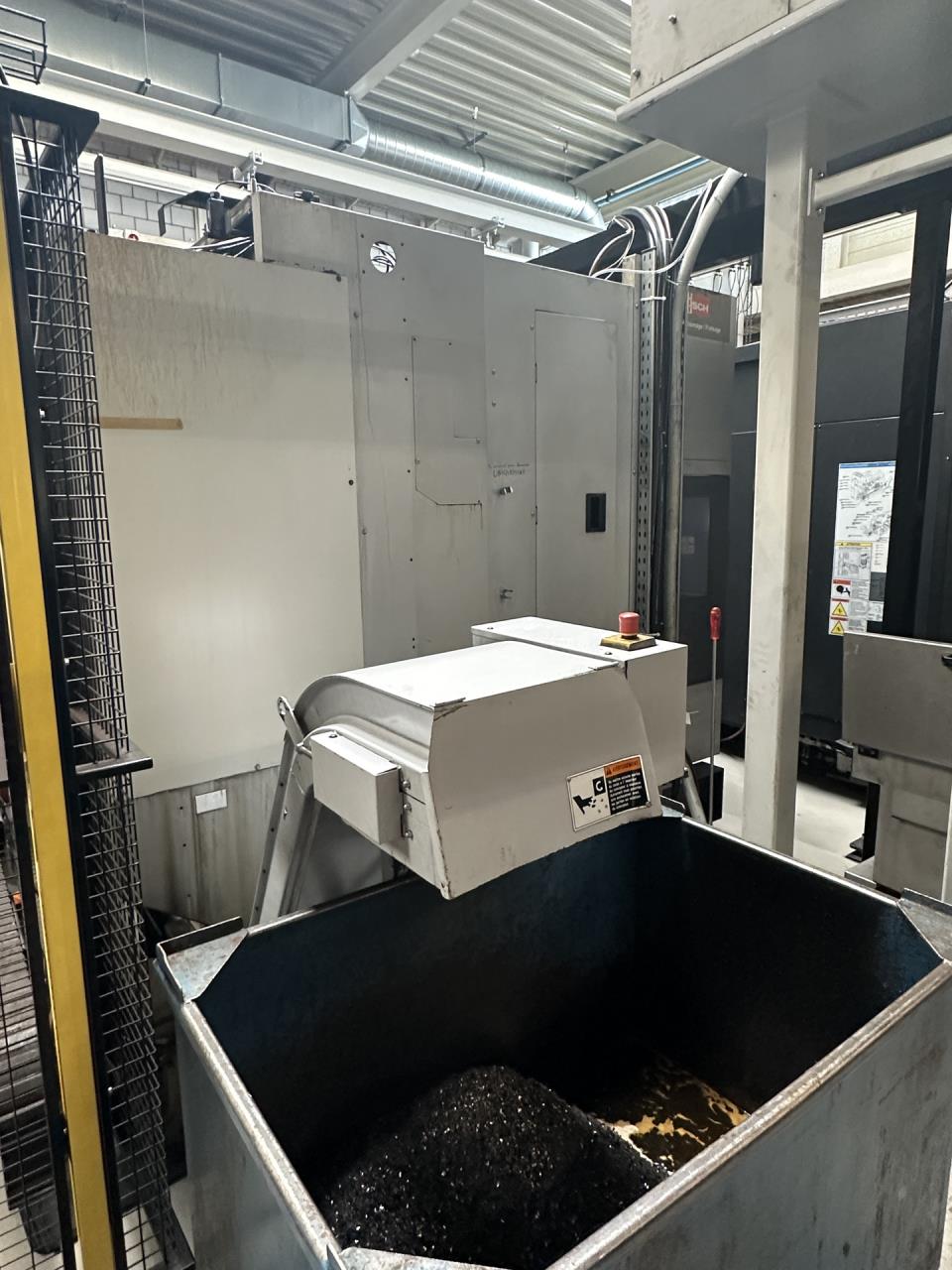

Chip conveyor

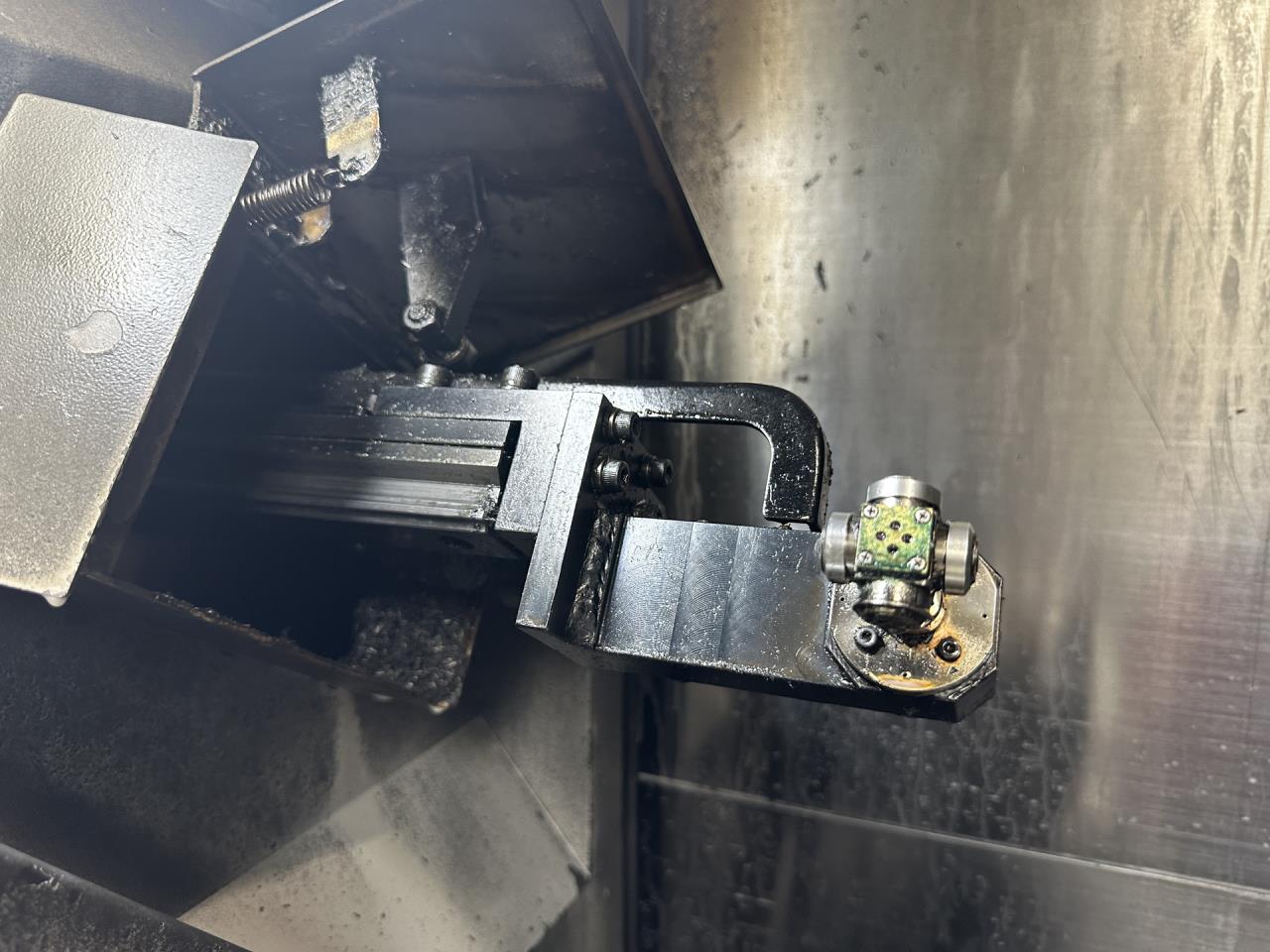

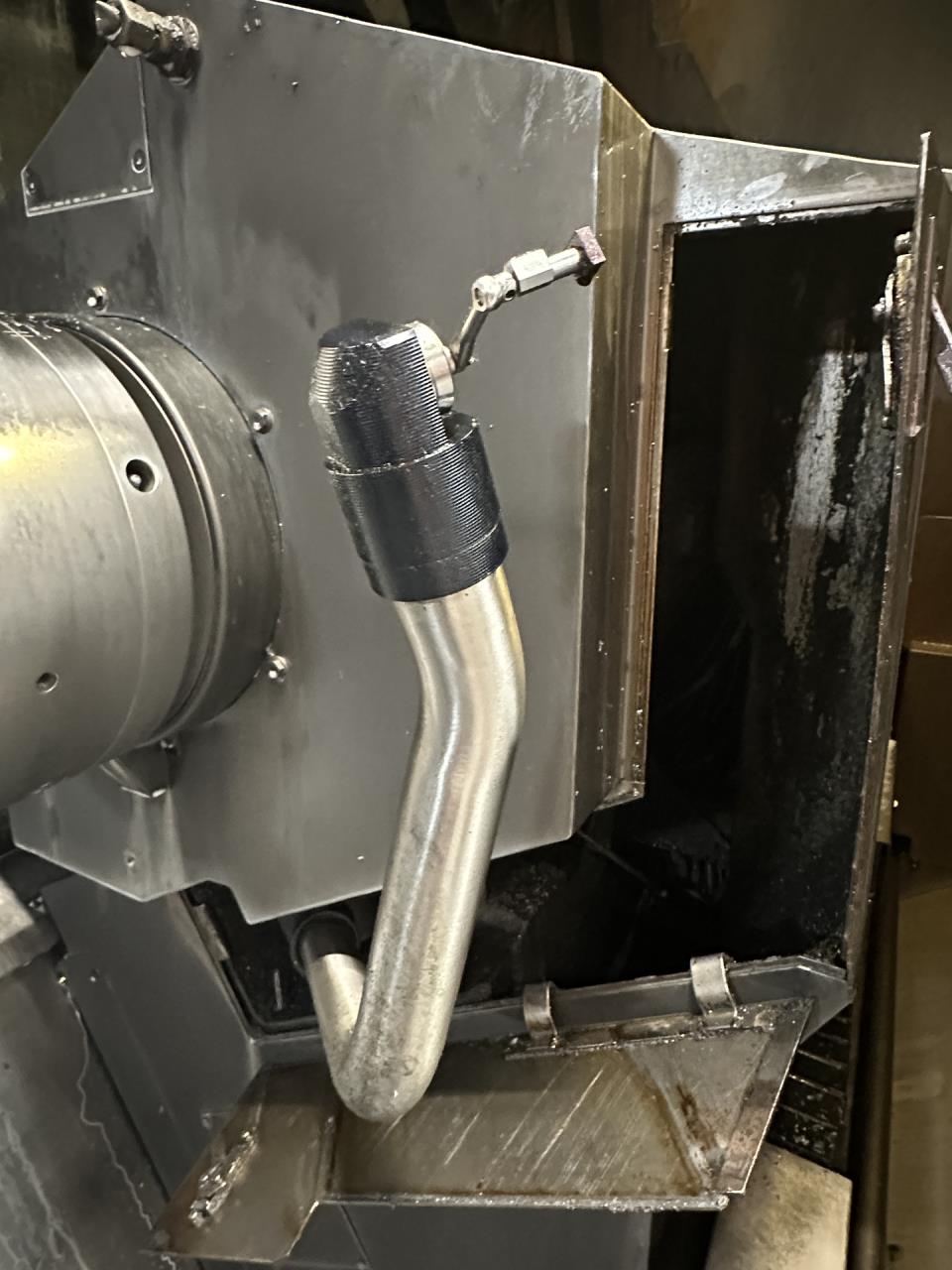

Measuring arm Renishaw
2x
Rotating viewing window
Technical specifications and pictures without guarantee.
