stock no. :
22270
Type :

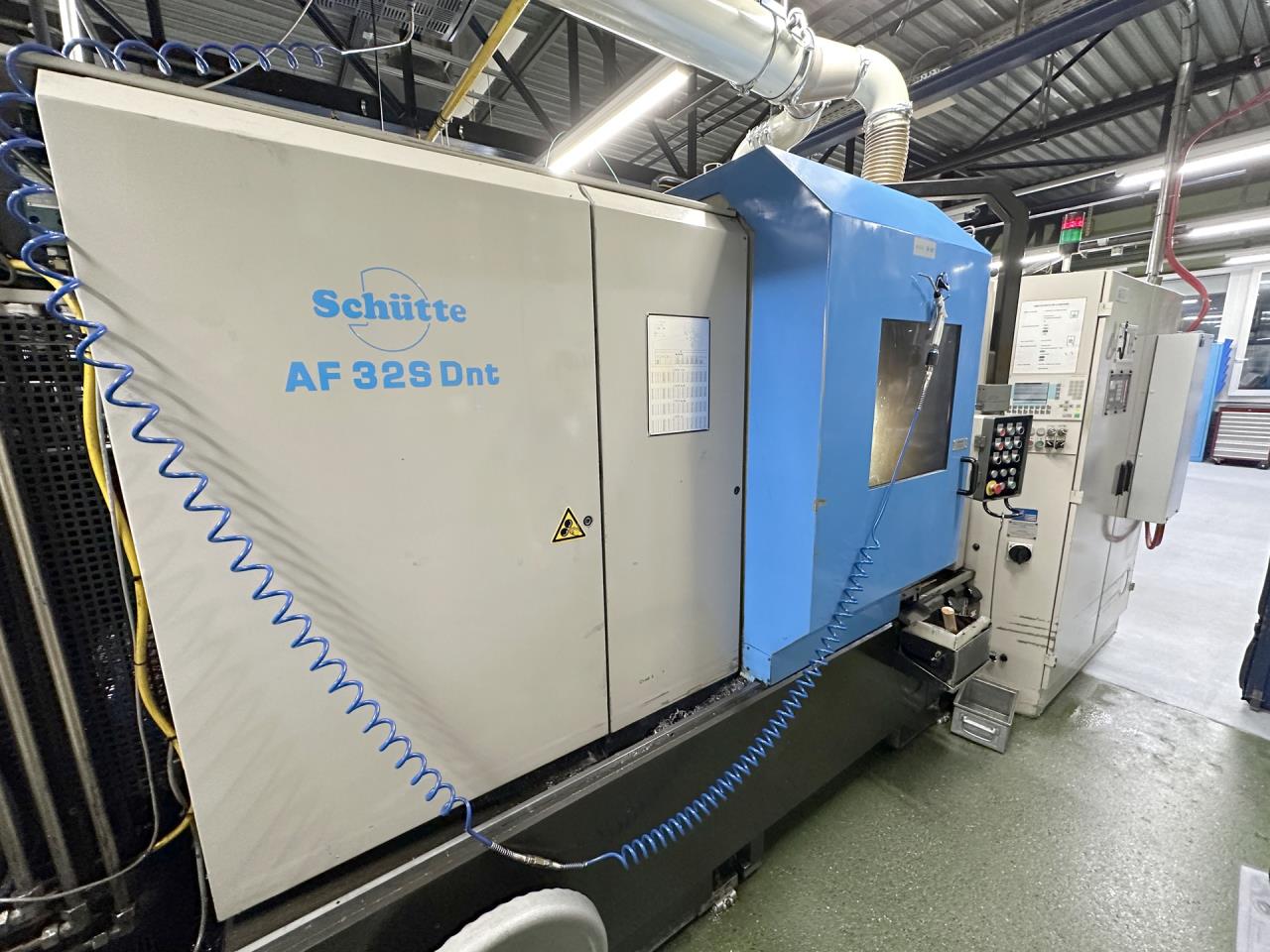

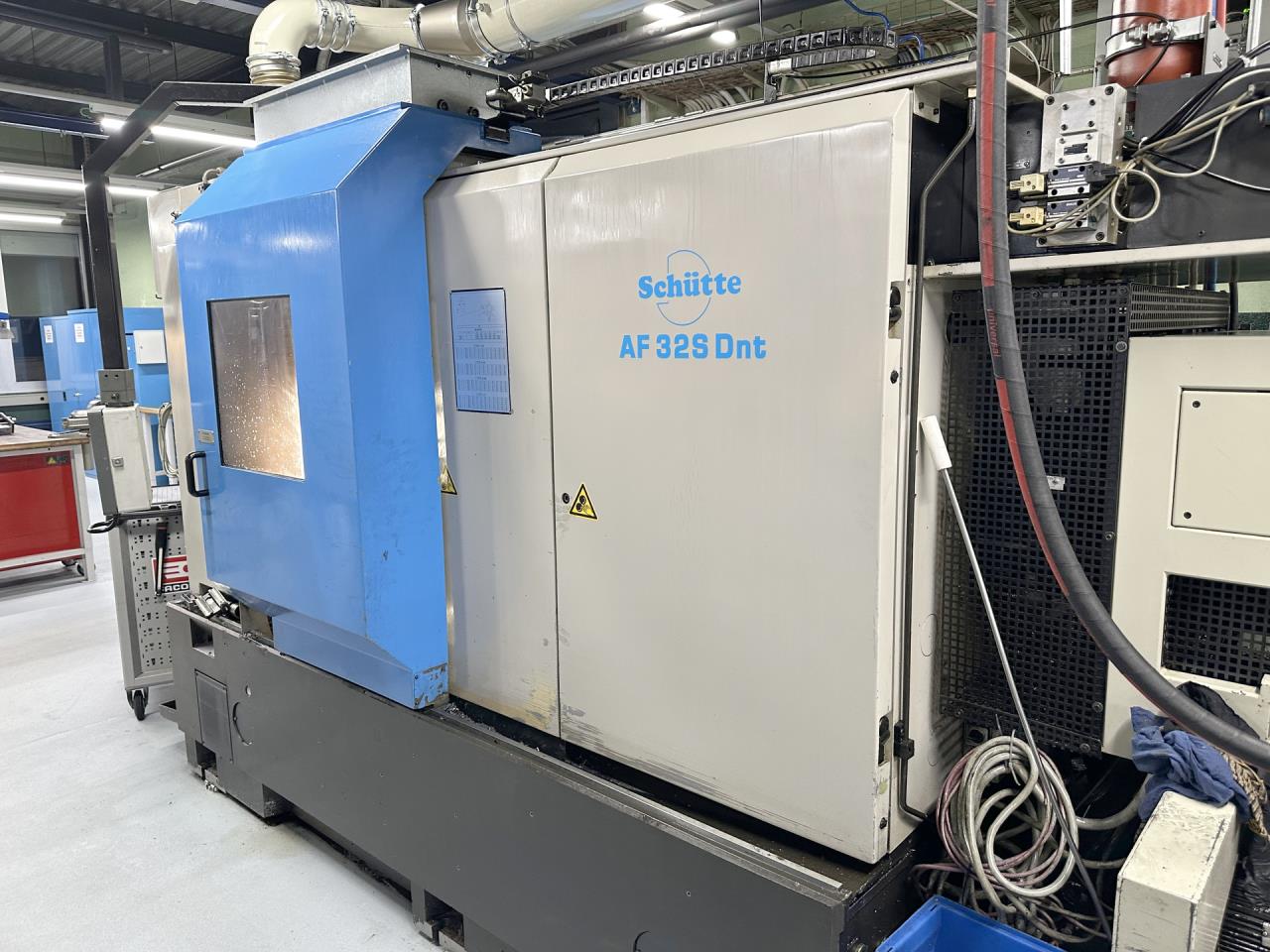

SCHÜTTE AF32S DNT

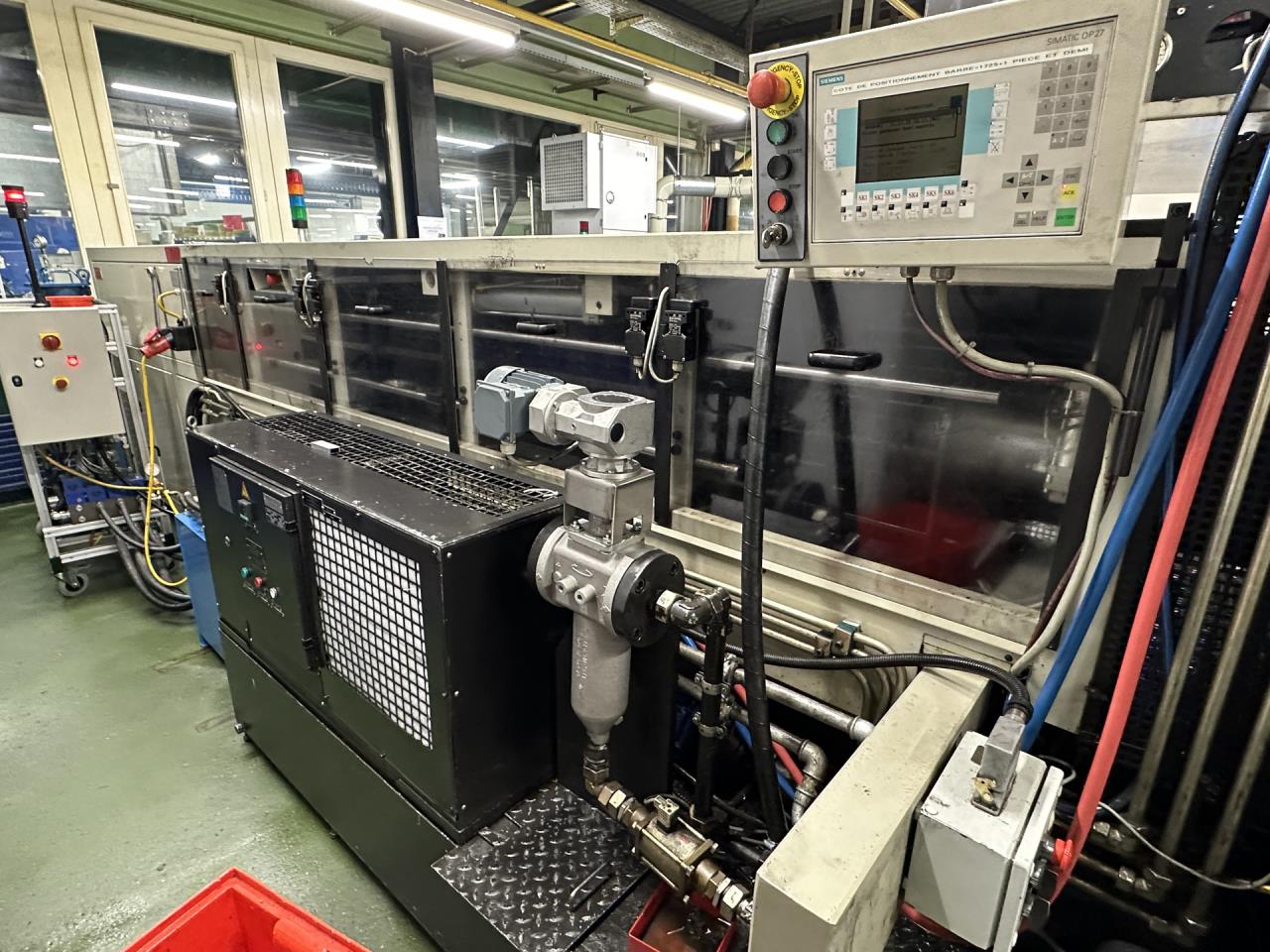

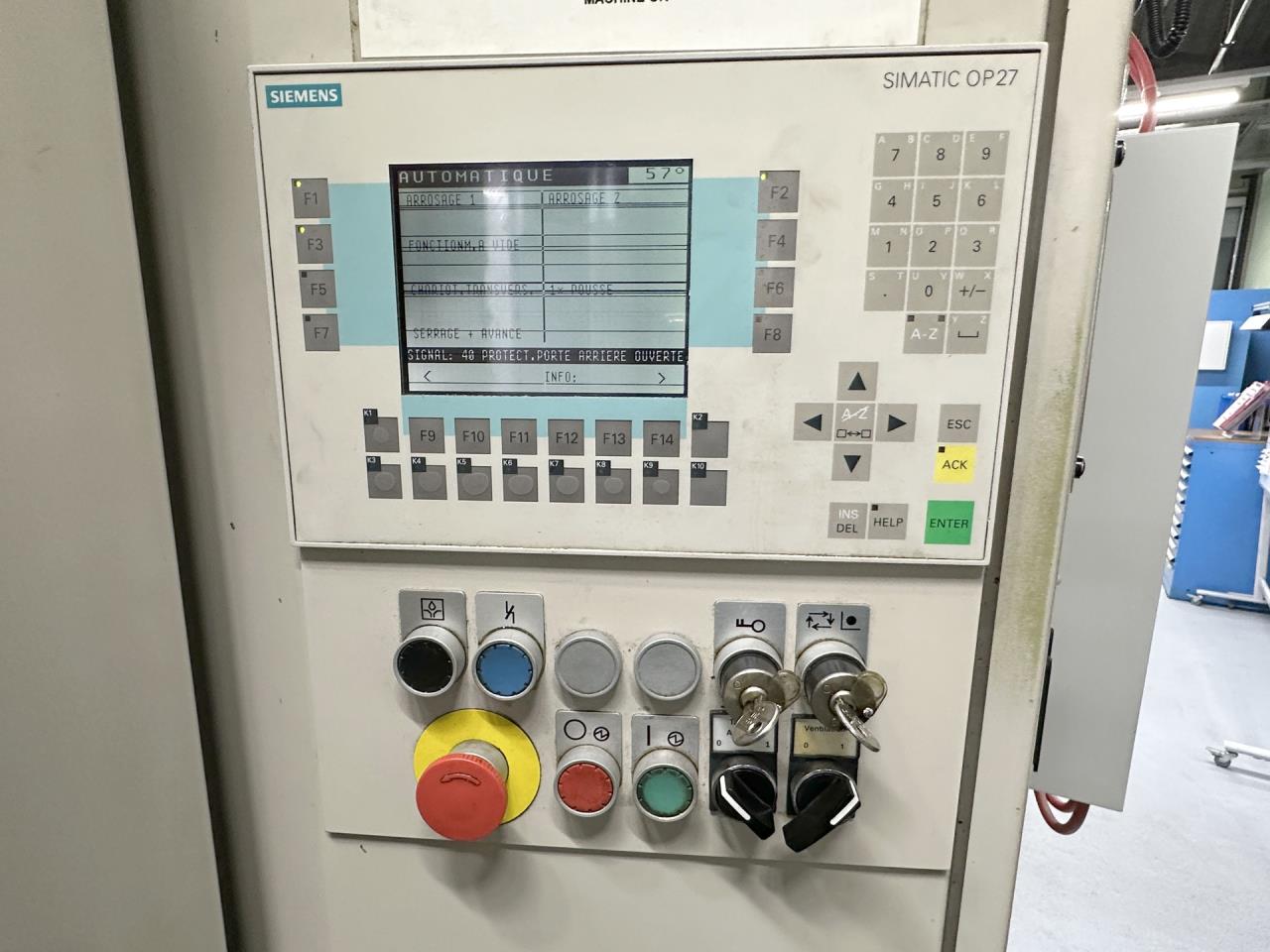

Controller :
SIEMENS SIMATIC OP27
Jahrgang :
2000
SCHÜTTE AF32S DNT 20 Image(s)
Back
Technical data

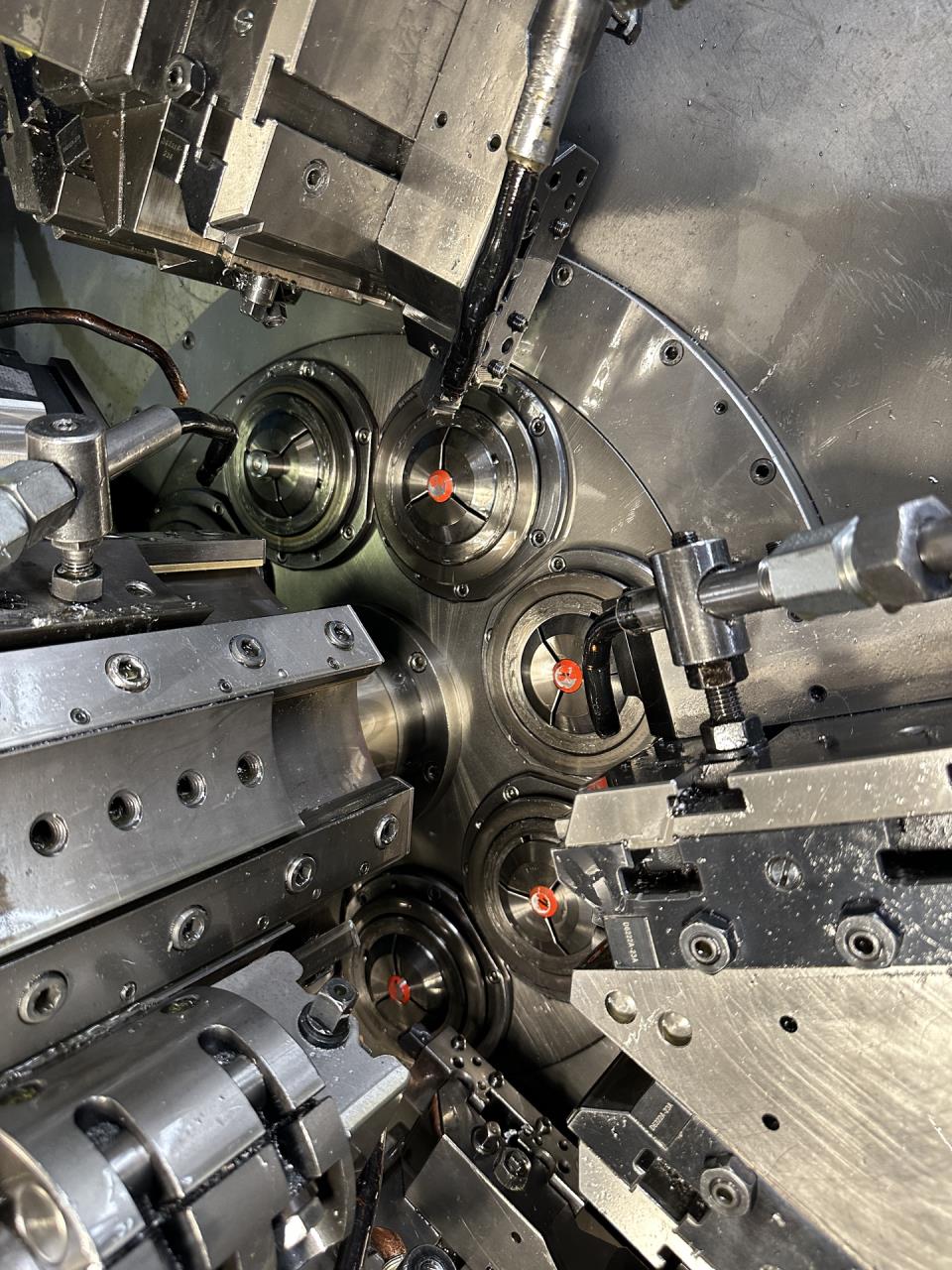

Number of spindles
8
Capacity round bar
32 mm
Capacity square bar
22 mm
Capacity octagonal bar
29 mm
Capacity hexagon bar
27 mm
Machining diameter max.
358.2 mm
Bar feed
125 / 315 mm
Longitudinal carriage way
125 / 100 mm
Longitudinal carriage way
160 / 125 mm
Cross way
40 / 25 mm
Cross way
50 / 29 mm
Spindle speeds:
    stepless
       from
560 rpm
       up to
5000 rpm
Machining time:
    from
1 sec
    up to
125 sec
Voltage 50 Hz 3x
400 Volt
Power
22 kW
Machine's weight about
10900 kg
Overall dimensions machine:
    Length
6100 mm
    Width
2610 mm
Various accessories:

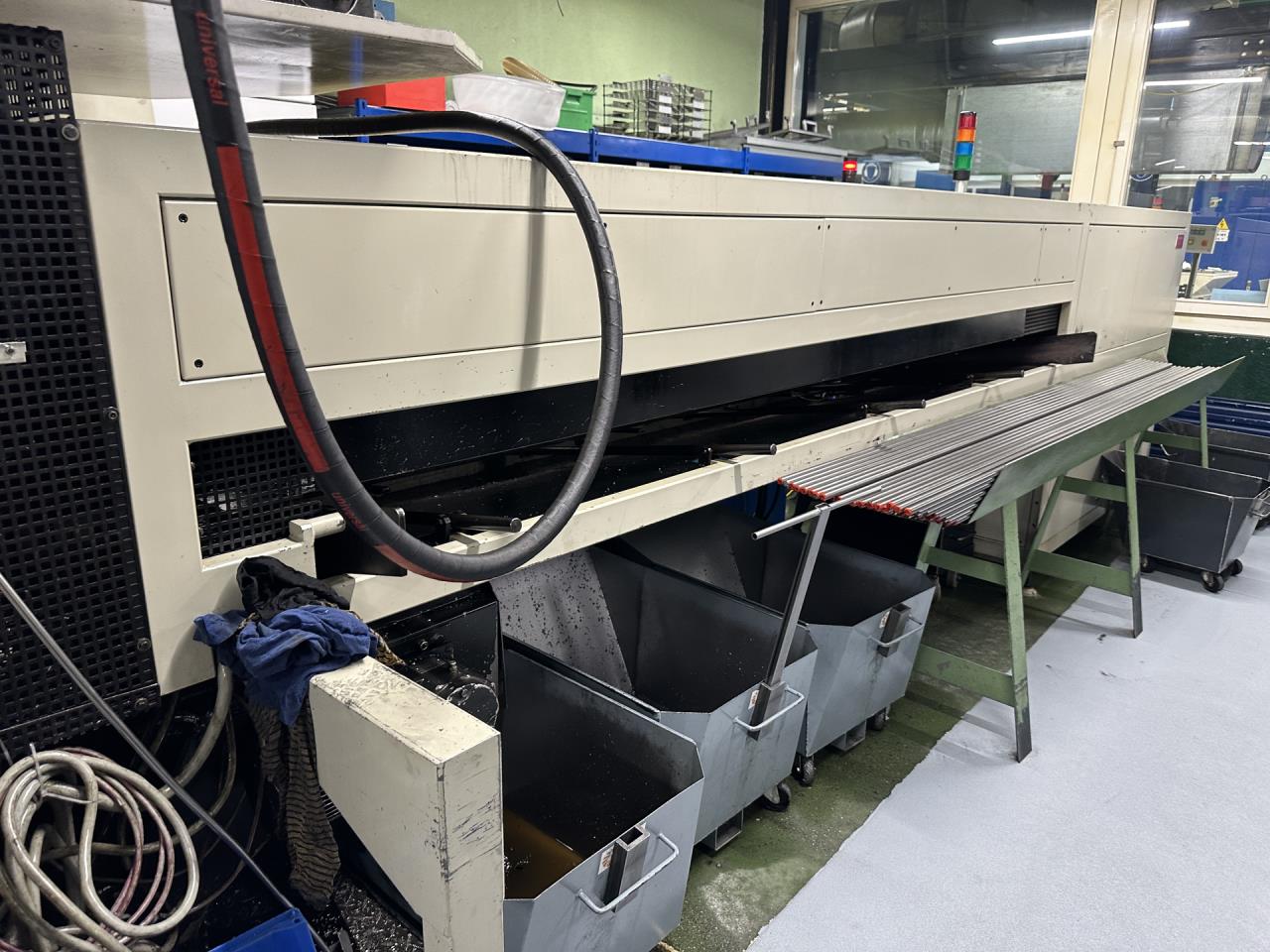

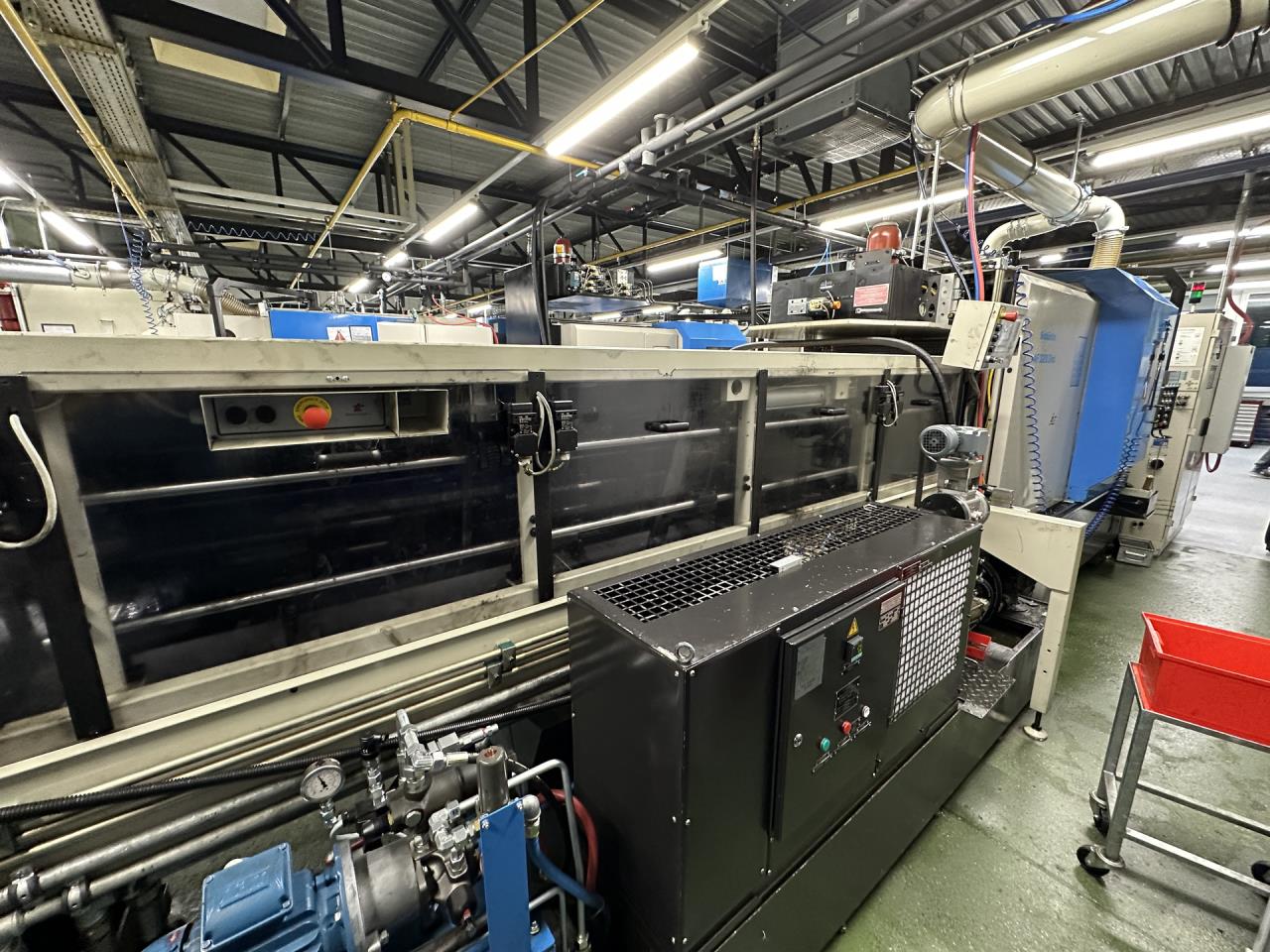

Bar loader number of bars
    Length of bars max.
4000 mm
Lamp

Technical specifications and pictures without guarantee.
