stock no. :
22253
Machine's group :
Vertical machining center
Type :
MAKINO V56 A-60

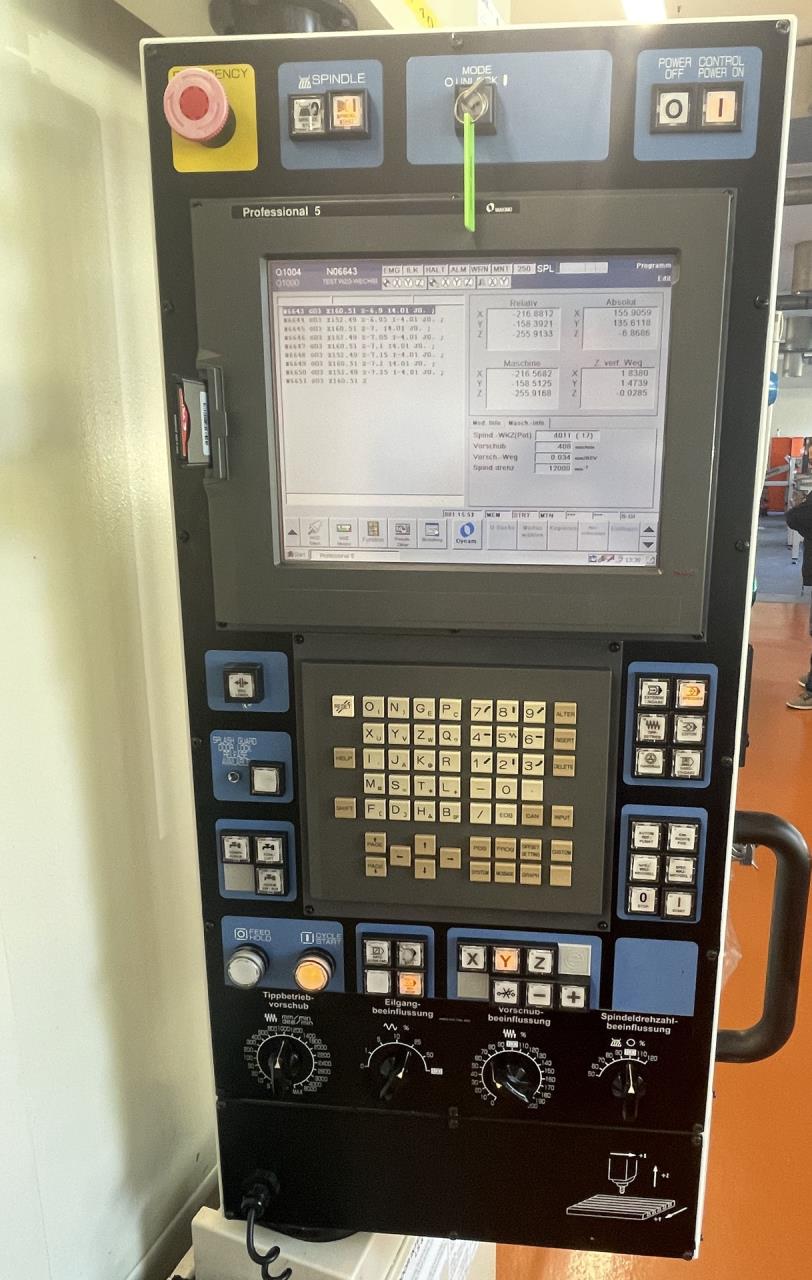

Controller :
MAKINO PROFESIONAL 5
Information request

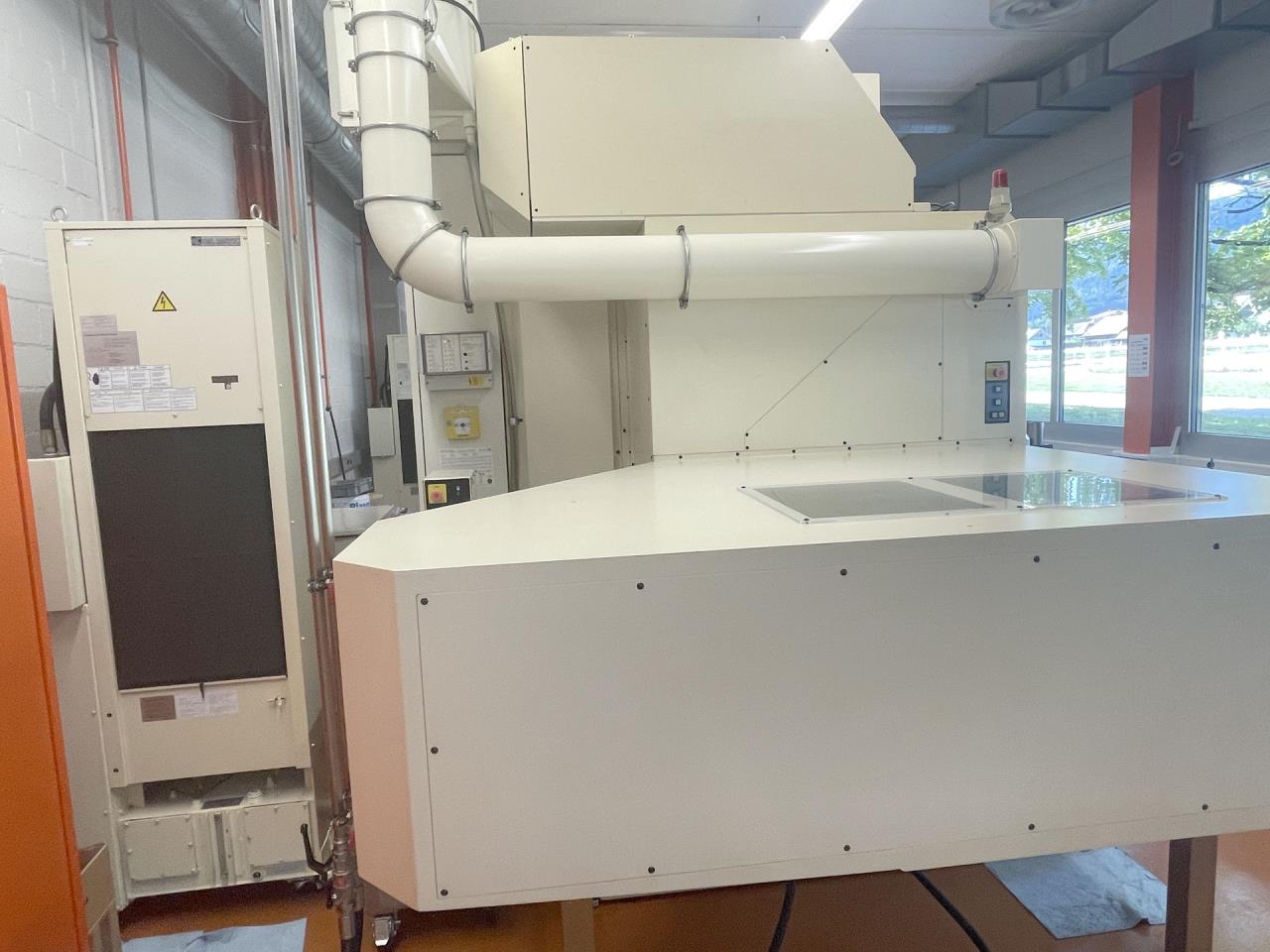

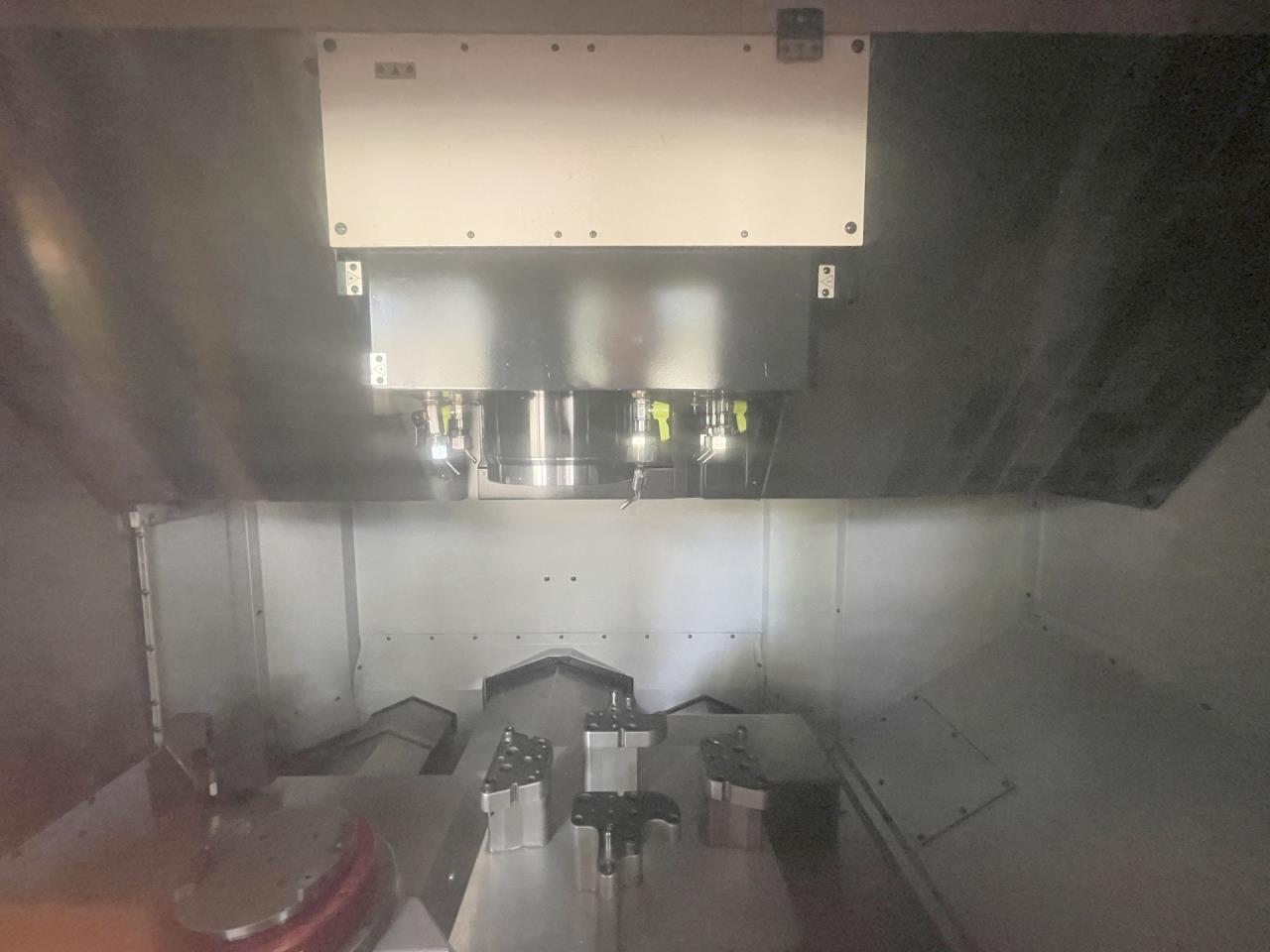

MAKINO V56 A-60 8 Image(s)
Back
Technical data
Number of axis total
3
Table length
1050 mm
Table width
550 mm
Table load max.
800 kg
Longitudinal travel (X-axis)
900 mm
Transversal travel (y-axis)
550 mm
Vertical travel (z axis)
450 mm

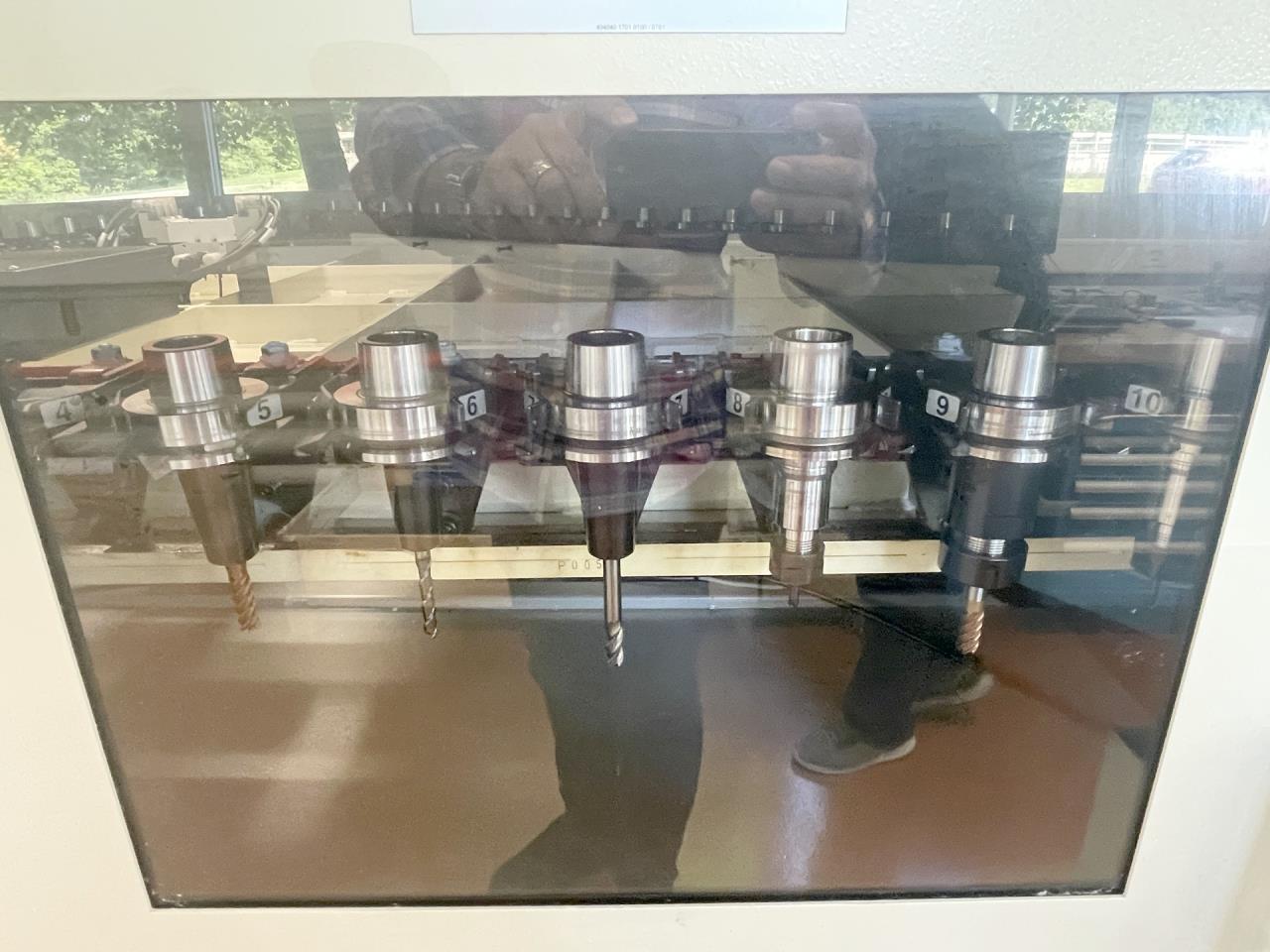

Tool changer:
    Number of tools
60
    Tool diameter
80 mm
    Tool lenght
300 mm
    Max. tool-weight
8 kg
    Time of tool changing
6.5 sec
Spindle nose: HSK
F63
Spindle speeds:
    stepless
       from
0 rpm
       up to
30000 rpm
Feed range
1 - 20000 mm/min
Rapid traverse:
20 m/min
Voltage 50 Hz 3x
220 Volt
Spindle motor
18.5 / 15 kW
Total power required
52 kVA
Spindle run time
3627 Hour
Machine's weight about
10300 kg
Overall dimensions machine:
    Length
2500 mm
    Width
2450 mm
    Height
2750 mm
Various accessories:

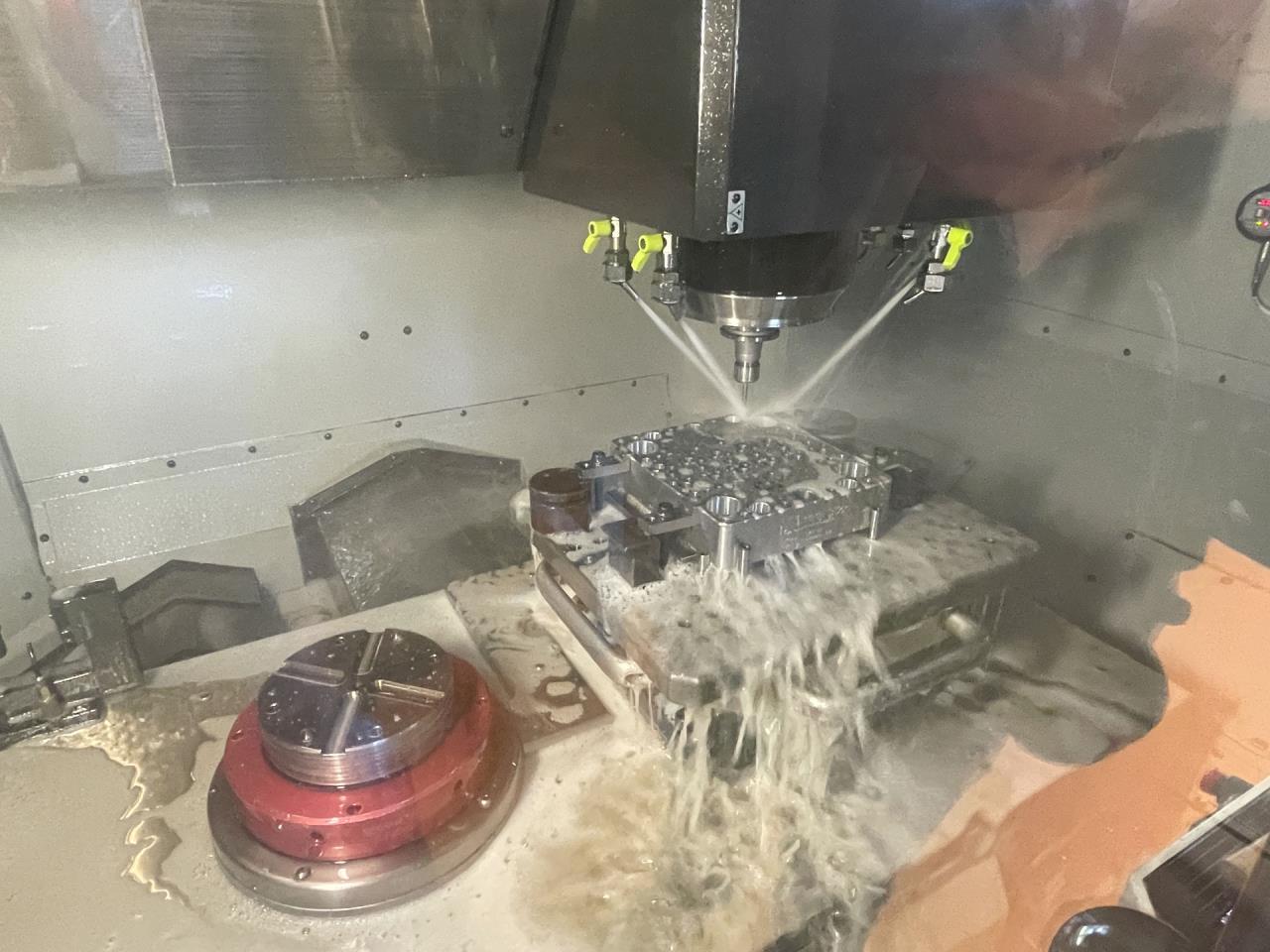

Coolant system
Preparation CTS

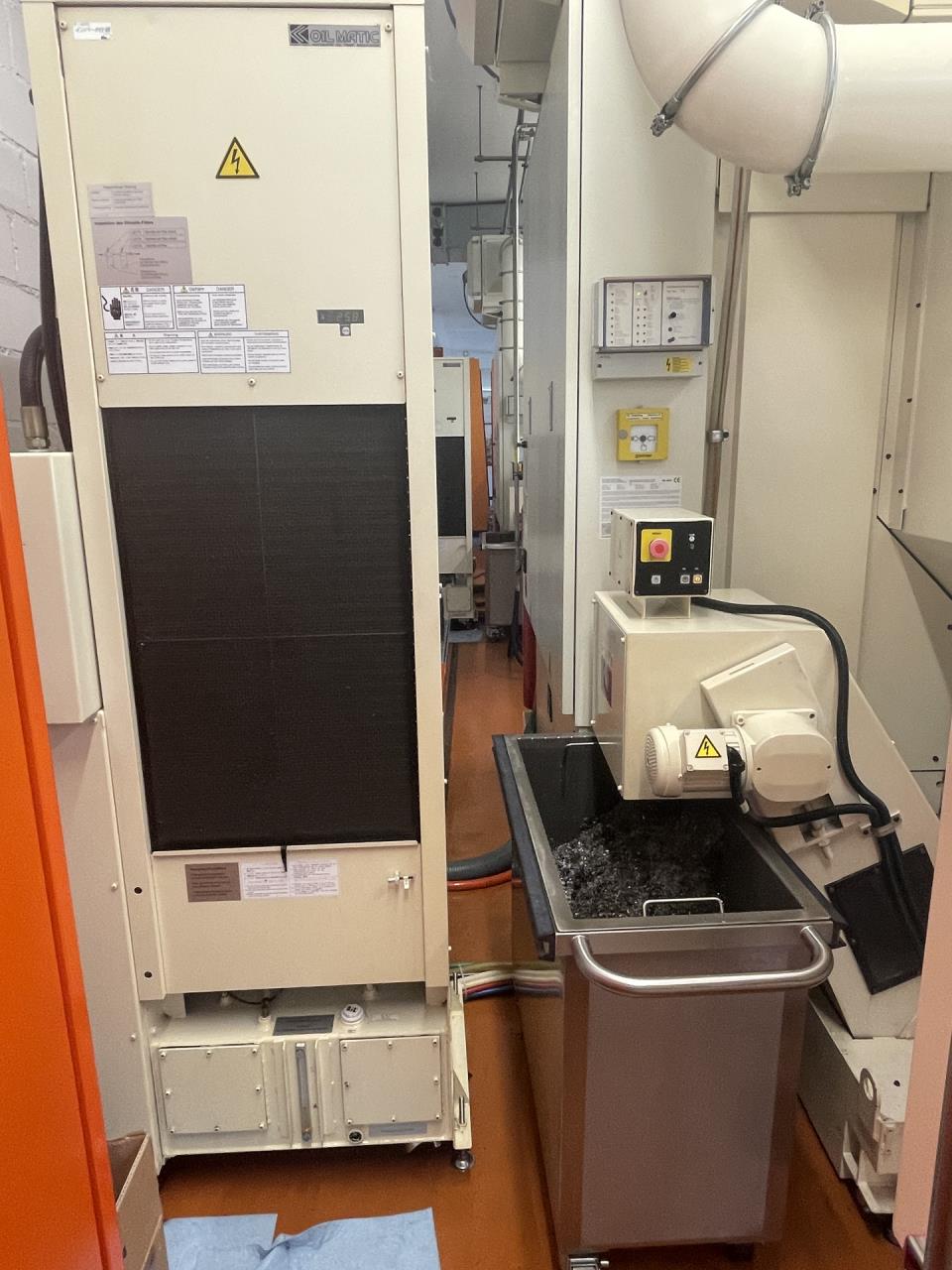

Chip conveyor
Handwheel electroinic

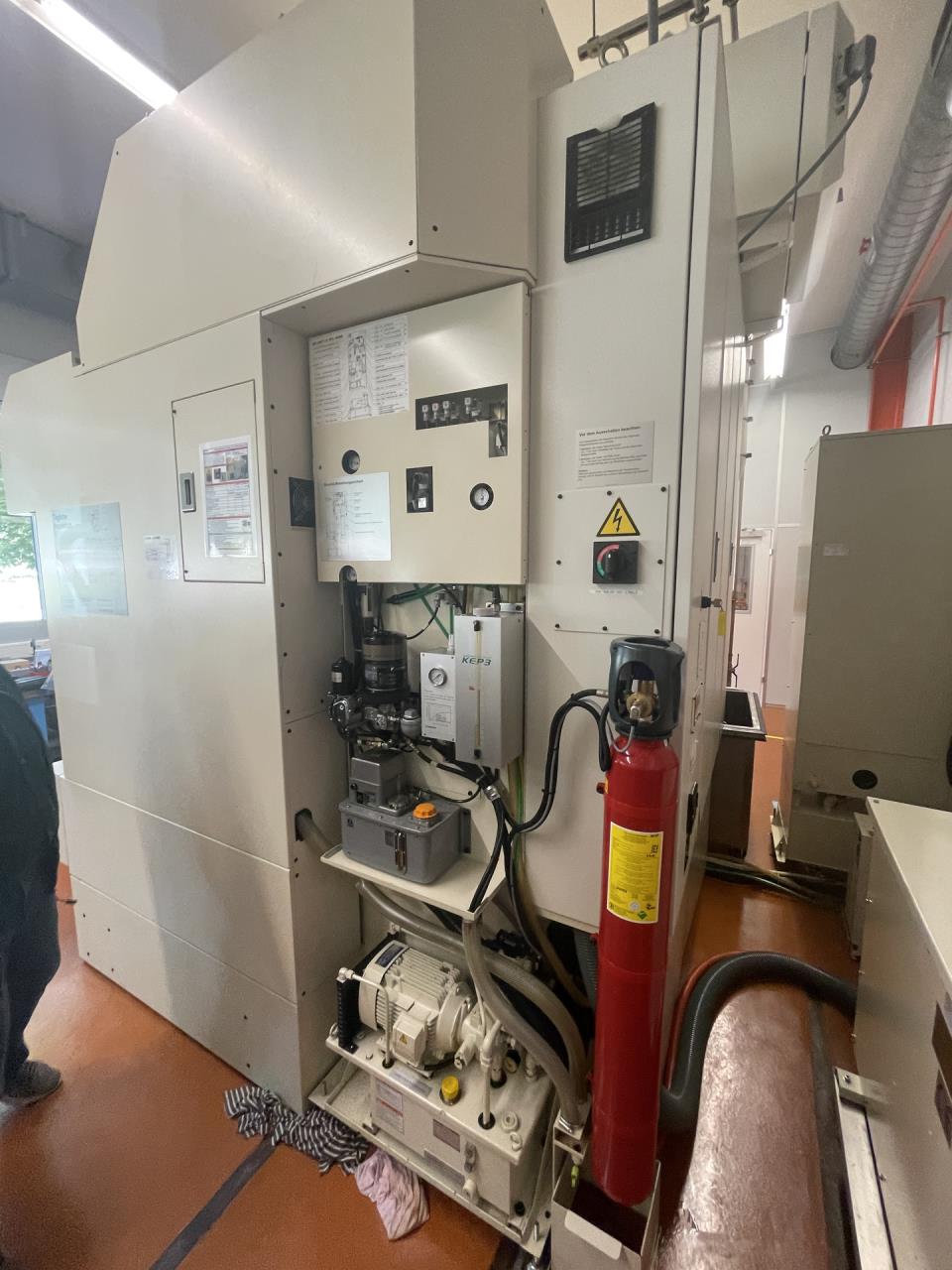

Fire extinguishing system
Spindle refurbished
2019

Technical specifications and pictures without guarantee.
