stock no. :
22097
Machine's group :
Centreless grinding machine
Type :

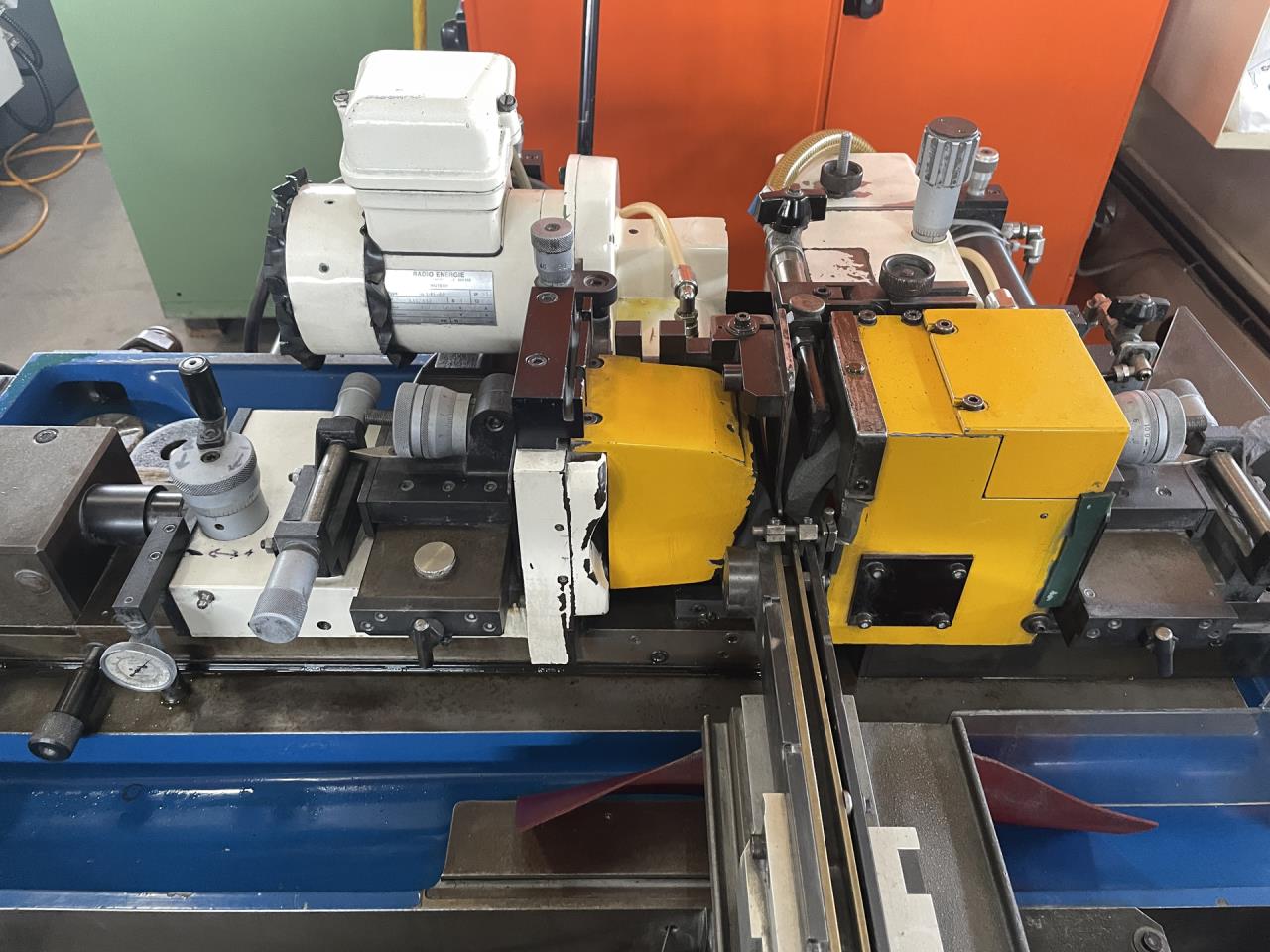

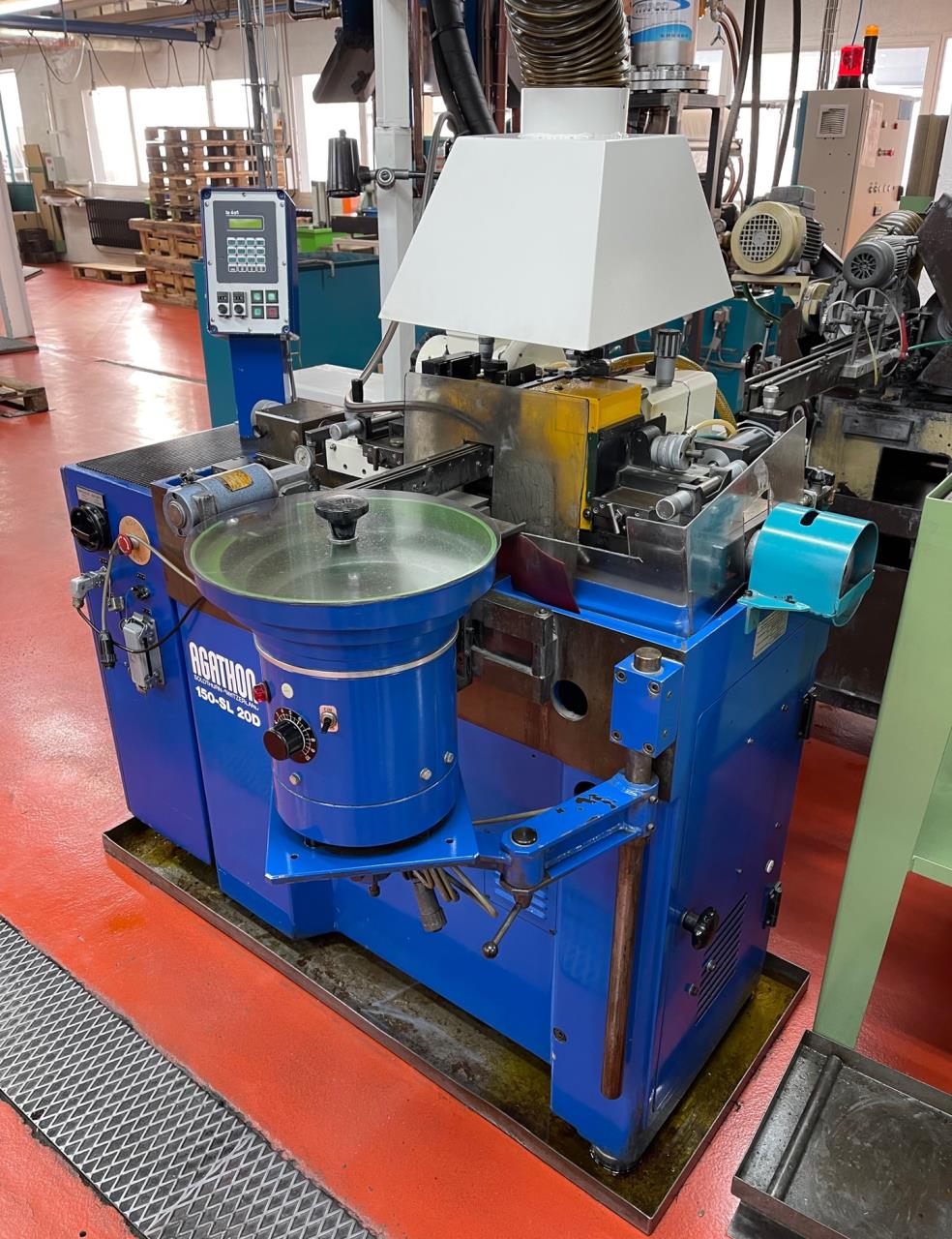

AGATHON 150 SL 20D
Information request
AGATHON 150 SL 20D 6 Image(s)
Back
Technical data
Min. grinding diameter
0.1 mm
Max. grinding diameter
10 mm
Width of the grinding wheel
50 mm
Max. workpiece length
    for infeed grinding
50 mm
Grinding wheel:
    diameter new wheel
150 mm
    Width
50 mm
    Speeds:
          up to
25 - 45 m/s
          up to
6000 rpm
Regulating spindle:
    diameter new wheel
100 mm
    Width
50 mm
    Bore
40.0 mm
    Speeds:
       stepless
          from
6 m/s
          up to
94 m/s
          from
20 rpm
          up to
300 rpm
Voltage 50 Hz 3x
460 Volt
Main motor
2.2 kW
Total power required
6 kW
Machine's weight about
1000 kg
Overall dimensions machine:
    Length
1400 mm
    Width
1000 mm
    Height
1800 mm
Various accessories:

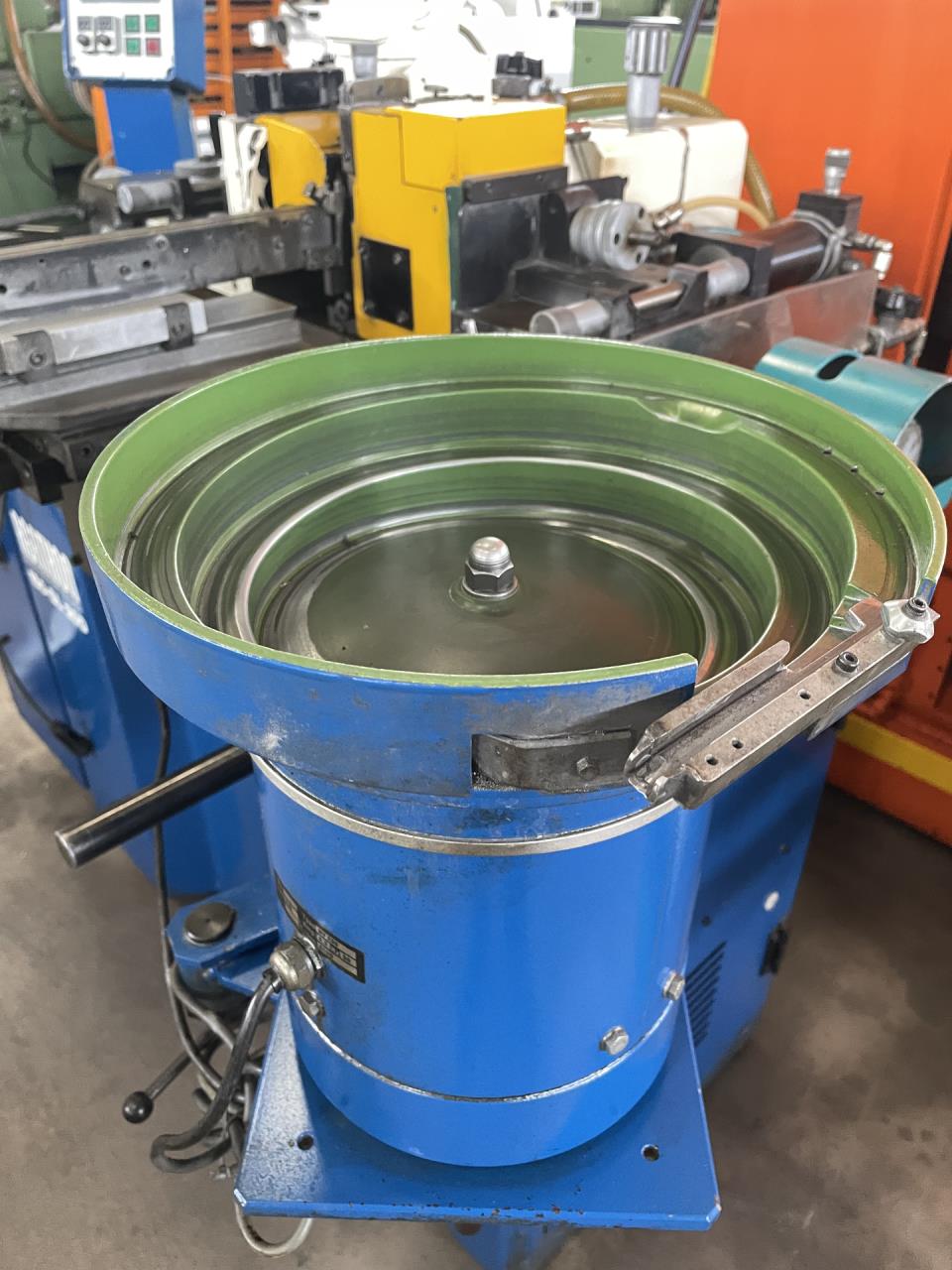

Vibrating / oscillating conveyor

Technical specifications and pictures without guarantee.
