Technical data

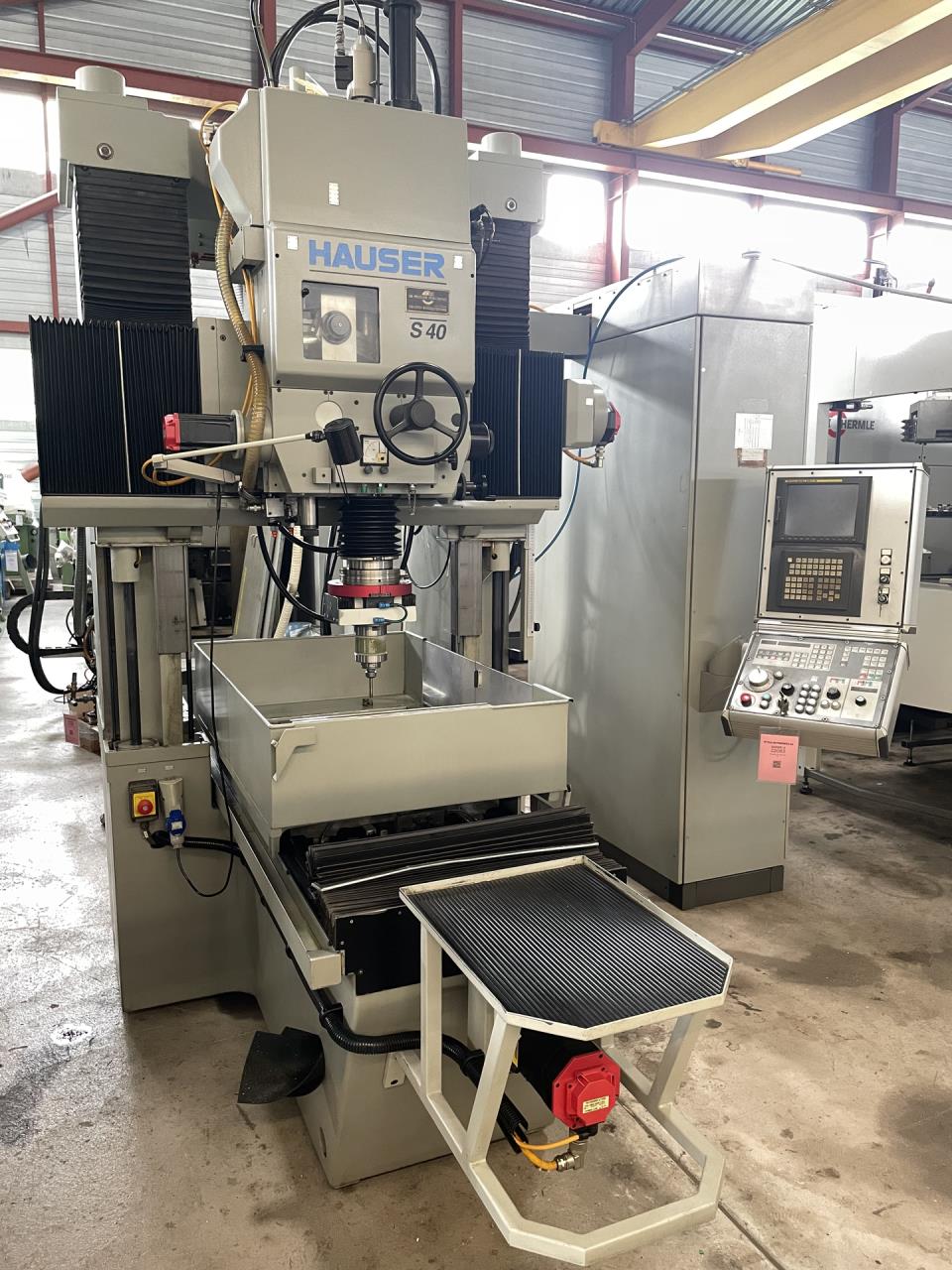

2 columns execution

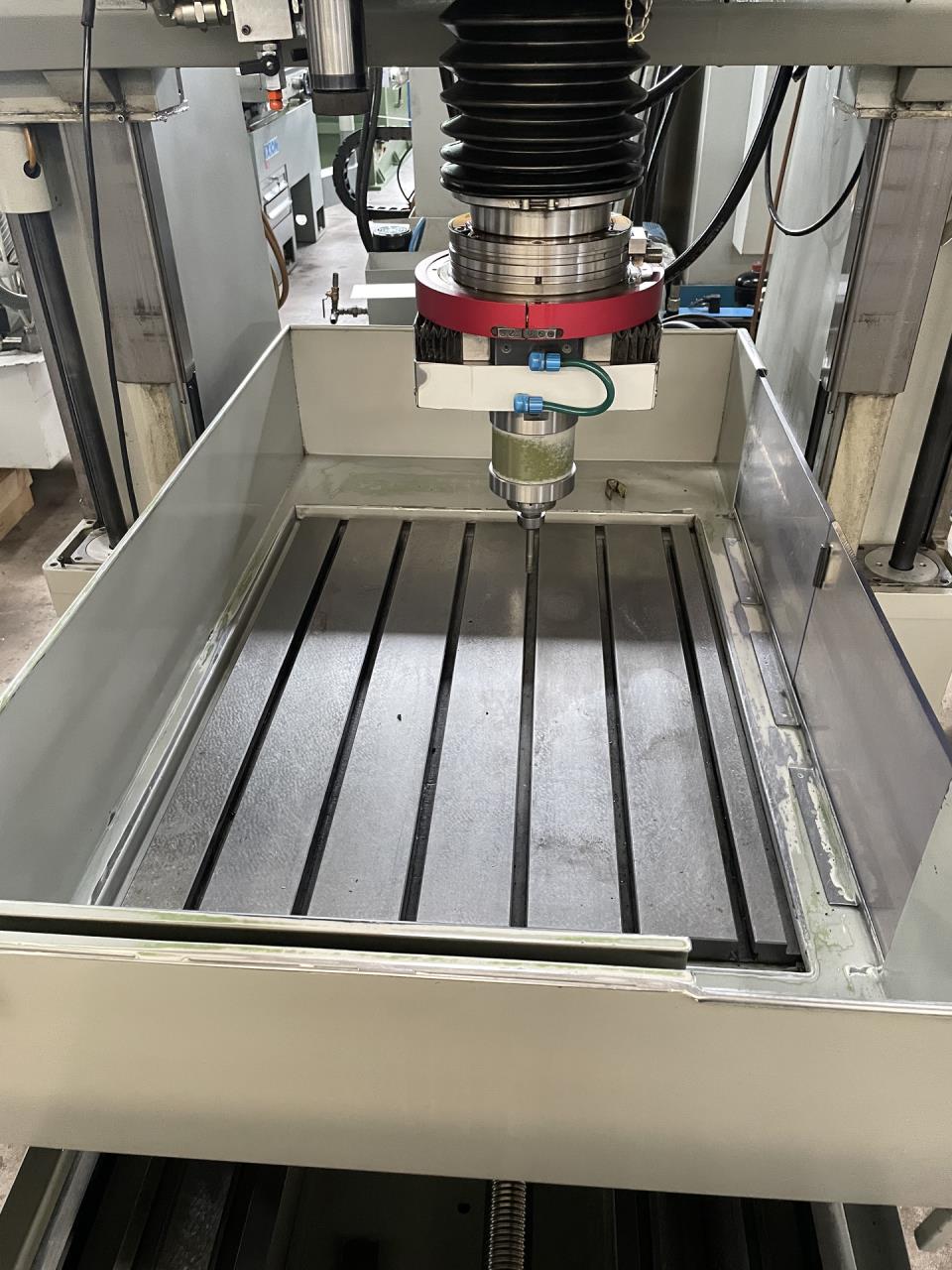

Table length
770 mm
Table width
630 mm
Table load max.
500 kg
Longitudinal travel (X-axis)
650 mm
Transversal travel (y-axis)
450 mm
Vertical travel (z axis)
500 mm

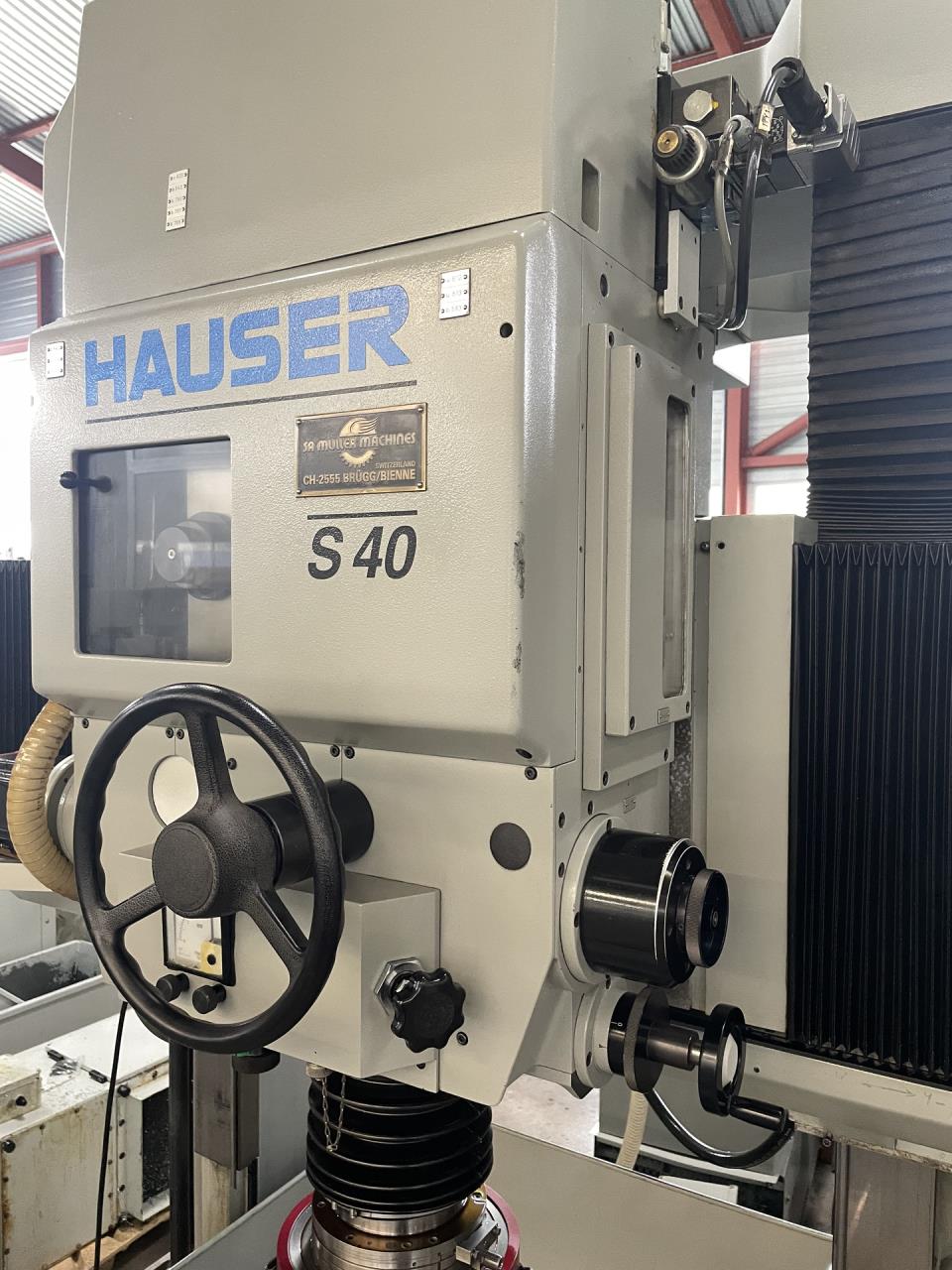

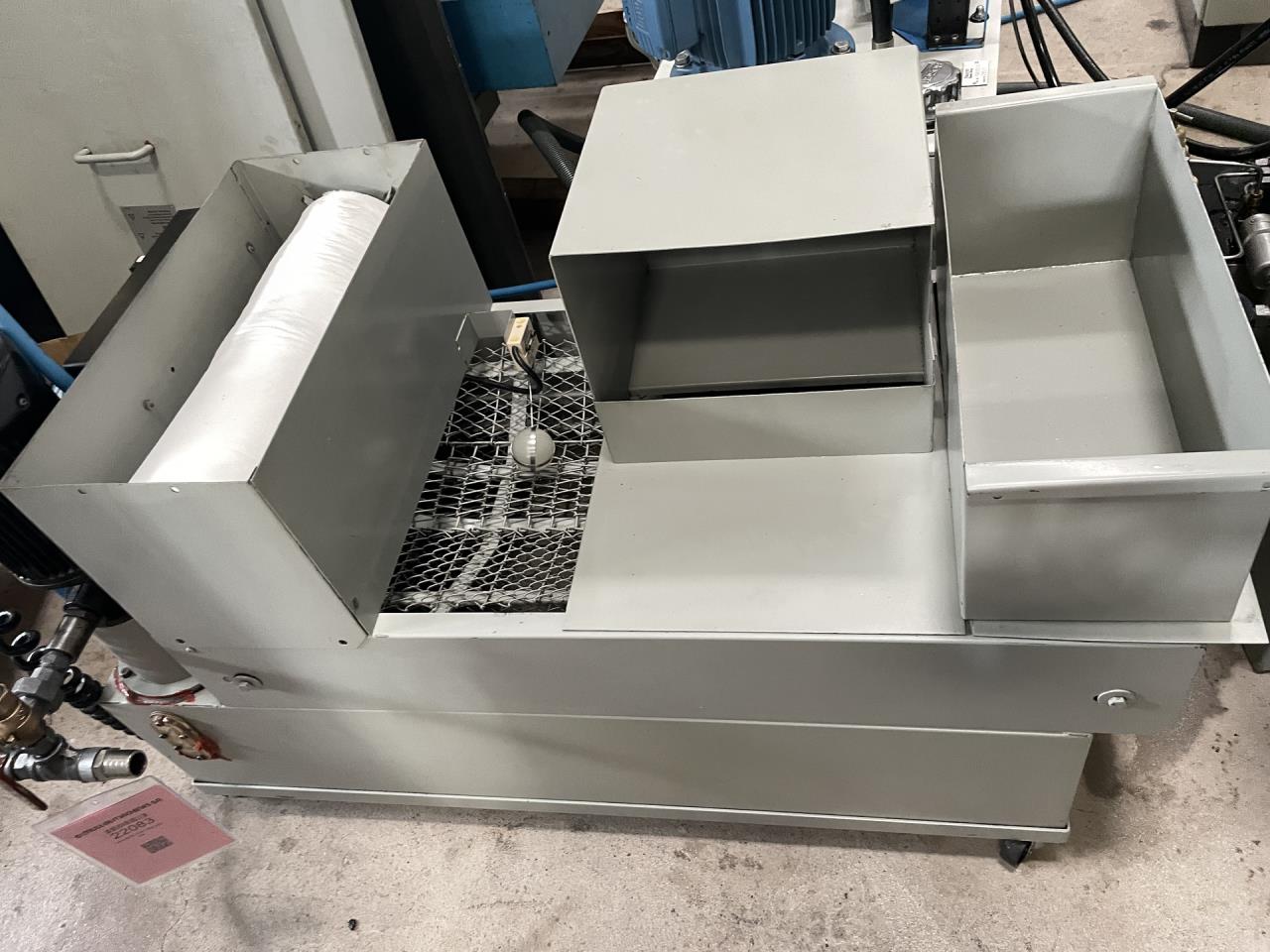

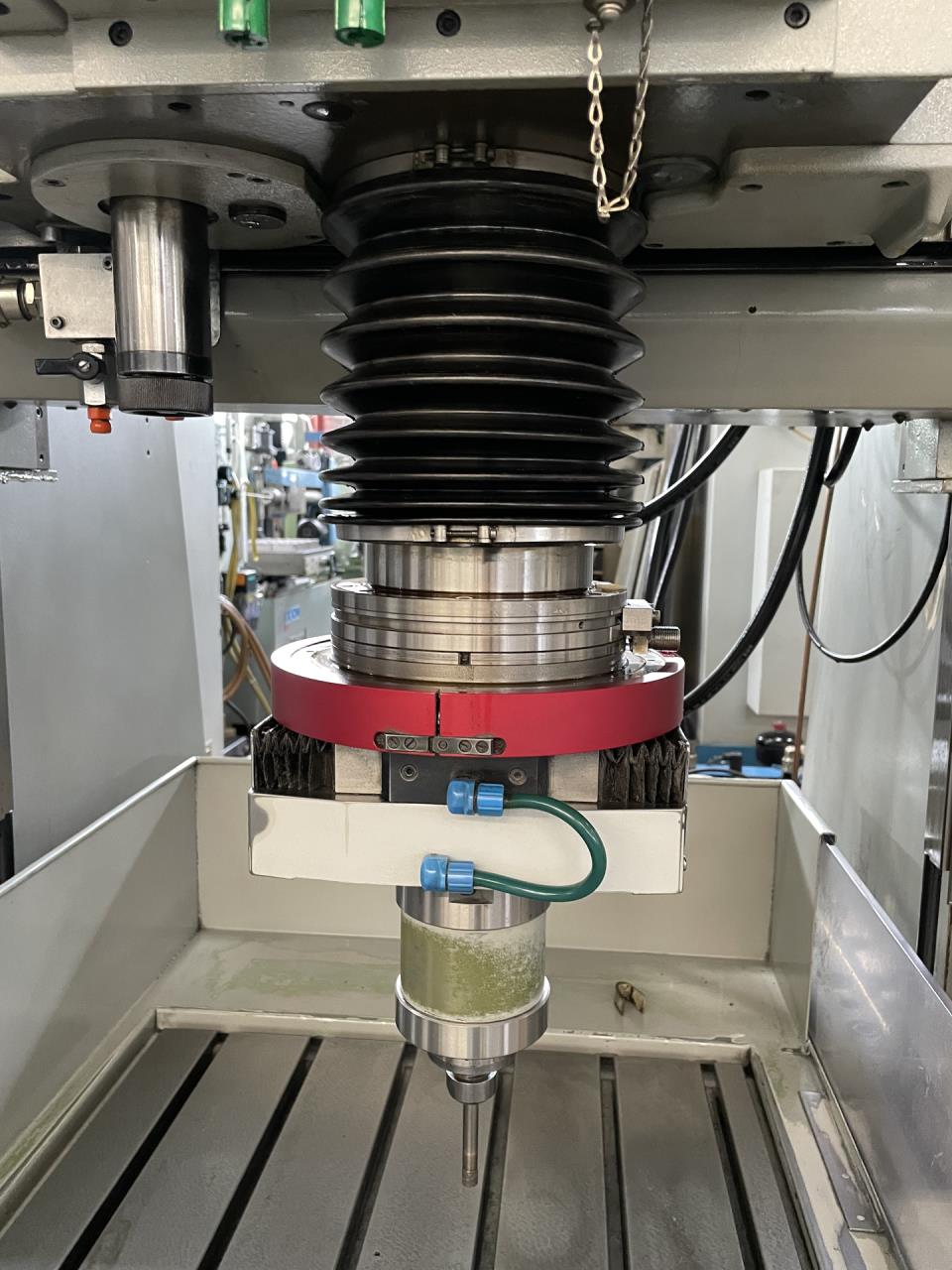

Spindle stroke
130 mm
Distance from spindle-center to vertical slide
600 mm
Max. grinding diameter
230 mm
with display-plate
360 mm
Passage between the columns
750 mm
Max. angle with taper grinding:
up to
16.0 °
Stroke length Z, infinitely adjustable
0 - 140 mm

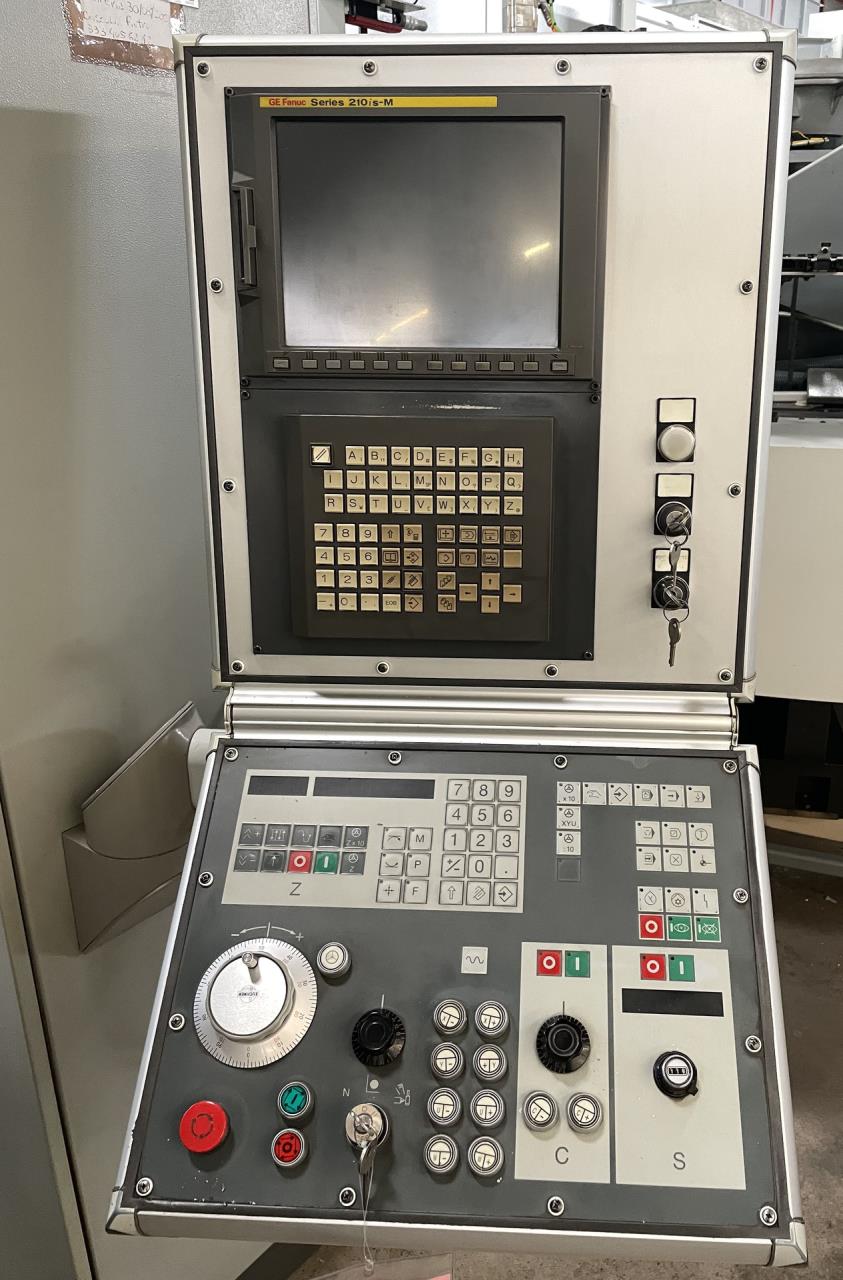

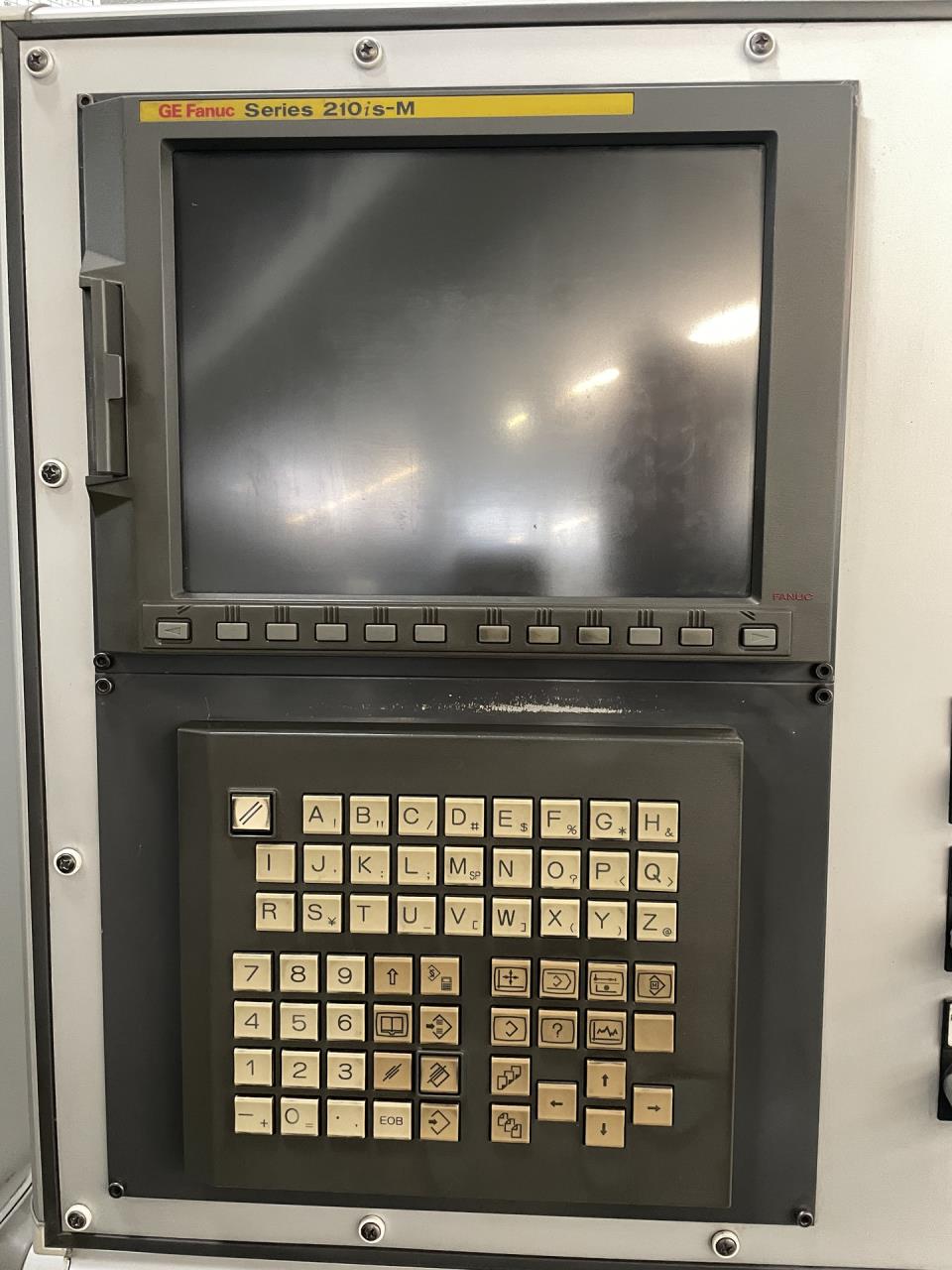

Planetary motion speeds: c axis
stepless
from
5 rpm
up to
250 rpm
Possible grinding-spindle speeds:
stepless
from
4500 rpm
up to
80000 rpm
With air-turbine max.
160000 rpm

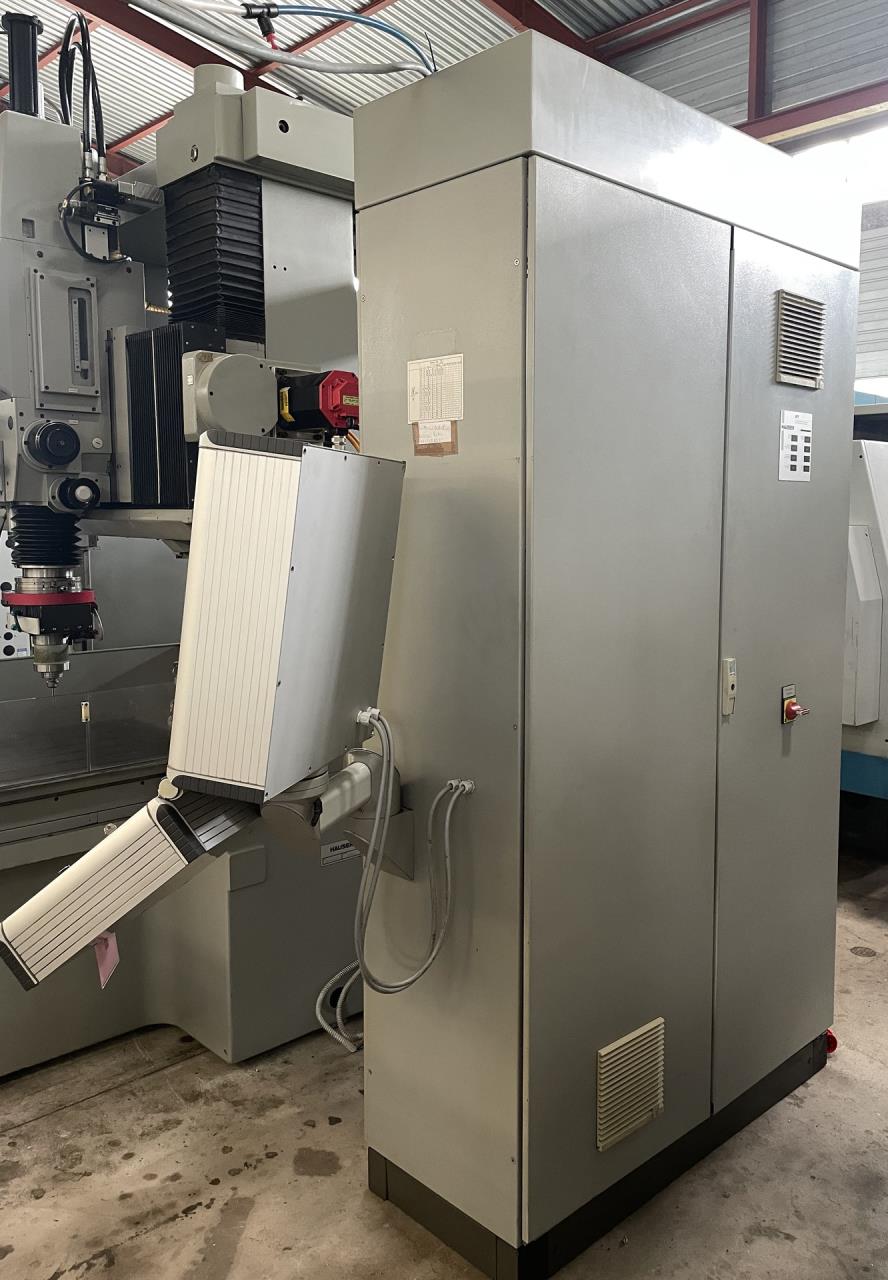

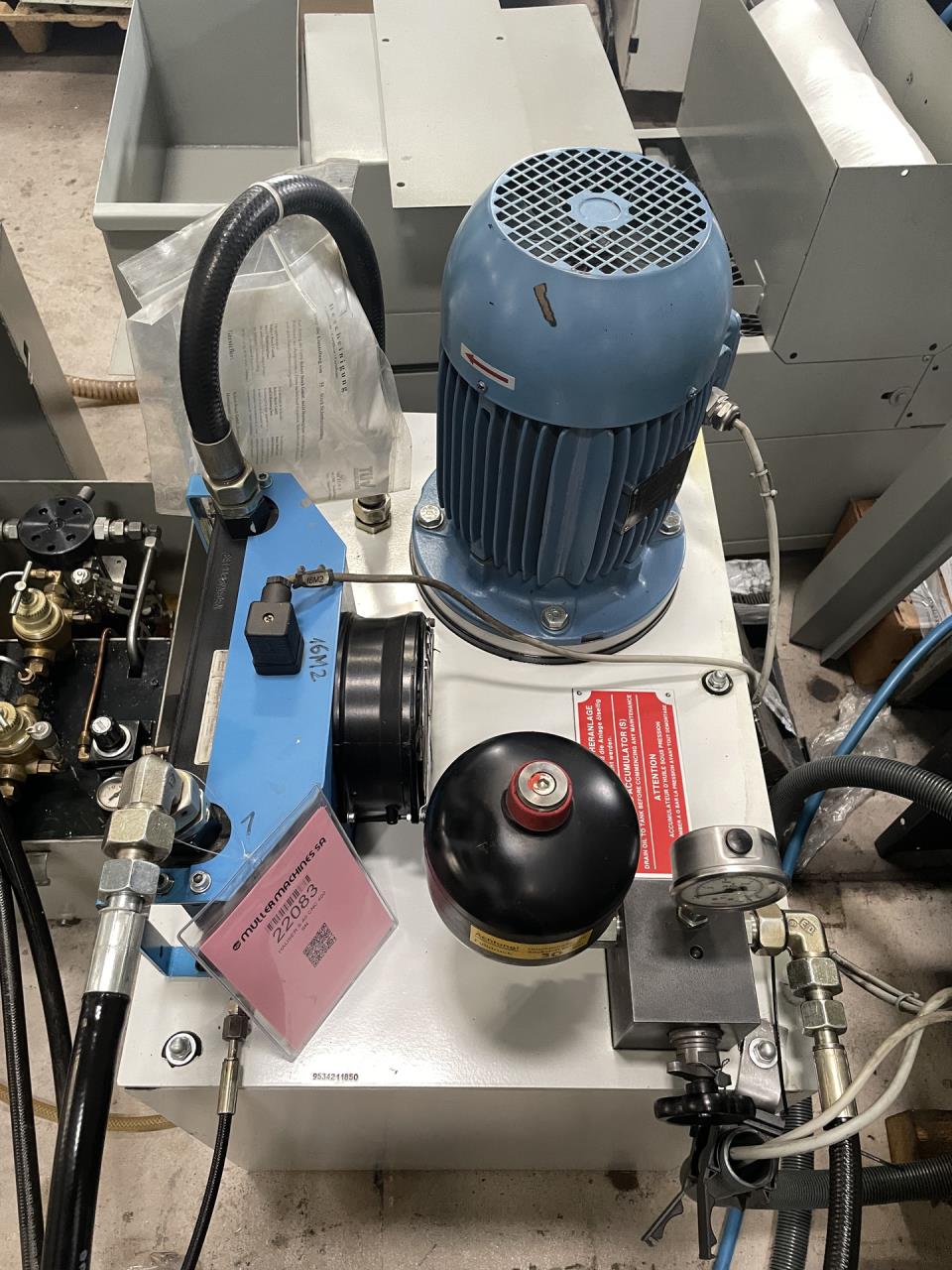

Voltage 50 Hz 3x
380 Volt
Total power required
8 kW
Machine's weight about
4000 kg
Overall dimensions machine:
Length
4000 mm
Width
3600 mm
Height
3200 mm
Technical specifications and pictures without guarantee.
