stock no. :
22045
Machine's group :
CNC turning lathe, Cycle lathe
Type :
BOEHRINGER / VDF DUS 400 ti
Controller :

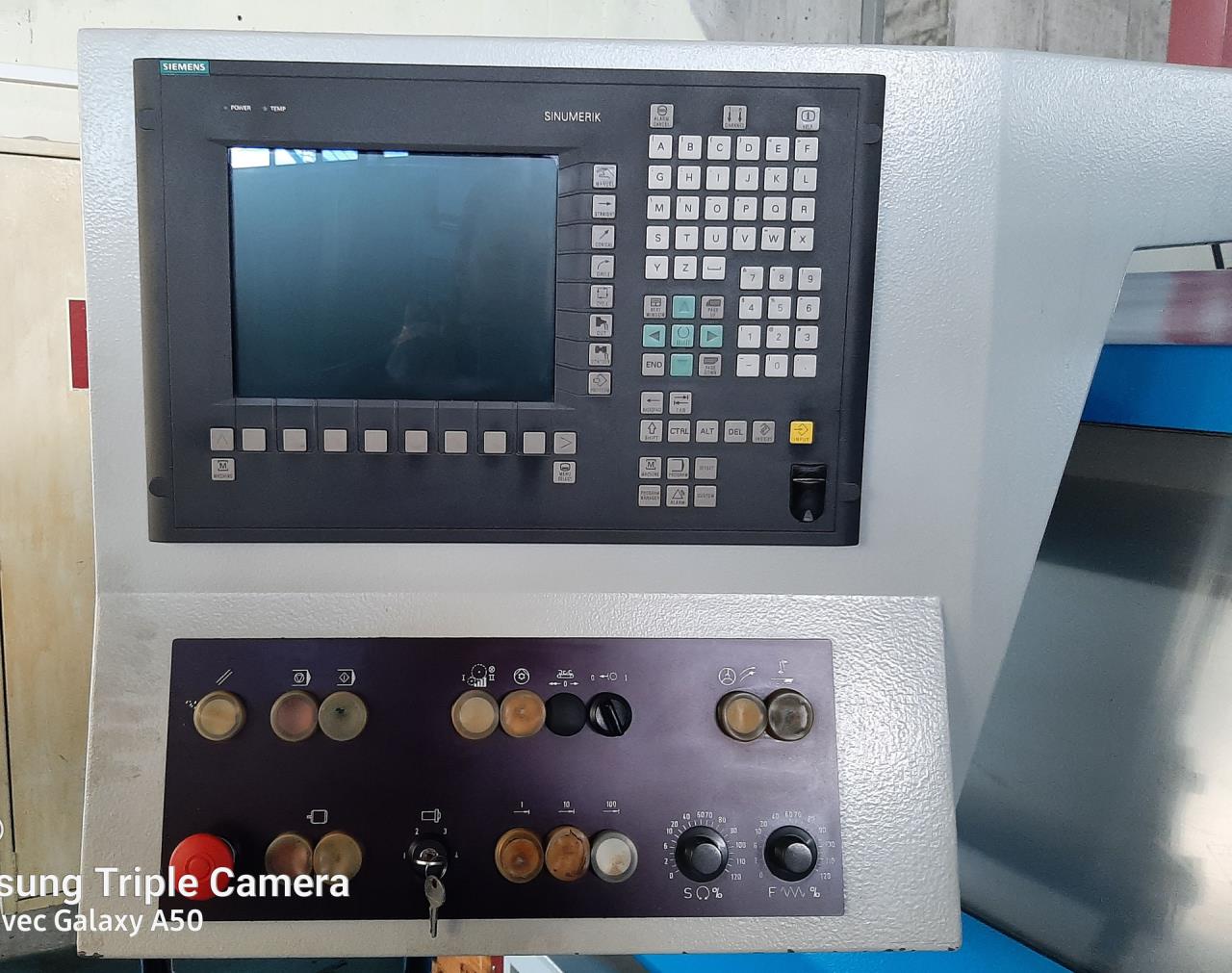

SIEMENS SINUMERIK
Information request

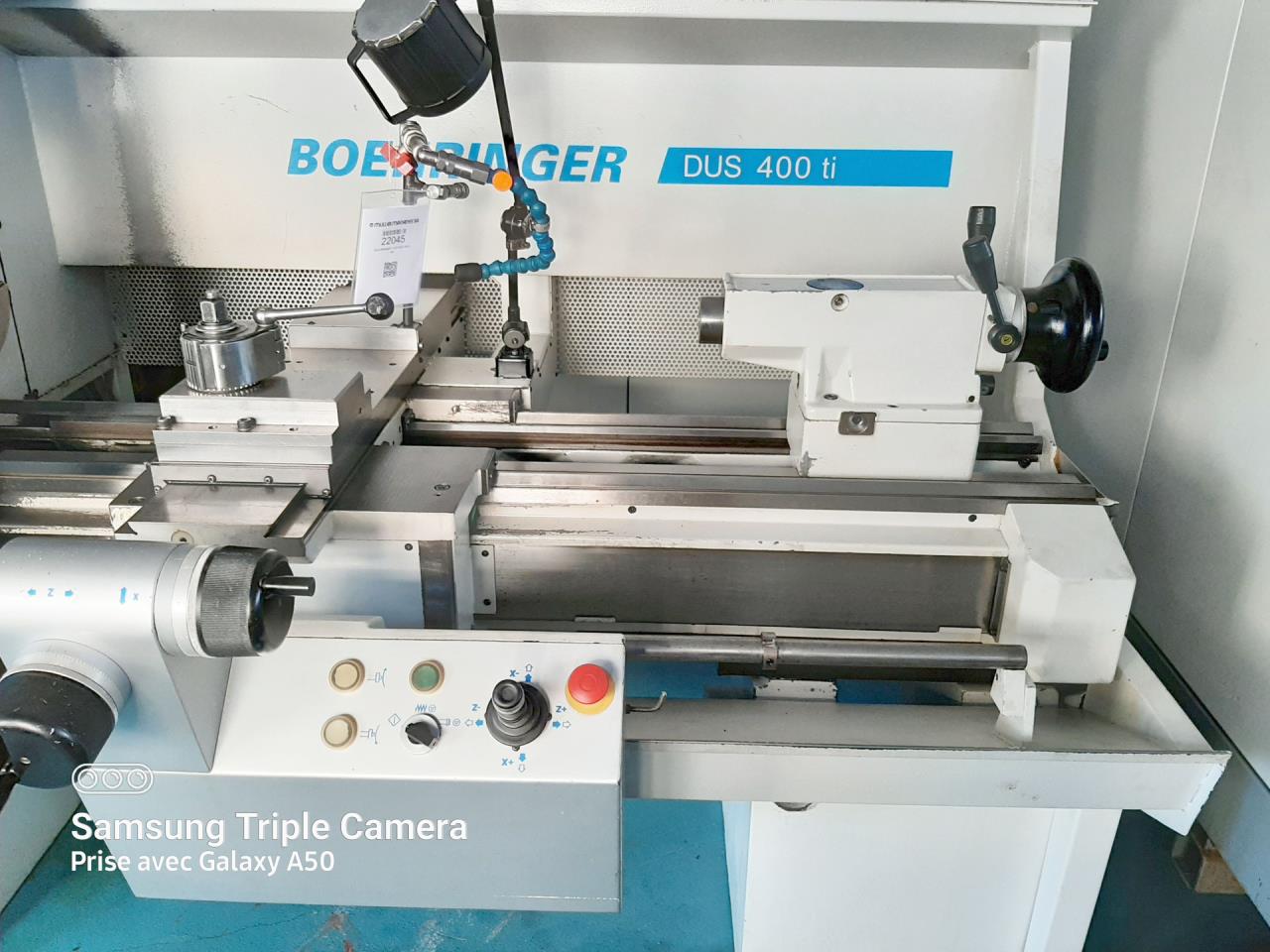

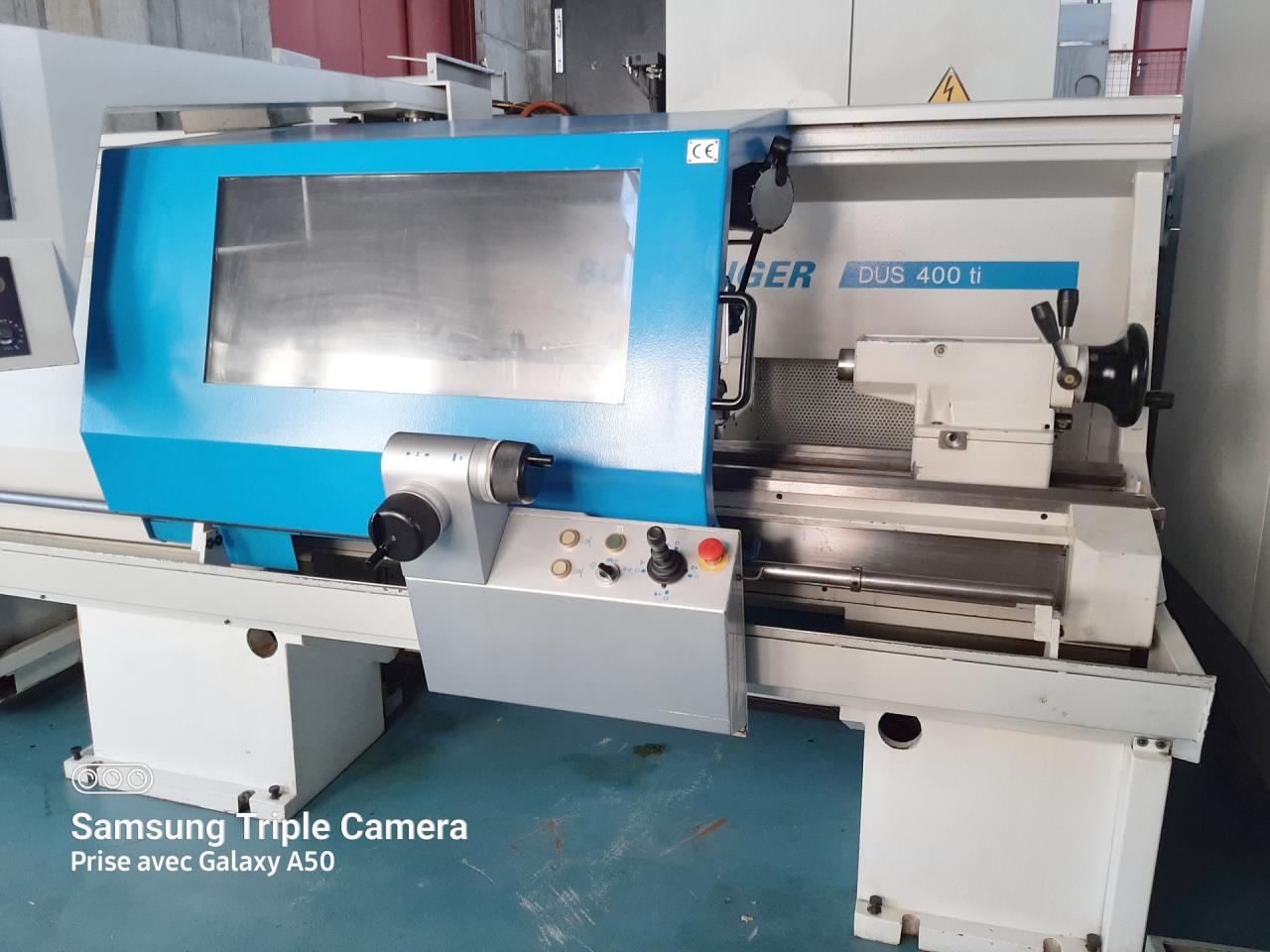

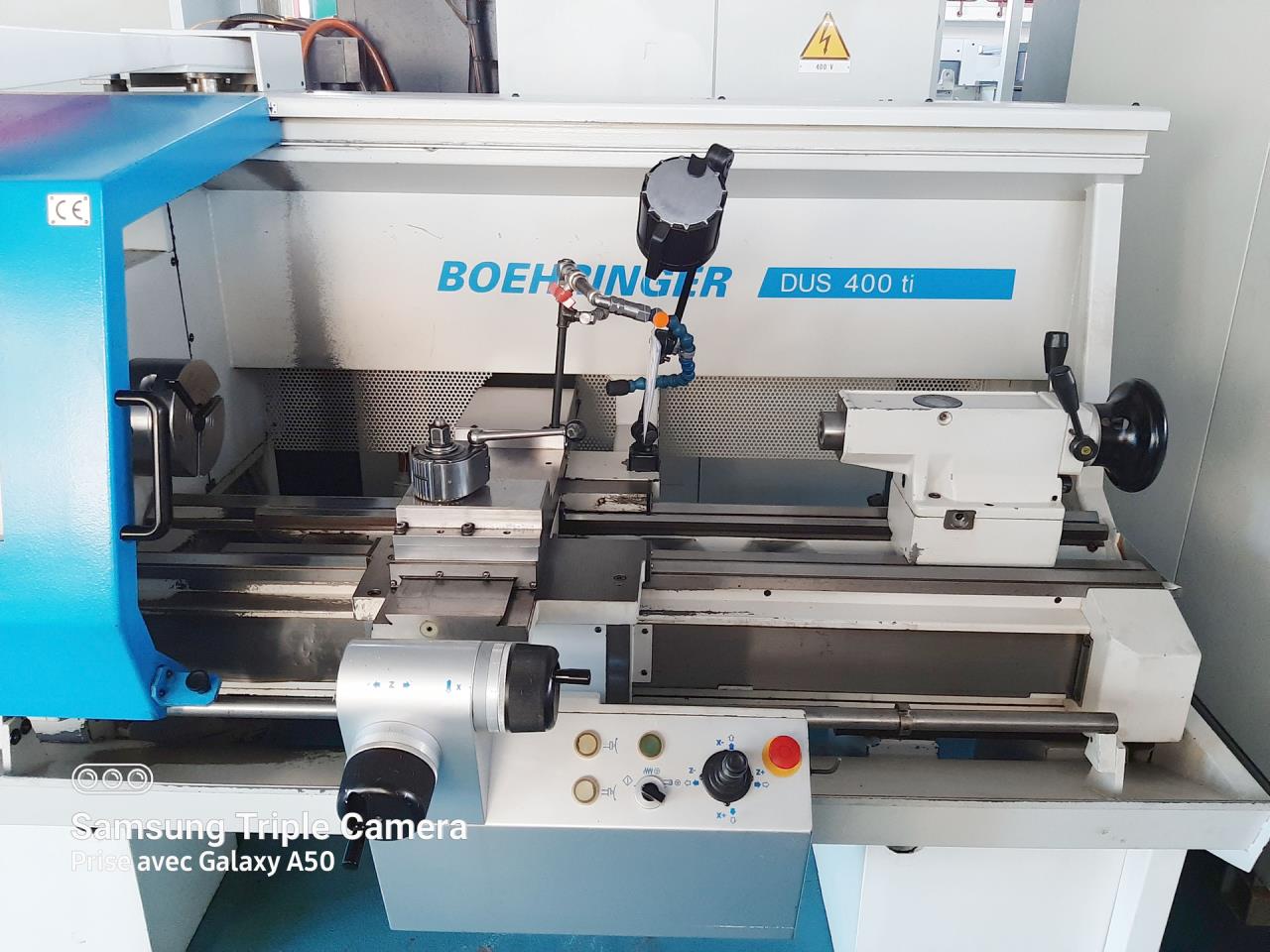

BOEHRINGER / VDF DUS 400 ti 4 Image(s)
Back
Technical data
Swing over cross-slide
230 mm
Swing over bed
420 mm
Spindle hole
51 mm
Turning length
1000 mm
    Spindle speeds:
       number (steps)
2
       stepless
       from
10 rpm
       up to
3000 rpm
Taper in tailstock:
    Morse taper
4 MT
Rapid traverse:
5 / 10 m/min
Spindle motor
11/9 kW
Voltage 50 Hz 3x
400 Volt
Machine's weight about
3000 kg
Overall dimensions machine:
    Length
3160 mm
    Width
1925 mm
    Height
1762 mm
Various accessories:

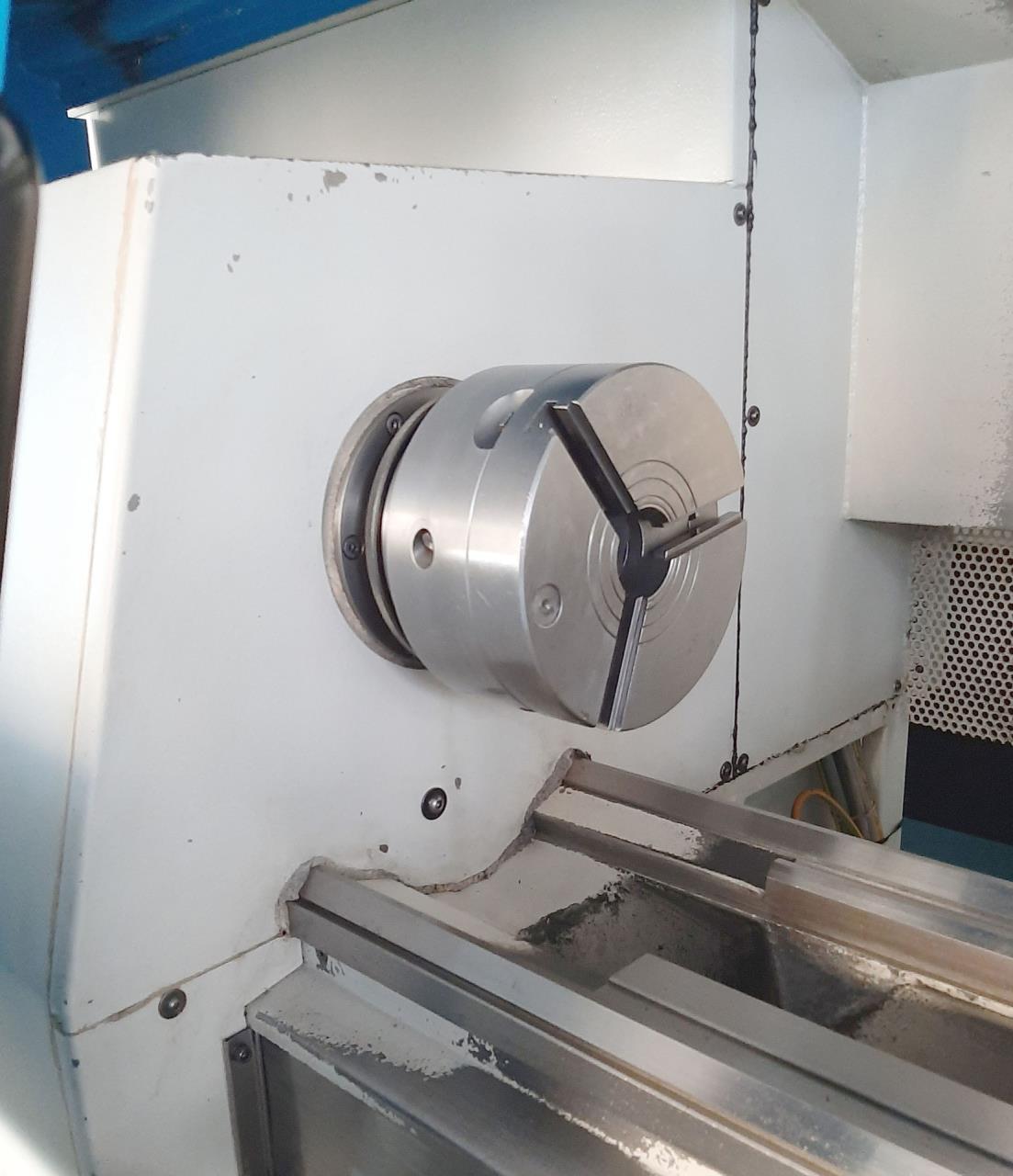

3-jaw chuck diameter
200 mm
4-jaw chuck diameter
250 mm
Set of jaws
Set of jaws hard
Lamp
Tailstock
Coolant system
Quick change tool
MULTIFIX
Set of steel holders
Fixed steady

Technical specifications and pictures without guarantee.
