stock no. :
21967
Machine's group :
CNC milling machine
Type :

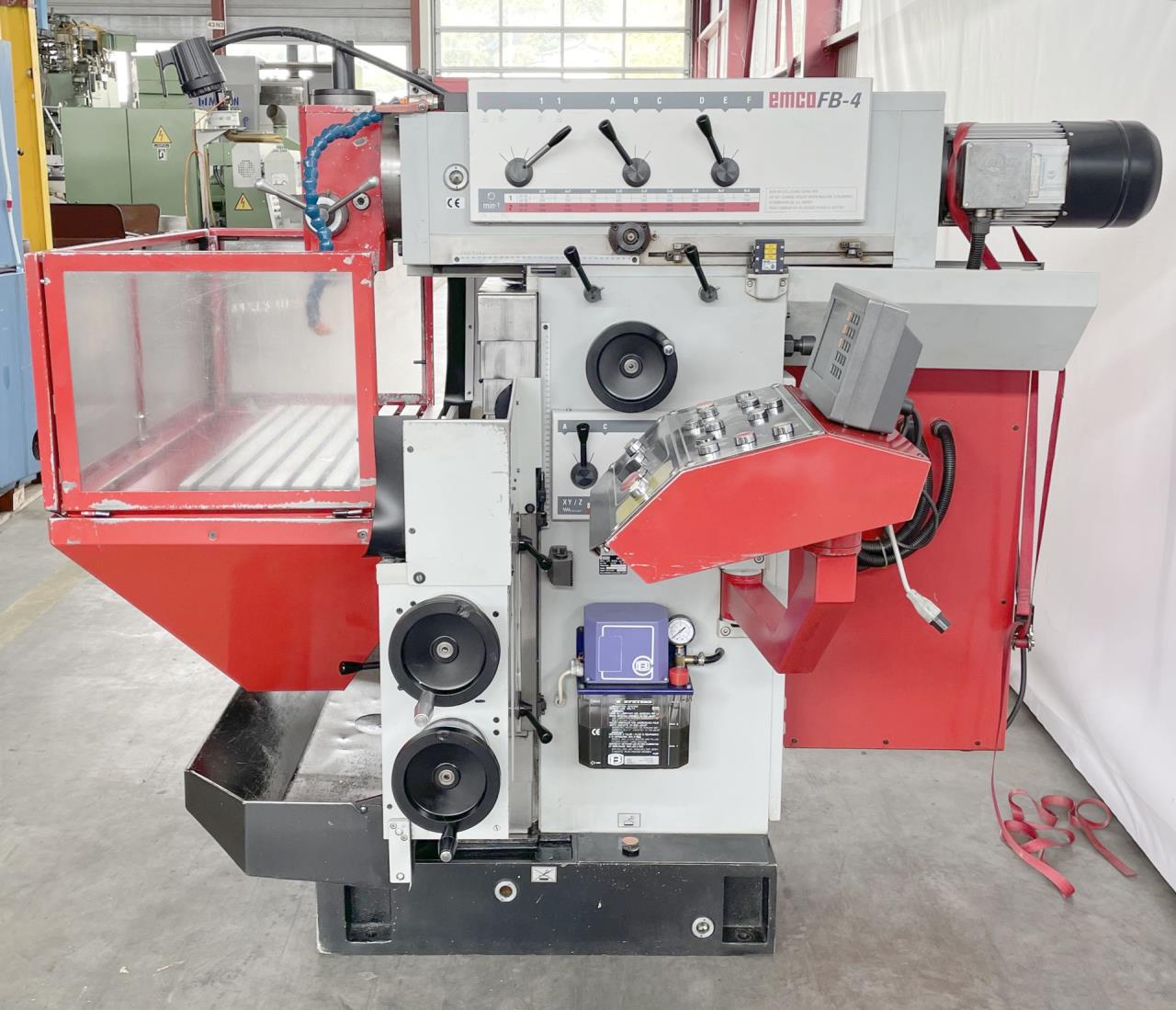

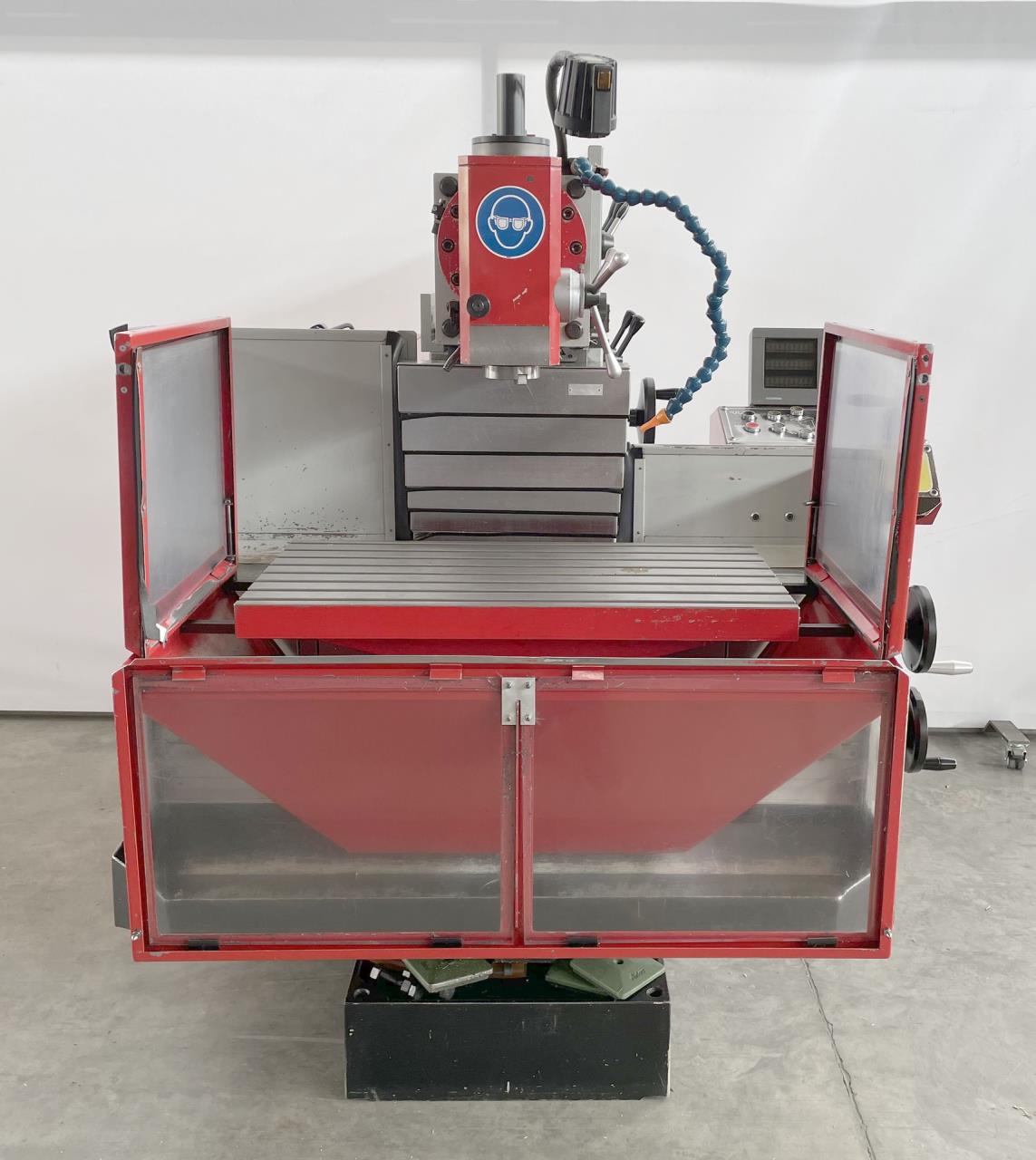

EMCO FB 4
Information request
EMCO FB 4 8 Image(s)
Back
Technical data
Number of axis total
3

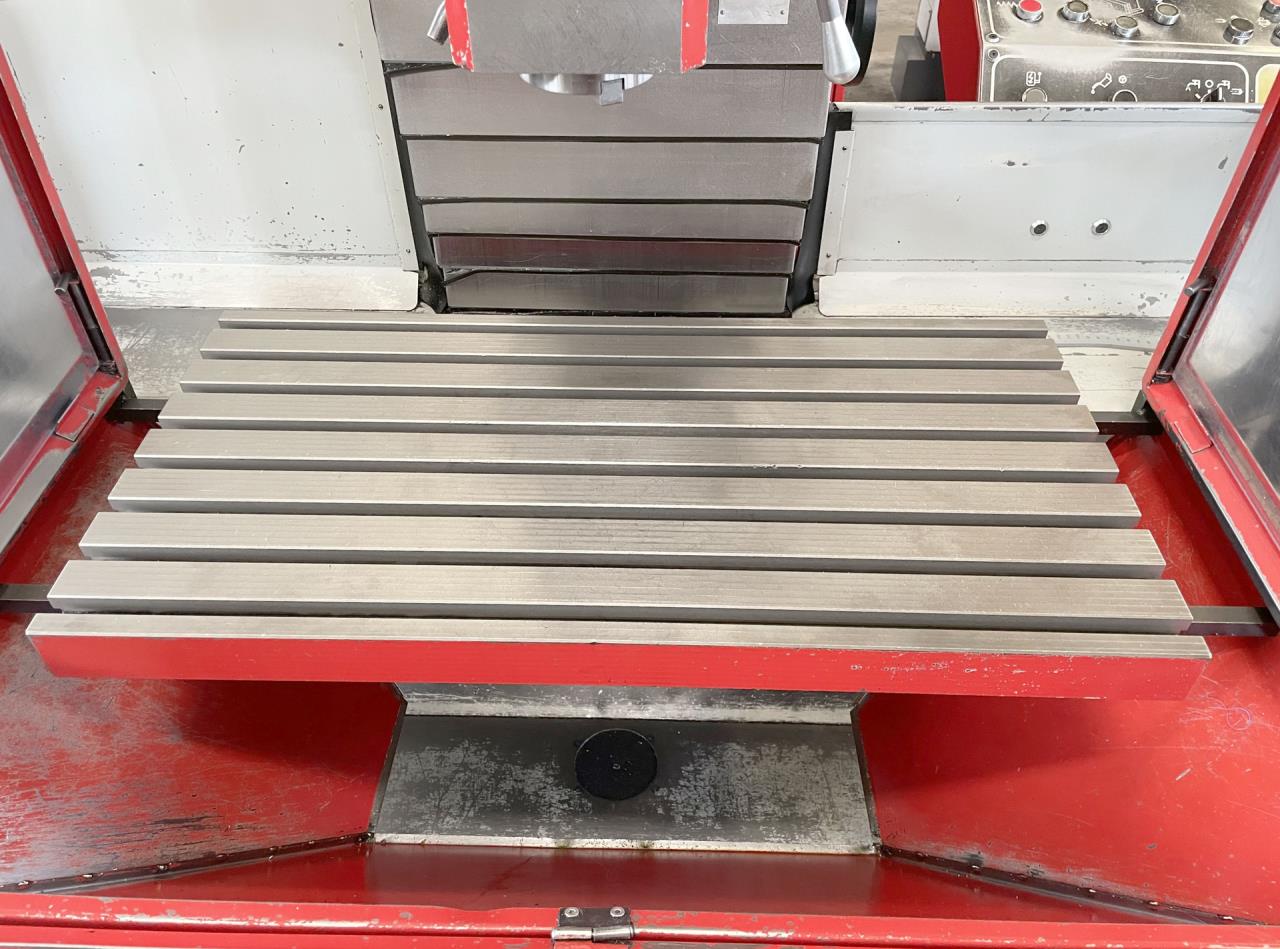

Table length
800 mm
Table width
400 mm
Number of T-channels
8
T-channel width
14H8 mm
Distance of the T-slots
50 mm
Table load max.
300 kg
Longitudinal travel (X-axis)
450 mm
Transversal travel (y axis)
300 mm
Vertical travel (z axis)
350 mm
Distance from vertical
    spindle to table
90 - 400 mm
Distance from horizontal
    spindle to table
140 - 490 mm
Spindle speeds:
    Mechanical gear stages
18
       vertical from
50 rpm
       up to
2500 rpm

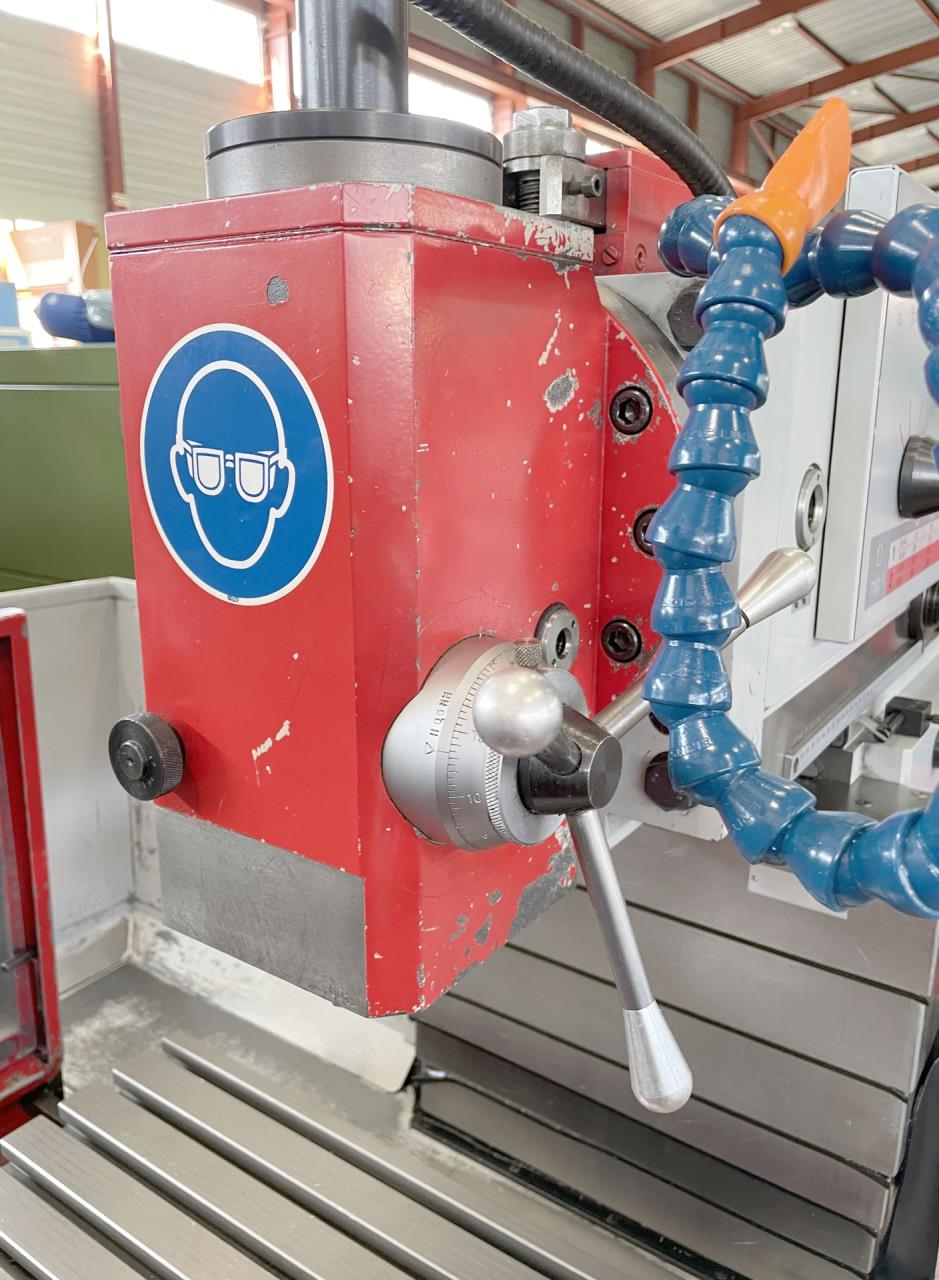

Swivel range Vertical milling head
90 °
Spindle nose SK
40
Feeds:
       longitudinal from
8 mm/min
       up to
400 mm/min
       transversal from
8 mm/min
       up to
400 mm/min
       vertical from
4 mm/min
       up to
200 mm/min
Rapid traverse: long.
2.4 m/min
Rapid traverse: transversal
2.4 m/min
Rapid traverse: vertical
1.2 m/min
Vertical quill travel
100 mm
Drill capacity in steel
30 mm
Threat cutting in steel M
12
Milling capacity in steel
48 cm3/min
Voltage 50 Hz 3x
400 Volt
Total power required
4 kVA
Noise level
77 dB (A)
Machine's weight about
1500 kg
Overall dimensions machine:
Length
1485 mm
Width
1475 mm
Height
1680 mm
Various accessories:

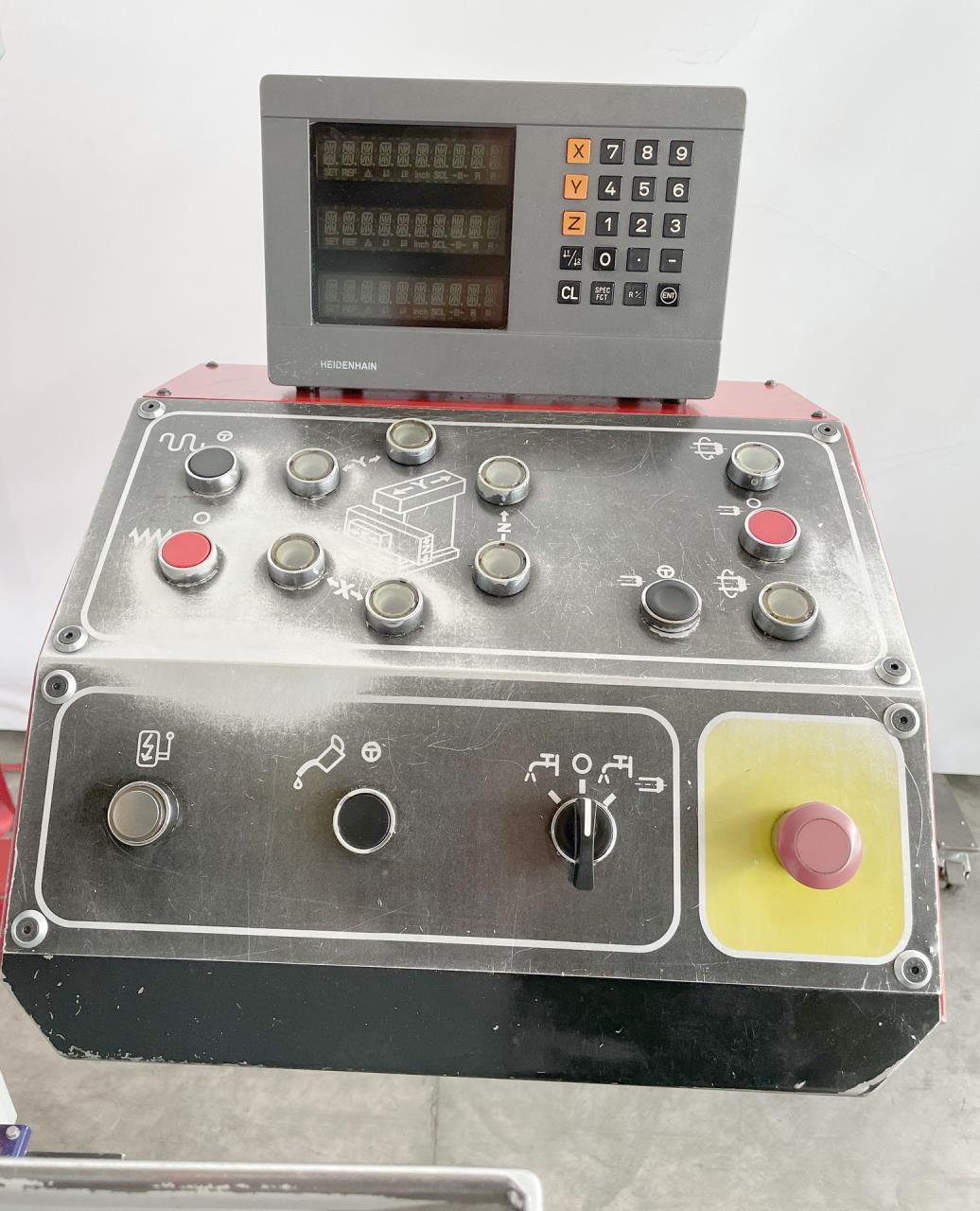

Digital readout number of axis:
3
Mechanical handwheels

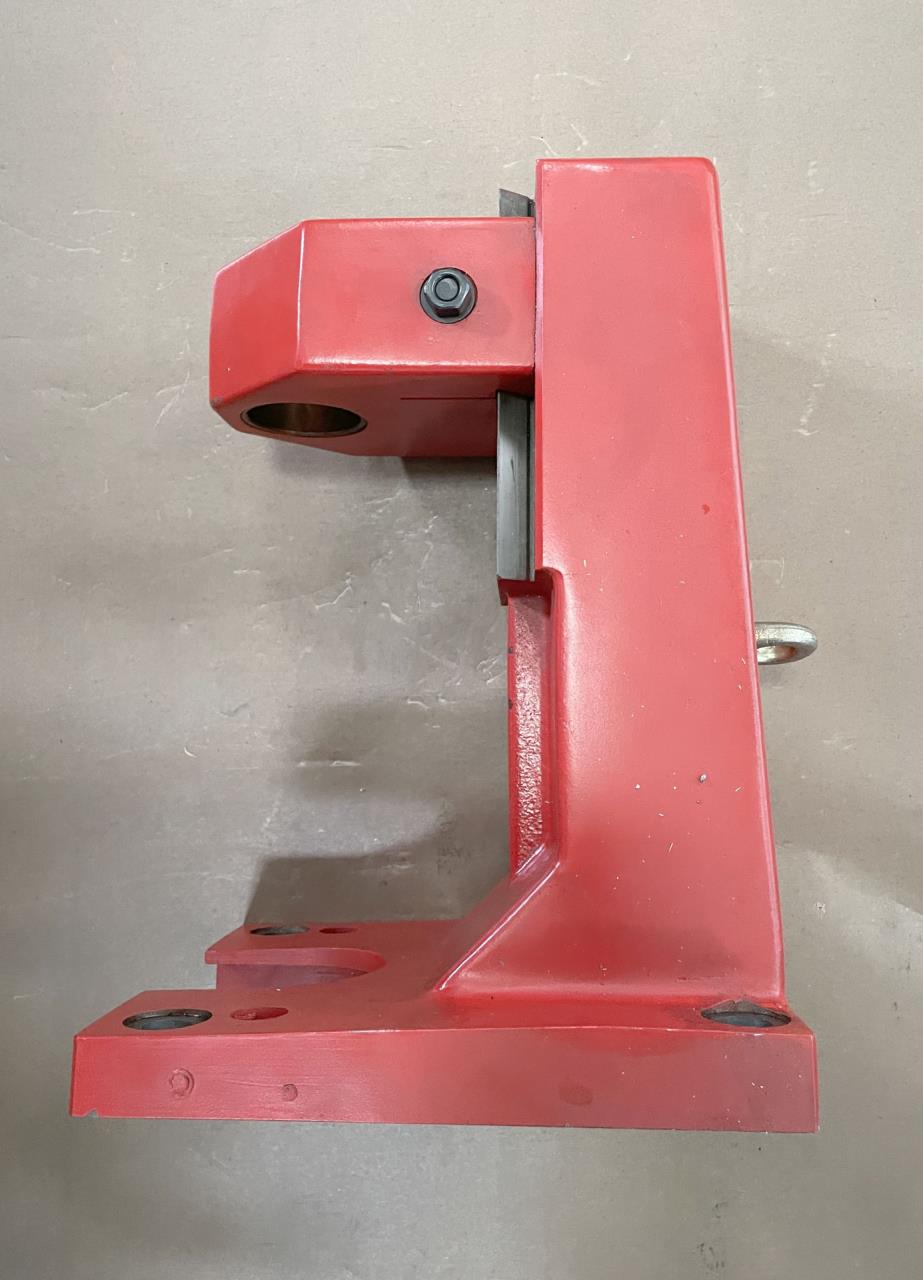

Steady

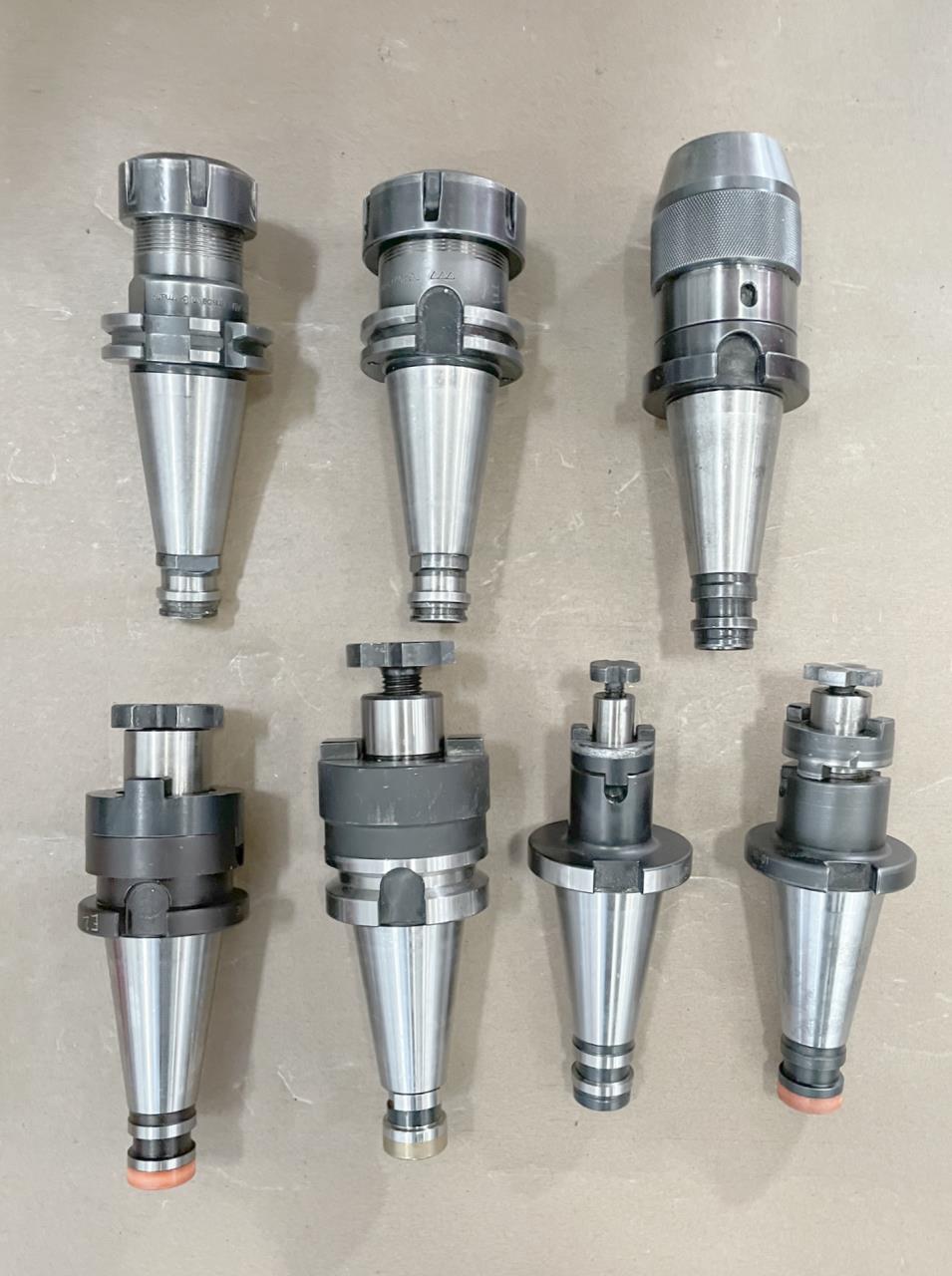

Set of toolholders
Set of milling cutters
Coolant system
Machine lamp
Drill chuck

Technical specifications and pictures without guarantee.
