stock no. :
21942
Machine's group :
Jig boring machine
Type :
HAUSER 3 BA
Information request
HAUSER 3 BA 10 Image(s)
Back
Technical data
Table length
550 mm
Table width
320 mm
Number of T-channels
6
T-channel width
10 mm
Distance of the T-slots
40 mm
Table load max.
400 kg
Longitudinal travel (X-axis)
400 mm
Transversal travel (y-axis)
250 mm
Vertical travel (z axis)
400 mm
Drill capacity in steel
20 mm
Taper in spindle: MT
2
Stroke of drilling spindle (Z-axis)
130 mm
Bore diameter max.
75 mm
Distance table to spindle
590 mm
    Spindle speeds:
    stepless
       from
60 rpm
       up to
3000 rpm
Feeds:
Drill spindle slide:
       number (steps)
2
       from
0.03 mm/r
       up to
0.06 mm/r
Voltage 50 Hz 3x
380 Volt
Spindle motor
0.80 HP
Machine's weight about
1100 kg
Overall dimensions machine:
    Length
1200 mm
    Width
1150 mm
    Height
1750 mm

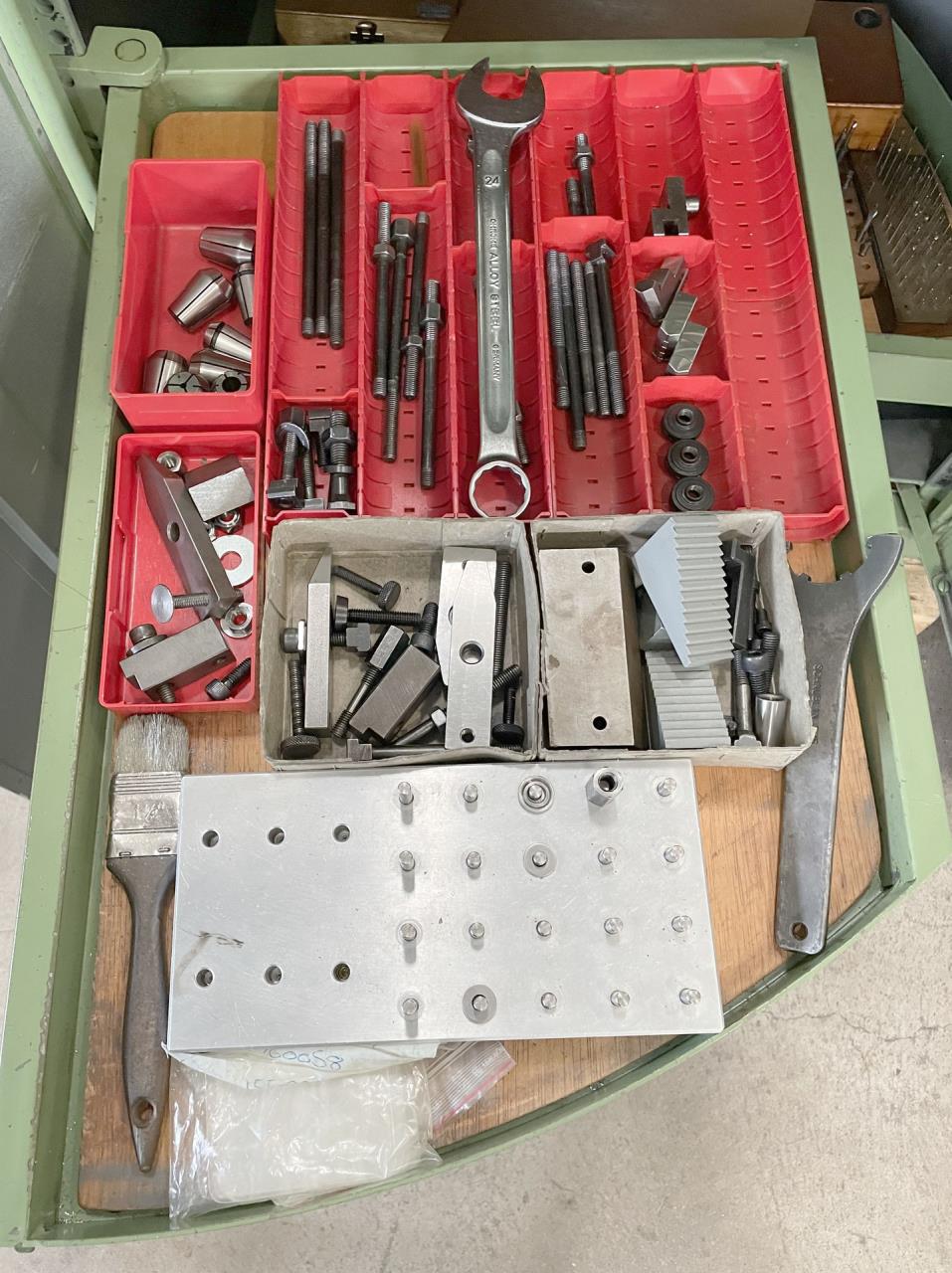

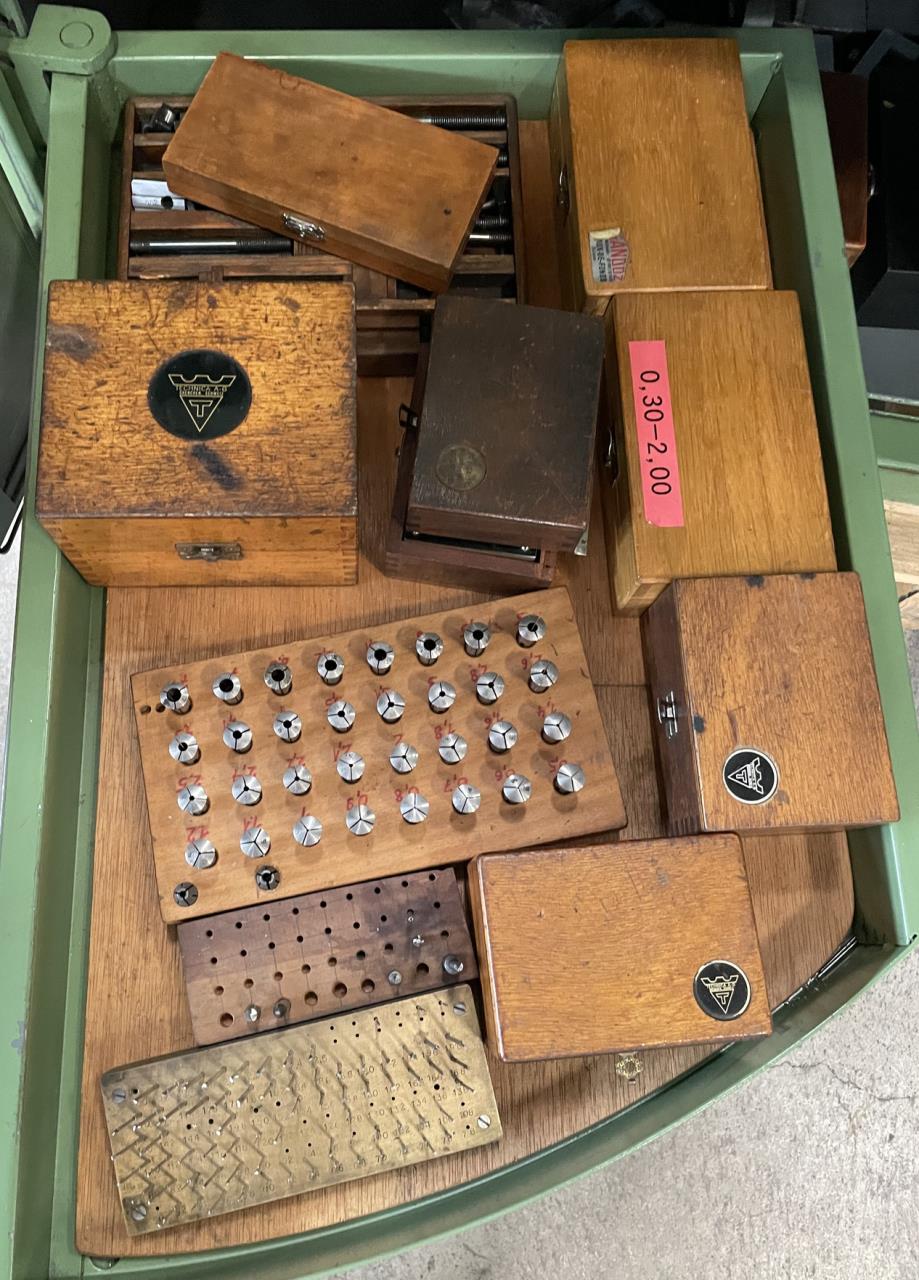

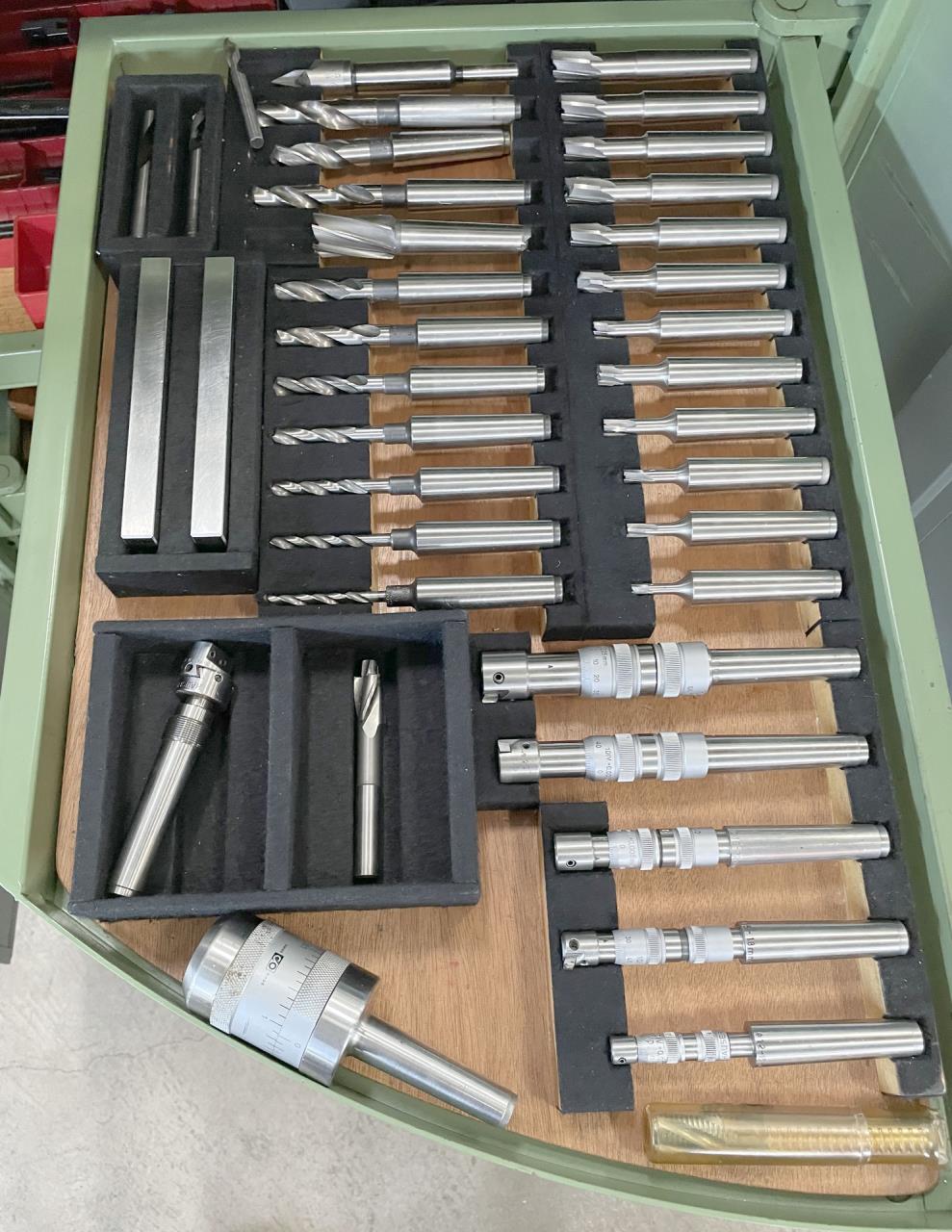

Various accessories:

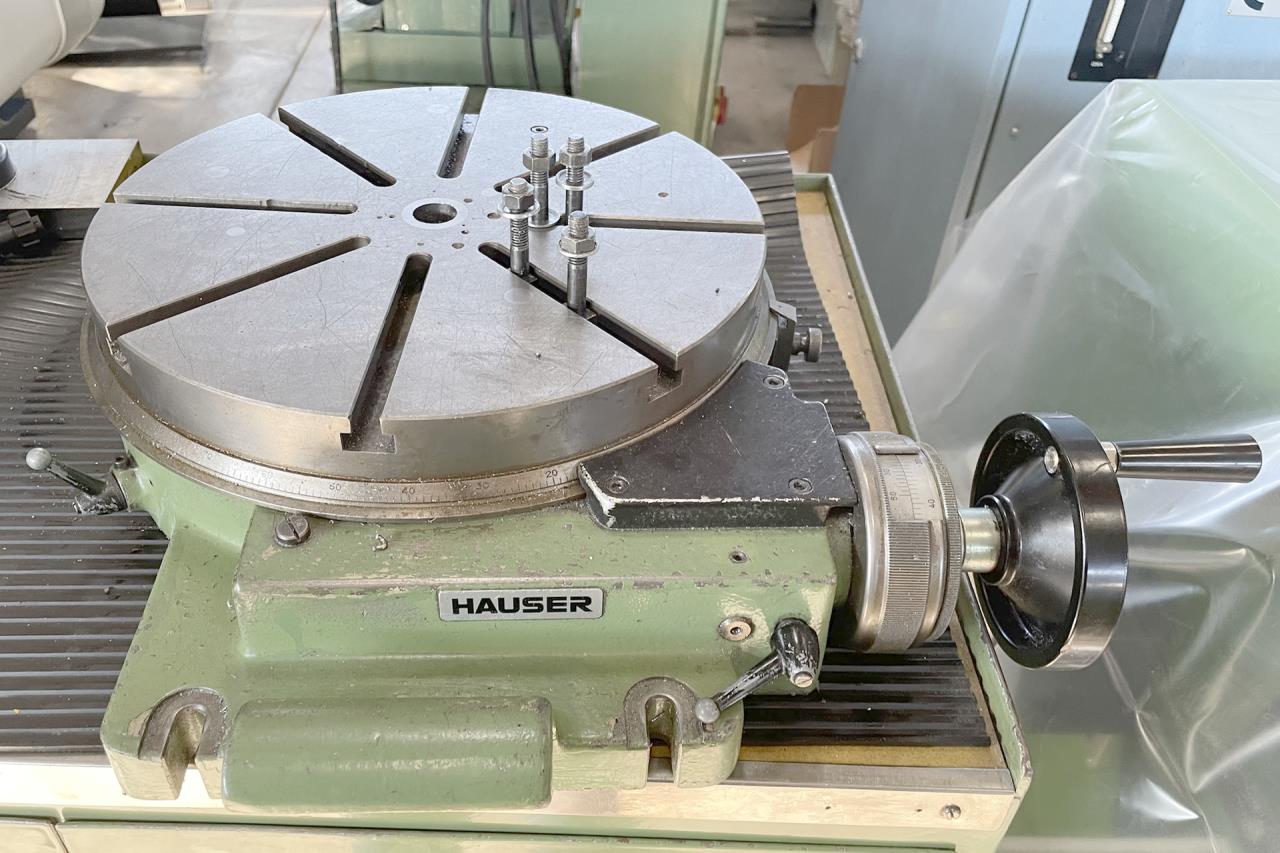

Rotary table diameter
300 mm

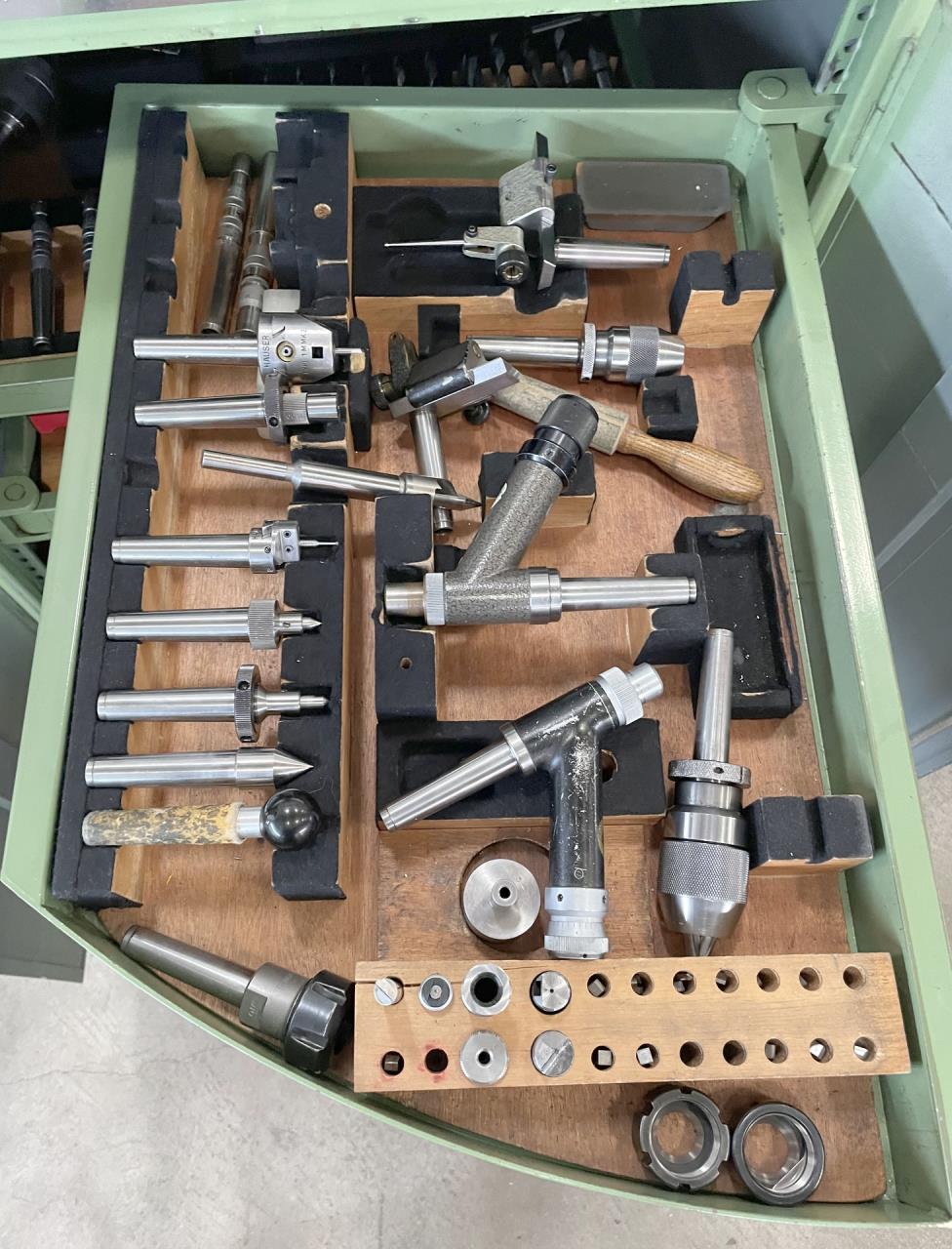

Drill chuck
Set of drill chucks
Centering microscop
Lamp

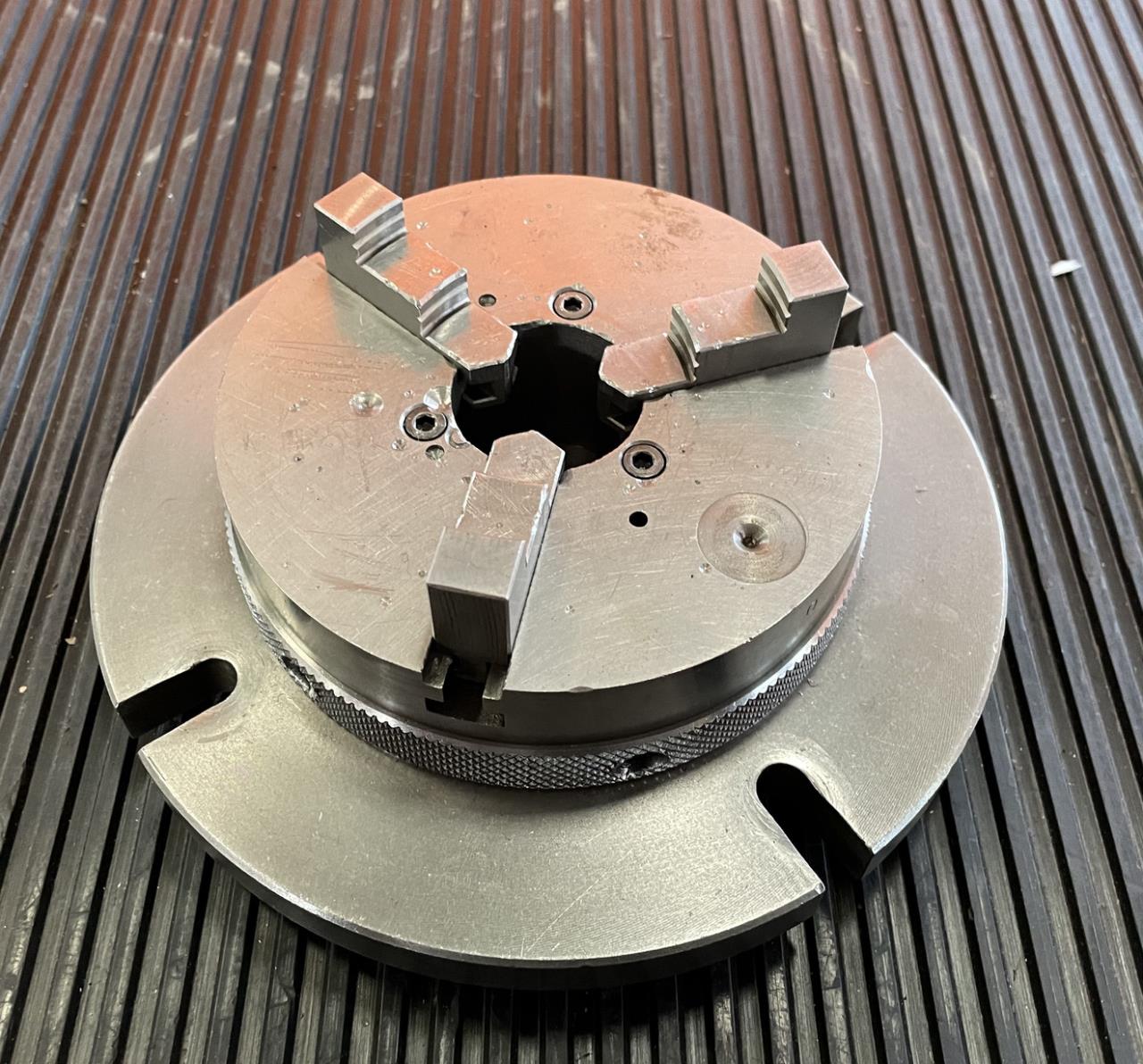

3-jaw chuck diameter
mm

Technical specifications and pictures without guarantee.
