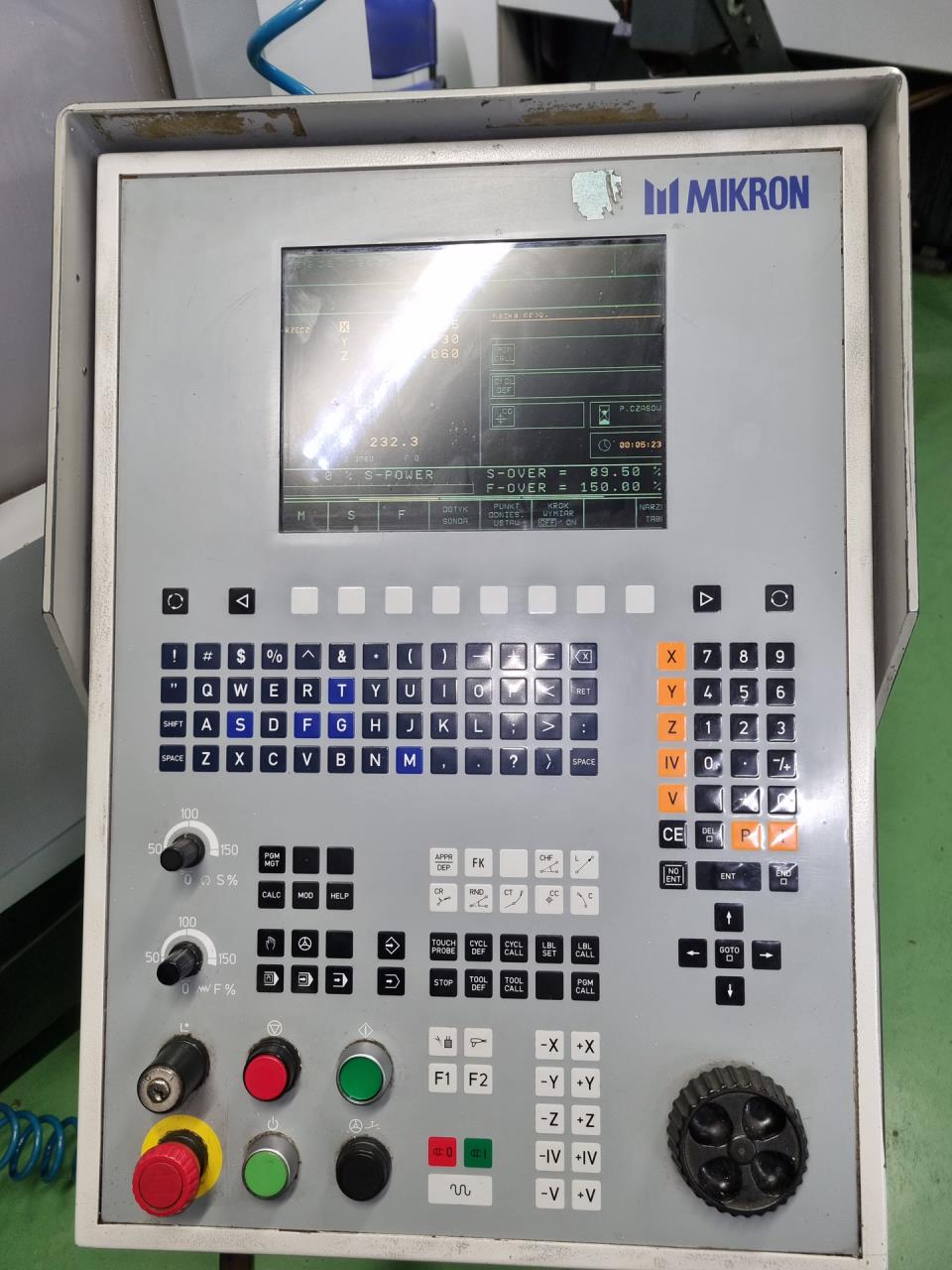

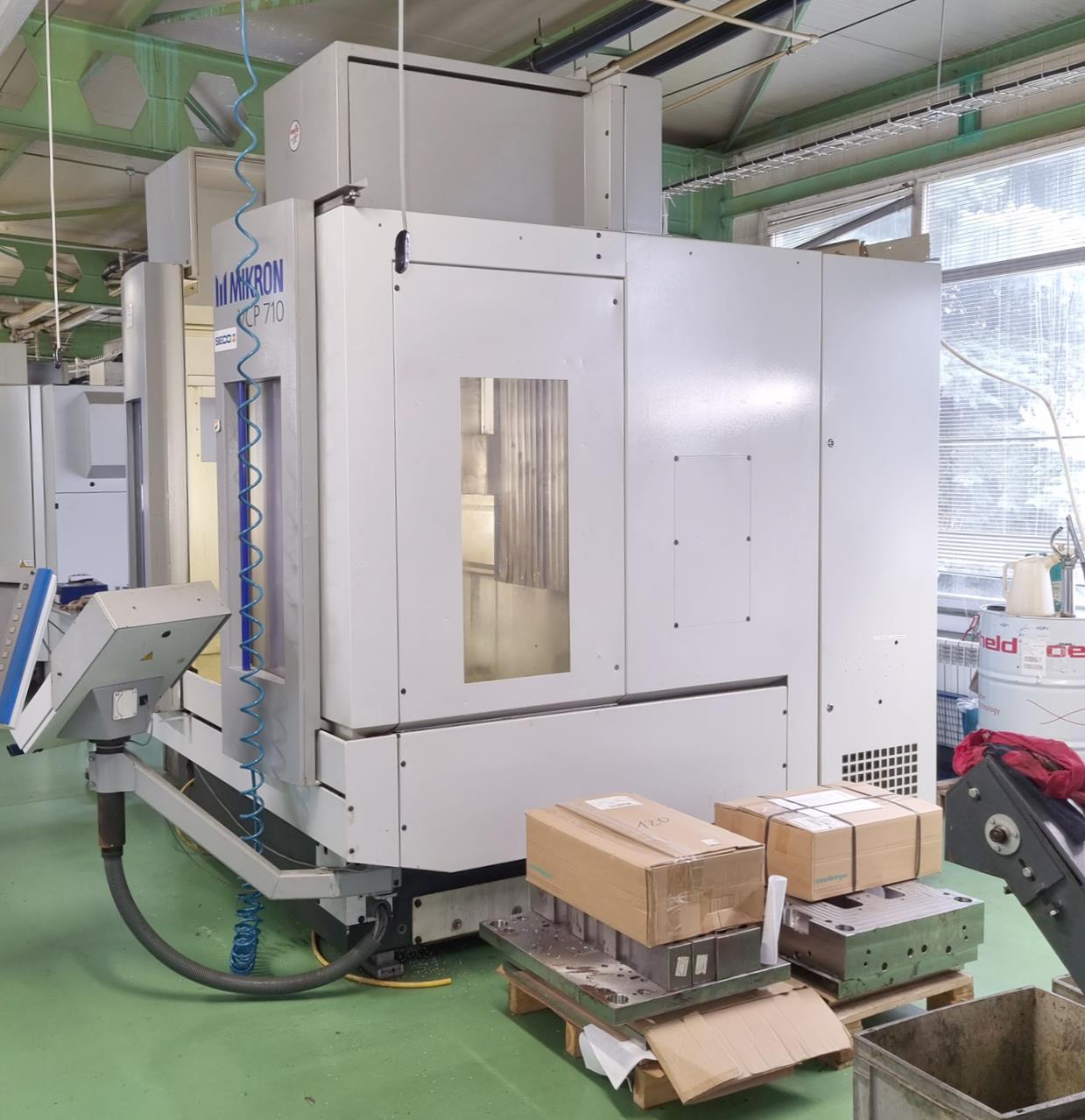

Technical data
Number of axis total
3
Table length
900 mm
Table width
600 mm
Longitudinal travel (X-axis)
710 mm
Transversal travel (y-axis)
550 mm
Vertical travel (z axis)
500 mm
Table load max.
1600 kg
Tool changer:
Number of tools
30
Tool diameter
90 mm
Diameter with free adjacent pockets
140 mm
Tool lenght
300 mm
Max. tool-weight
8 kg
Time of tool changing
5 sec
Spindle nose: ISO
B40
Spindle speeds:
from
100 rpm
up to
12000 rpm
Feeds:
stepless
longitudinal from
1 mm/min
up to
15000 mm/min
transversal from
1 mm/min
up to
15000 mm/min
vertical from
1 mm/min
up to
1 mm/min
Feed range
10000 mm/min
Rapid traverse: long.
30 m/min
Rapid traverse: transversal
30 m/min
Rapid traverse: vertical
20 m/min
Voltage 50 Hz 3x
400 Volt
Spindle motor
12 kW
Total power required
40 kW
Noise level
75 dB (A)
Machine's weight about
10000 kg
Overall dimensions machine:
Length
3085 mm
Width
2270 mm
Height
3055 mm
Various accessories:
Coolant system

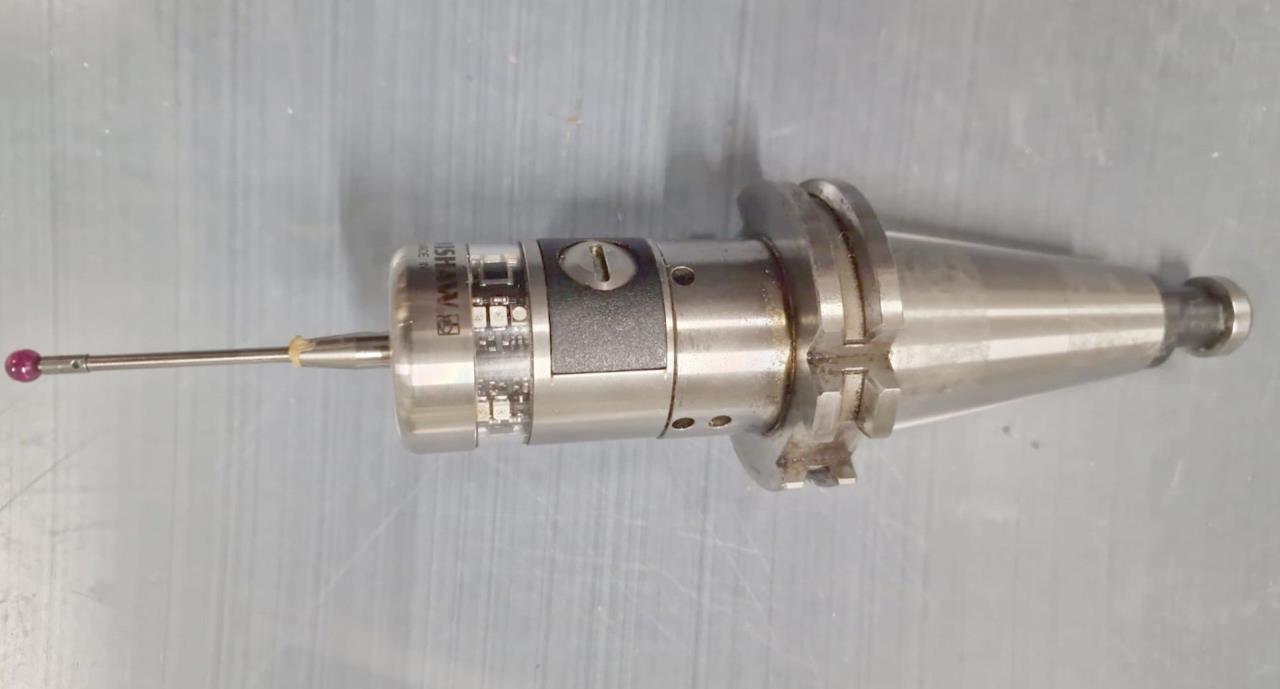

Touch Probe Renishaw
Chip conveyor
Lamp
Technical specifications and pictures without guarantee.
