Technical data
Table length
155 mm
Table width
205 mm
X axis
490 mm
Y axis
130 mm
Spindle inclination (A-axis)
-10 / +27 °
B axis swivelling range
260 °
Oscillation size
0 - 70 mm
Oscillation
30 / 60 min-1
Grinding spindle speeds:
stepless
from
1000 rpm
up to
8000 rpm
Workpiece carriage:
Radius adjustment (Z-axis)
0 - 115 mm
Adjustment accuracy of the Z axis
0.01 mm

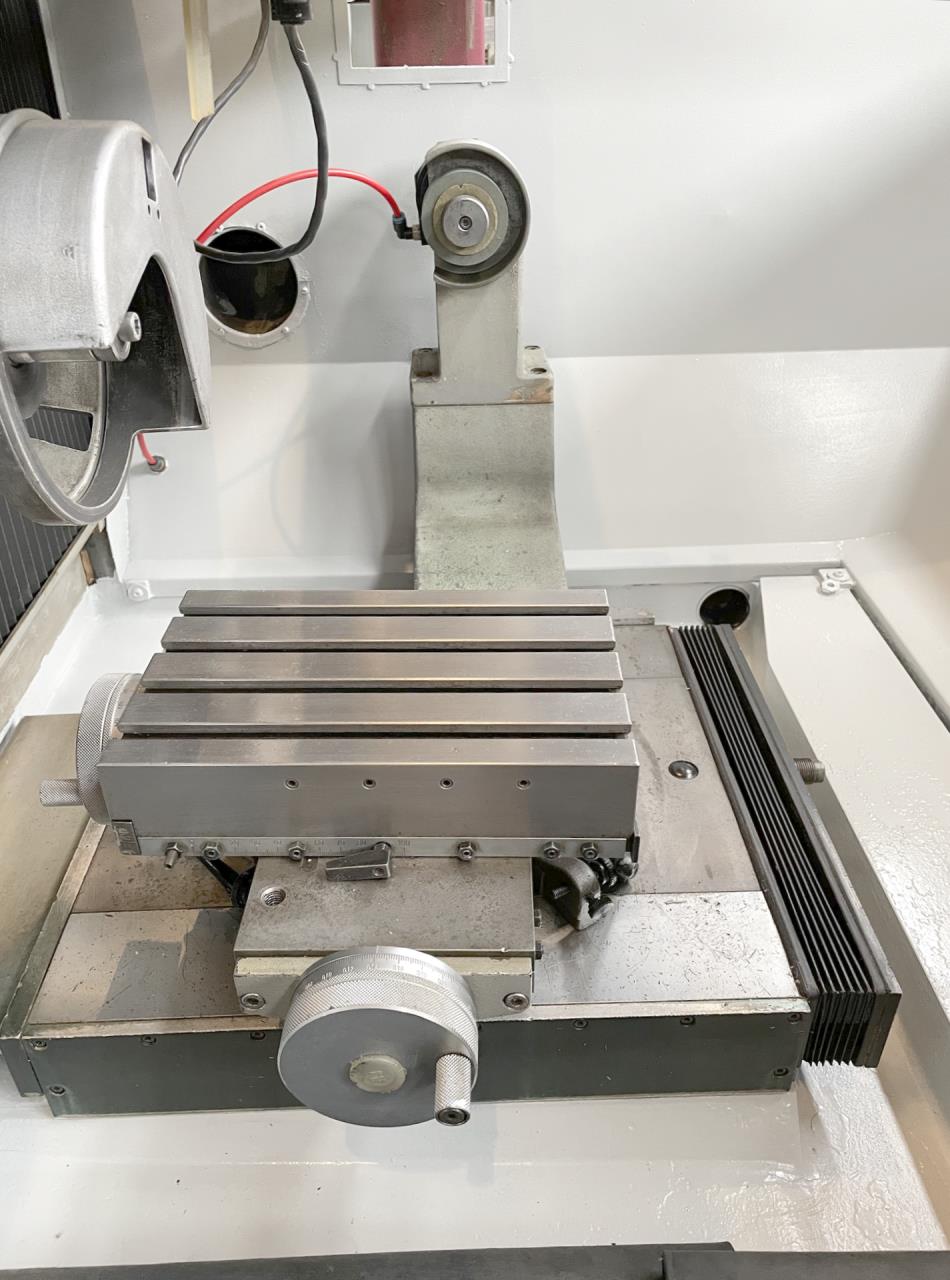

Cross table clamping surface
155 x 205 mm
Courses support
60 mm
Pneumatic swivel lock
40 Nm
Contact pressure variable
0 - 400 N
Voltage 50 Hz 3x
400 Volt
Grinding spindle motor
2.2 kW
Total power required
5 kVA
Machine's weight about
1800 kg
Overall dimensions machine:
Length
1630 mm
Width
1250 mm
Height
1900 mm

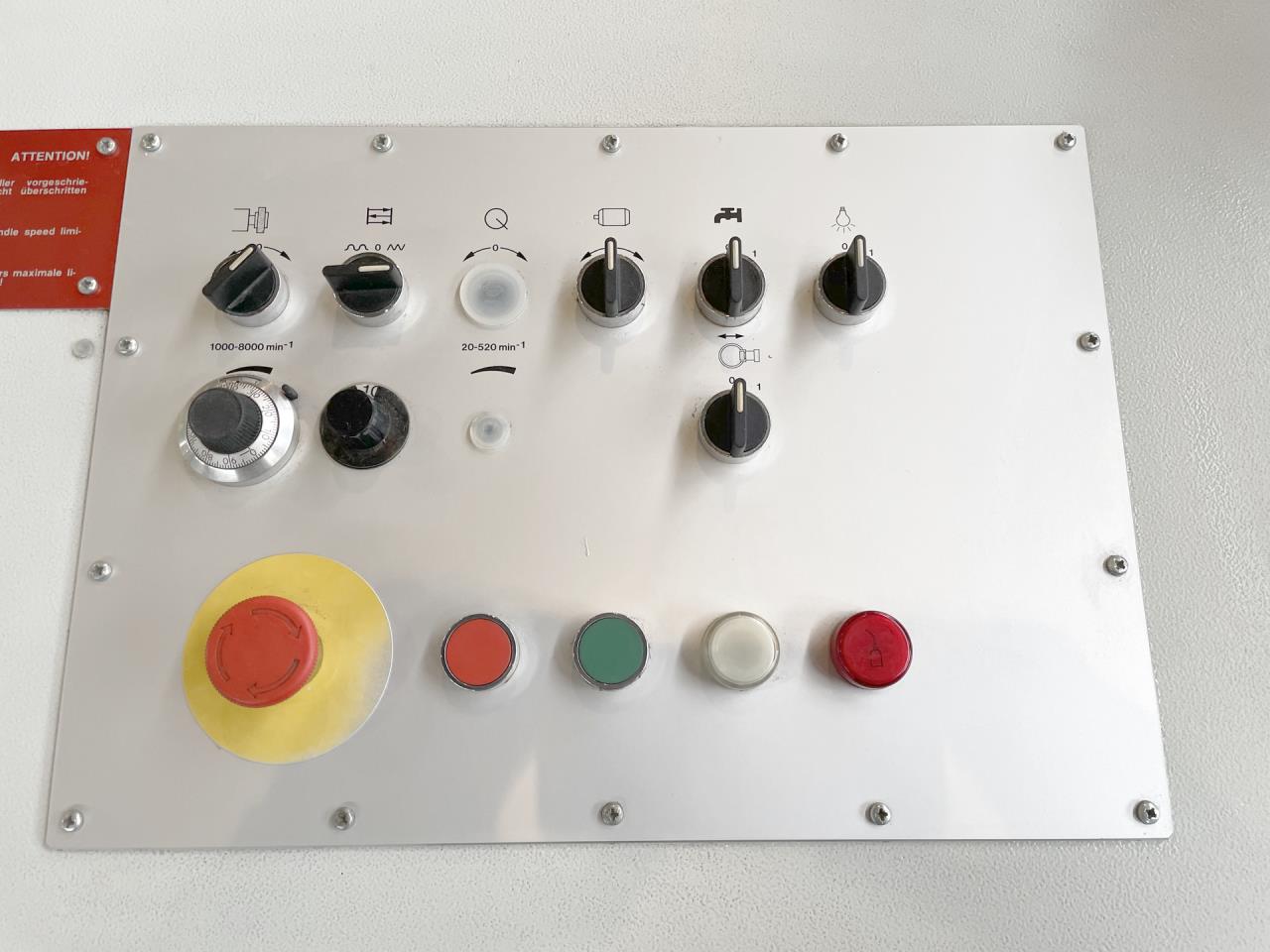

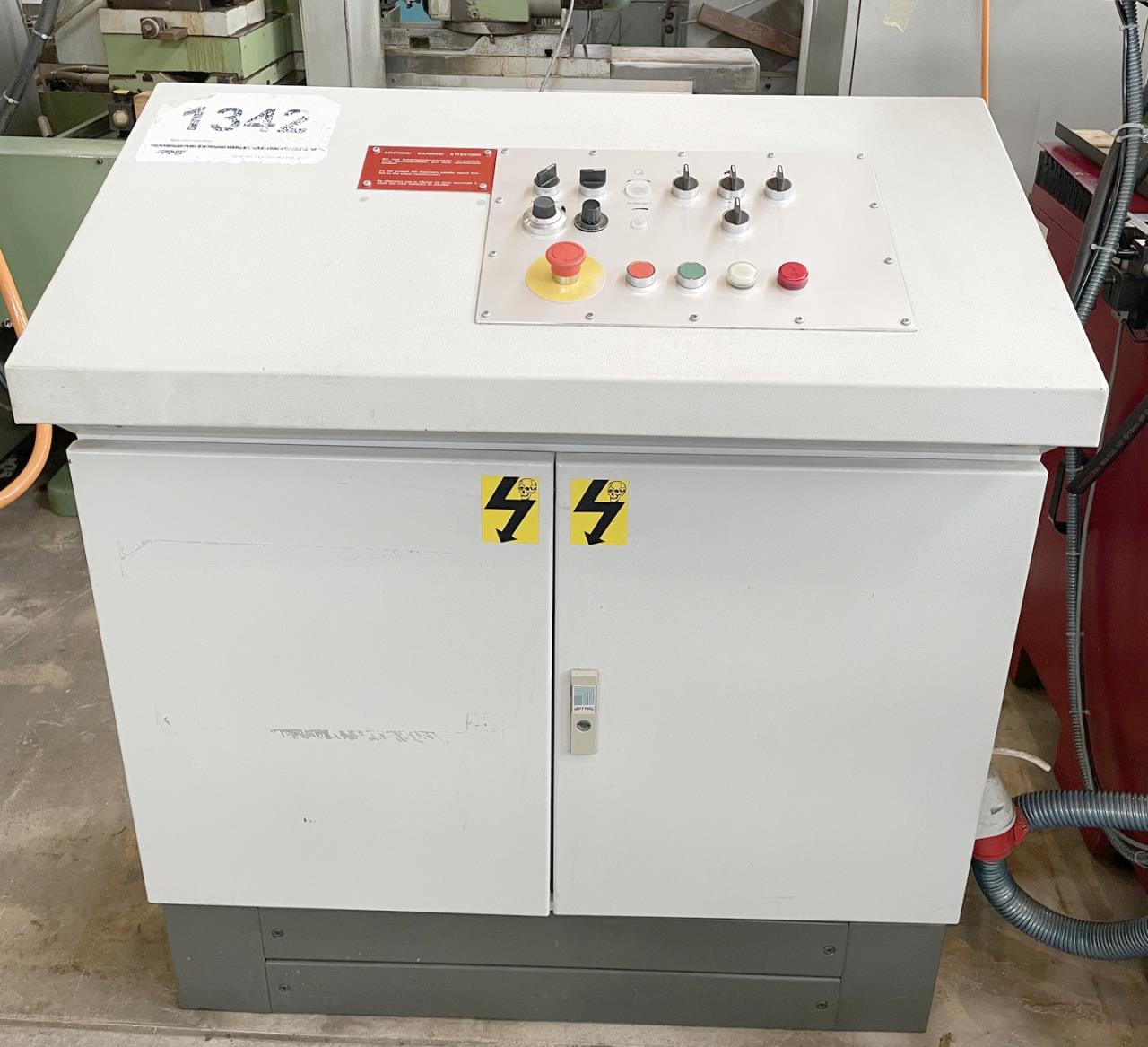

Dimensions of the control:
Length
1000 mm
Width
400 mm
Height
960 mm
Various accessories:

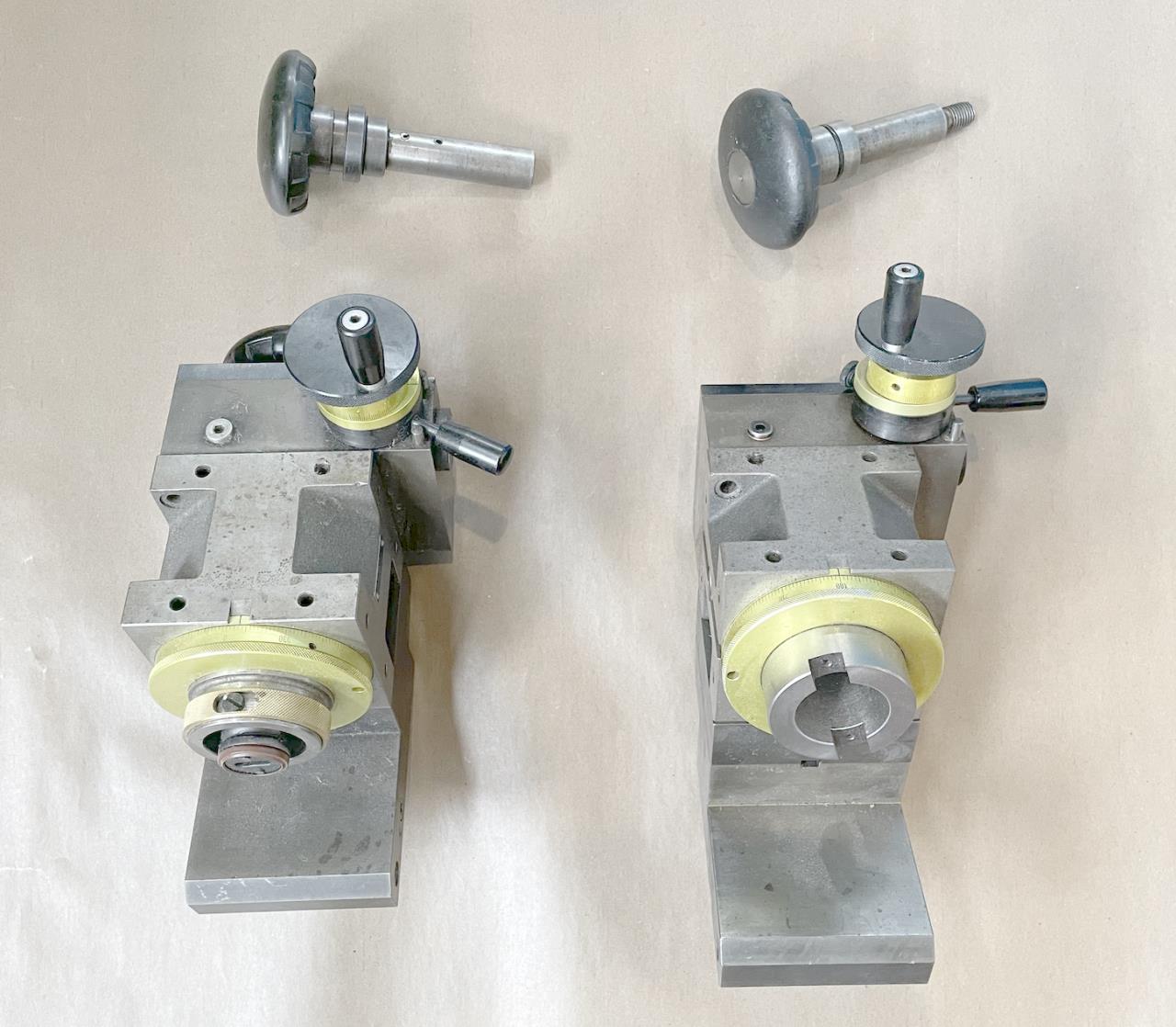

Dividing attachment
2x
Coolant system

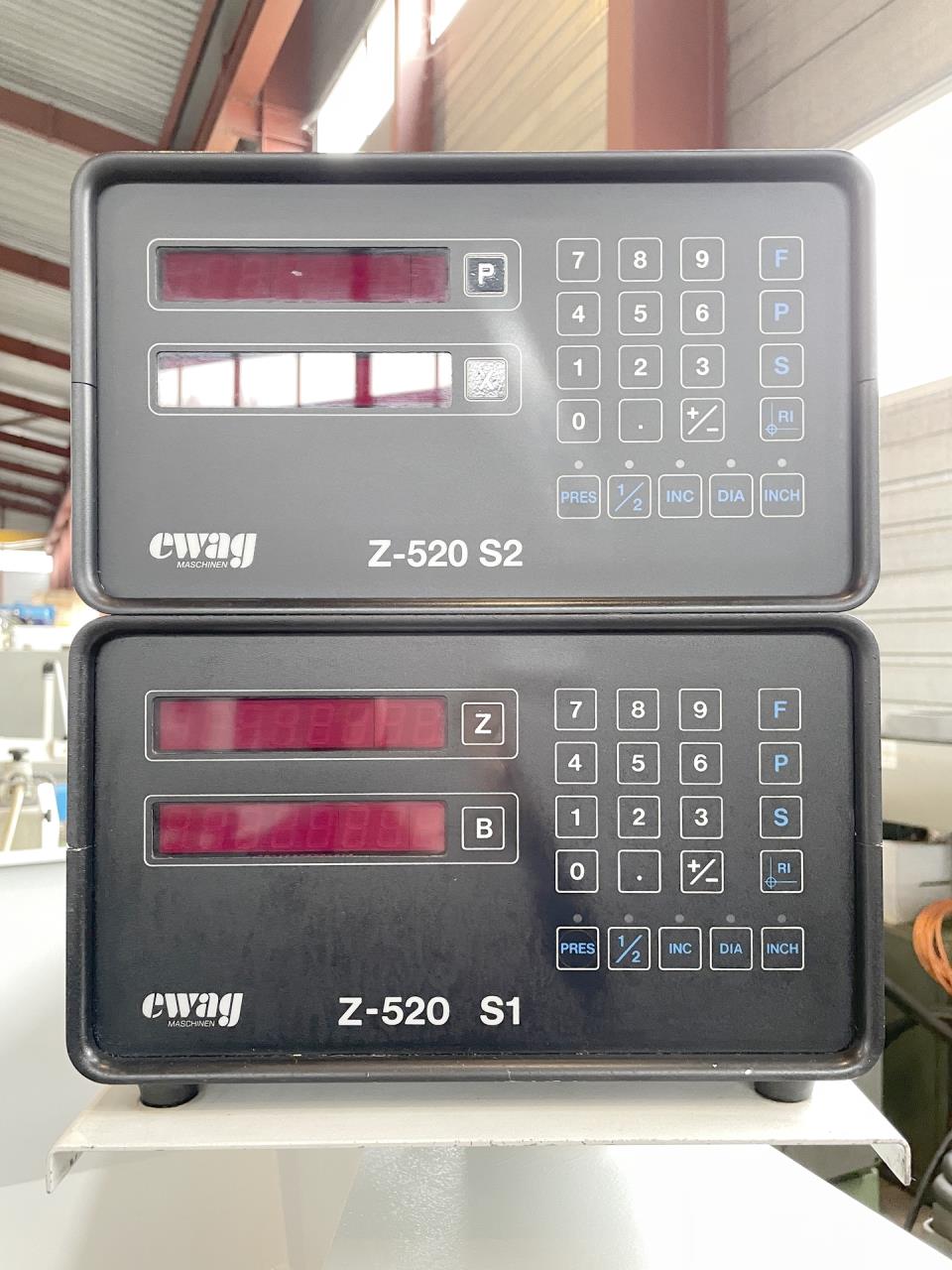

Digital readout number of axis:
3
Redressing device

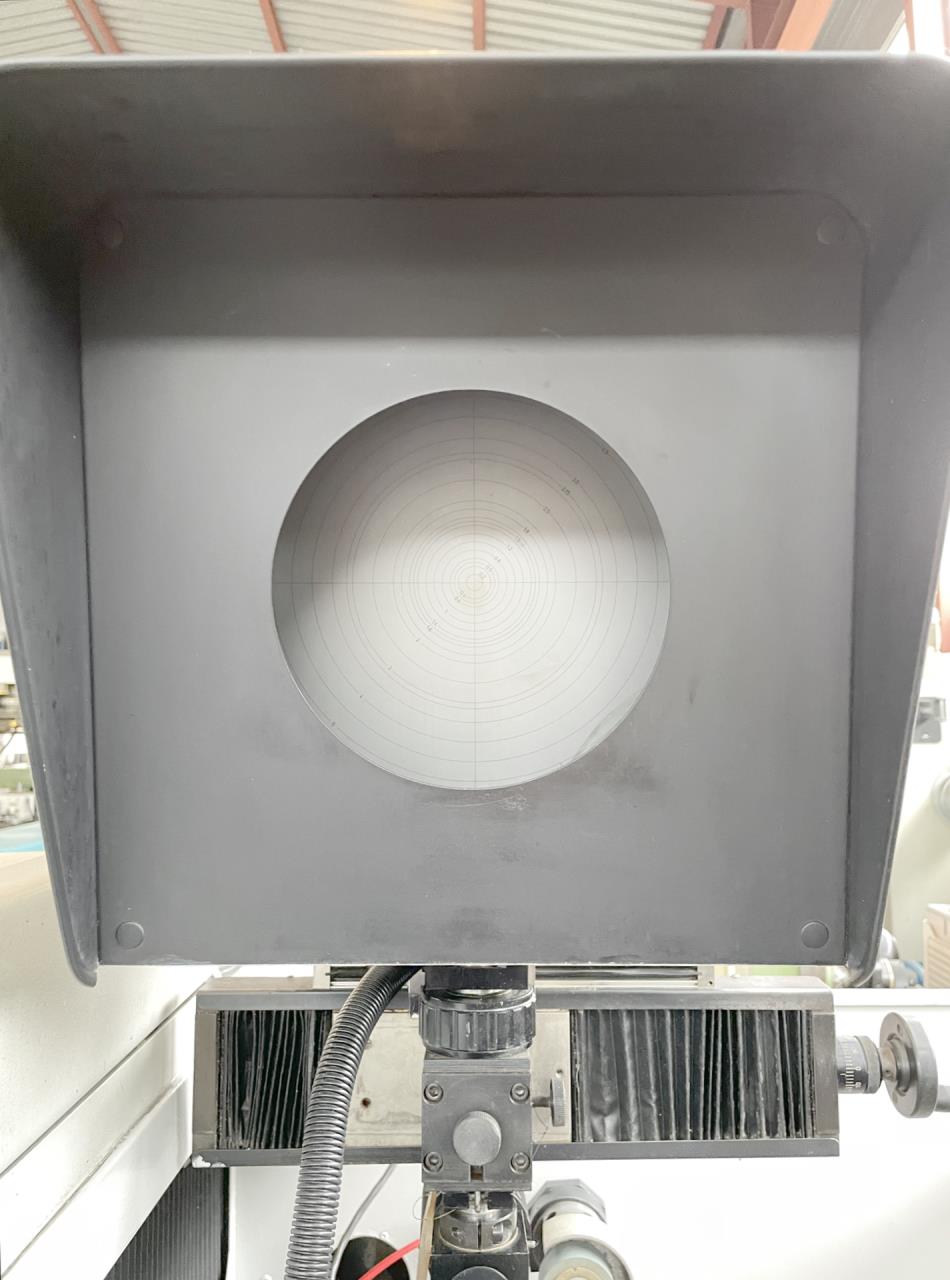

Adjustable projector

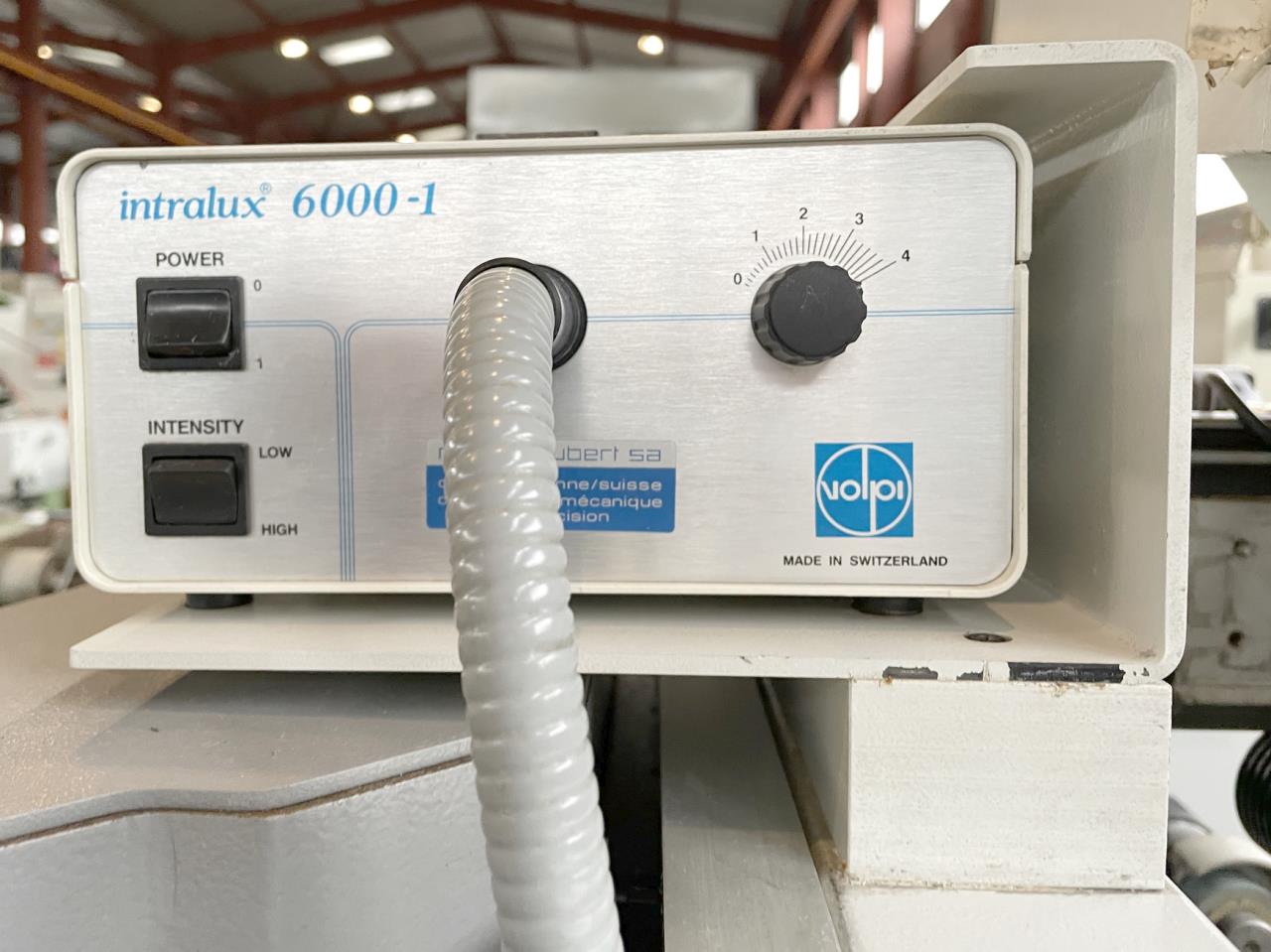

Cold light
Central lubrification
Technical specifications and pictures without guarantee.
