stock no. :
21694
Machine's group :
Machining center
Type :
CHIRON FZ 18 L
Controller :

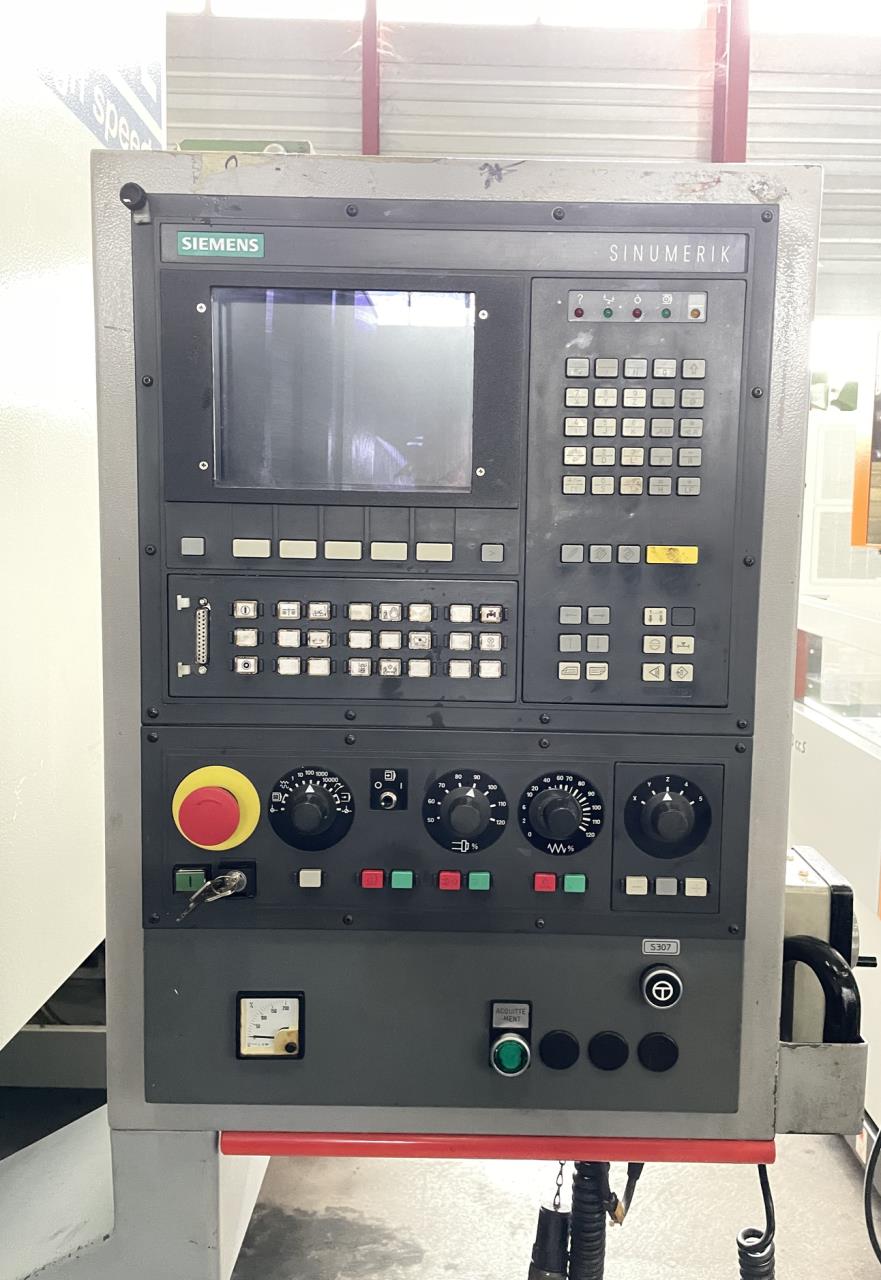

SIEMENS SINUMERIK 810 M
Information request Video
CHIRON FZ 18 L 5 Image(s)
Back
Technical data
Number of axis total
3

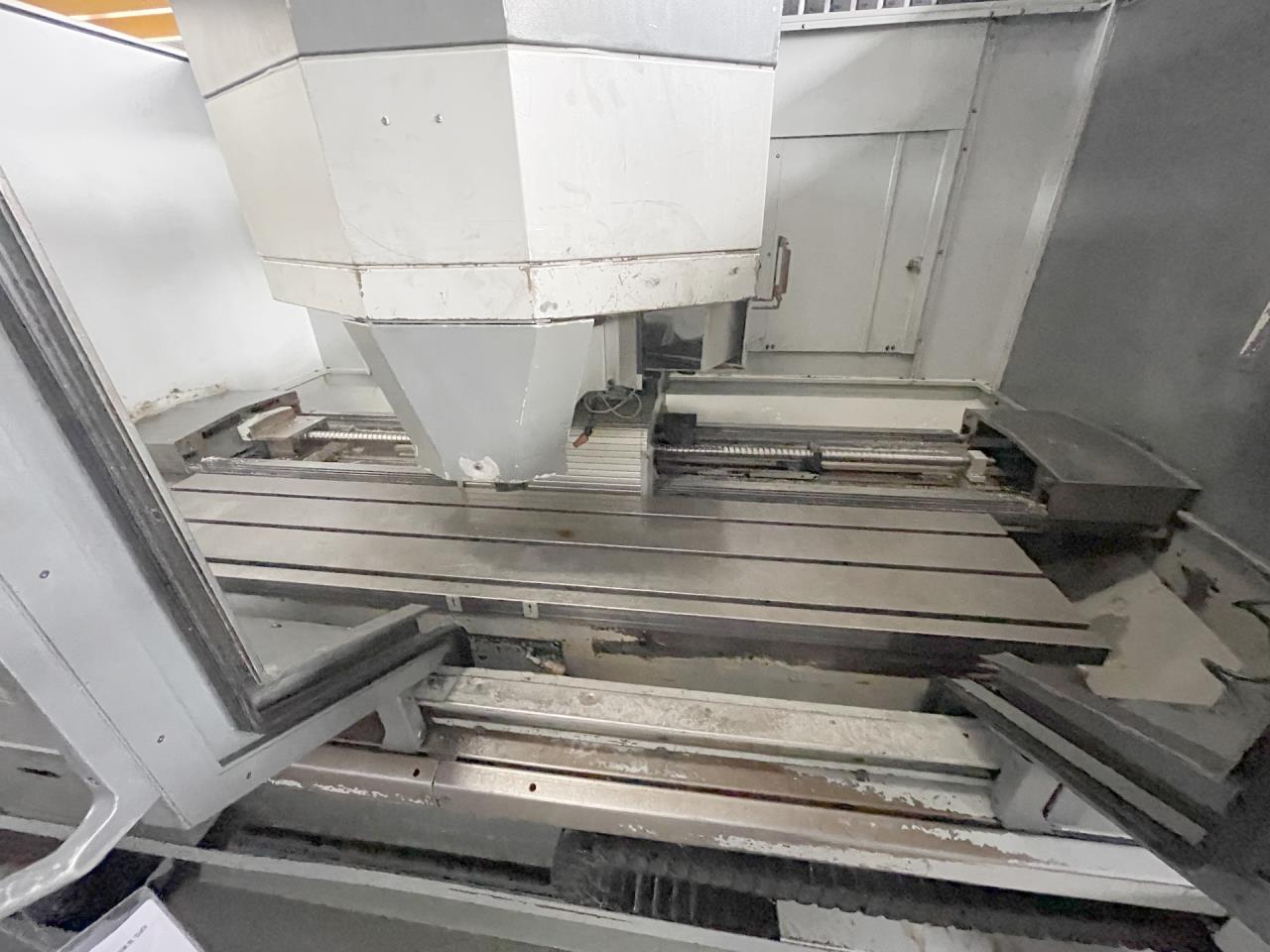

Table length
2280 mm
Table width
450 mm
Number of T-channels
3
Distance of the T-slots
150 mm
T-channel width
18 mm
Longitudinal travel (X-axis)
2000 mm
Transversal travel (y-axis)
400 mm
Vertical travel (z axis)
425 mm
Tool changer:
    Number of tools
20
    Tool diameter
65 mm
    Diameter with free adjacent pockets
180 mm
    Tool lenght
220 mm
    Max. tool-weight
8 kg
Spindle nose SK
40 DIN 69871
Vertical spindle speeds:
    stepless
       from
20 rpm
       up to
10500 rpm
Feeds:
Air connect
6 bar
Voltage 50 Hz 3x
400 Volt
Spindle motor
18 kW
Total power required
31 kVA
Machine's weight about
7200 kg
Overall dimensions machine:
    Length
4000 mm
    Width
3010 mm
    Height
3040 mm
Various accessories:
Coolant system

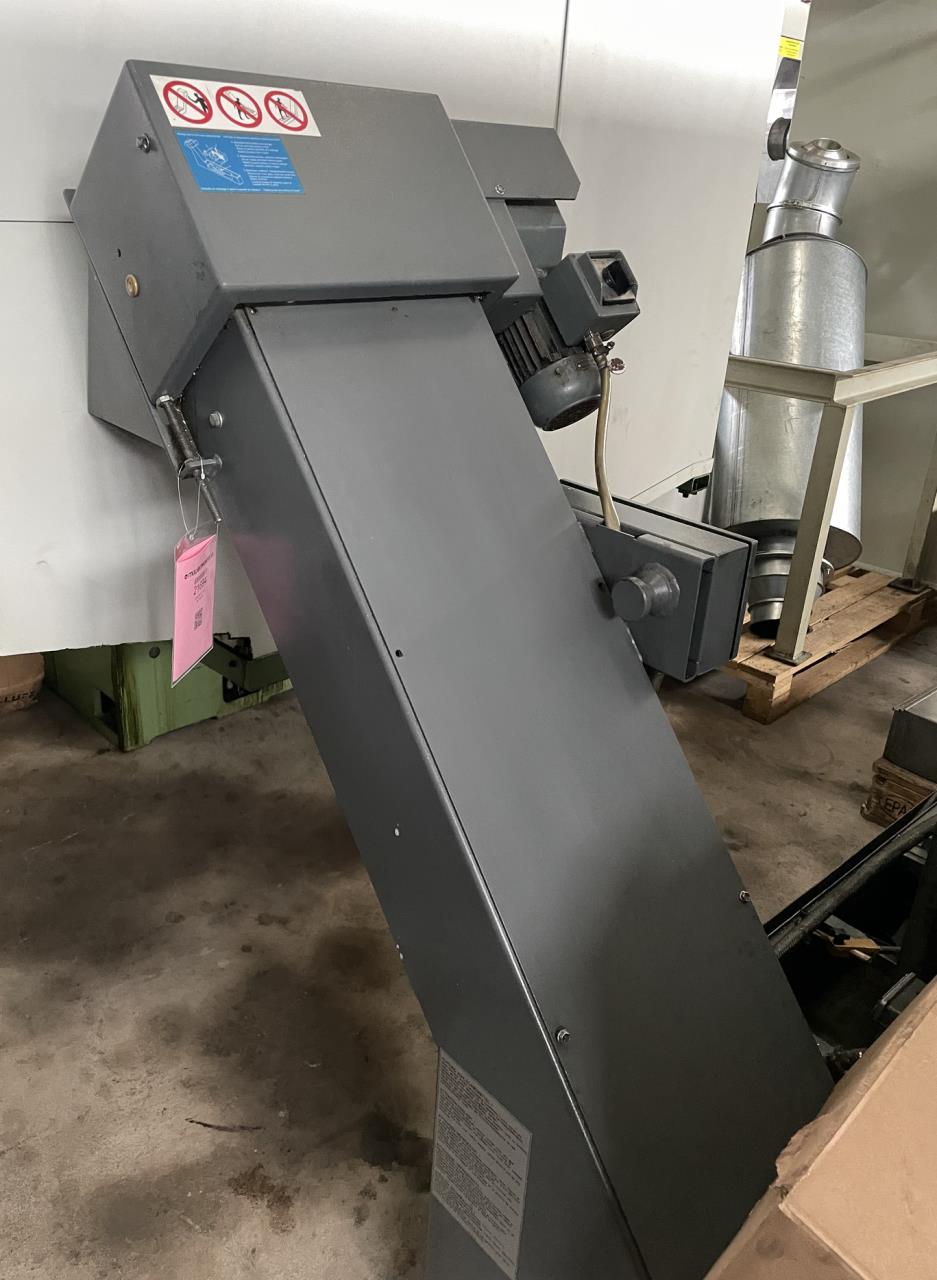

Chip conveyor

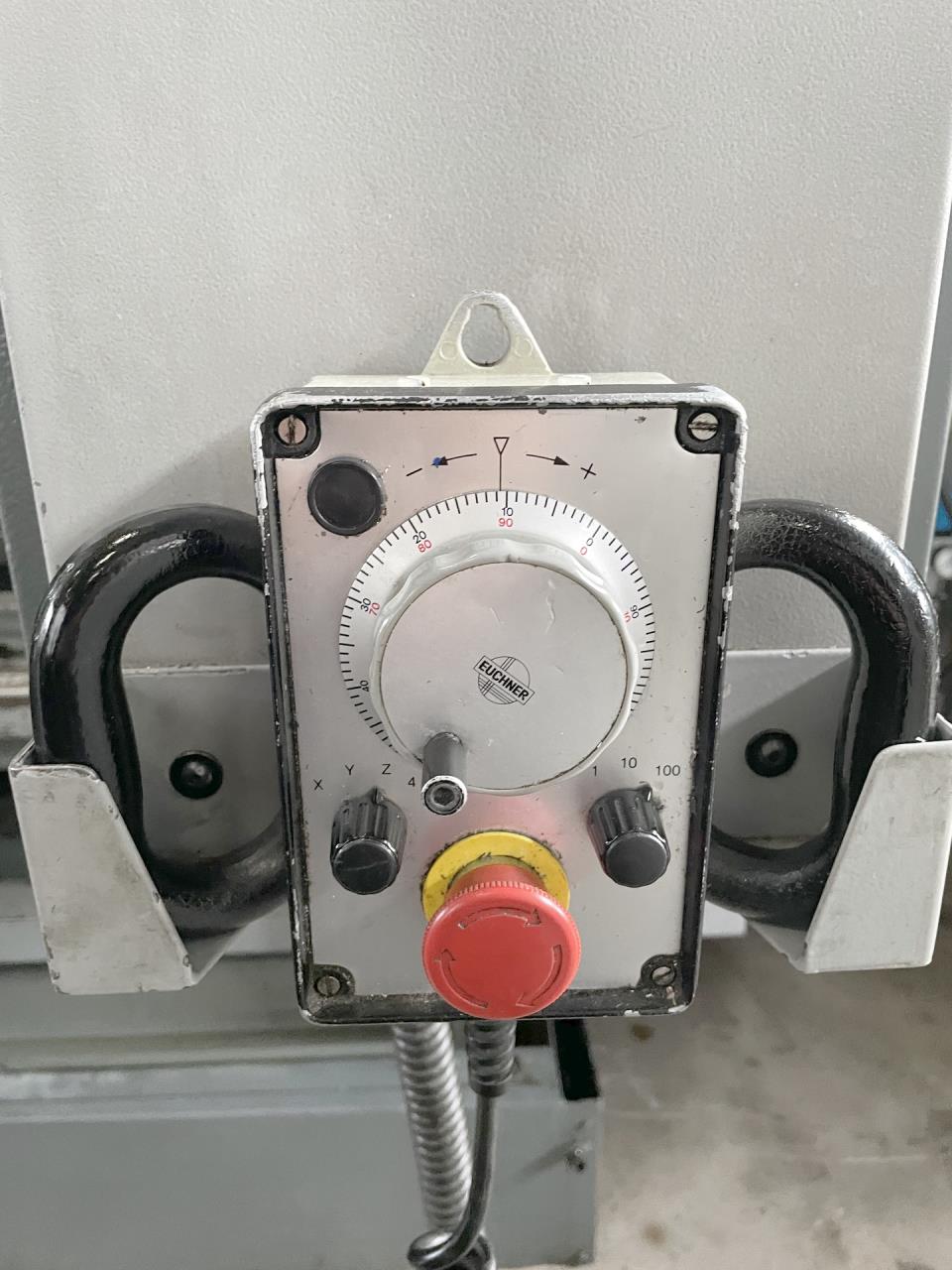

Handwheel electroinic

Technical specifications and pictures without guarantee.
