stock no. :
21681
Machine's group :
Vertical machining center
Type :
BROTHER TC-31 A

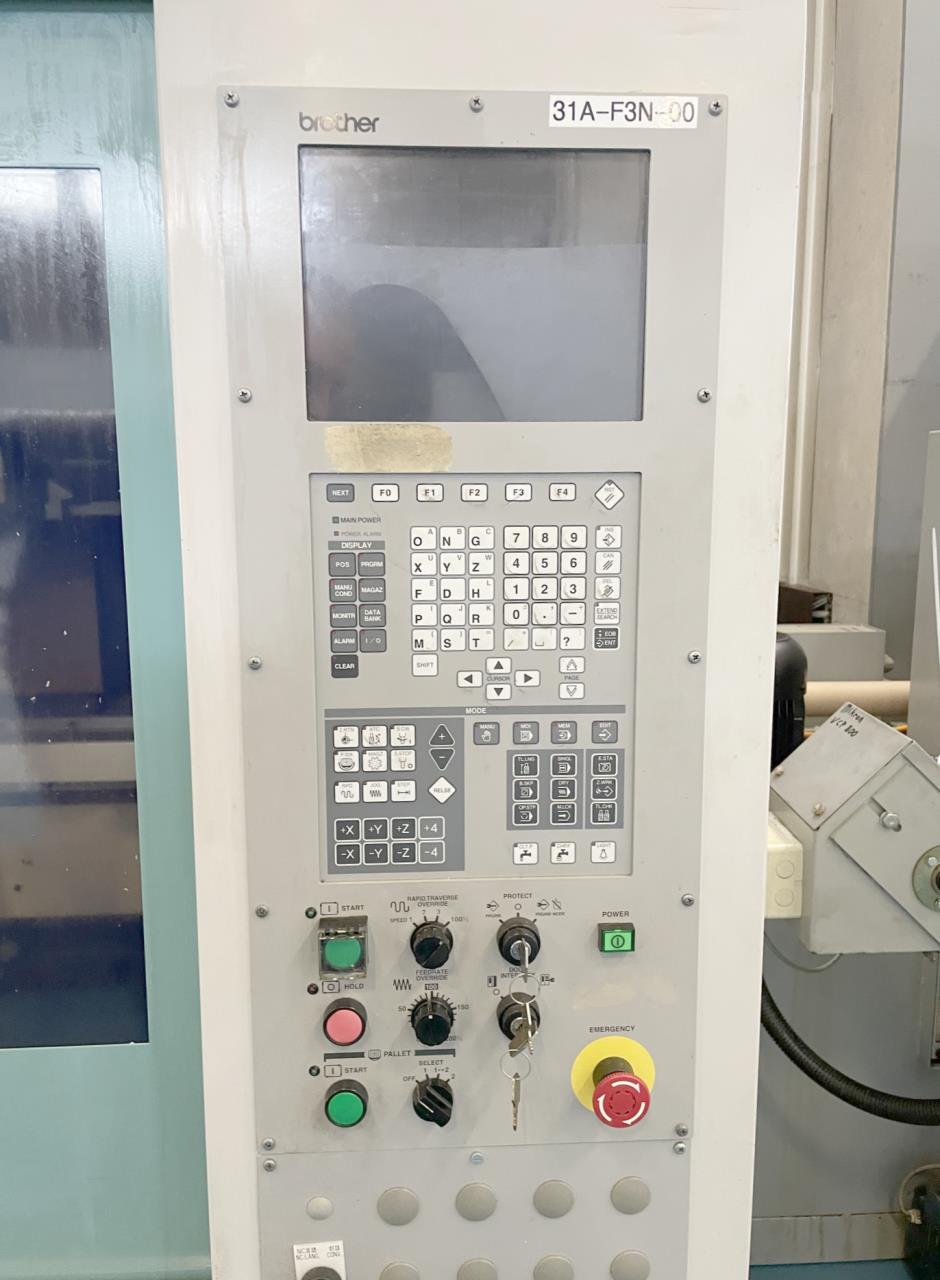

Controller :
CNC – A00
Information request
BROTHER TC-31 A 7 Image(s)
Back
Technical data
Number of axis total
3

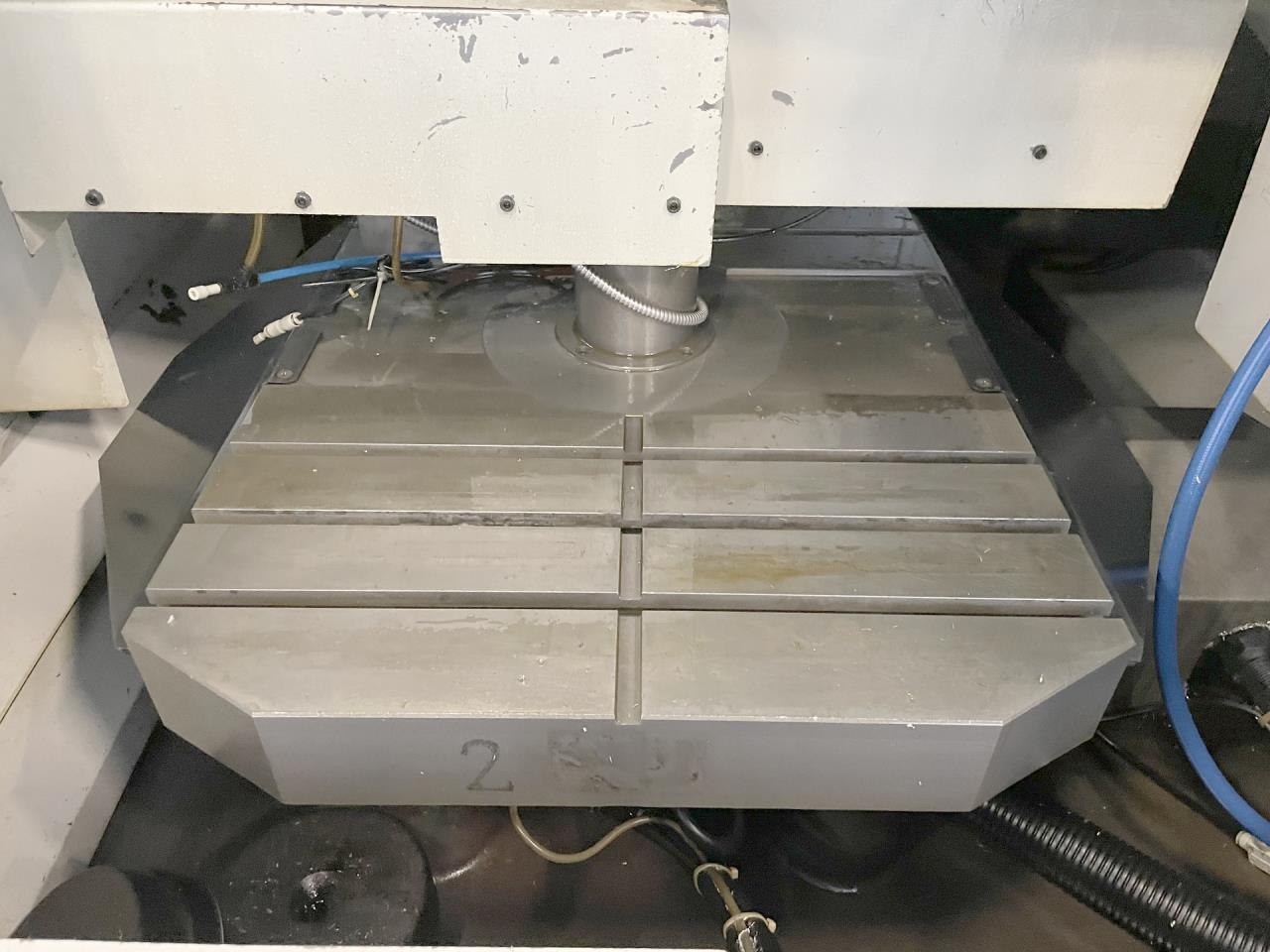

Number of tables
2
Number of spindles
1
Table length
500 mm
Table width
270 mm
Table load max.
80 kg
Longitudinal travel (X-axis)
350 mm
Transversal travel (y axis)
250 mm
Vertical travel (z axis)
350 mm

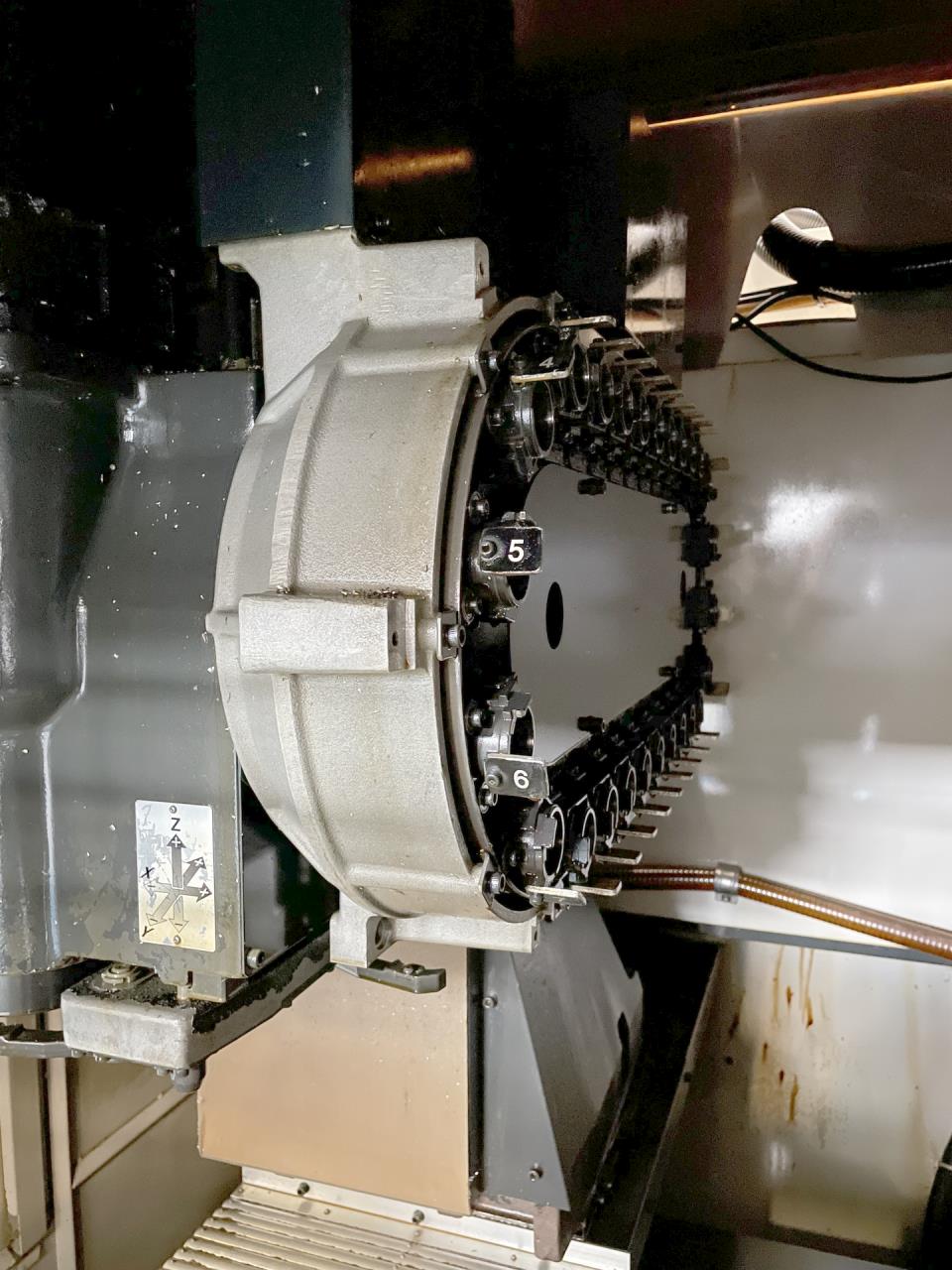

Tool changer:
    Number of tools
26
    Tool diameter max.
55 mm
    Tool lenght
200 mm
    Max. tool-weight
2 kg
Spindle nose: BT
30
Distance spindle nose to table
200 - 550 mm
Spindle speeds:
    stepless
       from
22 rpm
       up to
22000 rpm
Feed range
5 - 20000 mm/min
Rapid traverse:
50 m/min
Air connect
4 - 6 bar
Voltage 50 Hz 3x
380 Volt
Total power required
25 kVA
Machine's weight about
2100 kg
Overall dimensions machine:
    Length
2341 mm
    Width
1410 mm
    Height
2165 mm
Various accessories:
Coolant system

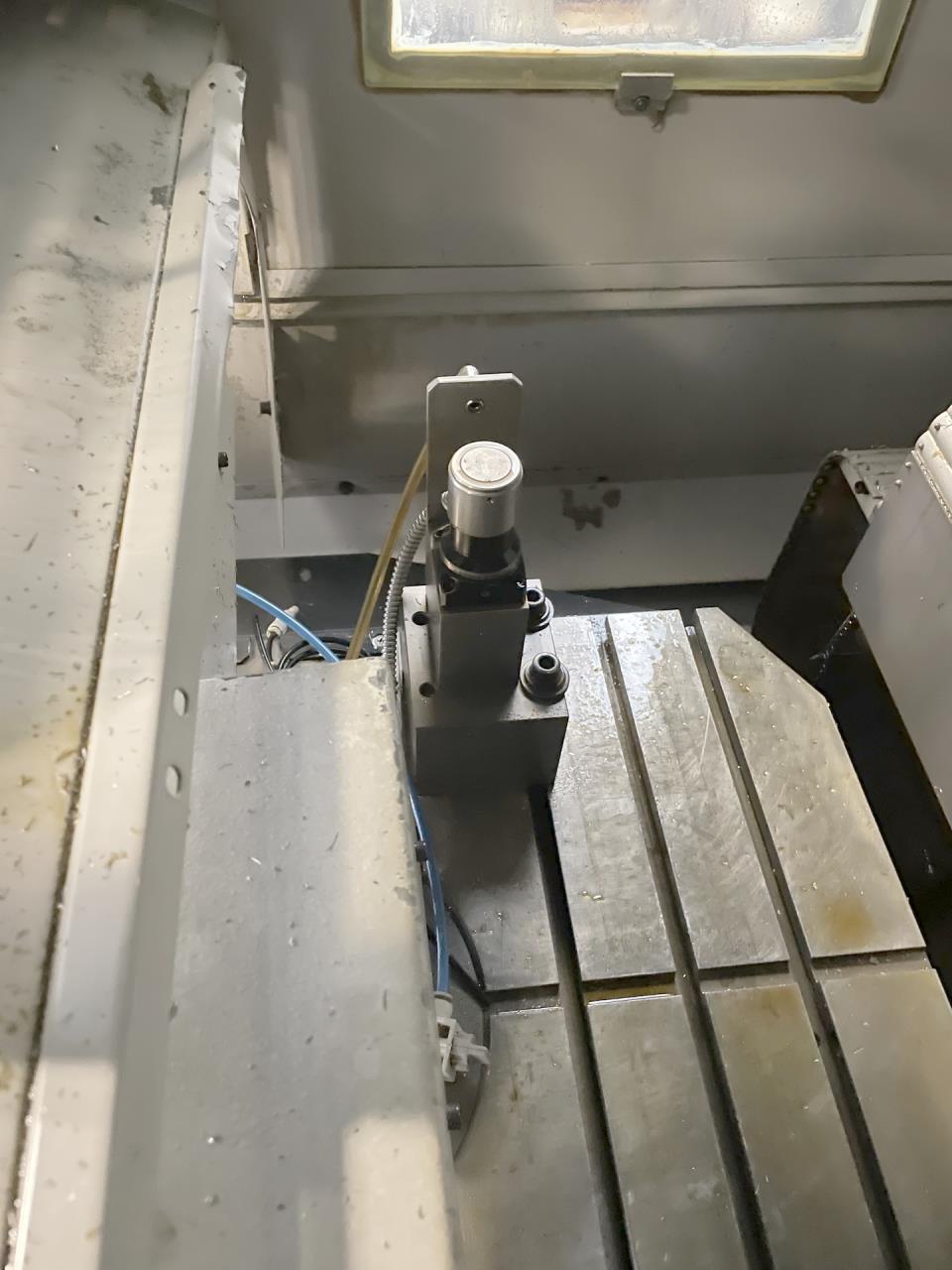

Tool setter
Handwheel electroinic
Rinsing Guns

Technical specifications and pictures without guarantee.
