stock no. :
21649
Machine's group :
Tool and cutter grinder
Type :

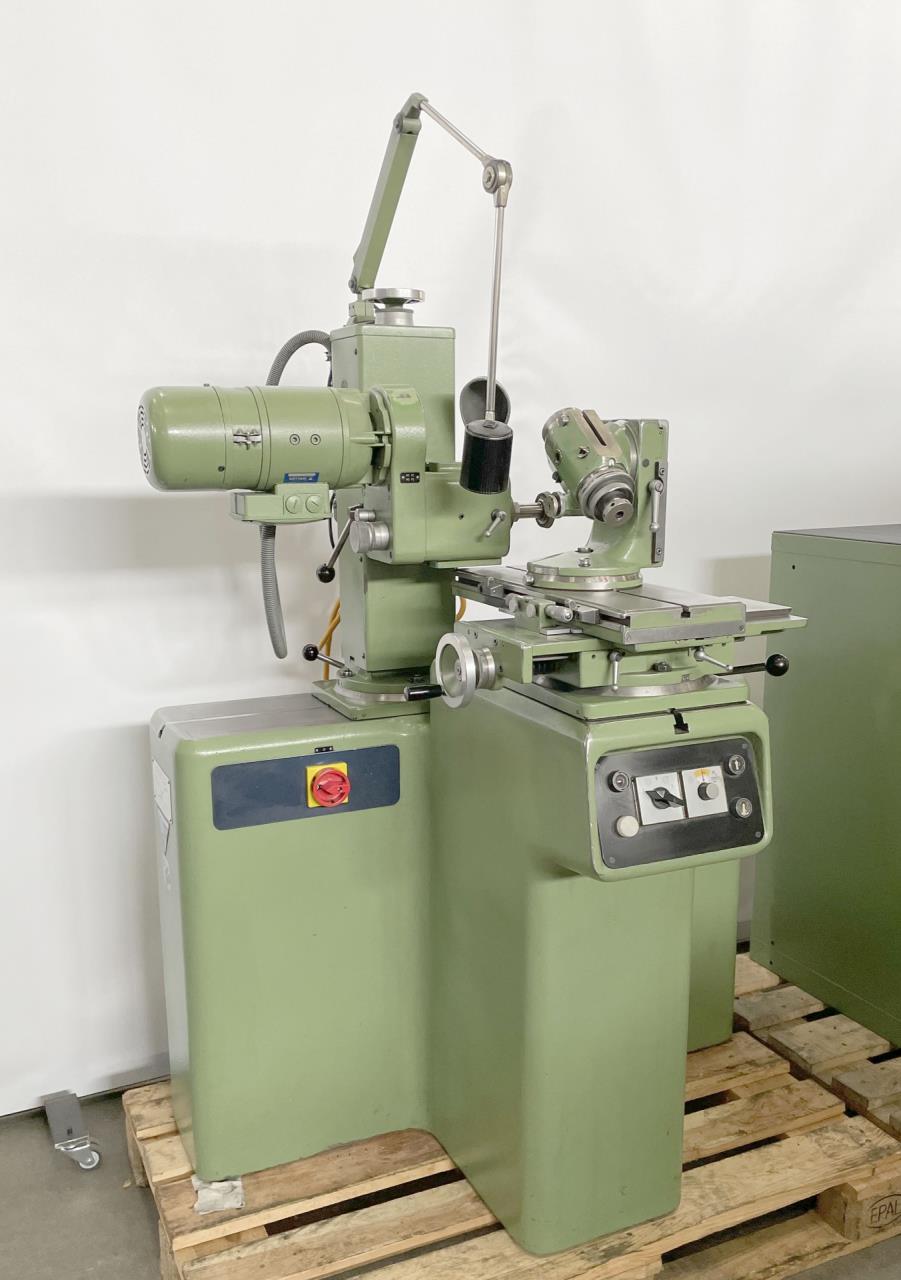

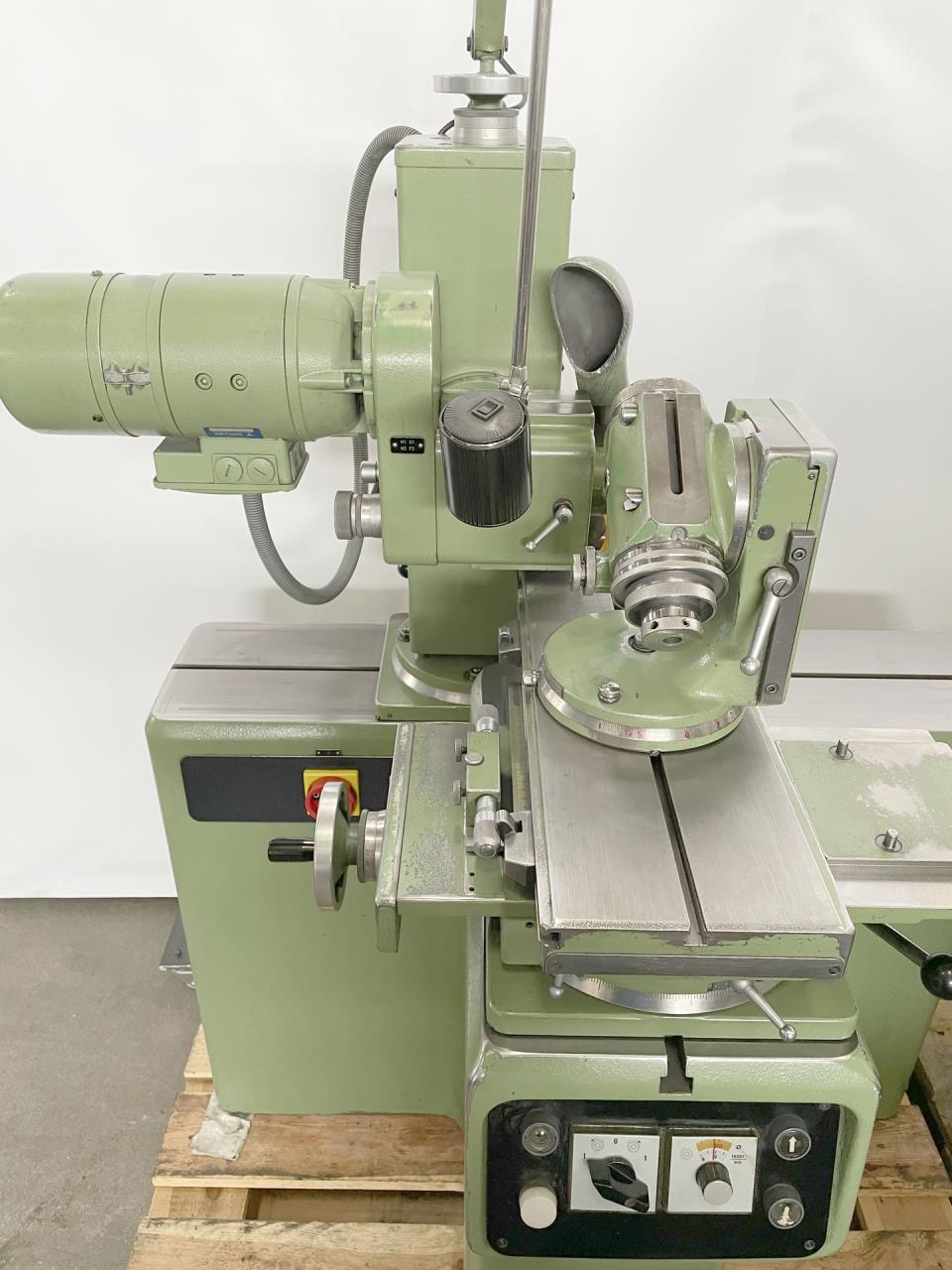

DECKEL S 11
Information request
DECKEL S 11 8 Image(s)
Back
Technical data
Centre height
300 mm
Distance between centres
380 mm
Table length
500 mm
Table width
180 mm
Max. grinding diameter
238 / 620 mm
Max. grinding wheel diamter
125 mm
Longitudinal way of table
mm
Transversal way of the table
220 mm
Axial motion:
    Crosswise
100 mm
    Longitudinal
190 mm
    Vertical
325 mm
Vertical adjustment of grinding head
325 mm
Slewing range of grinding head:
    horizontal
360 °
    vertical
360 °
rotary axis of the grinding spindle head
360 °
Grinding spindle speeds:
    number (steps)
2
       from
400 rpm
       up to
8000 rpm
Voltage 50 Hz 3x
380 Volt
Grinding spindle motor
1.3 kW
Total power required
2 kVA
Machine's weight about
500 kg
Overall dimensions machine:
    Length
1100 mm
    Width
800 mm
    Height
1760 mm
Various accessories:
Dial gauge

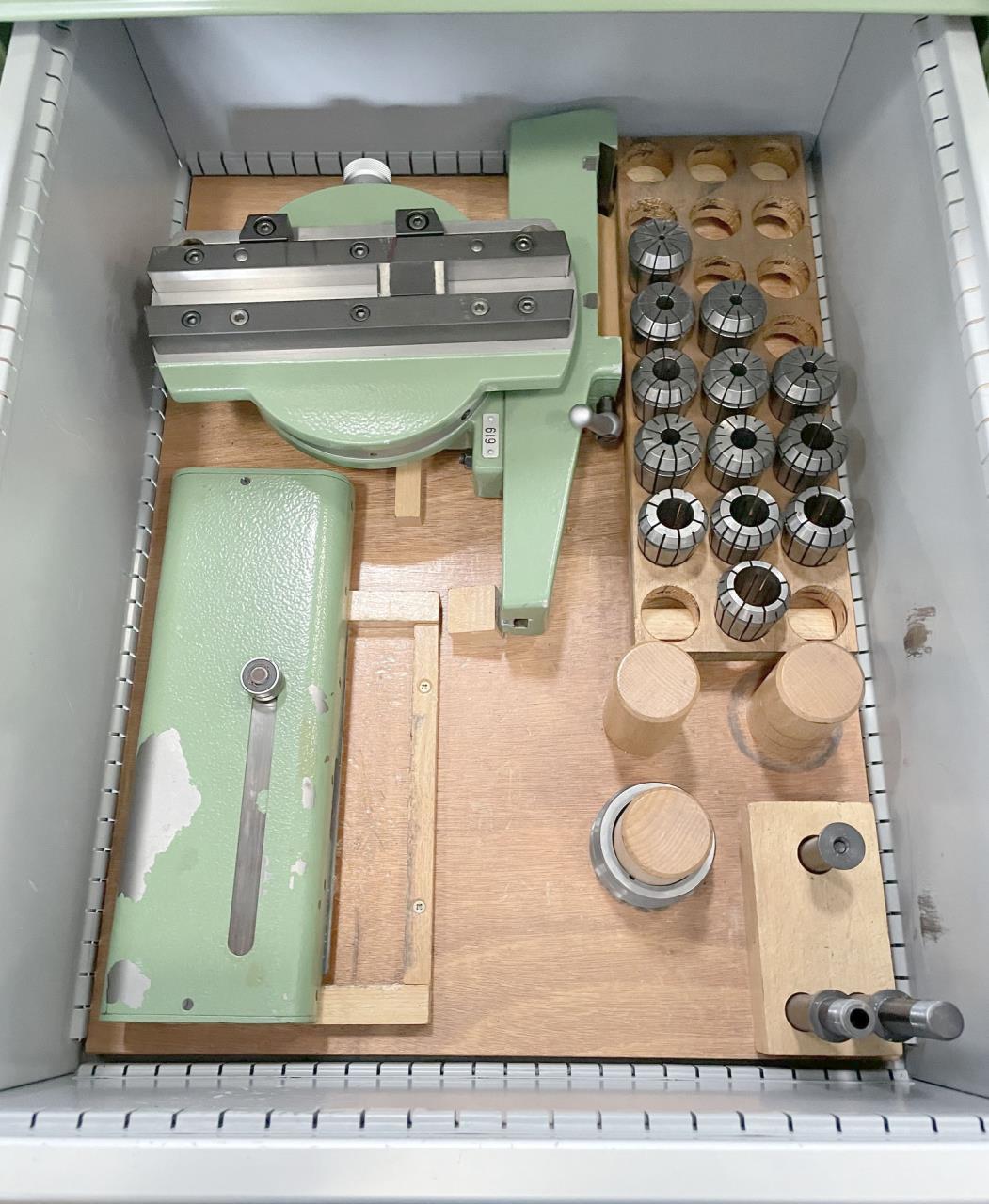

Set of collets
Set of collets
ESX

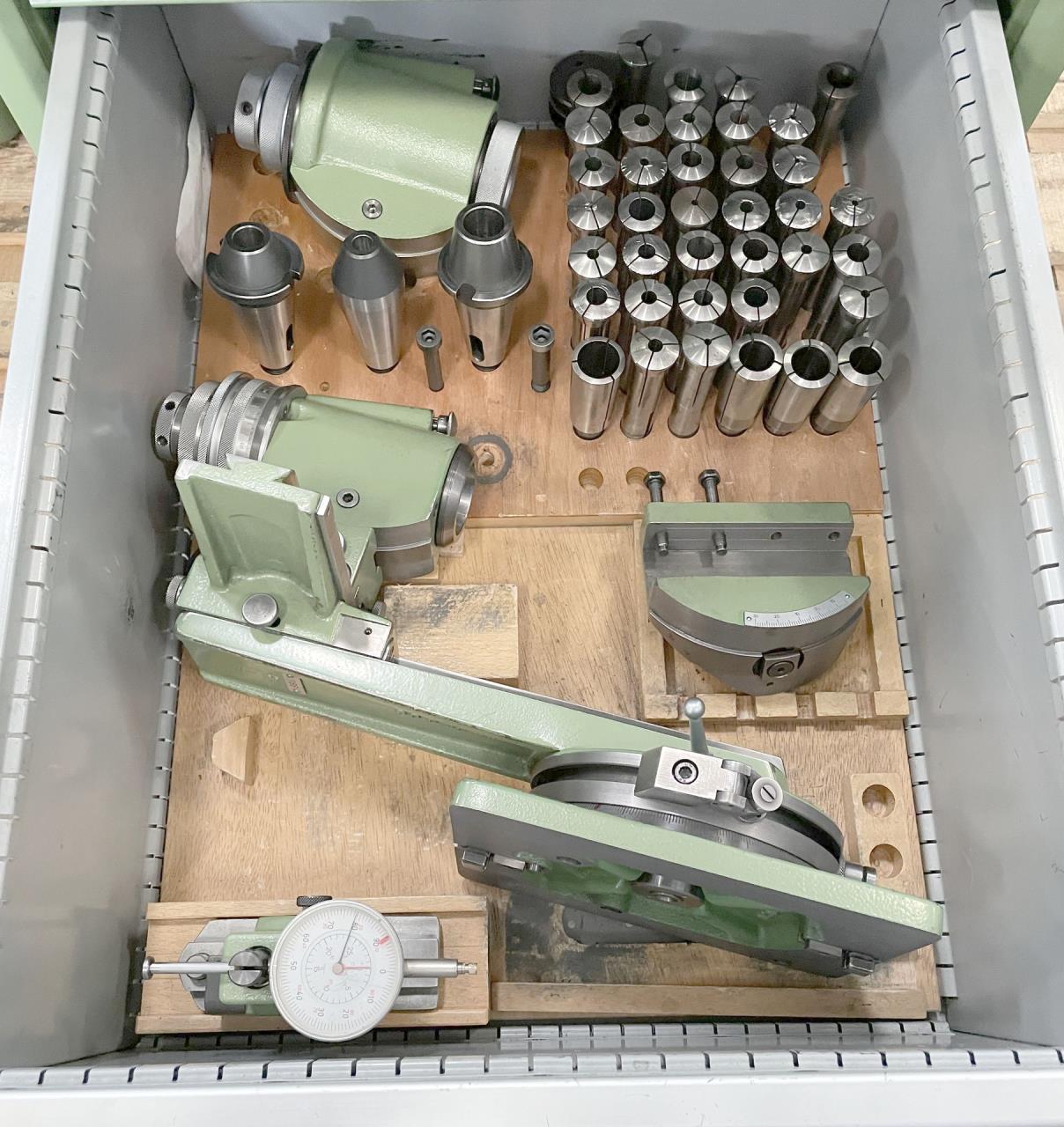

Dividing attachment universal
Lamp

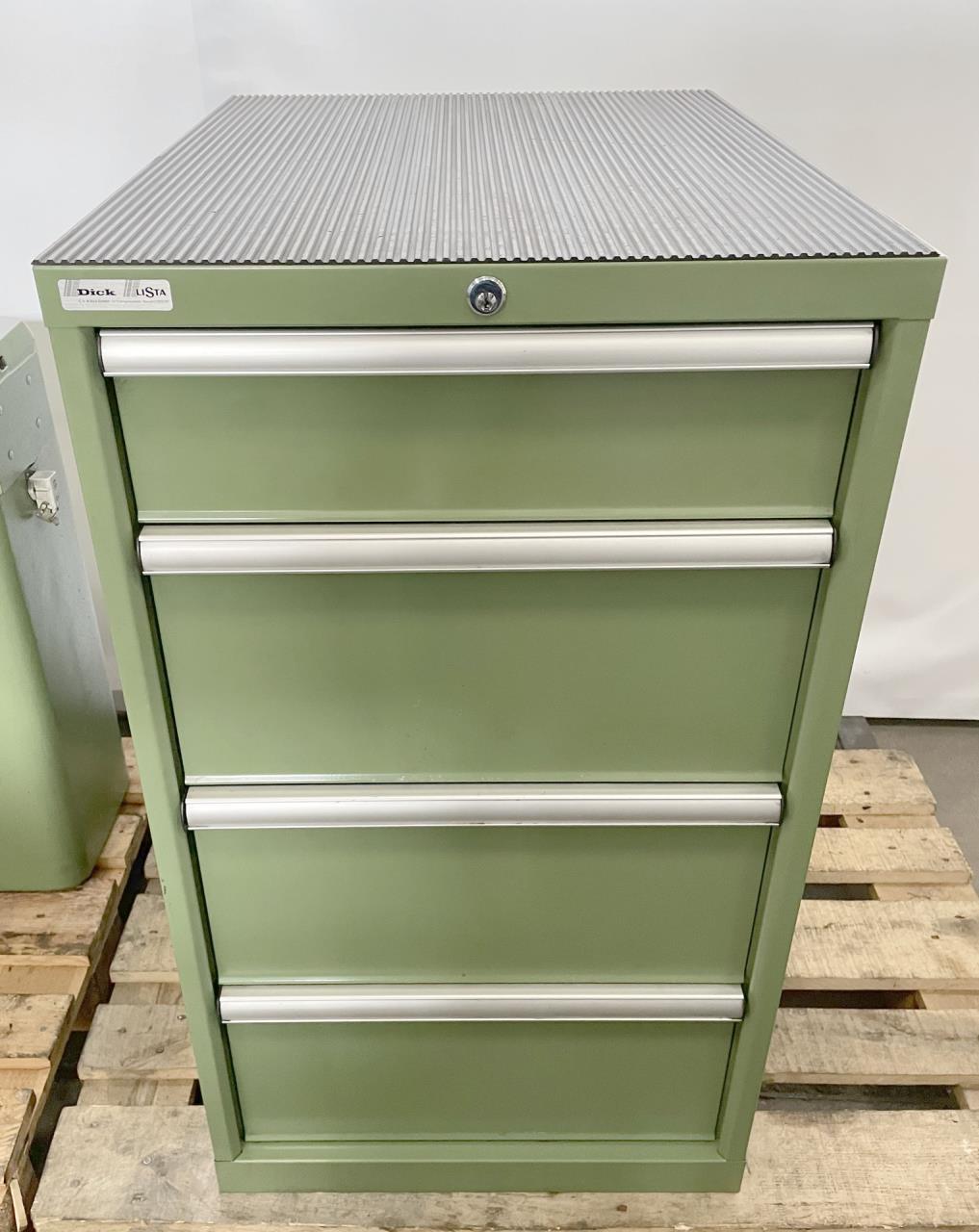

Tool cabinet
Microscope

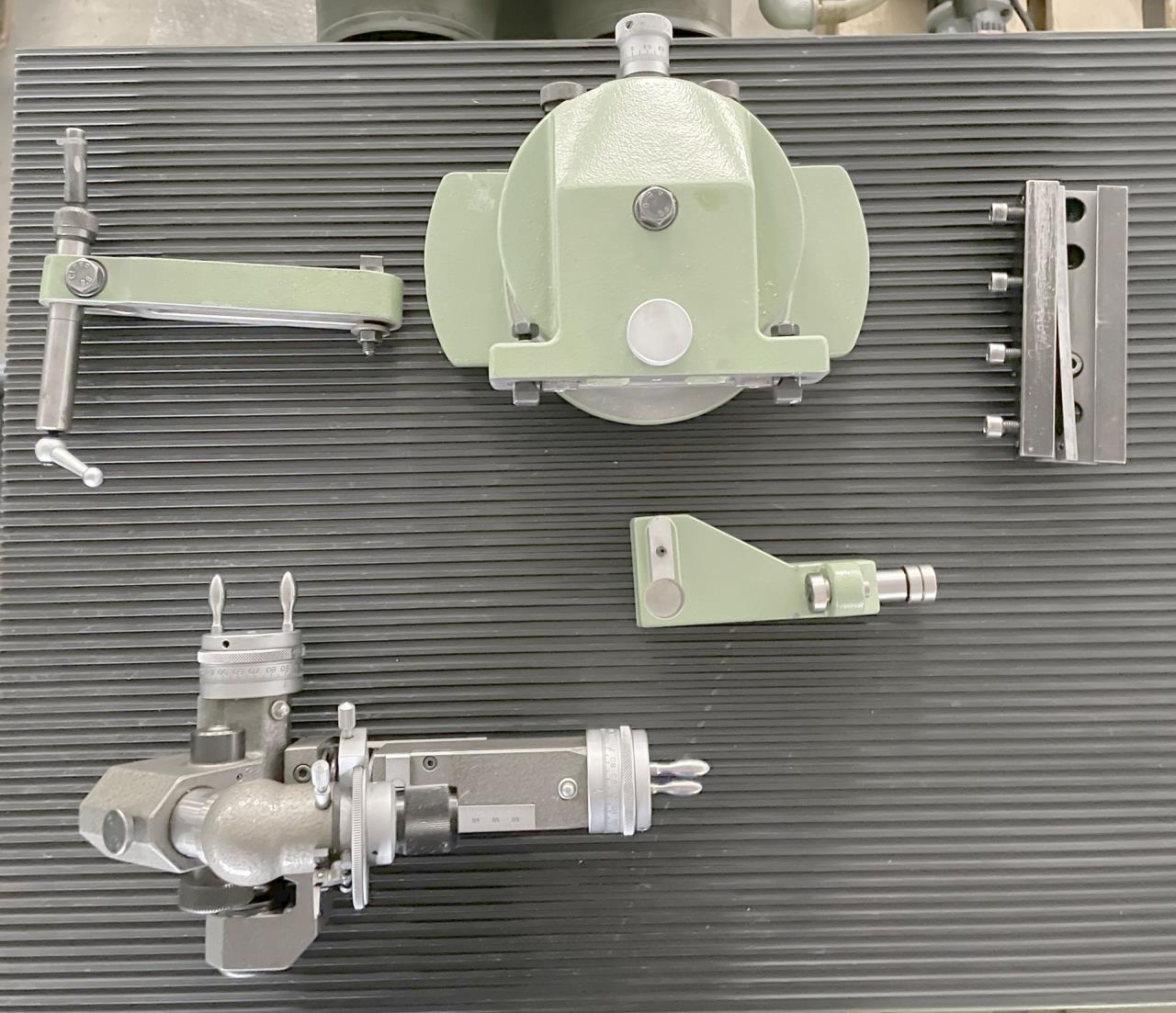

Radius grinding attachment
Spin- and relief grinding attachment

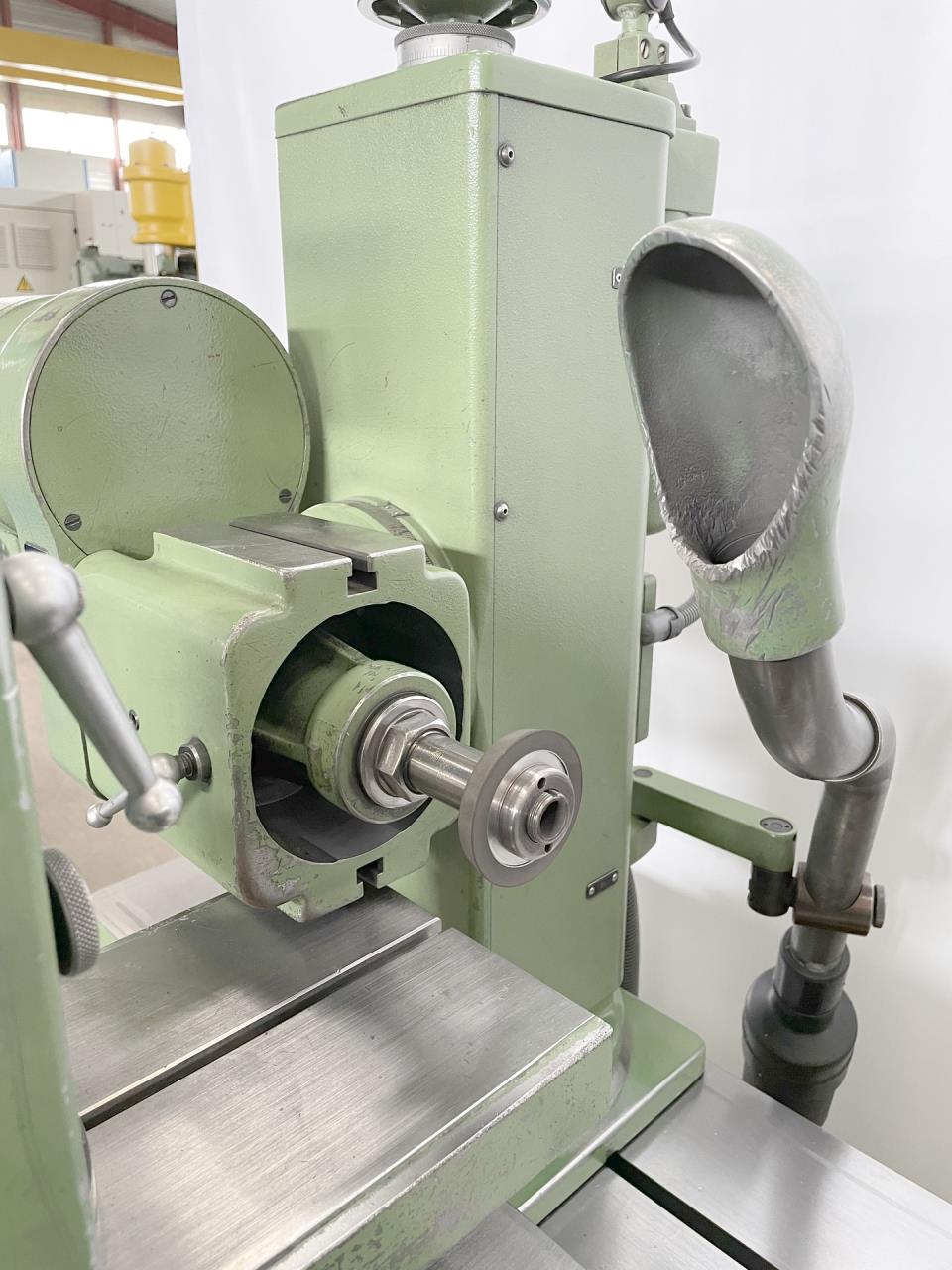

Grinding wheel guard

Technical specifications and pictures without guarantee.
