stock no. :
21598
Machine's group :
Centreless grinding machine
Type :
AGATHON 150 SLD
Information request Video

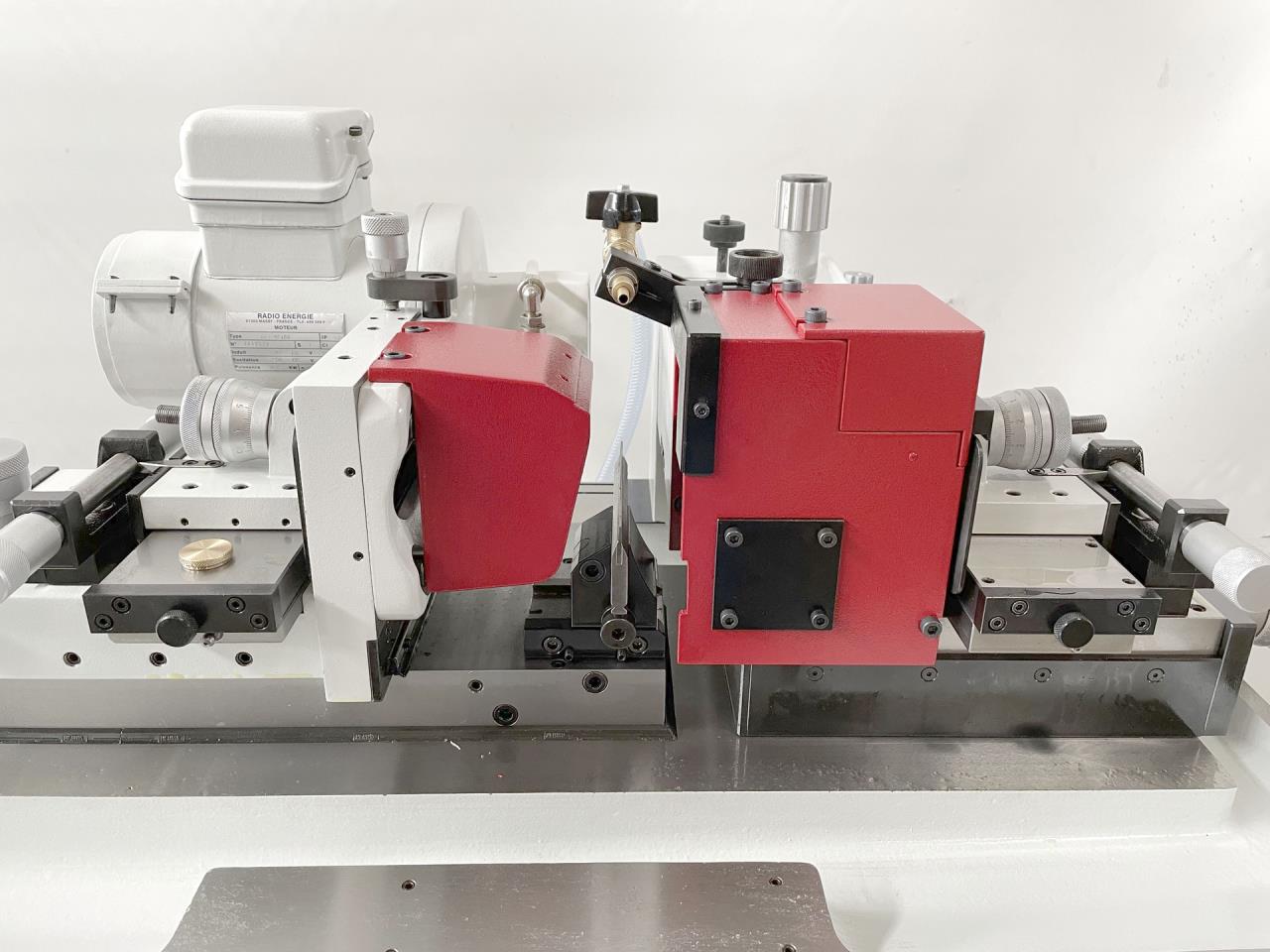

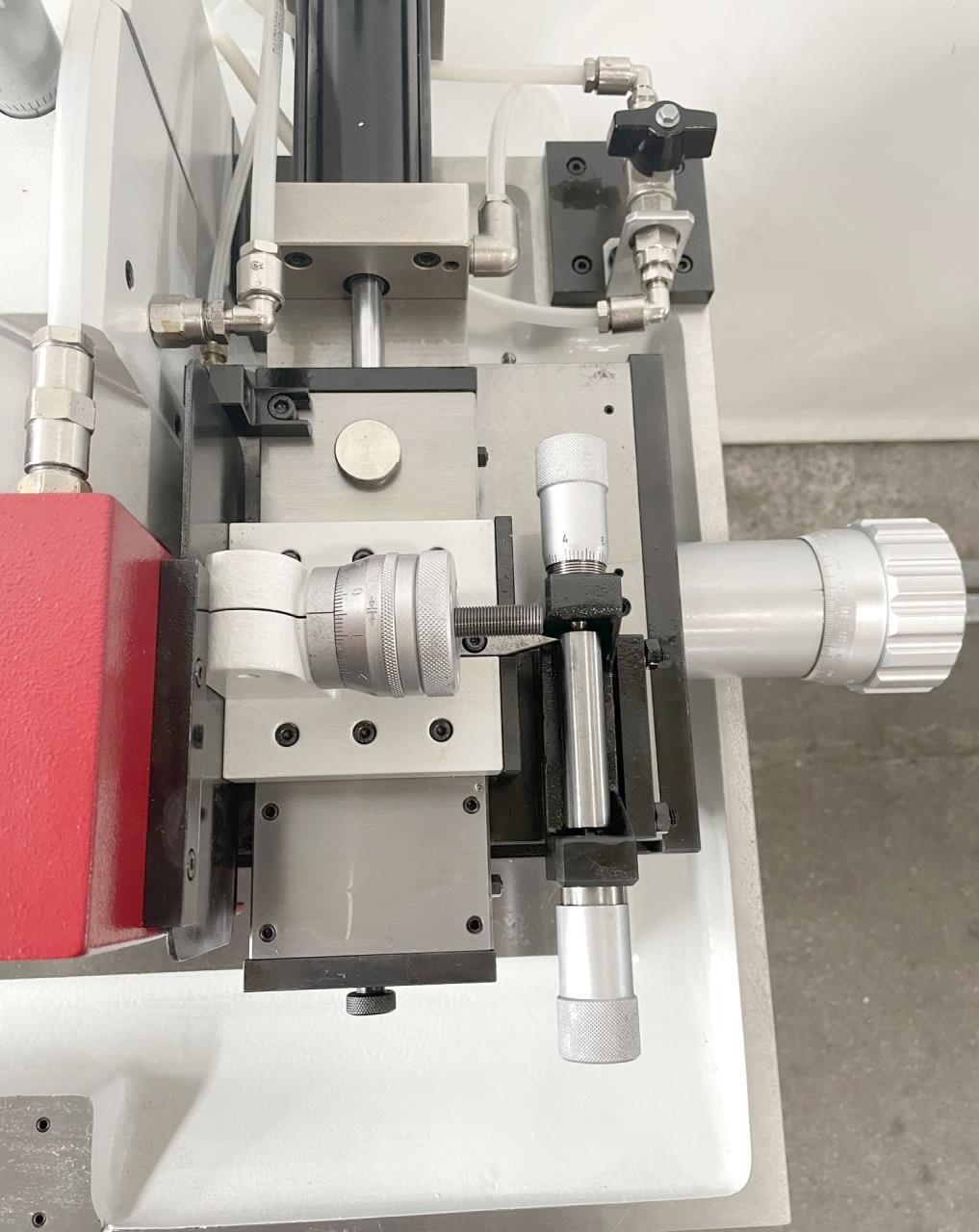

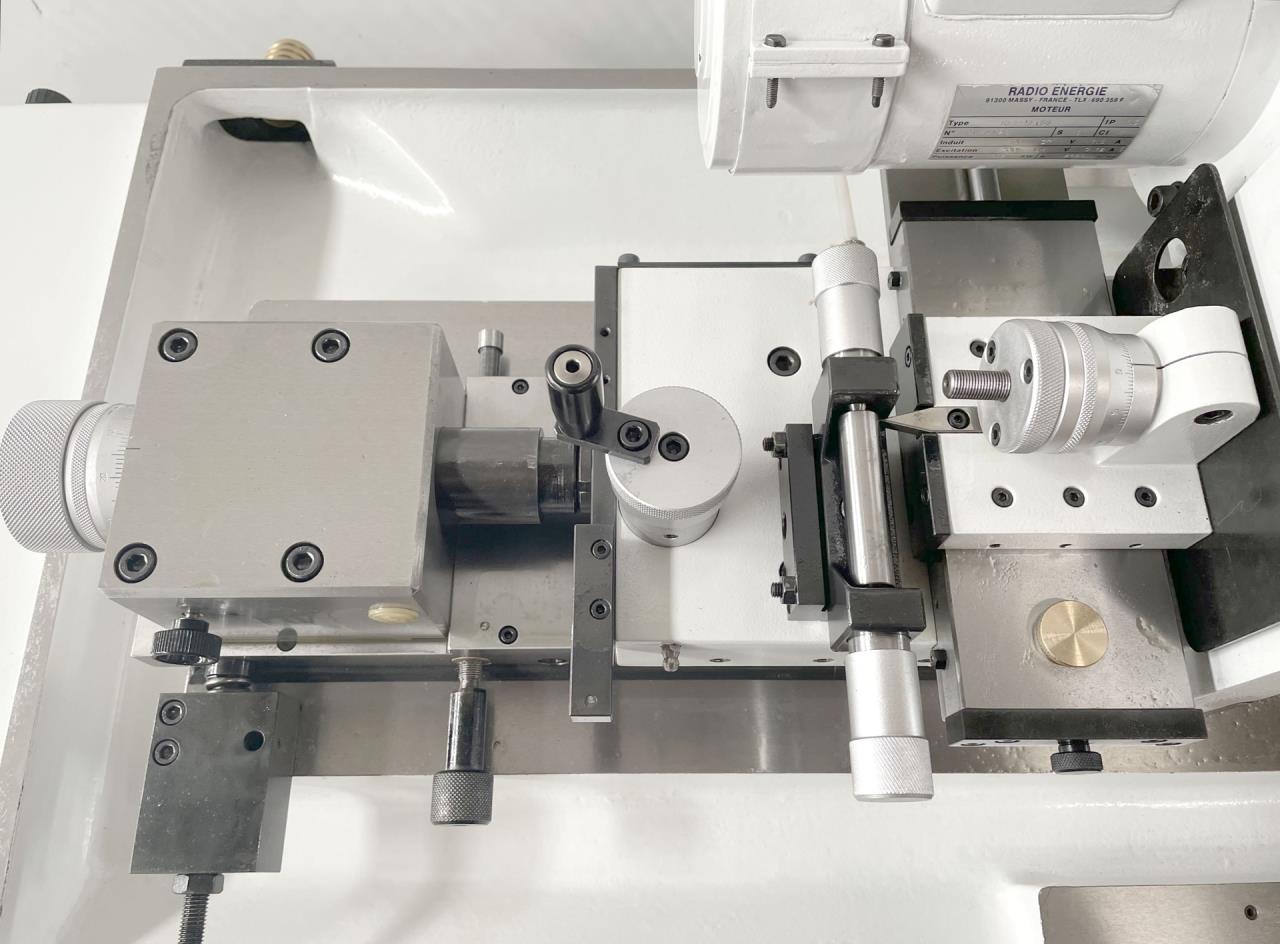

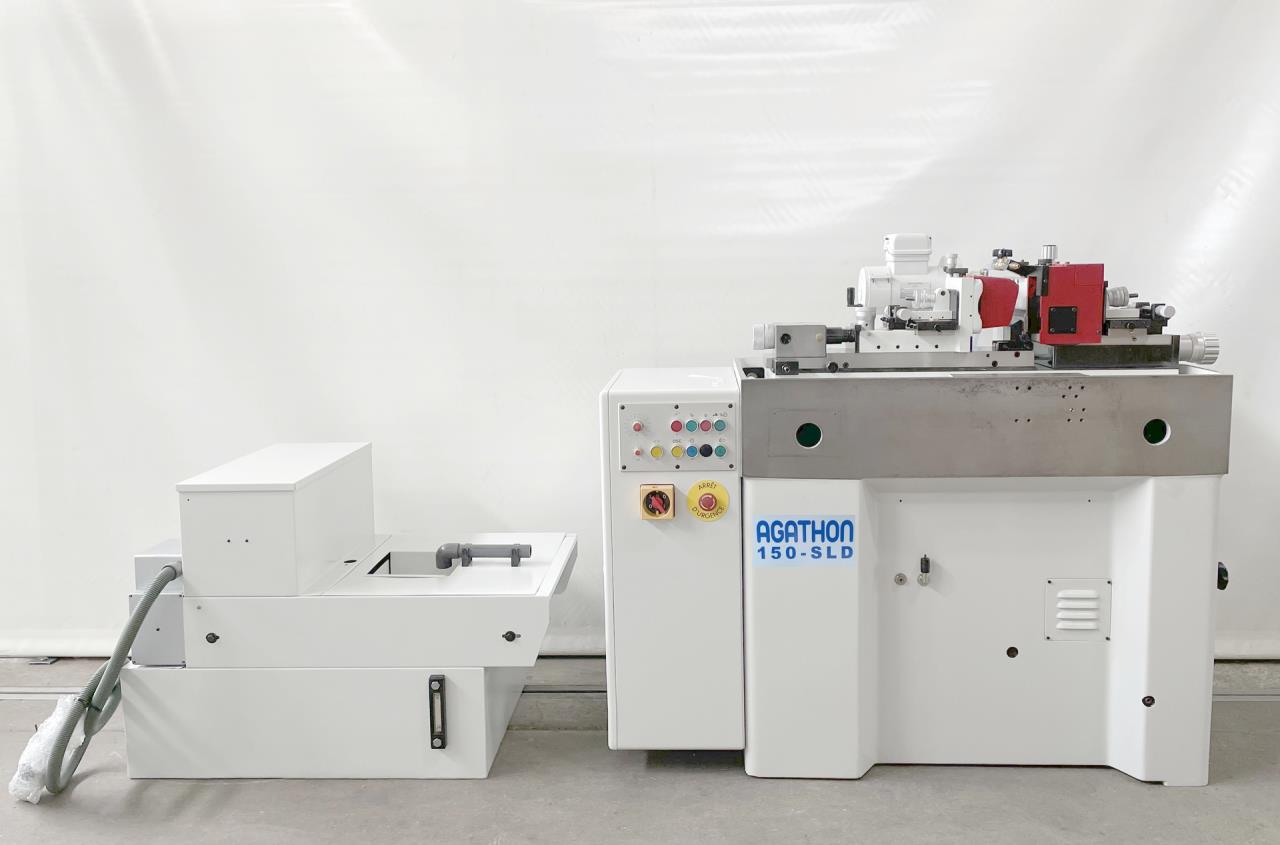

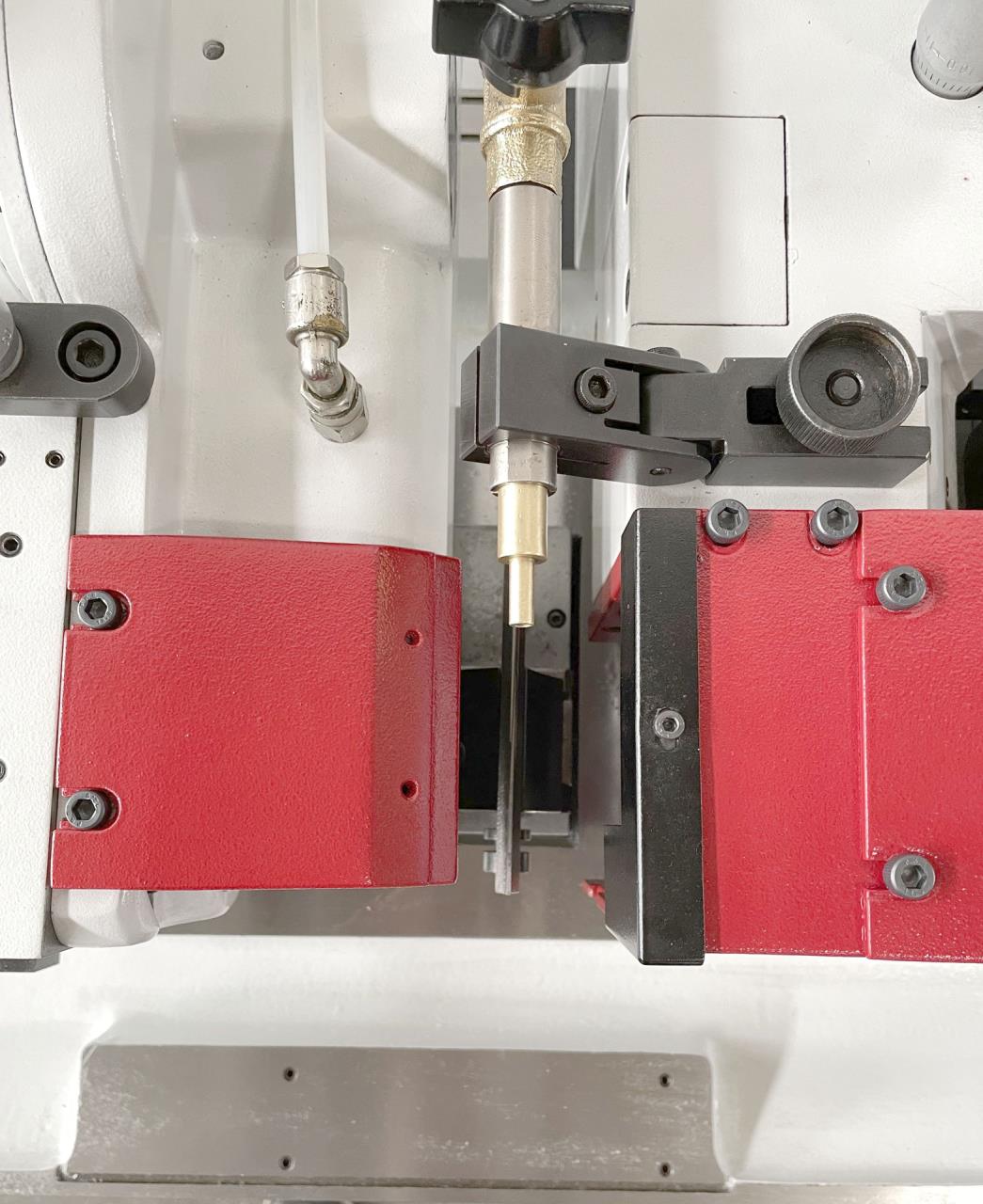

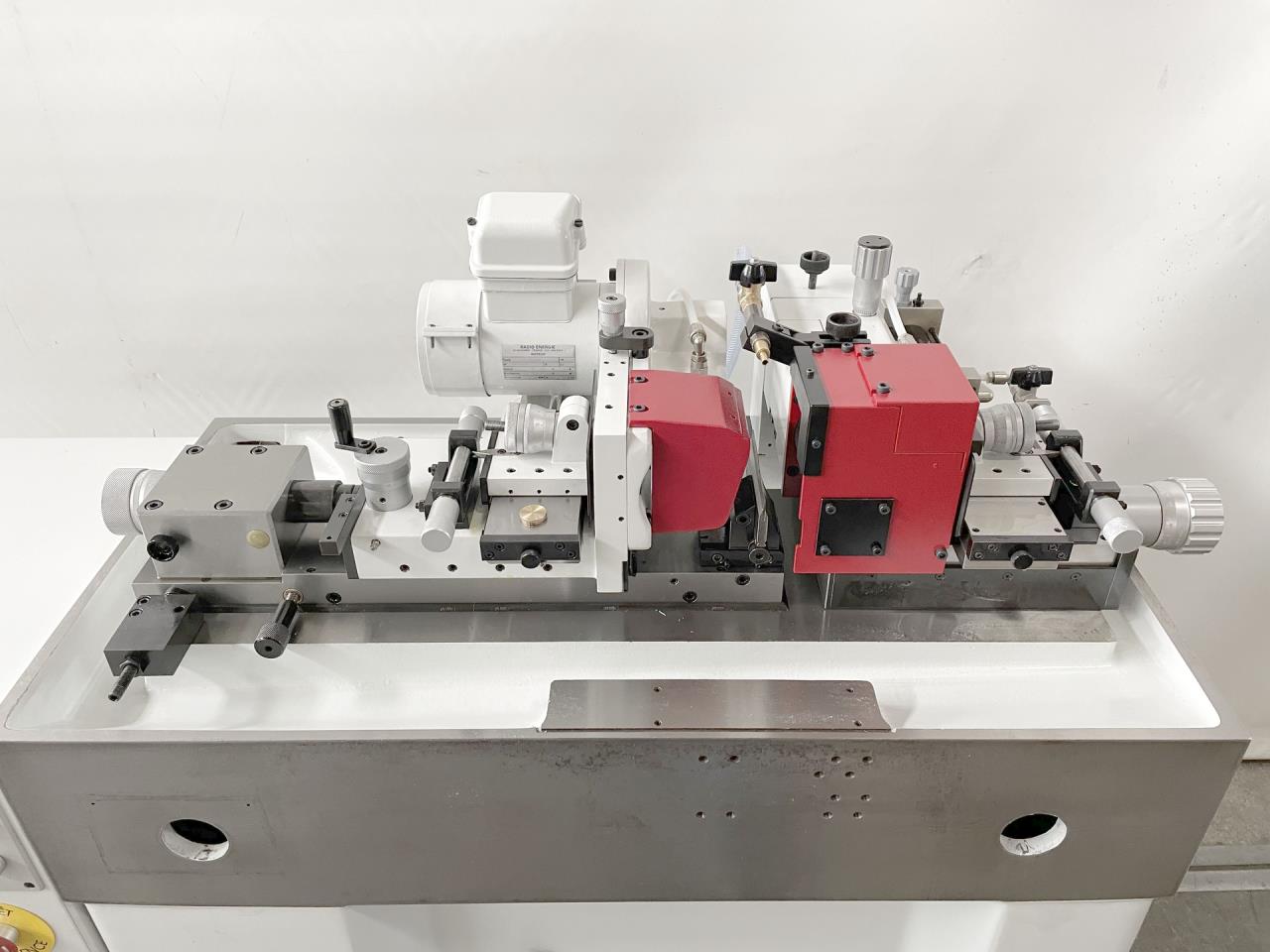

AGATHON 150 SLD 9 Image(s)
Back
Technical data
Min. grinding diameter
0.1 mm
Max. grinding diameter
10 mm
Width of the grinding wheel
50 mm
Grinding wheel:
    diameter new wheel
150 mm
    Width
50 mm
    Bore
50 mm
    Speeds:
          up to
6000 rpm
Regulating spindle:
    diameter new wheel
100 mm
    Width
50 mm
    Bore
40 mm
    Speeds:
       stepless
          from
15 rpm
          up to
150 rpm
Main motor
2.0 HP
Machine's weight about
650 kg
Overall dimensions machine:
    Length
1800 mm
    Width
1400 mm
    Height
1600 mm

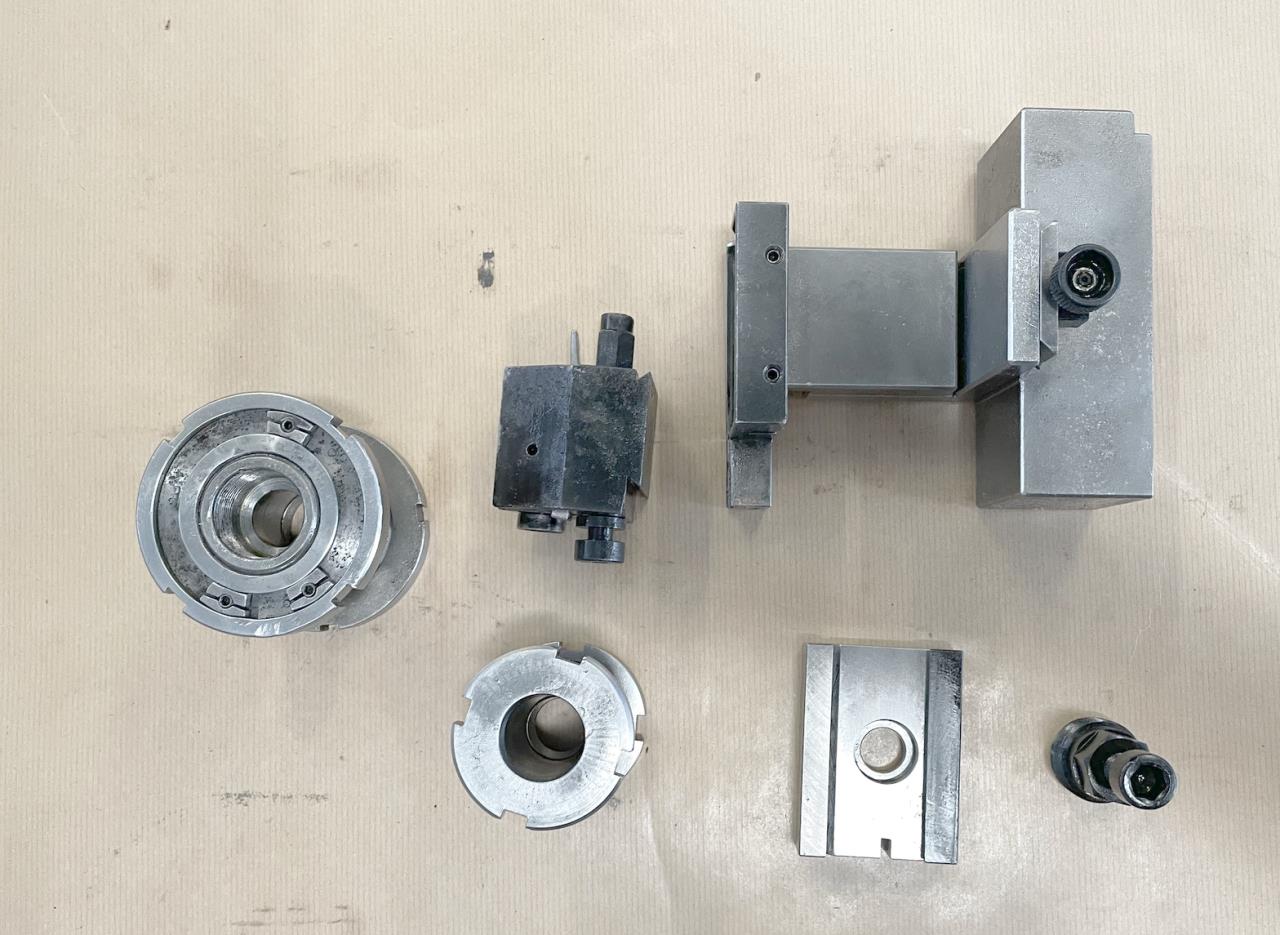

Various accessories:

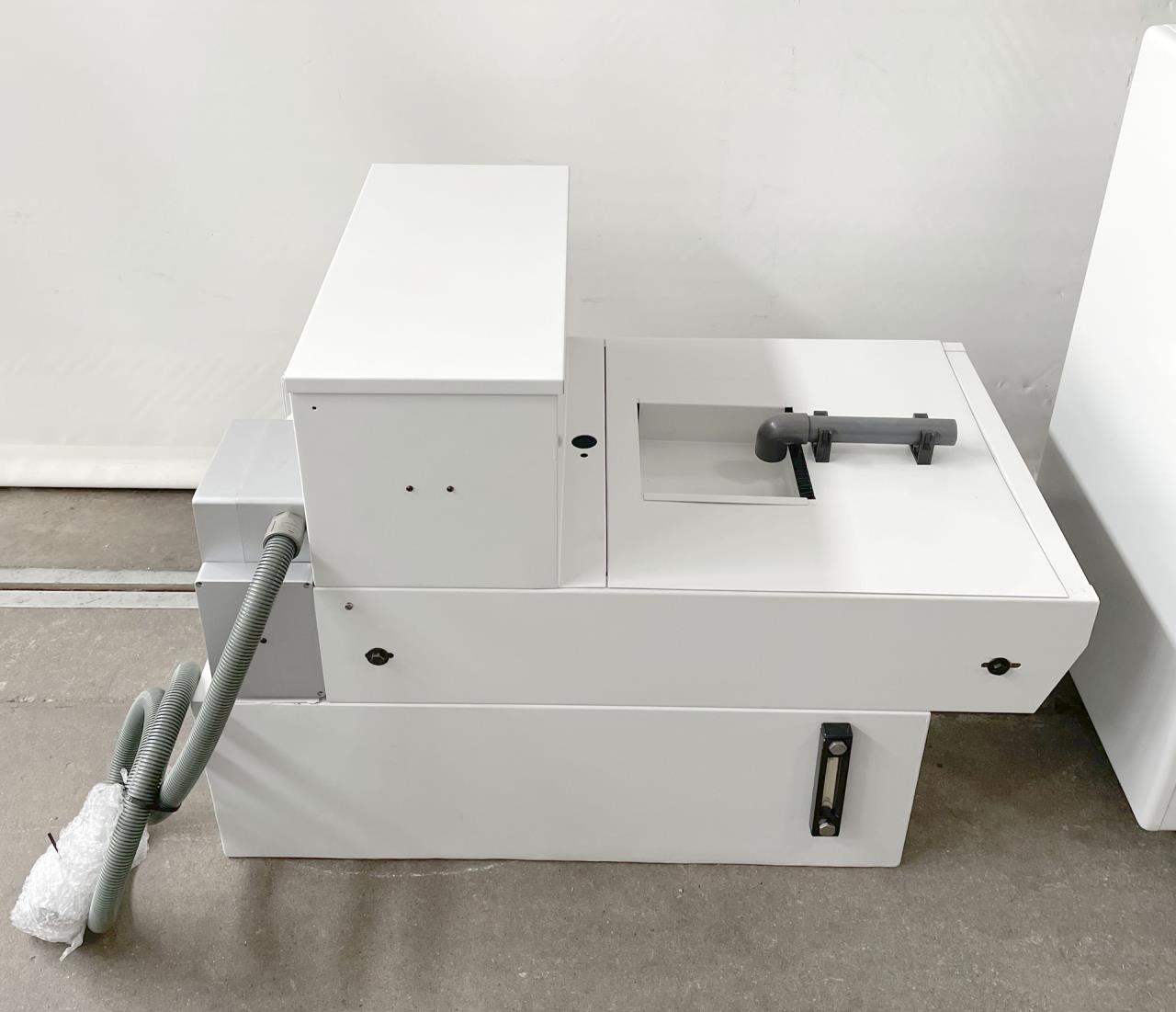

Coolant system
Paper filter facility

Technical specifications and pictures without guarantee.
