Technical data
Centre height
115 mm
Distance between centres
720 mm
Max. grinding diameter
260 mm
Distance from table to
grinding spindle:
min.
70 mm
max
370 mm
Longitudinal way of table
520 mm
Transversal way of the table
270 mm
Vertical adjustment of grinding head
300 mm
Table swivels
360 °
Slewing range of grinding head:
horizontal
360 °
Grinding spindle speeds:
number (steps)
4
from
1100 rpm
up to
6000 rpm
Voltage 50 Hz 3x
380 Volt
Grinding spindle motor
1.6 HP
Machine's weight about
840 kg
Overall dimensions machine:
Length
1800 mm
Width
1400 mm
Height
1700 mm

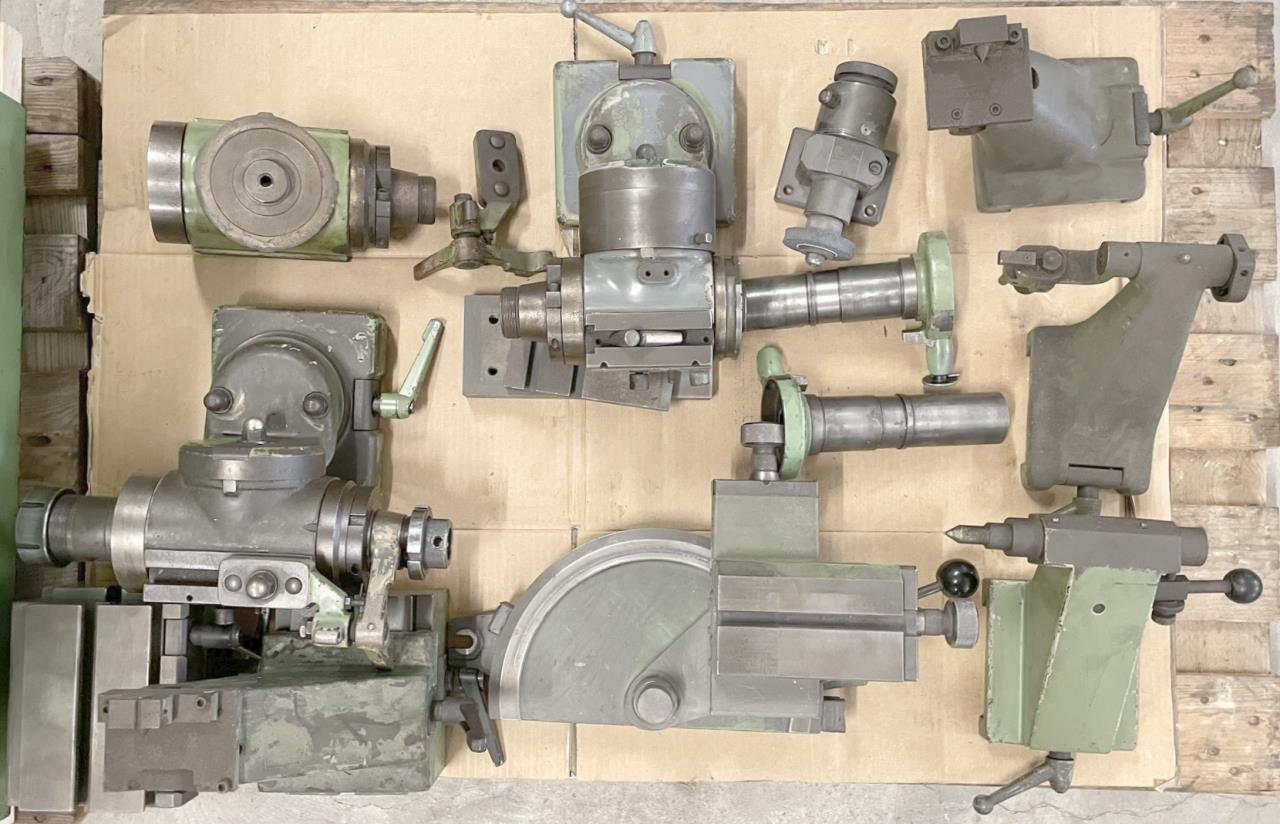

Various accessories:
Set of flanges

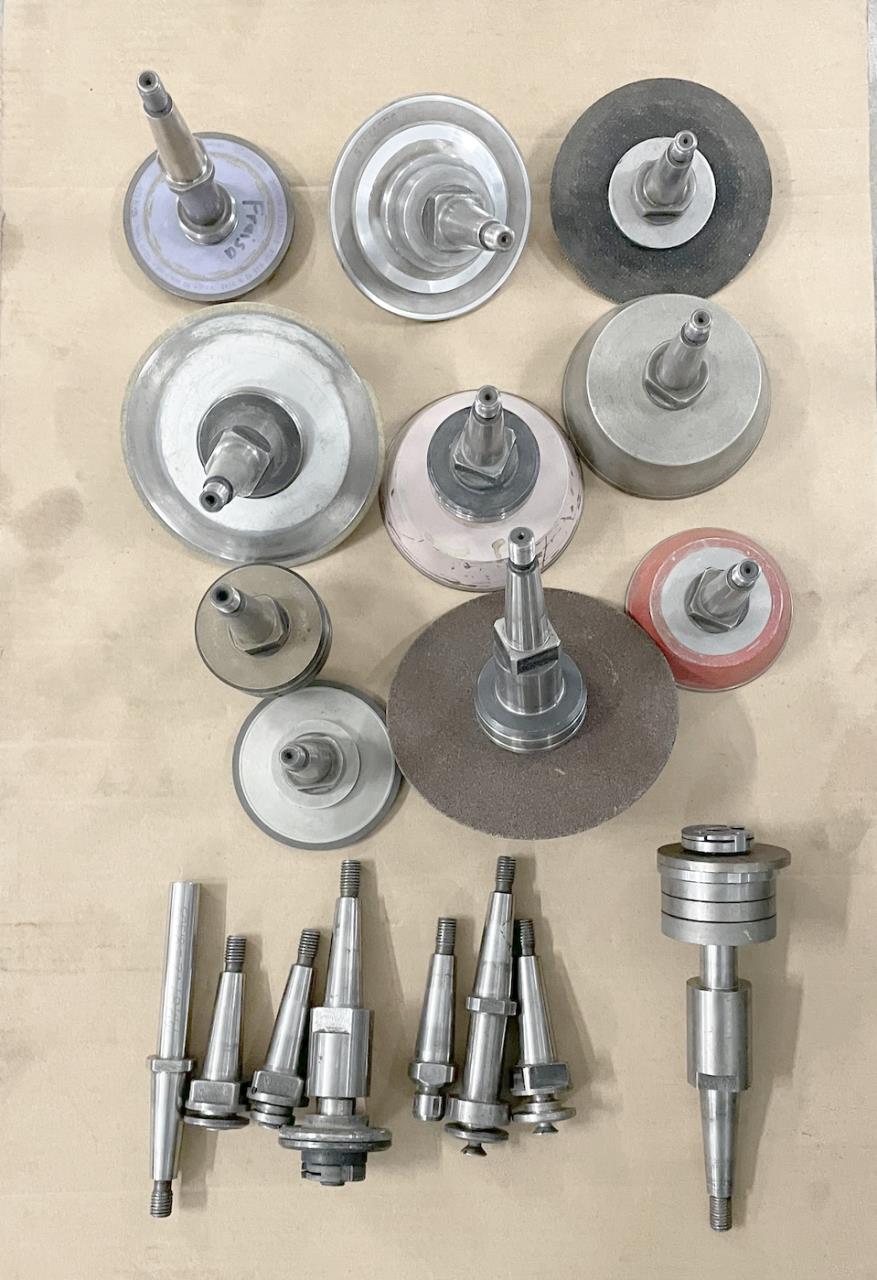

Set of grinding wheel arbors
Set of arbors
Lamp
Vice rotatable
Work piece spindle head
Rayon redressing device
Technical specifications and pictures without guarantee.
