Technical data
Centre height
115 mm
Distance between centres
500 mm
Max. grinding length
320 mm
Axial motion:
Longitudinal
340 mm
Vertical
300 mm
Slewing range of grinding head:
vertical
360 °
Grinding spindle speeds:
from
3650 rpm
up to
6100 rpm
Voltage 50 Hz 3x
380 Volt
Machine's weight about
700 kg
Overall dimensions machine:
Length
1000 mm
Width
905 mm
Height
1500 mm

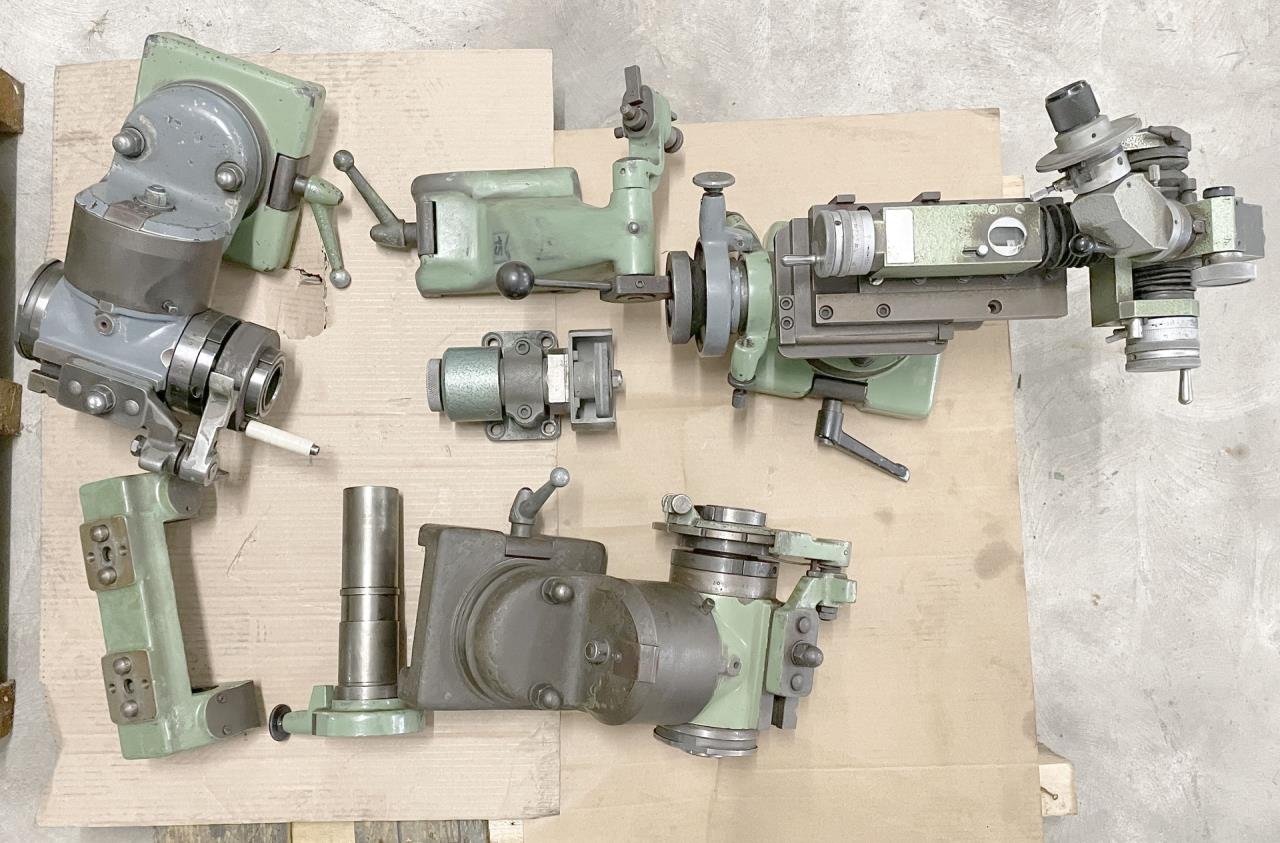

Various accessories:

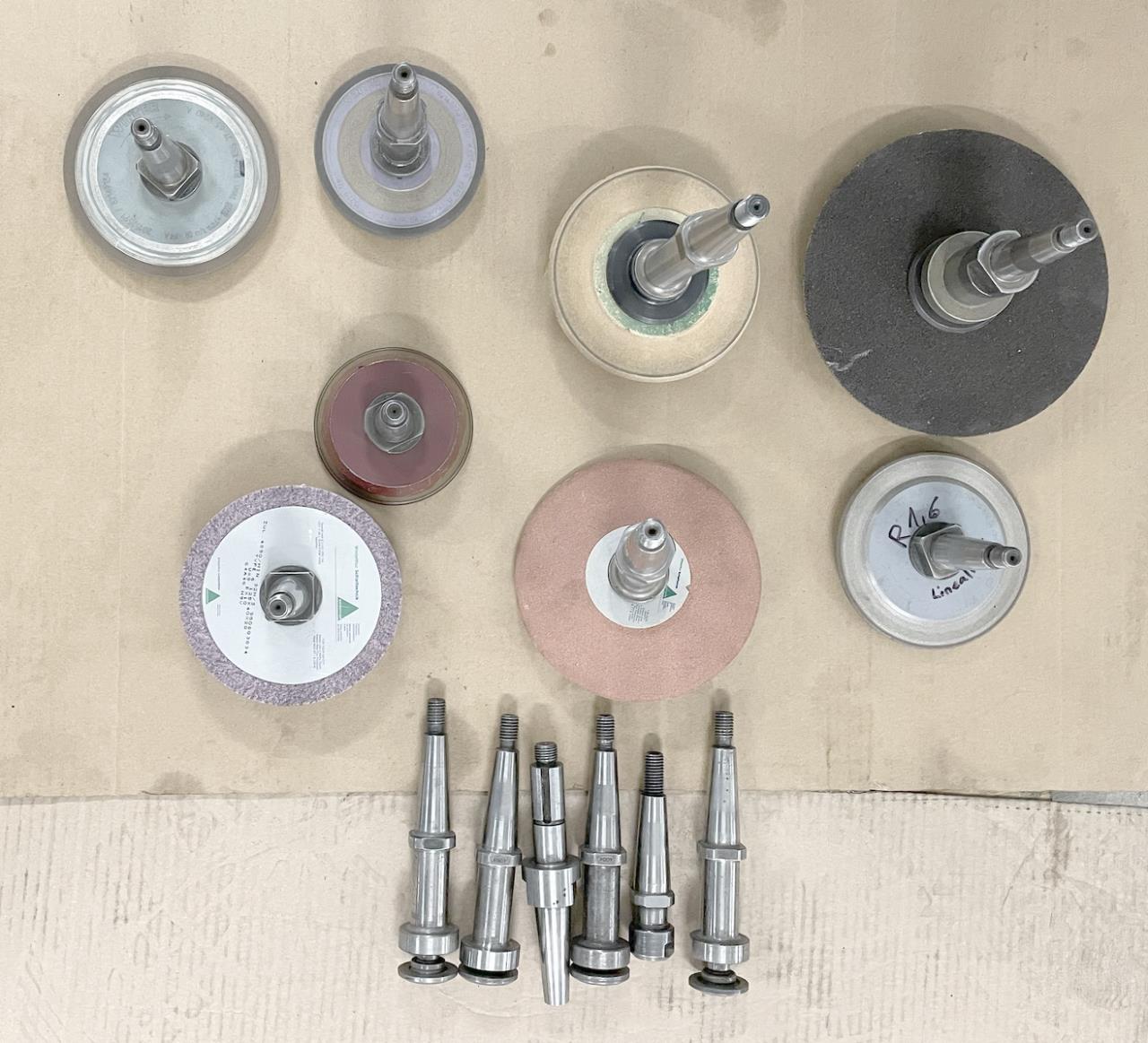

Set of grinding wheel arbors
Tailstock
Set of arbors
Lamp
Measuring device
Microscope
Work piece spindle head
Rayon redressing device
Technical specifications and pictures without guarantee.
