stock no. :
21401
Machine's group :
Double surface grinder
Type :
DISKUS DD 400 II CRM
Information request Video
DISKUS DD 400 II CRM 11 Image(s)
Back
Technical data
Max. work-piece height
80 mm
Grinding width
40 mm

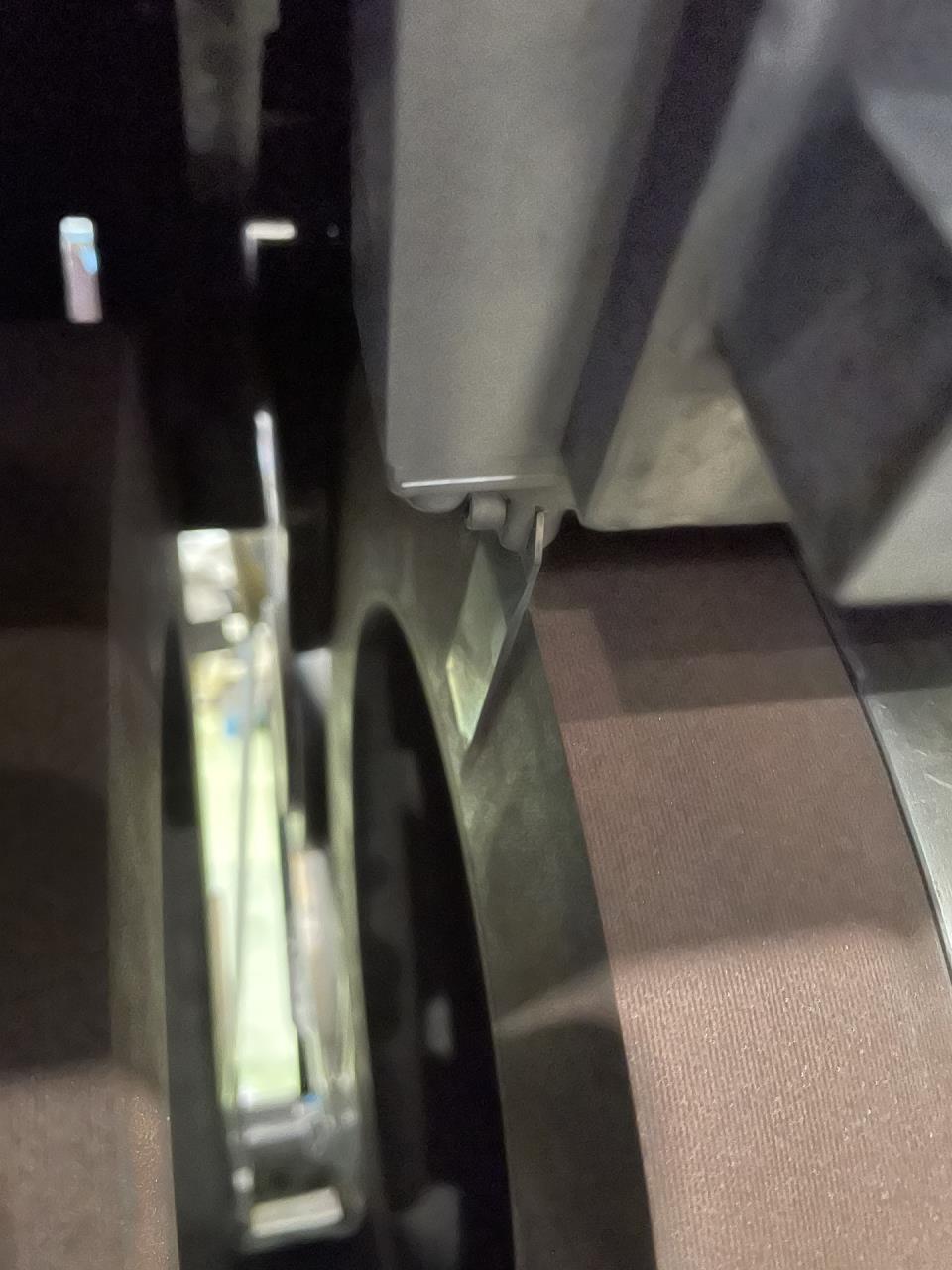

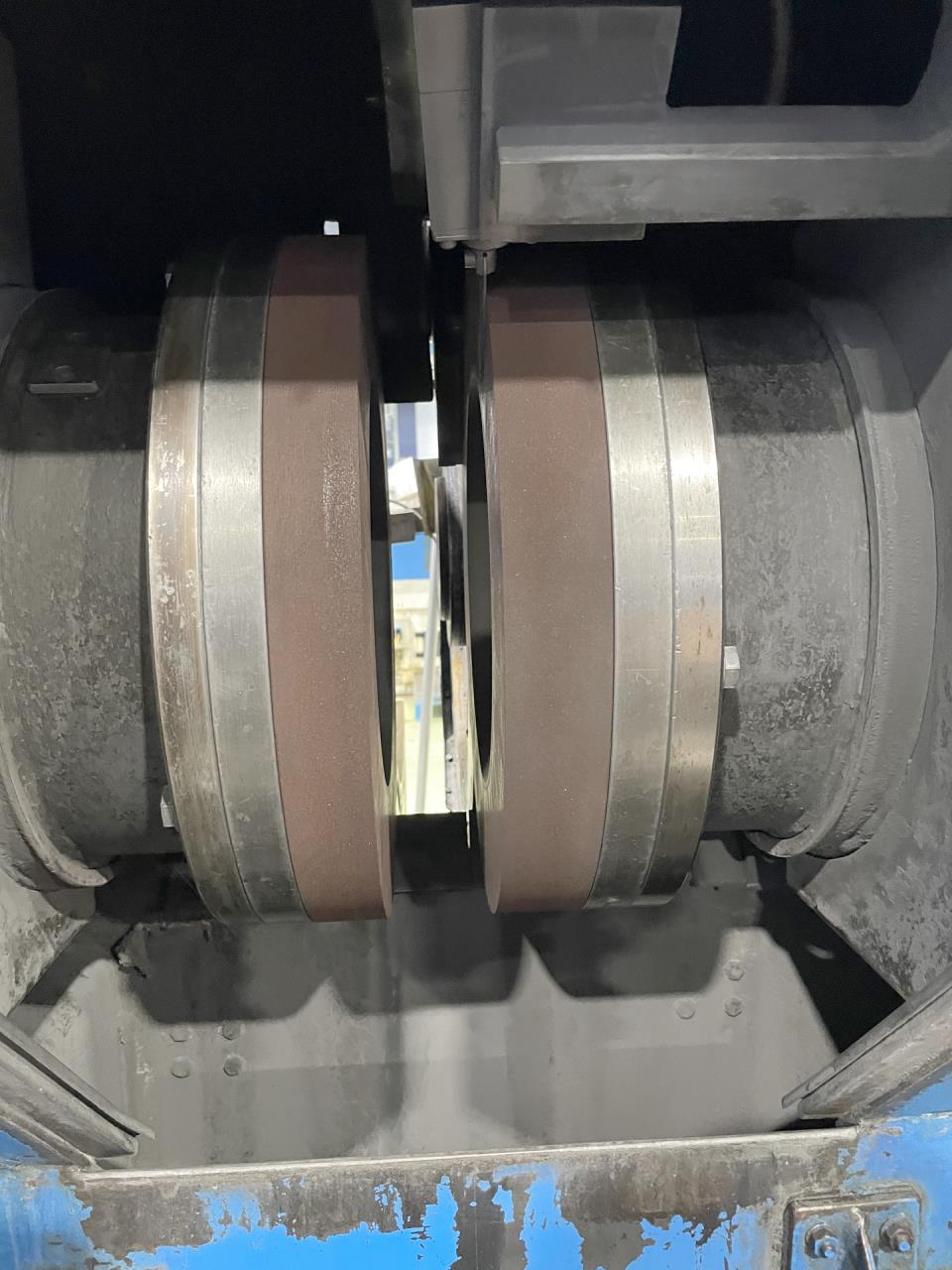

Grinding wheel:
    outside diameter
400 mm
    inside diameter
250 mm
    Width / height
50 mm
Grinding wheel right side:
Grinding wheel speeds:
       from
134.5 rpm
       up to
1435 rpm
    Peripheral speed
24 m/s
Grinding weehl left side:
    Rotation speed
1150 rpm
    Peripheral speed
3 - 30 m/s
Feed range
26 - 246 mm/s
Voltage
380 Volt
Total installed power
30 kW
Machine's weight about
4200 kg
Overall dimensions machine:
    Length
3300 mm
    Width
2600 mm
    Height
2300 mm
Dimensions electric cabinet:
    Length
1800 mm
    Width
400 mm
    Height
2000 mm
Various accessories:
Coolant system
Redressing device

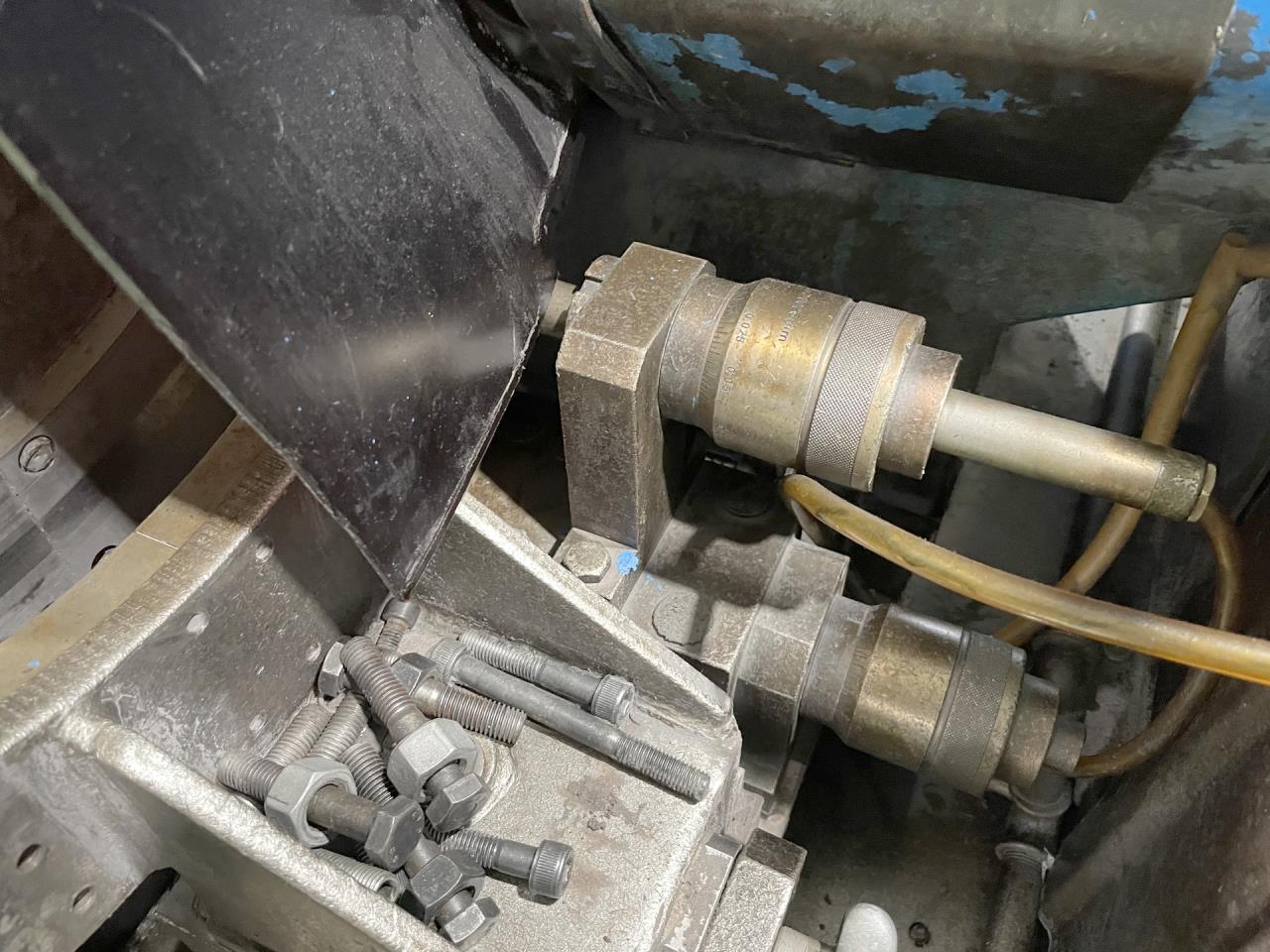

Measuring instrument
IONIC
Workpiece loader
Automatic loading and unloading unit
Set of grinding wheels
Lamp

Technical specifications and pictures without guarantee.
