stock no. :
21375
Machine's group :
High speed machining centers
Type :

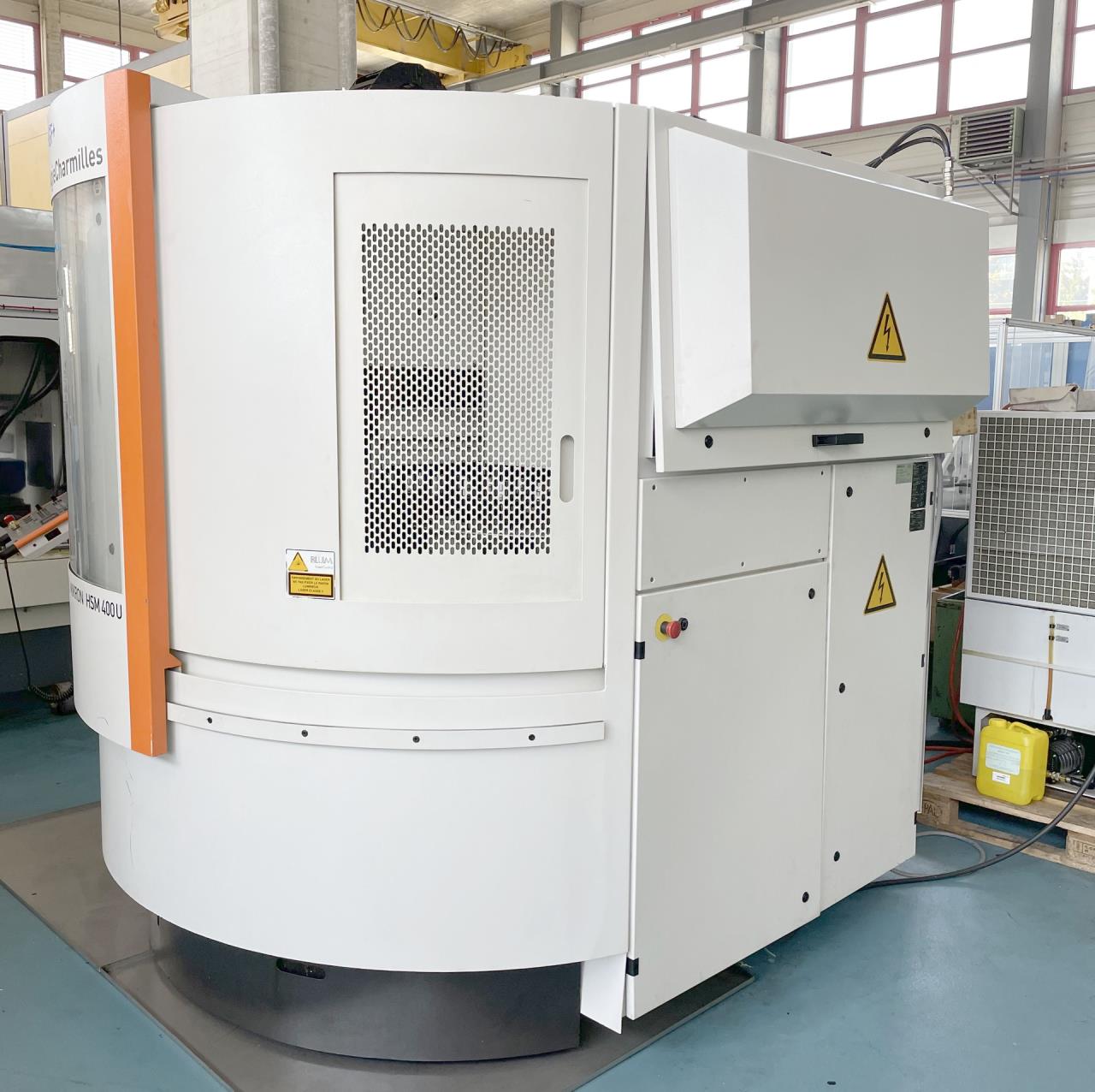

MIKRON HSM 400 U

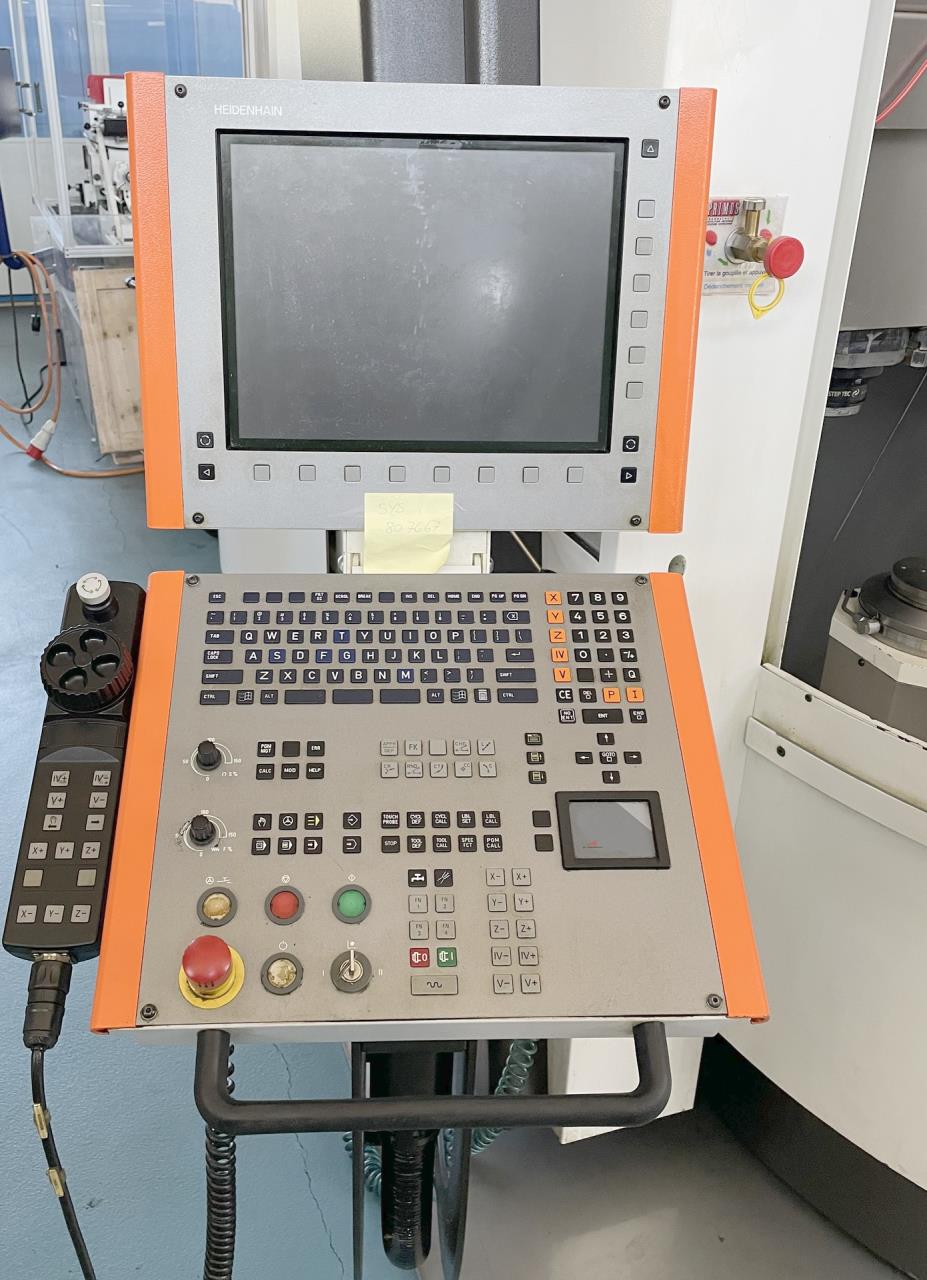

Controller :
HEIDENHAIN iTNC 530
Information request
MIKRON HSM 400 U 14 Image(s)
Back
Technical data
Number of axis simultaneous
5

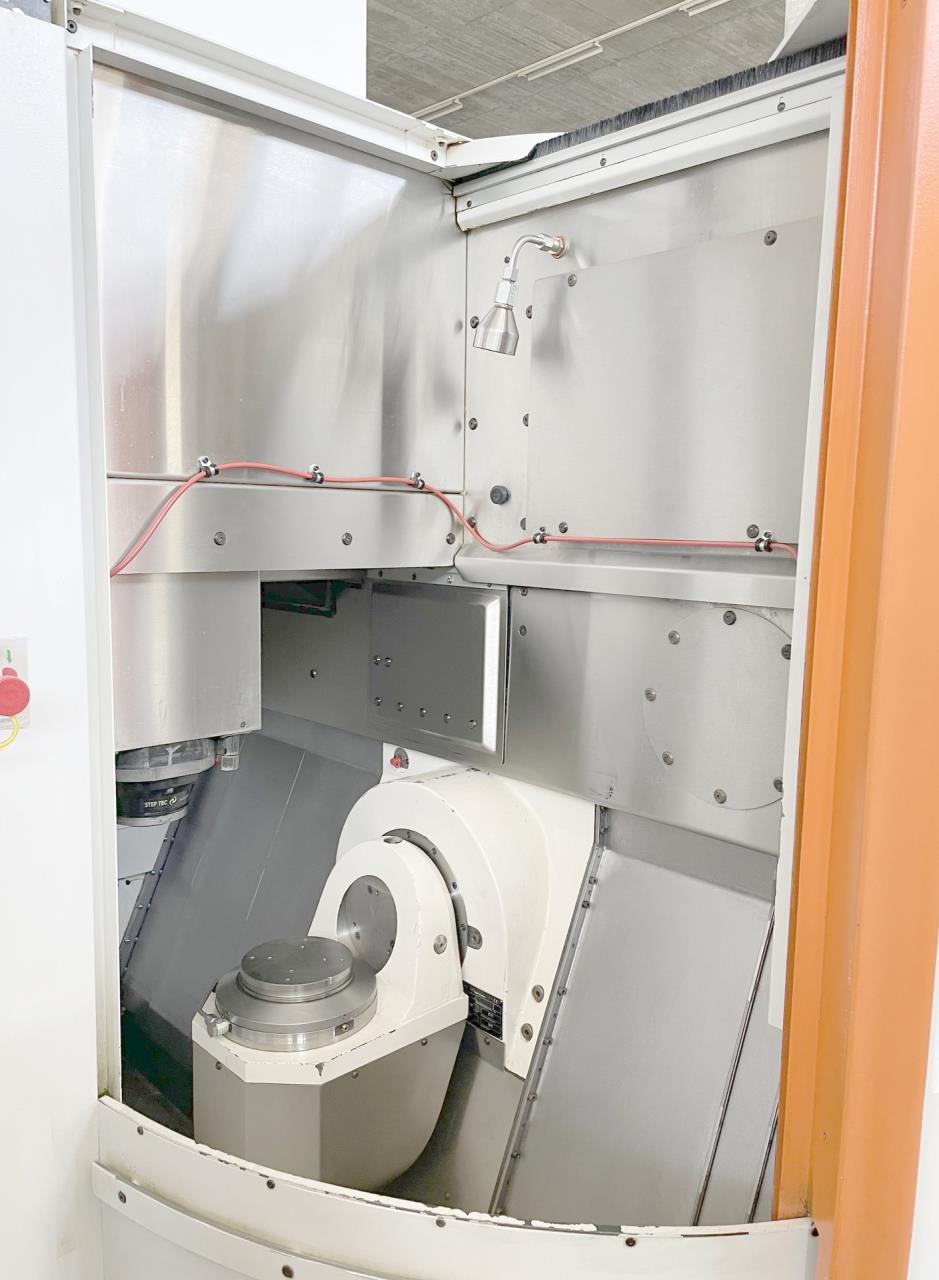

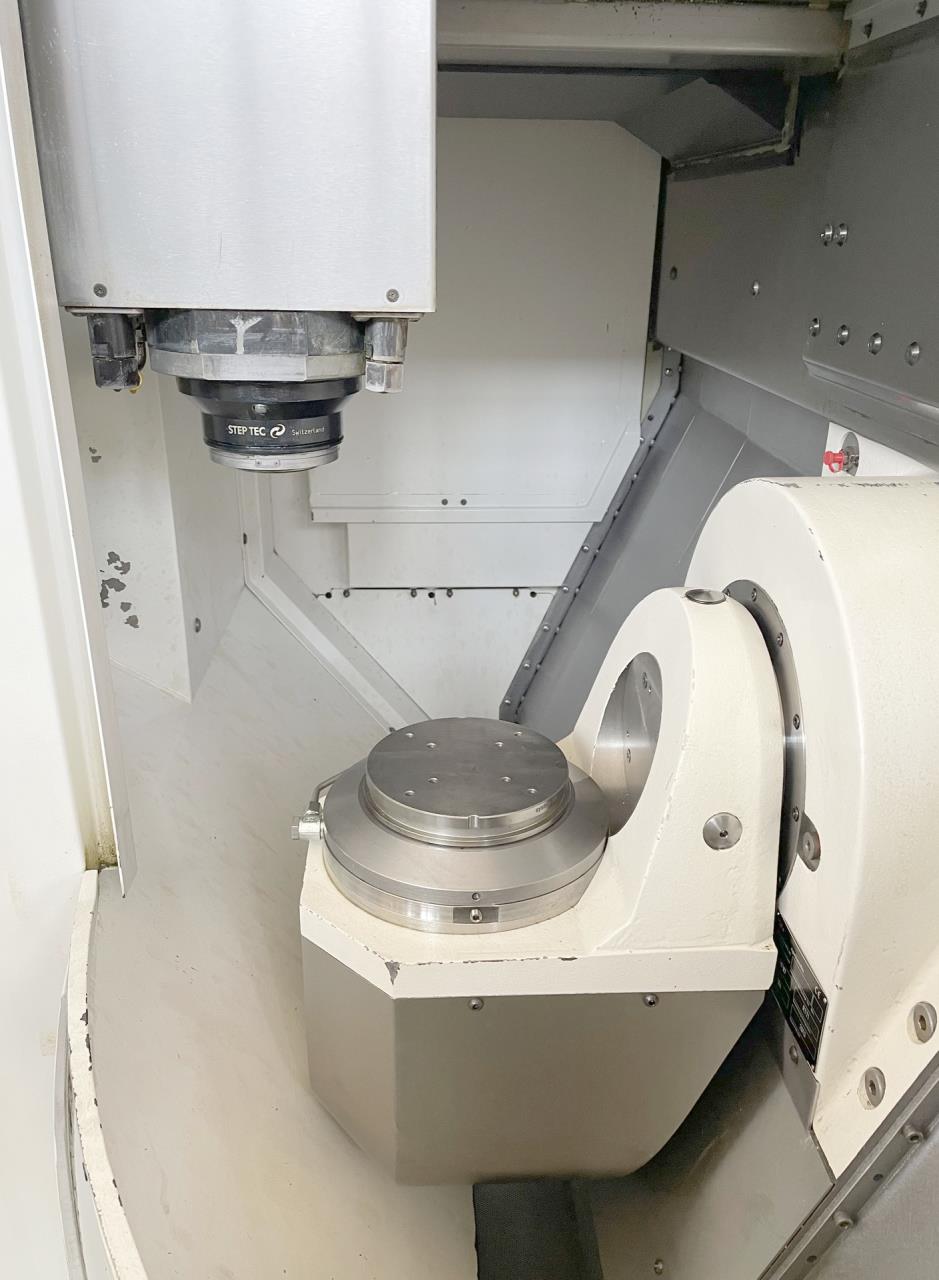

Rotary table:diameter
250 mm
Number of spindles
1
Table load max.
25 kg
Longitudinal travel (X-axis)
400 mm
Transversal travel (y-axis)
240 mm
Vertical travel (z axis)
350 mm
B axis swivelling range
+/-110 °
C axis
360 °
Table speed
250 rpm
Clamping torque C-axis
500 Nm
Torque max.
217 Nm

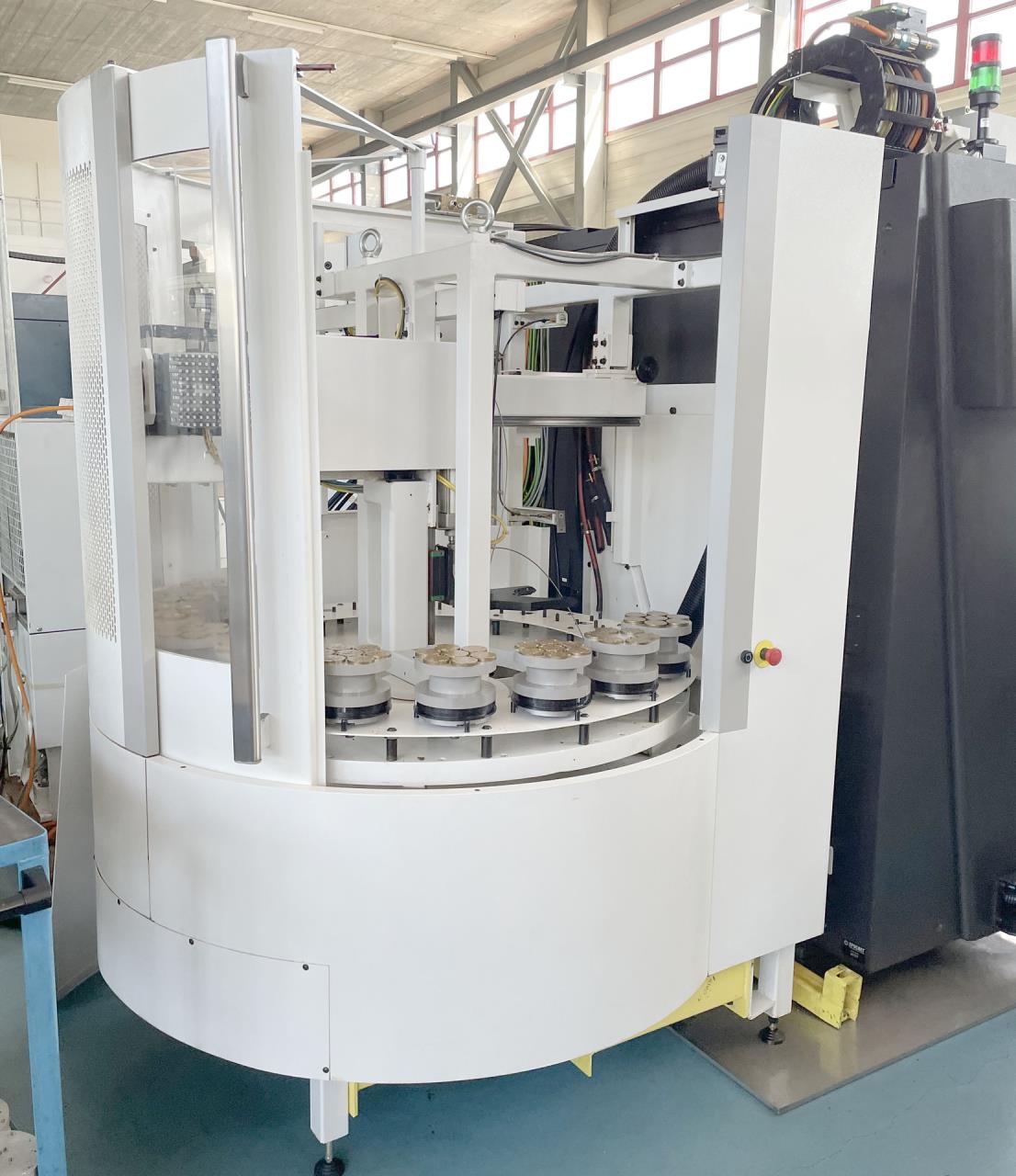

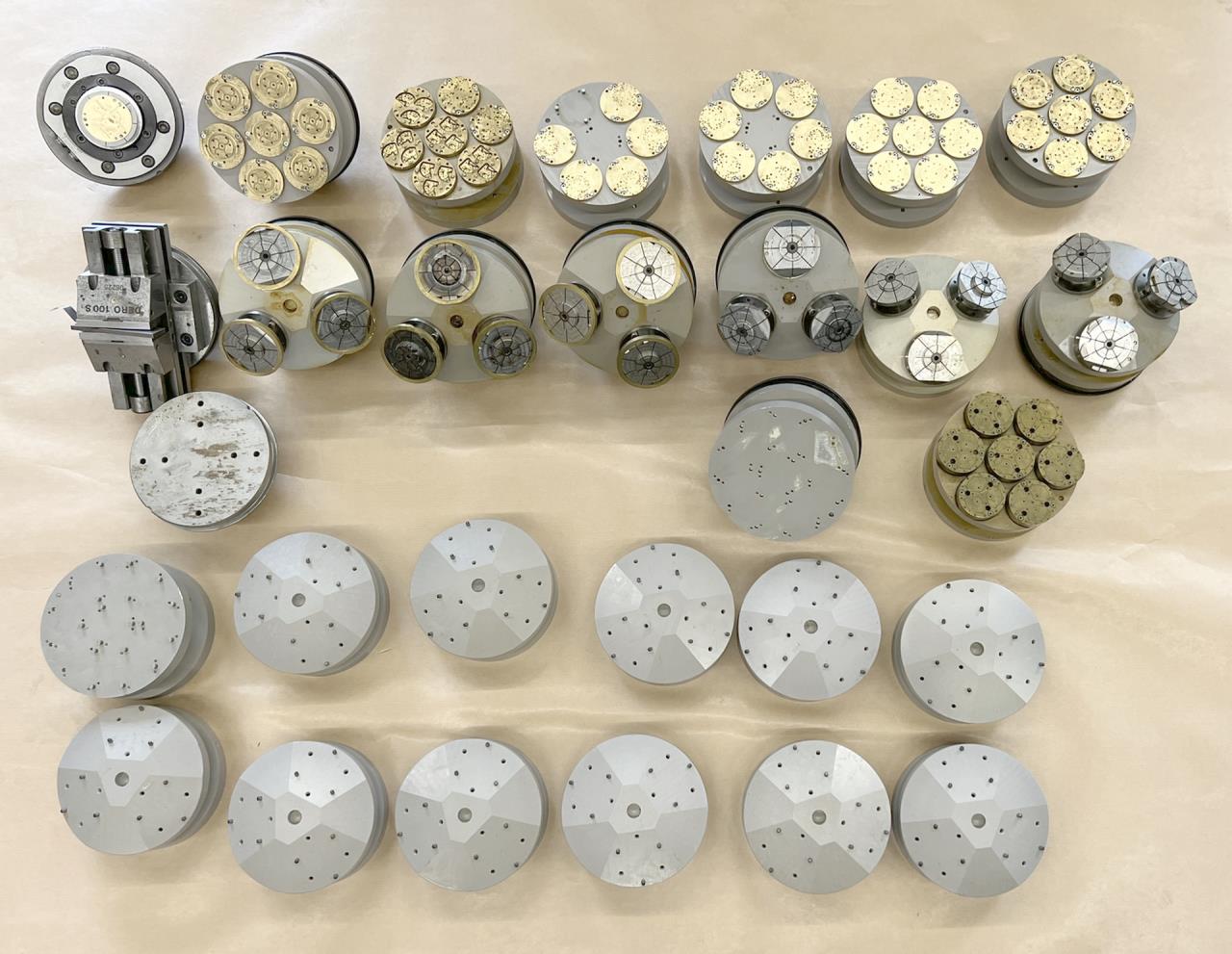

Pallets chanching device:
EROWA ITS 148
    number
20
    Diameter
160 mm

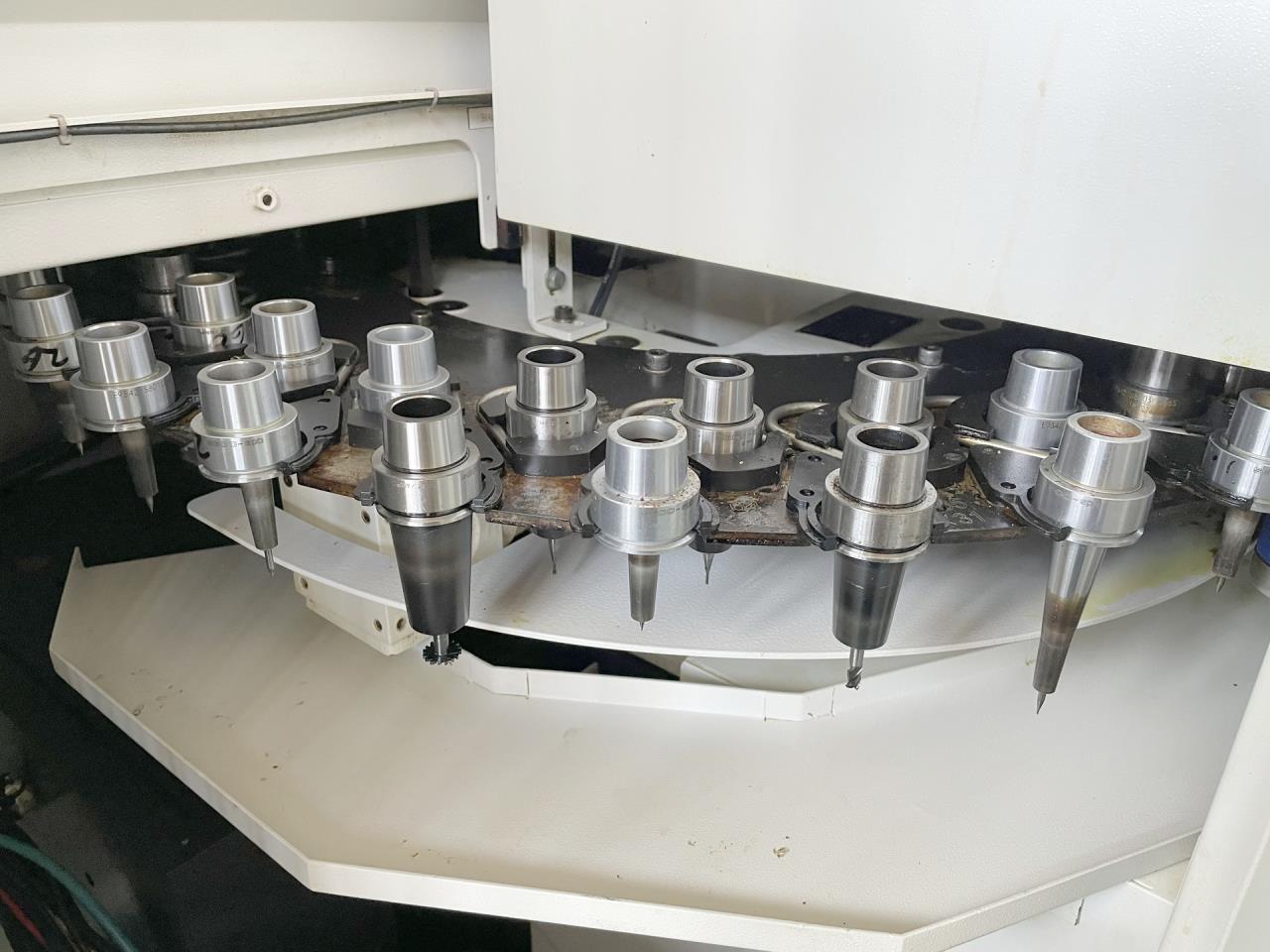

Tool changer:
    Number of tools
68
    Tool diameter max.
65 / 30 mm
    Tool lenght
155 / 100 mm
Spindle nose: HSK
E40
Spindle speeds:
    stepless
       from
100 rpm
       up to
42000 rpm
Work feed rate
1 - 40 m/min
Rapid traverse:
42 m/min
Air connect
6 bar
Voltage 50 Hz 3x
400 Volt
Spindle power
12 / 10 kW
Torque max.
8.8 / 6.5 Nm
Total power required
15 kW
Time under power
72311 Hour
Operating time
57489 Hour
Working time
56279 Hour
Spindle run time
24040 Hour
Noise level
75 dB (A)
Machine's weight about
5500 kg
Overall dimensions machine:
    Length
2900 mm
    Width
2400 mm
    Height
2700 mm

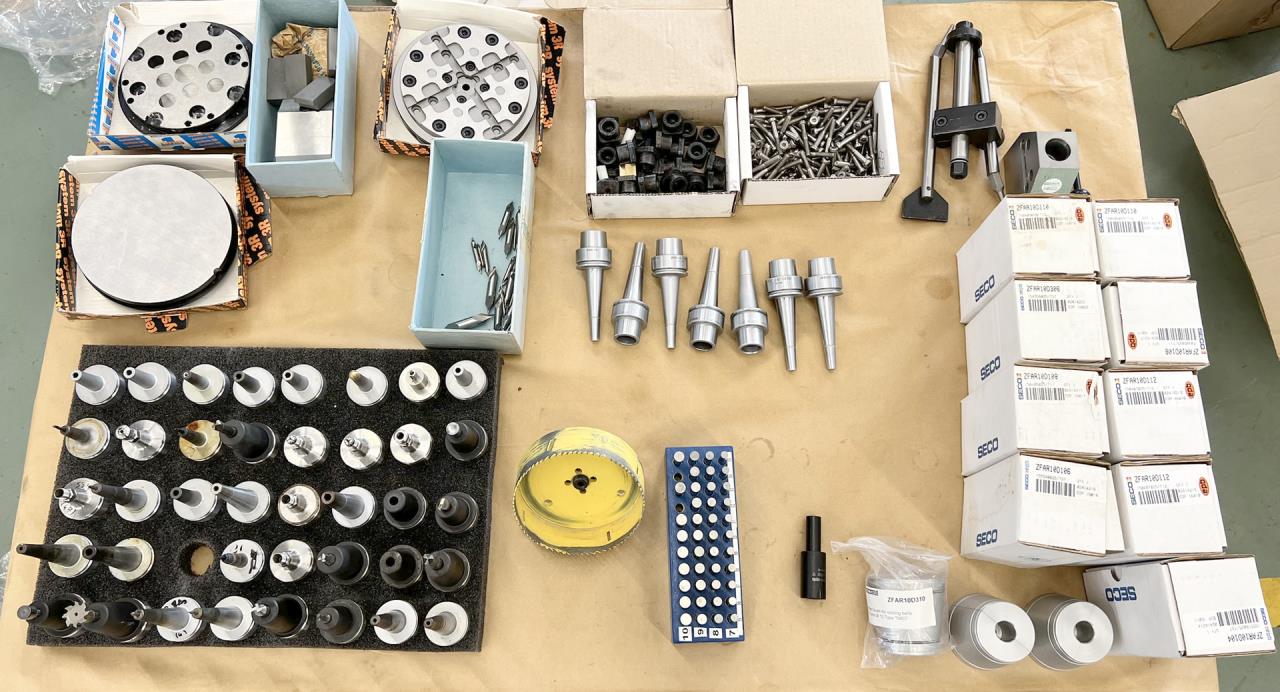

Various accessories:
Direct measuring system

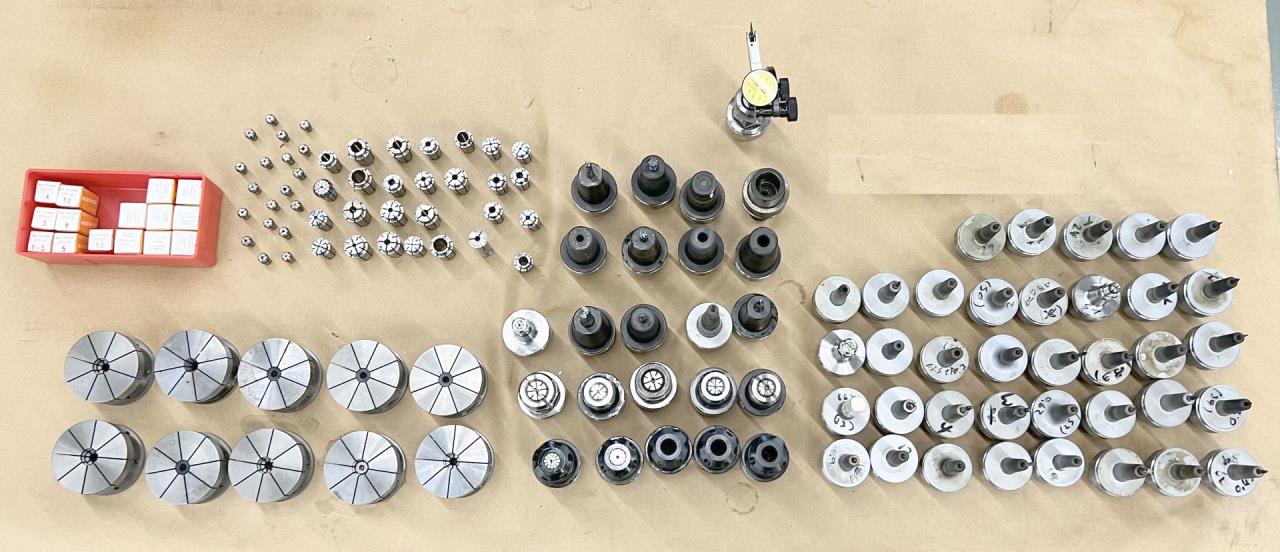

Set of toolholders
Set of shrink tool holders
Set of collets
Coolant system
150 l

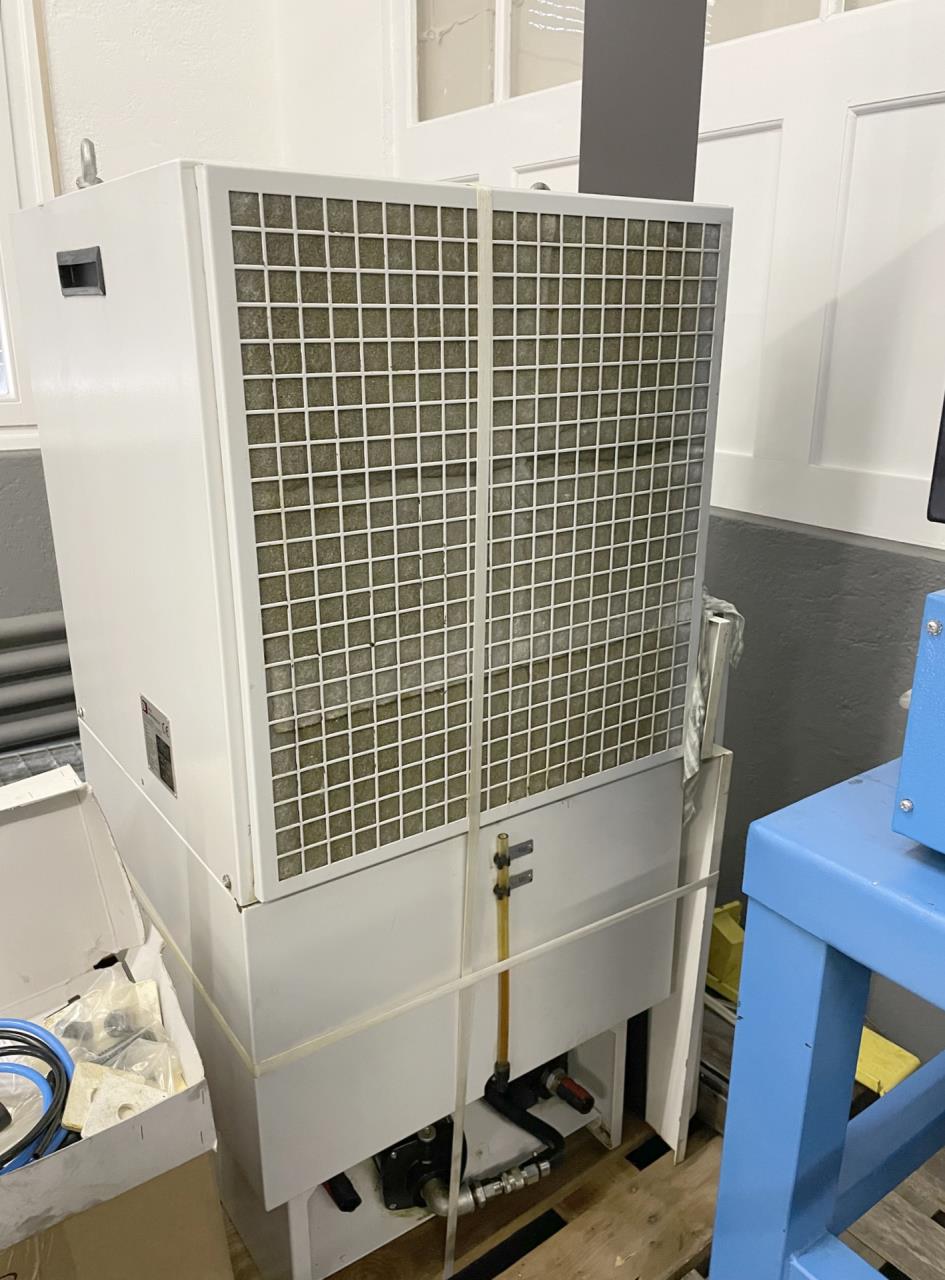

Water cooler
BURN
Infrared measuring sensor
m&h
Laser tool setting system
Tool blow-off device
Handwheel electroinic

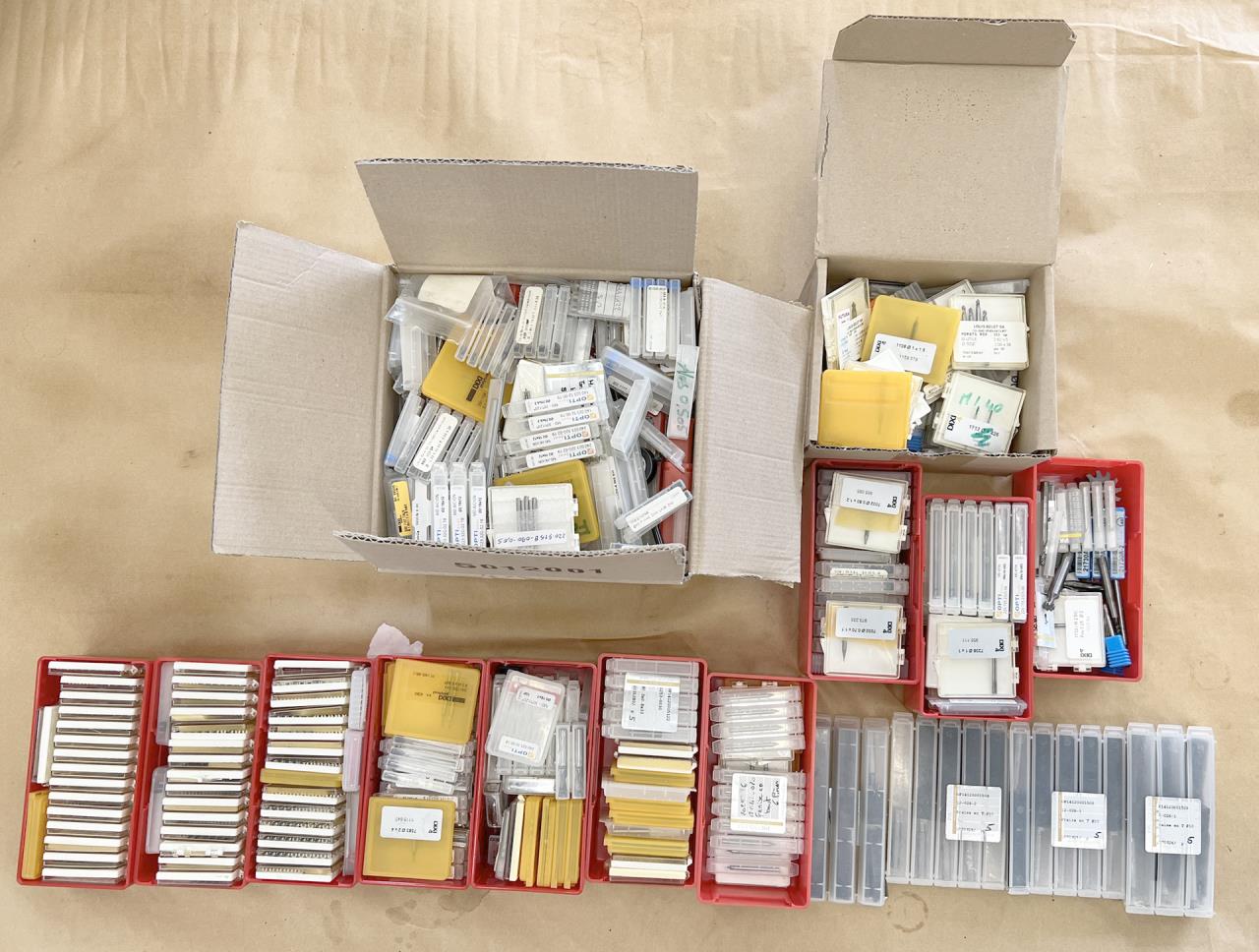

Set of milling cutters
Lamp
Status light
Centering divice with dial indicator
Blow gun
Interface Ethernet
Interface USB
Automatic central lubrication
Fire extinguishing system
Switch cabinet Air conditioner

Technical specifications and pictures without guarantee.
