Technical data

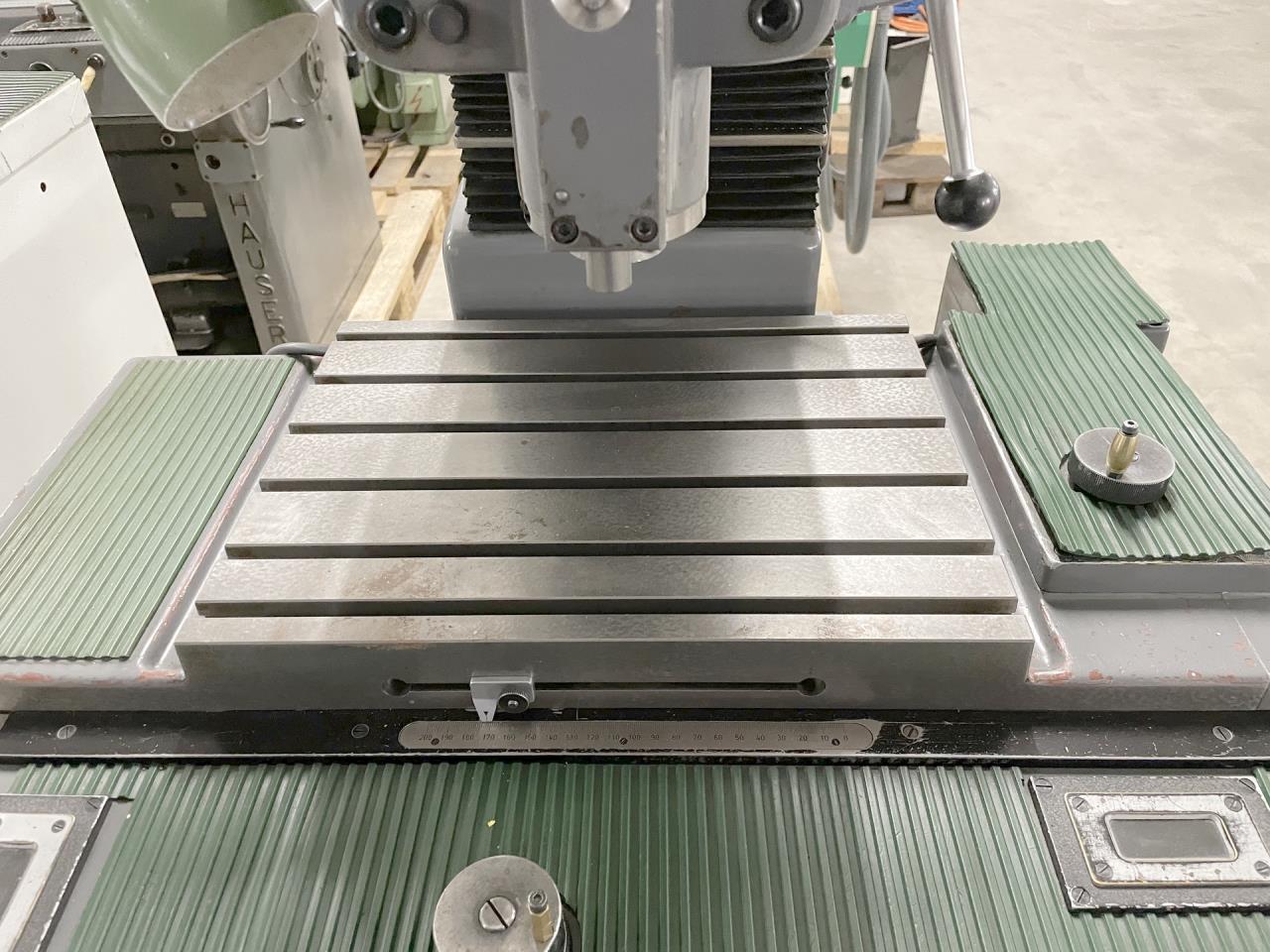

Table length
400 mm
Table width
300 mm
Longitudinal travel (X-axis)
200 mm
Transversal travel (y-axis)
200 mm
Verticla travel (W-axis)
250 mm
Drill capacity in steel
10 mm
Taper in spindle: MT
0
Drill depth (spindle stroke)
70 mm
Distance table to spindle
320 mm
Spindle speeds:
stepless
from
150 rpm
up to
3000 rpm
Voltage 50 Hz 3x
380 Volt
Spindle motor
0.5 HP
Machine's weight about
700 kg
Overall dimensions machine:
Length
1200 mm
Width
1000 mm
Height
1800 mm

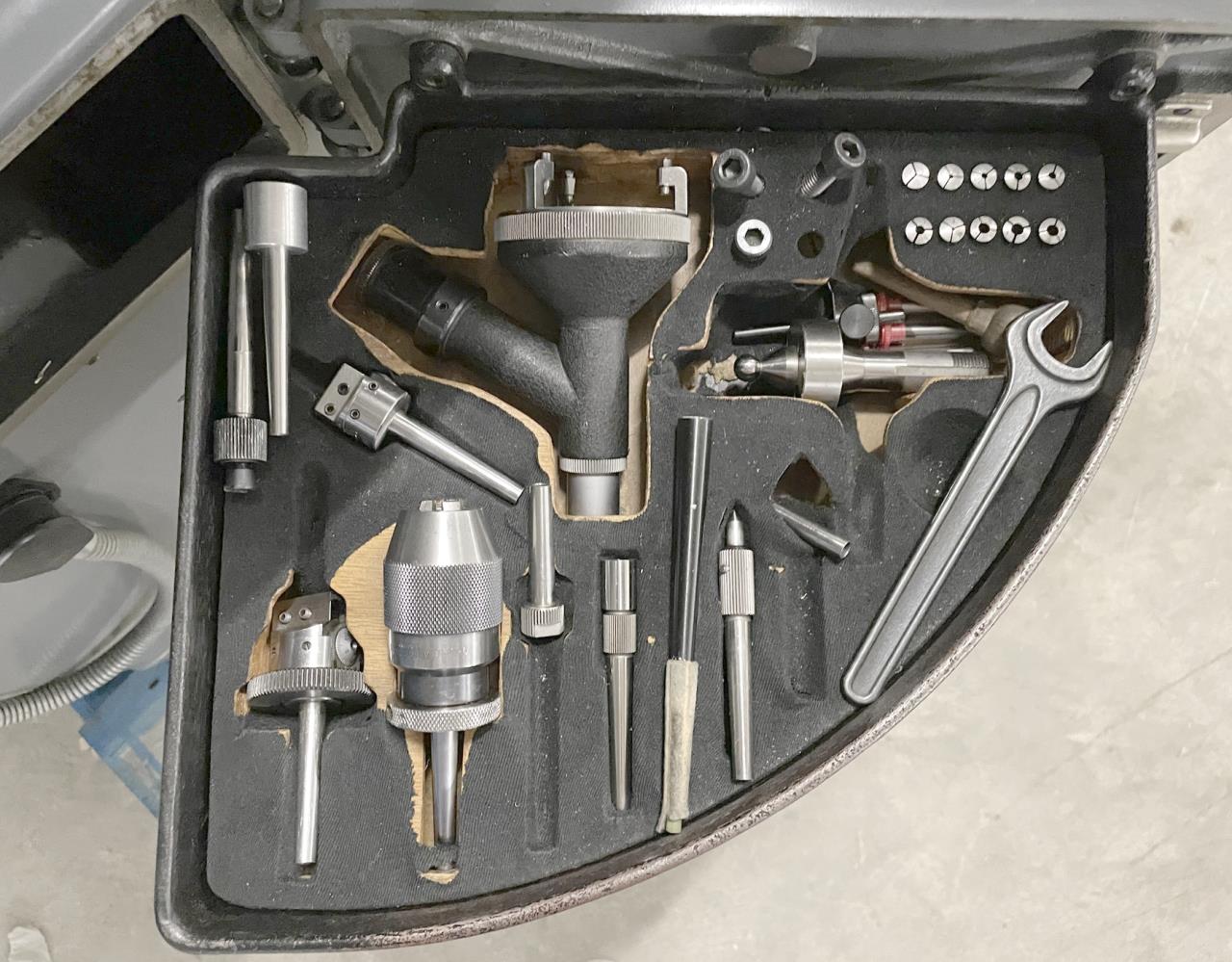

Various accessories:

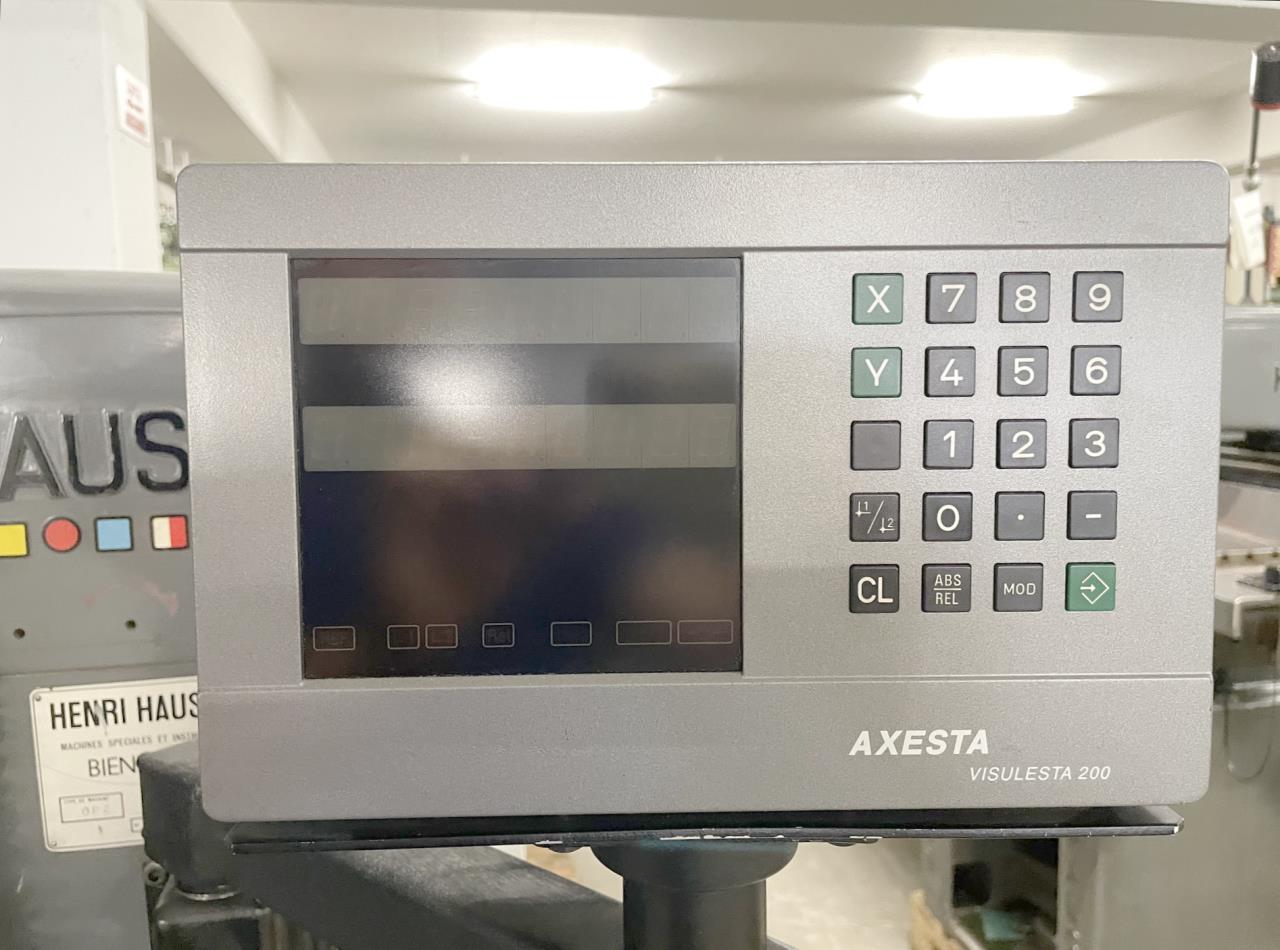

Digital readout number of axis:
2
Drill chuck
Centering microscop
Set of collets
Technical specifications and pictures without guarantee.
