stock no. :
21223
Machine's group :

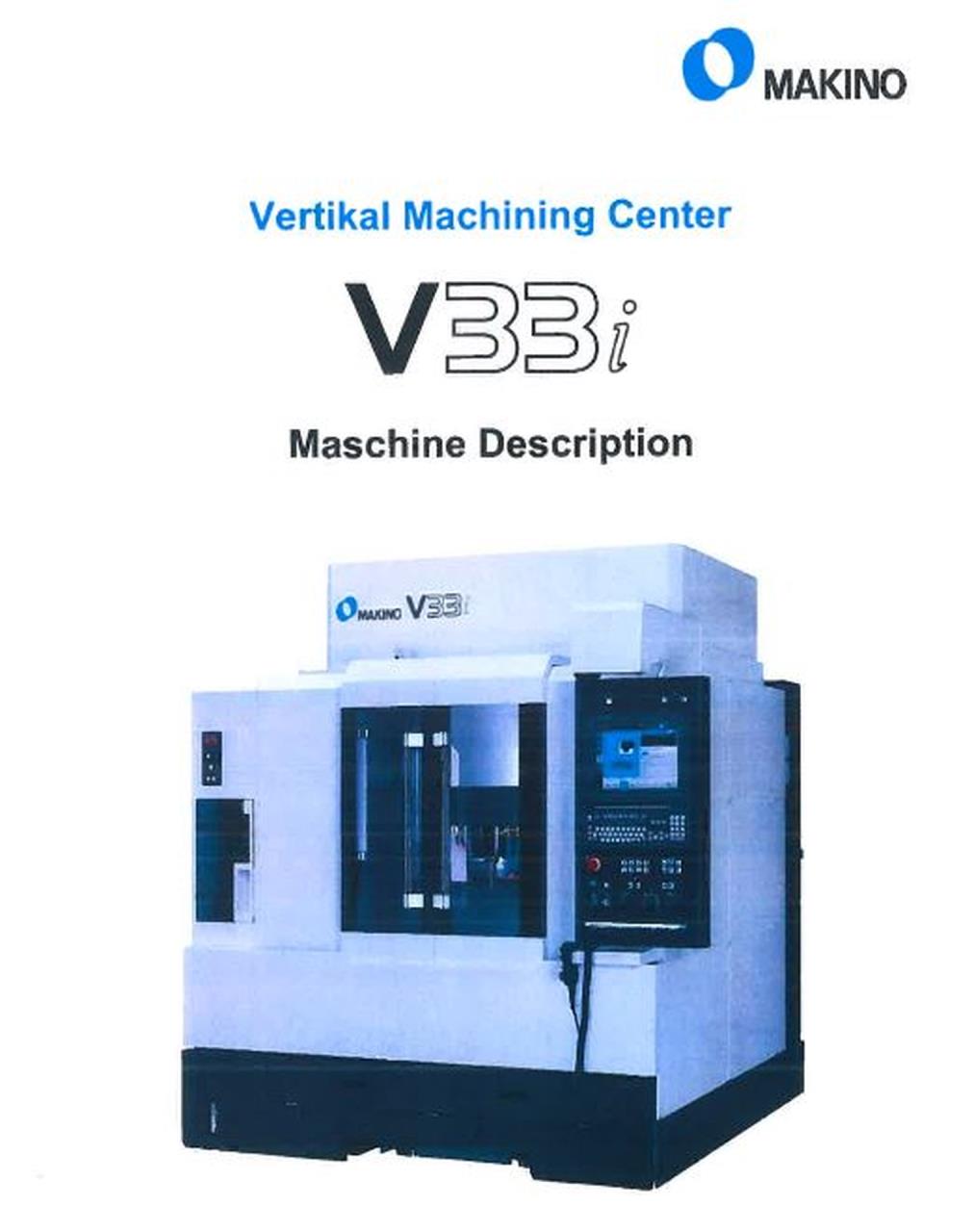

Vertical machining center
Type :
MAKINO V 33i

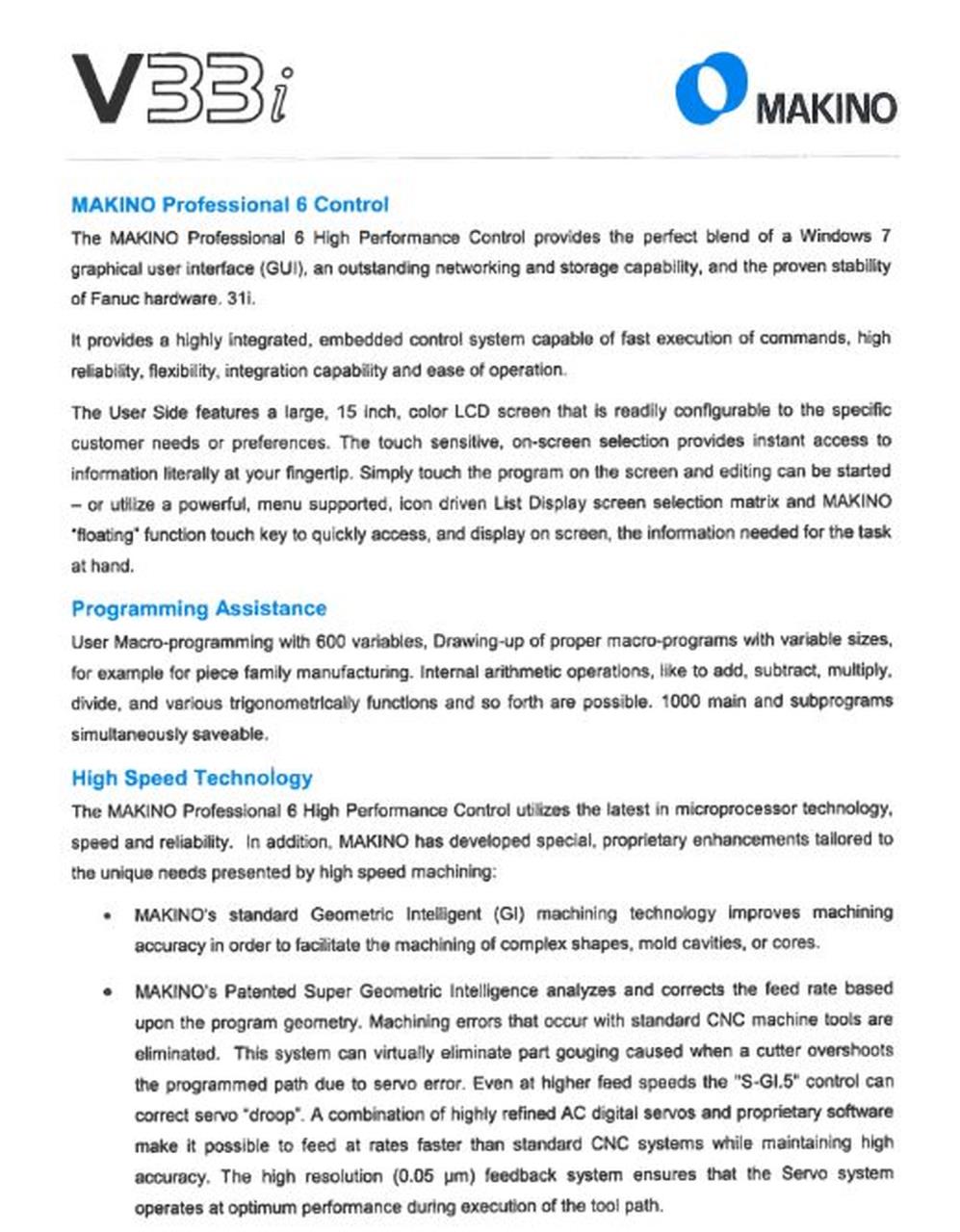

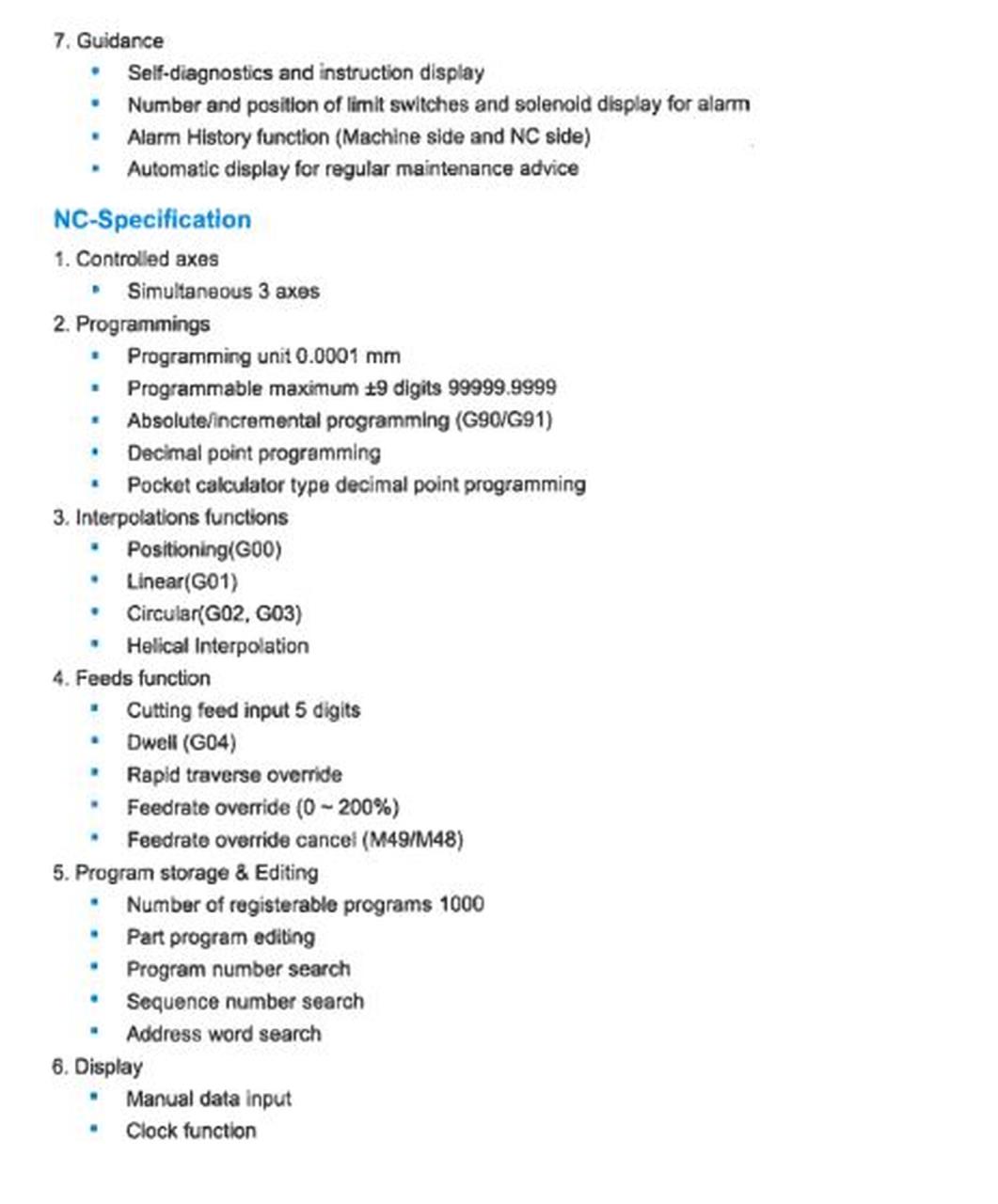

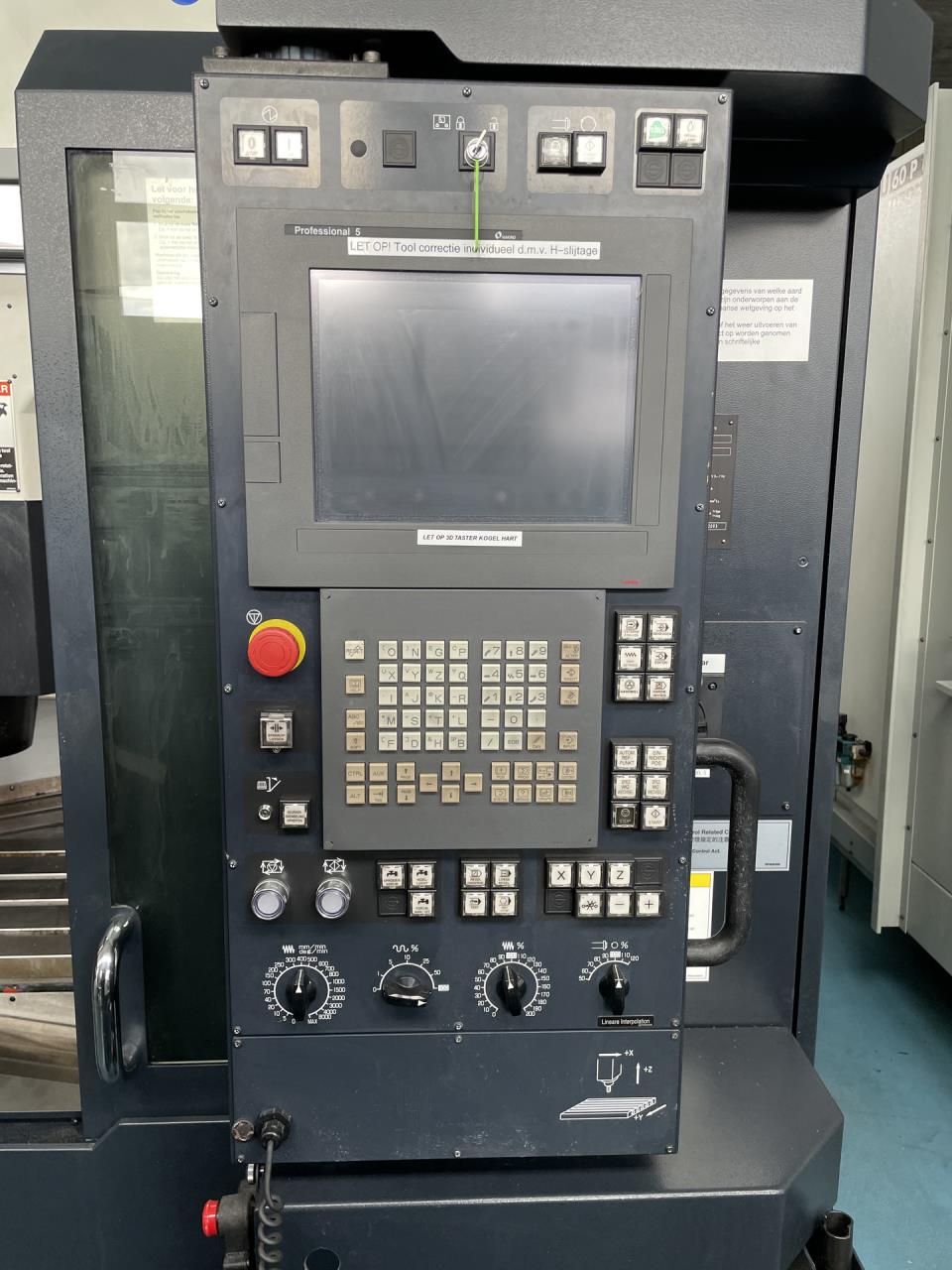

Controller :
FANUC Series 31i
Information request
MAKINO V 33i 3 Image(s)
Back
Technical data
Table length
750 mm
Table width
450 mm
Table load max.
300 kg
Longitudinal travel (X-axis)
650 mm
Transversal travel (y axis)
450 mm
Vertical travel (z axis)
350 mm
Dimension of the workpice:
    Length
750 mm
    Width
635 mm
    Height
250 mm
Tool magazine number of tools
60
Tool diameter max.
80 mm
Tool lenght
250 mm
Max. tool-weight
7 kg
Time of tool changing
4.8 sec
Spindle nose: HSK
E50
Distance spindle nose to table
150 - 500 mm
Spindle speeds:
    stepless
       from
300 rpm
       up to
30000 rpm
Feed range
1 - 20000 mm/min
Rapid traverse:
20 m/min
Air connect
4 - 8 bar
Voltage 50 Hz 3x
400 Volt
Total power required
50 kVA
Machine's weight about
7700 kg

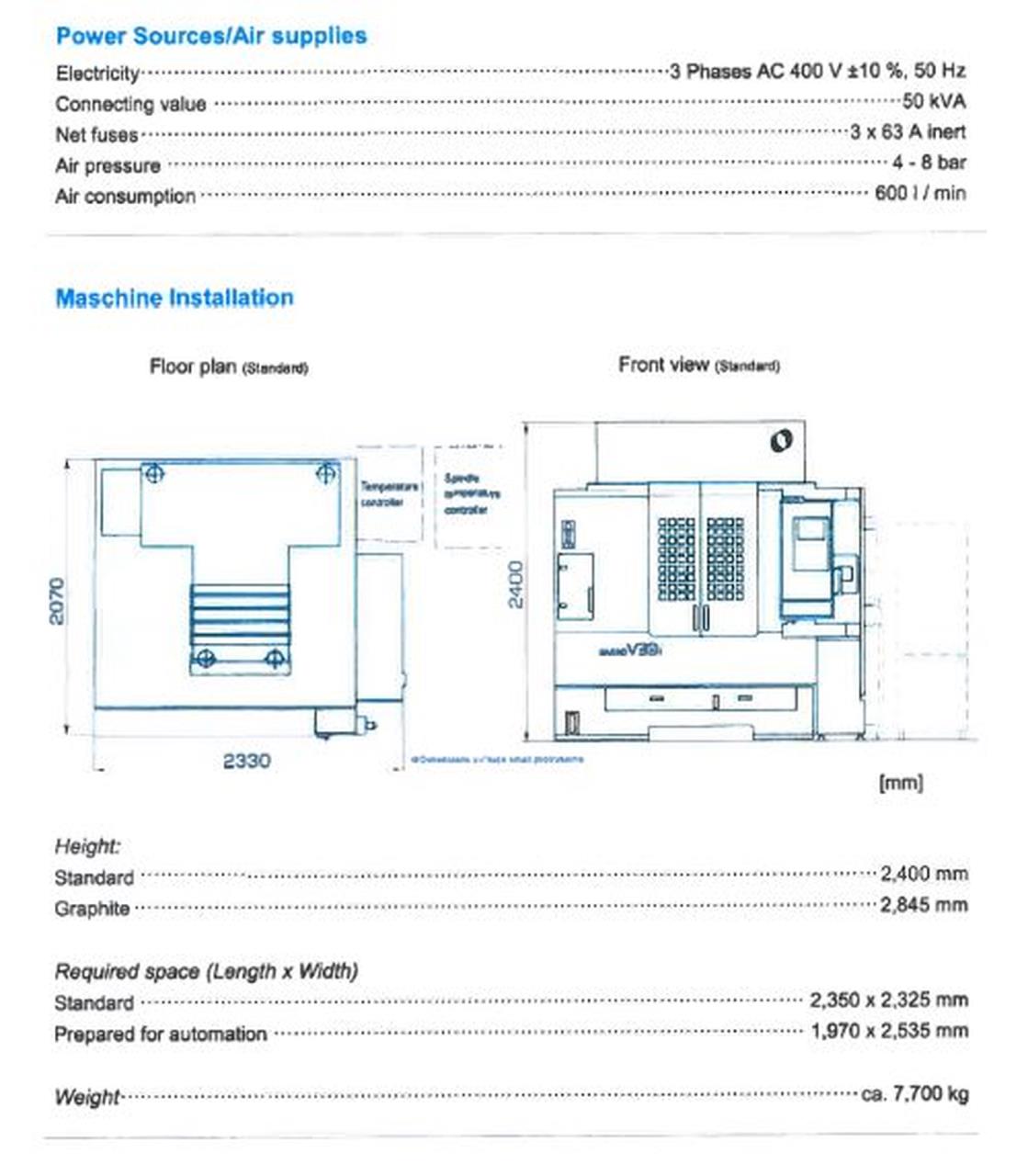

Overall dimensions machine:
    Length
2330 mm
    Width
2070 mm
    Height
2400 mm

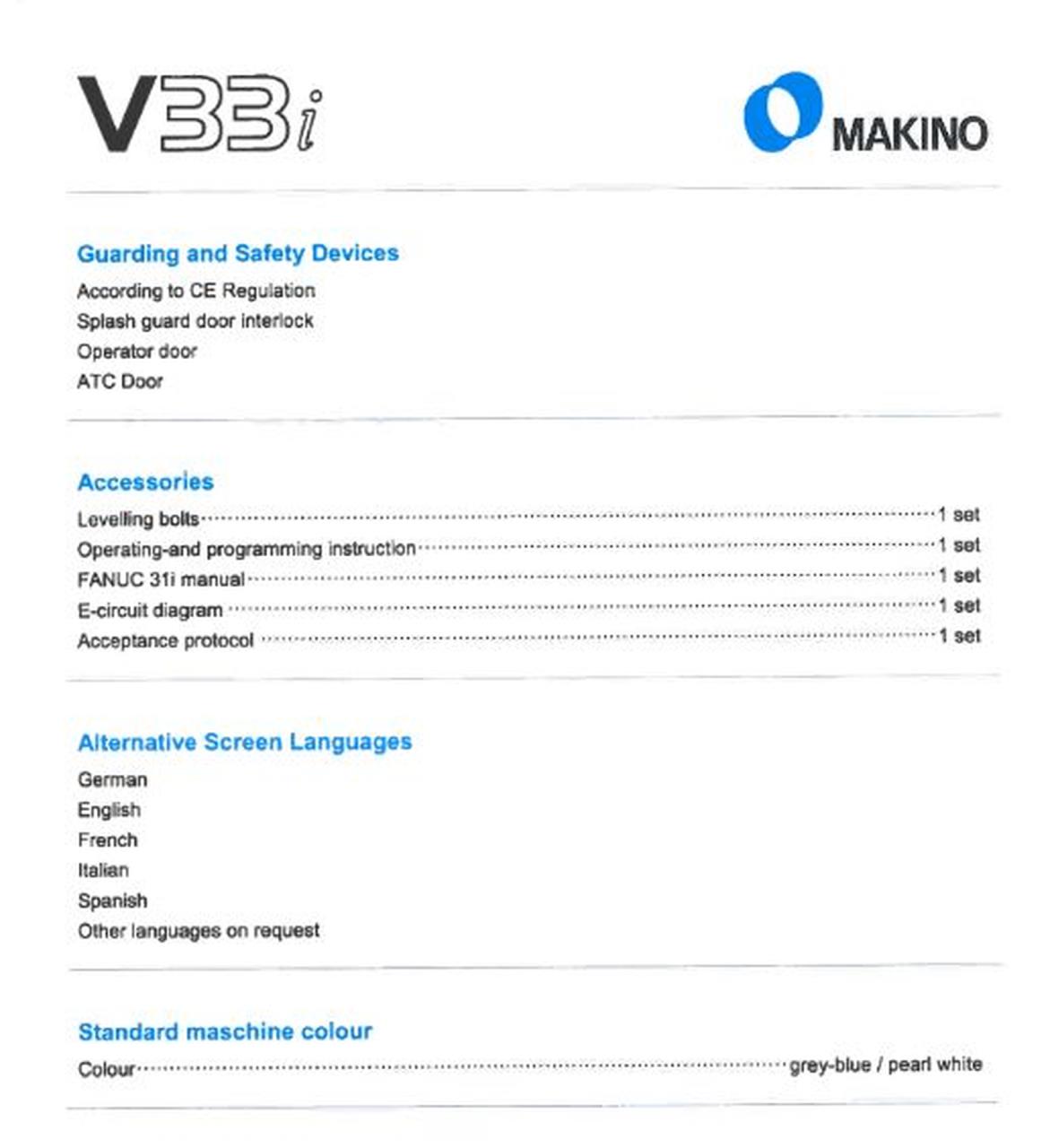

Various accessories:
Coolant system
150 l

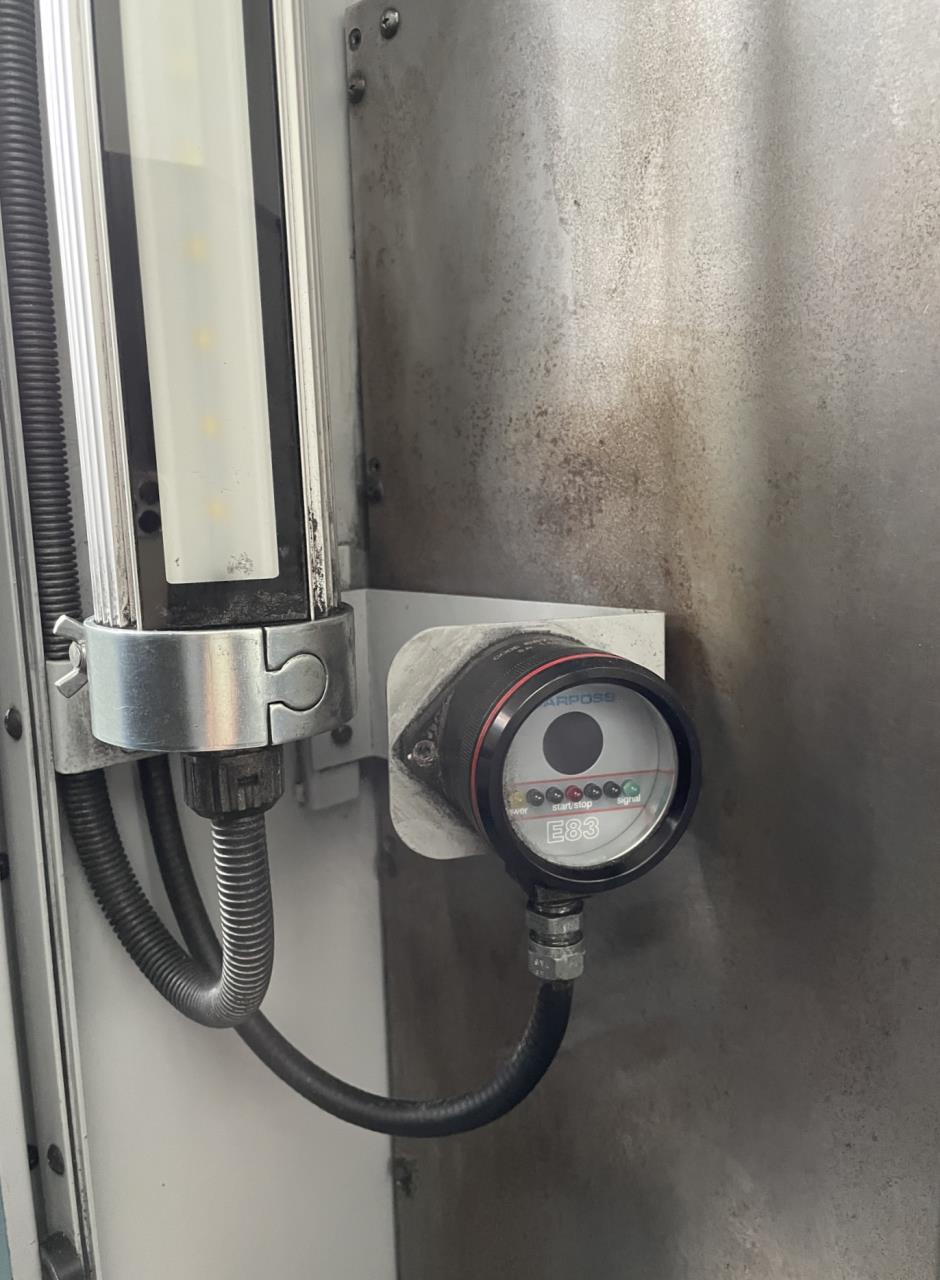

Lamp
Status light
Interface Ethernet
Interface USB

Technical specifications and pictures without guarantee.
