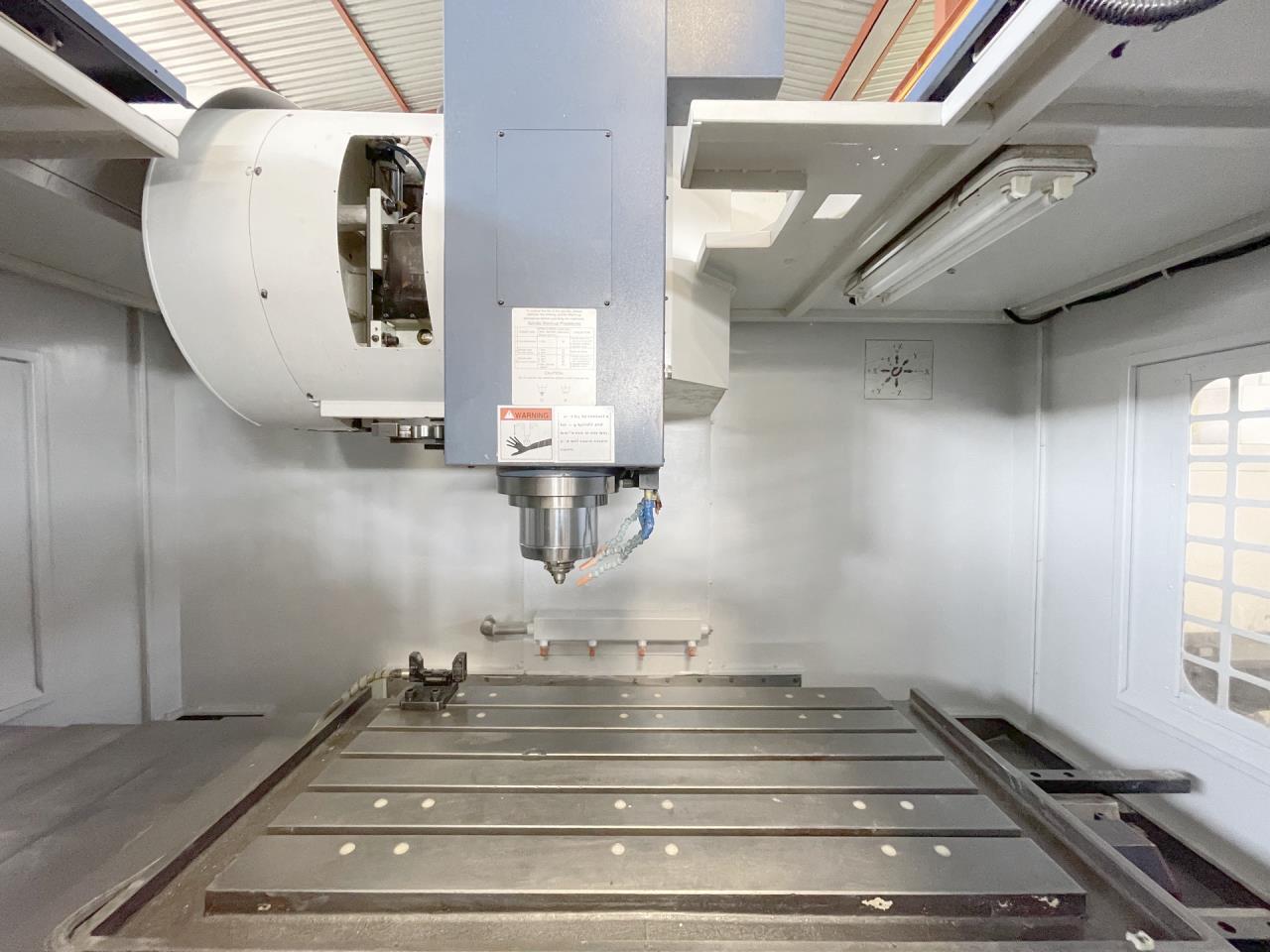

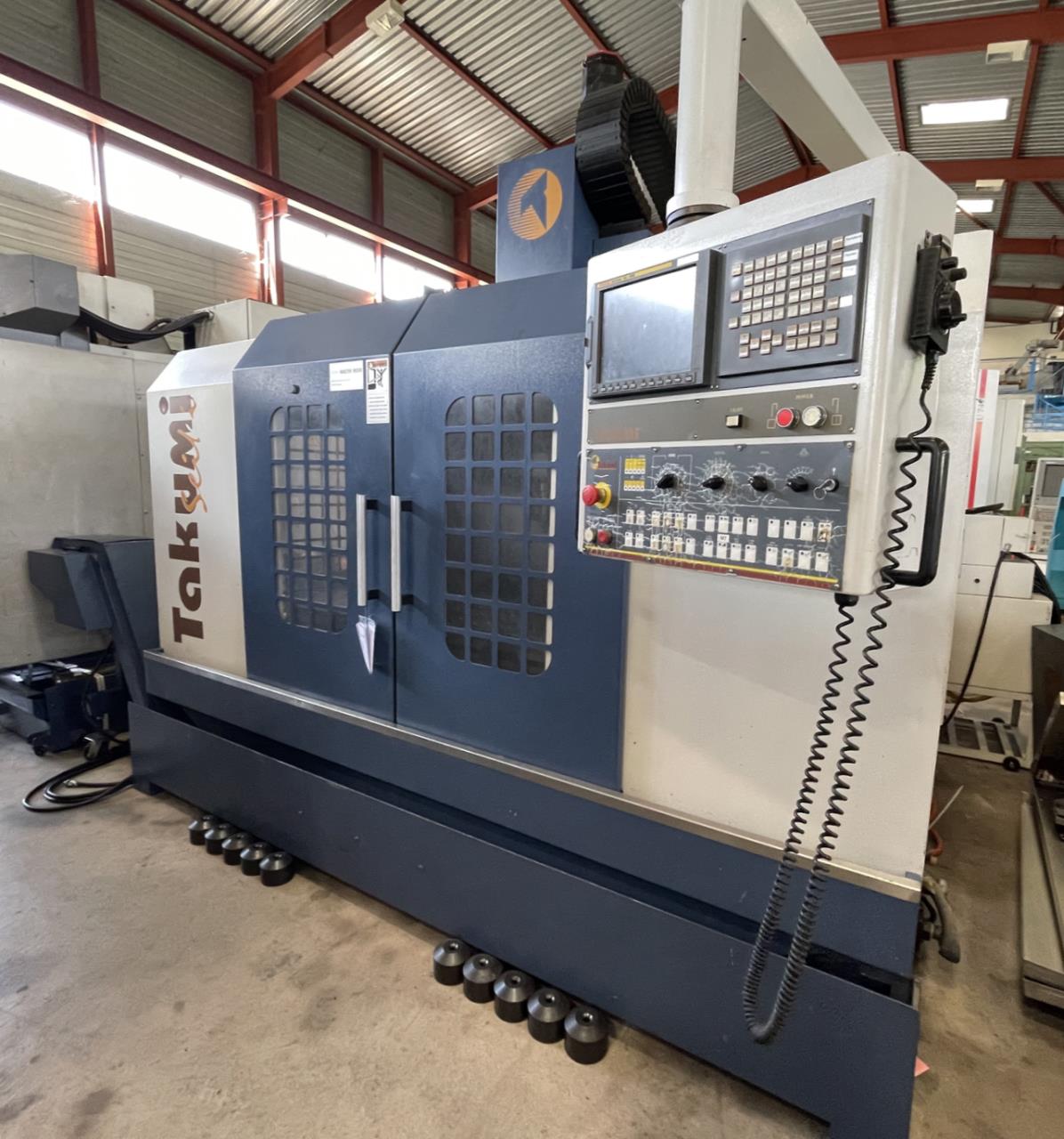

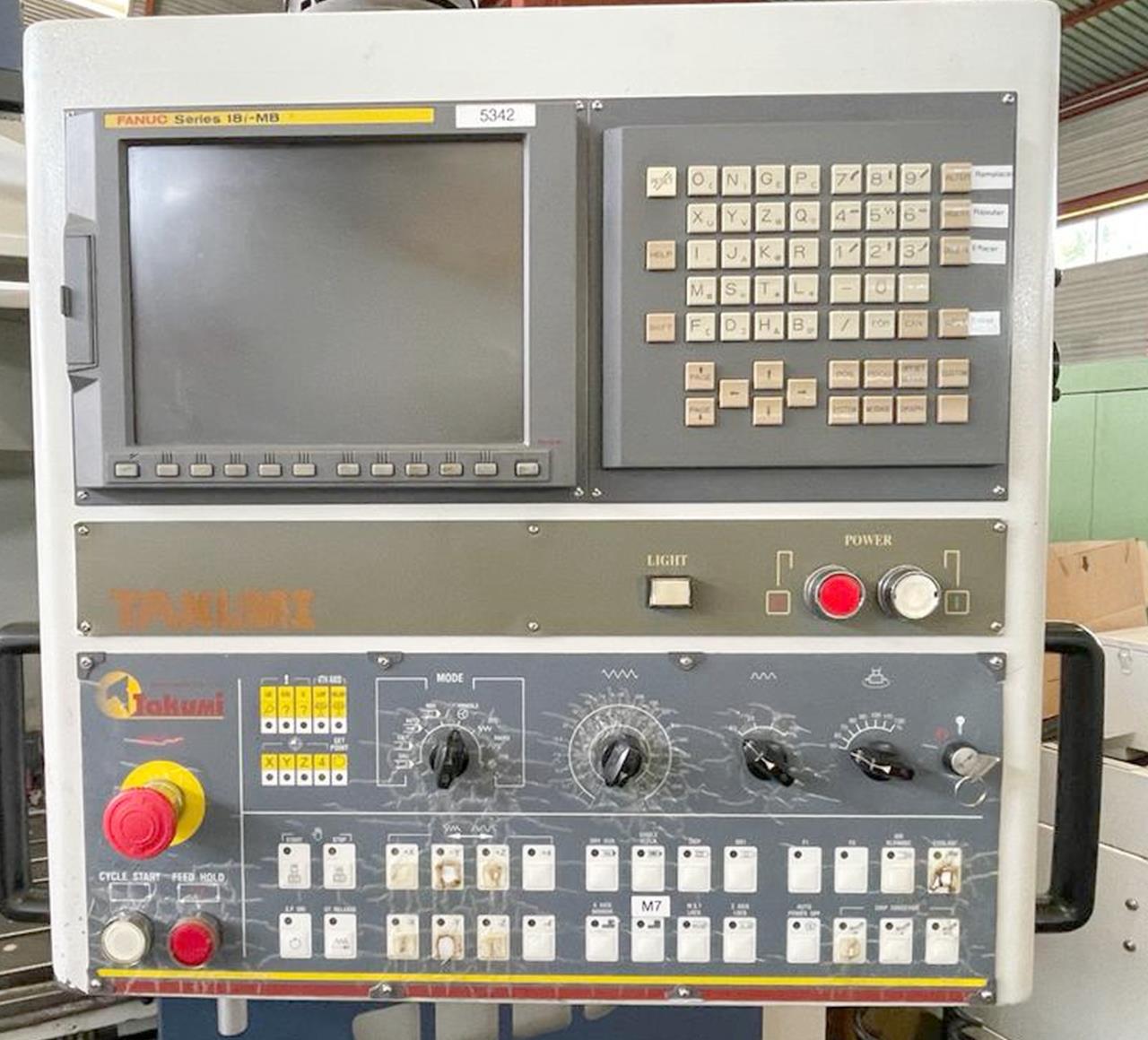

Technical data
Number of axis total
3

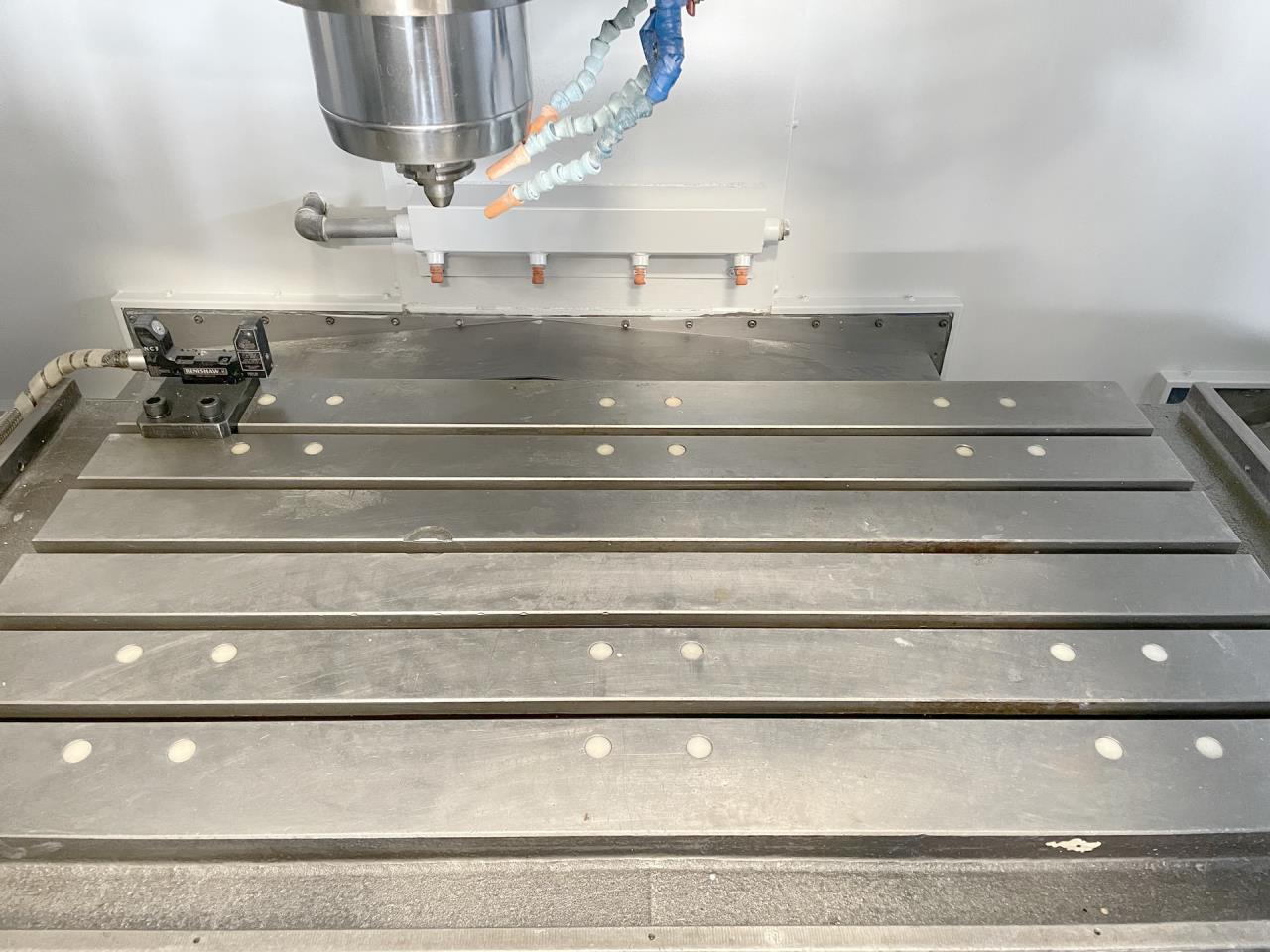

Table length
1200 mm
Table width
625 mm
Table load max.
1200 kg
Longitudinal travel (X-axis)
1100 mm
Transversal travel (y-axis)
625 mm
Vertical travel (z axis)
500 mm

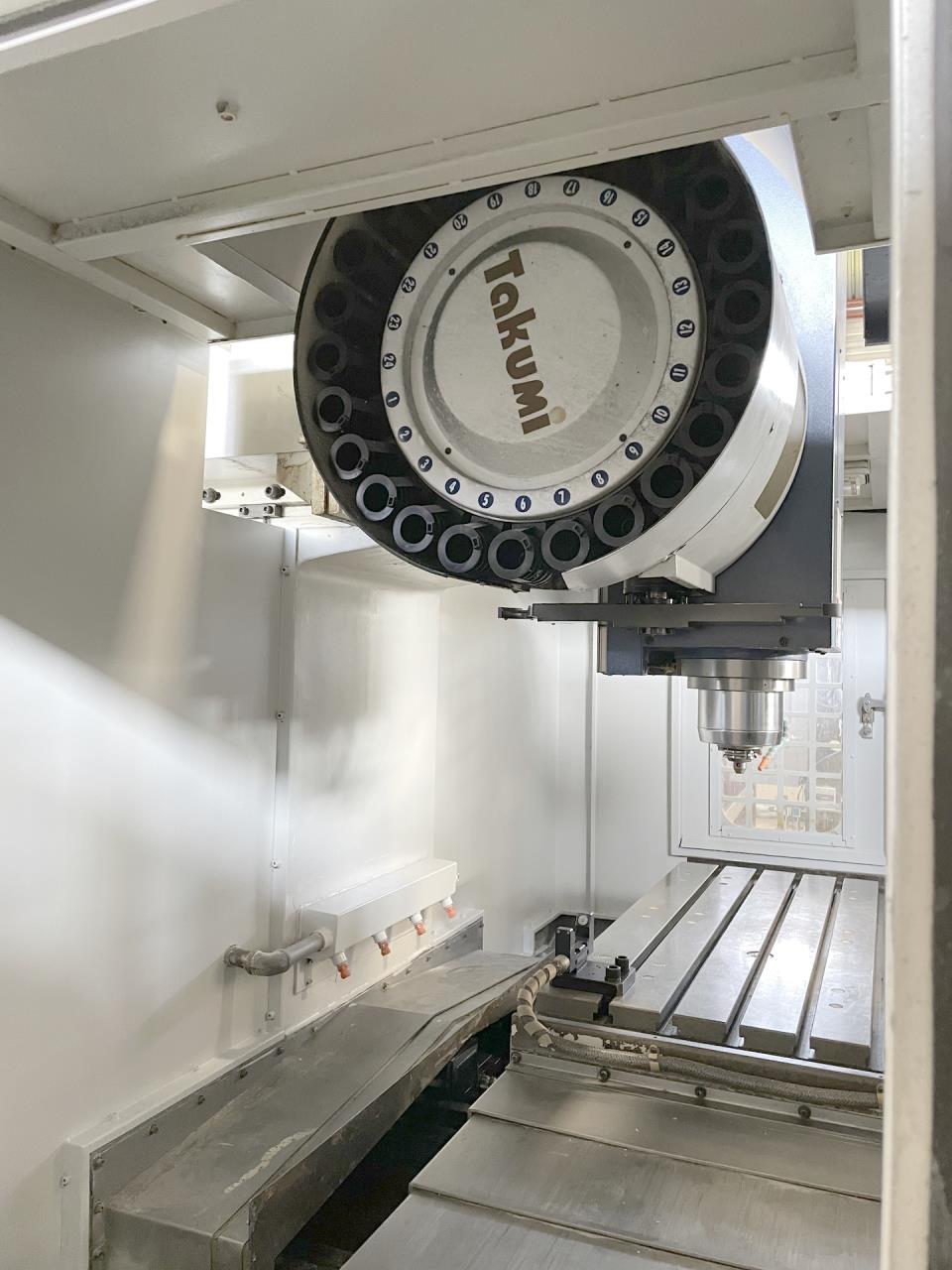

Tool changer:
Number of tools
24
Tool diameter max.
80 mm
Tool lenght
250 mm
Max. tool-weight
7 kg

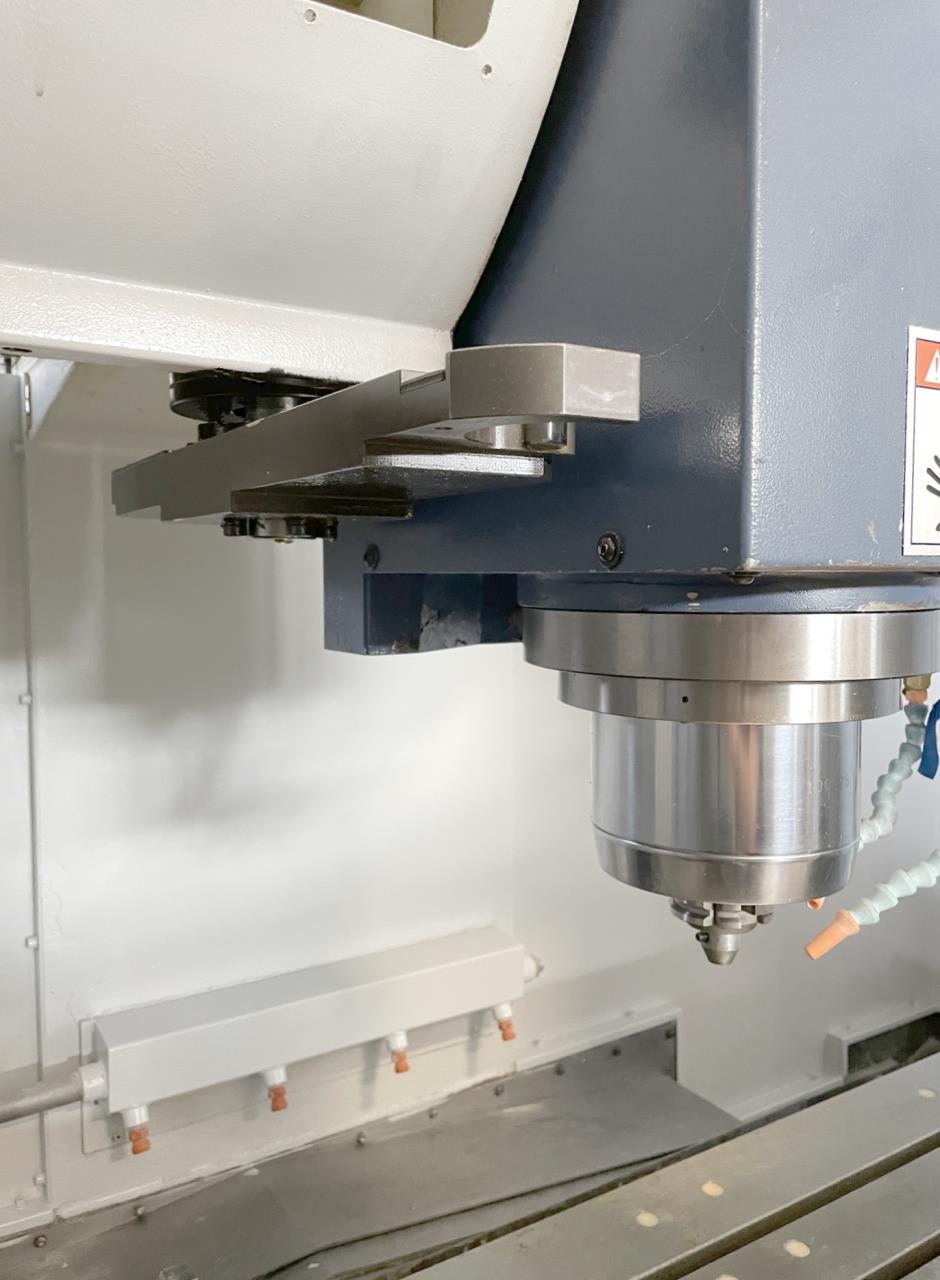

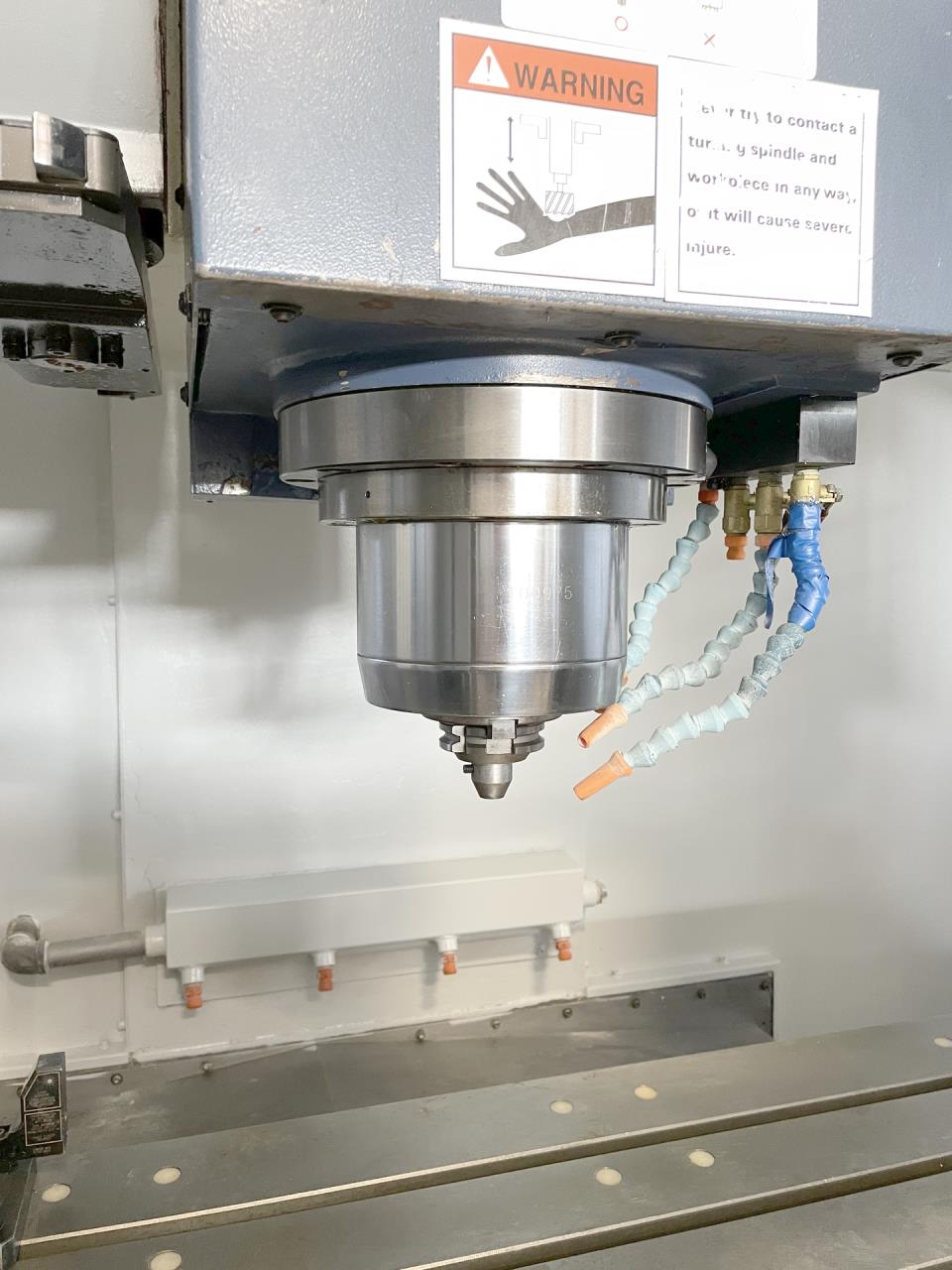

Spindle nose SK
40
Distance spindle nose to table
150 - 650 mm
Spindle speeds:
stepless
up to
15000 rpm
Work feed rate
12 m/min
Rapid traverse: long.
40 m/min
Rapid traverse: transversal
40 m/min
Rapid traverse: vertical
30 m/min
Voltage 50 Hz 3x
400 Volt
Spindle motor
11 / 18.5 kW
Total power required
45 kVA
Machine's weight about
9710 kg
Overall dimensions machine:
Length
3670 mm
Width
2200 mm
Height
3160 mm
Various accessories:
Preparation 4the axis

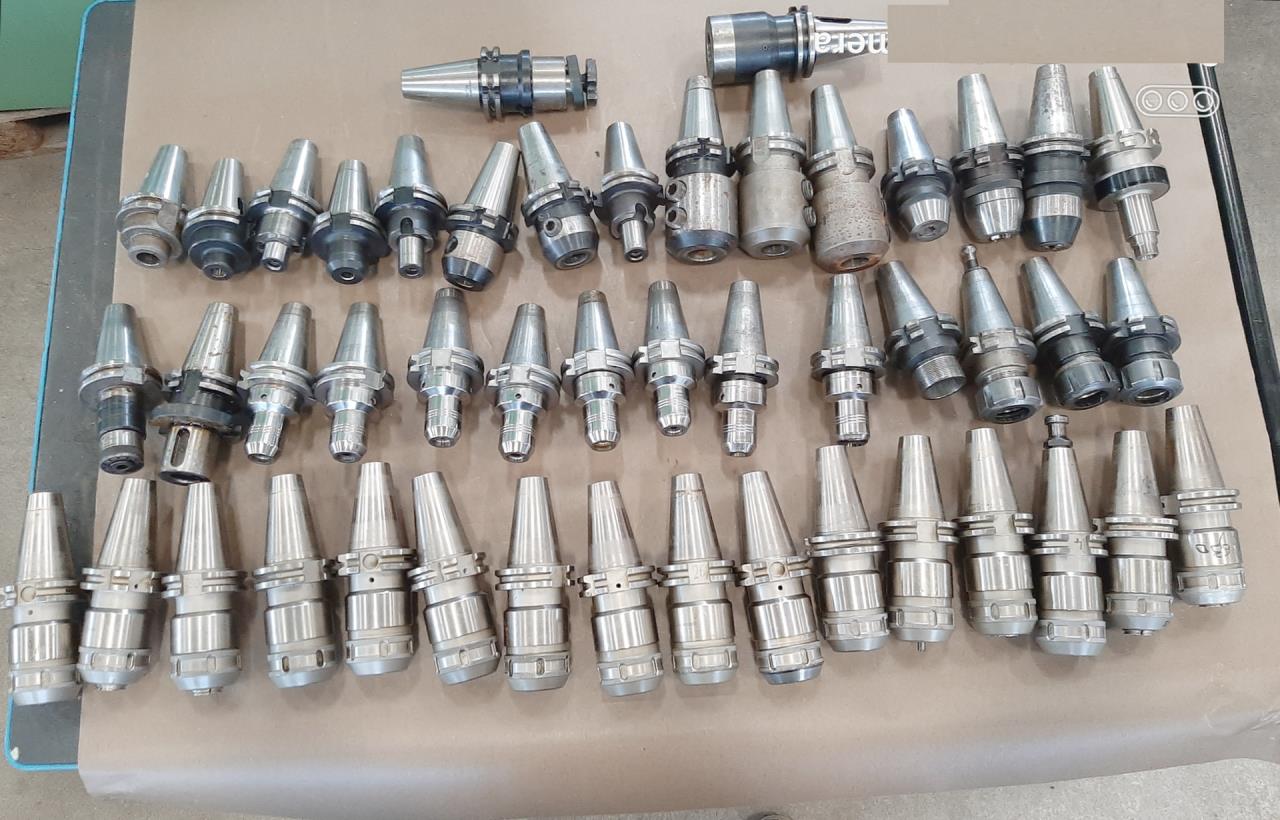

Set of toolholders

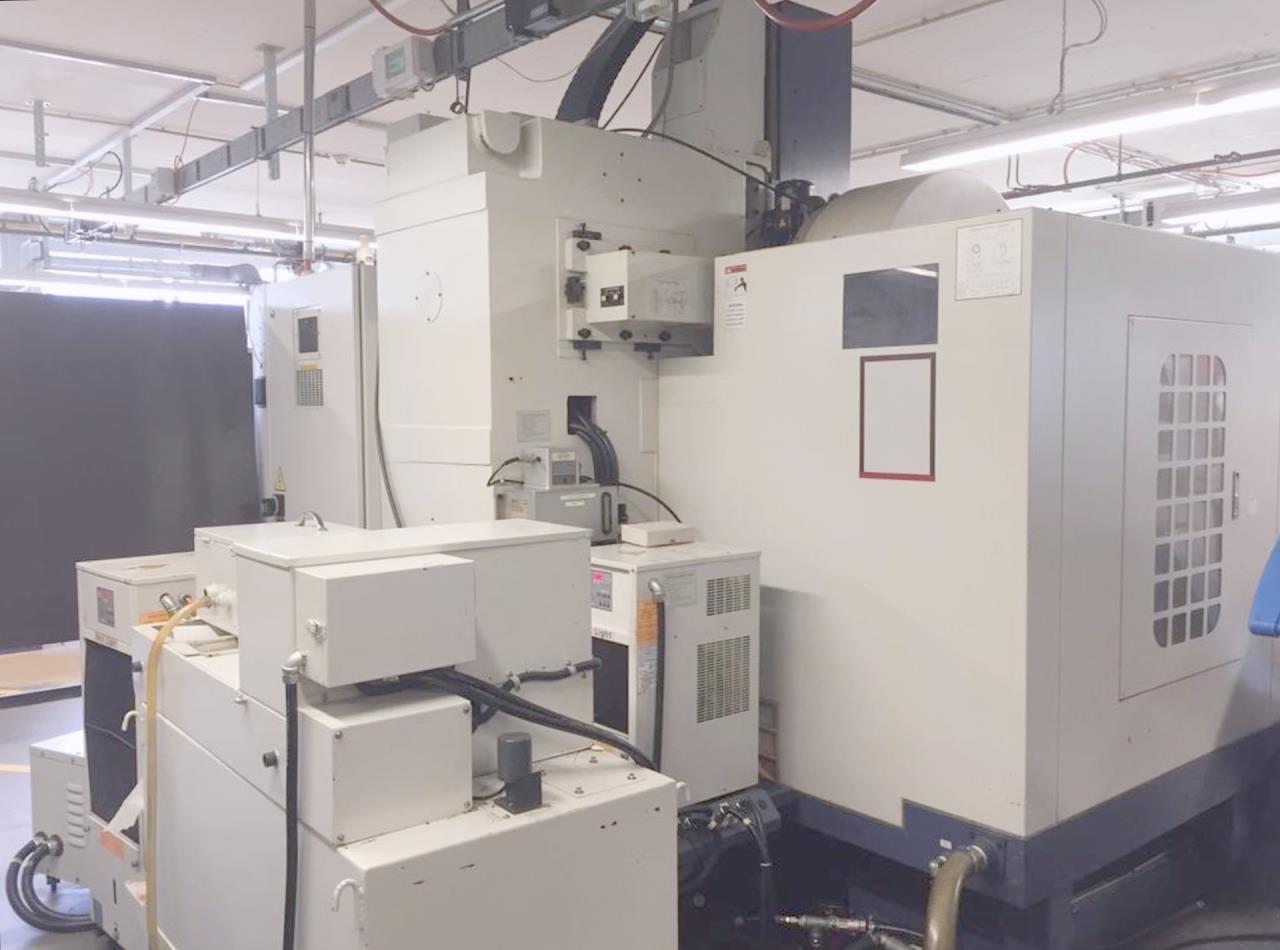

Coolant system
Coolant through spindle (cts)
Paper filter facility
Water cooler

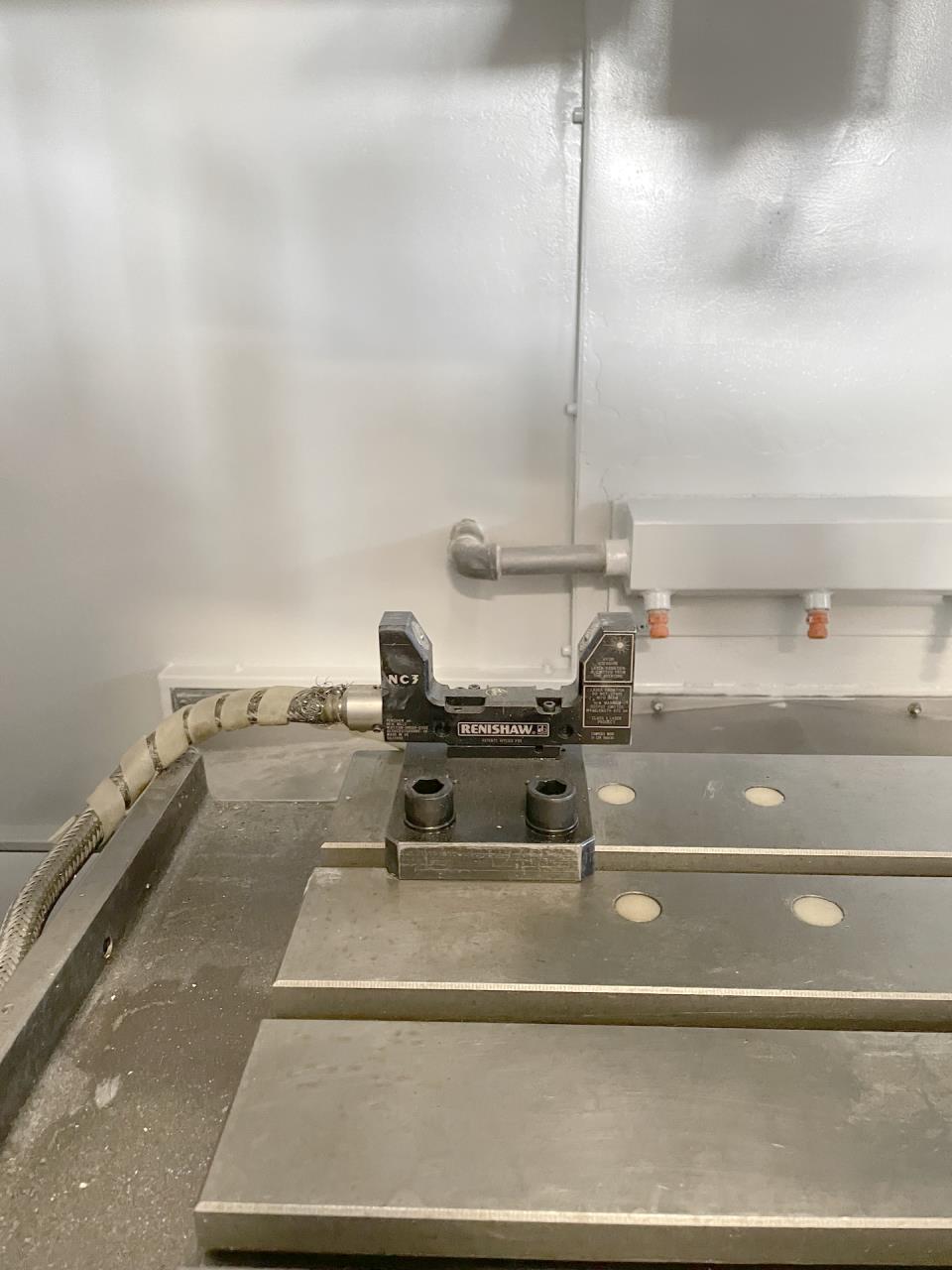

Laser tool setting system
Chip conveyor
Lamp
Status light
Spindle oil cooler
