Technical data

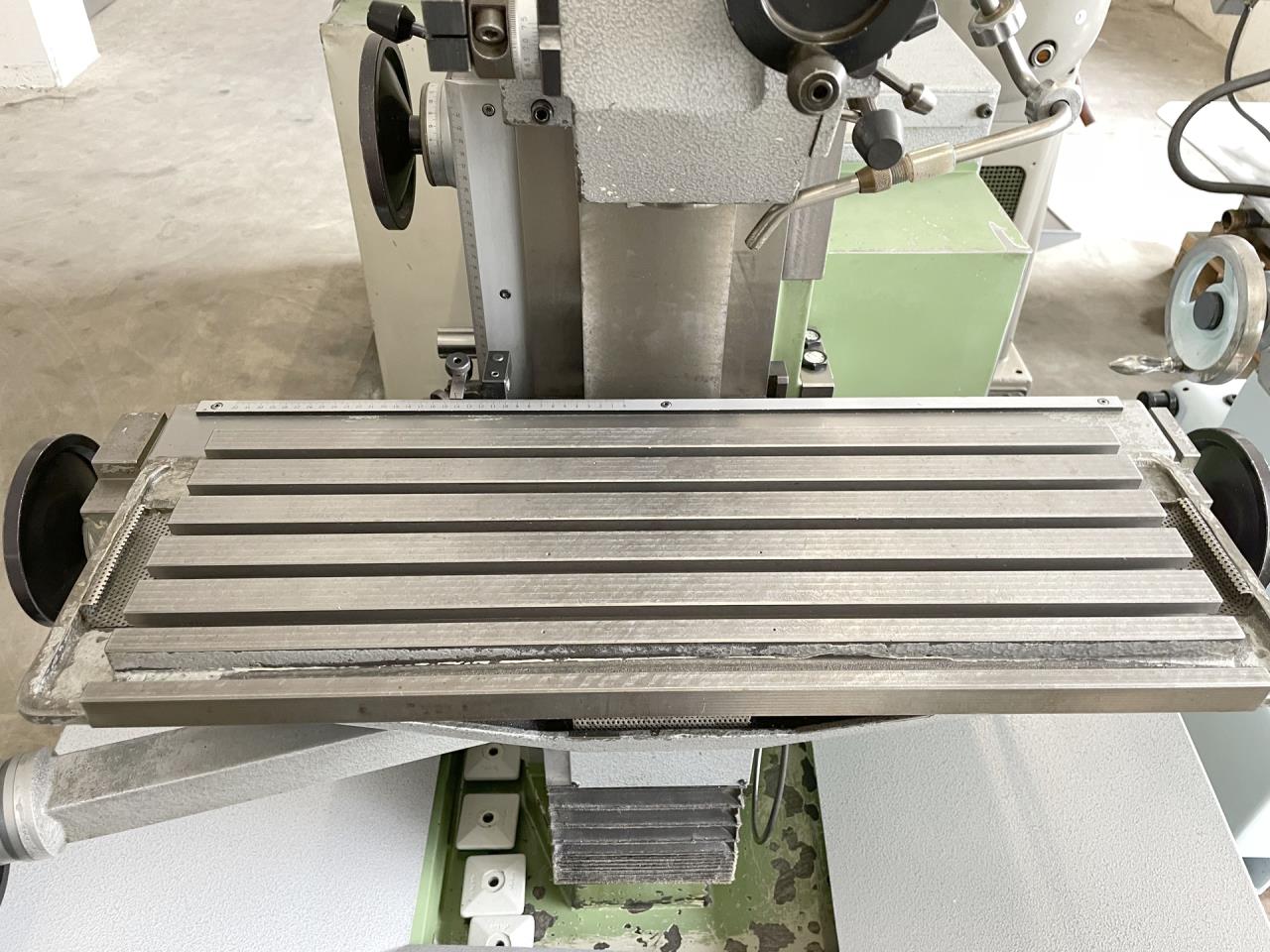

Table length
700 mm
Table width
250 mm
Longitudinal travel (X-axis)
320 mm
Transversal travel (y axis)
220 mm
Vertical travel (z axis)
410 mm
Spindle speeds:
stepless
from
56 rpm
up to
3150 rpm
Taper in spindle
30 ISO
Feeds stepless:
longitudinal from
8 mm/min
up to
1000 mm/min
transversal from
8 mm/min
up to
1000 mm/min
vertical from
8 mm/min
up to
1000 mm/min
Vertical quill travel
60 mm
Rapid traverse:
longitudinal
2 m/min
transversal
2 m/min
vertical
2 m/min
Voltage 50 Hz 3x
380 Volt
Motor power
1.8 kW
Total power required
2.6 kW
Machine's weight about
1000 kg
Overall dimensions machine:
Length
1800 mm
Width
1200 mm
Height
1500 mm
Various accessories:
Lamp
Chip tray
Technical specifications and pictures without guarantee.
