Technical data
Grinding length
1015 mm
Grinding width
405 mm
Grinding height
350 mm
Table speeds:
stepless
from
5 m/min
up to
25 m/min

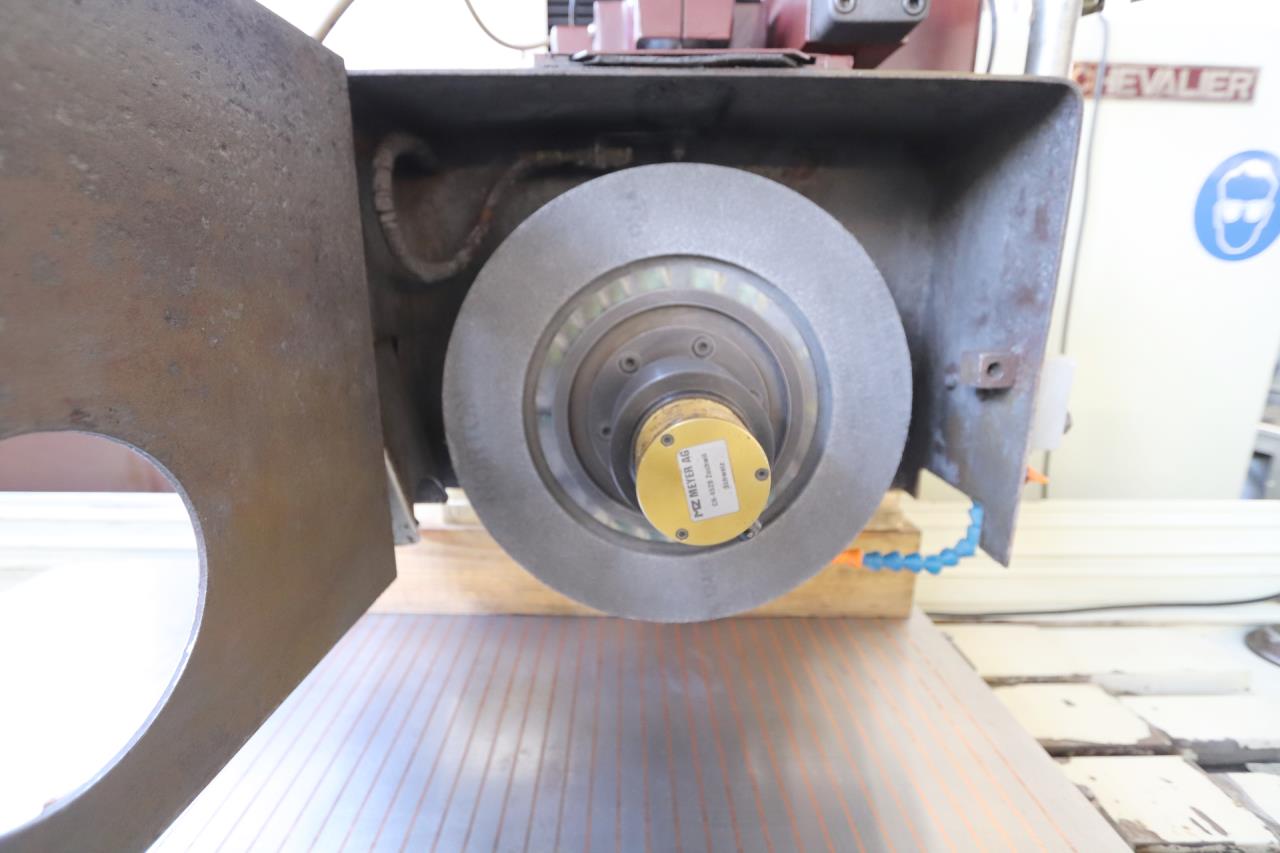

Diameter of grinding wheel
355 mm
Width of the grinding wheel
50 mm
Wheel int. diameter
127 mm
Total power required
3.7 kW
Machine's weight about
3600 kg
Overall dimensions machine:
Length
3500 mm
Width
1700 mm
Height
2000 mm
Various accessories:
Coolant system

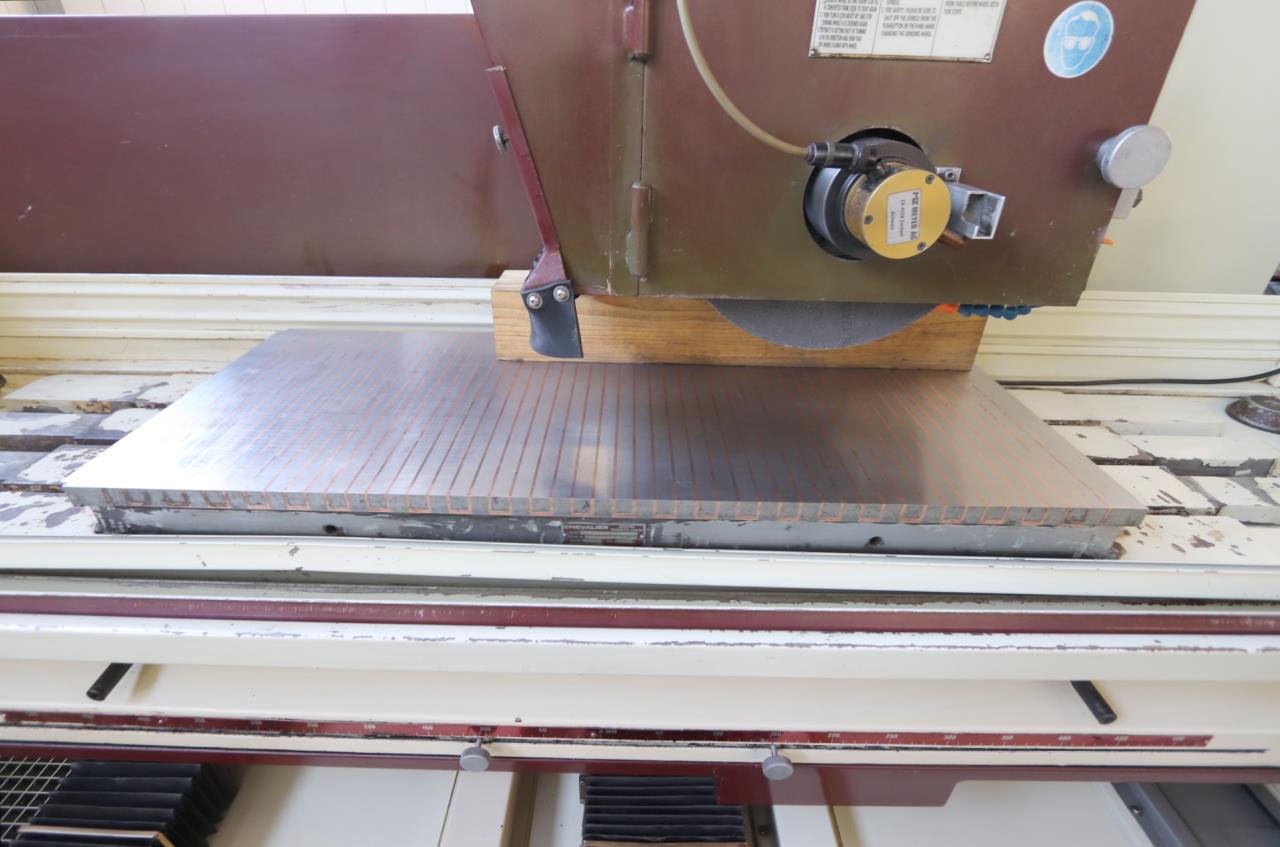

Electrical magnetic chuck
Length
1000 mm
Width
400 mm

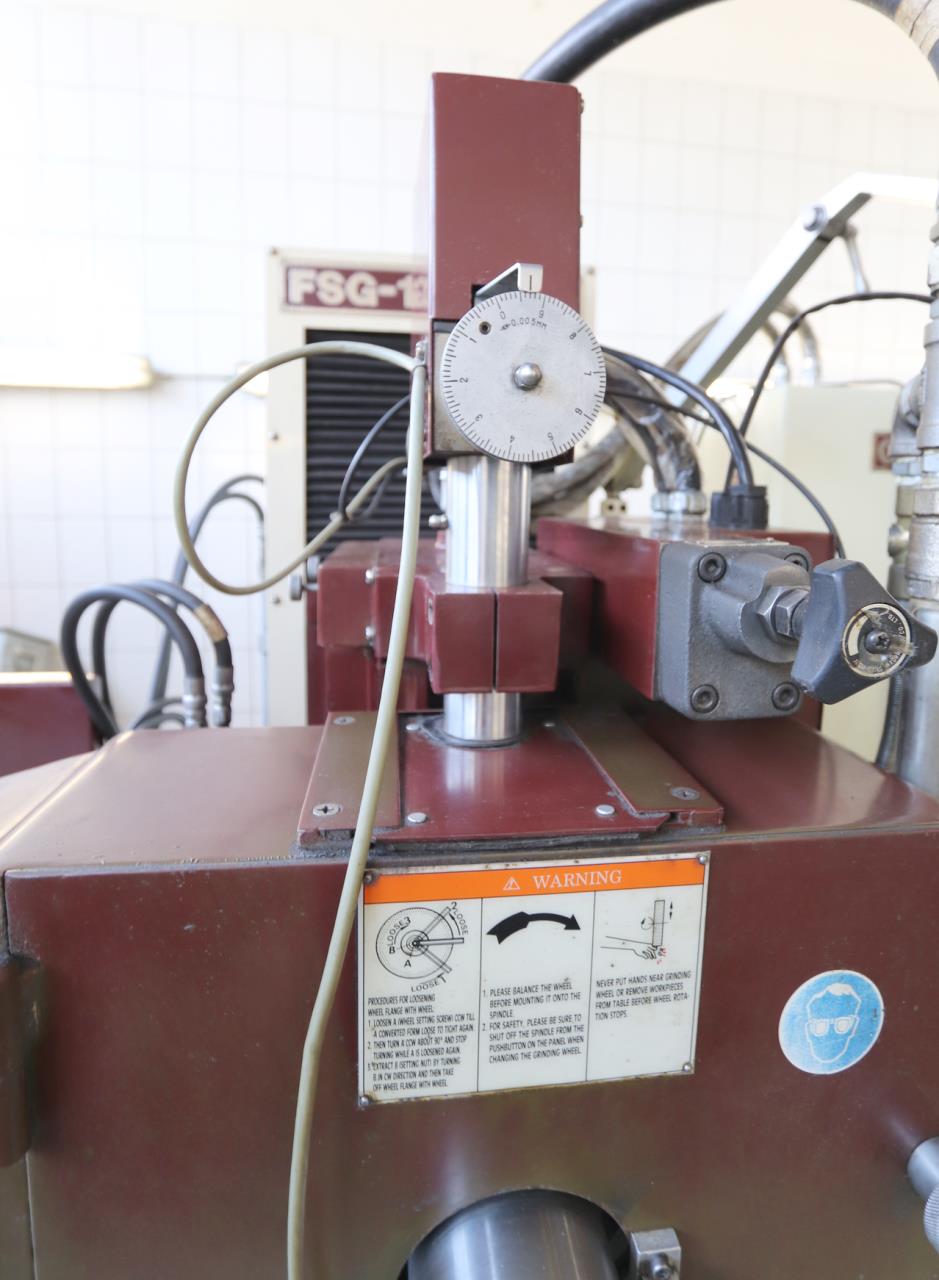

Redressing device
Lamp

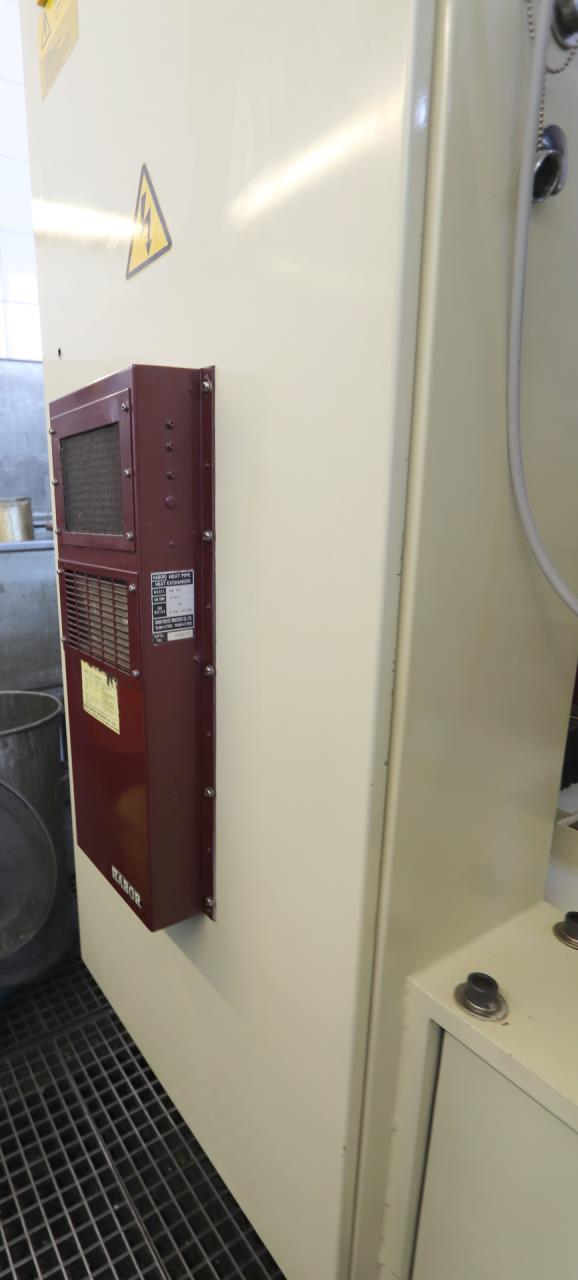

Switch cabinet Air conditioner
Technical specifications and pictures without guarantee.
