stock no. :
20888
Machine's group :
Type :

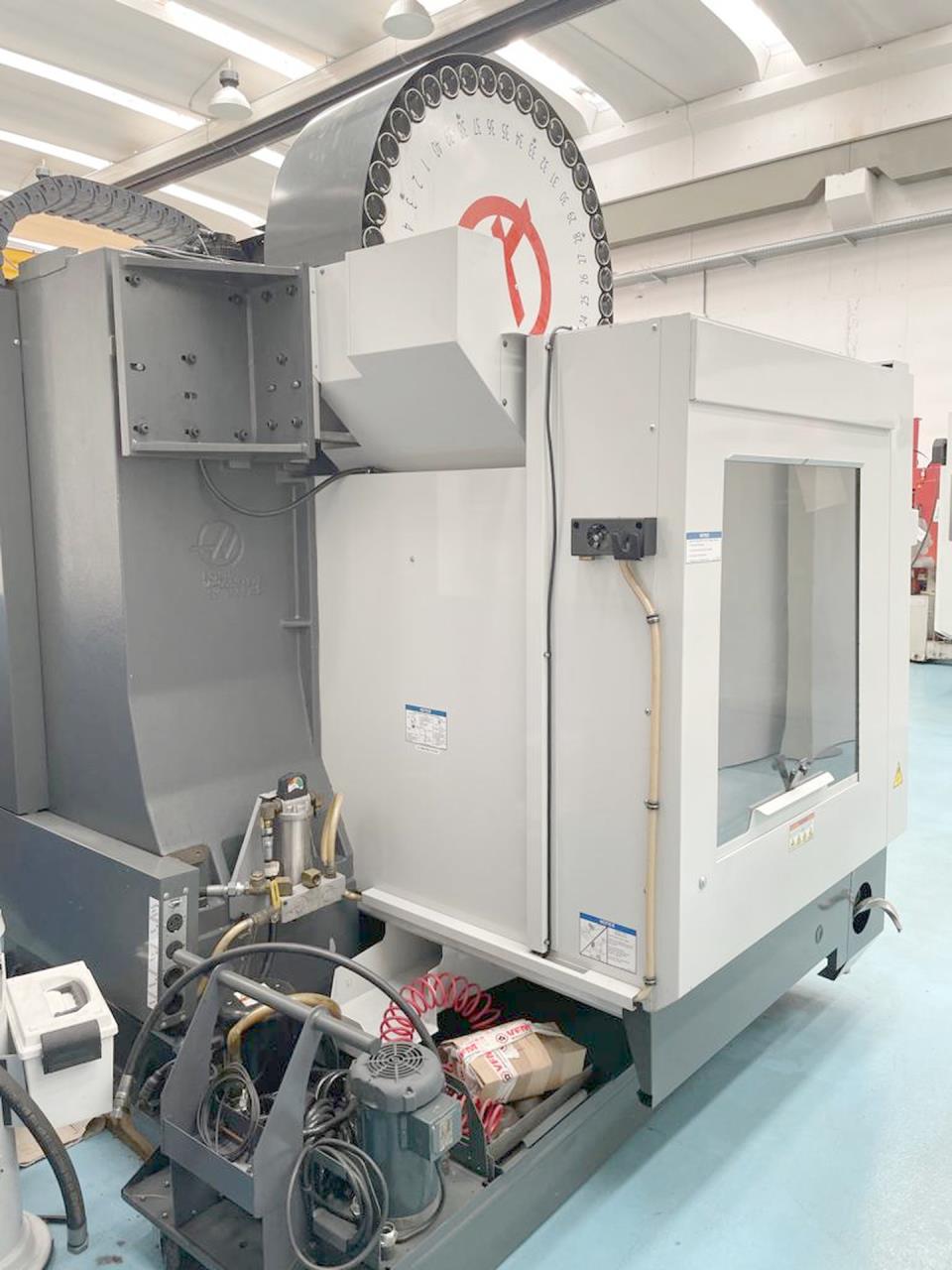

HAAS VF-3SSAPC

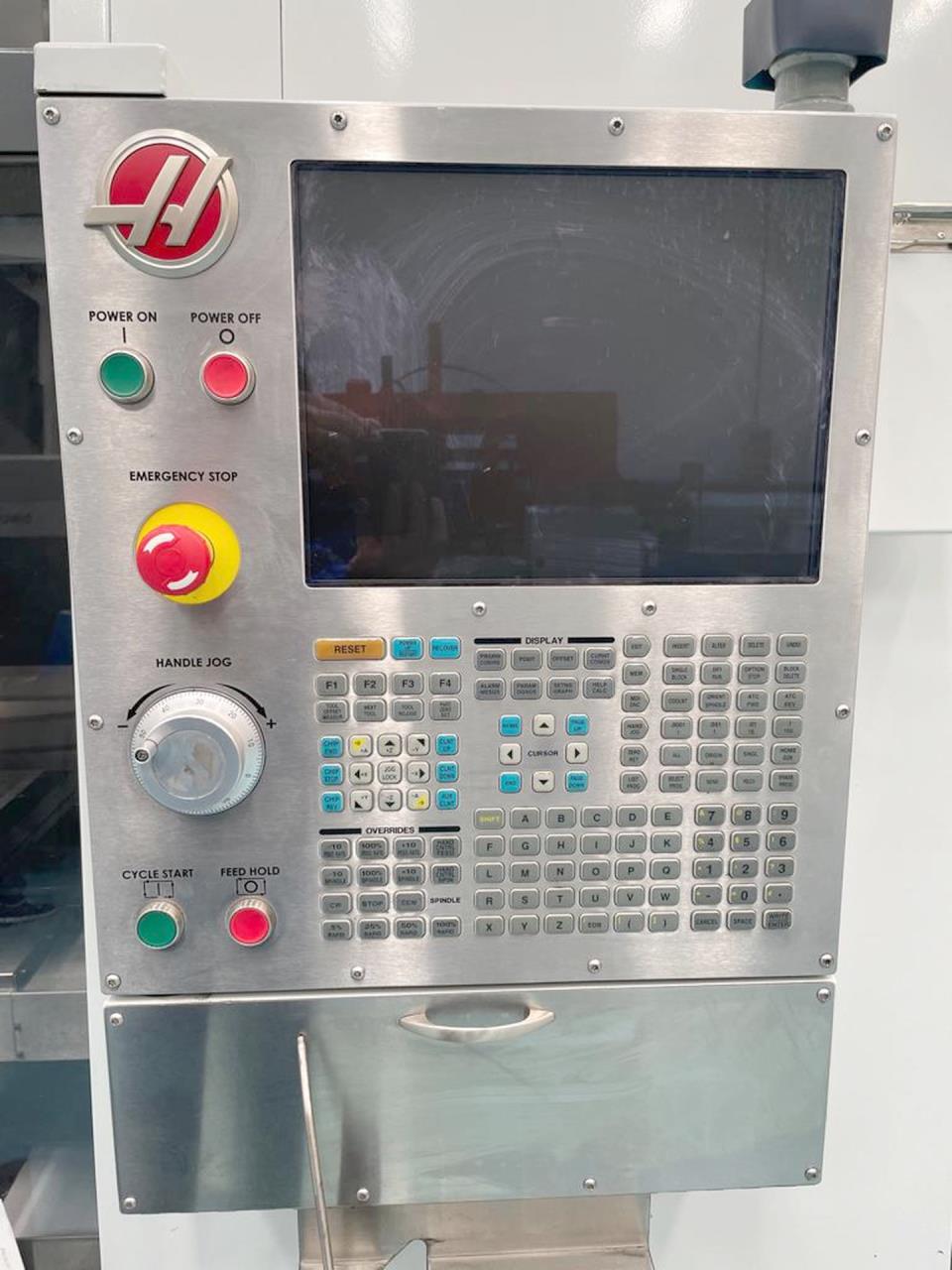

Controller :
HAAS AUTOMATION
Jahrgang :
2010
Technical data
Number of axis total
3
Table length
1219 mm
Table width
457 mm
Table load max.
794 kg
Longitudinal travel (X-axis)
1016 mm
Transversal travel (y-axis)
508 mm
Vertical travel (z axis)
635 mm

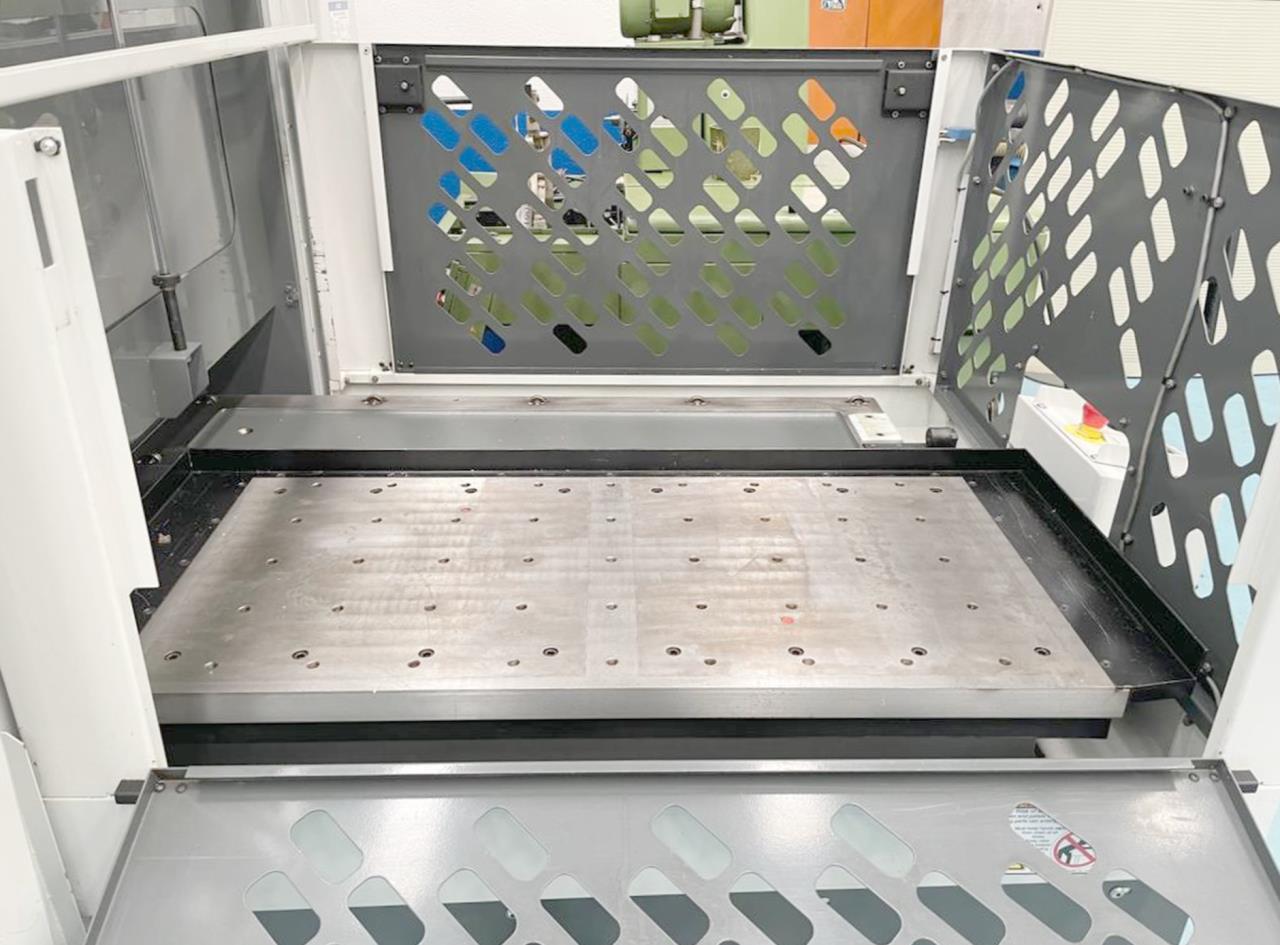

Pallets:
numbers
2

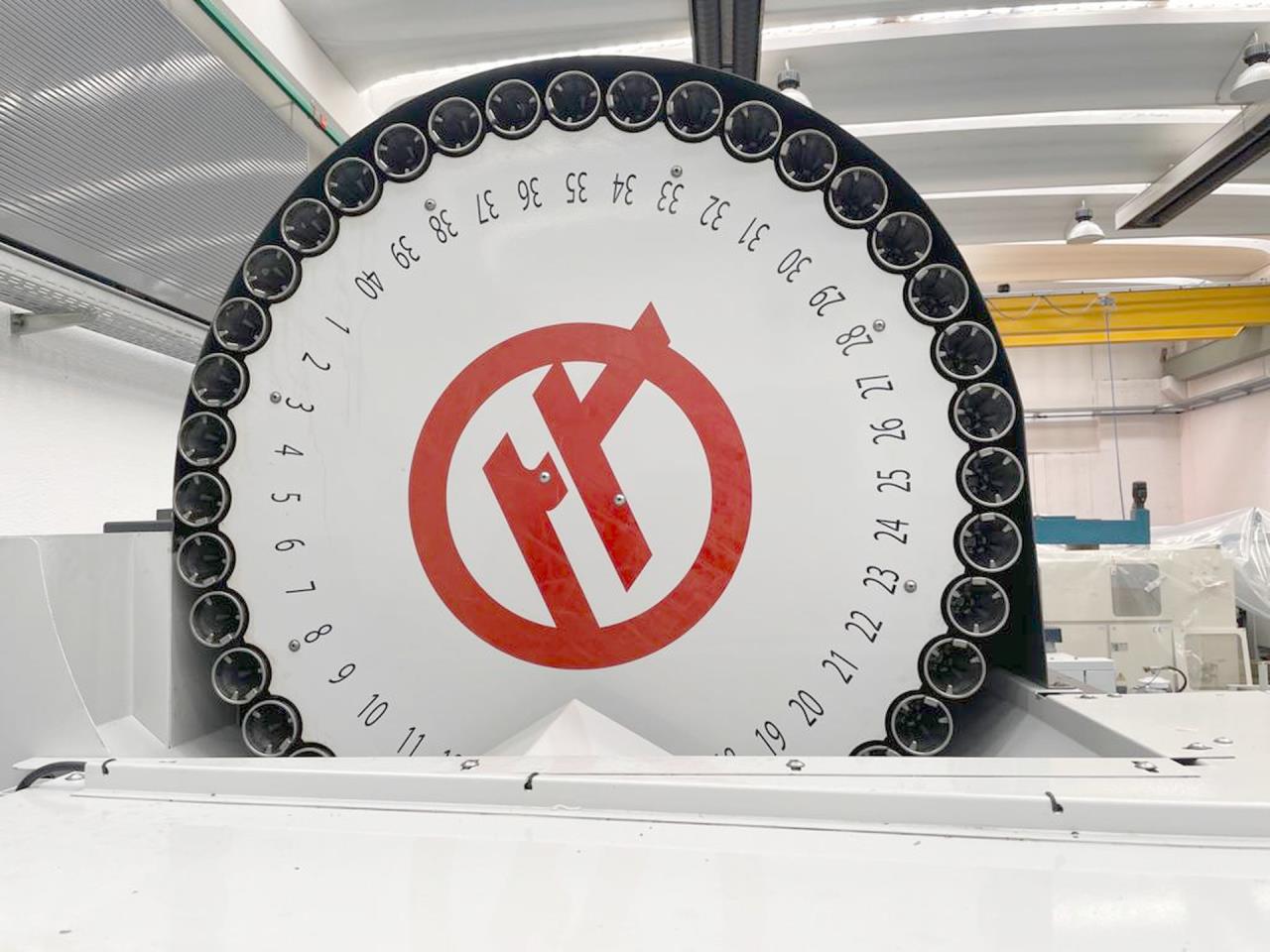

Tool changer:
Number of tools
40
Tool diameter max.
64 mm
Diameter with free adjacent pockets
127 mm
Tool lenght
330 mm
Max. tool-weight
5.4 kg
Time of tool changing
2.8 sec
Distance spindle nose to table
742 mm
Spindle speeds:
stepless
up to
12000 rpm
Work feed rate
21.2 m/min
Rapid traverse:
35.6 m/min
Air connect
6 bar
Voltage 50 Hz 3x
400 Volt
Spindle power
22.4 kW
Machine's weight about
6300 kg
Various accessories:
Coolant system
208 l

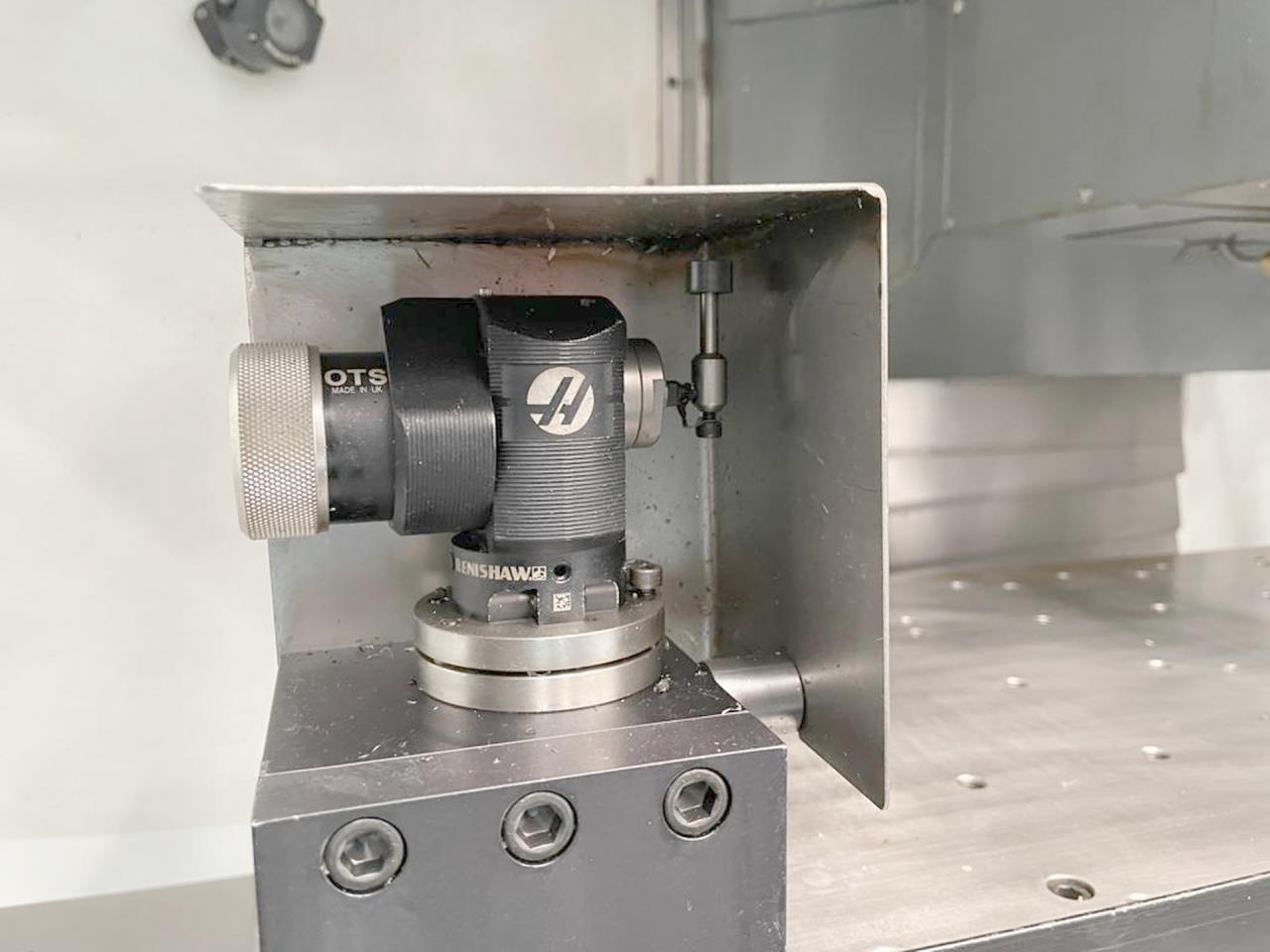

Tool setter Renishaw

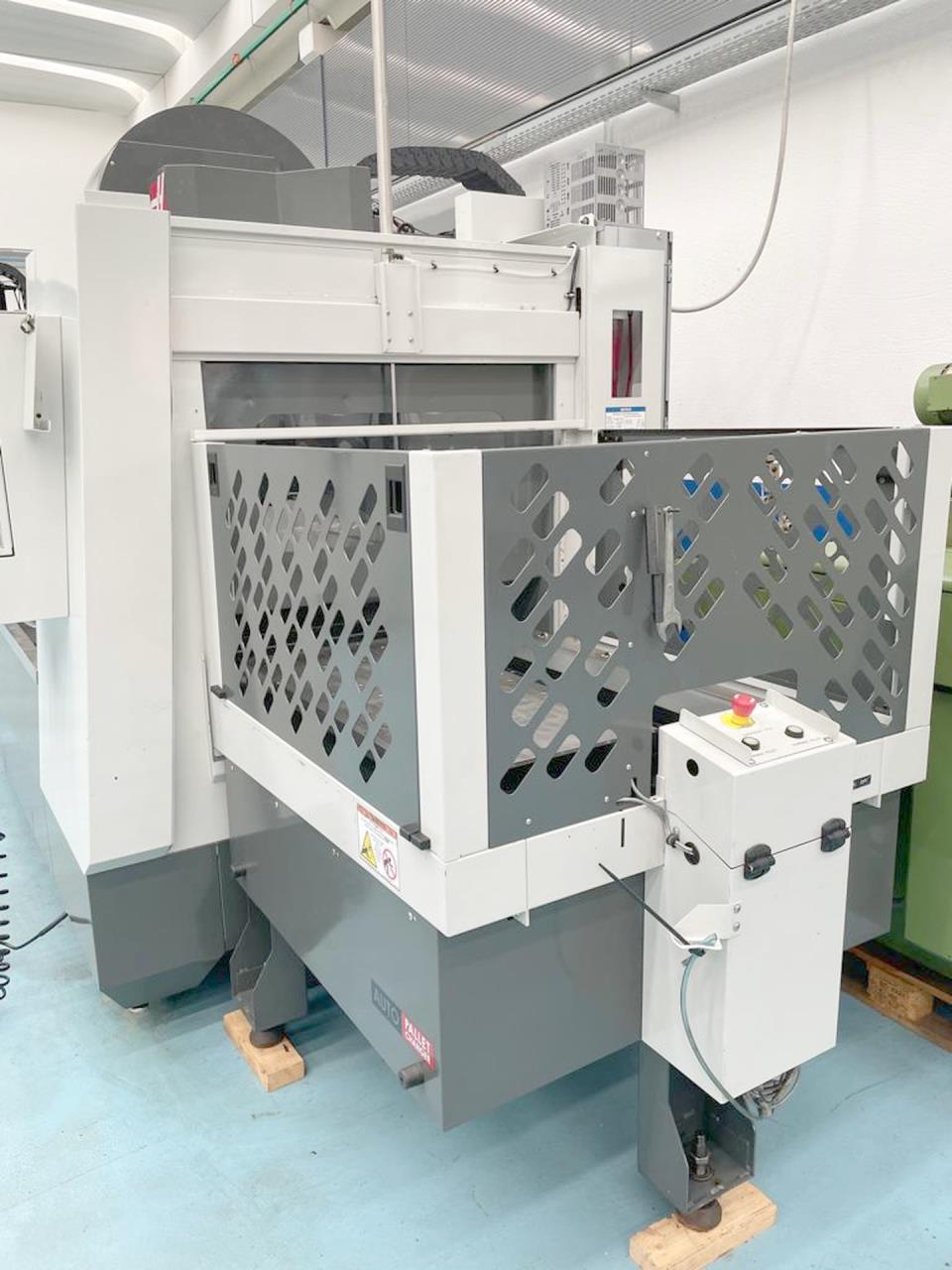

Pallets chanching device:
Technical specifications and pictures without guarantee.
